  1. 技能:郵件系統維運課程: 郵件系統障礙處理流程北區機房暨IDC維運組 鄭任峰

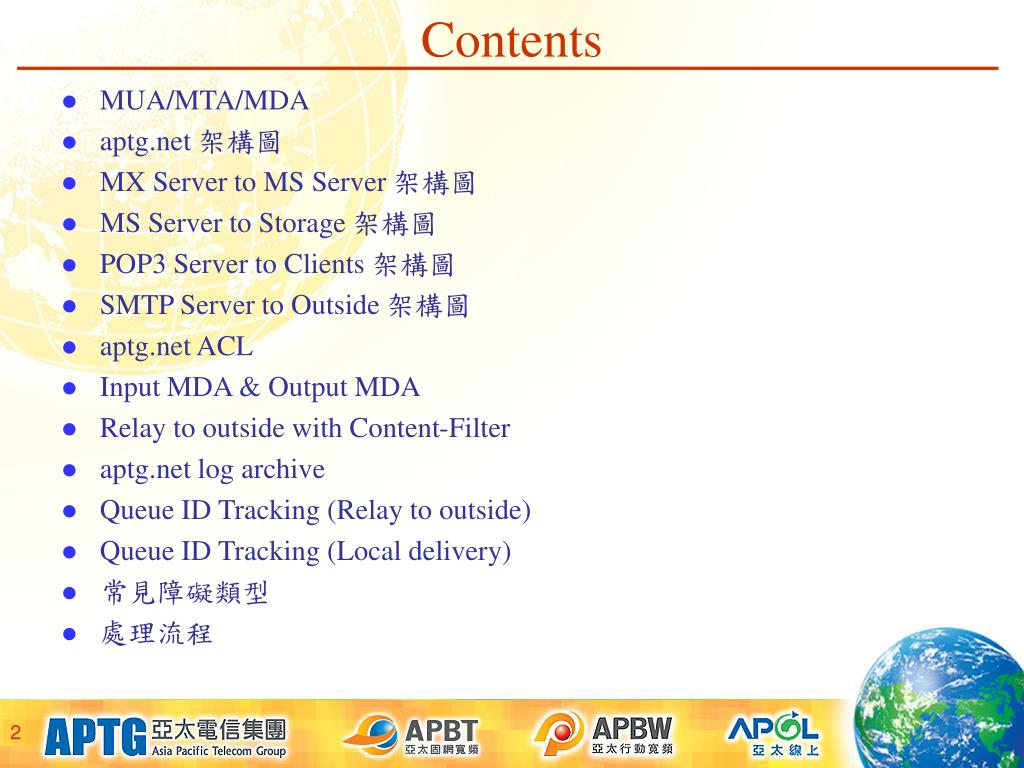

  2. Contents • MUA/MTA/MDA • aptg.net 架構圖 • MX Server to MS Server 架構圖 • MS Server to Storage 架構圖 • POP3 Server to Clients 架構圖 • SMTP Server to Outside 架構圖 • aptg.net ACL • Input MDA & Output MDA • Relay to outside with Content-Filter • aptg.net log archive • Queue ID Tracking (Relay to outside) • Queue ID Tracking (Local delivery) • 常見障礙類型 • 處理流程

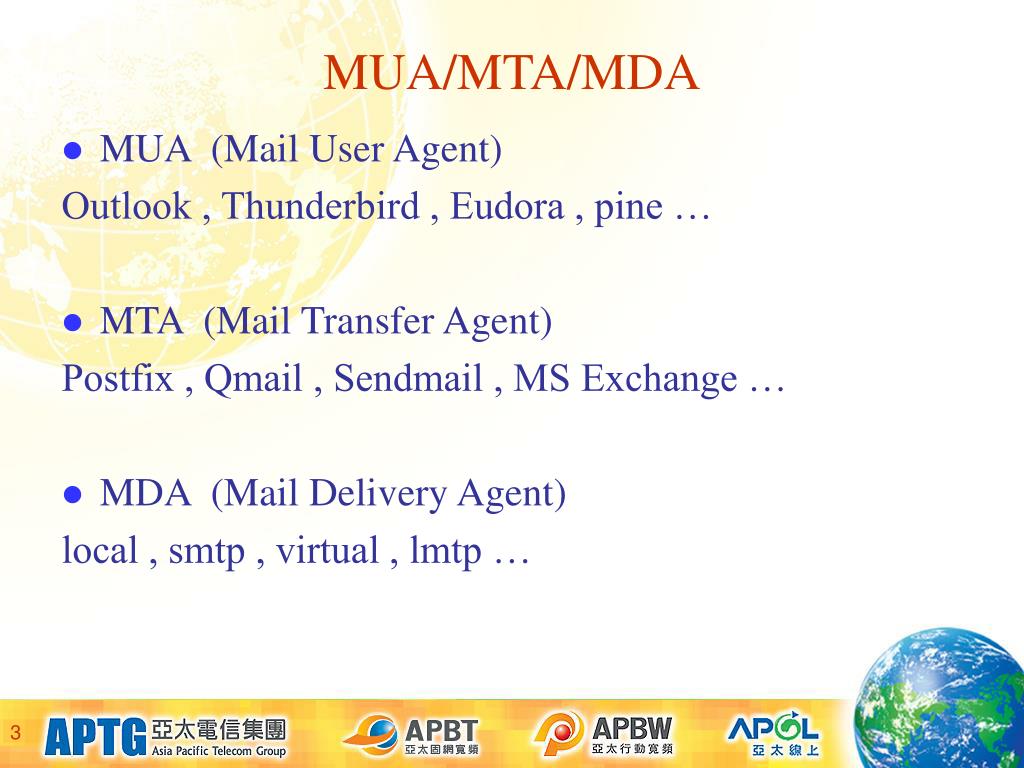

  3. MUA/MTA/MDA • MUA (Mail User Agent) Outlook , Thunderbird , Eudora , pine … • MTA (Mail Transfer Agent) Postfix , Qmail , Sendmail , MS Exchange … • MDA (Mail Delivery Agent) local , smtp , virtual , lmtp …

  4. aptg.net 架構圖

  5. MX Server to MS Server 架構圖 MDA : smtpx Protocol : SMTP MDA : smtpdx Port: 7777

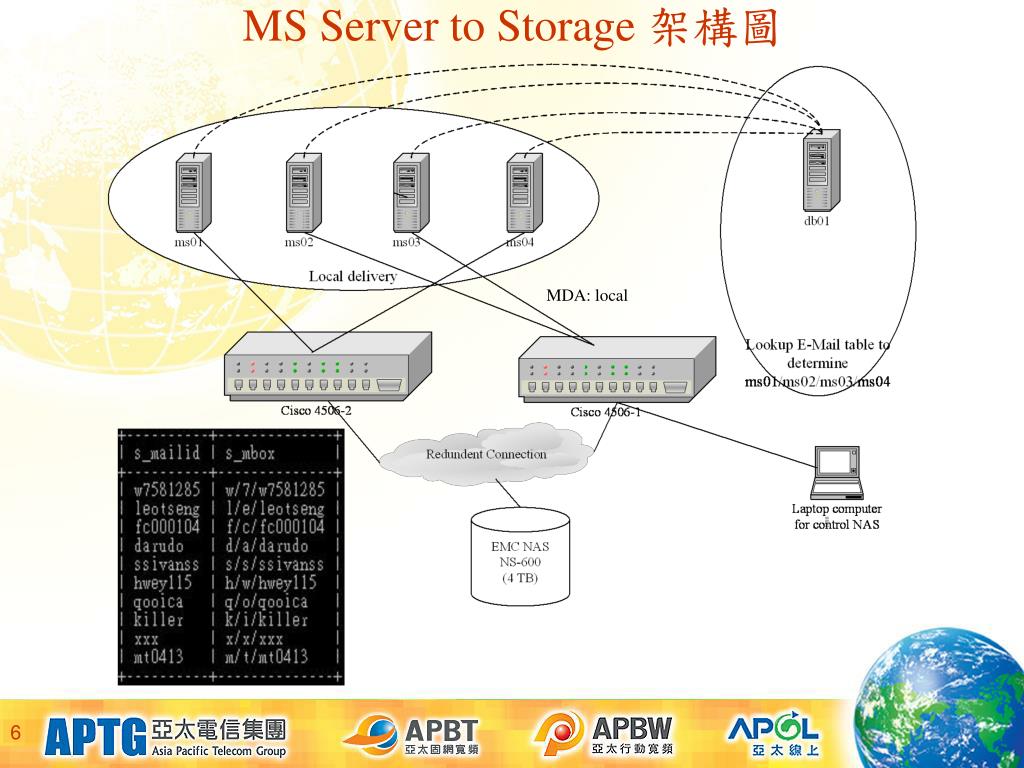

  6. MS Server to Storage 架構圖 MDA: local

  7. POP3 Server to Clients 架構圖 Protocol: POP3 Port: 110 Clients (MUA) MDA: POP3d

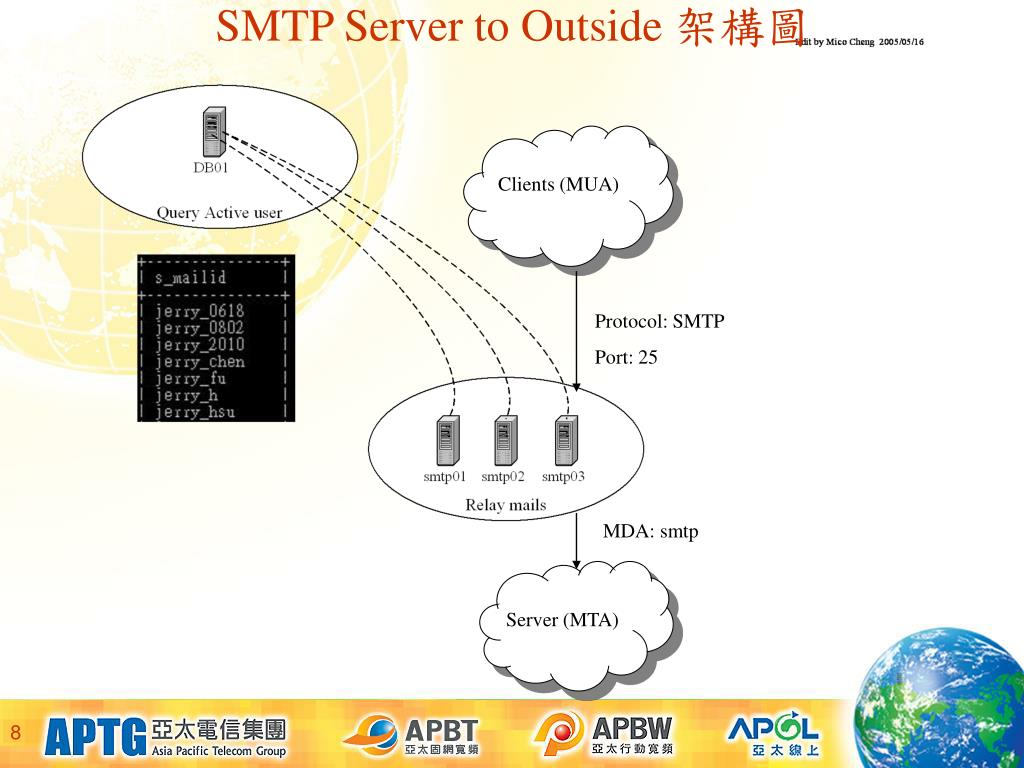

  8. SMTP Server to Outside 架構圖 Clients (MUA) Protocol: SMTP Port: 25 MDA: smtp Server (MTA)

  9. aptg.net ACL • PassList • AllowIP • Deny IP • Deny Mailfrom • Deny Domain • TrustIP

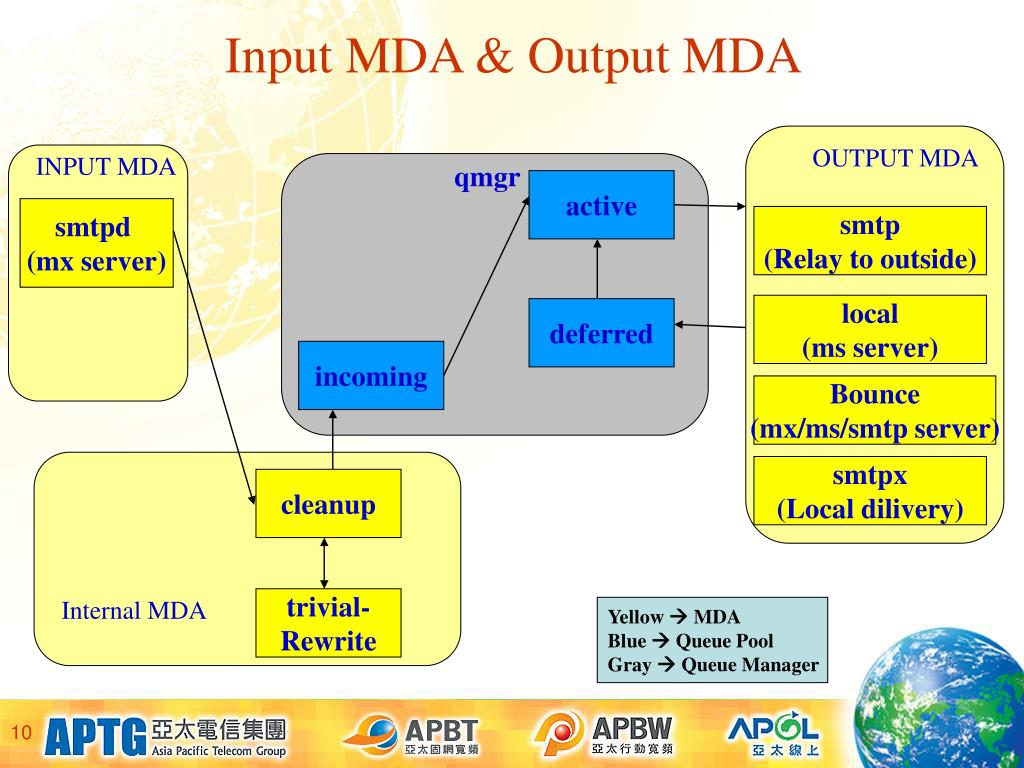

  10. Input MDA & Output MDA OUTPUT MDA INPUT MDA qmgr active smtpd (mx server) smtp (Relay to outside) local (ms server) deferred incoming Bounce (mx/ms/smtp server) smtpx (Local dilivery) cleanup Internal MDA trivial- Rewrite Yellow  MDA Blue  Queue Pool Gray  Queue Manager

  11. Relay to outside with Content-Filter qmgr Port:25 smtp smtpd cleanup incoming active deferred cleanup chkmsg smtp smtpd Yellow  MDA Blue  Queue Pool Gray  Queue Manager Deep Blue  Amavis Port:10025 Port:10024 Amavis

  12. aptg.net log archive 1/3 • Log archive : [root@pop02 /]# df –k|grep 10.0.2.1 Filesystem 1k-blocks Used Available Use% Mounted on 10.0.2.1:200g_1 201674984 102503320 99171664 51% /backup 10.0.2.1:500g_2 504186984 288119680 216067304 58% /export/ms01 10.0.2.1:500g_3 504186984 264707784 239479200 53% /export/ms02 10.0.2.1:500g_4 504186984 239957976 264229008 48% /export/ms03 10.0.2.1:500g_5 540799376 63087440 477711936 12% /export/ms04 Log archive directory : /backup/maildebug & /backup/maillog

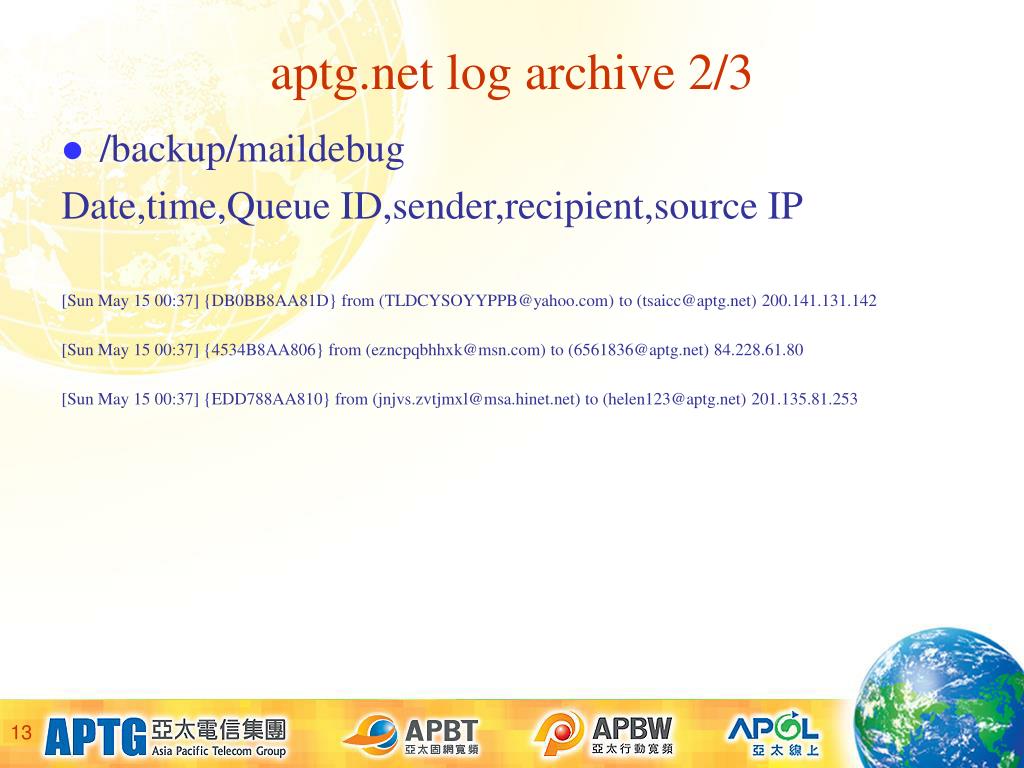

  13. aptg.net log archive 2/3 • /backup/maildebug Date,time,Queue ID,sender,recipient,source IP [Sun May 15 00:37] {DB0BB8AA81D} from (TLDCYSOYYPPB@yahoo.com) to (tsaicc@aptg.net) 200.141.131.142 [Sun May 15 00:37] {4534B8AA806} from (ezncpqbhhxk@msn.com) to (6561836@aptg.net) 84.228.61.80 [Sun May 15 00:37] {EDD788AA810} from (jnjvs.zvtjmxl@msa.hinet.net) to (helen123@aptg.net) 201.135.81.253

  14. aptg.net log archive 3/3 • /backup/maillog Date,time,host,MDA,Queue ID,source IP, sender,recipientsize,relay host,delay,status May 15 00:08:05 mx01 postfix/smtpd: D921D8AA811: client=adsl-123-135.37-151.net24.it[151.37.135.123] May 15 00:08:14 mx01 postfix/cleanup: D921D8AA811: message-id=Pine.5.05.@hau410.teem.smithkline.com May 15 00:08:15 mx01 postfix/qmgr: D921D8AA811: from=<ehijx@activatormail.com>, size=2078, nrcpt=2 (queue active) May 15 00:08:16 mx01 postfix/smtp: D921D8AA811: to=<chuju_lin@aptg.net>, relay=127.0.0.1[127.0.0.1], delay=11, status=sent (id=07004-91, from MTA: 250 Ok: queued as 32CF68AA823) May 15 00:08:16 mx01 postfix/smtp: D921D8AA811: to=<chunchun@aptg.net>, relay=127.0.0.1[127.0.0.1], delay=11, status=sent (id=07004-91, from MTA: 250 Ok: queued as 32CF68AA823)

  15. Queue ID Tracking (Relay to outside) 1/2

  16. Queue ID Tracking (Relay to outside) 2/2

  17. Queue ID Tracking (Local delivery) 1/2

  18. Queue ID Tracking (Local delivery) 2/2

  19. 常見障礙類型 • 用戶收不到由他網所寄進來的信件 • 用戶寄出信件後,對方收不到 • 用戶寄不出信件,Outlook跳出錯誤碼 • 用戶寄件後,對方等待很久才收到信件 • 用戶等待很久後才收到寄件方寄過來的信件 • 用戶帳號/密碼錯誤

  20. 用戶收不到由他網所寄進來的信件 • 檢查流程: (1) 詢問寄件方有無收到退信內容 (2) DenyIP  DenyMailfromDenyDomainMailCheck  於黑名單中移除 (3) 檢查 maildebug 以及maillog : (3-1) Client IP 是否連線異常 (Connection Dropped , Connection Lost)  網路品質 (3-2) amavis log , 查病毒信,廣告信記錄  通知用戶掃毒,或勸說用戶勿寄發廣告信 (3-3) 用戶Quota是否已滿  通知用戶Quota已滿 (3-4) 後端MS Server是否異常 (smtpdx , local MDA 等)  視情況處理 (4) MX & MS Server Queue是否衝高  flush queue等作業 (5) 請用戶提供近三個月曾經成功收到該寄件者的信件  查詢Header (6) 研判為他網問題 障礙資訊需提供: 他網SMTP Server IP , 雙方E-Mail , 對方寄件日期

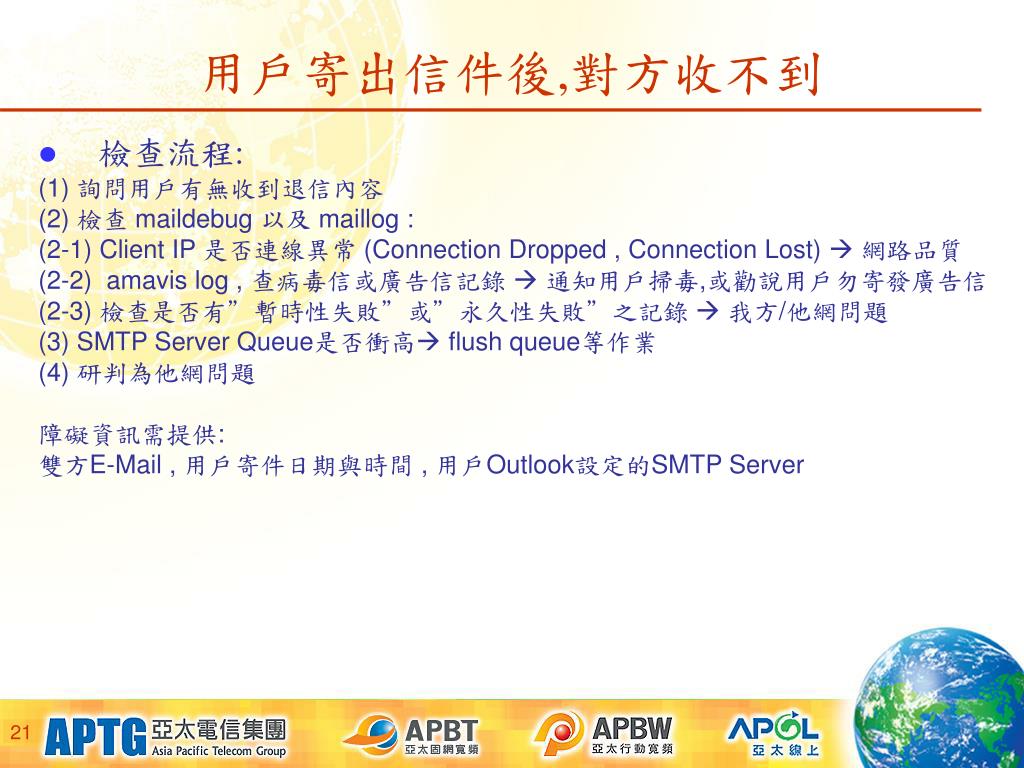

  21. 用戶寄出信件後,對方收不到 • 檢查流程: (1) 詢問用戶有無收到退信內容 (2) 檢查 maildebug 以及maillog : (2-1) Client IP 是否連線異常 (Connection Dropped , Connection Lost)  網路品質 (2-2) amavis log , 查病毒信或廣告信記錄  通知用戶掃毒,或勸說用戶勿寄發廣告信 (2-3) 檢查是否有”暫時性失敗”或”永久性失敗”之記錄  我方/他網問題 (3) SMTP Server Queue是否衝高 flush queue等作業 (4) 研判為他網問題 障礙資訊需提供: 雙方E-Mail , 用戶寄件日期與時間 , 用戶Outlook設定的SMTP Server

  22. 用戶寄不出信件,Outlook跳出錯誤碼 • 檢查流程: (1) 檢查 DenyIP , DenyMailfrom , DenyDomain (2) 檢查TrustIP (3) Client端MUA與網路設定  SMTP/POP3 Server , DNS Server (4) Client端是否網路/軟體異常  請用戶單機測試,不接防火牆,不裝防毒軟體, 以及轉單至CM/ADSL單位檢查網路品質 (5) 派工CMTS / ADSL 障礙資訊需提供: 用戶 IP , 雙方E-Mail , 用戶 DNS Server , 用戶Outlook設定之 SMTP Server ,Outlook錯誤碼, Cable Modem型號

  23. 用戶寄件後,對方等待很久才收到信件 • 檢查流程: (1) 檢查 maillog : (1-1) 收件端Server是否異常  申告他網障礙 (1-2) 當時SMTP Server Queue是否衝高  delay值,視情況處理 障礙資訊需提供: 雙方E-Mail , 用戶寄件日期與時間

  24. 用戶等待很久後才收到寄件方寄過來的信件 • 檢查流程: (1) 檢查 maillog : (1-1) 檢查收信日期與時間是否與寄件日期時間吻合  若吻合,則為他網問題 (1-2) 我方MX Server是否異常,Queue是否衝高  視情況處理 障礙資訊需提供: 雙方E-Mail , 用戶寄件日期與時間

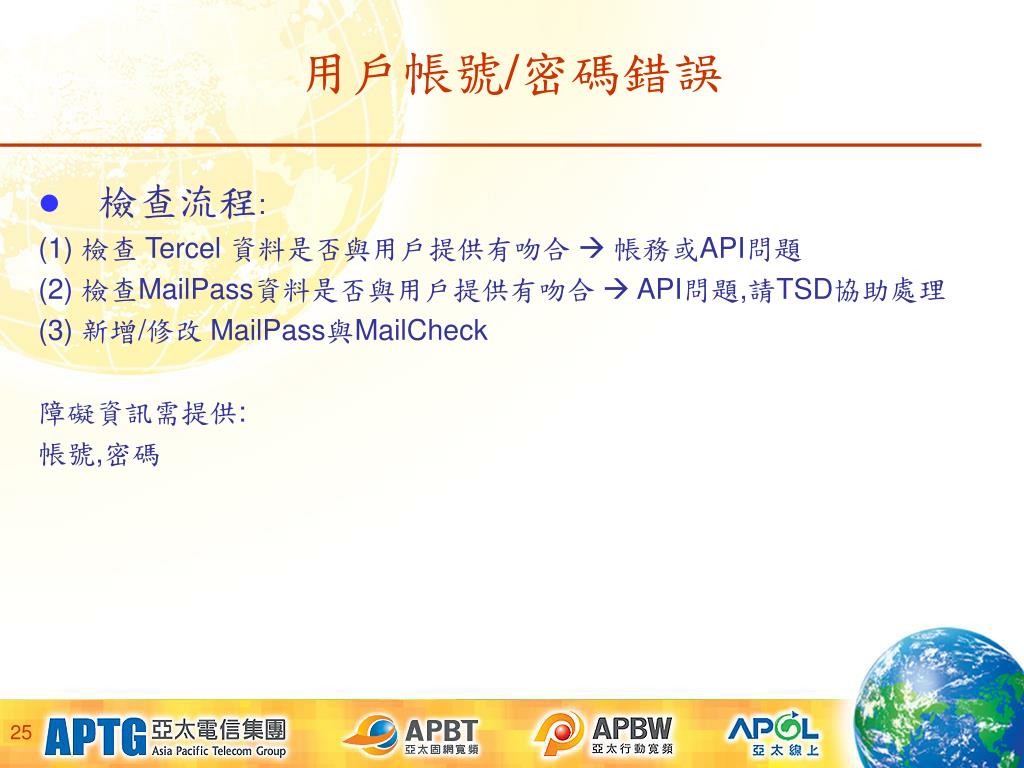

  25. 用戶帳號/密碼錯誤 • 檢查流程: (1) 檢查 Tercel 資料是否與用戶提供有吻合  帳務或API問題 (2) 檢查MailPass資料是否與用戶提供有吻合  API問題,請TSD協助處理 (3) 新增/修改 MailPass與MailCheck 障礙資訊需提供: 帳號,密碼

  26. Q & A
