Presentation Transcript
slide1

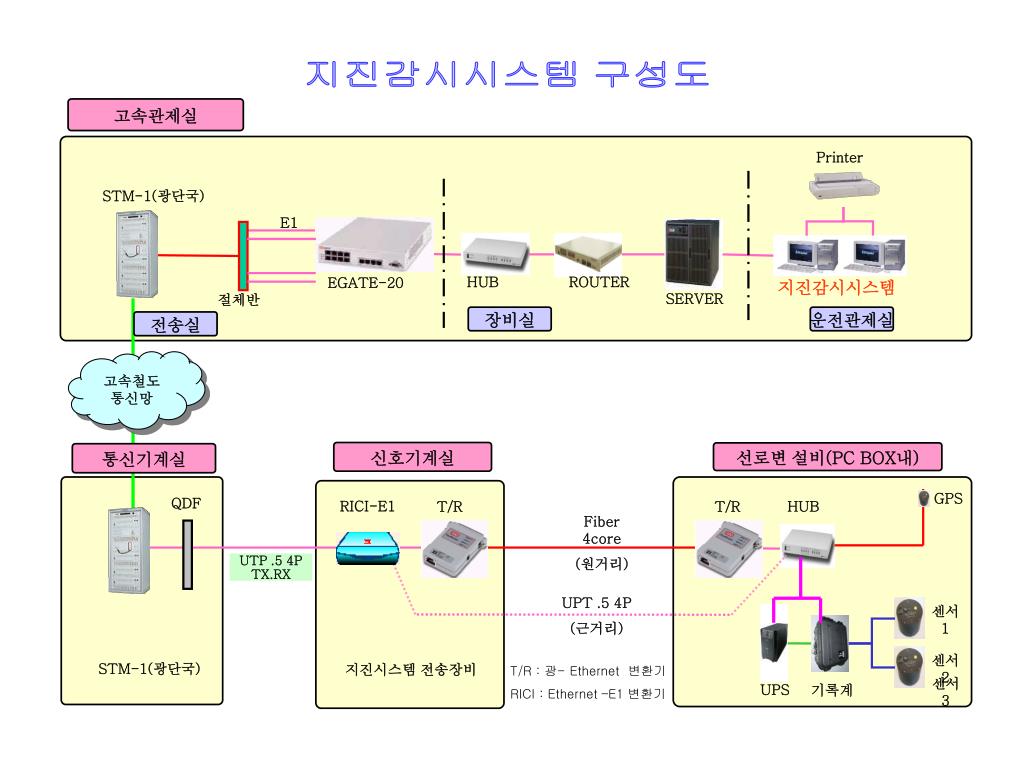

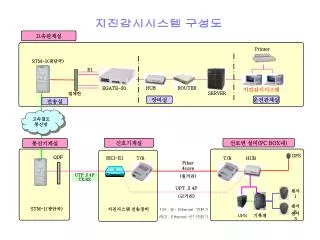

지진감시시스템 구성도

고속관제실

Printer

STM-1(광단국)

E1

지진감시시스템

HUB

ROUTER

EGATE-20

SERVER

절체반

장비실

운전관제실

전송실

고속철도

통신망

신호기계실

선로변 설비(PC BOX내)

통신기계실

GPS

QDF

RICI-E1

T/R

T/R

HUB

Fiber 4core

(원거리)

UTP .5 4P

TX.RX

UPT .5 4P

(근거리)

센서1

T/R : 광- Ethernet 변환기

RICI : Ethernet –E1 변환기

센서2

STM-1(광단국)

지진시스템 전송장비

UPS

기록계

센서3
