Why is Virtual 4-Stroke the best 1D Engine Simulator Available:

  • NEW for 2006: Simulation of load controlled tests.

  • Fundamental accuracy requiring minimal calibration due to 30 years of R&D and 100s of published SAE papers.

  • Powerful parametric design capability.

  • High level accuracy is maintained even for racing engines at the top of the performance envelope.

  • Major features of

  • VIRTUAL 4-STROKE

  • Integrated Database

  • Parametric Engine Design

  • Turbochargers – Fixed & VGT

  • Superchargers

  • 3-Way Catalysts

  • VVT and VIS

  • Load controlled testing

Used by over 50 FSAE Teams

www.optimum-power.com


World Headquarters (USA): Available:

3117 Washington Pike Tel: 412-257-9070

Bridgeville, PA 15017-1496 Fax: 412-257-9011

USA

European Sales Office:

P. O. Box 6094, Stewkley Tel: 44 (0) 1525 242130

Leighton Buzzard LU7 0XW Fax: 44 (0) 1525 242140

United Kingdom

Japanese Office:

Fluent Asia Pacific Co., LTD Tel: 81-3-5324-7306 Nittochi Nishi Shinjuku Bldg. 18F, Fax: 81-3-5324-7302 Tokyo, 160-0023, JAPAN  URL: http://www.fluent.co.jp

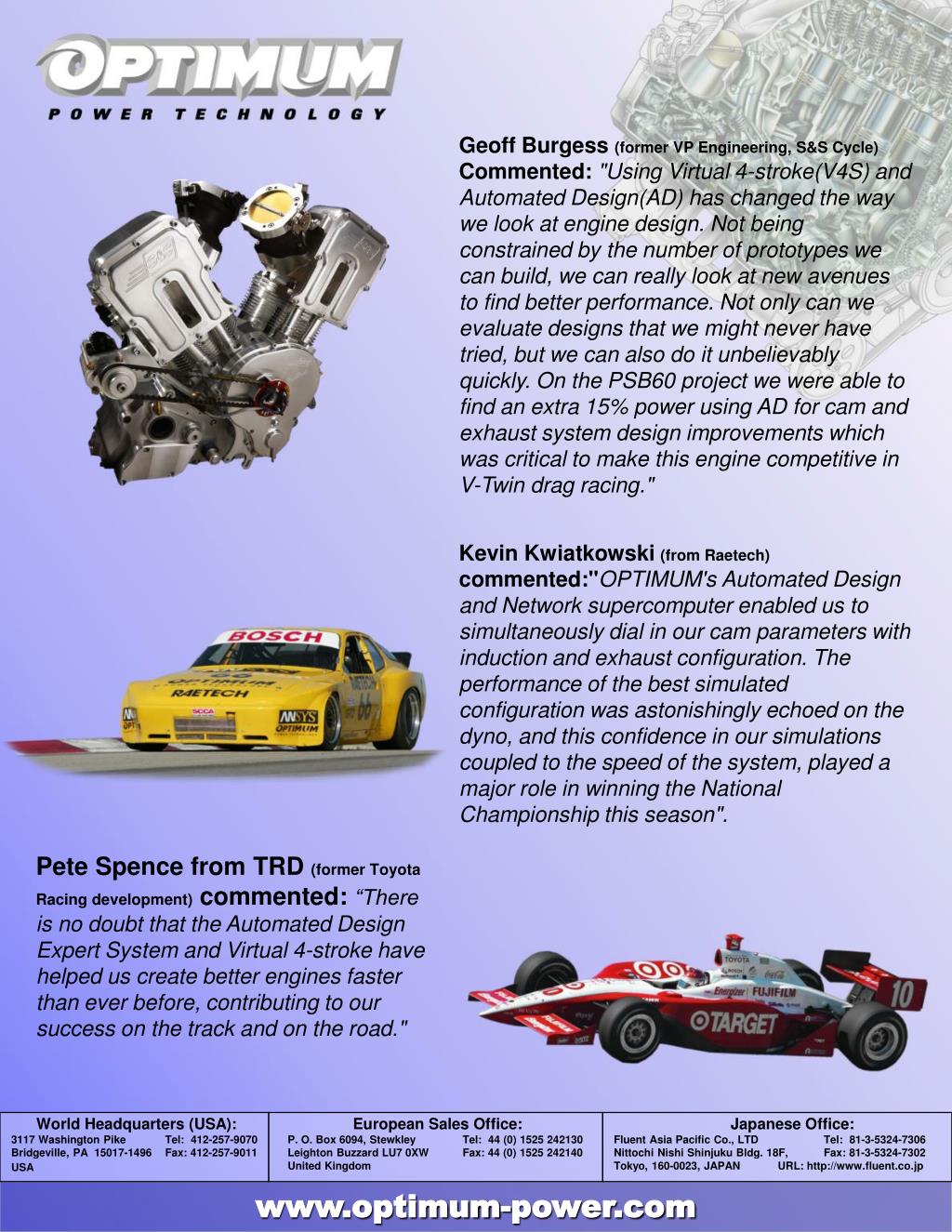

Geoff Burgess (former VP Engineering, S&S Cycle) Commented: "Using Virtual 4-stroke(V4S) and Automated Design(AD) has changed the way we look at engine design. Not being constrained by the number of prototypes we can build, we can really look at new avenues to find better performance. Not only can we evaluate designs that we might never have tried, but we can also do it unbelievably quickly. On the PSB60 project we were able to find an extra 15% power using AD for cam and exhaust system design improvements which was critical to make this engine competitive in V-Twin drag racing."

Kevin Kwiatkowski (from Raetech) commented:"OPTIMUM's Automated Design and Network supercomputer enabled us to simultaneously dial in our cam parameters with induction and exhaust configuration. The performance of the best simulated configuration was astonishingly echoed on the dyno, and this confidence in our simulations coupled to the speed of the system, played a major role in winning the National Championship this season".

Pete Spence from TRD (former Toyota Racing development) commented: “There is no doubt that the Automated Design Expert System and Virtual 4-stroke have helped us create better engines faster than ever before, contributing to our success on the track and on the road."

www.optimum-power.com

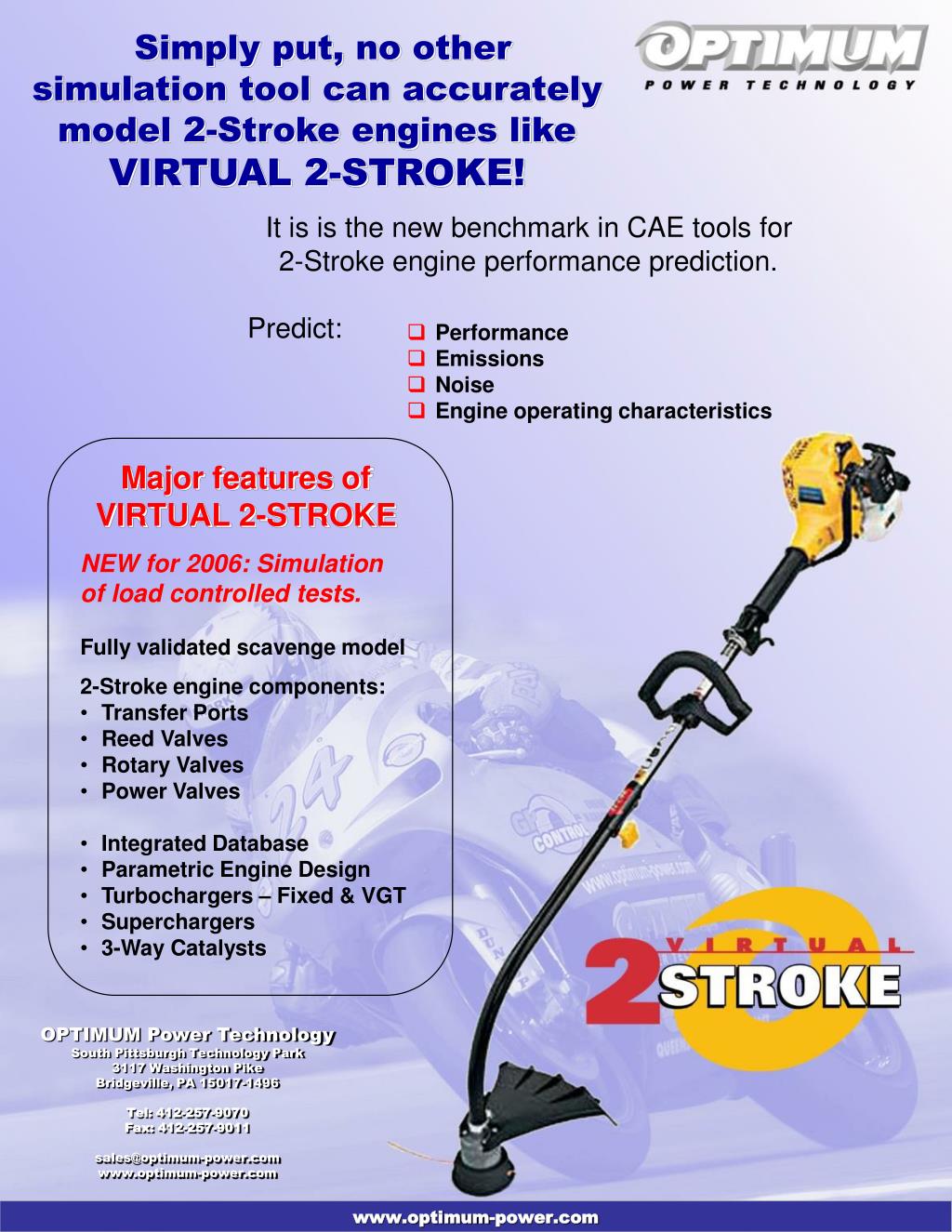

 Simply put, no other simulation tool can accurately model 2-Stroke engines like

VIRTUAL 2-STROKE!

It is is the new benchmark in CAE tools for

2-Stroke engine performance prediction.

Predict:

  • Performance

  • Emissions

  • Noise

  • Engine operating characteristics

Major features of

VIRTUAL 2-STROKE

  • NEW for 2006: Simulation

  • of load controlled tests.

  • Fully validated scavenge model

  • 2-Stroke engine components:

  • Transfer Ports

  • Reed Valves

  • Rotary Valves

  • Power Valves

  • Integrated Database

  • Parametric Engine Design

  • Turbochargers – Fixed & VGT

  • Superchargers

  • 3-Way Catalysts

OPTIMUM Power Technology

South Pittsburgh Technology Park

3117 Washington Pike

Bridgeville, PA 15017-1496

Tel: 412-257-9070

Fax: 412-257-9011

[email protected]

www.optimum-power.com

www.optimum-power.com

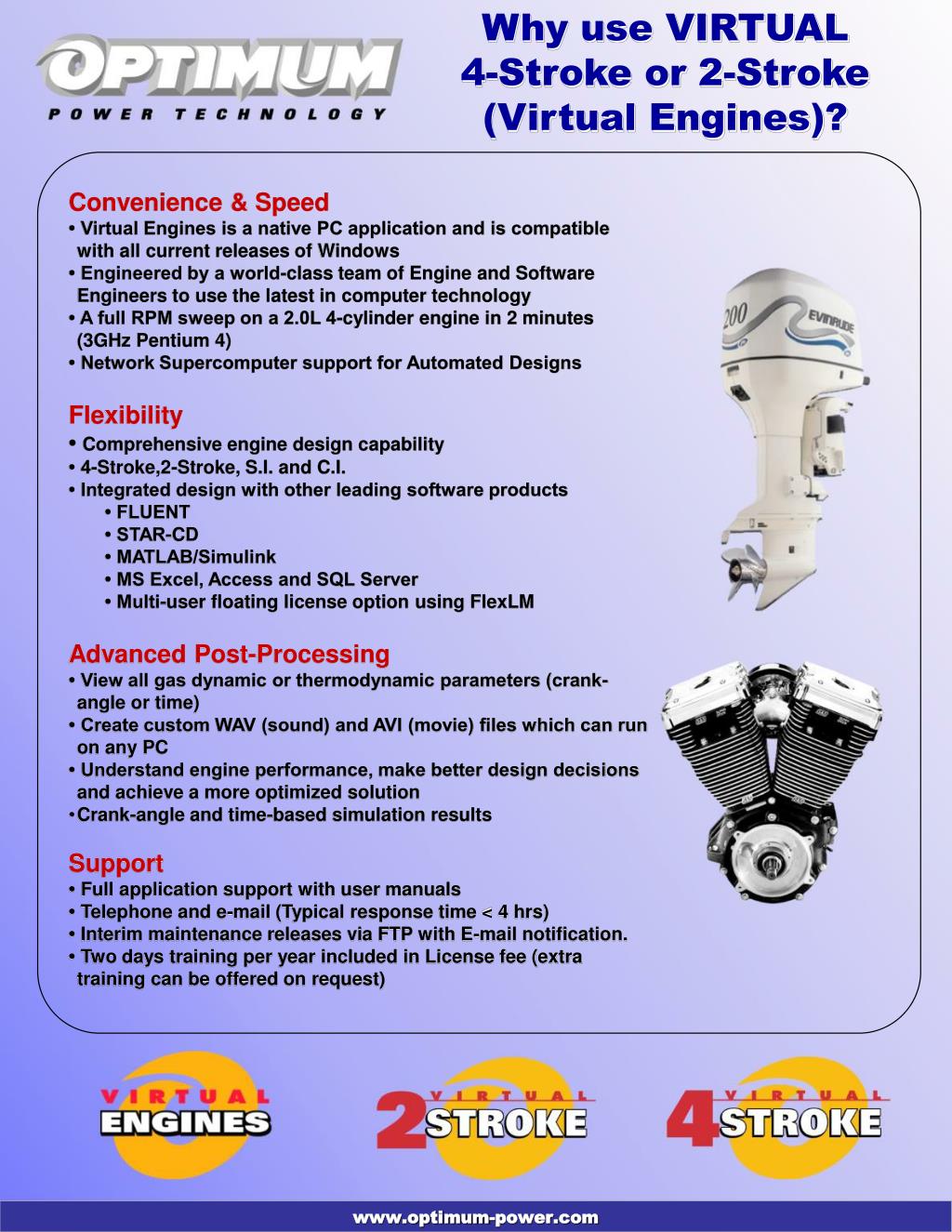

Why use VIRTUAL 2-Stroke engines like

4-Stroke or 2-Stroke (Virtual Engines)?

  • Convenience & Speed

  • • Virtual Engines is a native PC application and is compatible with all current releases of Windows

  • • Engineered by a world-class team of Engine and Software Engineers to use the latest in computer technology

  • • A full RPM sweep on a 2.0L 4-cylinder engine in 2 minutes (3GHz Pentium 4)

  • • Network Supercomputer support for Automated Designs

  • Flexibility

  • • Comprehensive engine design capability

  • • 4-Stroke,2-Stroke, S.I. and C.I.

  • • Integrated design with other leading software products

    • • FLUENT

    • • STAR-CD

    • • MATLAB/Simulink

    • • MS Excel, Access and SQL Server

    • • Multi-user floating license option using FlexLM

  • Advanced Post-Processing

  • • View all gas dynamic or thermodynamic parameters (crank-angle or time)

  • • Create custom WAV (sound) and AVI (movie) files which can run on any PC

  • • Understand engine performance, make better design decisions and achieve a more optimized solution

  • Crank-angle and time-based simulation results

  • Support

  • • Full application support with user manuals

  • • Telephone and e-mail (Typical response time < 4 hrs)

  • • Interim maintenance releases via FTP with E-mail notification.

  • • Two days training per year included in License fee (extra training can be offered on request)

www.optimum-power.com
