  1. Smart SIP for webRTC Dr. Alex GouaillardCTO, temasys CommunicationsSingapore

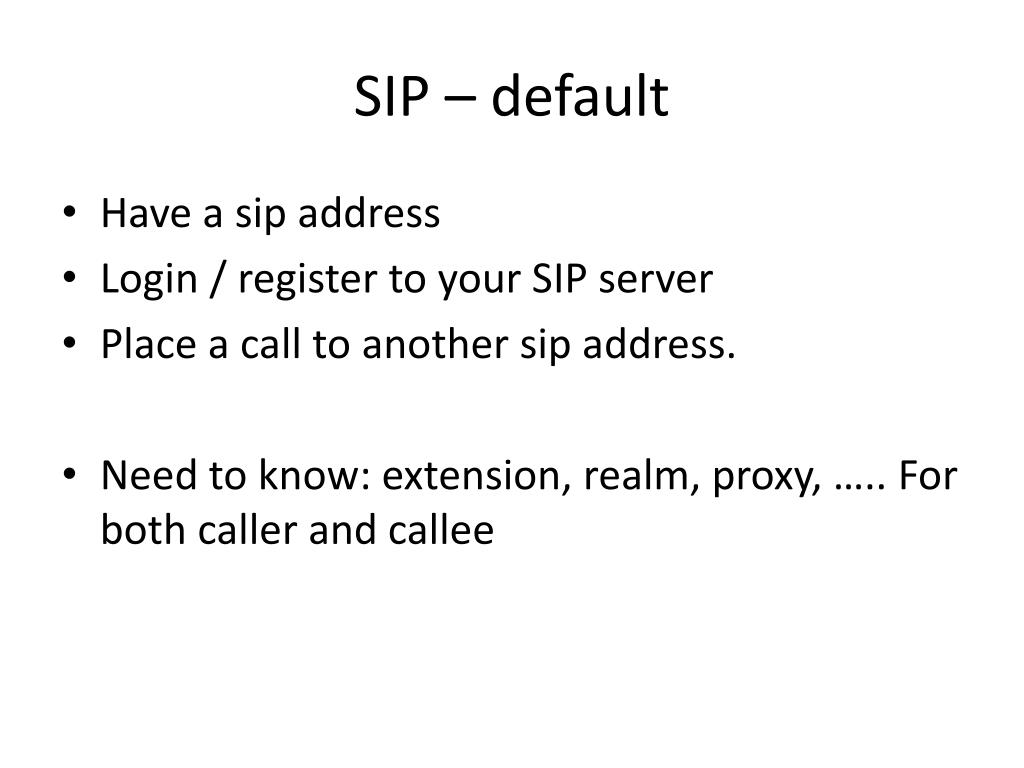

  2. SIP – default • Have a sip address • Login / register to your SIP server • Place a call to another sip address. • Need to know: extension, realm, proxy, ….. For both caller and callee

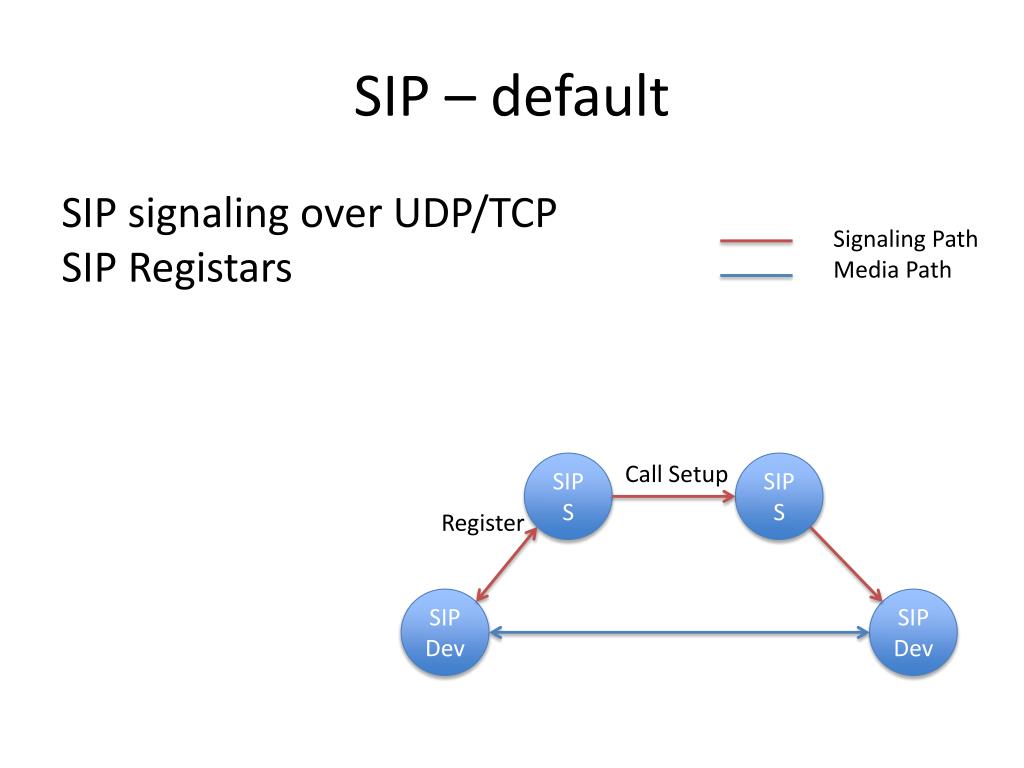

  3. SIP – default SIP signaling over UDP/TCPSIP Registars Signaling Path Media Path Call Setup SIP S SIP S Register SIP Dev SIP Dev

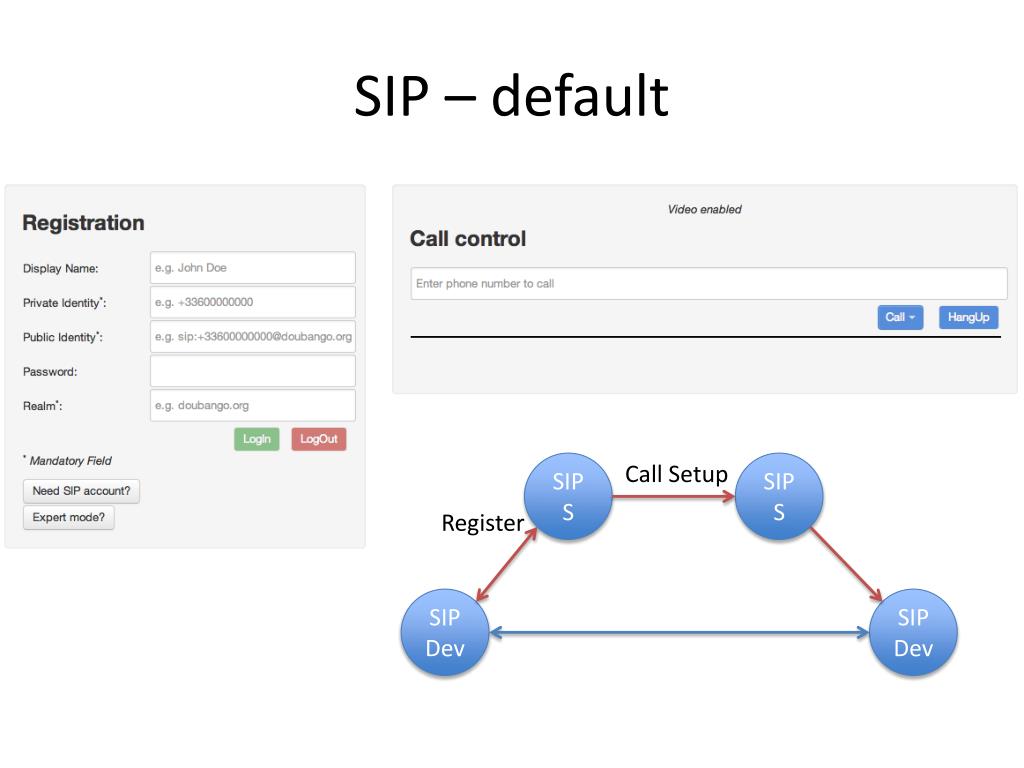

  4. SIP – default • Have a sip address • Login / register to your SIP server • Place a call to another sip address. • Need to know: extension, realm, proxy, ….. For both caller and callee Call Setup SIP S SIP S Register SIP Dev SIP Dev

  5. SIP – KISS Call Setup SIP S SIP S Register SIP Dev SIP Dev

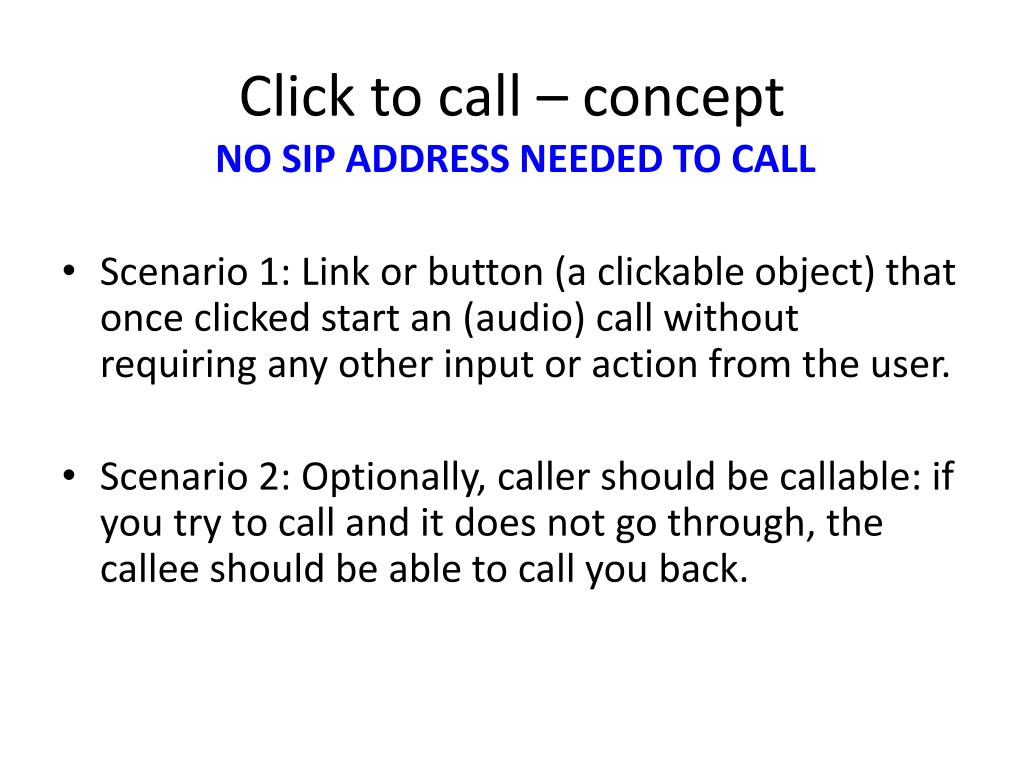

  6. Click to call – concept NO SIP ADDRESS NEEDED TO CALL • Scenario 1: Link or button (a clickable object) that once clicked start an (audio) call without requiring any other input or action from the user. • Scenario 2: Optionally, caller should be callable: if you try to call and it does not go through, the callee should be able to call you back.

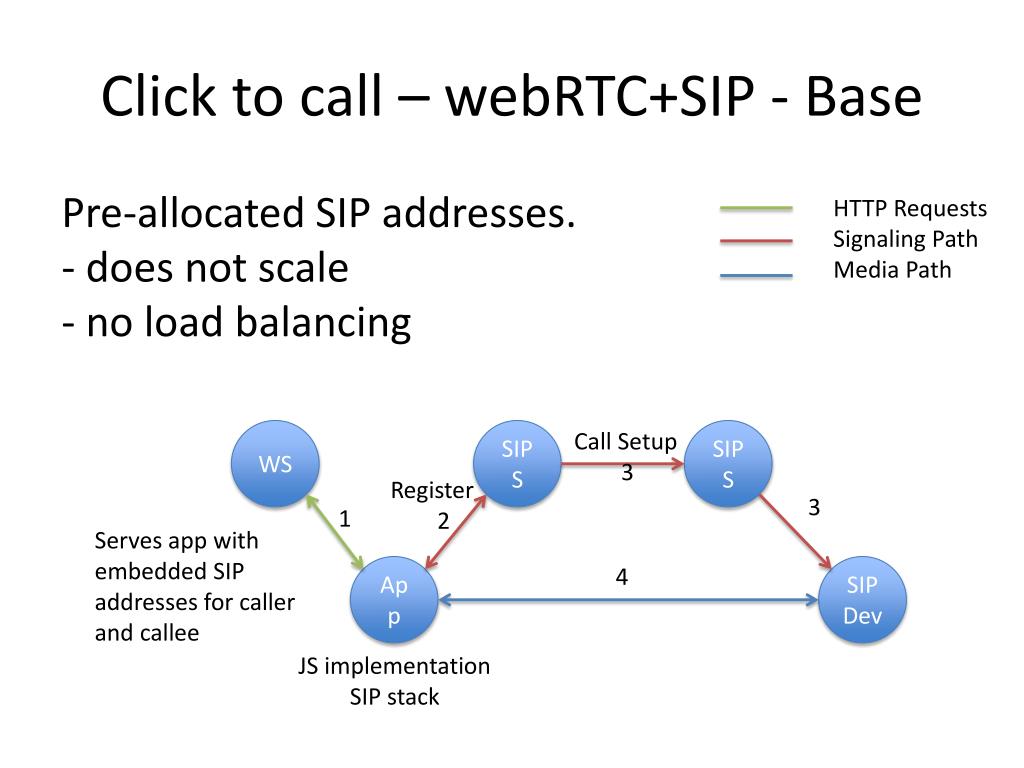

  7. Click to call – webRTC+SIP - Base Pre-allocated SIP addresses.- does not scale- no load balancing HTTP Requests Signaling Path Media Path Call Setup 3 WS SIP S SIP S Register 2 3 1 Serves app with embedded SIP addresses for caller and callee 4 App SIP Dev JS implementationSIP stack

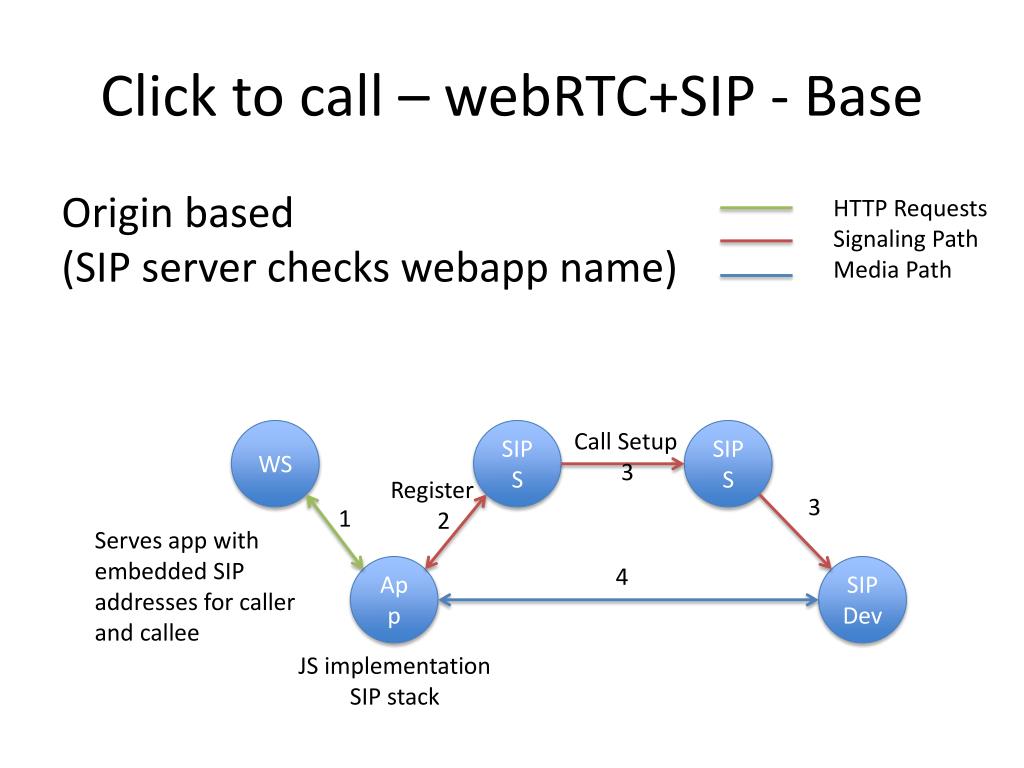

  8. Click to call – webRTC+SIP - Base Origin based(SIP server checks webapp name) HTTP Requests Signaling Path Media Path Call Setup 3 WS SIP S SIP S Register 2 3 1 Serves app with embedded SIP addresses for caller and callee 4 App SIP Dev JS implementationSIP stack

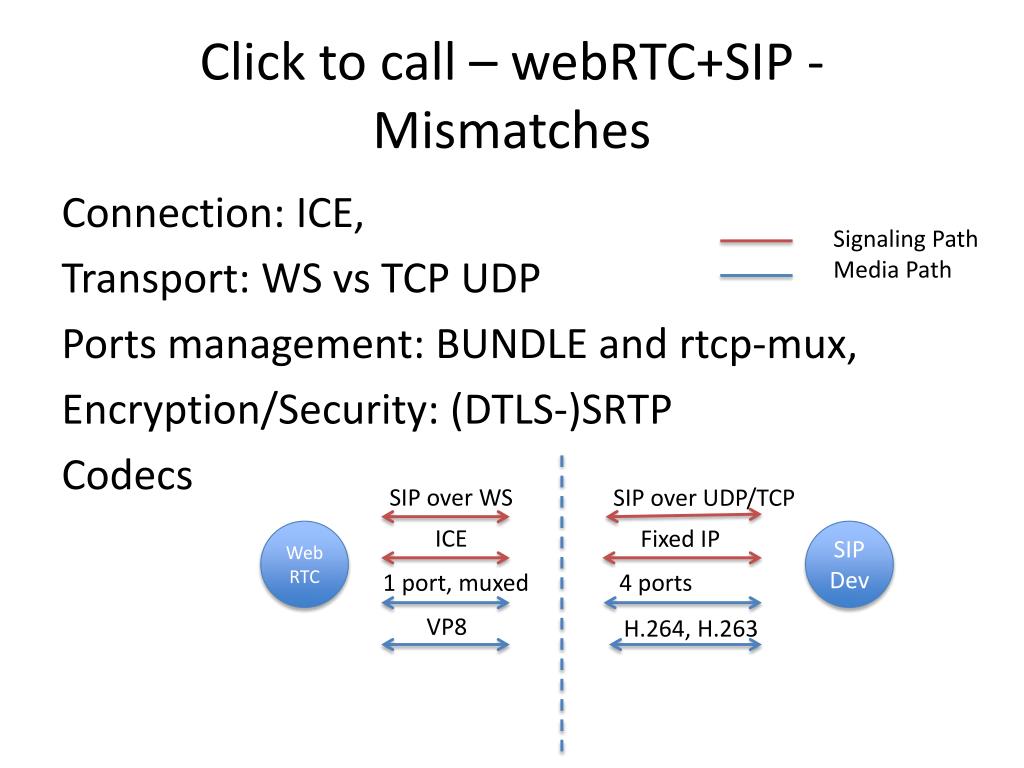

  9. Click to call – webRTC+SIP - Mismatches Connection: ICE, Transport: WS vs TCP UDP Ports management: BUNDLE and rtcp-mux, Encryption/Security: (DTLS-)SRTP Codecs Signaling Path Media Path SIP over WS SIP over UDP/TCP ICE Fixed IP Web RTC SIP Dev 4 ports 1 port, muxed VP8 H.264, H.263

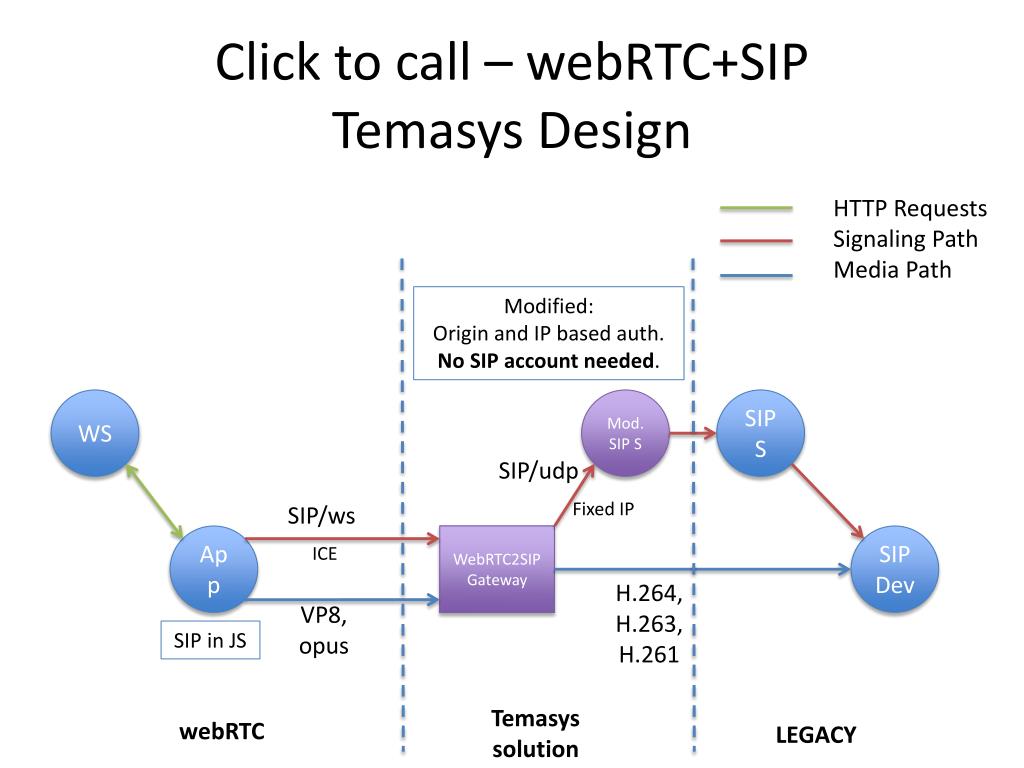

  10. Click to call – webRTC+SIPTemasys Design HTTP Requests Signaling Path Media Path Modified:Origin and IP based auth.No SIP account needed. WS Mod. SIP S SIP S SIP/udp Fixed IP SIP/ws App WebRTC2SIPGateway SIP Dev ICE H.264, H.263, H.261 VP8, opus SIP in JS Temasys solution webRTC LEGACY

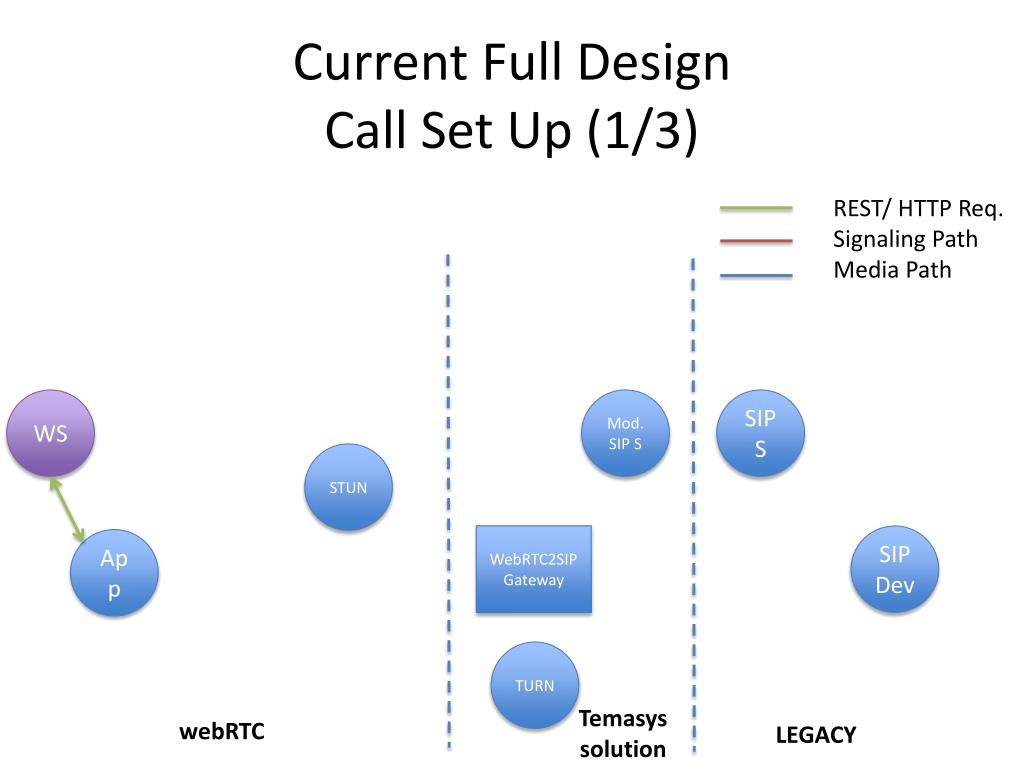

  11. Current Full DesignCall Set Up (1/3) REST/ HTTP Req. Signaling Path Media Path WS Mod. SIP S SIP S STUN WebRTC2SIPGateway SIP Dev App TURN Temasys solution webRTC LEGACY

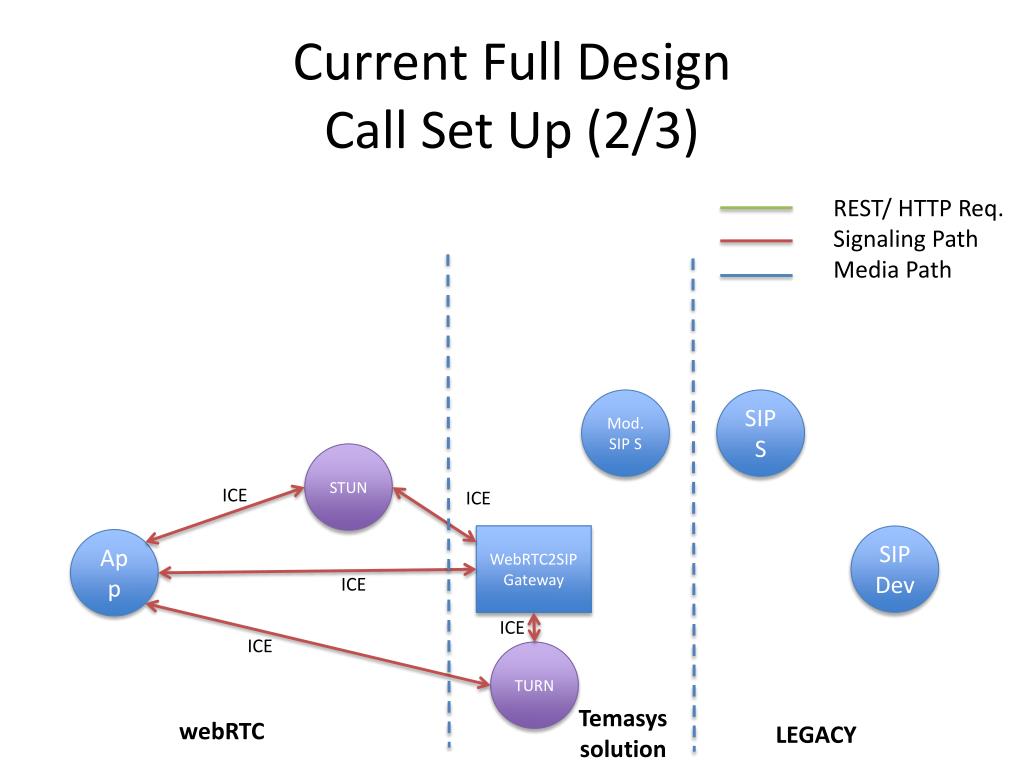

  12. Current Full DesignCall Set Up (2/3) REST/ HTTP Req. Signaling Path Media Path Mod. SIP S SIP S STUN ICE ICE WebRTC2SIPGateway SIP Dev App ICE ICE ICE TURN Temasys solution webRTC LEGACY

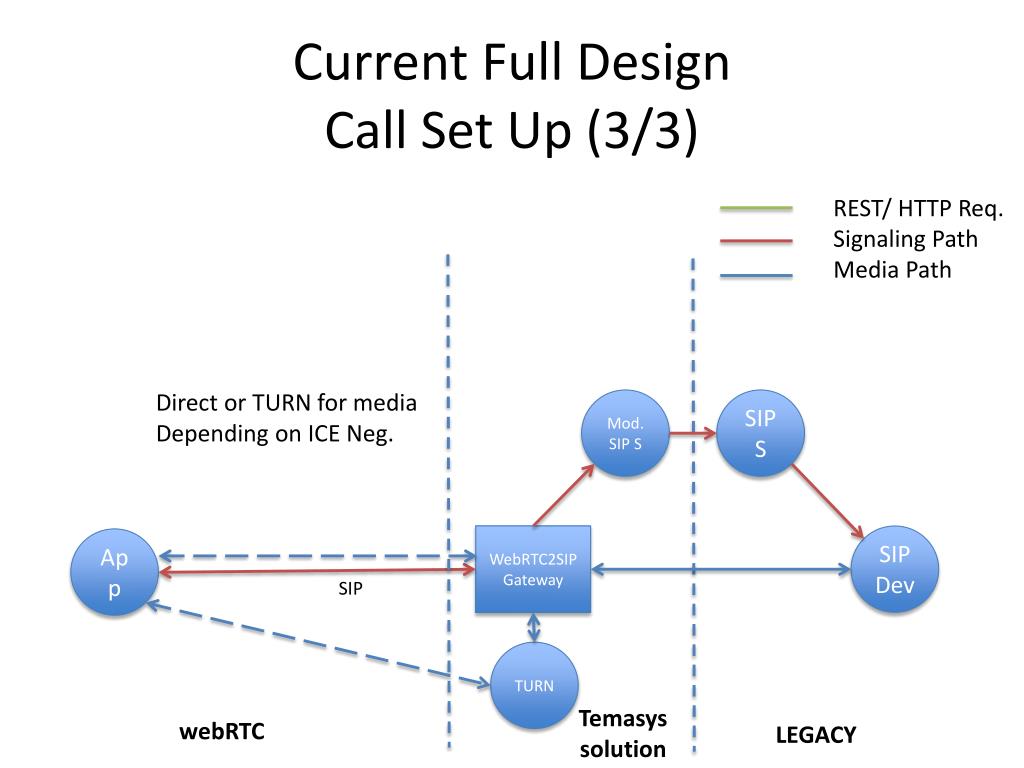

  13. Current Full DesignCall Set Up (3/3) REST/ HTTP Req. Signaling Path Media Path Direct or TURN for mediaDepending on ICE Neg. Mod. SIP S SIP S WebRTC2SIPGateway SIP Dev App SIP TURN Temasys solution webRTC LEGACY

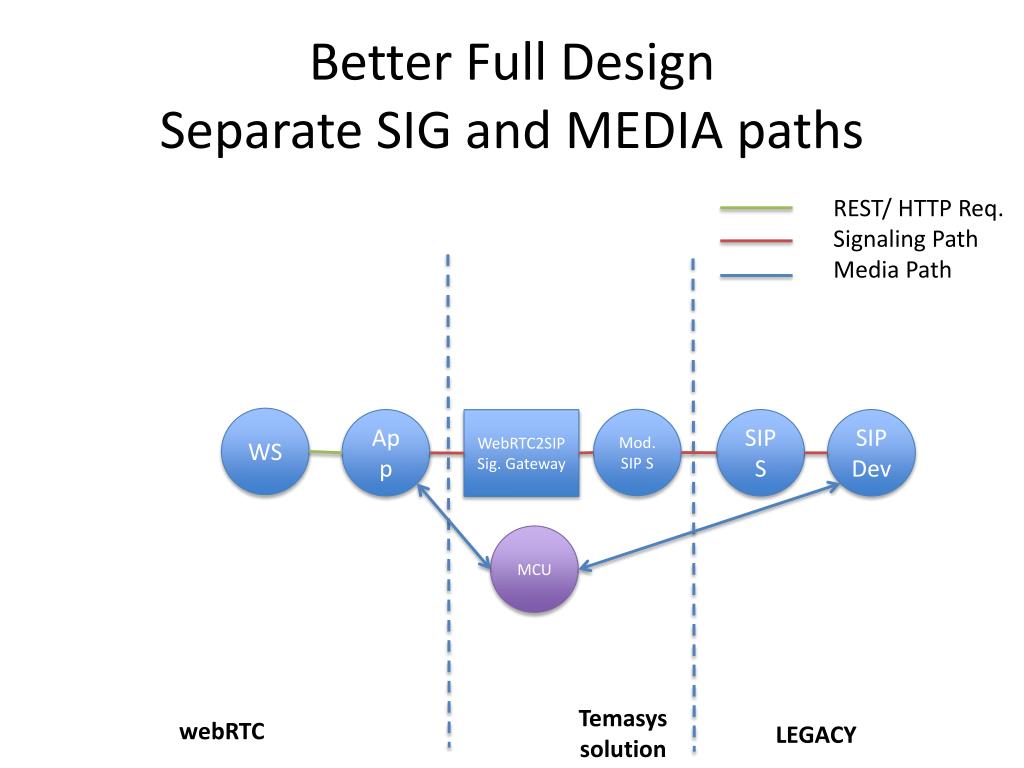

  14. Better Full DesignSeparate SIG and MEDIA paths REST/ HTTP Req. Signaling Path Media Path WS Mod. SIP S App SIP S SIP Dev WebRTC2SIPSig. Gateway MCU Temasys solution webRTC LEGACY

  15. Even Better Full DesignBookkeeping - dispatching REST/ HTTP Req. Signaling Path Media Path WS Mod. SIP S App SIP S SIP Dev WebRTC2SIPSig. Gateway MCU Temasys solution webRTC LEGACY
