shakey the robot
Shakey the Robot
  • Built at SRI
  • Late 1960’s
  • For robotics, the equivalent of Xerox PARC’s Alto computer
    • Alto – mouse, GUI, network, laser printer, WYSIWYG, multiplayer computer game
    • Shakey – mobile, wireless, path-planning, Hough transform, camera vision, English commands, logical reasoning
shakey path planning
Shakey path planning
  • Represent the world as a hierarchical grid
    • Full
    • Partially-full
    • Empty
    • Unknown
  • Compute nodes at corners of objects
  • Find shortest path through nodes – A*
shakey used two good ideas
Shakey used two good ideas
  • A*
  • Putting sub-goals on corners of vertices
    • This has been generalized into the idea of visibility graphs.
visibility graphs
Visibility Graphs
  • Define undirected graph VG(N,L)
    • V = all vertices of obstacles
    • N = V union (Start,Goal)
    • L = all links (ni,nj) such that there is no overlap with any obstacle. Polygon edge doesn’t count as overlapping.
reusing visibility graphs
Reusing Visibility Graphs
  • Add new visibility edges for new start/goal points
  • The rest is unchanged
    • Creates a roadmap to follow
visibility graph in motion planning
Visibility Graph in Motion Planning
  • Start with geometry of robot and obstacles, R and O
  • Compute the Minkowski difference of O – R
  • Compute visibility graph in C-space
  • Search graph for shortest path
computing the visibility graph
Computing the Visibility Graph
  • Brute force
  • Check every possible edge against all polygon edges
computing the visibility graph1
Computing the Visibility Graph
  • Brute force
  • Check every possible edge against all polygon edges
computing the visibility graph2
Computing the Visibility Graph
  • Brute force
  • Check every possible edge against all polygon edges
computing the visibility graph3
Computing the Visibility Graph
  • Brute force
  • Check every possible edge against all polygon edges
computing the visibility graph4
Computing the Visibility Graph
  • Brute force
  • Check every possible edge against all polygon edges
computing the visibility graph5
Computing the Visibility Graph
  • Brute force
  • Check every possible edge against all polygon edges
computing the visibility graph6
Computing the Visibility Graph
  • Brute force
  • Check every possible edge against all polygon edges
computing the visibility graph7

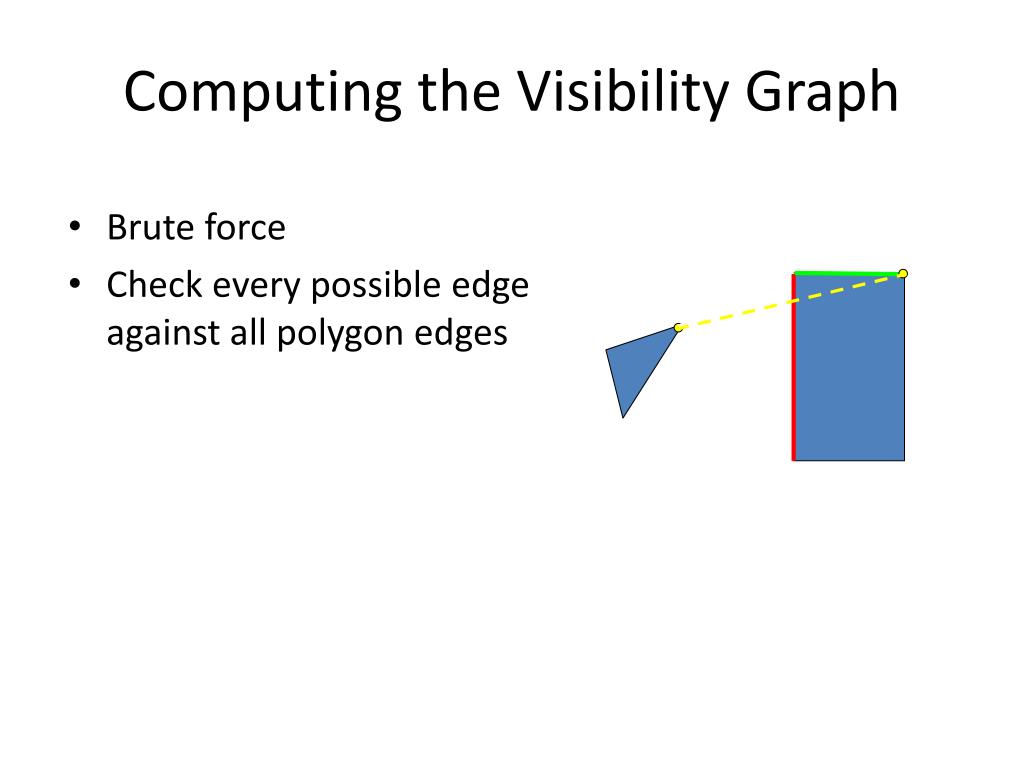

Computing the Visibility Graph
  • Brute force
  • Check every possible edge against all polygon edges
computing the visibility graph8
Computing the Visibility Graph
  • Brute force
  • Check every possible edge against all polygon edges
special cases
Special Cases
  • Do include polygon edges that don’t intersect other polygons
  • Don’t include edges that cross the interior of any polygon
  • Minkowski difference of original obstacles may overlap
reduced vg
Reduced VG

tangent segments

  • Eliminate concave obstacle vertices
  • (line would continue on into obstacle)
generalized
Generalized

tangency point

three dimensional space

Shortest path passes

through none of the vertices

Three-dimensional Space
  • Original paper split up long line segments so there were lots of vertices to work with
  • Computing the shortest collision-free path in a general polyhedral space is NP-hard
  • Exponential in dimension
roadmaps and coverage
Roadmaps and Coverage
  • Visibility Graphs make a roadmap through space
  • Roadmaps not so good for coverage of free space
    • What kind of robot needs to cover C-free?
roadmaps and coverage1
Roadmaps and Coverage
  • Roadmaps not so good for coverage of free space
    • Vacuum robots
    • Minesweeper robots
    • Farming robots
  • Try to characterize the free space
cell decomposition
Cell Decomposition
  • Representation of the free space using simple regions called cells

A cell

exact cell decomposition
Exact Cell Decomposition
  • Exact Cell Decomposition
    • Decompose all free space into cells

Exact

Approximate

coverage
Coverage
  • Cell decomposition can be used to achieve coverage
    • Path that passes an end effector over all points in a free space
  • Cell has simple structure
  • Cell can be covered with simple motions
  • Coverage is achieved by walking through the cells
cell decomposition1
Cell Decomposition
  • Two cells are adjacent if they share a common boundary
  • Adjacency graph:
    • Node correspond to a cell
    • Edge connects nodes of adjacent cells
path planning
Path Planning
  • Path Planning in two steps:
    • Planner determines cells that contain the start and goal
    • Planner searches for a path within adjacency graph
trapezoidal decomposition

c14

c7

c4

c5

c8

c2

c15

c11

c1

c10

c13

c3

c9

c6

c12

Trapezoidal Decomposition
  • Two-dimensional cells that are shaped like trapezoids(plus special case triangles)
adjacency graph

c14

c7

c4

c5

c8

c2

c15

c11

c1

c10

c1

c13

c3

c9

c6

c12

Adjacency Graph
adjacency graph1

c14

c7

c4

c5

c8

c2

c15

c11

c1

c10

c1

c3

c13

c3

c9

c6

c12

Adjacency Graph
adjacency graph2

c14

c7

c4

c5

c8

c2

c15

c11

c1

c10

c1

c2

c3

c13

c3

c9

c6

c12

Adjacency Graph
adjacency graph3

c14

c7

c4

c5

c8

c2

c15

c11

c1

c10

c7

c8

c9

c11

c4

c5

c2

c1

c6

c3

c13

c3

c9

c6

c12

c14

c15

c13

c12

c10

Adjacency Graph
path planner
Path Planner
  • Search in adjacency graph for path from start cell to goal cell
  • First, find nodes in path
adjacency graph4

c14

c7

c4

c5

c8

c2

c15

c11

c1

c10

c7

c8

c9

c11

c4

c5

c2

c1

c6

c3

c13

c3

c9

c6

c12

c14

c15

c13

c12

c10

Adjacency Graph
creating a path
Creating a Path
  • Trapezoid is a convex set
    • Any two points on the boundary of a trapezoidal cell can be connected by a straight line segment that does not intersect any obstacle
  • Path is constructed by connecting midpoint of adjacency edges
adjacency graph5

c14

c7

c4

c5

c8

c2

c15

c11

c1

c10

c7

c8

c9

c11

c4

c5

c2

c1

c6

c3

c13

c3

c9

c6

c12

c14

c15

c13

c12

c10

Adjacency Graph
what if goal were here

c14

c7

c4

c5

c8

c2

c15

c11

c1

c10

c7

c8

c9

c11

c4

c5

c2

c1

c6

c3

c13

c3

c9

c6

c12

c14

c15

c13

c12

c10

What if goal were here?
trapezoidal decomposition1

c14

c7

c4

c5

c8

c2

c15

c11

c1

c10

c13

c3

c9

c6

c12

Trapezoidal Decomposition
  • Shoot rays up and down from each vertex until they enter a polygon
    • Naïve approach O(n2) (n vertices times n edges)
other exact decompositions
Other Exact Decompositions
  • Triangular cell
  • Optimal triangulation is NP-hard (exponential in vertices)
