boolean satisfiability

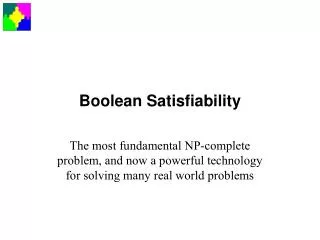

Boolean Satisfiability

The most fundamental NP-complete problem, and now a powerful technology for solving many real world problems

overview
Overview
  • CNF, SAT, 3SAT and 2SAT
  • Resolution and Unit Propagation
  • DPLL search
  • Conflict-driven Nogood Learning
  • Activity-based Search
  • Modelling for SAT
conjunctive normal form
Conjunctive Normal Form
  • SAT solvers solve problems in
    • Conjunctive Normal Form (CNF)
  • Boolean variable: b(true/false) or (0/1)
  • Literal: lvariable bor its negation –b
    • negating a literal: -l = -bifl = b, and

-l = bif l = -b

  • Clause: C disjunction or set of literals
  • CNF: theory T set of clauses
  • Assignment: set of literals A with {b,-b} not subset: e.g. {-b1,b2} Assign b1=false, b2=true
boolean satisfiability sat
Boolean Satisfiability (SAT)
  • This is the most basic NP-complete problem.
  • SAT: Given a set of clauses T, find an assignment A such that

for each C in T

  • Each clause C in T is satisfied by A
slide5
3SAT
  • 3SAT: SAT with the restriction that each clause has length at most 3.
  • SAT -> 3SAT
    • {l1, l2, l3, l4, l5, l6} l1 ∨ l2 ∨ l3 ∨l4 ∨l5 ∨l6

becomes the set of clauses

    • {l1, l2, b1}, {-b1, l3, b2}, {-b2, l4, b3}, {-b3, l5, l6}

where b1, b2, b3 are new Boolean variables

  • 3SAT is NP-complete (by the above reduction)
slide6
2SAT
  • 2SAT: SAT with the restriction that each clause has length at most 2.
  • 2SAT is decidable in polynomial time (n3)
  • 2SAT is NL-complete
    • which is a crazy complexity class
    • Nondeterministic Turing machine with log writeable memory!
resolution
Resolution
  • The fundamental inference for CNF
    • {l1, l2, l3, b} {-b, l4, l5, l6} implies
    • {l1, l2, l3, l4, l5, l6}
  • Or
    • (l1 ∨l2 ∨l3 ∨b) ∧ (-b∨l4 ∨l5 ∨l6) ->

l1 ∨l2 ∨l3 ∨l4 ∨l5 ∨l6

  • One can prove unsatisfiability of a CNF formula by repeatedly applying all possible resolutions
    • if this generates an empty clause then UNSAT
    • otherwise SAT
  • Exponential process!
unit propagation
Unit Propagation
  • Resolution = too expensive
  • Unit Propagation (=unit resolution)
    • Restricted form of resolution = finds unit clauses
  • {l1, l2, …, ln, l} where –liin A forall 1 ≤ i≤ n
  • Add lto assignment A
  • {-b1, b2, b} A = {b1, -b2}
    • {-b1, b2, b} A := {b1, -b2, b}
  • (-b1 ∨b2 ∨b) ∧b1 ∧ -b2 -> b
unit propagation1
Unit Propagation
  • Repeatedly apply unit propagation,
    • until no new unit consequences can be found
    • or failure detected
  • A = {b1, -b2, b3, -b4} C = {-b1, -b3, b4}
  • {-b1, -b3, b4}
  • Failure detected
unit propagation example
Unit Propagation Example
  • T = {{-e11,-e21}, {-e11,-e31},{-e11,-e41},

{e21,-b21}, {e31,-b31},{e41,-b41},

{b21,-b51},{b51,-b52,e52},{b41,-e52},

  • A = {e11,b52}

{-e11,-e21}

{-e11,-e31}

{b51,-b52,e52}

{-e11,-e41}

{-e21,-b21}

{b21,-b51}

{-e31,-b31}

{b41,-e52}

{-e41,-b41}

A ={e11,b52,-e21,-e31}

A ={e11,b52,-e21,-e31,-e41}

A = false

A ={e11,b52,-e21}

A ={e11,b52,-e21,-e31,-e41,-b21,-b31}

A ={e11,b52,-e21,-e31,-e41,-b21}

A ={e11,b52,-e21,-e31,-e41,-b21,-b31,-b41,-b51}

A ={e11,b52,-e21,-e31,-e41,-b21,-b31,-b41}

A ={e11,b52,-e21,-e31,-e41,-b21,-b31,-b41,-b51,e52}

-e21

-b21

-b51

e52

e11

-e31

-b31

b52

fail

-e41

-b41

implication graph
Implication Graph
  • Records the reason why each Boolean literal became true
    • Decision
    • Propagation(and why)
  • Used for nogood reasoning!

-e21

-b21

-b51

e52

e11

-e31

-b31

b52

fail

-e41

-b41

dpll search
DPLL search
  • Davis-Putnam-Logemann-Loveland algorithm
    • interleave decisions + unit propagation
  • dpll(A)

A' = unitprop(A)

if A' == false return false

else if exists Boolean variable bnot appearing in A

if dpll(A' union {b}) return true

else if dpll(A' union {-b}) return true

else return false

else return true

dpll search example
DPLL Search Example

{-b1,-b4,-b5}

{-b1,-b4,b5}

{-b2,b3}

{b4,-b5}

{b4,b5}

X

X

{}

X

X

b1

X

{b1}

{-b1}

X

b2

X

b2

{b1,b2,b3}

{b1,-b2}

{-b1,b2,b3}

b4

b4

b3

{-b1,b2,b3

b4}

{b1,b2,b3,

b4,b5,fail}

{b1,b2,b3,

-b4,b5,fail}

{b1,-b2,b3}

b4

b5

{b1,-b2,b3,

b4,b5,fail}

{b1,-b2,b3,

-b4,b5,fail}

{-b1,b2,b3

b4,b5}

dpll search with nogood learning
DPLL search with nogood learning
  • dpll(A)

A' = unitprop(A)

if A' == false

Add a clause C explaining the failure to T

Backjump to the first place C can give new information

else if exists Boolean variable bnot appearing in A

if dpll(A' union {b}) return true

else if dpll(A' union {-b}) return true

else return false

else return true

nogood learning
Nogood Learning
  • The implication graph shows a reason for failure
  • Any cut separating the fail node from decisions
    • explains the failure

b52∧ -b51 ∧-e41false

b52∧ -b51 ∧-b41false

b52∧e11false

e52∧ -b41false

{b41,b51,-b52}

{e41,b51,-b52}

{-e11,-b52}

{b41,-e52}

b52

-e21

-b21

-b51

e52

e11

-e31

-b31

fail

-e41

-b41

which nogood
Which Nogood?
  • SAT solvers almost universally use the
    • First Unique Implication Point (1UIP) Nogood
  • Closest nogood to failure
    • only one literal from the last decision level
  • Asserting: on backjump it will unit propagate
  • General: more general than many other choices
  • Fast: doesn’t require too much computation
    • replace last literal in nogood until only one at last level
1uip nogood creation
1UIP Nogood Creation

e11

-e21

-b21

-b21

b22

e22

e22

-e31

-b31

-b31

-e32

-e32

-b32

-b32

b33

b33

e33

e33

fail

-e41

-b41

-b41

-e42

-e42

-b42

-b42

b43

b43

e43

e43

-b51

b52

e52

1 UIP Nogood

{-b21,-b31,-b41,e22,-e32}false

{-b21,-b31,-b41,-e32,-e42}false

{-b21,-b31,-b41,e22}false

{-b21,-b41,-e42,-b32}false

{-b21,-b32,-b42}false

{-b21,-b32,-b42,b33}false

{-b32,-b42,b33,b43}false

-b42 ∧ b43 ∧e33 false

e33 ∧e43 false

{-e33,-e43}

{b32,b42,-b33,-b43}

{b21,b41,e42,b32}

{b42,-b43,-e33}

{b21,b32,b42}

{b21,b31,b41,-e22}

{b21,b31,b41,-e22,e32}

{b21,b31,b41,e32,e42}

{b21,b32,b42,-b33}

backjumping
Backjumping

e11

  • Backtrack to second last level in nogood
  • Nogood will propagate
  • e.g. {b21,b31,b41,-e22}

-e21

-b21

-e22

-b22

-e31

-b31

-e41

-b41

{b21,b31,b41,-e22}

-b52

-b51

Continue unit propagation

then make next choice

why add nogoods
Why Add Nogoods
  • We will not make the same choices again
    • {e11,b52} leads to failure
    • After choosing e11 we infer –b52
    • Better yet, any choice that leads to b21,b31,b41 prevents the choice b52
  • Drastic reduction in search space
  • Faster solving
dpll search example again
DPLL Search Example Again

{-b1,-b4,-b5}

{-b1,-b4,b5}

{-b2,b3}

{b4,-b5}

{b4,b5}

{}

{b4,-b1}

b1

b2

{b1}

{b4,-b1,b2,b3}

{b1,-b4,-b5,fail}

b2

b5

Nogood

{b4}

{b1,b2,b3}

{b4,-b1,b2,b3,b5}

b4

{b1,b2,b3,

b4,b5,fail}

Backjump

Nogood

{-b1,-b4}

restarts
Restarts
  • Periodically
    • Restart the search from the beginning!
  • Stored nogoods prevent search doing the same thing again
  • New search decisions drive search to new places
activity
Activity
  • Each time a Boolean variable is seen during nogood creation, i.e.
    • appears in final nogood, or
    • is eliminated in the reverse propagation
  • Increase activity by one
  • These variables are helping cause failure
  • Periodically divide all activities by some amount
    • activity reflects helping cause recent failure
activity based search
Activity-based Search
  • Select the unfixed variable with highest activity
  • MiniSat: set to false
  • RSAT: set to the last value it took
    • works with backjumping to recreate the same path
    • e.g. -b1, b3, -b11, b4, -b5, b7, fail
    • backjump to -b1, b3, -b11
    • If b4 is now highest activity variable set it true [b4]
    • If b5 is next highest activity variable set it false [-b5]
  • Activity-based search
    • concentrates on the variables causing failure
    • learns shorter nogoods by failing earlier
activity based search1
Activity-based Search
  • Works well with restart
  • On restart we concentrate on the now most active variables
    • a new part of the search space
    • learn new nogoods about this
modern sat solvers
Modern SAT Solvers
  • Modern SAT solvers can handled problems with
    • (low) millions of clauses
    • millions of variables

assuming the input has structure

  • Random CNF is much harder (but uninteresting)
  • Before the advent of nogood learning
    • (low) thousands of clauses
    • hundreds of variables
sat successes
SAT Successes
  • Hardware model checking; Software model checking; Termination analysis of term-rewrite systems; Test pattern generation (testing of software &hardware); Model finding; Symbolic trajectory evaluation; Planning; Knowledge representation; Games (n-queens, sudoku, etc.); Haplotype inference; Pedigree checking; Equivalence checking; Delay computation; Fault diagnosis; Digital filter design; Noise analysis; Cryptanalysis; Inversion attacks on hash functions; Graph coloring; Traveling salesperson;
the future
The Future
  • SAT Modulo Theories
    • combine theory propagators with SAT solving
  • Lazy Clause Generation
    • combine constraint propagators with SAT solving
  • Extended Clause Resolution
    • introduce new literals during resolution to exponentially shorten proofs
  • Parallelism
    • adapt to new multi-core computing environment
