SkyMapper and the Stromlo Southern Sky Survey

SkyMapper and the Stromlo Southern Sky Survey. Stefan Keller, Brian Schmidt, Paul Francis and Mike Bessell. 1.35m with a 5.7 sq. degree fov To reside at Siding Spring Observatory First light in Dec 2006 To conduct a multi colour/epoch Stromlo Southern Sky Survey

aitana
Download Presentation

SkyMapper and the Stromlo Southern Sky Survey

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. SkyMapper andthe Stromlo Southern Sky Survey Stefan Keller, Brian Schmidt, Paul Francis and Mike Bessell

  2. 1.35m with a 5.7 sq. degree fov To reside at Siding Spring Observatory First light in Dec 2006 To conduct a multi colour/epoch Stromlo Southern Sky Survey Replacement for the 50” Great Melbourne Telescope What is SkyMapper? Rest in Peace

  3. There is no deep digital optical map of the southern sky no instrument is planned that can map the entire southern sky in multiple colours and epochs SkyMapper will provide an automated large-scale imaging capability that is matched to Australian: Science strengths; Instrumentation (AAOmega, Gemini etc.), and; Conditions – poor seeing a benefit  cover the sky faster! Why a SkyMapper?

  4. Major component of SkyMapper telescope will be providing a survey of the southern sky Multi-colour, multi-epoch of southerly 2 steradian Star and Galaxy photometry (3% global accuracy) Astrometry (better than 50 mas ) Cadence: hours, days, months and years. Five years to complete Data supplied to the community without proprietary period as part of Virtual Observatory work Complementary to SDSS but w. improvements! The Stromlo Southern Sky Survey = S4

  5. The survey science goals are broad but some of the areas where I think SkyMapper stands to have largest impact are: What is the distribution of large Solar-System objects beyond Neptune? What is the history of the youngest stars in the Solar neighbourhood? How far does the dark matter halo of our galaxy extend and what is its shape? Gravity and metallicity for on order of 100 million stars  the assembly and chemical enrichment history of the bulge, thin/thick disk and halo? Extremely metal poor stars. Undiscovered members of the local group accurate photometric calibration of galaxy redshift surveys: 2dF/6dF. bright z>6 QSOs  probes of the ionization history of the Universe. Survey Science

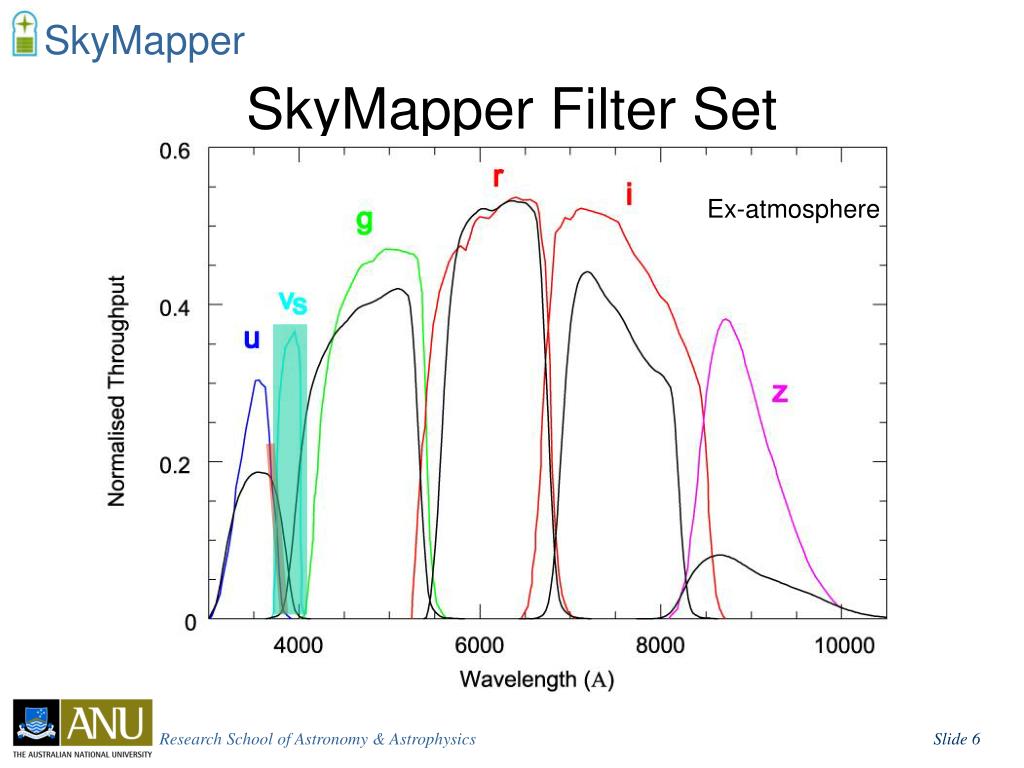

  6. SkyMapper Filter Set Ex-atmosphere

  7. Expected S4 limits

  8. Spectroscopic redshifts r’<18 for SDSS BJ<19.5 ( r’<18.5) for 2dFGRS Photometric redshifts SDSS to r’=20.5 From SDSS EDR Csabai 2003 z – coverage SDSS (EDR) 2dFGRS S4 to provide: Spirals to z~0.3-0.4 E0 to z~0.7

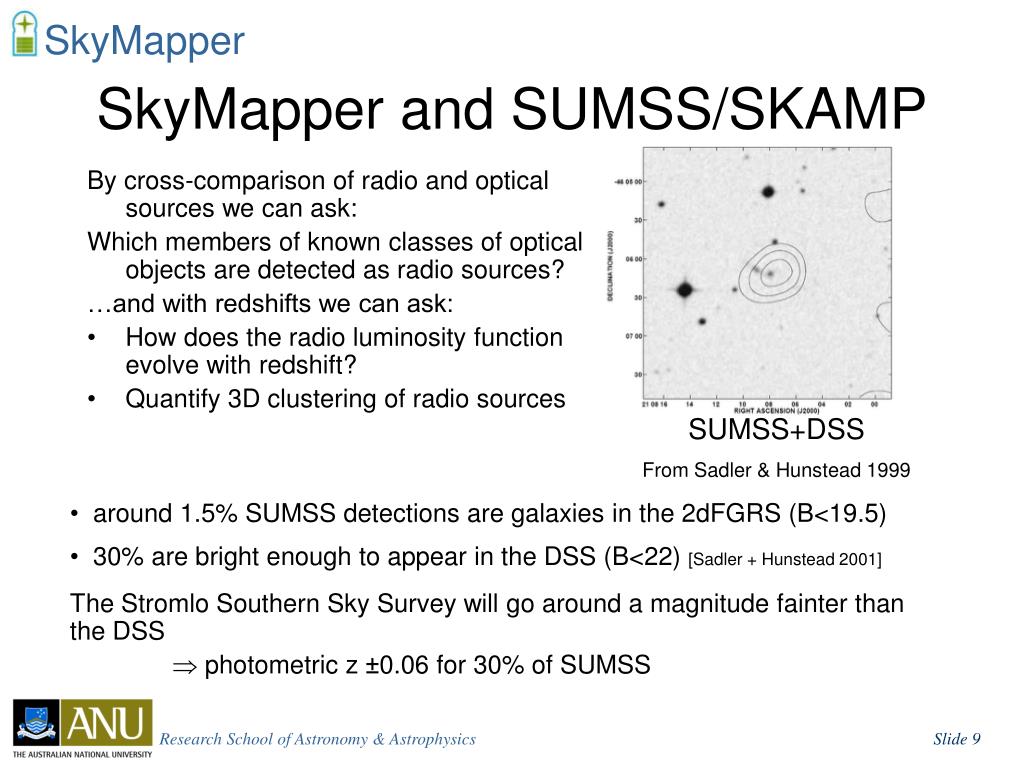

  9. SkyMapper and SUMSS/SKAMP • By cross-comparison of radio and optical sources we can ask: • Which members of known classes of optical objects are detected as radio sources? • …and with redshifts we can ask: • How does the radio luminosity function evolve with redshift? • Quantify 3D clustering of radio sources SUMSS+DSS From Sadler & Hunstead 1999 • around 1.5% SUMSS detections are galaxies in the 2dFGRS (B<19.5) • 30% are bright enough to appear in the DSS (B<22) [Sadler + Hunstead 2001] • The Stromlo Southern Sky Survey will go around a magnitude fainter than the DSS •  photometric z ±0.06 for 30% of SUMSS

  10. Deliverables to the Outside User: Data (epoch, RA, DEC, mags, galaxy shape info,…) to be available through a web-served interface which provides catalogs over a user defined area Images to be available through a web-served interface which provides images over a user defined area (maximum size will be limited) S4 Data Products

  11. How Much Data??? 6 epochs x 6 colours x 4000 268,000,000 pixel images 150 Terabytes + 25 Terabytes of calibration images 1 Billion Objects observed 36 times with Database is ~2 Terabytes (1 billion rows x 500 columns) S4 Data Products

  12. Funding Decision, Jun 2004 Optical elements ordered Conceptual Design Review, Oct 2004 CCDs ordered, Feb 2004 Critical Design Review, August 2005 Pipeline development, mirror Blank Failures, Sep-Oct 2005 Site Works begin Dec 2005 First Light, Dec 2006 Regular Operations, Apr 2007 A Concluding Timeline

  13. Funding Decision, Jun 2004 Optical elements ordered Conceptual Design Review, Oct 2004 CCDs ordered, Feb 2004 Critical Design Review, August 2005 Data reduction pipeline development, mirror Blank Failures, Sep-Oct 2005 Site Works begin Dec 2005 First Light, Dec 2006 Regular Operations, Apr 2007 A Concluding Timeline
