4.6 Isosceles, Equilateral, and Right Triangles

4.6 Isosceles, Equilateral, and Right Triangles. Objectives: I will be able to… -Solve for missing angles and sides using properties of iso., equil., and right triangles Vocabulary: Legs, base, base angles, vertex angle. Then/Now. You identified isosceles and equilateral triangles.

Download Presentation

4.6 Isosceles, Equilateral, and Right Triangles

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. 4.6 Isosceles, Equilateral, and Right Triangles Objectives: I will be able to… -Solve for missing angles and sides using properties of iso., equil., and right triangles Vocabulary: Legs, base, base angles, vertex angle

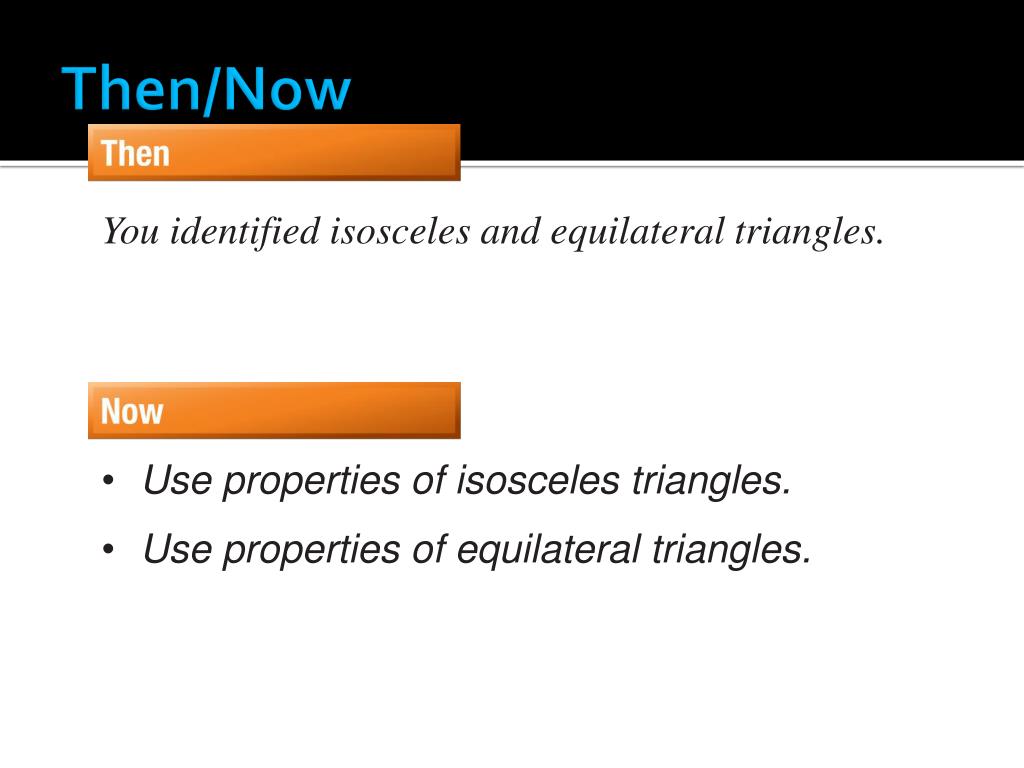

  2. Then/Now You identified isosceles and equilateral triangles. • Use properties of isosceles triangles. • Use properties of equilateral triangles.

  3. Labeling Triangles Vertex: Adjacent Side: Opposite Side: Vertex: points joining the sides of the triangle. Adjacent Side: sides sharing a common vertex. Opposite Side: side opposite from the vertex.

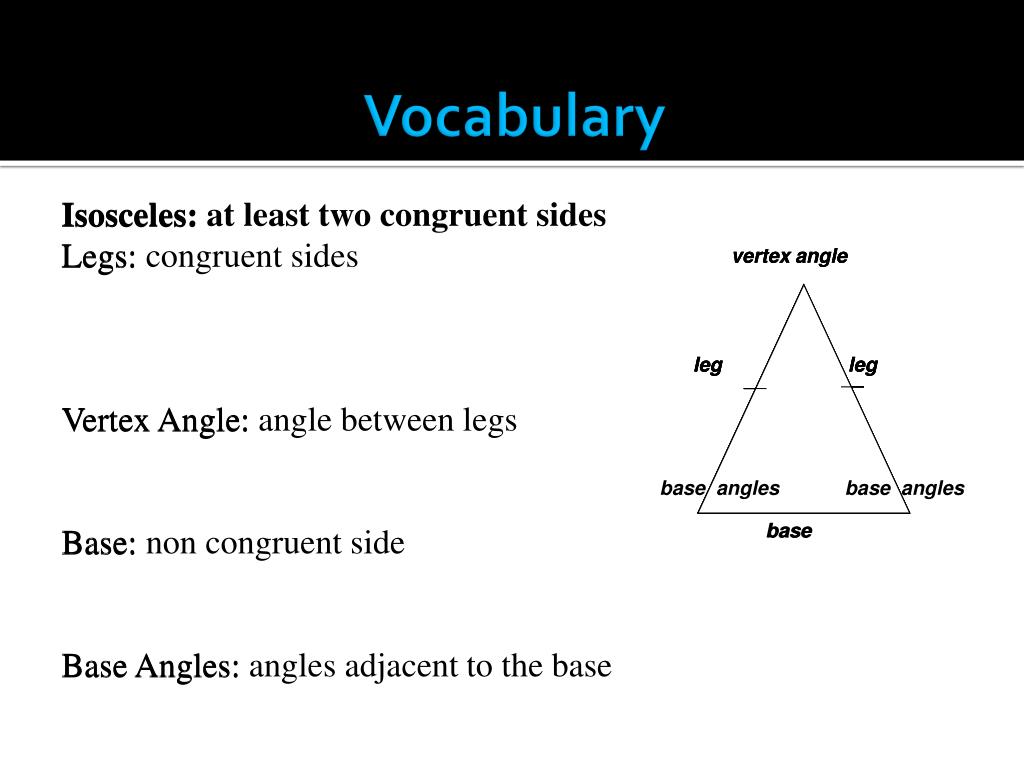

  4. vertex angle vertex angle vertex angle leg leg leg leg leg leg leg leg base angles base angles base base Vocabulary Isosceles: at least two congruent sides Legs: congruent sides Vertex Angle: angle between legs Base: non congruent side Base Angles: angles adjacent to the base Isosceles: Legs: Vertex Angle: Base: Base Angles:

  5. 4.6 Isosceles, Equilateral, and Right Triangles Base Angles Theorem: If 2 sides in a triangle are congruent, then the opposite base angles are congruent. B A C

  6. 4.6 Isosceles, Equilateral, and Right Triangles Converse of Base Angles Theorem: If 2 base angles in a triangle are congruent, then the opposite sides are congruent. B A C

  7. 1) In each triangle, solve for x and y. b) a) Q 2x + 7 80° B R x + 5 y° x° 3x – 9 S A C

  8. 2) Solve for x and y. 50 y° y° x° y + y + 110 = 180 x + x + 40 = 180 y = 35 x = 70

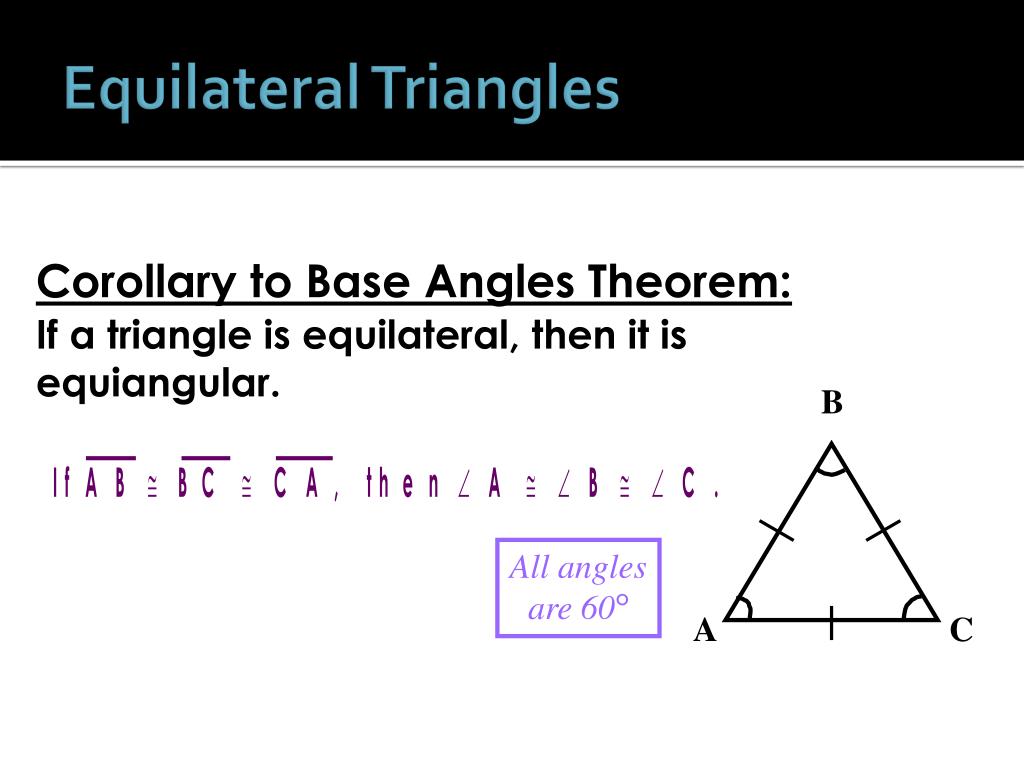

  9. Equilateral Triangles Corollary to Base Angles Theorem: If a triangle is equilateral, then it is equiangular. B All angles are 60° A C

  10. Equilateral Triangles Corollary to Base Angles Theorem: If a triangle is equiangular, then it is equilateral. B All angles are 60° A C

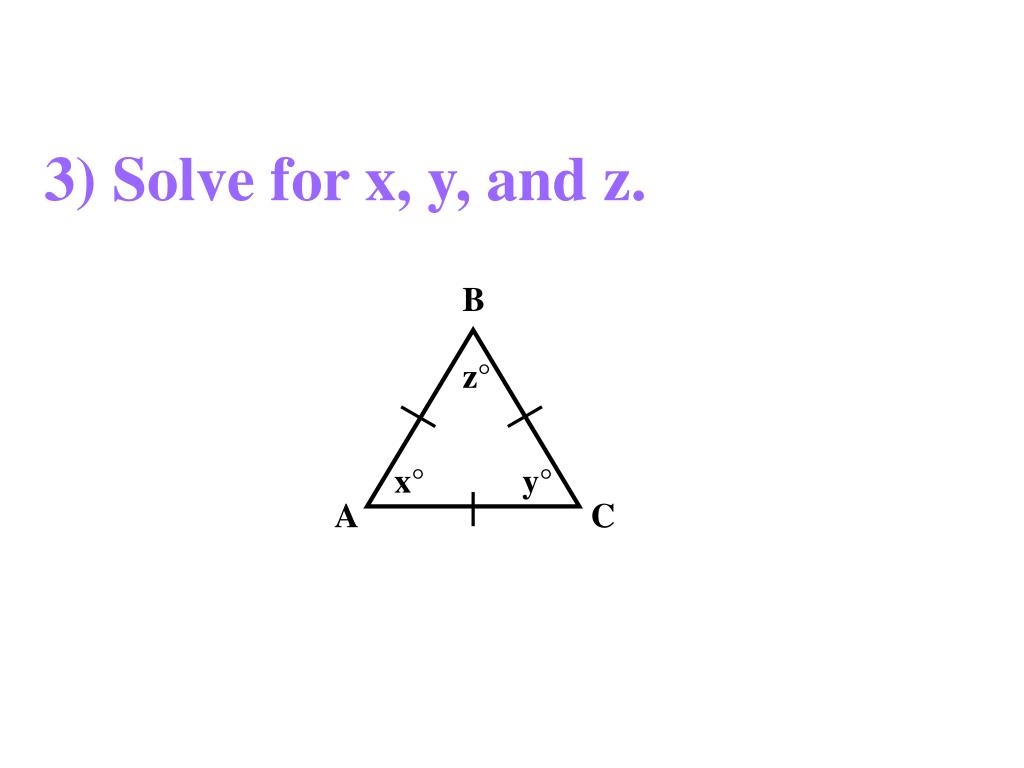

  11. 3) Solve for x, y, and z. z° B x° y° A C

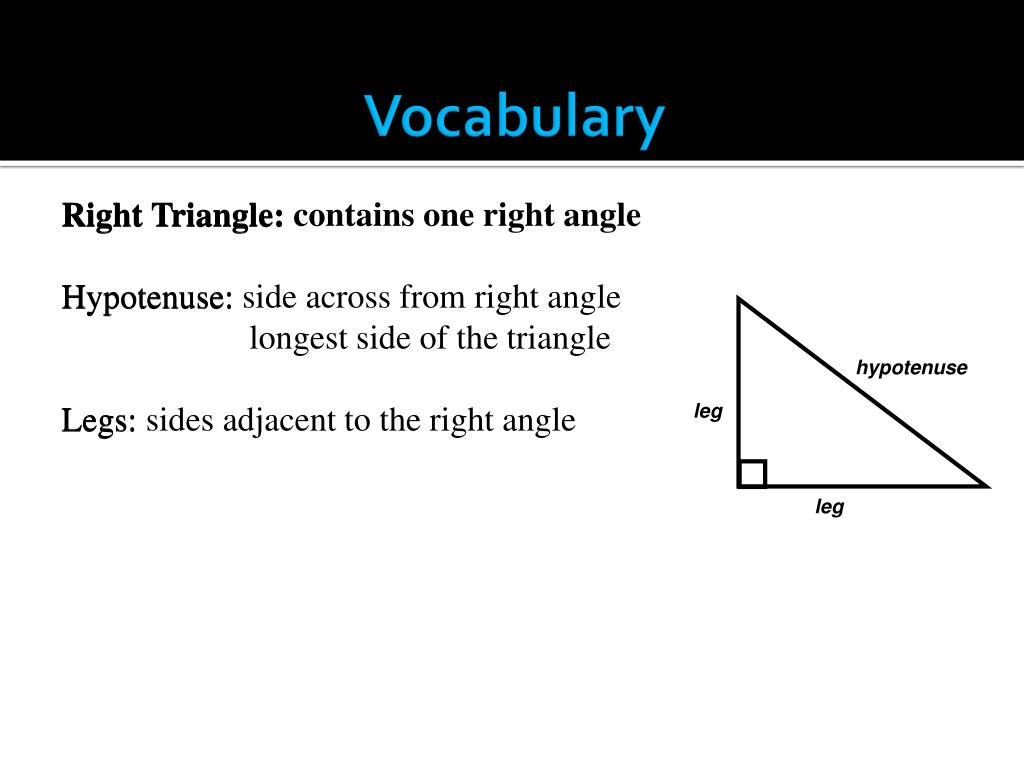

  12. Vocabulary Right Triangle: contains one right angle Hypotenuse: side across from right angle longest side of the triangle Legs: sides adjacent to the right angle Right Triangle: Hypotenuse:   Legs: hypotenuse leg leg

  13. 4) Classify the triangle by sides and angles. A(5, 2) B (5, 6) C (1, 6)

  14. Example 1 A. Which statement correctly names two congruent angles? A. PJM PMJ B. JMK JKM C. KJP JKP D. PML PLK Example 1a

  15. Example 2 A. Find mT. Example 2a

  16. 5-Minute Check 5 Example 3 Find x if ΔLMN is isosceles triangle with vertex angle L. If LM = 2x – 4, MN = 4x + 6, and LN = 3x – 14.

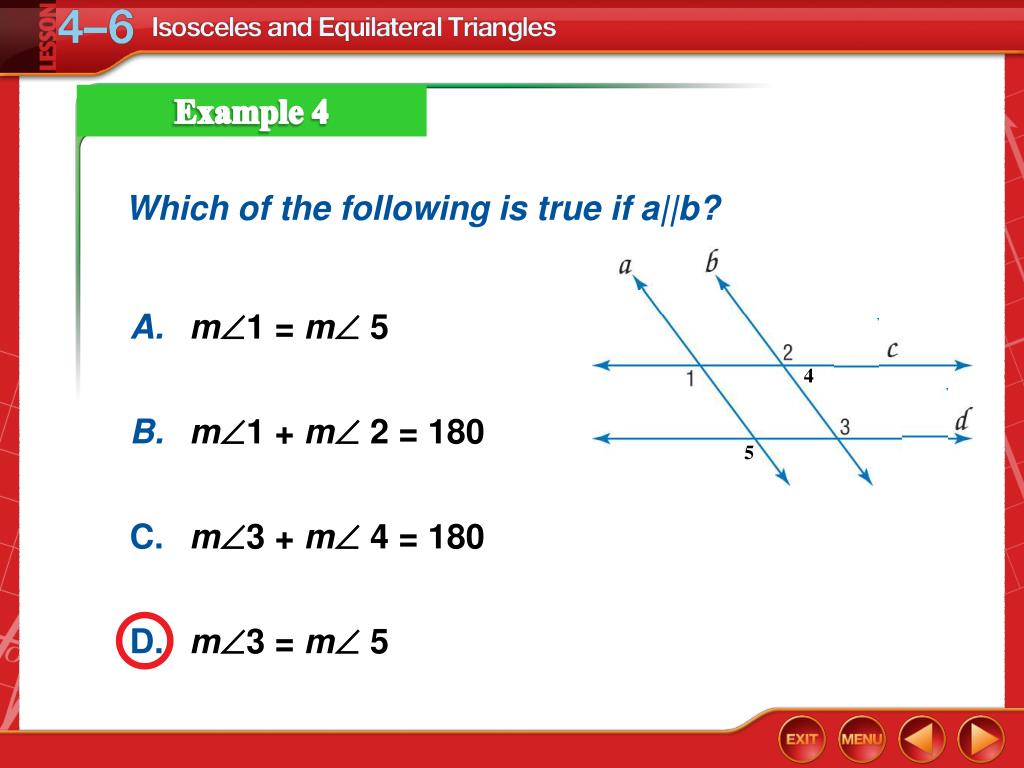

  17. 5-Minute Check 5 Example 4 Which of the following is true if a||b? • m1 = m 5 • m1 + m 2 = 180 • C.m3 + m 4 = 180 • D.m3 = m 5 4 5

  18. Example 3 Example 5 ALGEBRA If m1 = 9x + 6, m2 = 2(5x – 3), and m3 = 5y + 14, find y. A.y = 14 B.y = 20 C.y = 16 D.y = 24

  19. Example 2 Example 6 A. Find mR. B. Find PR.

  20. 5-Minute Check 1 containing the point (5, –2) in point-slope form? Example 7

  21. Example 8 Find the length of each side.

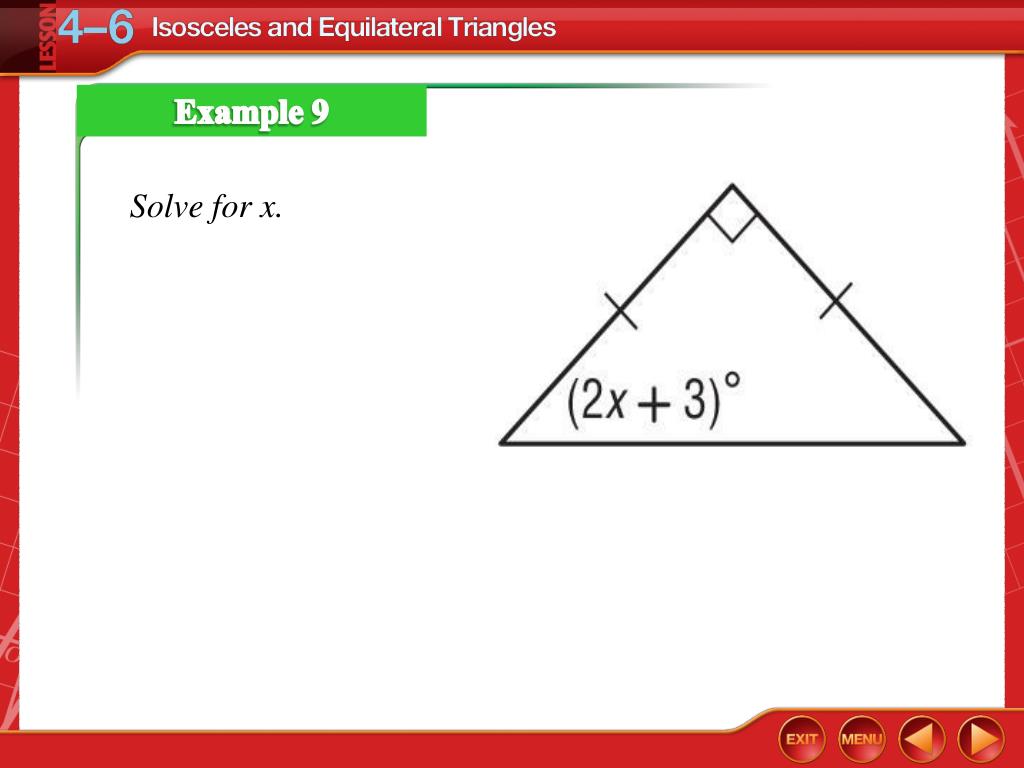

  22. Example 9 Solve for x.

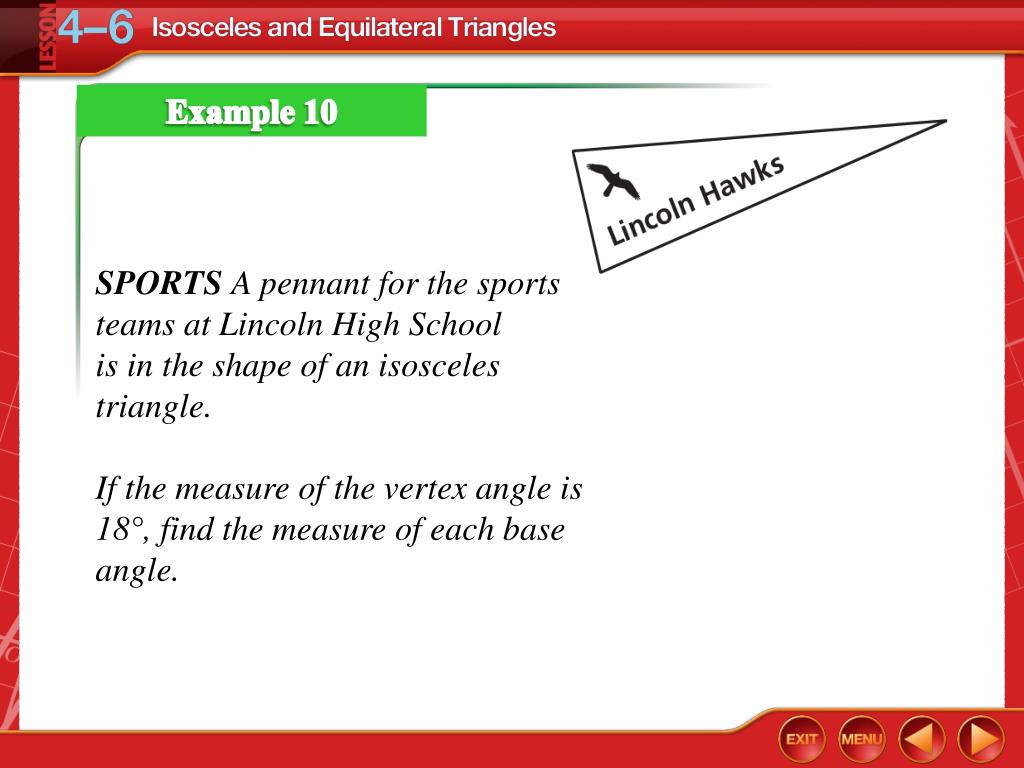

  23. Example 10 SPORTS A pennant for the sports teams at Lincoln High School is in the shape of an isosceles triangle. If the measure of the vertex angle is 18°, find the measure of each base angle.

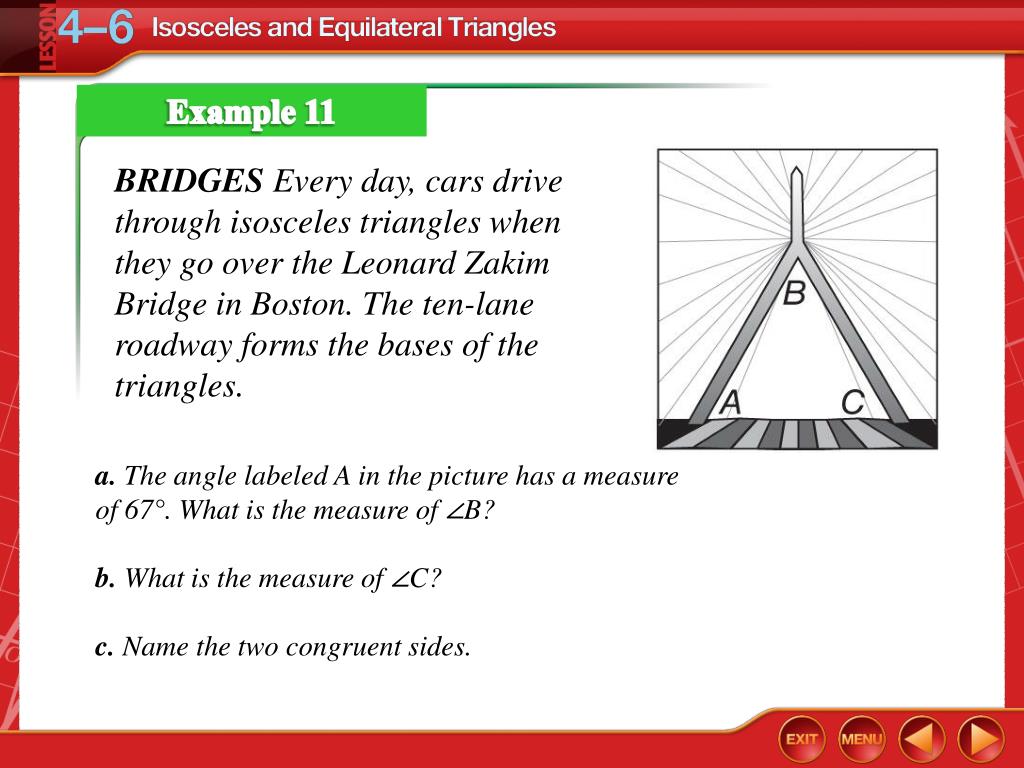

  24. Example 11 BRIDGES Every day, cars drive through isosceles triangles when they go over the Leonard Zakim Bridge in Boston. The ten-lane roadway forms the bases of the triangles. a. The angle labeled A in the picture has a measure of 67°. What is the measure of ∠B? b. What is the measure of ∠C? c. Name the two congruent sides.

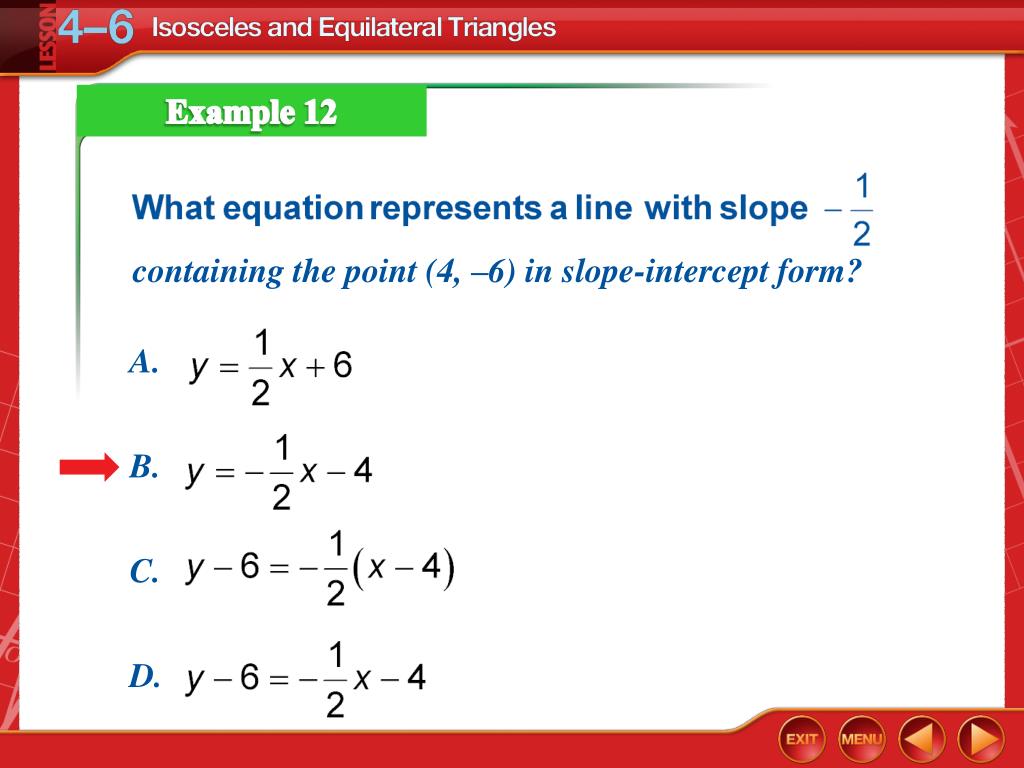

  25. 5-Minute Check 4 containing the point (4, –6) in slope-intercept form? A. B. C. D. Example 12

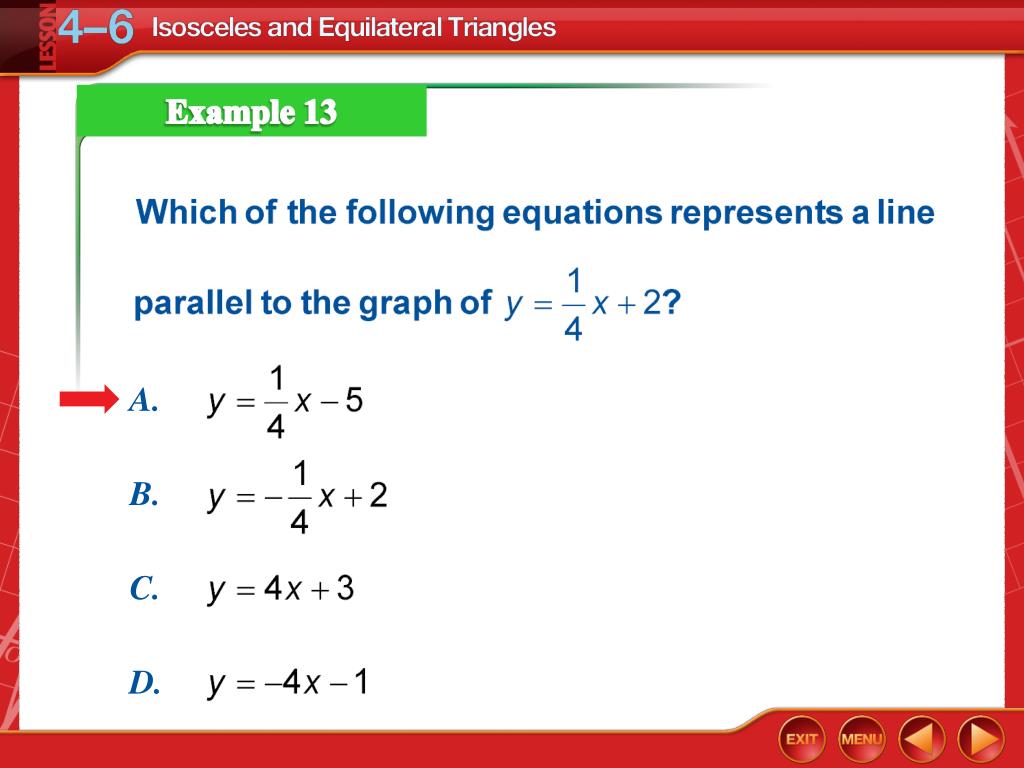

  26. 5-Minute Check 6 A. B. C. D. Example 13

  27. Example 3 Example 14 GAMES In the game Tic-Tac-Toe, four lines intersect to form a square with four right angles in the middle of the grid. Is it possible to prove any of the lines parallel or perpendicular? Choose the best answer. • A. The two horizontal lines are parallel. • B. The two vertical lines are parallel. • The vertical lines are perpendicular to the horizontal lines. • All of these statements are true.

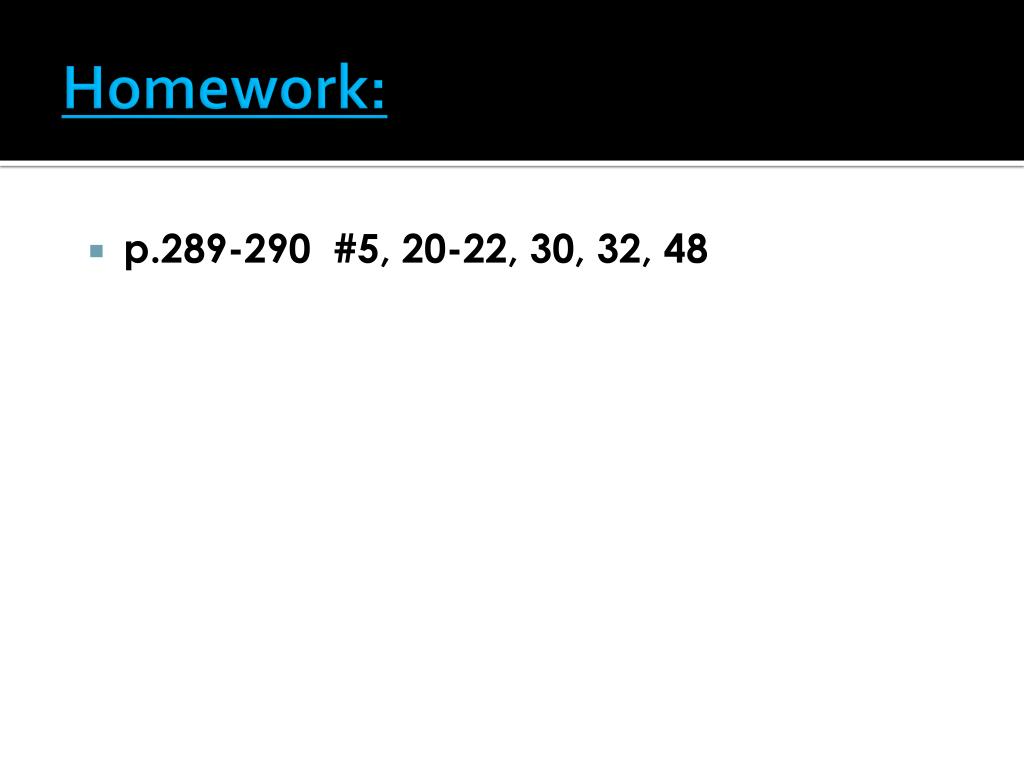

  28. Homework: • p.289-290 #5, 20-22, 30, 32, 48
