  1. Intelligent Compaction By James N. Lee Pavement Program Caltrans

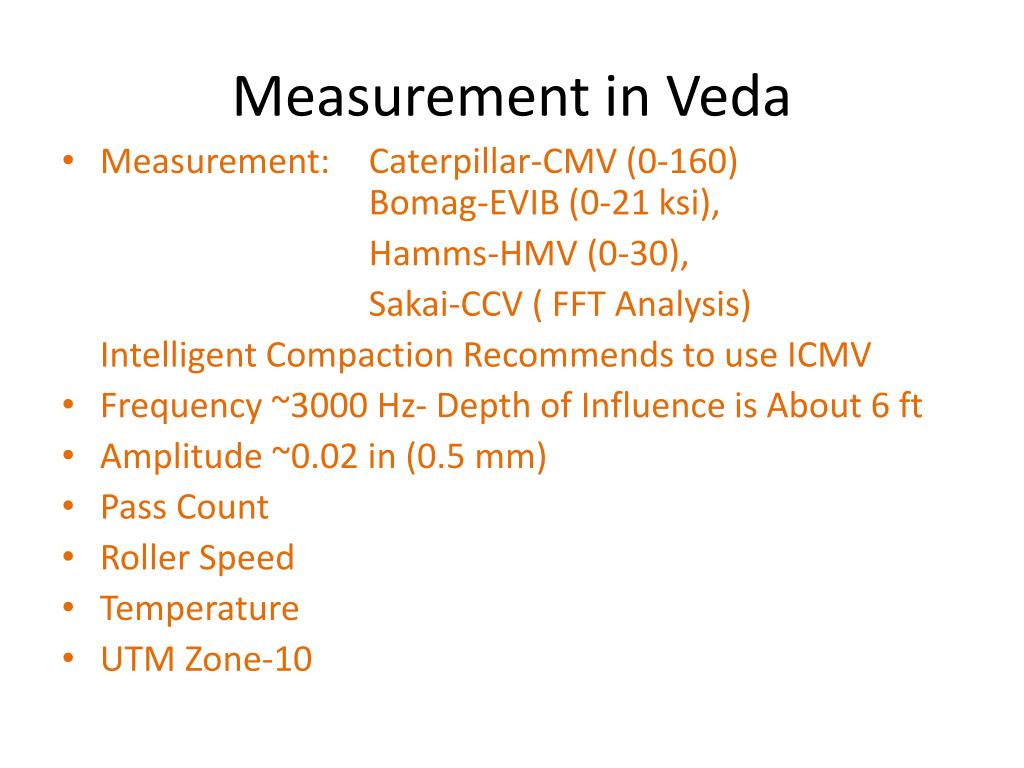

  2. Measurement in Veda • Measurement: Caterpillar-CMV (0-160) Bomag-EVIB (0-21 ksi), Hamms-HMV (0-30), Sakai-CCV ( FFT Analysis) Intelligent Compaction Recommends to use ICMV • Frequency ~3000 Hz- Depth of Influence is About 6 ft • Amplitude ~0.02 in (0.5 mm) • Pass Count • Roller Speed • Temperature • UTM Zone-10

  3. FWD

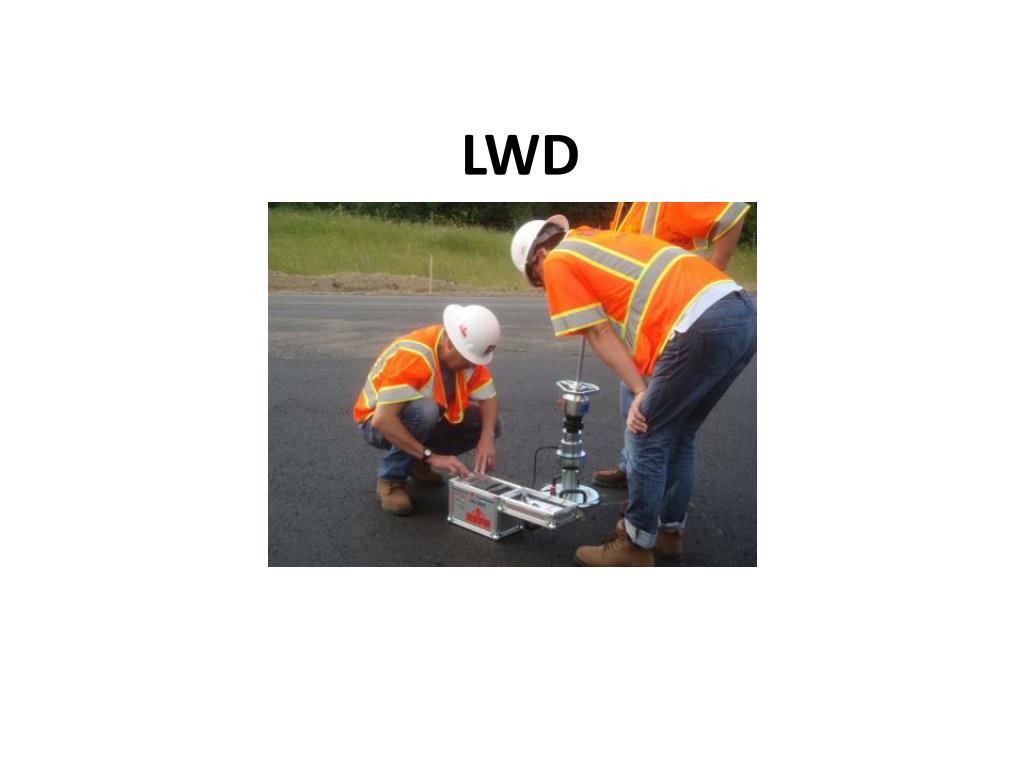

  4. LWD

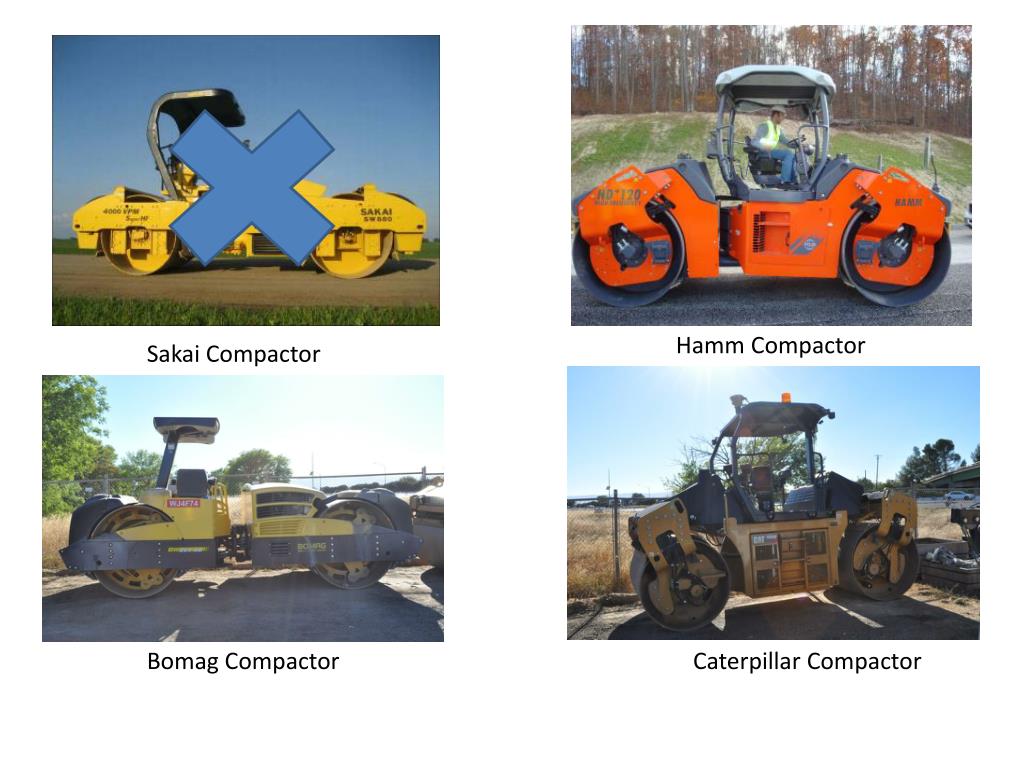

  5. Hamm Compactor Sakai Compactor Bomag Compactor Caterpillar Compactor

  6. VEDA Demo

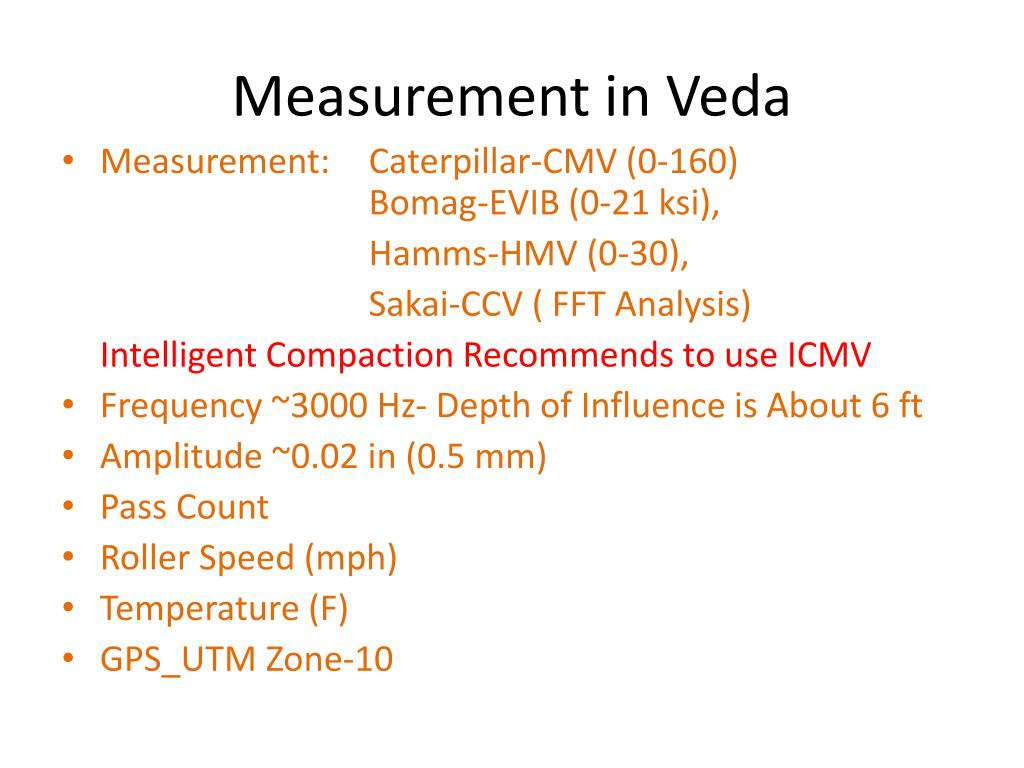

  7. Measurement in Veda • Measurement: Caterpillar-CMV (0-160) Bomag-EVIB (0-21 ksi), Hamms-HMV (0-30), Sakai-CCV ( FFT Analysis) Intelligent Compaction Recommends to use ICMV • Frequency ~3000 Hz- Depth of Influence is About 6 ft • Amplitude ~0.02 in (0.5 mm) • Pass Count • Roller Speed (mph) • Temperature (F) • GPS_UTM Zone-10
