agenda
Agenda
  • Context
  • Google File System
    • Aims
    • Design
    • Walk through
  • MapReduce
    • Aims
    • Design
    • Walk through
  • Conclusion

Johannes Passing

context

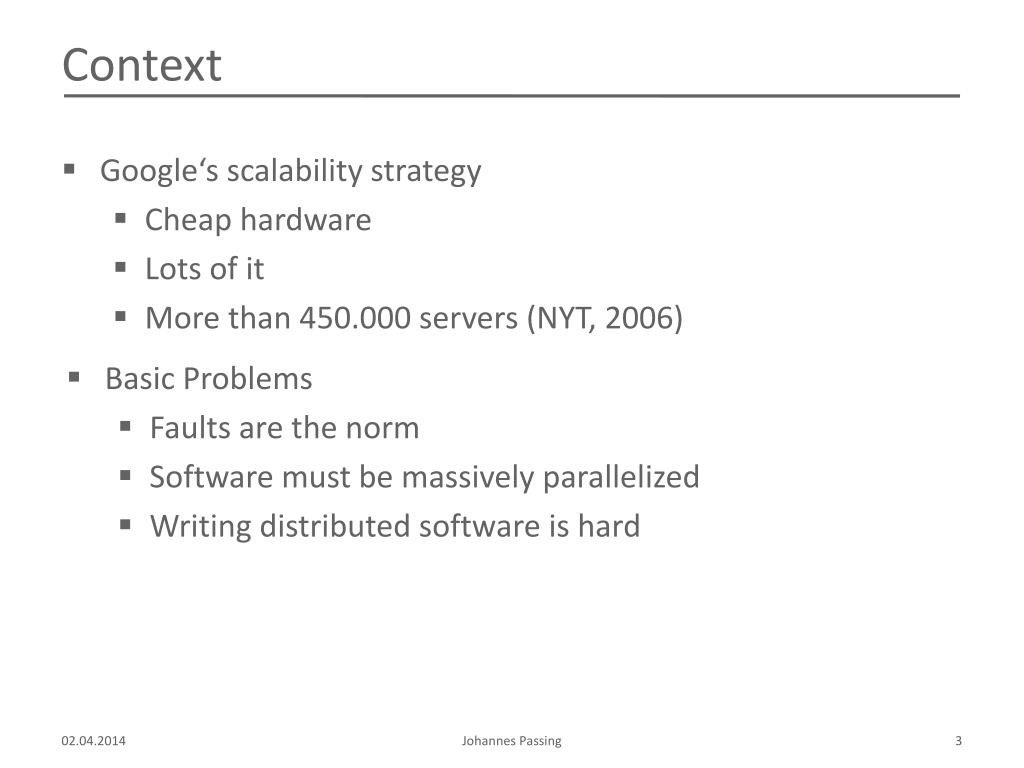

Context
  • Google‘sscalabilitystrategy
    • Cheaphardware
    • Lots ofit
    • More than 450.000 servers (NYT, 2006)
  • Basic Problems
    • Faultsarethe norm
    • Software must bemassivelyparallelized
    • Writing distributedsoftwareishard

Johannes Passing

gfs aims
GFS: Aims
  • Aims
    • Mustscaletothousandsofservers
    • Fault tolerance/Data redundancy
    • Optimizefor large WORM files
    • Optimizefor large reads
    • Favorthroughputoverlatency
  • Non-Aims
    • Space efficiency
    • Client sidecachingfutile
    • POSIX compliance

 Significantdeviationfromstandard DFS (NFS, AFS, DFS, …)

Johannes Passing

design choices
Design Choices
  • Files split into chunks
    • Unit of management and distribution
    • Replicated across servers
    • Subdivided into blocks for integrity checks

 Accept internal fragmentation for better throughput

GFS

File System

Johannes Passing

architecture chunkserver
Architecture: Chunkserver
  • Host chunks
    • Store chunks as files in Linux FS
    • Verify data integrity
    • Implemented entirely in user mode
  • Fault tolerance
    • Fail requests on integrity violation detection
    • All chunks stored on at least one other server
    • Re-replication restores server after downtime

Johannes Passing

architecture master
Architecture: Master
  • Namespace and metadata management
  • Cluster management
    • Chunk location registry (transient)
    • Chunk placement decisions
    • Re-replication, Garbage collection
    • Health monitoring
  • Fault tolerance
    • Backed by shadow masters
    • Mirrored operations log
    • Periodic snapshots

Johannes Passing

reading a chunk
Reading a chunk
  • Send filenameandoffset
  • Determinefileandchunk
  • Return chunklocationsandversion
  • Chooseclosestserverandrequestchunk
  • Verifychunkversionandblock checksums
  • Return dataif valid, elsefailrequest

Johannes Passing

writing a chunk
Writing a chunk
  • Send filenameandoffset
  • Determine leaseowner/grant lease
  • Return chunklocationsand lease owner
  • Push datatoanychunkserver
  • Forward alongreplicachain
  • Send writerequesttoprimary
  • Create mutation order, apply
  • Forward writerequest
  • Validateblocks, applymodifications , incversion, ack
  • Replytoclient

Johannes Passing

appending a record 1 2
Appending a record (1/2)
  • Send appendrequest
  • Chooseoffset
  • Return chunklocationsand lease owner
  • Push datatoanychunkserver
  • Forward alongreplicachain
  • Send appendrequest
  • Check forleftspace in chunk
  • Padchunkandrequestretry
  • Request chunkallocation
  • Return chunklocationsand lease owner

Johannes Passing

appending a record 2 2
Appending a record (2/2)
  • Send appendrequest
  • Allocatechunk, writedata
  • Forward requesttoreplicas
  • Write data, failureoccurs
  • Fail request

A

A

A

  • Client retries

Padding

Padding

Padding

  • Write data

B

B

Garbage

  • Forward requesttoreplicas

Free

Free

B

B

Free

  • Write data

B

B

Garbage

B

Free

Free

  • Success

Free

Johannes Passing

file region consistency
File Region Consistency
  • File regionstates:
    • Consistent All clientssee same data
    • Defined Consistent ^ clientsseechange in itsentirety
    • Inconsistent
  • Consequences
    • Unique record IDs toidentifyduplicates
    • Records shouldbeself-identifyingandself-validating

inconsistent

B

B

Garbage

Garbage

B

Garbage

B

B

B

defined

B

B

B

B

B

B

B

B

B

consistent

defined

C

Free

C

Free

C

Free

D

D

D

C

C

C

Johannes Passing

fault tolerance gfs
Fault tolerance GFS
  • Automatic re-replication
  • Replicas are spread across racks
  • Fault mitigations
    • Data corruption  choose different replica
    • Machine crash  choose replica on different machine
    • Network outage  choose replica in different network
    • Master crash  shadow masters

Johannes Passing

wrap up gfs
Wrap-up GFS
  • Proven scalability, fault tolerance and performance
  • Highly specialized
  • Distribution transparent to clients
  • Only partial abstraction – clients must cooperate
  • Network is the bottleneck

Johannes Passing

mapreduce aims
MapReduce: Aims
  • Aims
    • Unified model for large scaledistributeddataprocessing
    • Massivelyparallelizable
    • Distribution transparent todeveloper
    • Fault tolerance
    • Allowmovingofcomputationclosetodata

Johannes Passing

higher order functions
Higher order functions
  • Functional: map(f, [a, b, c, …])

a

c

b

f

f

f

f(a)

f(c)

f(b)

  • Google: map(k, v)

(k, v)

map

(f(k1), f(v1))

(f(k1), f(v1))

(f(k1), f(v1))

Johannes Passing

higher order functions17
Higher order functions
  • Functional: foldl/reduce(f, [a, b, c, …], i)

c

b

a

f(a)

f(c, d)

f

  • Google: reduce(k, [a, b, c, d, …])

c

f

d

b

f

i

a

Johannes Passing

slide18
Idea
  • Observation
    • Map can be easily parallelized
    • Reduce might be parallelized
  • Idea
    • Design application around map and reduce scheme
    • Infrastructure manages scheduling and distribution
    • User implements map and reduce
  • Constraints
    • All data coerced into key/value pairs

Johannes Passing

walkthrough

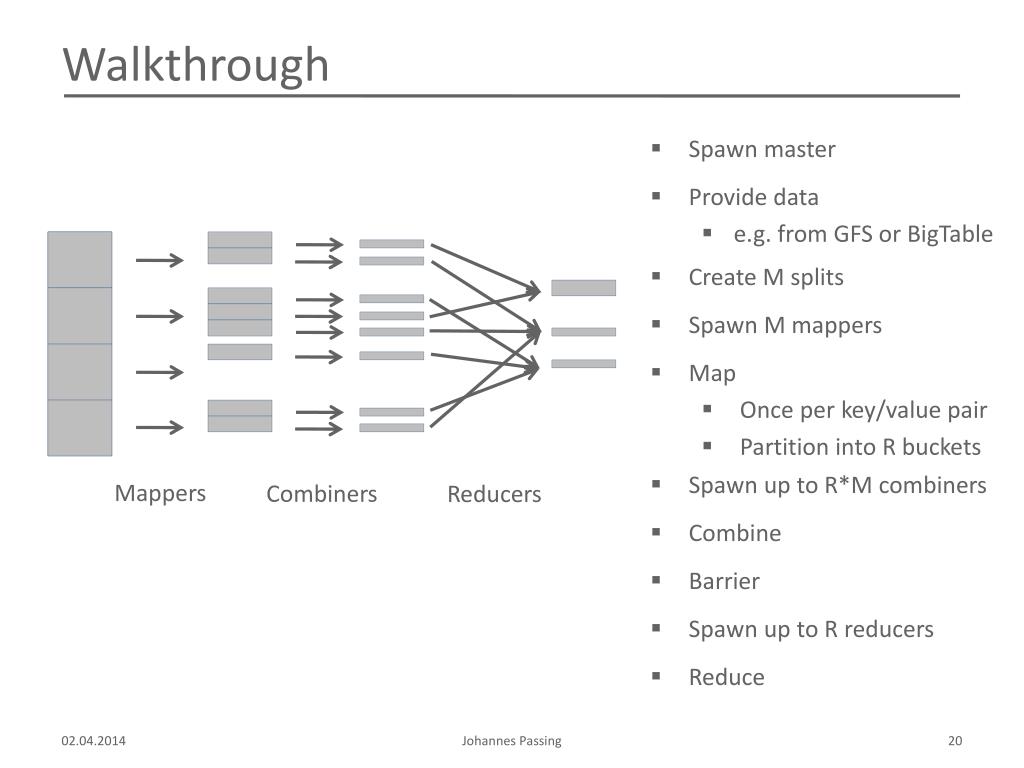

Walkthrough
  • Spawnmaster
  • Providedata
    • e.g. from GFS orBigTable
  • Create M splits
  • Spawn M mappers
  • Map
    • Once per key/value pair
    • Partition into R buckets
  • Spawnupto R*M combiners

Mappers

Combiners

Reducers

  • Combine
  • Barrier
  • Spawnupto R reducers
  • Reduce

Johannes Passing

scheduling
Scheduling
  • Locality
    • Mappers scheduled close to data
    • Chunk replication improves locality
    • Reducers run on same machine as mappers
  • Choosing M and R
    • Load balancing & fast recovery vs. number of output files

 M >> R, R small multiple of #machines

  • Schedule backup tasks to avoid stragglers

Johannes Passing

fault tolerance mapreduce
Fault tolerance MapReduce
  • Fault mitigations
    • Map crash
      • All intermediate data in questionable state

Repeat all map tasks of machine

Rationale of barrier

    • Reduce crash
      • Data is global, completed stages marked

Repeat crashedresuce task only

    • Master crash

 start over

    • Repeated crashs on certain records

Skip records

Johannes Passing

wrap up mapreduce
Wrap-up MapReduce
  • Proven scalability
  • Restrict programming model for better runtime support
  • Tailored to Google’s needs
  • Programming model is fairly low-level

Johannes Passing

conclusion
Conclusion
  • Rethinking infrastructure
    • Consequent design for scalability and performance
    • Highly specialized solutions
    • Not generally applicable
    • Solutions more low-level than usual
  • Maintenance efforts may be significant

„Webelievewegettremendouscompetitiveadvantagebyessentiallybuildingourowninfrastructures“

--Eric Schmidt

Johannes Passing

references
References
  • Jeffrey Dean and Sanjay Ghemawat, “MapReduce: Simplified Data Processing on Large Clusters”, 2004
  • Sanjay Ghemawat, Howard Gobioff, and Shun-Tak Leung, “The Google File System”, 2003
  • Ralf Lämmel, “Google's MapReduce Programming Model – Revisited”, SCP journal, 2006
  • Google, “Cluster Computing and MapReduce”, http://code.google.com/edu/content/submissions/mapreduce-minilecture/listing.html, 2007
  • David F. Carr, “How Google Works”, http://www.baselinemag.com/c/a/Projects-Networks-and-Storage/How-Google-Works/, 2006
  • Colby Ranger, RamananRaghuraman, ArunPenmetsa, Gary Bradski, Christos Kozyrakis, “Evaluating MapReduce for Multi-core and Multiprocessor Systems”, 2007
