  1. A Guide to Buy the Right Servo Motor www.agvmotor.com

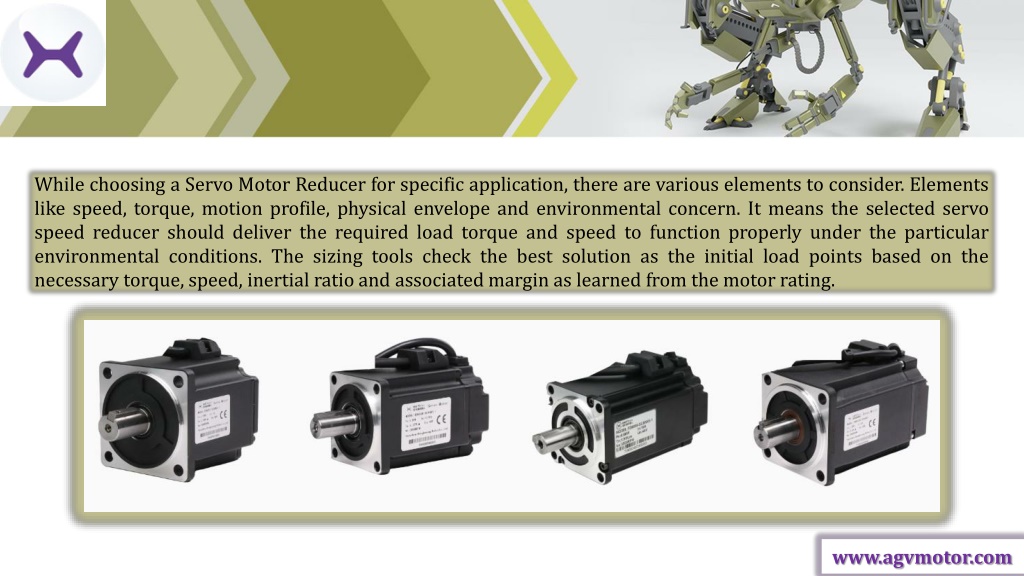

  2. While choosing a Servo Motor Reducer for specific application, there are various elements to consider. Elements like speed, torque, motion profile, physical envelope and environmental concern. It means the selected servo speed reducer should deliver the required load torque and speed to function properly under the particular environmental conditions. The sizing tools check the best solution as the initial load points based on the necessary torque, speed, inertial ratio and associated margin as learned from the motor rating. www.agvmotor.com

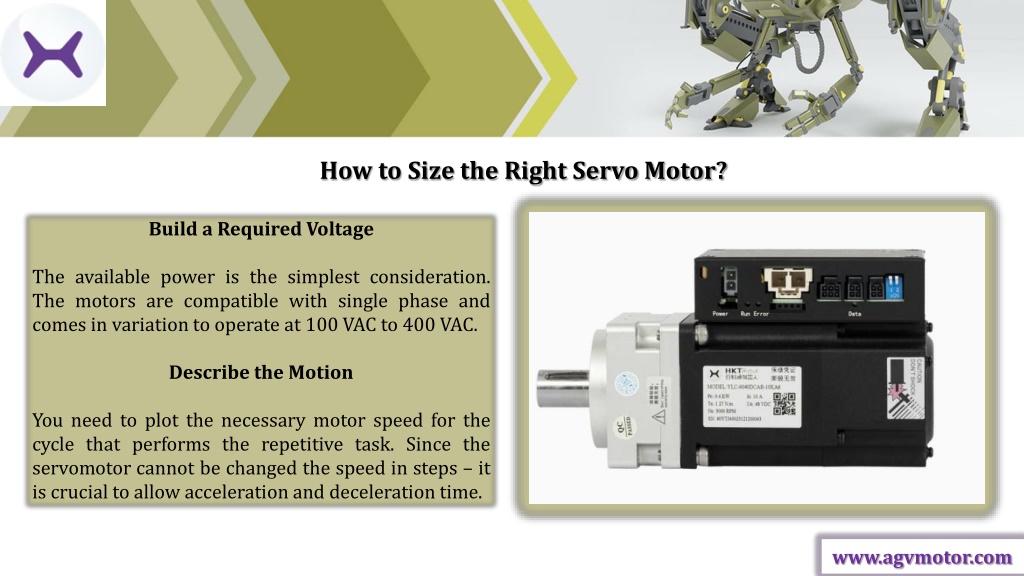

  3. How to Size the Right Servo Motor? Build a Required Voltage The available power is the simplest consideration. The motors are compatible with single phase and comes in variationto operate at 100 VAC to 400 VAC. Describe the Motion You need to plot the necessary motor speed for the cycle that performs the repetitive task. Since the servomotor cannot be changed the speed in steps – it is crucial to allow acceleration and deceleration time. www.agvmotor.com

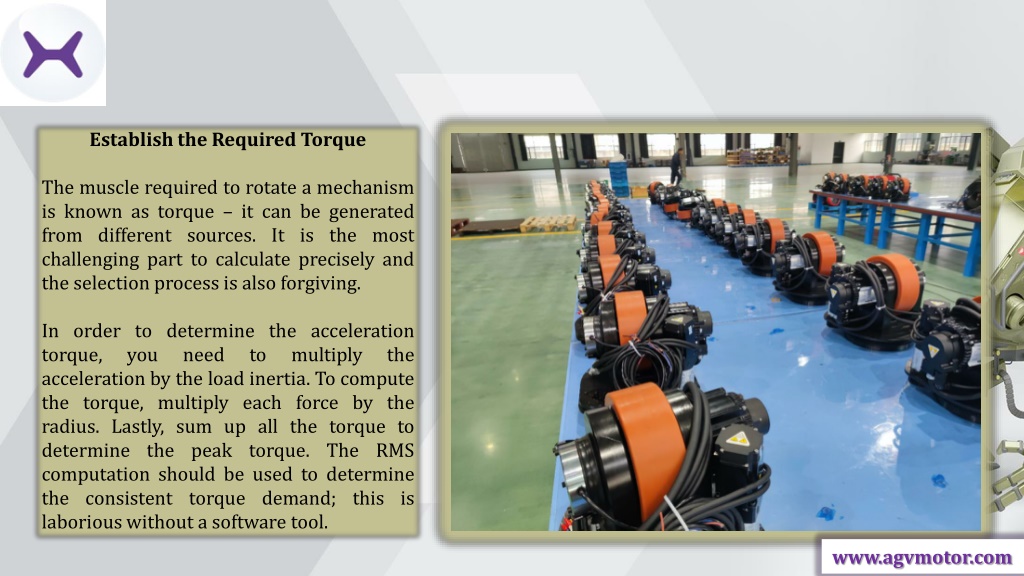

  4. Establish the Required Torque The muscle required to rotate a mechanism is known as torque – it can be generated from different sources. It is the most challenging part to calculate precisely and the selection process is also forgiving. In order to determine the acceleration torque, you need acceleration by the load inertia. To compute the torque, multiply each force by the radius. Lastly, sum up all the torque to determine the peak torque. The RMS computation should be used to determine the consistent torque demand; this is laboriouswithout a software tool. to multiply the www.agvmotor.com

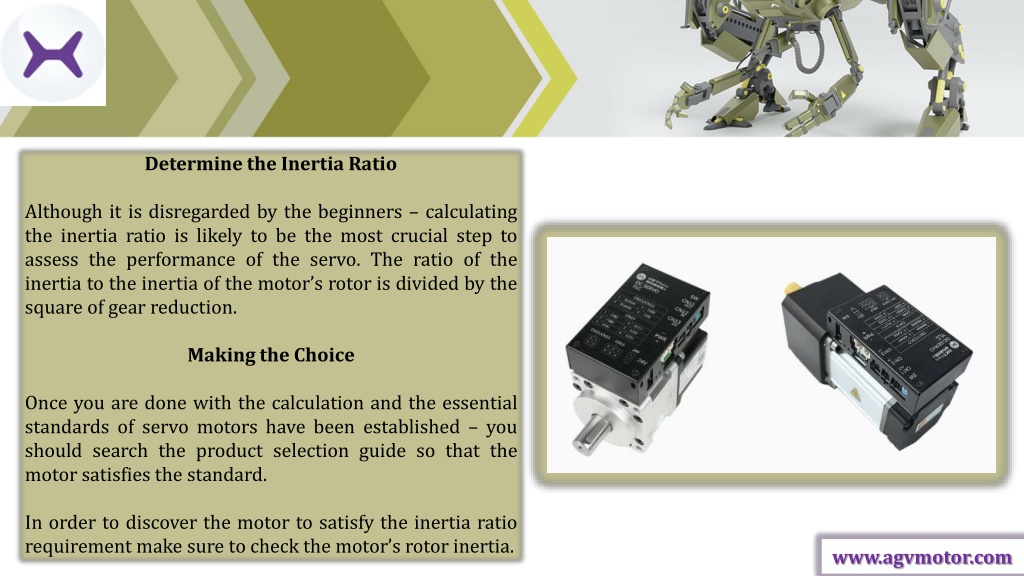

  5. Determine the Inertia Ratio Although it is disregarded by the beginners – calculating the inertia ratio is likely to be the most crucial step to assess the performance of the servo. The ratio of the inertia to the inertia of the motor’s rotor is divided by the square of gear reduction. Making the Choice Once you are done with the calculation and the essential standards of servo motors have been established – you should search the product selection guide so that the motor satisfies the standard. In order to discover the motor to satisfy the inertia ratio requirement make sure to check the motor’s rotor inertia. www.agvmotor.com

  6. Contact Us: Shenzhen Hengketong Robot Co., Ltd. Address : Block 4, Tian'an Cloud Park, Longgang District, Shenzhen, Guangdong 518129, China Phone : 86 181 2370 8792 Email : market@agvmotor.com www.agvmotor.com

  7. Thank You! www.agvmotor.com
