Working Principle Of Solar Water Heater.

Solar Water Heater isu00a0a device that helps in heating water by using the energy coming from the SUN. Solar energy is totally free. Solar energy (sun rays) is used for heating water at zero operating cost.<br>Working Principle Of Solar Water Heater Is Very Simple<br><br>Device Has Insulated Collectors Which Absorb The Radiations Of Sun And Converts It Into Heat Energy.<br>This Collected Energy Is Passed To A Water Tank With The Help Of Circulating Pumps.<br>Thermal regulators handle this exchange very well. <br><br><br>For information Visit here: Agni Solar Pvt. Ltd.

agni1
Download Presentation

Working Principle Of Solar Water Heater.

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Working Principle Of Solar Water Heater

  2. What is a Solar Water Heater ? • Solar Water Heater is a device that helps in heating water by using the energy coming from the SUN. • Solar energy is totally free. Solar energy (sun rays) is used for heating water at zero operating cost. • In general solar water heaterconsists of a solar collector that is fixed on the roof  of a building and connected to a insulated water-storage tank

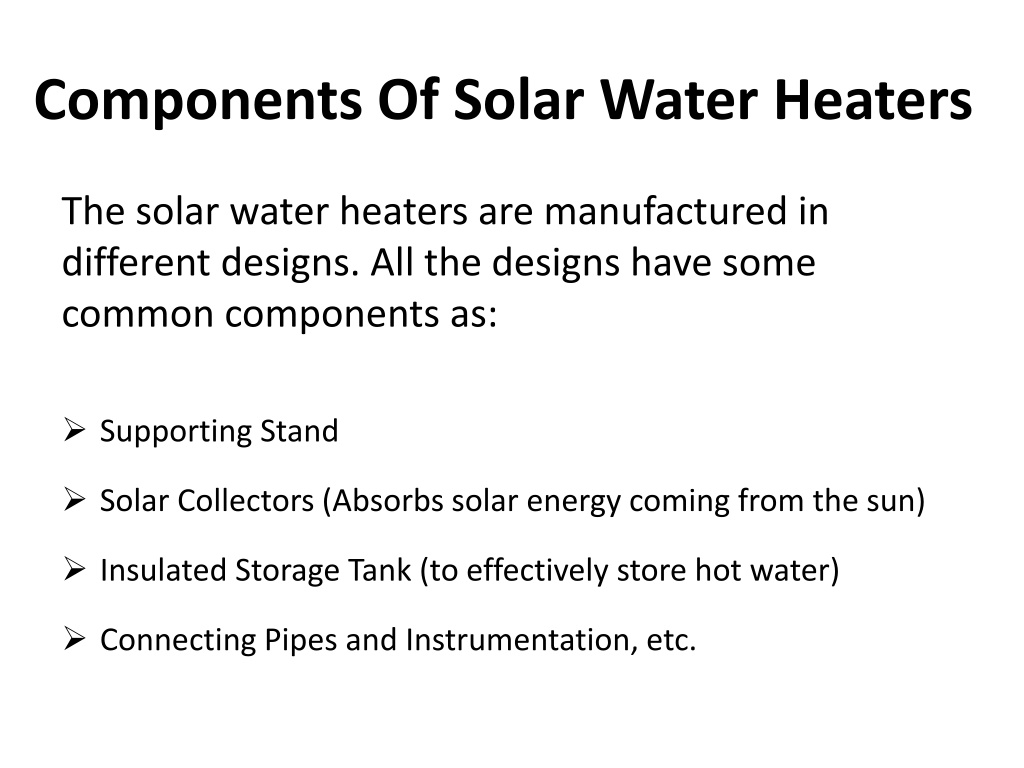

  3. Components Of Solar Water Heaters The solar water heaters are manufactured in different designs. All the designs have some common components as: • Supporting Stand • Solar Collectors (Absorbs solar energy coming from the sun) • Insulated Storage Tank (to effectively store hot water) • Connecting Pipes and Instrumentation, etc.

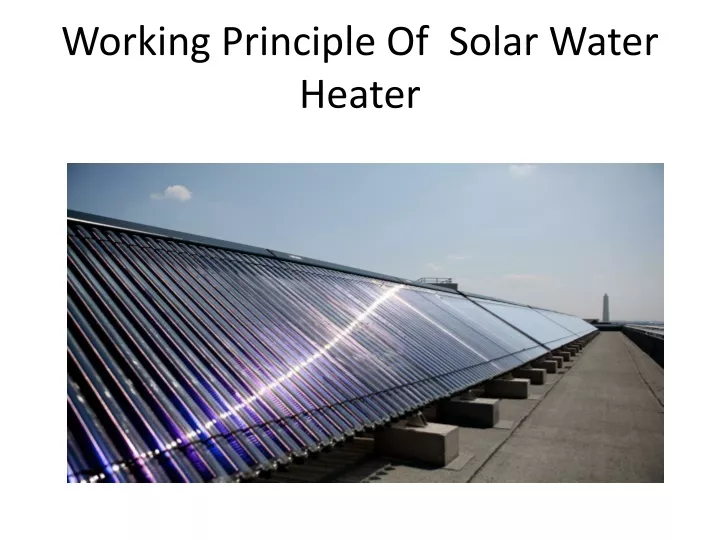

  4. Working Principle Of Solar Water Heater

  5. Working Principle Of Solar Water Heater Is Very Simple • Device Has Insulated Collectors Which Absorb The Radiations Of Sun And Converts It Into Heat Energy. • This Collected Energy Is Passed To A Water Tank With The Help Of Circulating Pumps. • Thermal regulators handle this exchange very well.

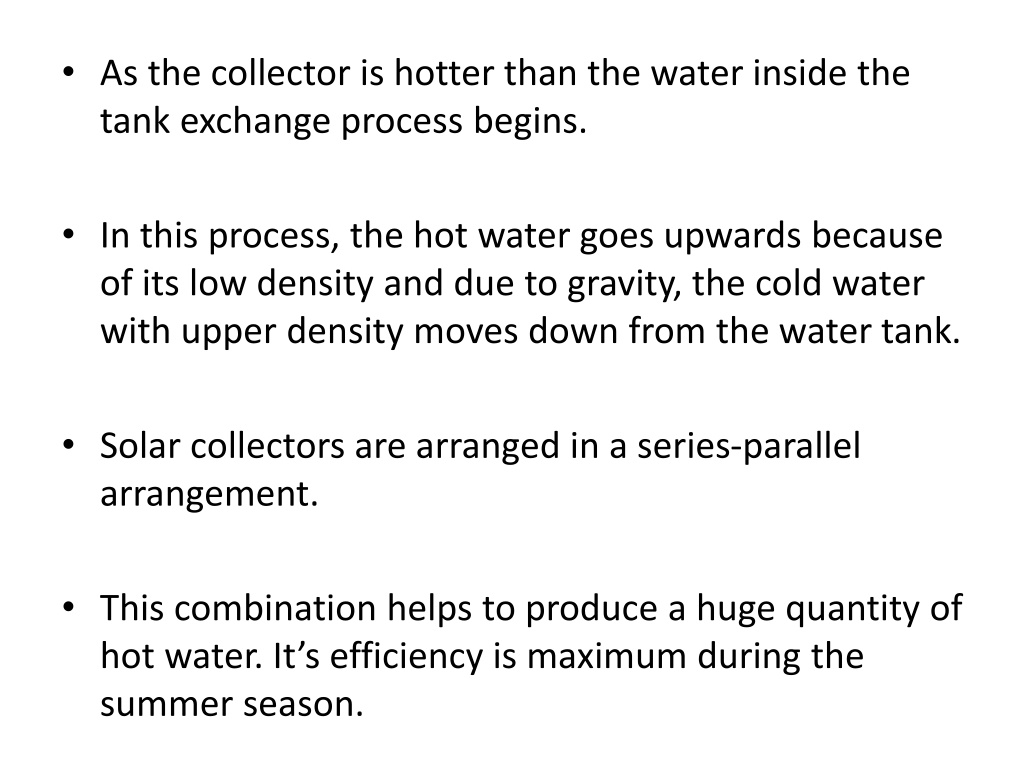

  6. As the collector is hotter than the water inside the tank exchange process begins. • In this process, the hot water goes upwards because of its low density and due to gravity, the cold water with upper density moves down from the water tank. • Solar collectors are arranged in a series-parallel arrangement. • This combination helps to produce a huge quantity of hot water. It’s efficiency is maximum during the summer season.

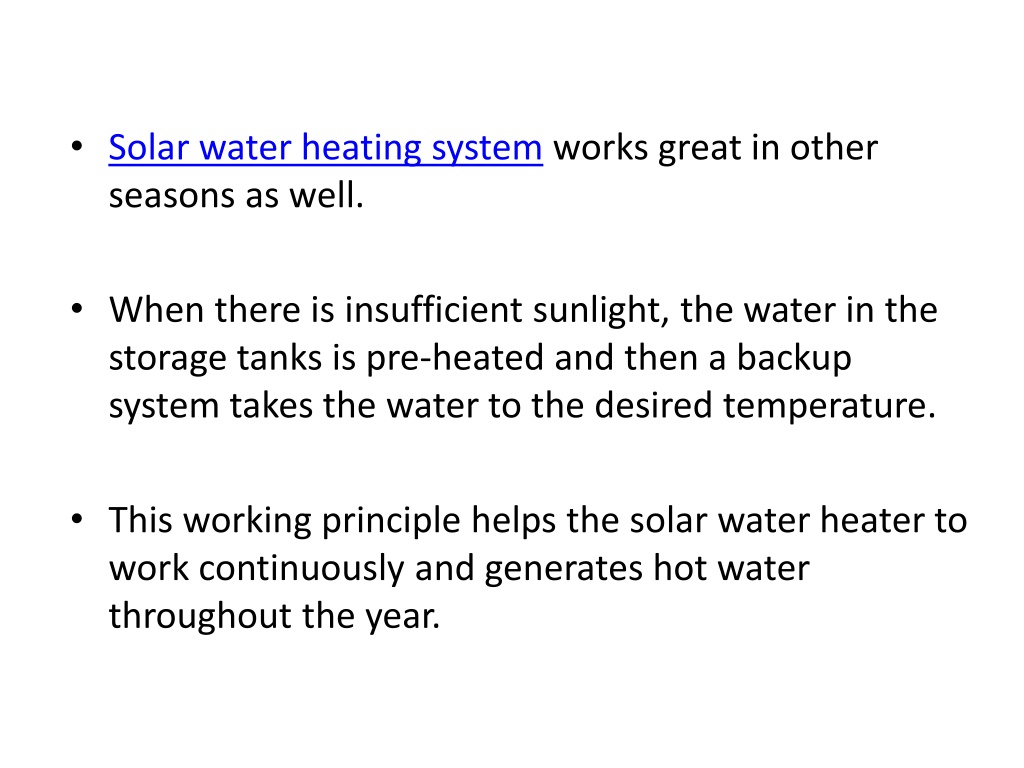

  7. Solar water heating system works great in other seasons as well. • When there is insufficient sunlight, the water in the storage tanks is pre-heated and then a backup system takes the water to the desired temperature. • This working principle helps the solar water heater to work continuously and generates hot water throughout the year.

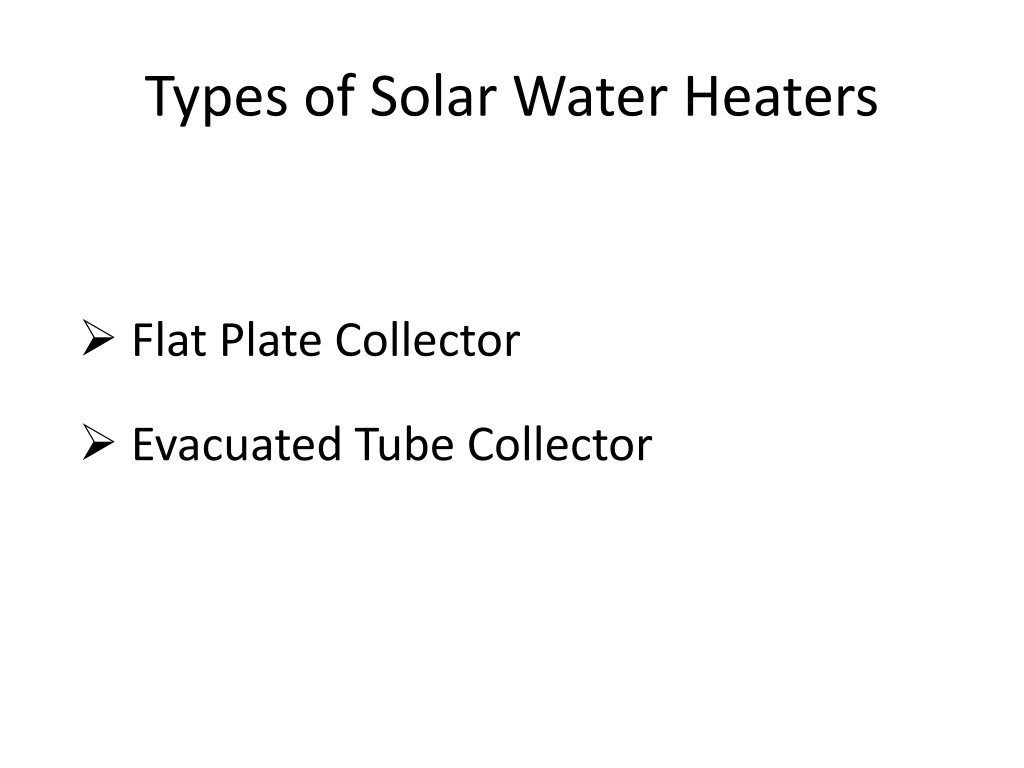

  8. Types of Solar Water Heaters • Flat Plate Collector • Evacuated Tube Collector

  9. Flat Plate Collector • They are consist of a rectangular box that is insulated. • This insulated box is covered by a glass. • Just under the glass, there are a series of interconnected copper pipes from where hot water flows through.

  10. Evacuated Tube Collector • Evacuated tube collectors consists of glass tubes • These insulated glass tubes absorbs the solar radiations. • The idea behind this type of solar hot water system is that vacuum is a good insulator.

  11. Conclusion • Variety Of Configurations Is Available As Per Requirement • Provide Solutions In Different Climates • The Amount Of Heat Delivered By A Solar Water Heating System Is Completely Free • Device Is Eco Friendly In Nature • Requires Low Maintenance • It Is Environment Friendly In Nature
