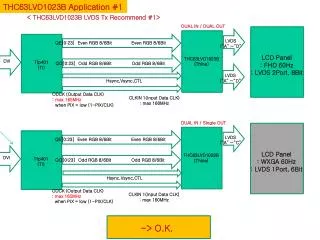

  1. THC63LVD1023B Application #1 < THC63LVD1023B LVDS Tx Recommend #1> DUAL IN / DUAL OUT LVDS (“A” ~”D” QE[0:23] Even RGB 8/6Bit Even RGB 8/6Bit LCD Panel : FHD 60Hz : LVDS 2Port, 8Bit THC63LVD1023B (Thine) DVI Tfp401 (TI) QO[0:23] Odd RGB 8/6Bit Odd RGB 8/6Bit LVDS (“A” ~”D” Hsync,Vsync,CTL ODCK (Output Data CLK) : max 165MHz when PIX = low (1-PIX/CLK) CLKIN 1(Input Data CLK) : max 160MHz DUAL IN / Single OUT LVDS (“A” ~”C” QE[0:23] Even RGB 8/6Bit Even RGB 8/6Bit LCD Panel : WXGA 60Hz : LVDS 1Port, 6Bit THC63LVD1023B (Thine) DVI Tfp401 (TI) QO[0:23] Odd RGB 8/6Bit Odd RGB 8/6Bit Hsync,Vsync,CTL ODCK (Output Data CLK) : max 165MHz when PIX = low (1-PIX/CLK) CLKIN 1(Input Data CLK) : max 160MHz -> O.K.

  2. THC63LVD823B Application #2 < THC63LVD823B LVDS Tx Recommend #2> DUAL IN / DUAL OUT LVDS (“A” ~”D” QE[0:23] Even RGB 8/6Bit Even RGB 8/6Bit LCD Panel : FHD 60Hz : LVDS 2Port, 8Bit THC63LVD823B (Thine) DVI Tfp401 (TI) QO[0:23] Odd RGB 8/6Bit Odd RGB 8/6Bit LVDS (“A” ~”D” Hsync,Vsync,CTL ODCK (Output Data CLK) : max 165MHz when PIX = low (1-PIX/CLK) CLKIN 1(Input Data CLK) : max 160MHz DUAL IN / Single OUT LVDS (“A” ~”C” QE[0:23] Even RGB 8/6Bit Even RGB 8/6Bit LCD Panel : WXGA 60Hz : LVDS 1Port, 6Bit THC63LVD823B (Thine) DVI Tfp401 (TI) QO[0:23] Odd RGB 8/6Bit Odd RGB 8/6Bit Hsync,Vsync,CTL ODCK (Output Data CLK) : max 165MHz when PIX = low (1-PIX/CLK) CLKIN 1(Input Data CLK) : max 160MHz -> O.K.

  3. THC63LVD83D Application #3 < THC63LVD83D LVDS Tx Recommend #3> QE[0:23] Even RGB 8/6Bit Even RGB 8/6Bit THC63LVD83D (Thine) LVDS (“A” ~”D” Hsync,Vsync,CTL CLKIN 1(Input Data CLK) : max 160MHz LCD Panel : FHD 60Hz : LVDS 2Port, 8Bit ODCK (Output Data CLK) : max 165MHz when PIX = low (1-PIX/CLK) DVI Tfp401 (TI) THC63LVD83D (Thine) LVDS (“A” ~”D” QO[0:23] Odd RGB 8/6Bit Odd RGB 8/6Bit QE[0:23] Even RGB 8/6Bit Even RGB 8/6Bit THC63LVD83D (Thine) LVDS (“A” ~”C” Hsync,Vsync,CTL CLKIN 1(Input Data CLK) : max 160MHz LCD Panel : WXGA 60Hz : LVDS 1Port, 6Bit ODCK (Output Data CLK) : max 165MHz when PIX = low (1-PIX/CLK) DVI Tfp401 (TI) THC63LVD83D (Thine) LVDS (“A” ~”C” QO[0:23] Odd RGB 8/6Bit Odd RGB 8/6Bit LVDS 1Port Panel 구동 N.G. THC63LVDM83D는 적용불가합니다… WXGA구동을 위해서는 tfp401 로 부터 TTL 2Port입력을 받아 1Port LVDS로 출력을 내야 하나, THC63LVDM83D 2ea를 사용시에는 각각 독립구동이기 때문에 TTL 2Port를 LVDS 1Port로 만들수가 없습니다.
