Presentation Transcript
slide1

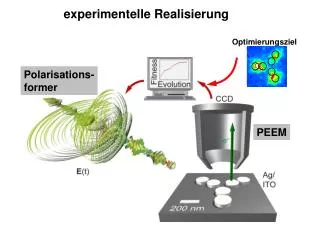

experimentelle Realisierung

Optimierungsziel

Polarisations-

former

PEEM

slide2

adaptive Nahfeldkontrolle

Kooperation mit M. Bauer, T. Brixner,F. Javier García de Abajo, W. Pfeiffer

silver nanostars

diameter ~ 180 nm

inner gap ~ 70 nm

outer gap ~ 10 nm

SEM

PEEM, hn = 1.5 eV

  • Ziel:
  • Kontrolle der lokalen Nahfeldverteilung
  • Auflösung: sub-100 nm
  • Polarisation des Fernfeldes
  • adaptiv - rückgekoppelt

Simulation des Nahfeldes
