plug valve

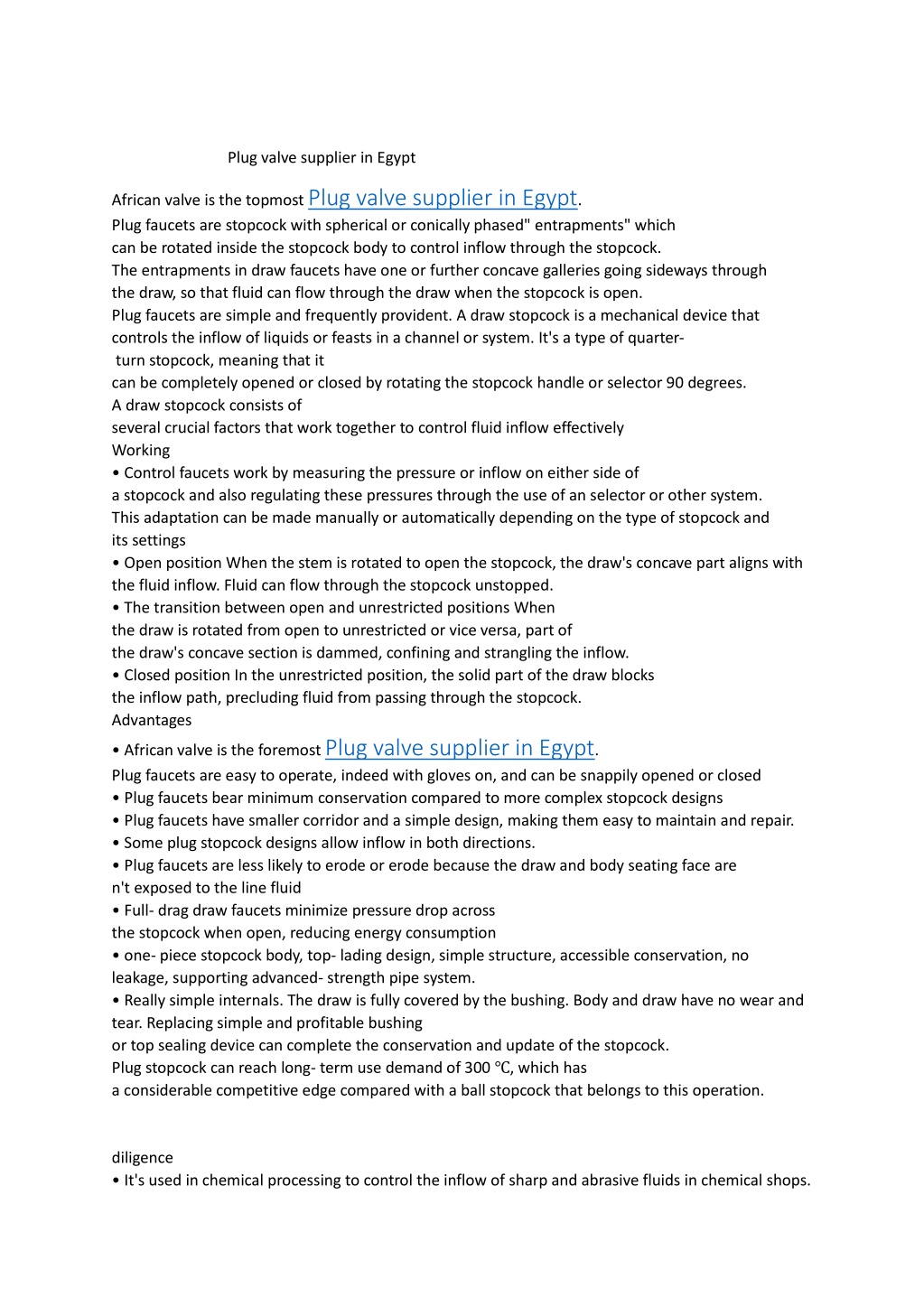

1. Plug valve supplier in Egypt African valve is the topmost Plug valve supplier in Egypt. Plug faucets are stopcock with spherical or conically phased" entrapments" which can be rotated inside the stopcock body to control inflow through the stopcock. The entrapments in draw faucets have one or further concave galleries going sideways through the draw, so that fluid can flow through the draw when the stopcock is open. Plug faucets are simple and frequently provident. A draw stopcock is a mechanical device that controls the inflow of liquids or feasts in a channel or system. It's a type of quarter- turn stopcock, meaning that it can be completely opened or closed by rotating the stopcock handle or selector 90 degrees. A draw stopcock consists of several crucial factors that work together to control fluid inflow effectively Working • Control faucets work by measuring the pressure or inflow on either side of a stopcock and also regulating these pressures through the use of an selector or other system. This adaptation can be made manually or automatically depending on the type of stopcock and its settings • Open position When the stem is rotated to open the stopcock, the draw's concave part aligns with the fluid inflow. Fluid can flow through the stopcock unstopped. • The transition between open and unrestricted positions When the draw is rotated from open to unrestricted or vice versa, part of the draw's concave section is dammed, confining and strangling the inflow. • Closed position In the unrestricted position, the solid part of the draw blocks the inflow path, precluding fluid from passing through the stopcock. Advantages • African valve is the foremost Plug valve supplier in Egypt. Plug faucets are easy to operate, indeed with gloves on, and can be snappily opened or closed • Plug faucets bear minimum conservation compared to more complex stopcock designs • Plug faucets have smaller corridor and a simple design, making them easy to maintain and repair. • Some plug stopcock designs allow inflow in both directions. • Plug faucets are less likely to erode or erode because the draw and body seating face are n't exposed to the line fluid • Full- drag draw faucets minimize pressure drop across the stopcock when open, reducing energy consumption • one- piece stopcock body, top- lading design, simple structure, accessible conservation, no leakage, supporting advanced- strength pipe system. • Really simple internals. The draw is fully covered by the bushing. Body and draw have no wear and tear. Replacing simple and profitable bushing or top sealing device can complete the conservation and update of the stopcock. Plug stopcock can reach long- term use demand of 300 ℃, which has a considerable competitive edge compared with a ball stopcock that belongs to this operation. diligence • It's used in chemical processing to control the inflow of sharp and abrasive fluids in chemical shops.

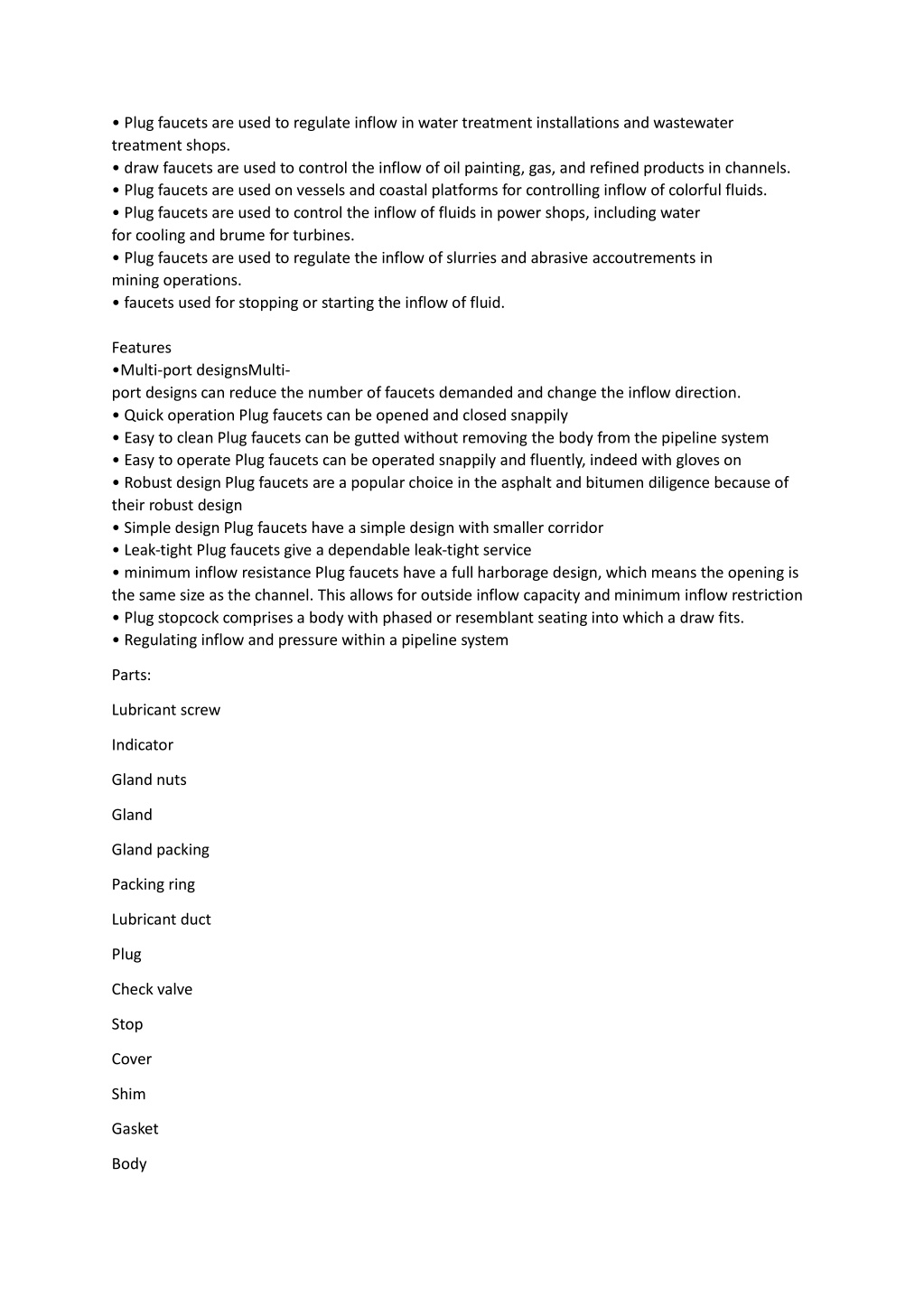

2. • Plug faucets are used to regulate inflow in water treatment installations and wastewater treatment shops. • draw faucets are used to control the inflow of oil painting, gas, and refined products in channels. • Plug faucets are used on vessels and coastal platforms for controlling inflow of colorful fluids. • Plug faucets are used to control the inflow of fluids in power shops, including water for cooling and brume for turbines. • Plug faucets are used to regulate the inflow of slurries and abrasive accoutrements in mining operations. • faucets used for stopping or starting the inflow of fluid. Features •Multi-port designsMulti- port designs can reduce the number of faucets demanded and change the inflow direction. • Quick operation Plug faucets can be opened and closed snappily • Easy to clean Plug faucets can be gutted without removing the body from the pipeline system • Easy to operate Plug faucets can be operated snappily and fluently, indeed with gloves on • Robust design Plug faucets are a popular choice in the asphalt and bitumen diligence because of their robust design • Simple design Plug faucets have a simple design with smaller corridor • Leak-tight Plug faucets give a dependable leak-tight service • minimum inflow resistance Plug faucets have a full harborage design, which means the opening is the same size as the channel. This allows for outside inflow capacity and minimum inflow restriction • Plug stopcock comprises a body with phased or resemblant seating into which a draw fits. • Regulating inflow and pressure within a pipeline system Parts: Lubricant screw Indicator Gland nuts Gland Gland packing Packing ring Lubricant duct Plug Check valve Stop Cover Shim Gasket Body

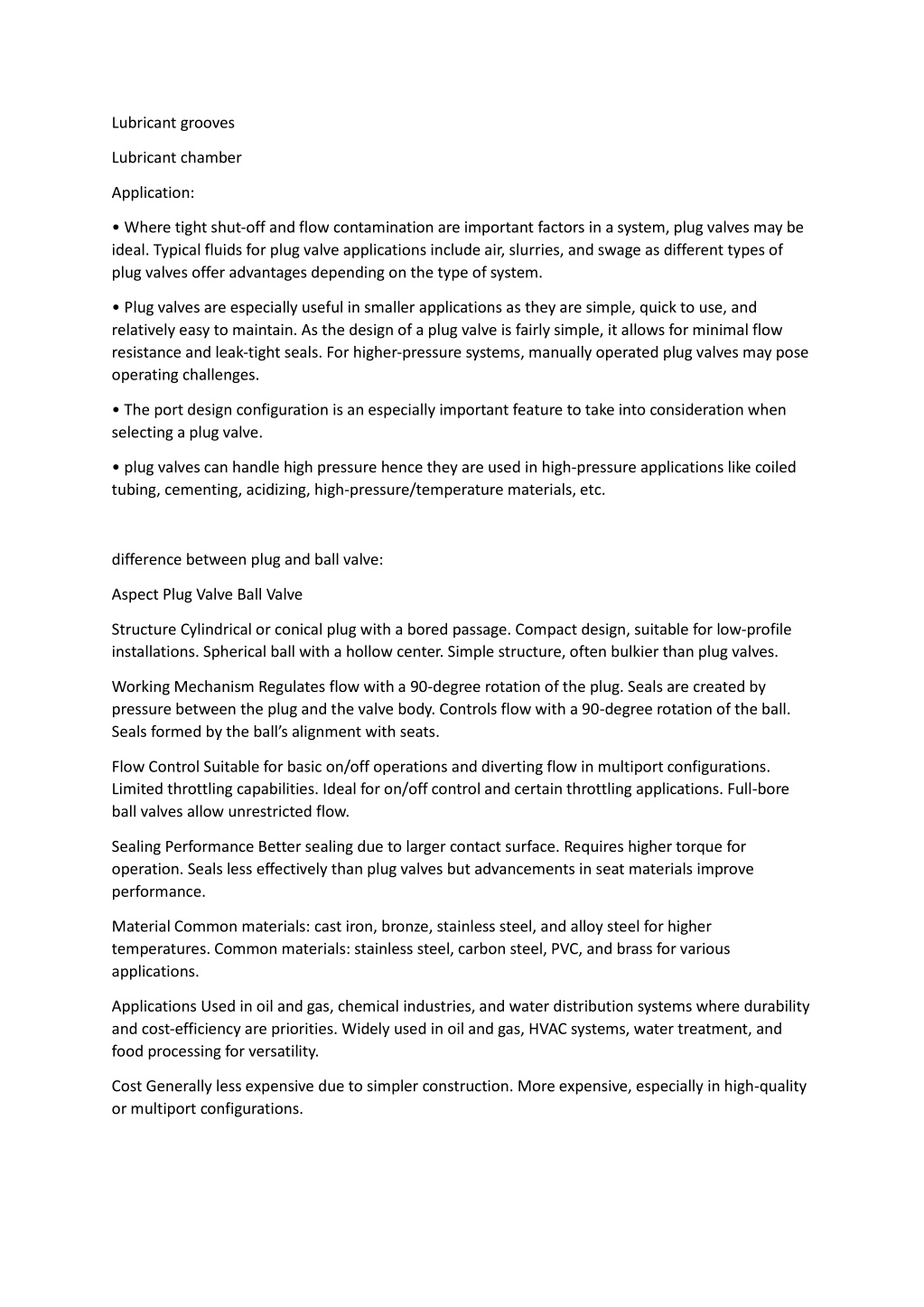

3. Lubricant grooves Lubricant chamber Application: • Where tight shut-off and flow contamination are important factors in a system, plug valves may be ideal. Typical fluids for plug valve applications include air, slurries, and swage as different types of plug valves offer advantages depending on the type of system. • Plug valves are especially useful in smaller applications as they are simple, quick to use, and relatively easy to maintain. As the design of a plug valve is fairly simple, it allows for minimal flow resistance and leak-tight seals. For higher-pressure systems, manually operated plug valves may pose operating challenges. • The port design configuration is an especially important feature to take into consideration when selecting a plug valve. • plug valves can handle high pressure hence they are used in high-pressure applications like coiled tubing, cementing, acidizing, high-pressure/temperature materials, etc. difference between plug and ball valve: Aspect Plug Valve Ball Valve Structure Cylindrical or conical plug with a bored passage. Compact design, suitable for low-profile installations. Spherical ball with a hollow center. Simple structure, often bulkier than plug valves. Working Mechanism Regulates flow with a 90-degree rotation of the plug. Seals are created by pressure between the plug and the valve body. Controls flow with a 90-degree rotation of the ball. Seals formed by the ball’s alignment with seats. Flow Control Suitable for basic on/off operations and diverting flow in multiport configurations. Limited throttling capabilities. Ideal for on/off control and certain throttling applications. Full-bore ball valves allow unrestricted flow. Sealing Performance Better sealing due to larger contact surface. Requires higher torque for operation. Seals less effectively than plug valves but advancements in seat materials improve performance. Material Common materials: cast iron, bronze, stainless steel, and alloy steel for higher temperatures. Common materials: stainless steel, carbon steel, PVC, and brass for various applications. Applications Used in oil and gas, chemical industries, and water distribution systems where durability and cost-efficiency are priorities. Widely used in oil and gas, HVAC systems, water treatment, and food processing for versatility. Cost Generally less expensive due to simpler construction. More expensive, especially in high-quality or multiport configurations.

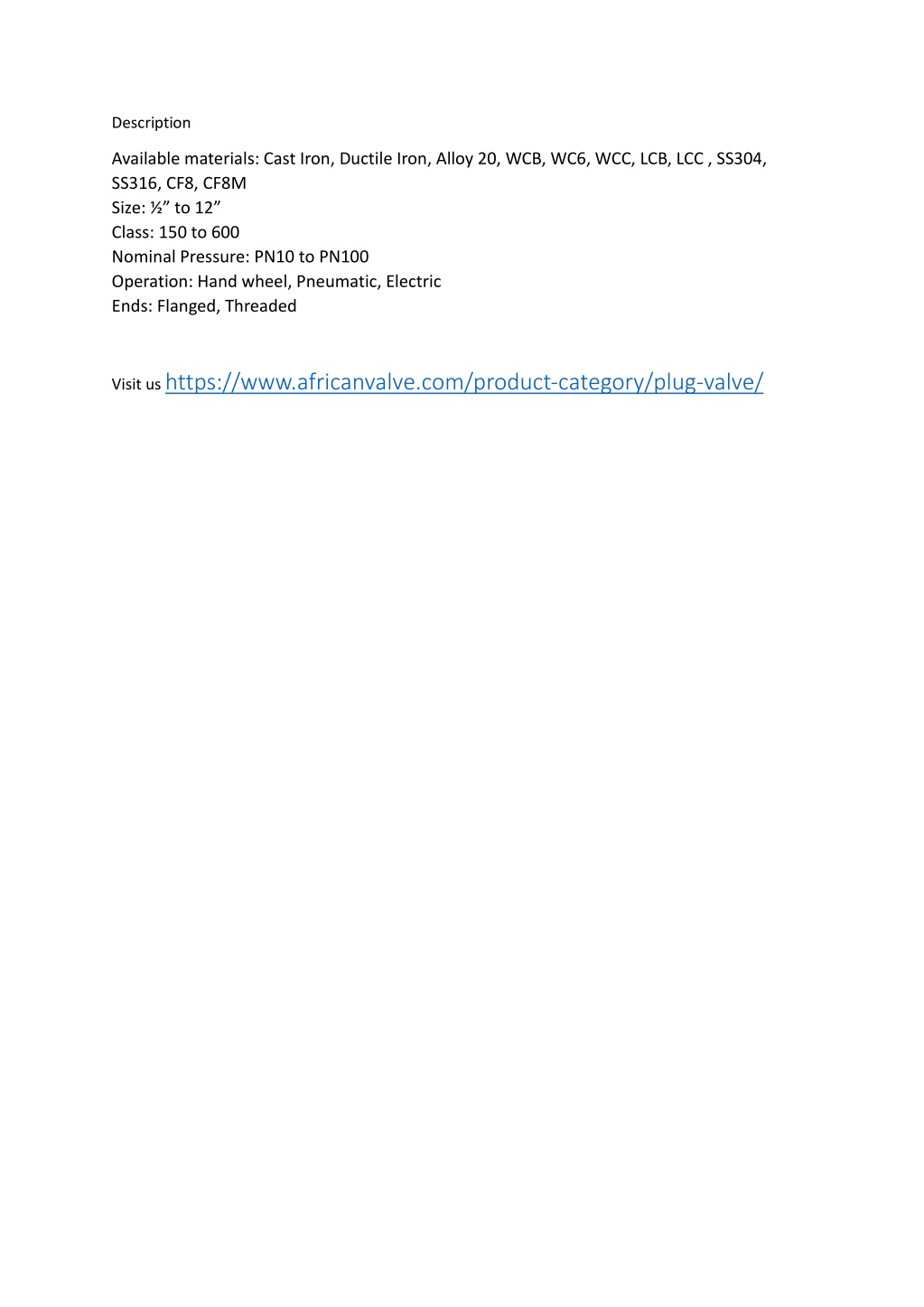

4. Description Available materials: Cast Iron, Ductile Iron, Alloy 20, WCB, WC6, WCC, LCB, LCC , SS304, SS316, CF8, CF8M Size: ½” to 12” Class: 150 to 600 Nominal Pressure: PN10 to PN100 Operation: Hand wheel, Pneumatic, Electric Ends: Flanged, Threaded Visit us https://www.africanvalve.com/product-category/plug-valve/
