statistical evaluation of surrogate markers validity efficiency and sensitivity

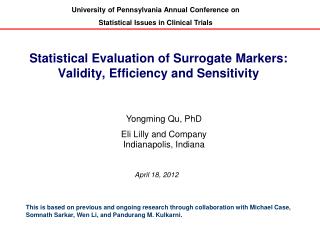

University of Pennsylvania Annual Conference on

Statistical Issues in Clinical Trials

Statistical Evaluation of Surrogate Markers: Validity, Efficiency and Sensitivity

Yongming Qu, PhD

Eli Lilly and CompanyIndianapolis, Indiana

April 18, 2012

This is based on previous and ongoing research through collaboration with Michael Case, Somnath Sarkar, Wen Li, and Pandurang M. Kulkarni.

outline
Outline
  • Introduction
    • Biomarker, surrogate marker and surrogate endpoint
    • Validity and efficiency of surrogate marker
  • Quantities used in statistical validation
    • Proportion of Treatment Effect (PTE)
    • General Association
    • Likelihood reduction factor (LRF)
    • Proportion of Information Gain (PIG)
  • Effect of measurement error and adjustment for it
  • Summary

April 18, 2012

biomarker and surrogate endpoint se
Biomarker and Surrogate Endpoint (SE)
  • Biomarker: "a characteristic that is objectively measured and evaluated as an indicator of normal biologic processes, pathogenic processes, or pharmacologic responses to a therapeutic intervention.” (Clinical Pharmacology Therapy 2001;69:89-95.)
  • Surrogate endpoint: “a laboratory measurement or a physical sign used as a substitute for a clinically meaningful endpoint that measures directly how a patient feels, functions or services. Changes induced by a therapy on a surrogate endpoint are expected to reflect changes in a clinically meaningful endpoint” (Temple 1995)

April 18, 2012

validation of surrogate endpoint se
Validation of Surrogate Endpoint (SE)
  • Surrogate endpoint is intended to replace clinical outcome for any therapy
  • Surrogate endpoint is independent of therapy
  • Traditional way of validating surrogate endpoint using treatment is not feasible
    • Surrogate endpoint needs to be validated
    • To evaluate the surrogate endpoint, large confirmatory clinical trials need to be conducted for both surrogate and clinical endpoints
    • If large confirmatory clinical trials are conducted, the drug efficacy should have been established.
    • There is no need for surrogate endpoint for this drug
    • The conclusion from this drug cannot be extrapolated to other drugs because different drugs may work through different pathways

April 18, 2012

validation of se new thinking
Validation of SE – New Thinking
  • Validation of SE should be based on the disease mechanism, not the effect of treatment
  • Hemoglobin A1c (HbA1c) is a widely used SE for the average of glucose
    • The validation of this SE is not based on any clinical studies involving different treatment
    • It is based on biochemistry and physiology
  • Progression-free survival (PFS) is widely used as an SE for cancer survival
    • The validation should be based on biology of the disease and tumor, not individual drugs

April 18, 2012

surrogate marker sm
Surrogate Marker (SM)
  • Surrogate marker for a drug is a marker which could be used to predict the drug’s efficacy or safety
  • Example of the usefulness of a surrogate marker
    • Suppose bone mineral density (BMD) is a surrogate marker for osteoporotic fracture
    • The long-term effect of an osteoporosis drug on fracture is difficult to know and is too costly to know
    • A woman takes an osteoporosis drug
    • Clinicians measure her BMD after 6 months of use
    • If BMD is increased, this drug works for this woman and she should continue to use this drug
    • If BMD is not increased, this drug does not work for this woman, and she should switch to a different drug
  • SM is very useful to monitor patients and identify which drug works best for a patient in the early stage of the disease

SM can NOT be used to replace clinical outcome for drug approval!

April 18, 2012

se sm and biomarker
SE, SM and Biomarker

SE SM Biomarker

Question: A particular biomarker is a SM?

April 18, 2012

se validation prentice
SE Validation (Prentice)
  • Prentice (Stat. Med. 1989, 8:431–440) proposed a necessary and sufficient condition for a surrogate endpoint

f(S|Z) = f(S) f(T|Z)=f(T)

  • This definition is too stringent: it essentially requires surrogate endpoint is “equivalent” to clinical outcome
  • Prentice’s key operational criterion f(T|S, Z) = f(T|S) does not guarantee this condition
  • This condition can be weakened. A marker is said to be a SE if

f(S|Z) = f(S) f(T|Z)=f(T) for any Z

  • Practically, this condition cannot be validated through clinical trials testing drug effect
    • One can NOT prove a mathematical theory through enumeration!
    • One can invalidate a SE if the above relationship does not hold for one treatment Z

April 18, 2012

surrogate marker concepts
Surrogate Marker - Concepts
  • Validity: A marker S is said to be a valid surrogate marker for a clinical outcome T for a particular treatment if

f(T|Z) ≠ f(T)

f(T|S, Z) = f(T|S)

where Z is the treatment indicator with Z = 1 for the treatment and Z = 0 for control

  • Efficiency: For two surrogate markers S1 and S2, we say S1 is more efficient than S2 if

Var[T|Z, S1] < Var[T|Z, S2]

  • Validity is a much higher hurdle than efficiency in practice

April 18, 2012

proportion of treatment effect
Proportion of Treatment Effect
  • Consider two models

T|Z =a0 + aZZ

T|S, Z =b0 + bZZ + bsS

  • The PTE (Freedman et al, Stat. Med. 1992; 11:167-178) is

PTE = 1 – bZ/aZ

  • Drawbacks of PTE
    • Not bounded by [0,1]
    • Large variability makes the results not informative

April 18, 2012

general association
General Association
  • Consider two models
  • Buyse and Molenberghs (Biometrics 1998:54:1014-1029) suggested using the coefficient of determination to evaluate the surrogate marker

where

April 18, 2012

artificial example 1
Artificial Example 1
  • Let eS,j= eT,j, then R2 = 1
  • The relationship between clinical outcome and marker depends on treatment group
  • YS,j is not a good surrogate marker!

April 18, 2012

artificial example 2
Artificial Example 2
  • Depending on the parameters, R2 can be any number
  • The effect of treatment on the clinical outcome acts solely through the marker YS,j
  • YS,j is a perfect surrogate marker!

April 18, 2012

likelihood reduction factor lrf
Likelihood Reduction Factor (LRF)
  • Consider two models

T|Z =a0 + aZZ (1)

T|S, Z =b0 + bZZ + bsS (2)

  • Alonso et al. (Biometrics 2004; 60:724-728) defined the likelihood reduction factor (LRF) as

where LRT(Z,S:Z) is the likelihood ratio test statistic comparing the two models (2) and (1)

  • LRF is bounded by [0,1] but may be impossible to reach 1 for some models
  • The LRF adjusted (LRFa) was proposed

April 18, 2012

a different approach
A Different Approach
  • Instead of comparing

T|Z =a0 + aZZ

T|S, Z =b0 + bZZ + bsS

  • We compare

T|S =g0 + gZS

T|S, Z =b0 + bZZ + bsS

LRFa(Z,S:Z)

Alonso, et al

New Quantity

April 18, 2012

proportion of information gain pig
Proportion of Information Gain (PIG)
  • Consider three models

T =c0 (1)

T|S =g0 + gZS (2)

T|S, Z =b0 + bZZ + bsS (3)

  • Qu and Case (Biometrics 2007;63:958-963) defined the proportion of information gain (PIG) as

where LRT(Z,S:1) is the likelihood ratio test statistic comparing the models (3) and (1), and LRT(S:1) is the likelihood ratio test statistic comparing the models (2) and (1)

April 18, 2012

a simple simulation
A Simple Simulation

logit(Pr(T=1) | S, Z) = -S

S = Z + u, u~N(0,s2)

  • Validity of SE is met
  • Compare the performance of PTE, LRFa and PIG for various s2
  • Sample size = 1,000 (n=500 per group)
  • 1,000 simulation samples

Qu and Case (Biometrics 2007;63:958-963)

April 18, 2012

simulation results mean sd
Simulation Results: Mean (SD)

Qu and Case (Biometrics 2007;63:958-963)

April 18, 2012

measurement error in biomarker
Measurement Error in Biomarker
  • Biomarker may be measured with error
    • W = S + U, S = the true value for the marker, U is the measurement error and W is the observed value
  • The magnitude of measurement error is generally described by
    • Proportion of variation due to measurement error: Var(U)÷Var(W)
      • <30% is considered small
      • 30-50% is considered moderate
      • > 50% is considered large
    • Reliability: Var(S)÷Var(W)
  • Measurement error could attenuate the estimate for PIG (and in PTE, etc)

April 18, 2012

simulation extrapolation simex
Simulation extrapolation (SIMEX)
  • PIG(X) is what we want
  • PIG(W) is the estimate with measurement error
  • has the same expectation as PIG(X), where U* and U are IID
  • Above quantity is generally hard to estimate. SIMEX is a method to use simulation to estimate the trend of the bias (often using assuming a quadratic curve) and then extrapolate to obtain a less biased estimator.

Cook and Stefanski, JASA1994; 89:1314--1328.

Li and Qu, Stat in Med. 2010: 2338–2346

April 18, 2012

bone mineral density bmd and fracture

Healthy spine

Kyphotic spine

Bone Mineral Density (BMD) and Fracture

Dual-energy x-ray absorptiometry (DEXA)

Vertebral Fracture

April 18, 2012

multiple outcomes of raloxifene evaluation more
Multiple Outcomes of Raloxifene Evaluation (MORE)
  • MORE study was a 3-year placebo-controlled, double blind, and randomized clinical trial evaluating the treatment effect of raloxifene on vertebral fracture.
  • Vertebral fracture was assessed at year 2 and 3, or with a symptom of back pain
  • BMD was measured at baseline and years 1, 2 and 3.

Sarkar, et al, J Bone Miner Res 2002;17:1–10

April 18, 2012

adjustment for measurement error in pig estimation
Adjustment for Measurement Error in PIG Estimation
  • Objective: to evaluate if the change in femoral neck BMD is a good surrogate marker for vertebral fracture
  • Femoral neck BMD was measured twice at baseline
    • The estimated standard deviation of the measurement error = 0.023 g/cm2
    • The proportion of the variability due to measurement error in the observed BMD change was ~70% (Qu, et al. Stat in Med 2007; 26:197--211)
  • Even adjust for measurement error, change in femoral neck BMD is still not a good surrogate marker

Li and Qu, Stat in Med. 2010: 2338–23

April 18, 2012

summary
Summary
  • New concepts of surrogate marker and surrogate endpoint
  • Definition of validity and efficiency of a surrogate marker
  • PIG is so far a very reasonable quantity to evaluate surrogate marker
  • Measurement error in the marker can attenuate the estimation for PIG
  • SIMEX is a general method to correct for bias due to measurement error

April 18, 2012

abstract
Abstract

Statistical Evaluation of Surrogate Markers: Validity, Efficiency and Sensitivity

Yongming Qu, PhD

Surrogate markers are important in drug development as they may reduce the development cost and cycle dramatically, as compared to using actual clinical outcomes. Statistical evaluation of surrogate markers can be dated back to thirty years ago. So far, little progress has been made in identifying new surrogate endpoints. Demonstarting treatment effect with clinical outcomes still remain mandatory requirement for clinical drug development for many disease areas. For example, “the FDA approved Avastin for advanced breast cancer in February 2008, after one clinical trial showed that combining Avastin with another drug, paclitaxel, delayed the median time before tumors worsened by 5.5 months, compared with using paclitaxel alone. But the women who got Avastin did not live significantly longer than those who got only paclitaxel, which is also known by its brand name Taxol” (http://www.nytimes.com/2011/06/27/health/27drug.html). In this research, we will discuss the validity, efficiency and sensitivity in statistical evaluation of surrogate markers. New definitions with simulation and examples will be provided.
