This project aims to create a physical design tool specifically tailored for two-row standard cell layouts. It addresses critical design challenges, including component positioning, partitioning, placement, and routing. The tool will focus on optimizing interconnect efficiency by minimizing the number of interconnects between rows and reducing overall horizontal interconnect lengths. Algorithms such as FM and KL will be utilized for partitioning and placement, while a careful analysis of data structures will enhance computational efficiency for routing tasks.
E N D
Overall Goal of the Project • Implement a physical design tool for a two-row standard cell design 3 5 0 2 1 4
Problems to be resolved • Positions of components • Which row to place each component: Partitioning • The relative position of components in each row: Placement • Interconnect between components: Routing
What to optimize? • In partitioning: minimize the number of interconnects between partitions (rows) • In placement: minimize the overall horizontal length of interconnects • In routing: fulfill the geometrical constraints --- wires in the same directions should not overlap
Input Specification • Matrix form circuit model: • First line: the number of components, N • The following N lines: the output-input connections between components • A non-zero entry Aij denotes a connection between components i and j • The value of Aij denotes the pin number of i • Last line: the size of each components
Output Specification Partitioning & Placement • Routing • Position of pins connected by each net • Leftmost and rightmost boundaries of each nets • Channel track occupied by each net

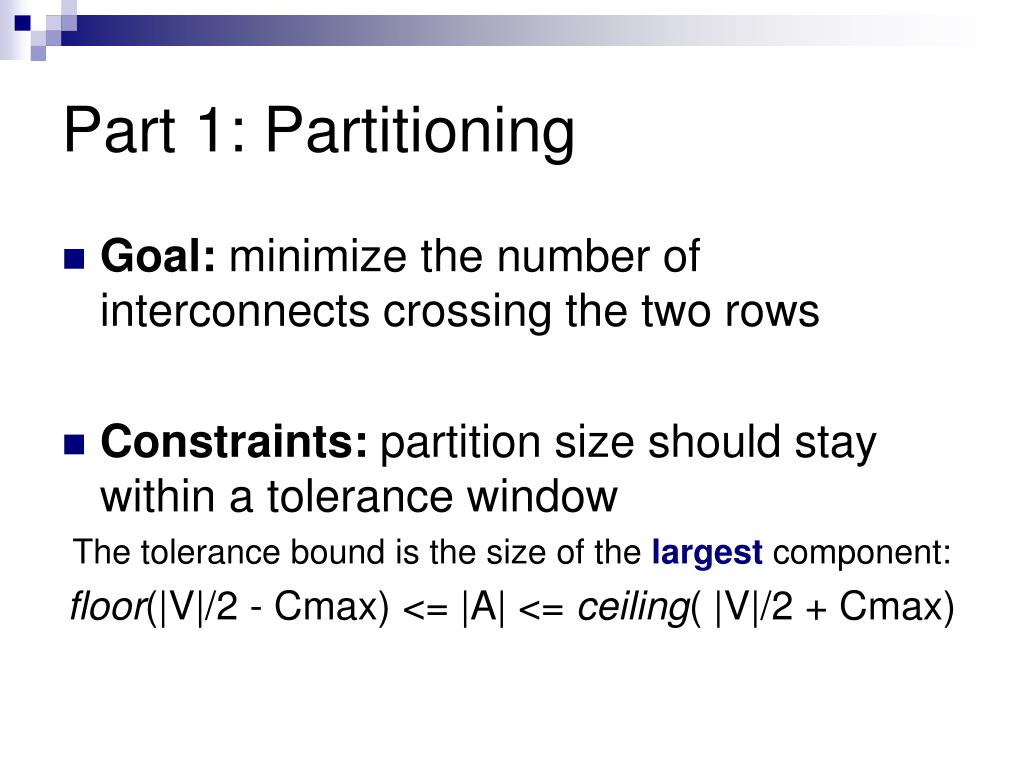

Part 1: Partitioning • Goal: minimize the number of interconnects crossing the two rows • Constraints: partition size should stay within a tolerance window The tolerance bound is the size of the largest component: floor(|V|/2 - Cmax) <= |A| <= ceiling( |V|/2 + Cmax)
Fundamental Ideas • The flow of FM algorithm is the same as KL algorithm • Two differences: • KL: component swap per tentative move FM: one component per tentative move • KL: any pair of unlocked components valid FM: only allow moves fulfilling area constraints
Algorithm • Initial partitioning (subject to area constraints) • Gain calculation (same equations as in KL) • Move and lock the component with highest gain, which satisfies area constraints (one component per tentative move). Update gains. • Repeat moving until no one can be moved • Make permanent all the movements up to and including the move giving the highest accumulative gain • Unlock all components and repeat until no improvement can be obtained
How to improve efficiency? • Gain updating technique • Locked components needn’t be updated • Components unconnected to the ones being moved needn’t be updated • Use efficient data structure • Three data structure candidates provided
Data Structure 1: Linked List Gain stamps Unlocked components Gmax Current max gain 3 Comp 5 Comp 0 NIL 2 Comp 1 Comp 3 NIL 1 0 Comp 4 NIL -1 • Always choose component in the highest linked list for tentative move • Gain updating corresponds to changing the position of components in the linked lists -2 -3 -Gmax
Data Structure 2: Gain Matrix Components c0 c4 c2 c3 c5 c1 1 1 3 • Always choose component in the highest row that contains 1-entries • Gain updating corresponds to changing the positions of 1-entries in the gain matrix 1 1 2 1 Gain value 1 0 1 -1 -2 -3
Data Structure 3: Gain Array Components Gain updating corresponds to changing the values of the gain array elements c0 c1 c2 c3 c4 c5 3 2 -1 2 0 3 Gain
Implementation Requirement • Analyze the suggested data structures in terms of • Primarily computational efficiency • Secondarily space efficiency • Implement the most efficient one you think • Provide a detailed description of your analysis in your turn-in
