Presentation Transcript

  1. Introduction:Matter and Measurement

  2. Units of Measurement

  3. SI Units • Système International d’Unités • Uses a different base unit for each quantity

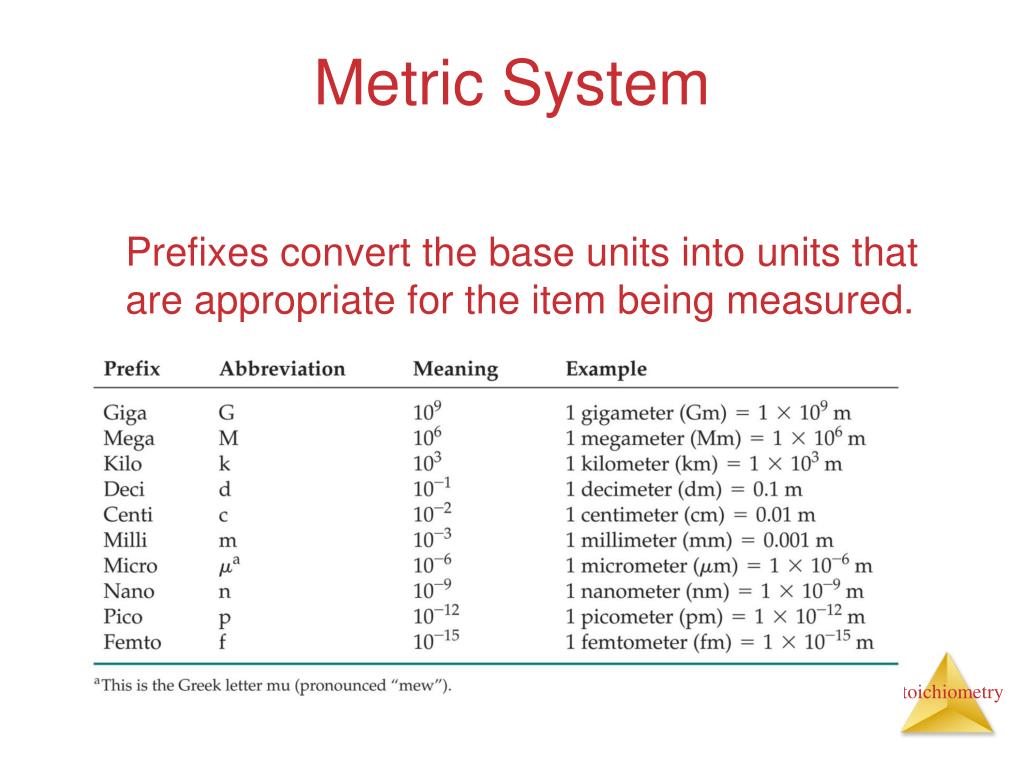

  4. Metric System Prefixes convert the base units into units that are appropriate for the item being measured.

  5. THE METRIC SYSTEM

  6. WHY DO WE USE THE METRIC SYSTEM? • Almost all other countries are using the metric system • Other countries’ companies are refusing to buy products from the U.S. if not labeled in metric units • Scientists need a universal way to communicate data (SI Units)

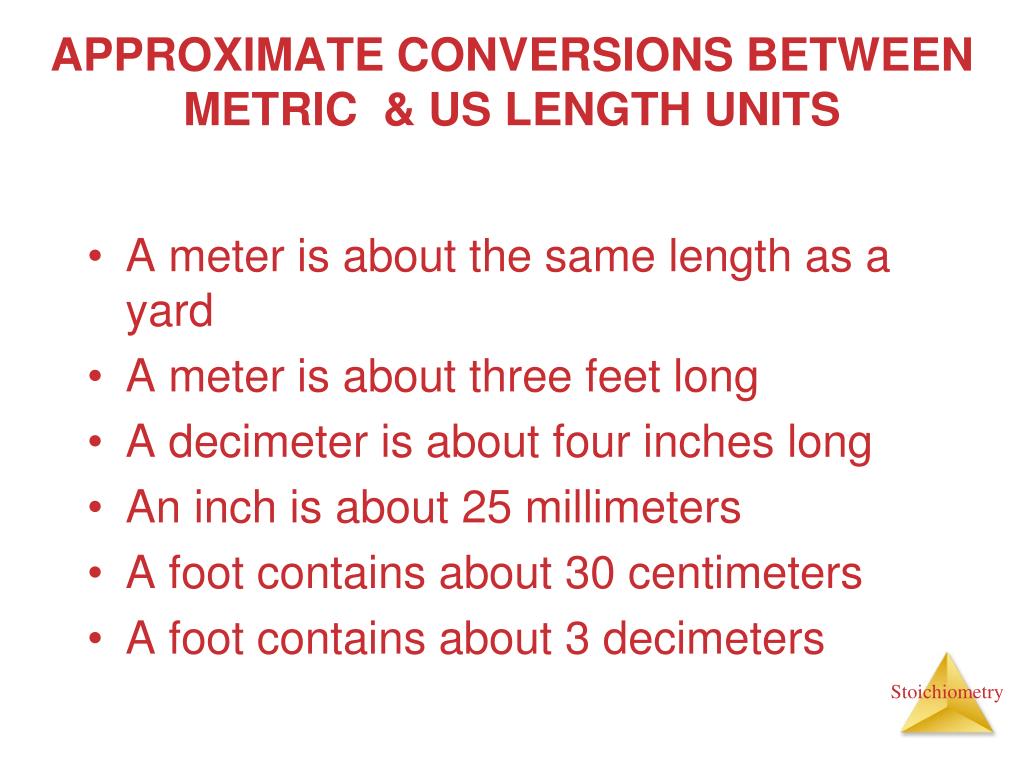

  7. APPROXIMATE CONVERSIONS BETWEEN METRIC & US LENGTH UNITS • A meter is about the same length as a yard • A meter is about three feet long • A decimeter is about four inches long • An inch is about 25 millimeters • A foot contains about 30 centimeters • A foot contains about 3 decimeters

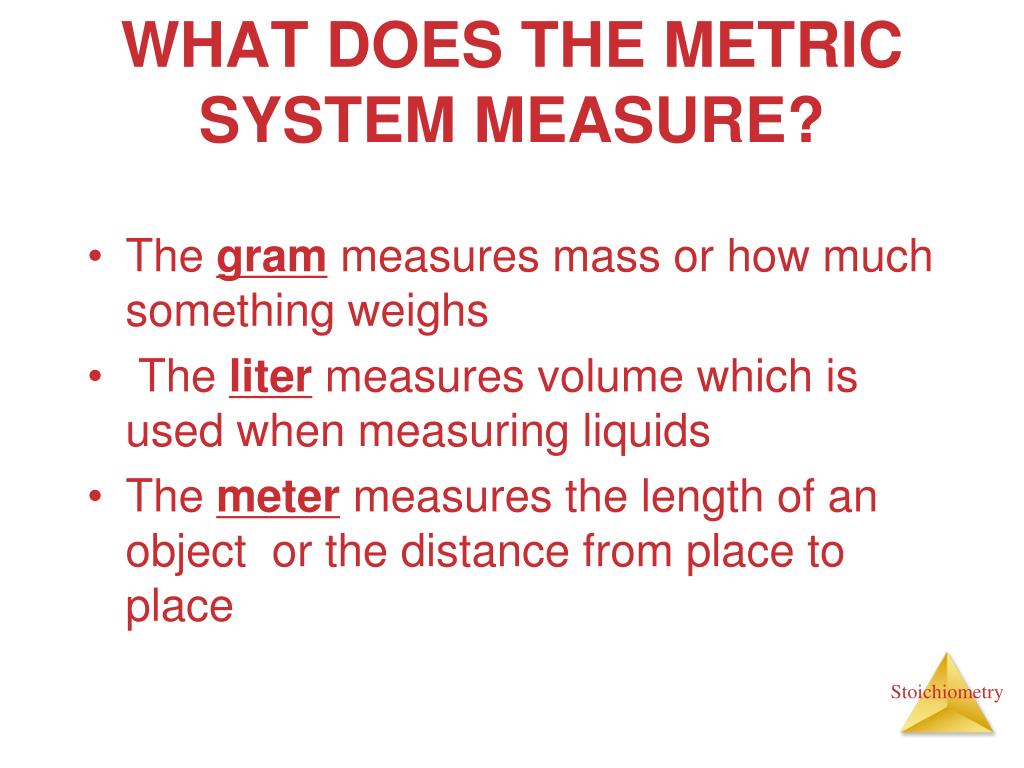

  8. WHAT DOES THE METRIC SYSTEM MEASURE? • The gram measures mass or how much something weighs • The liter measures volume which is used when measuring liquids • The meter measures the length of an object or the distance from place to place

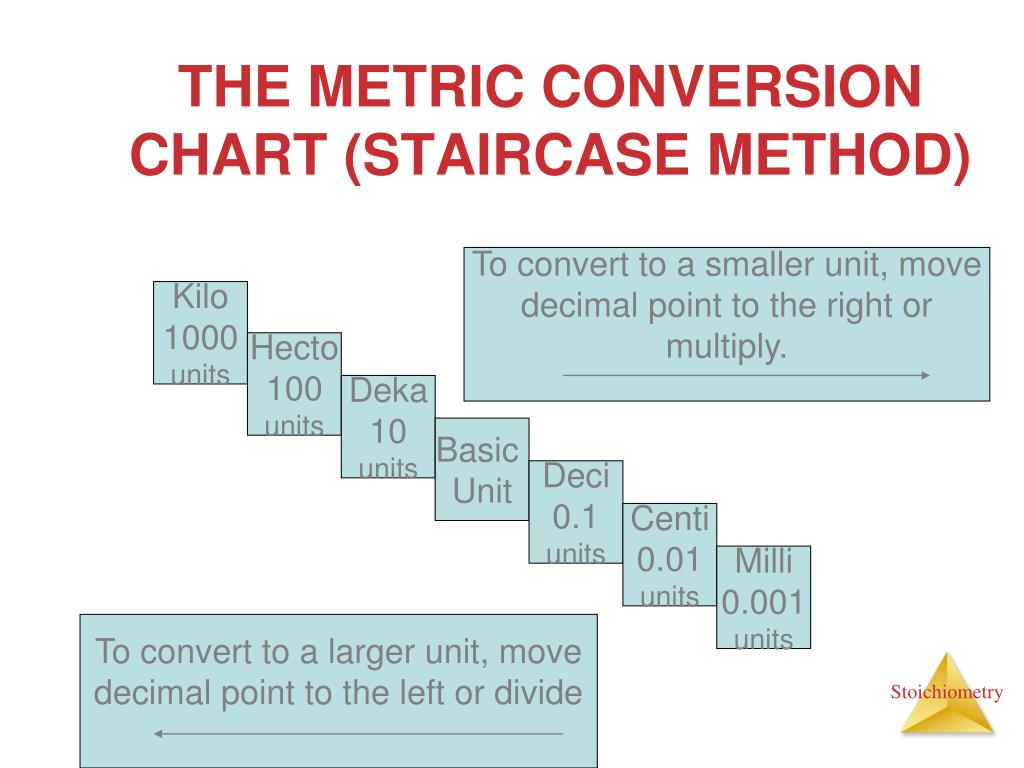

  9. THE METRIC CONVERSION CHART (STAIRCASE METHOD) To convert to a smaller unit, move decimal point to the right or multiply. Kilo 1000 units Hecto 100 units Deka 10 units Basic Unit Deci 0.1 units Centi 0.01 units Milli 0.001 units To convert to a larger unit, move decimal point to the left or divide

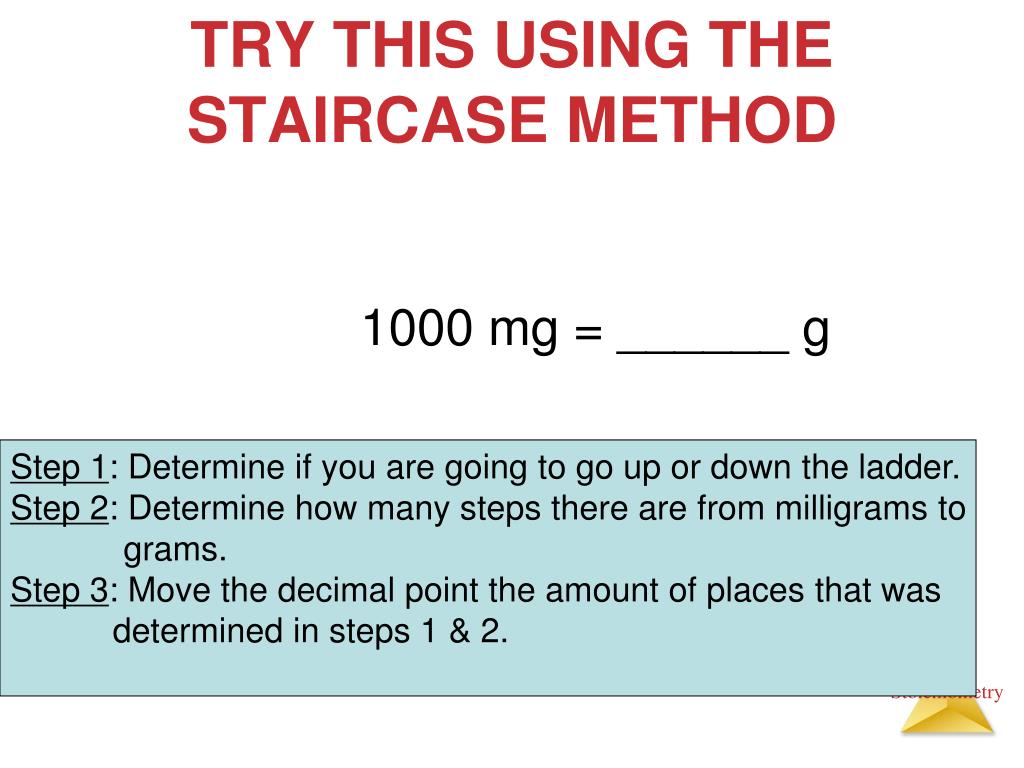

  10. TRY THIS USING THE STAIRCASE METHOD 1000 mg = ______ g Step 1: Determine if you are going to go up or down the ladder. Step 2: Determine how many steps there are from milligrams to grams. Step 3: Move the decimal point the amount of places that was determined in steps 1 & 2.

  11. TRY THIS USING THE STAIRCASE METHOD 1000 mg = ______ g 1 Step 1: Determine if you are going to go up or down the ladder. Step 2: Determine how many steps there are from milligrams to grams. Step 3: Move the decimal point the amount of places that was determined in steps 1 & 2.

  12. TRY THIS USING THE STAIRCASE METHOD .15 L = __________ ml

  13. TRY THIS USING THE STAIRCASE METHOD .15 L = __________ ml 150

  14. Volume • The most commonly used metric units for volume are the liter (L) and the milliliter (mL). • A liter is a cube 1 dm long on each side. • A milliliter is a cube 1 cm long on each side.

  15. Uncertainty in Measurements Different measuring devices have different uses and different degrees of accuracy.

  16. Temperature: A measure of the average kinetic energy of the particles in a sample.

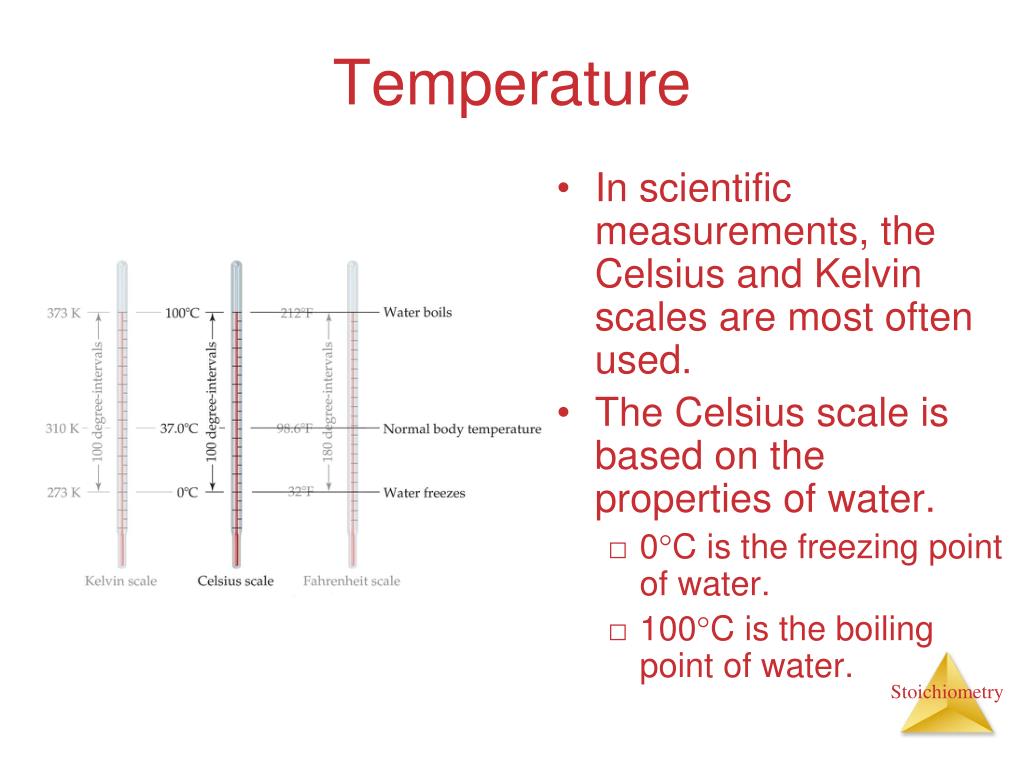

  17. Temperature • In scientific measurements, the Celsius and Kelvin scales are most often used. • The Celsius scale is based on the properties of water. • 0C is the freezing point of water. • 100C is the boiling point of water.

  18. Temperature • The Kelvin is the SI unit of temperature. • It is based on the properties of gases. • There are no negative Kelvin temperatures. • K = C + 273.15

  19. Temperature • The Fahrenheit scale is not used in scientific measurements. • F = 9/5(C) + 32 • C = 5/9(F − 32)

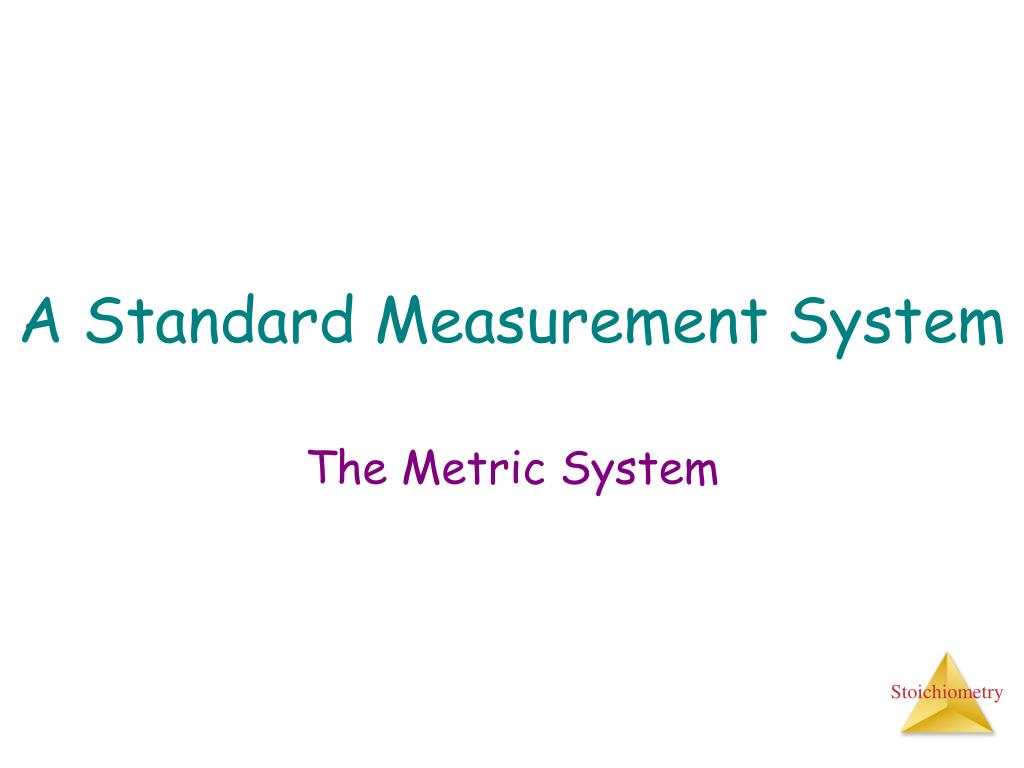

  20. A Standard Measurement System The Metric System

  21. When and why was the metric system invented? • The metric system was invented in 1790 • The metric system was invented because countries were using many different systems of measurement causing confusion and lack of consistency

  22. Who invented the metric system? • The metric system was invented by a group of French scientists

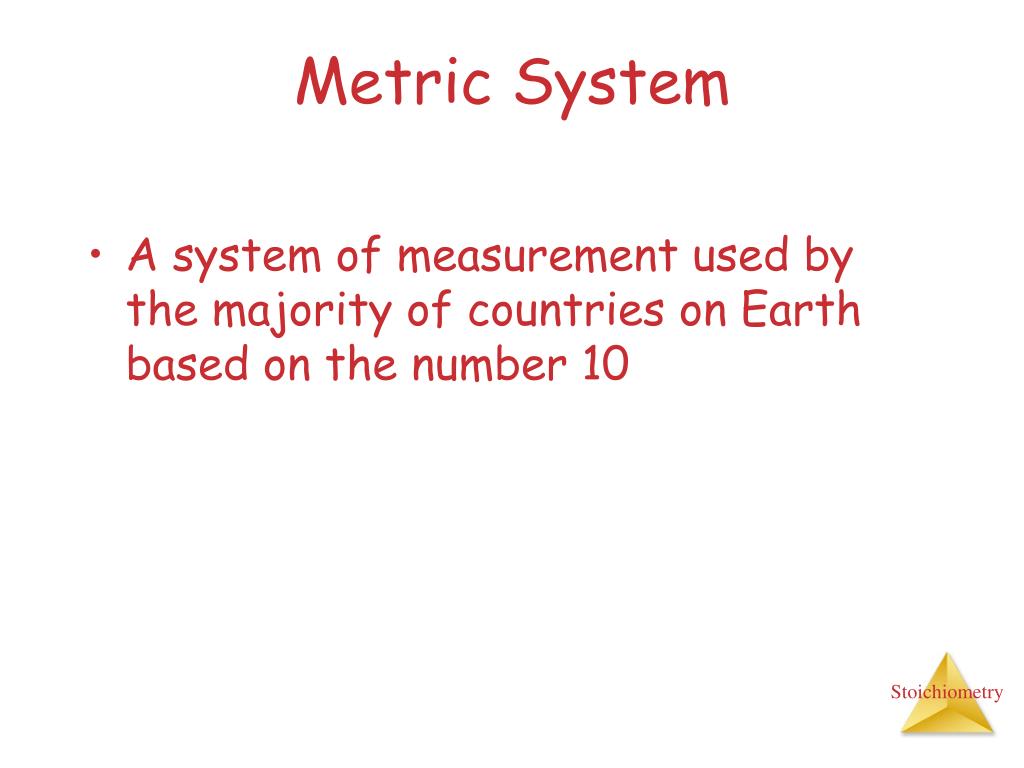

  23. Metric System • A system of measurement used by the majority of countries on Earth based on the number 10

  24. A Standard Measurement System The International System of Units (SI)

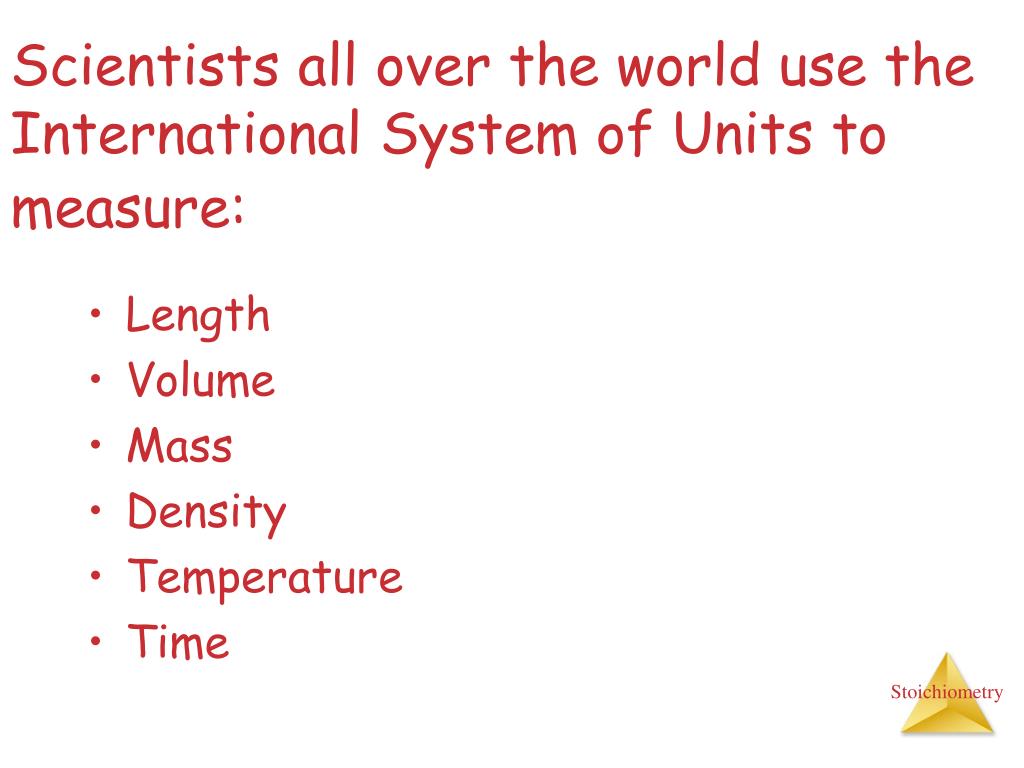

  25. Scientists all over the world use the International System of Units to measure: • Length • Volume • Mass • Density • Temperature • Time

  26. Figure 1: Calculating - How much larger is a kilo- than a deka-? • 100 times

  27.  Reading Checkpoint (page 45): SI units are based on multiples of what number? • SI units are based on multiples of 10 • Add a zero • Subtract a zero

  28. Key Concept: Why do scientists use a standard measurement system? • Using SI as the standard system of measurement allows scientists to compare data and communicate with each other about their results • Using SI measurement also allows experiments to be repeated and most importantly achieve a desired result

  29. Length

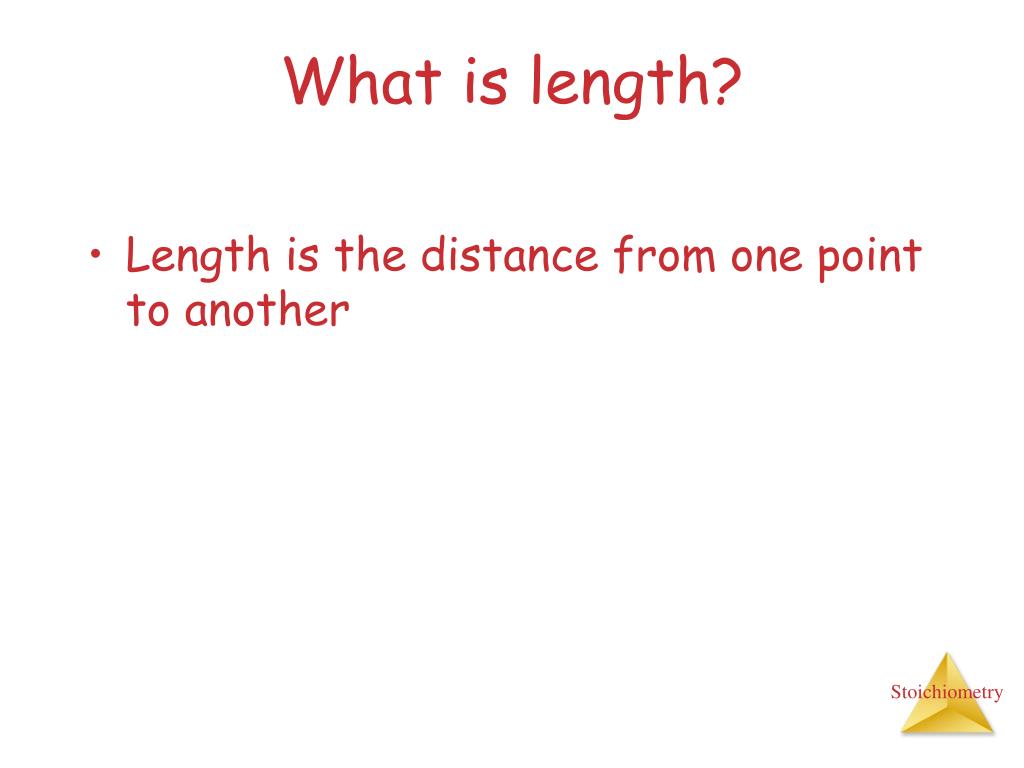

  30. What is length? • Length is the distance from one point to another

  31. Length Units of Length

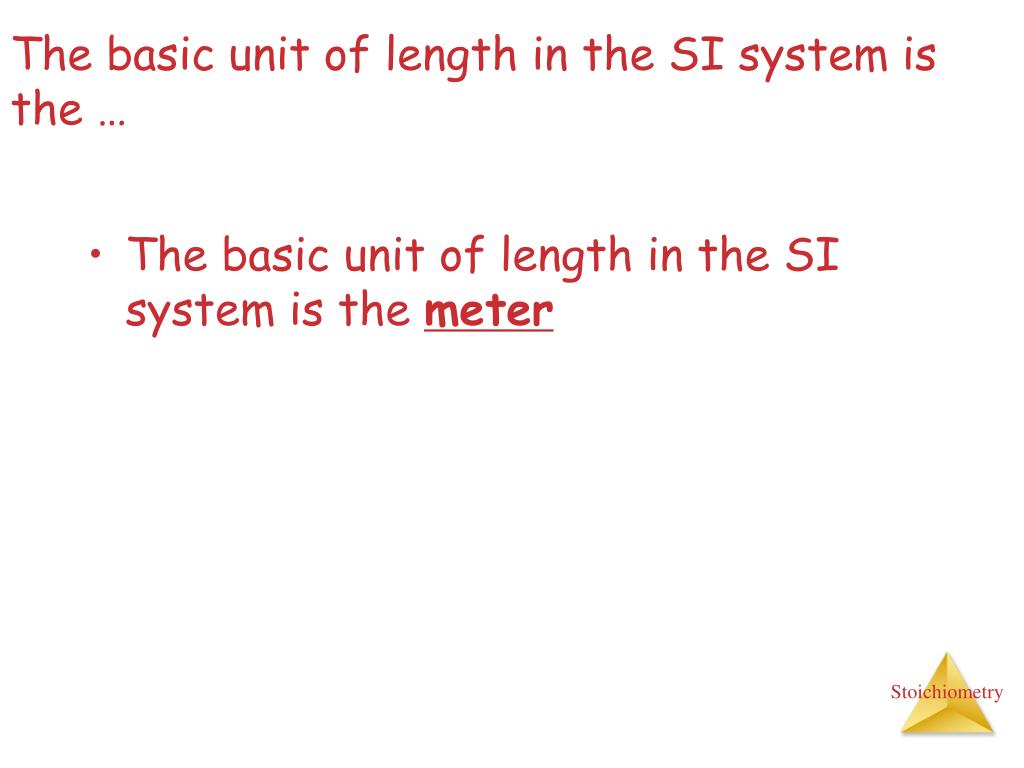

  32. The basic unit of length in the SI system is the … • The basic unit of length in the SI system is the meter

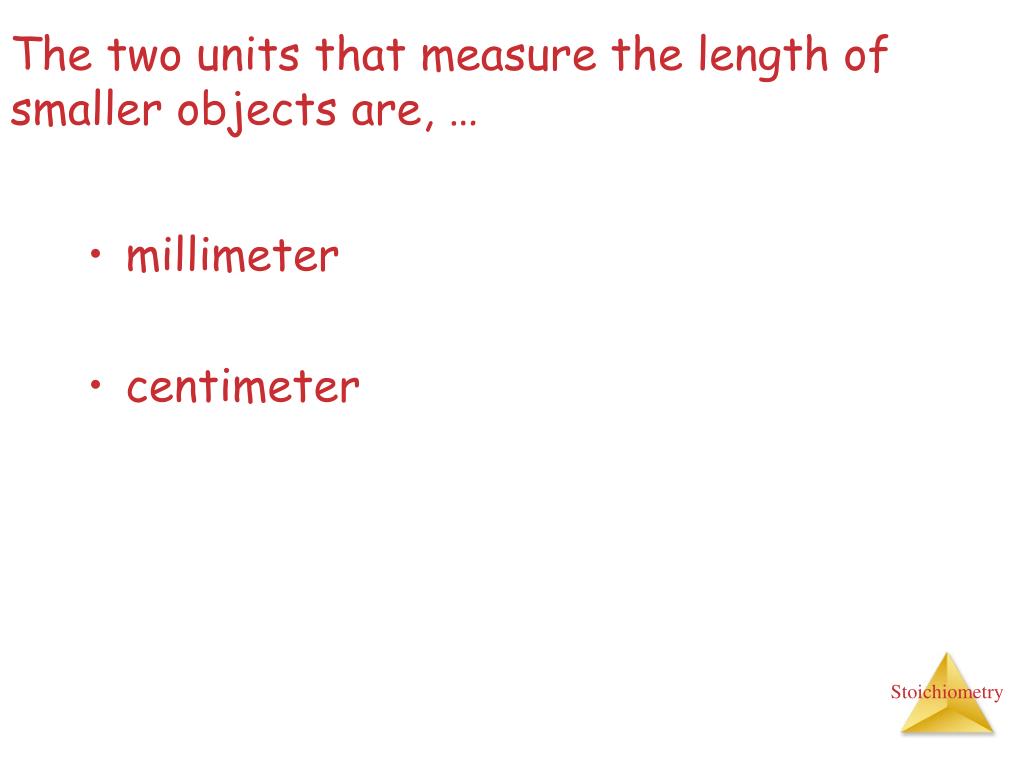

  33. The two units that measure the length of smaller objects are, … • millimeter • centimeter

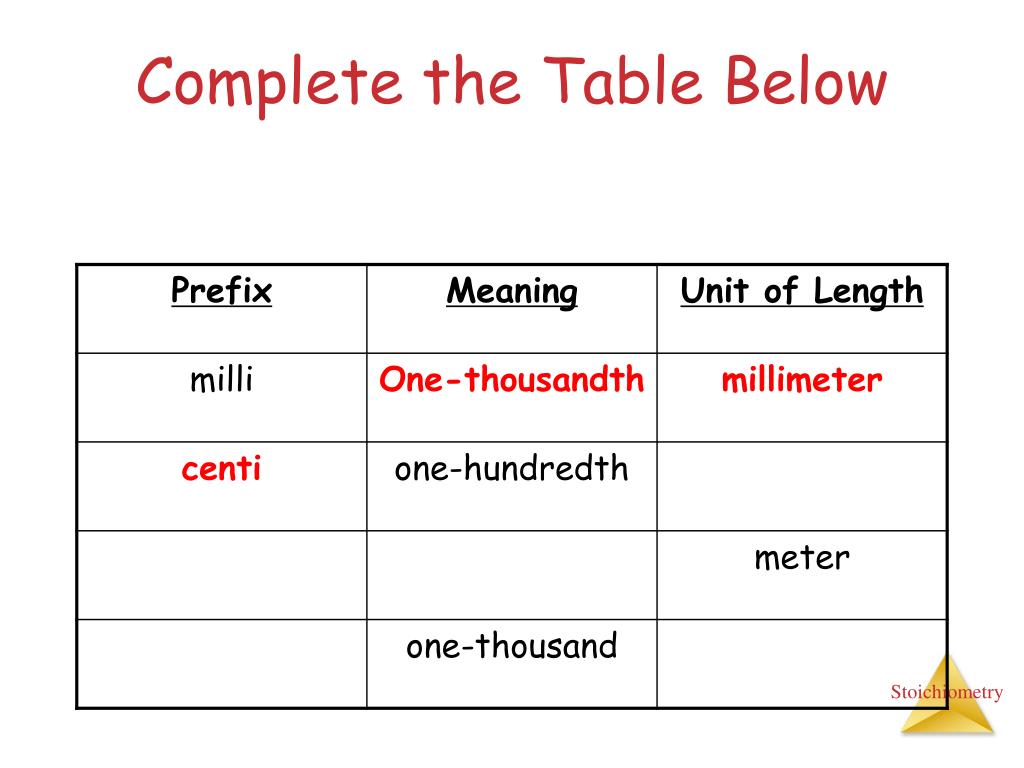

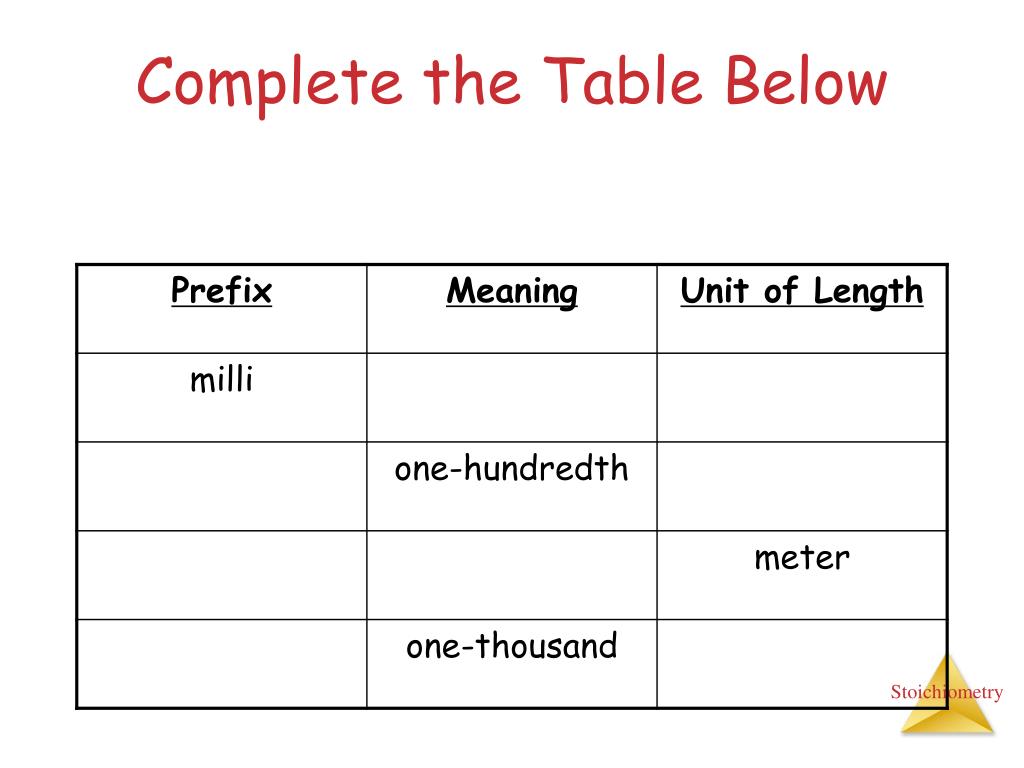

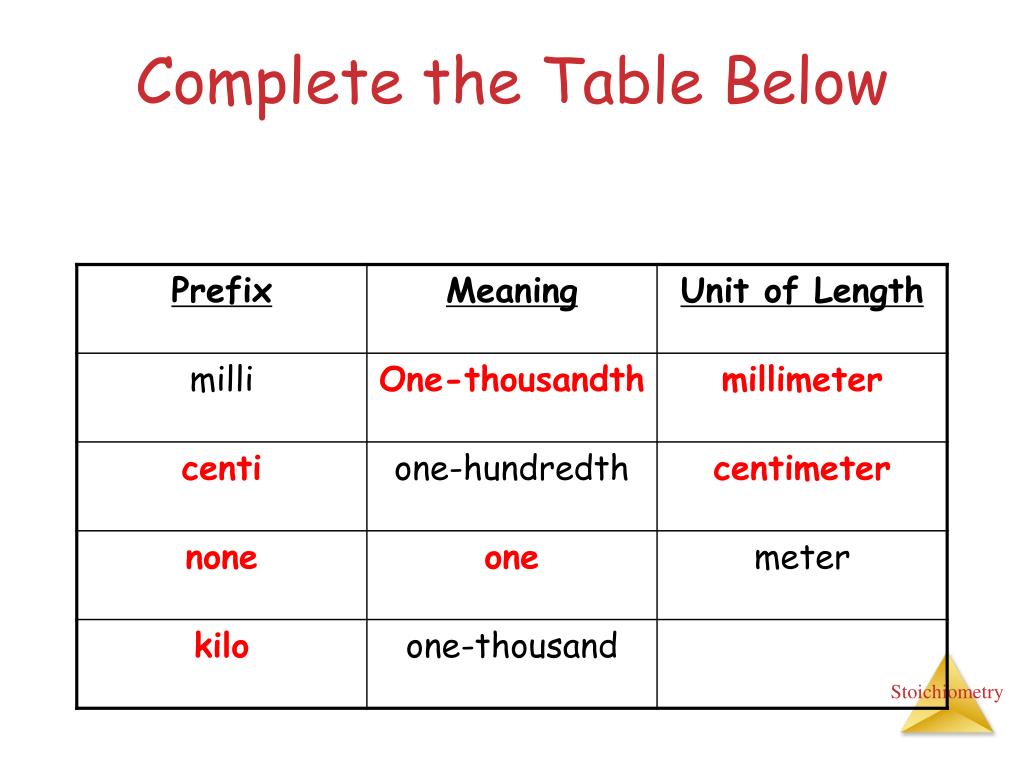

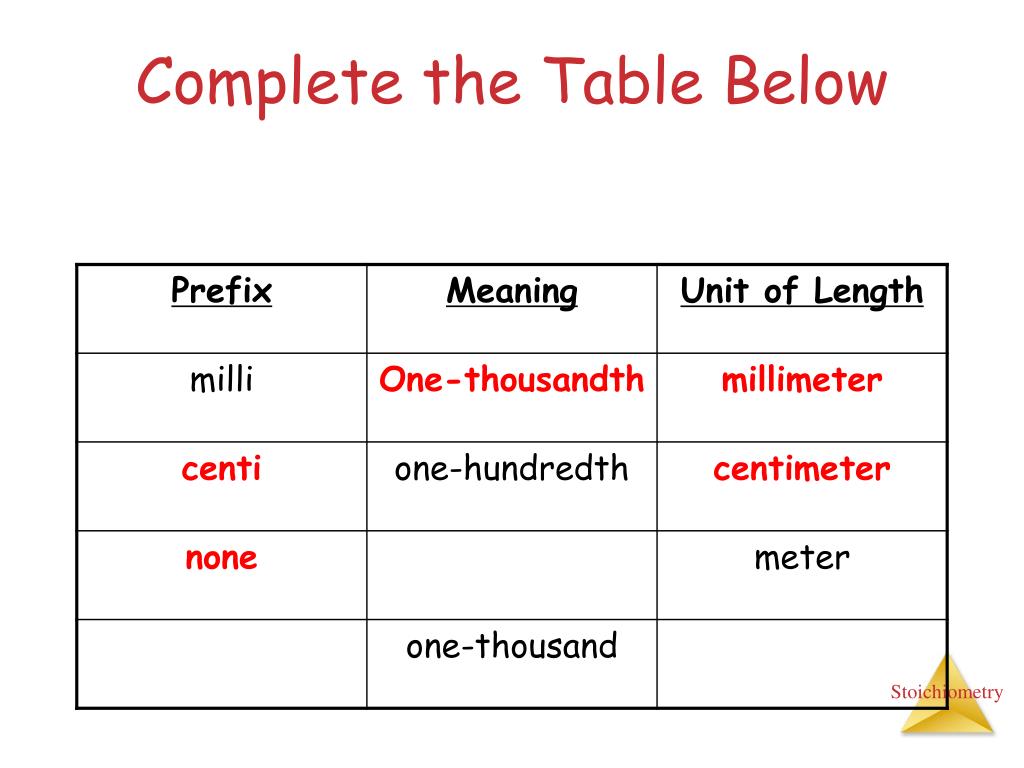

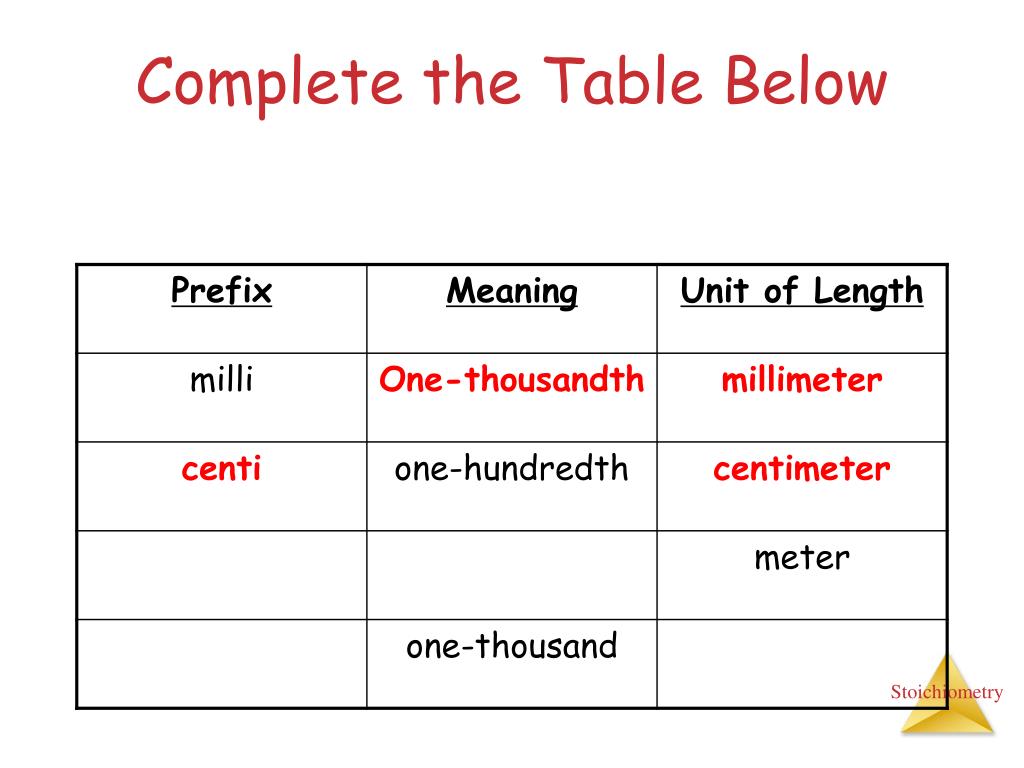

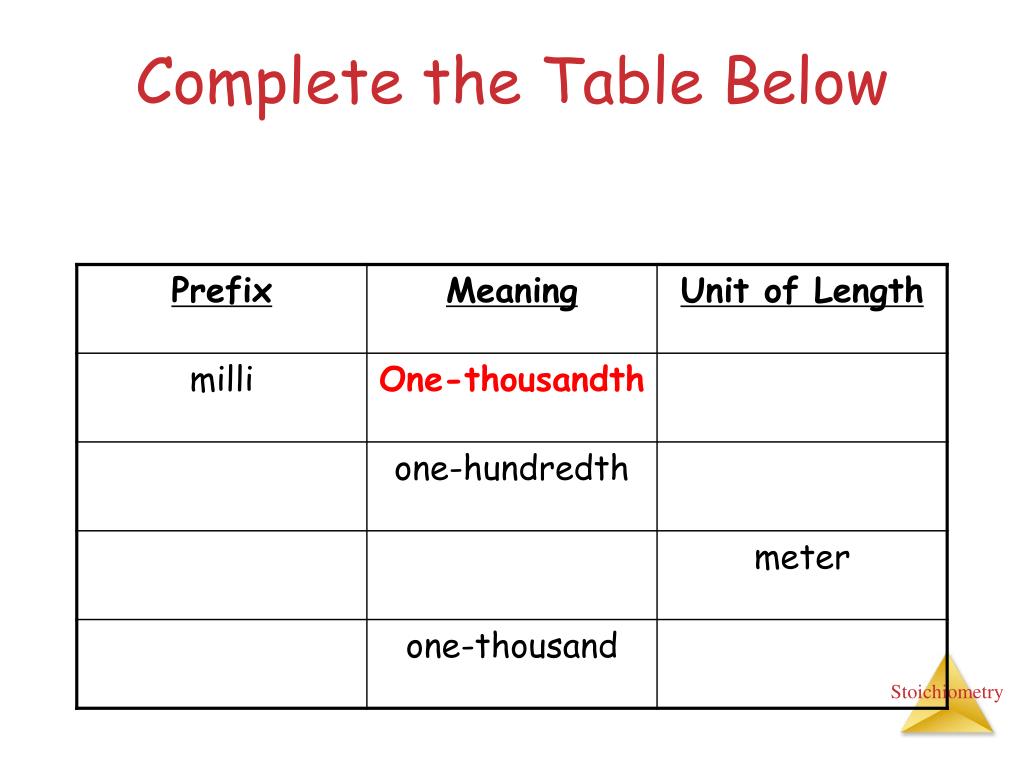

  34. Complete the Table Below

  35. Complete the Table Below

  36. Complete the Table Below

  37. Complete the Table Below

  38. Complete the Table Below

  39. Complete the Table Below

  40. Complete the Table Below

  41. Complete the Table Below

  42. Complete the Table Below

  43. Length Measuring Length

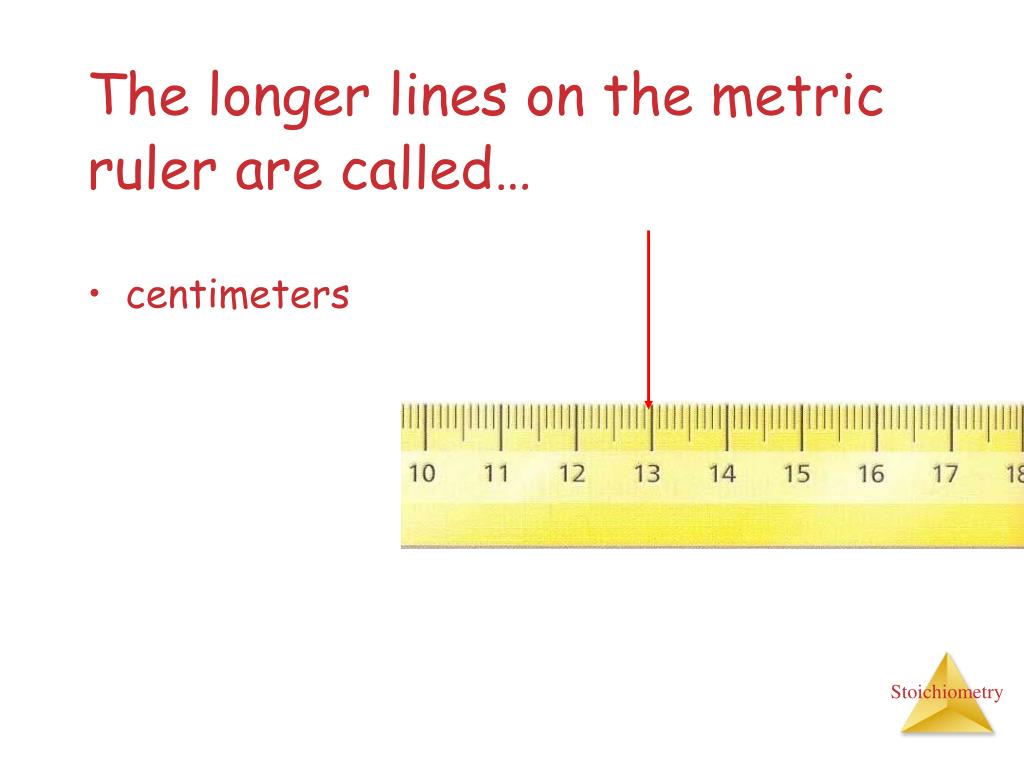

  44. The longer lines on the metric ruler are called… • centimeters

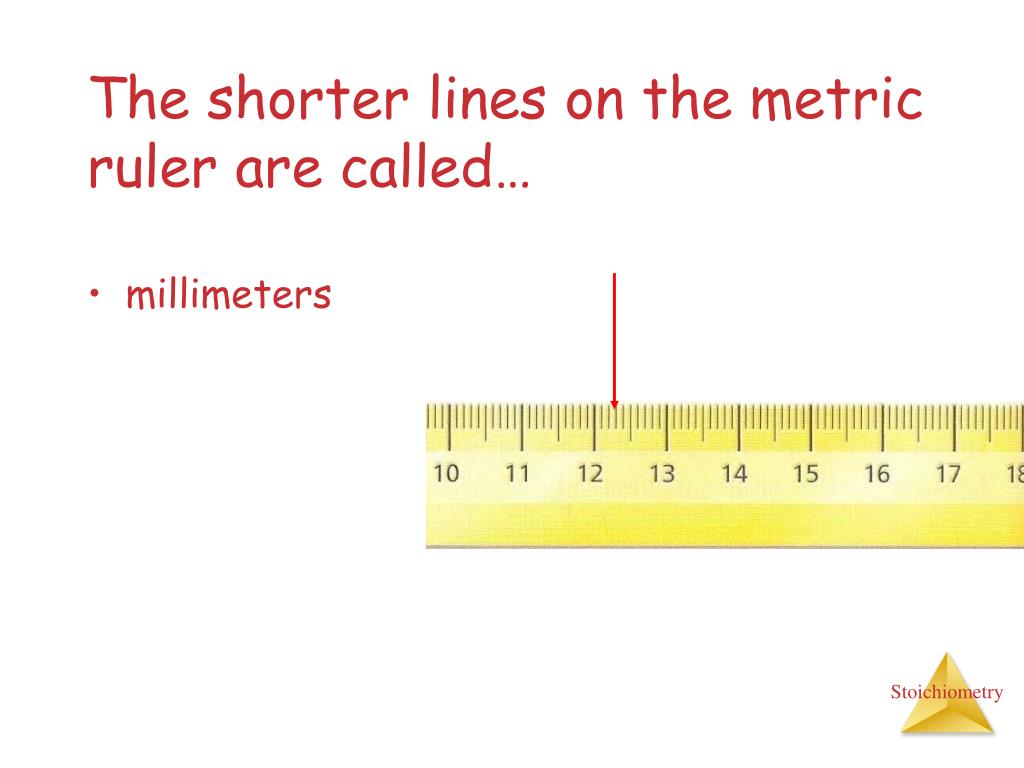

  45. The shorter lines on the metric ruler are called… • millimeters

  46.  Checkpoint One centimeter is divided into how many millimeters? • 10 millimeters (mm)

  47. Figure 2: Calculating: Measure the turtle in figure 2 from the rear of its shell to the tip of its nose. Record its length in both centimeters and millimeters. • 10.5 cm • 105 mm

  48. Density

  49. Density • The measure of how much mass is contained in a given volume

  50. The formula of density is: Density = Mass / Volume
