keyword searching and browsing in databases using banks

Keyword Searching and Browsing in Databases using BANKS

Seoyoung Ahn

Mar 3, 2005

The University of Texas at Arlington

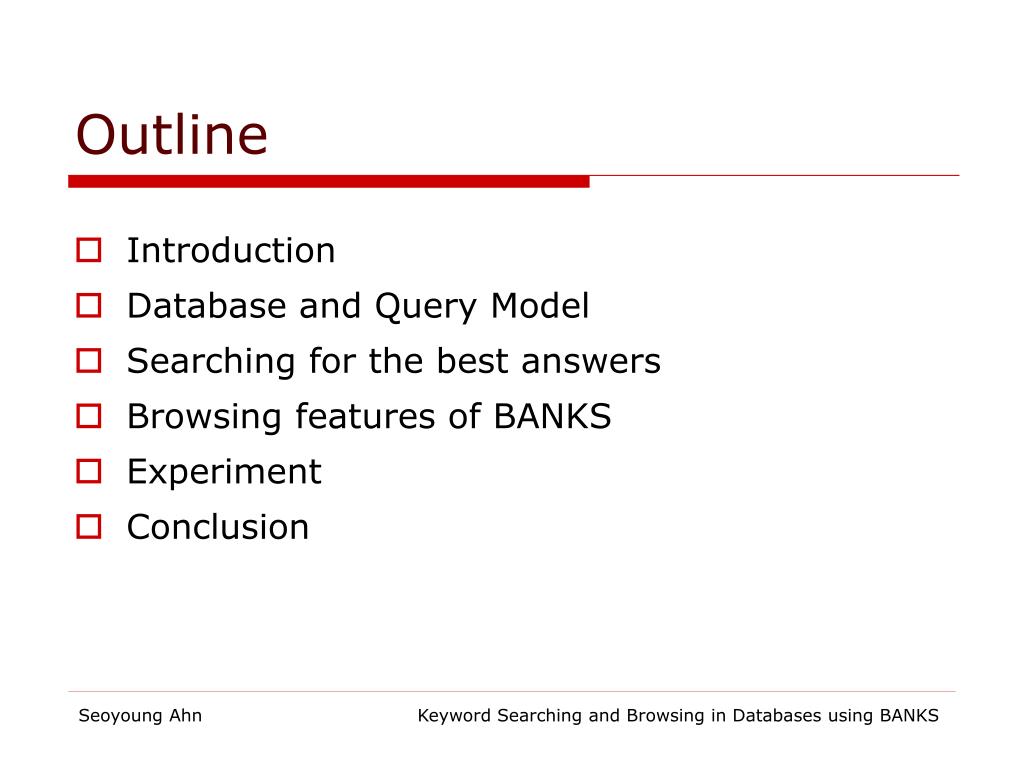

outline
Outline
  • Introduction
  • Database and Query Model
  • Searching for the best answers
  • Browsing features of BANKS
  • Experiment
  • Conclusion

Keyword Searching and Browsing in Databases using BANKS

introduction
Introduction
  • Search engines on Web have popularized an unstructured querying and browsing
    • Simple and user-friendly
    • Users just type in keywords and follow hyperlink
  • Relational databases are commonly searched using structured query language
    • Users need to know the schema
  • Keyword searching techniques cannot be used on data stored in databases
    • It often splits across the tables/tuples due to normalization

Keyword Searching and Browsing in Databases using BANKS

introduction cond

BANKS

system

Introduction(cond..)
  • BANKS (Browsing And Keyword Searching)
    • a system which enables keyword-based search on relational databases, together with data and schema browsing

HTTP

JDBC

User

Database

Keyword Searching and Browsing in Databases using BANKS

introduction cond5
Introduction(cond..)
  • BANKS (Browsing And Keyword Searching)
    • a framework for keyword querying of relational database
    • a novel and efficient heuristic algorithm for executing keyword queries
    • key features of BANKS system

Keyword Searching and Browsing in Databases using BANKS

outline6
Outline
  • Introduction
  • Database and Query Model
    • Informal Model
    • Formal Model
    • Query and Answer Model
  • Searching for the best answers
  • Browsing features of BANKS
  • Experiment
  • Conclusion

Keyword Searching and Browsing in Databases using BANKS

database and query model
Database and Query Model
  • Informal Model
  • Model Description

directed graph

database

node in the graph

each tuple in db

directed edge

fk-pk-Link

Keyword Searching and Browsing in Databases using BANKS

database and query model8
Database and Query Model

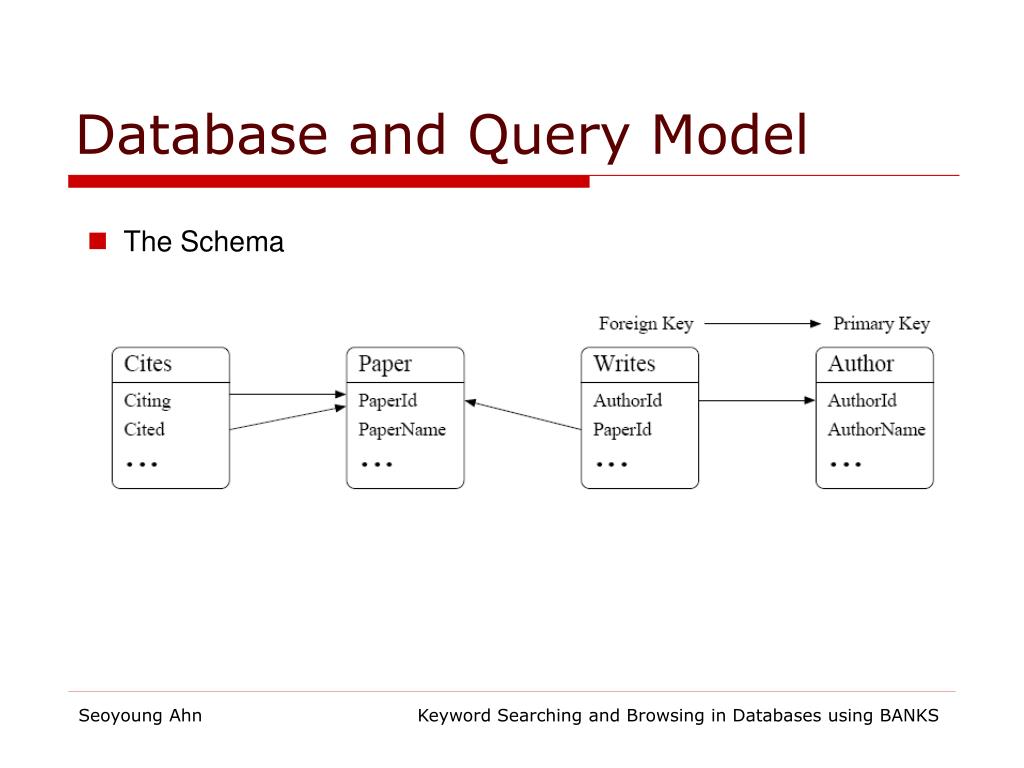

  • The Schema

Keyword Searching and Browsing in Databases using BANKS

database and query model9
Database and Query Model

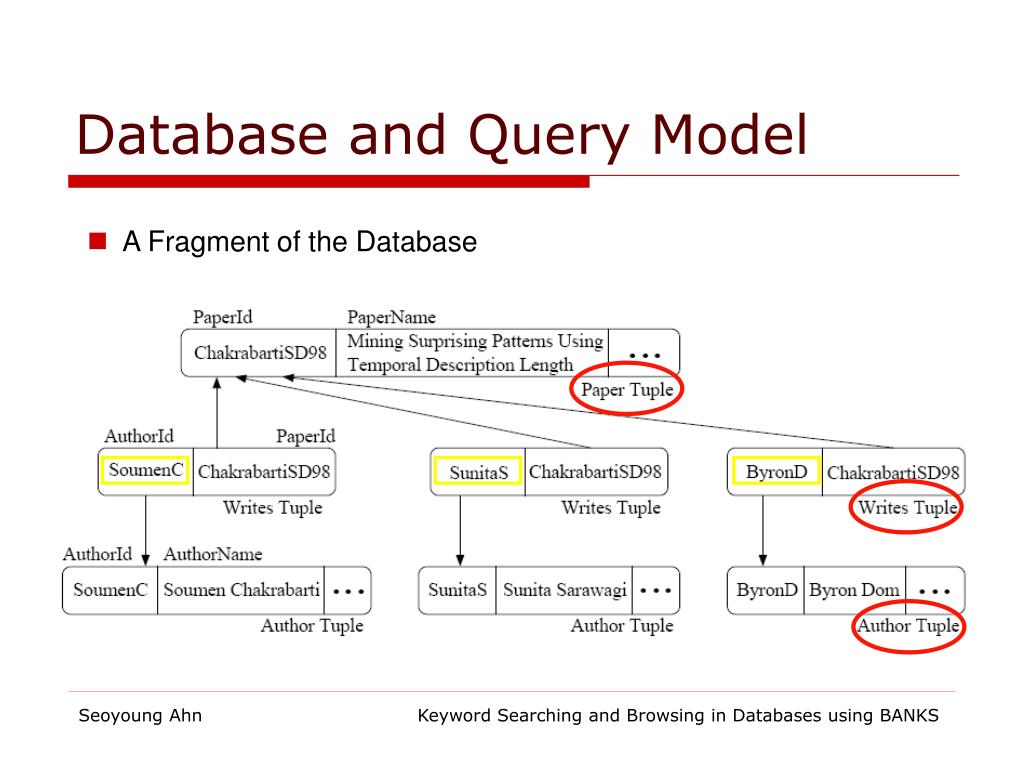

  • A Fragment of the Database

Keyword Searching and Browsing in Databases using BANKS

database and query model10

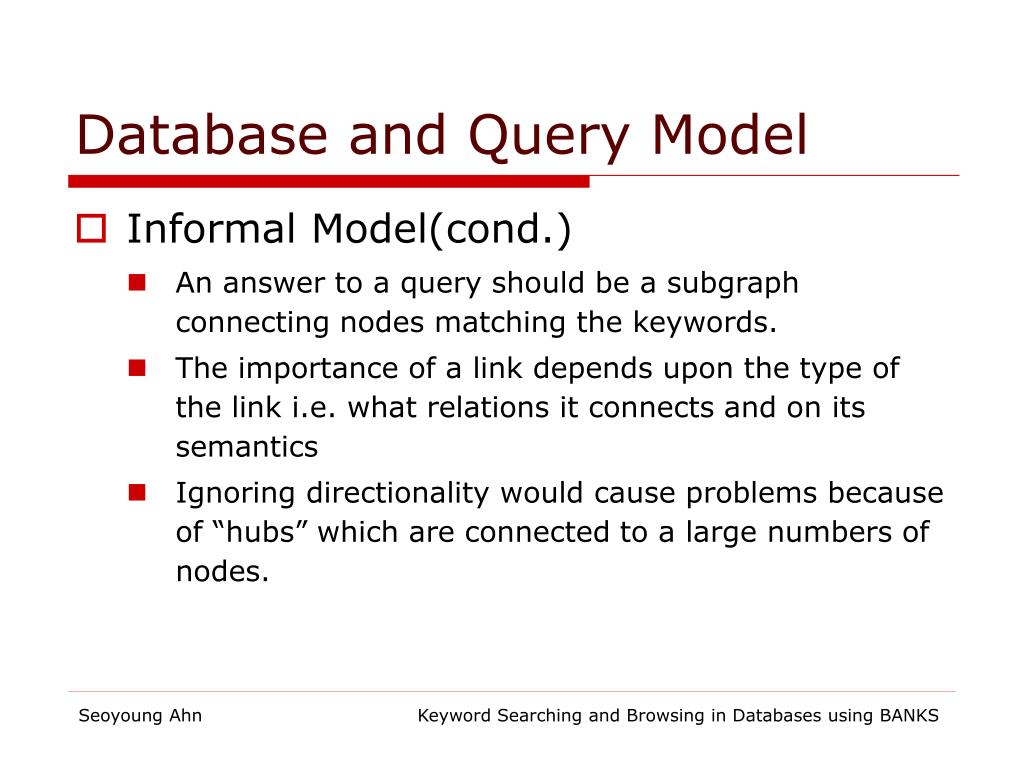

Database and Query Model
  • Informal Model(cond.)
    • An answer to a query should be a subgraph connecting nodes matching the keywords.
    • The importance of a link depends upon the type of the link i.e. what relations it connects and on its semantics
    • Ignoring directionality would cause problems because of “hubs” which are connected to a large numbers of nodes.

Keyword Searching and Browsing in Databases using BANKS

database and query model11

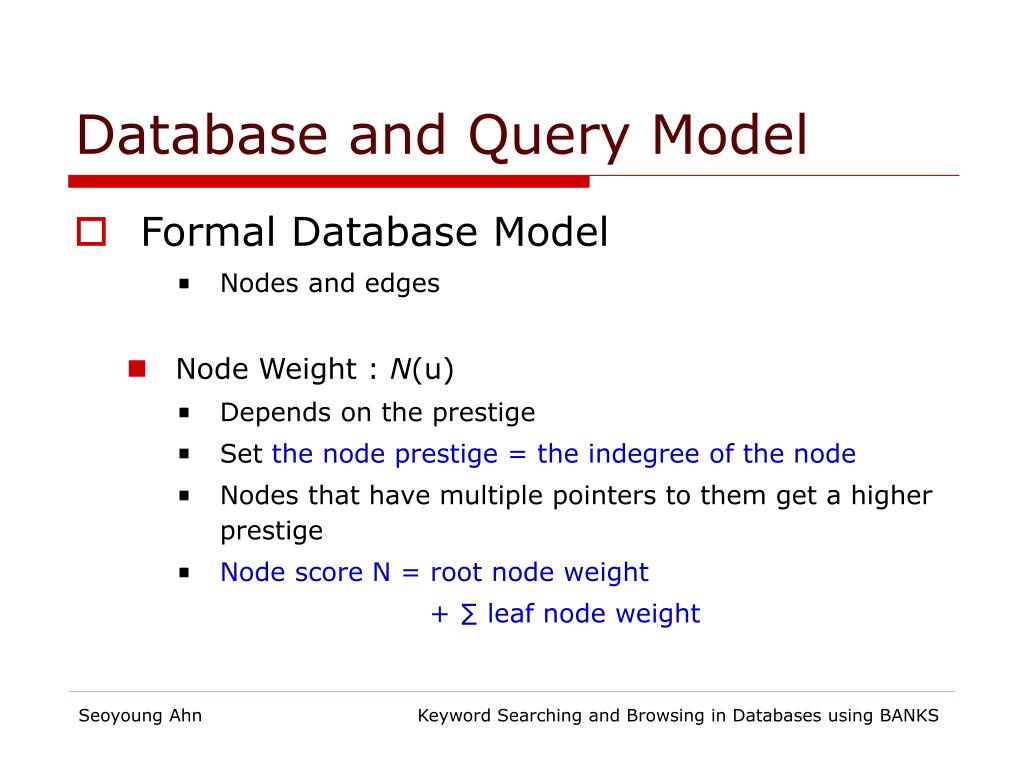

Database and Query Model
  • Formal Database Model
      • Nodes and edges
    • Node Weight : N(u)
      • Depends on the prestige
      • Set the node prestige = the indegree of the node
      • Nodes that have multiple pointers to them get a higher prestige
      • Node score N = root node weight

+ ∑ leaf node weight

Keyword Searching and Browsing in Databases using BANKS

database and query model12

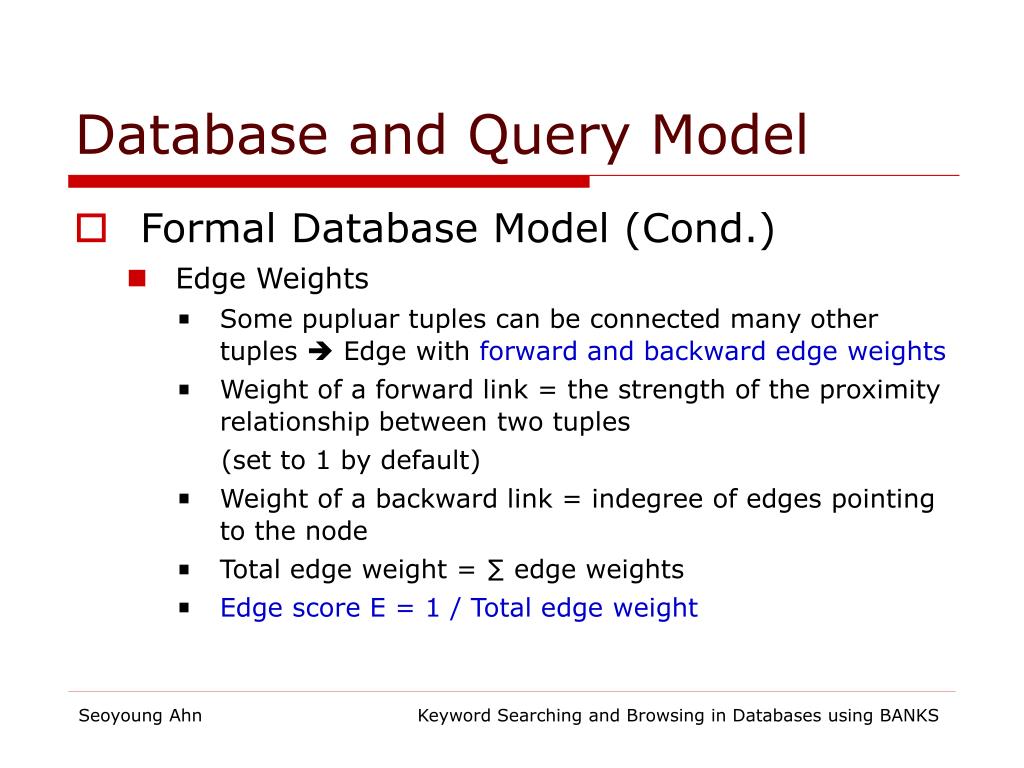

Database and Query Model
  • Formal Database Model (Cond.)
    • Edge Weights
      • Some pupluar tuples can be connected many other tuples  Edge with forward and backward edge weights
      • Weight of a forward link = the strength of the proximity relationship between two tuples

(set to 1 by default)

      • Weight of a backward link = indegree of edges pointing to the node
      • Total edge weight = ∑ edge weights
      • Edge score E = 1 / Total edge weight

Keyword Searching and Browsing in Databases using BANKS

database and query model13

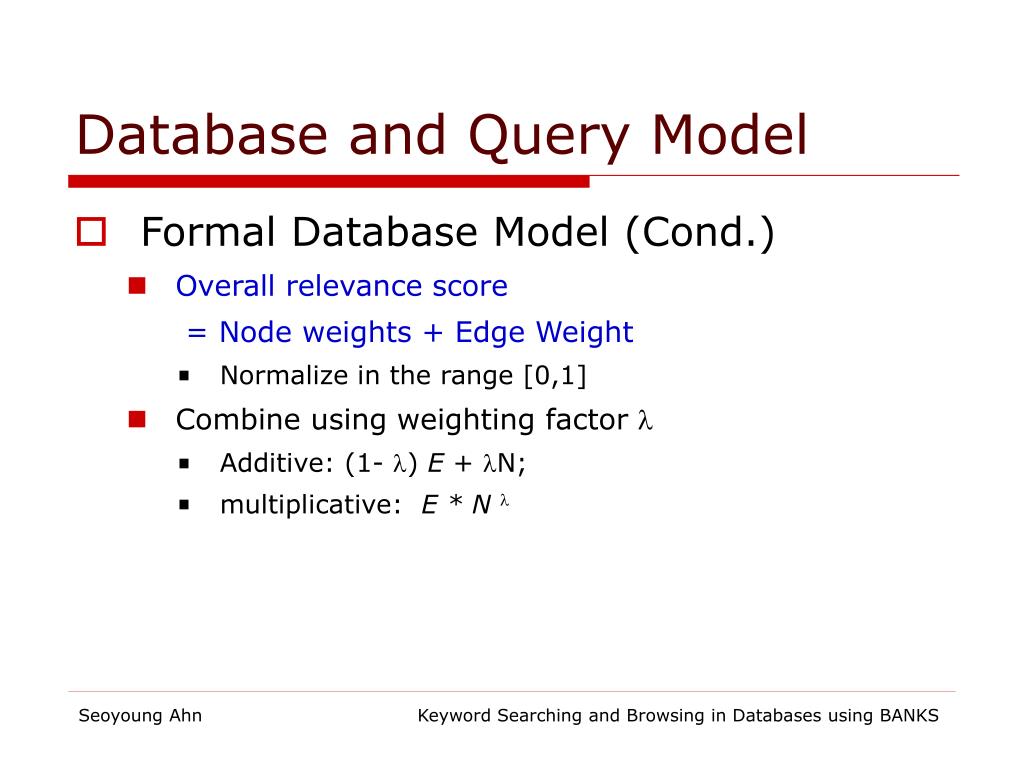

Database and Query Model
  • Formal Database Model (Cond.)
    • Overall relevance score

= Node weights + Edge Weight

      • Normalize in the range [0,1]
    • Combine using weighting factor 
      • Additive: (1- ) E + N;
      • multiplicative: E * N 

Keyword Searching and Browsing in Databases using BANKS

database and query model14

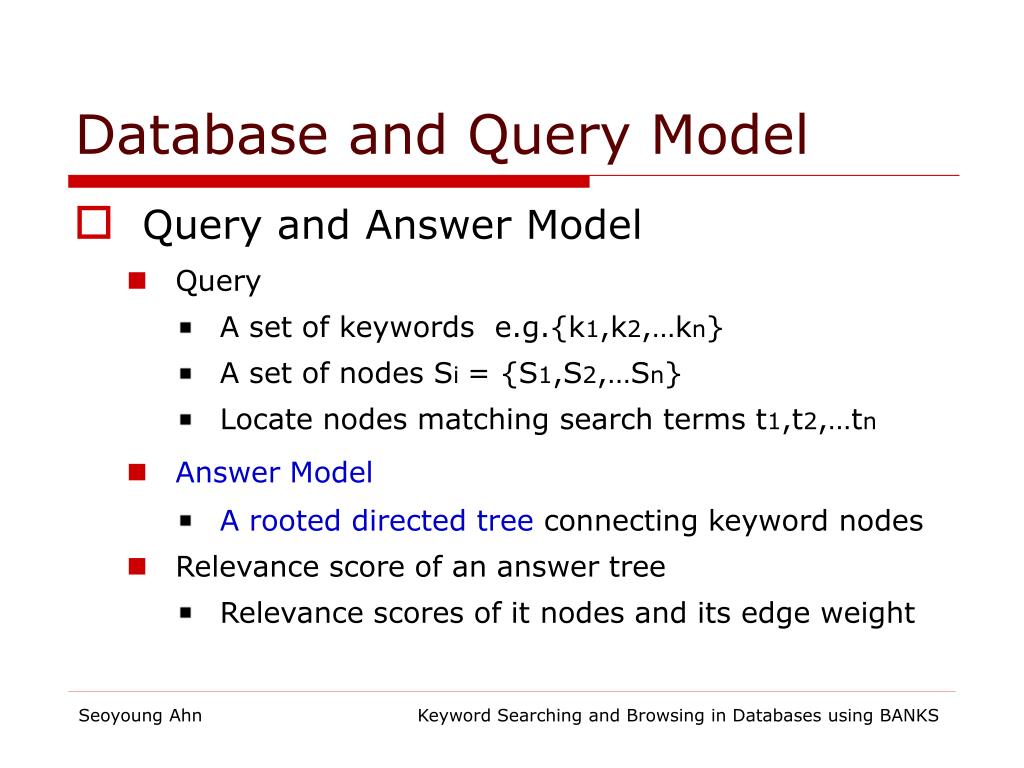

Database and Query Model
  • Query and Answer Model
    • Query
      • A set of keywords e.g.{k1,k2,…kn}
      • A set of nodes Si = {S1,S2,…Sn}
      • Locate nodes matching search terms t1,t2,…tn
    • Answer Model
      • A rooted directed tree connecting keyword nodes
    • Relevance score of an answer tree
      • Relevance scores of it nodes and its edge weight

Keyword Searching and Browsing in Databases using BANKS

database and query model15
Database and Query Model
  • Answer Model
    • A rooted directed tree connecting keyword nodes
    • Multiple answers
      • Ranked by proximity + prestige
      • Proximity  edges weights
      • Prestige  indegree of nodes
    • Relevance score of an answer tree
      • Relevance scores of it nodes and its edge weight

Keyword Searching and Browsing in Databases using BANKS

database and query model16
Database and Query Model

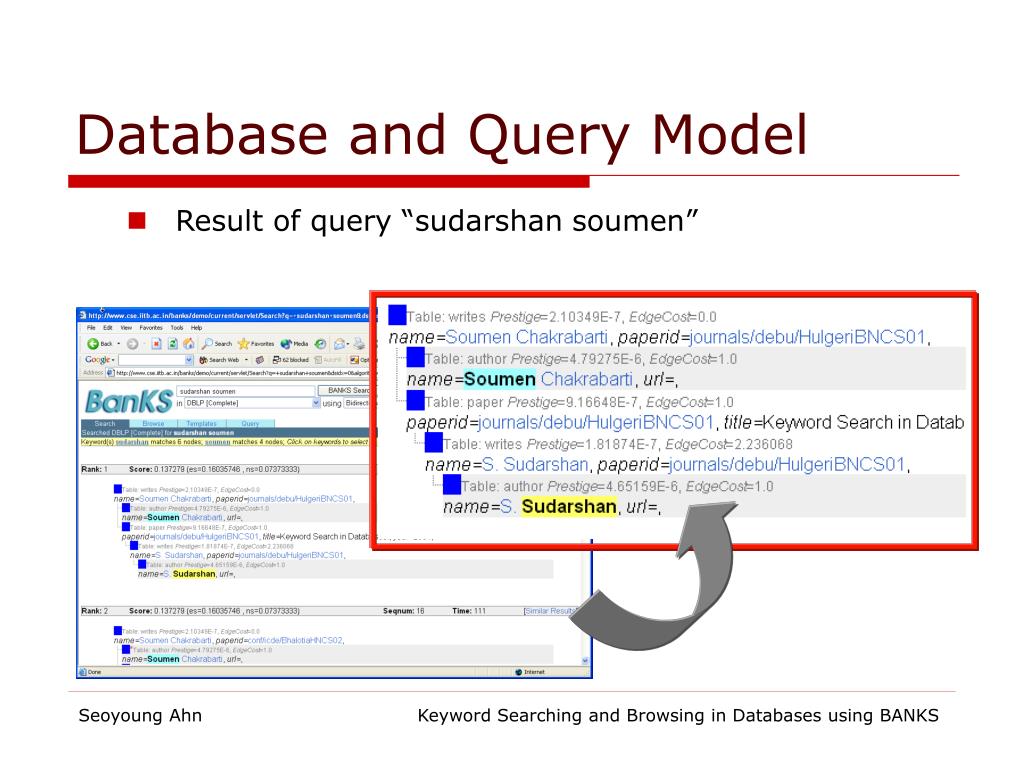

  • Result of query “sudarshan soumen”

Keyword Searching and Browsing in Databases using BANKS

outline17
Outline
  • Introduction
  • Database and Query Model
  • Searching for the best answers
    • Backward expanding search algorithm
  • Browsing features of BANKS
  • Experiment
  • Conclusion

Keyword Searching and Browsing in Databases using BANKS

searching for the best answers
Searching for the best answers
  • Backward expanding search algorithm
    • Offers a heuristic solution for incrementally computing query results.
    • Assume that the graph fits in memory
    • Start at leaf nodes each containing a query keyword
    • Run concurrent single source shortest path algorithm from each such node
    • Traverses the graph edges backwards
    • Confluence of backward paths identify answer tree roots
      • Output a node whenever it is on the intersection of the sets of nodes reached from each keyword
    • Answer trees may not be generated in relevance order
      • Insert answers to a small buffer (heap)
      • Output highest ranked answer from buffer to user when buffer is full

Keyword Searching and Browsing in Databases using BANKS

searching for the best answers19
Searching for the best answers
  • Model (Query : Charuta Sudarshan Roy )

BANKS: Keyword search…

paper

writes

Charuta

S. Sudarshan

Prasan Roy

author

Keyword Searching and Browsing in Databases using BANKS

outline20
Outline
  • Introduction
  • Database and Query Model
  • Searching for the best answers
  • Browsing features of BANKS
  • Experiment
  • Conclusion

Keyword Searching and Browsing in Databases using BANKS

browsing

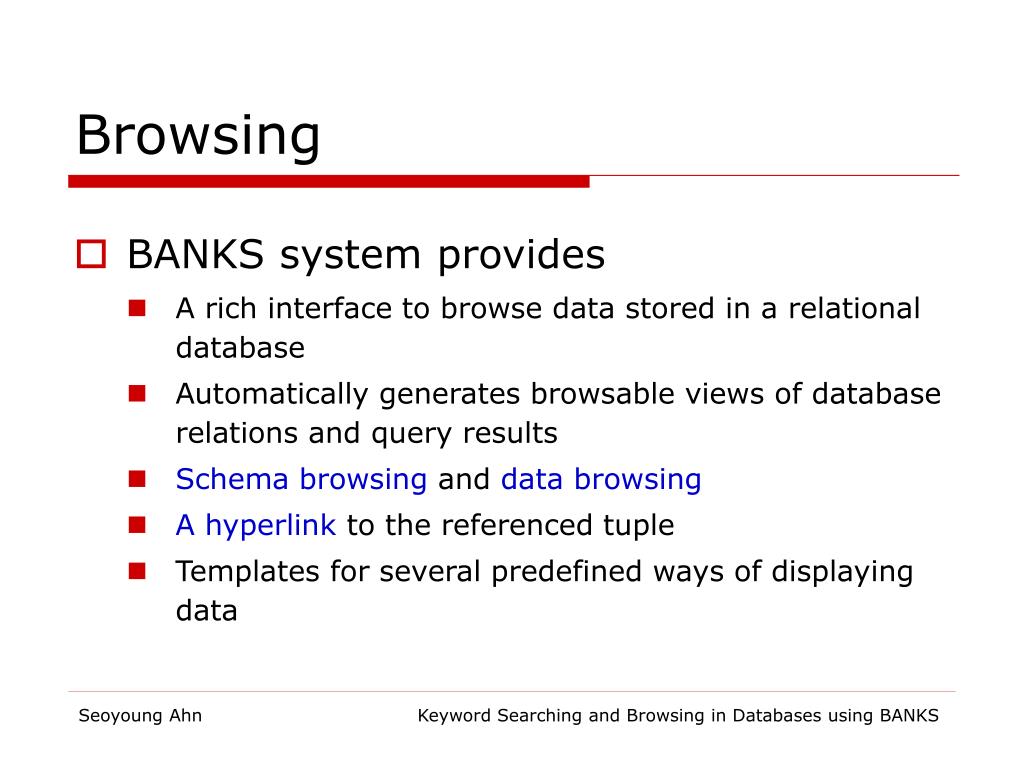

Browsing
  • BANKS system provides
    • A rich interface to browse data stored in a relational database
    • Automatically generates browsable views of database relations and query results
    • Schema browsing and data browsing
    • A hyperlink to the referenced tuple
    • Templates for several predefined ways of displaying data

Keyword Searching and Browsing in Databases using BANKS

browsing22
Browsing

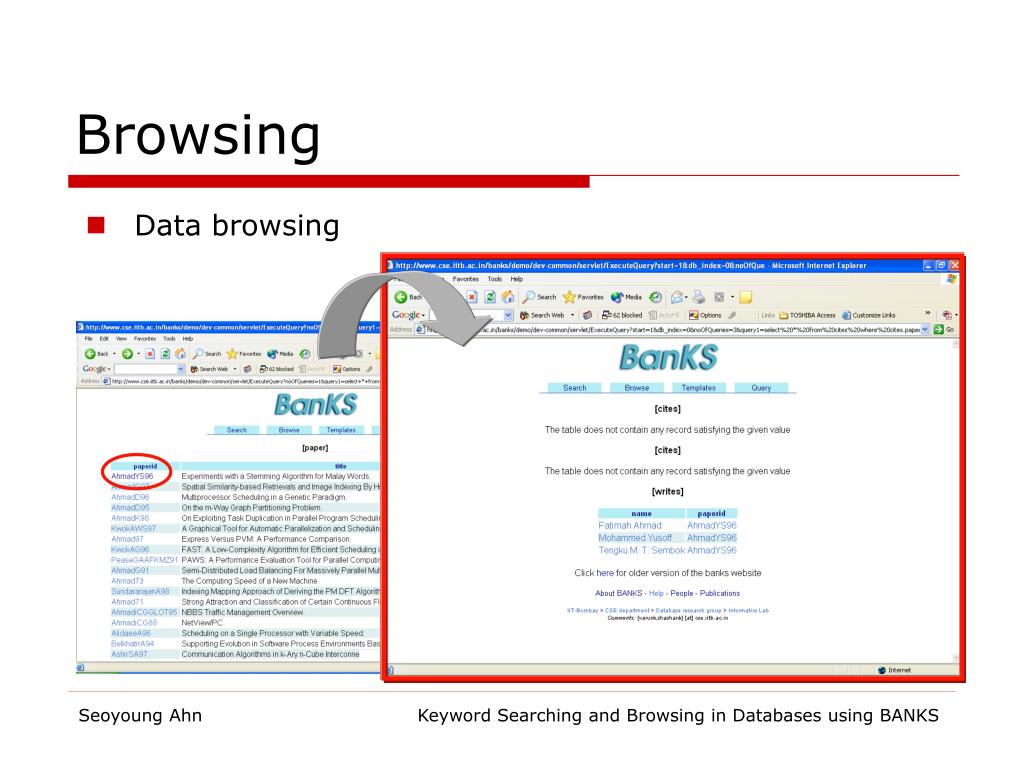

  • Data browsing

Keyword Searching and Browsing in Databases using BANKS

browsing23
Browsing
  • Schema browsing

Keyword Searching and Browsing in Databases using BANKS

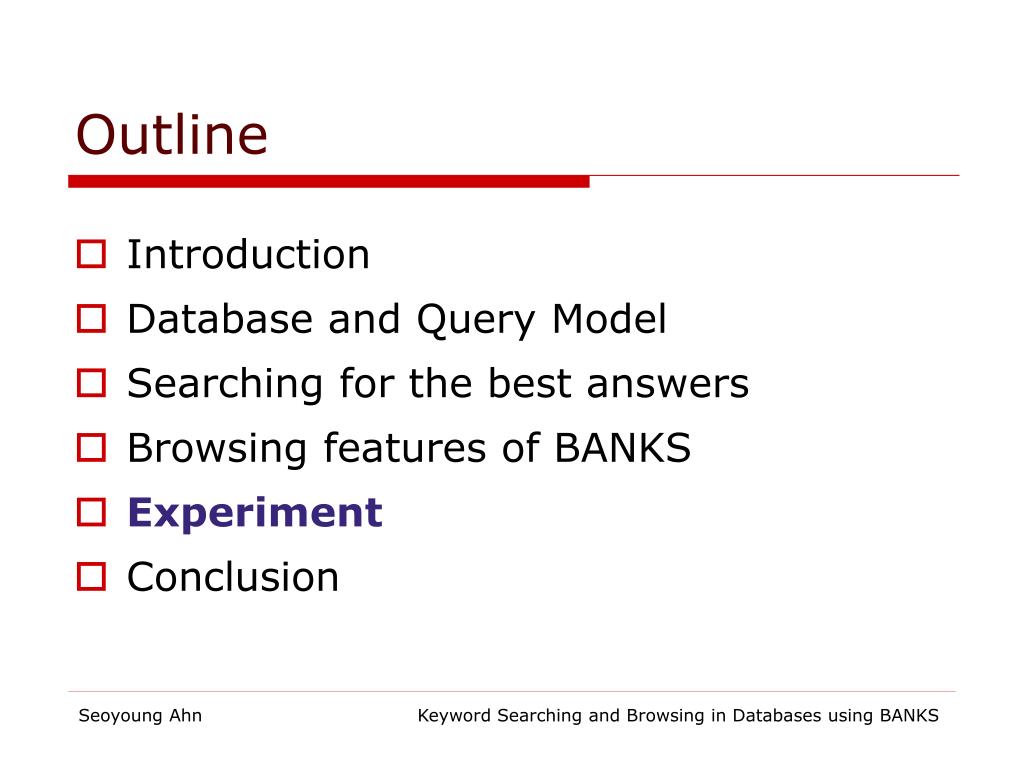

outline24
Outline
  • Introduction
  • Database and Query Model
  • Searching for the best answers
  • Browsing features of BANKS
  • Experiment
  • Conclusion

Keyword Searching and Browsing in Databases using BANKS

error scores vs parameter choices
Error scores vs parameter choices
  • The rankings are

relatively stable across different choices of parameter values

  •  = 0.2 coupled

with log scaling of

edges weights

does best

Keyword Searching and Browsing in Databases using BANKS

outline26
Outline
  • Introduction
  • Database and Query Model
  • Searching for the best answers
  • Browsing features of BANKS
  • Experiment
  • Conclusion

Keyword Searching and Browsing in Databases using BANKS

conclusion
Conclusion
  • BANKS system
    • provides an integrated browsing and keyword querying system for relational databases
    • allows users with no knowledge of database systems or schema to query and browse relational database with ease
