Presentation Transcript
x server integration with the cdl common framework

X-Server integration with the CDL Common Framework

Using SOAP and XML to access Metalib

LITA National Forum, October 1, 2005

Michael McKenna, CDL

michael.mckenna@ucop.edu

overview metalib x server x

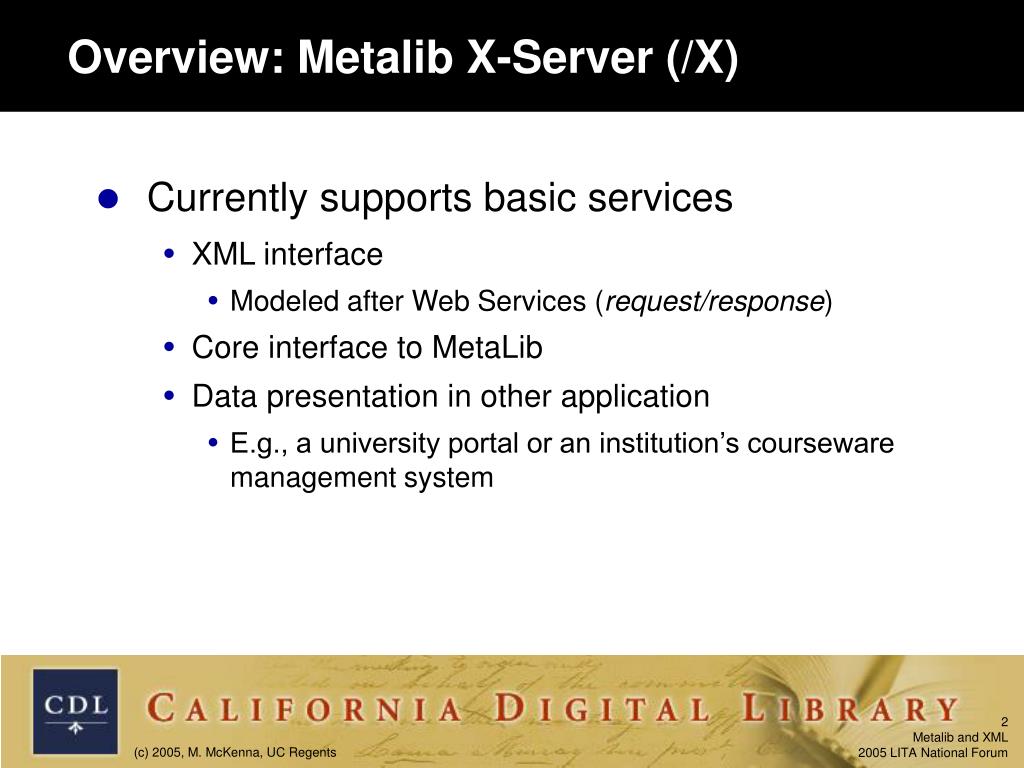

Overview: Metalib X-Server (/X)
  • Currently supports basic services
    • XML interface
      • Modeled after Web Services (request/response)
    • Core interface to MetaLib
    • Data presentation in other application
      • E.g., a university portal or an institution’s courseware management system
x basic interface

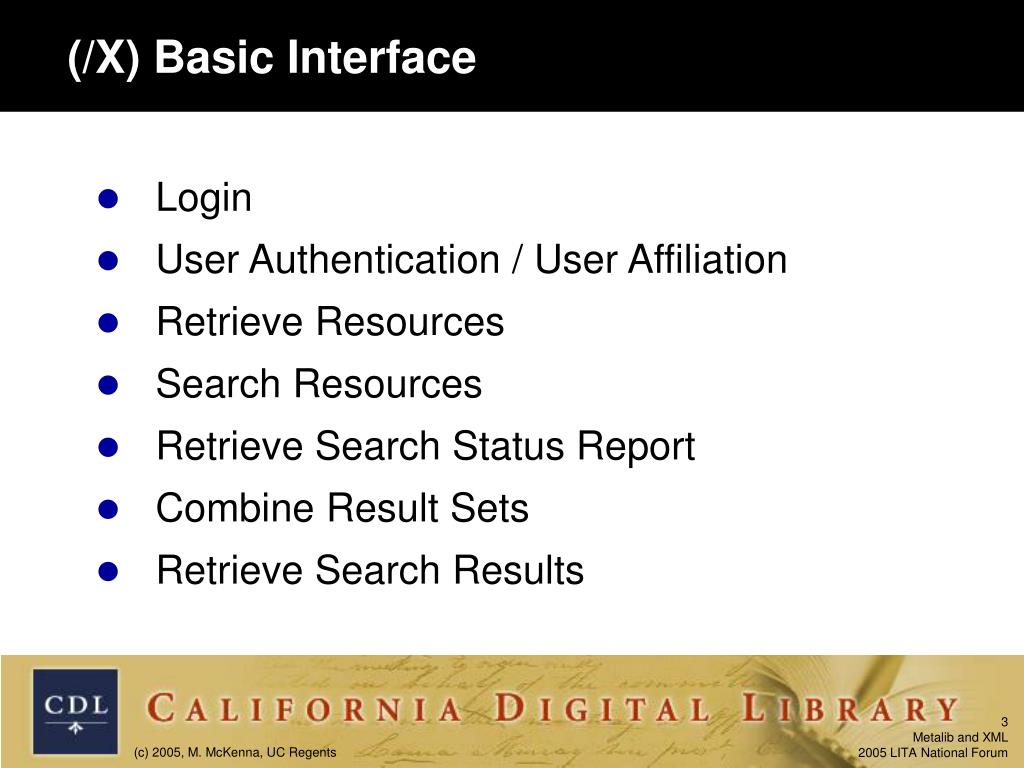

(/X) Basic Interface
  • Login
  • User Authentication / User Affiliation
  • Retrieve Resources
  • Search Resources
  • Retrieve Search Status Report
  • Combine Result Sets
  • Retrieve Search Results
x upgrades
/V

Version 3.11 to 3.12?

196 files changed – for one instance (UCOP)

2,354 files changed – across all campuses

Upgrade script saves and marks changed files

“diff” and decide to keep changes or modify.

Merge to recreate prototype interface

/X

Does not touch our UI

May require modifications to Common Framework (CF) Manager Layer

Generally, existing CF functionality is left unchanged

(/X) Upgrades

/V = vanilla html interface /X = X-Server XML interface

x development methodology
/V

Cannot use CVS easily

Cannot see UI changes unless Metalib can see files

Cannot have unlimited Metalib instances

Be careful not to trash other’s work!

Keep close tabs on changes

Do regular file system backups

/X

Use CVS and Java IDE

Integrate with Common Framework development environment

(/X) Development Methodology

/V = vanilla html interface /X = X-Server XML interface

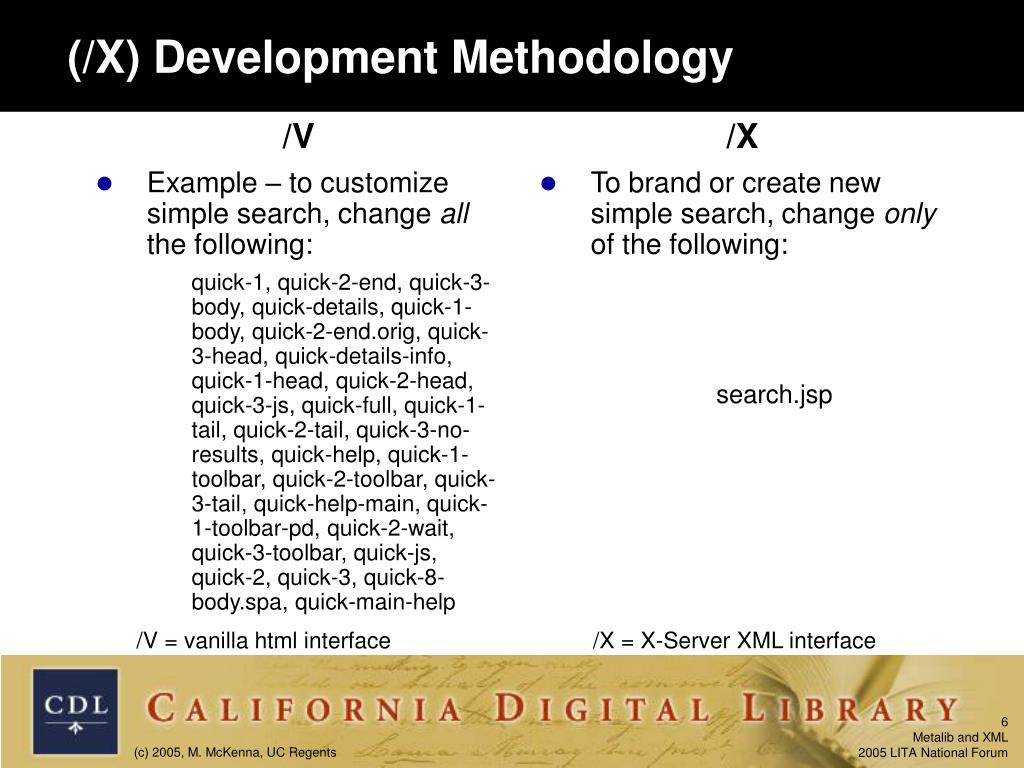

x development methodology1
/V

Example – to customize simple search, change all the following:

quick-1, quick-2-end, quick-3-body, quick-details, quick-1-body, quick-2-end.orig, quick-3-head, quick-details-info, quick-1-head, quick-2-head, quick-3-js, quick-full, quick-1-tail, quick-2-tail, quick-3-no-results, quick-help, quick-1-toolbar, quick-2-toolbar, quick-3-tail, quick-help-main, quick-1-toolbar-pd, quick-2-wait, quick-3-toolbar, quick-js, quick-2, quick-3, quick-8-body.spa, quick-main-help

/X

To brand or create new simple search, change only of the following:

search.jsp

(/X) Development Methodology

/V = vanilla html interface /X = X-Server XML interface

cdl common framework

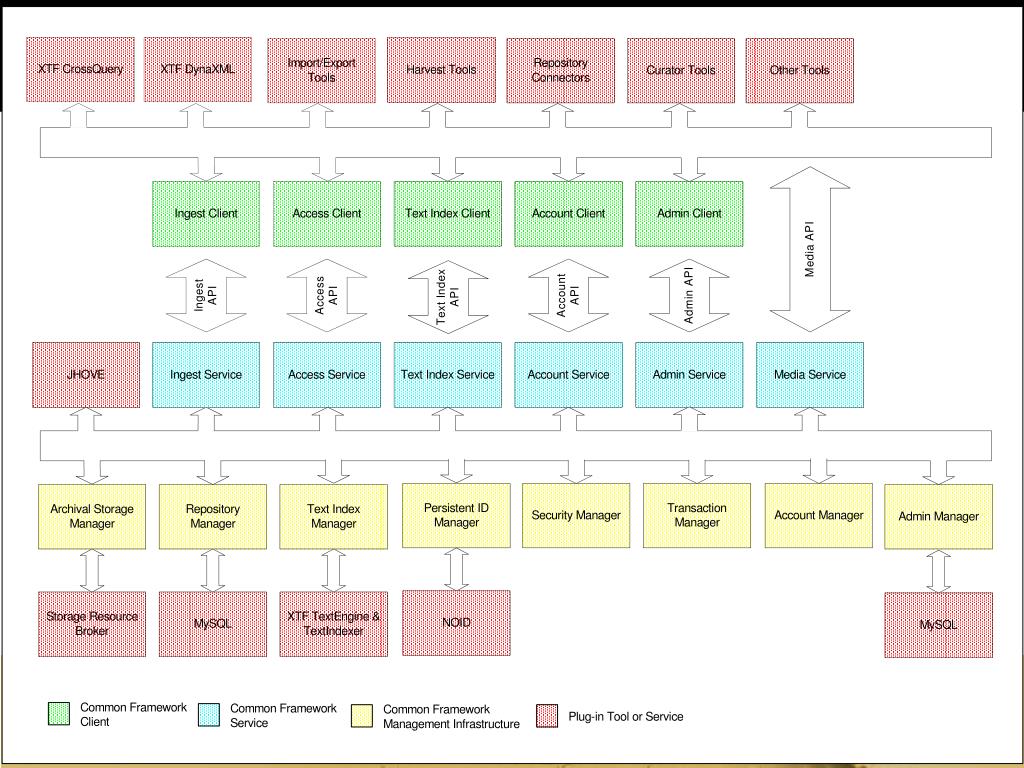

CDL Common Framework
  • Integrated interfaced for (most) all University of California CDL managed information services
  • Based on Web Services
  • Packaged for internal use by UC libraries and departments
common framework web service layers

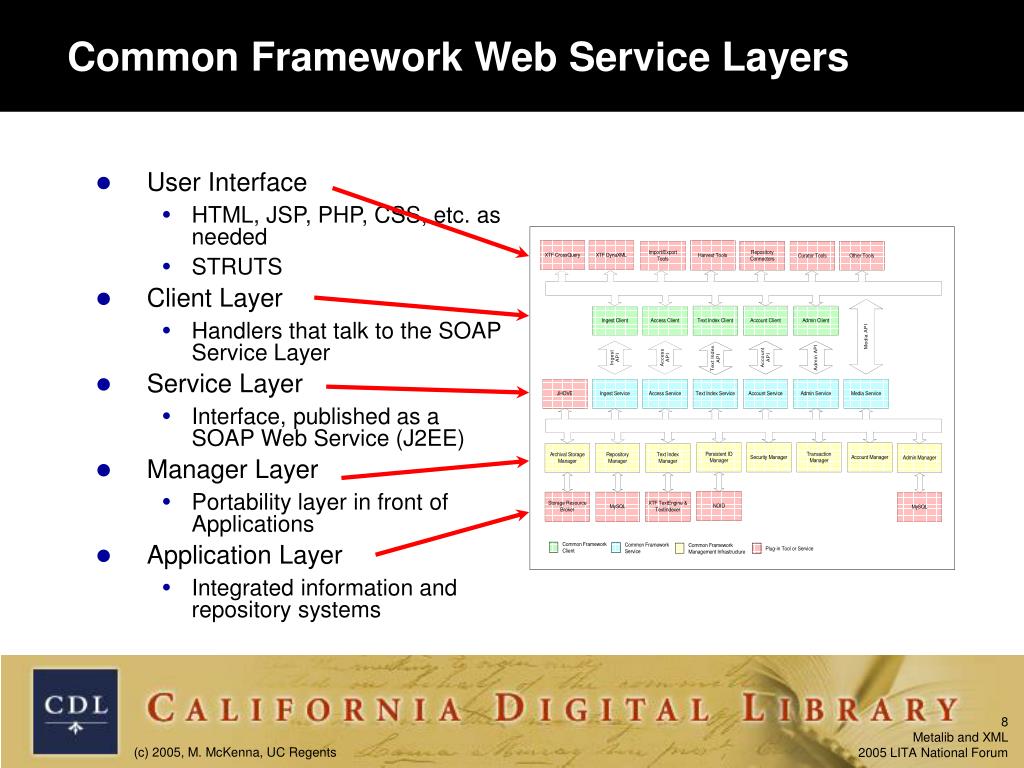

Common Framework Web Service Layers
  • User Interface
    • HTML, JSP, PHP, CSS, etc. as needed
    • STRUTS
  • Client Layer
    • Handlers that talk to the SOAP Service Layer
  • Service Layer
    • Interface, published as a SOAP Web Service (J2EE)
  • Manager Layer
    • Portability layer in front of Applications
  • Application Layer
    • Integrated information and repository systems
common framework web service layers1

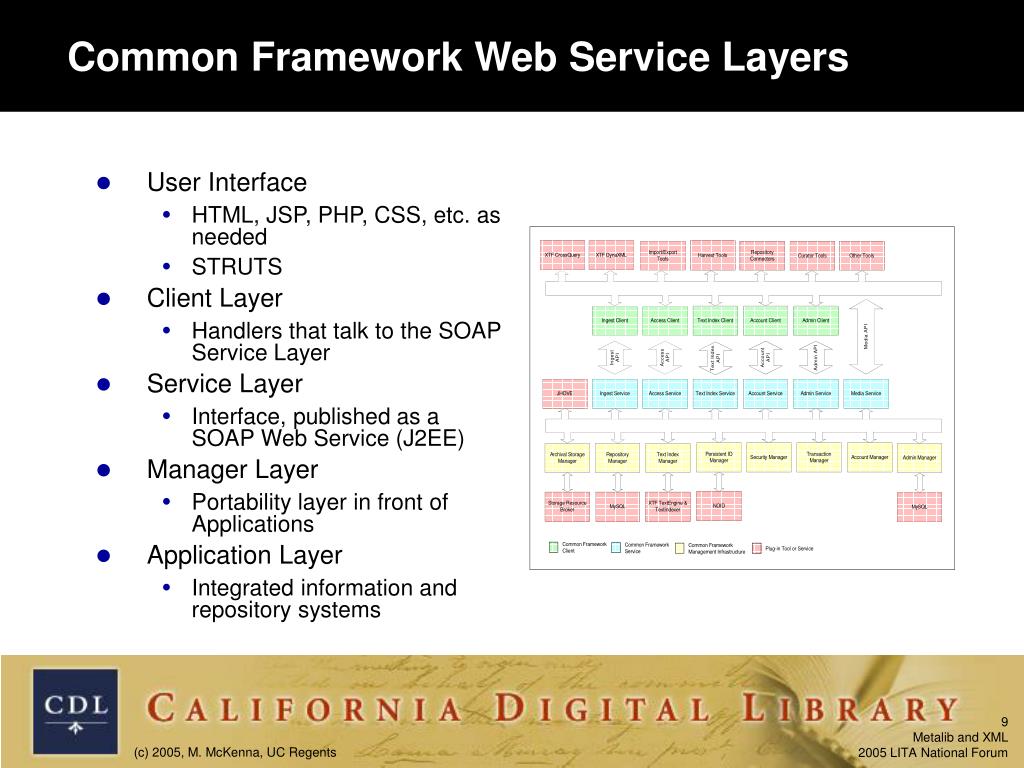

Common Framework Web Service Layers
  • User Interface
    • HTML, JSP, PHP, CSS, etc. as needed
    • STRUTS
  • Client Layer
    • Handlers that talk to the SOAP Service Layer
  • Service Layer
    • Interface, published as a SOAP Web Service (J2EE)
  • Manager Layer
    • Portability layer in front of Applications
  • Application Layer
    • Integrated information and repository systems
x cf integration max

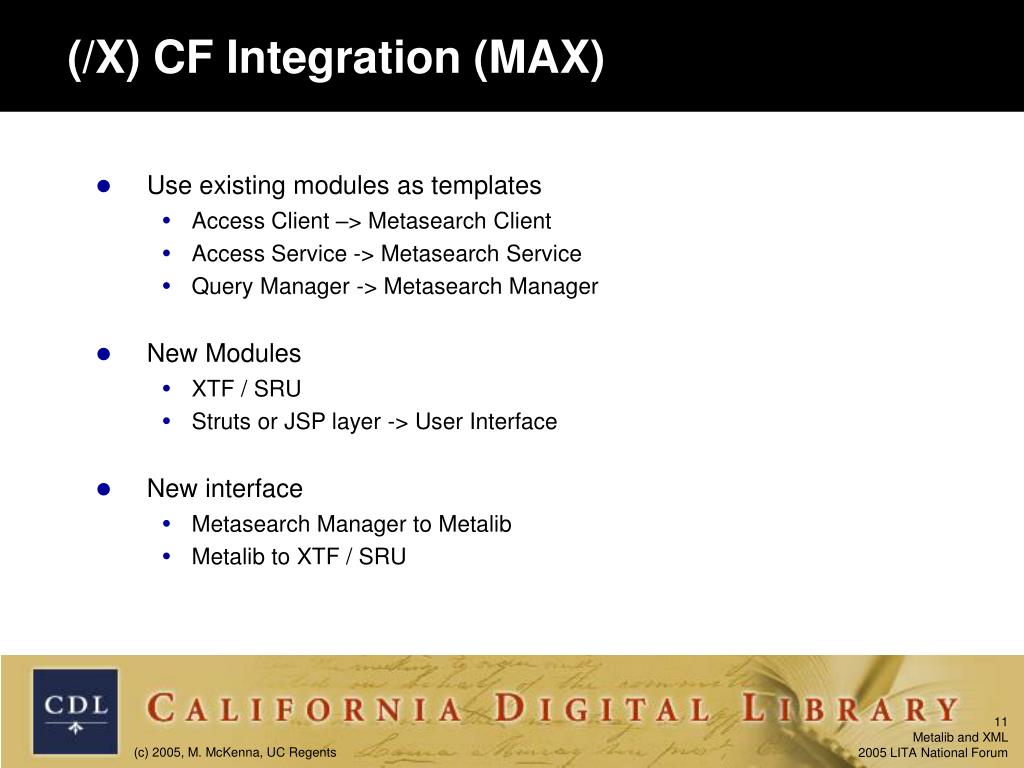

(/X) CF Integration (MAX)
  • Use existing modules as templates
    • Access Client –> Metasearch Client
    • Access Service -> Metasearch Service
    • Query Manager -> Metasearch Manager
  • New Modules
    • XTF / SRU
    • Struts or JSP layer -> User Interface
  • New interface
    • Metasearch Manager to Metalib
    • Metalib to XTF / SRU
x cf integration max1
(/X) CF Integration (MAX)
  • Use existing layers as templates
    • Access Client –> Metasearch Client
    • Access Service -> Metasearch Service
    • Query Manager -> Metasearch Manager
  • New Modules
    • XTF z39.50
    • Struts or JSP layer -> User Interface
  • New interface
    • Query Manager to Metalib
    • Metalib to XTF / SRU
x cf integration max2

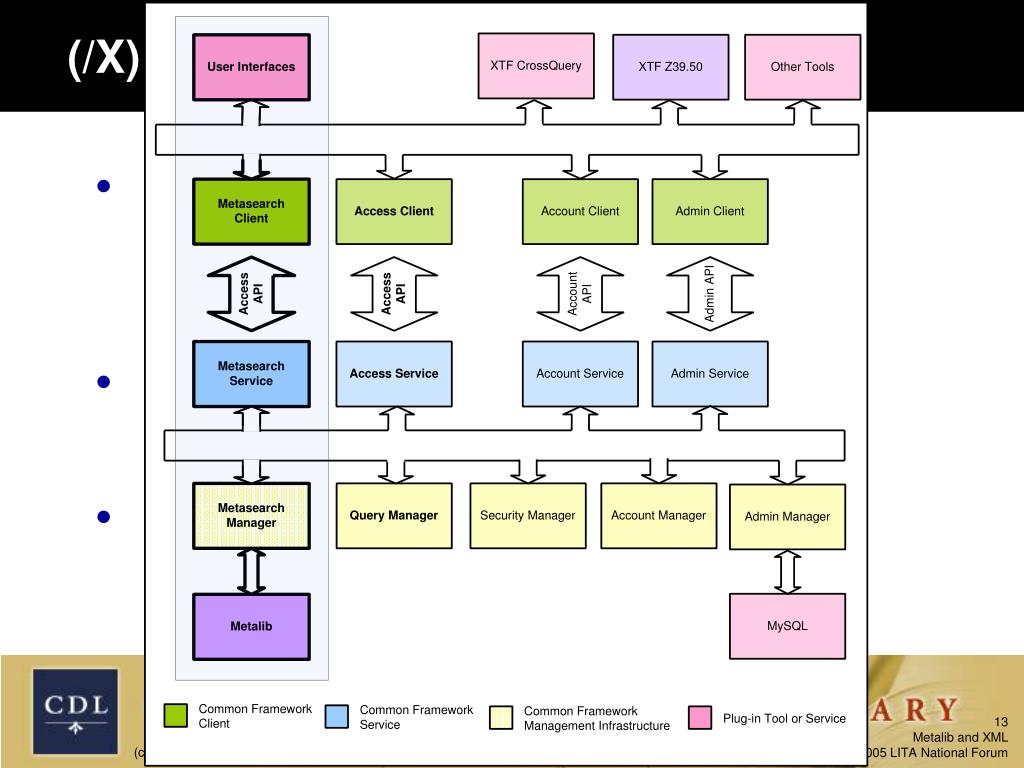

(/X) CF Integration (MAX)
  • Use existing layers as templates
    • Access Client
    • Access Service
    • Query Manager
  • New Modules
    • XTF z39.50
    • Struts or JSP layer
  • New interface
    • Query Manager to Metalib
    • Metalib to XTFz39.50
max logic flow

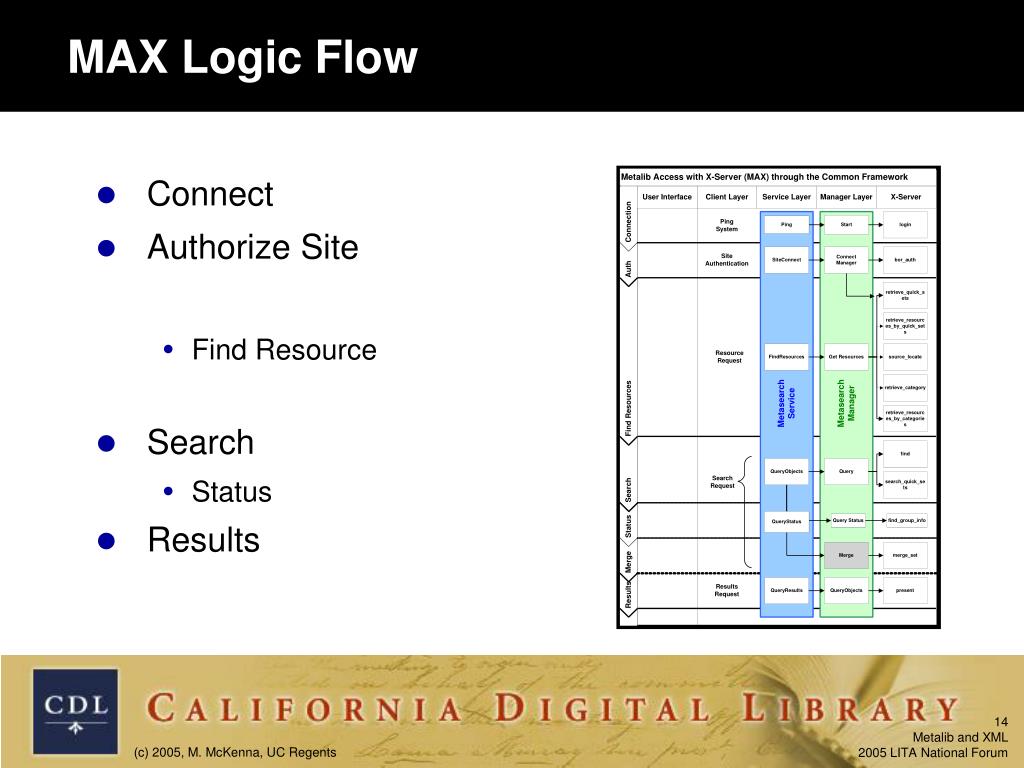

MAX Logic Flow
  • Connect
  • Authorize Site

Find Resource

    • Find Resource
  • Search
    • Status
  • Results
x issues

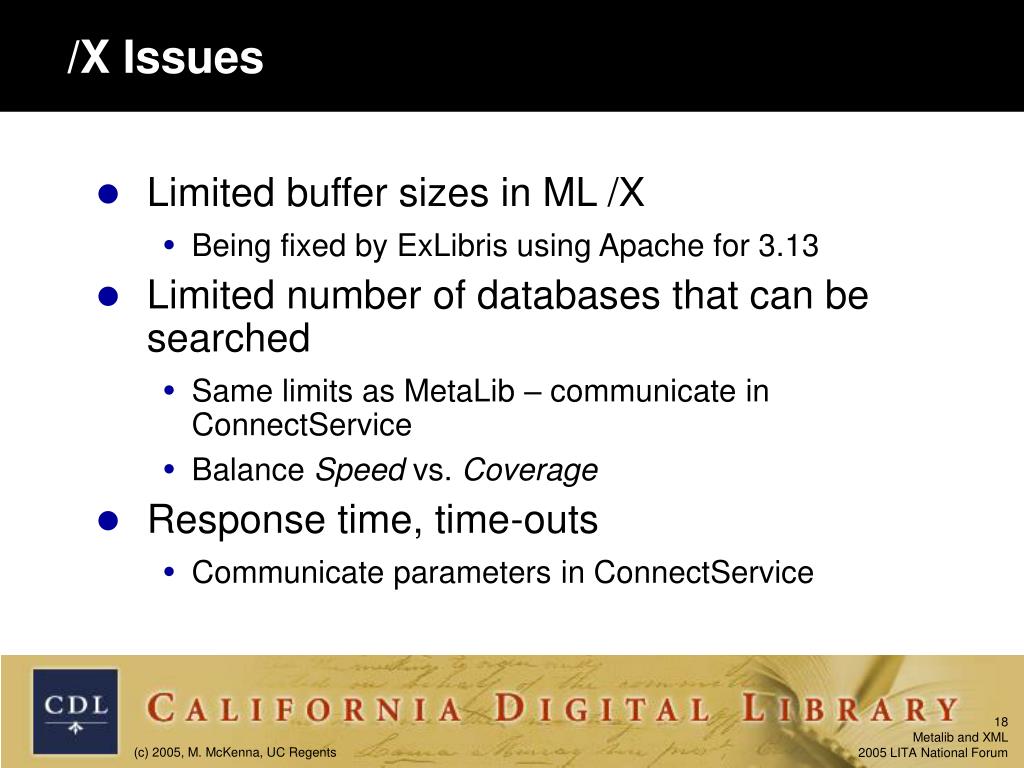

/X Issues
  • Limited buffer sizes in ML /X
    • Being fixed by ExLibris using Apache for 3.13
  • Limited number of databases that can be searched
    • Same limits as MetaLib – communicate in ConnectService
    • Balance Speed vs. Coverage
  • Response time, time-outs
    • Communicate parameters in ConnectService
future

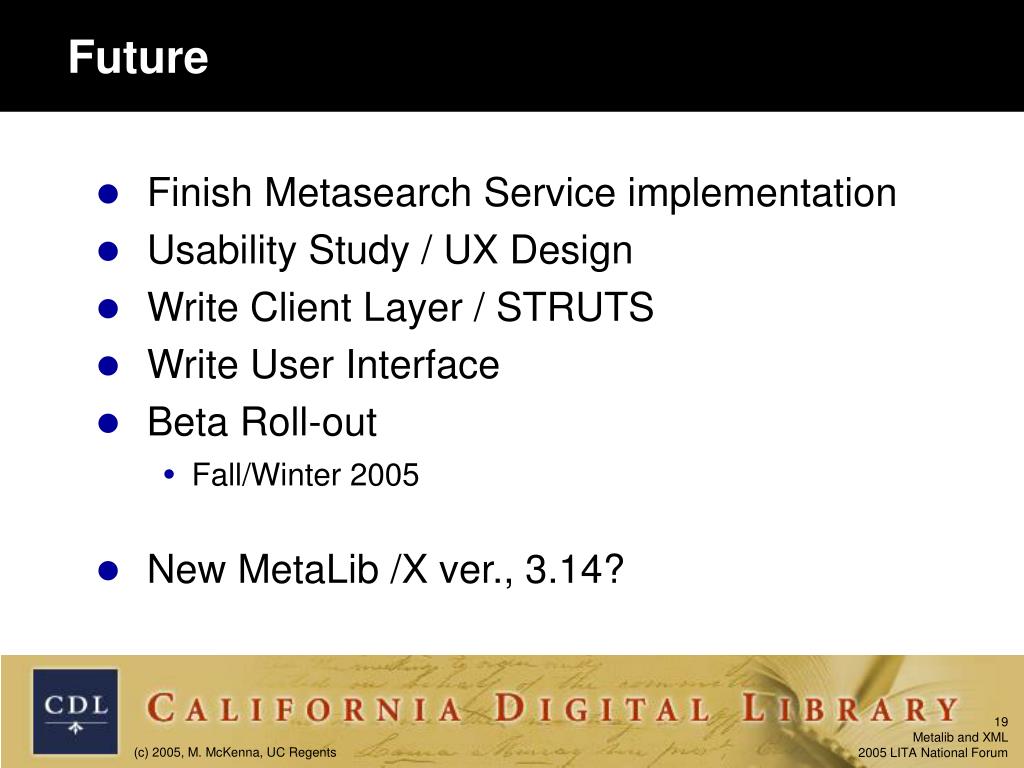

Future
  • Finish Metasearch Service implementation
  • Usability Study / UX Design
  • Write Client Layer / STRUTS
  • Write User Interface
  • Beta Roll-out
    • Fall/Winter 2005
  • New MetaLib /X ver., 3.14?
future1

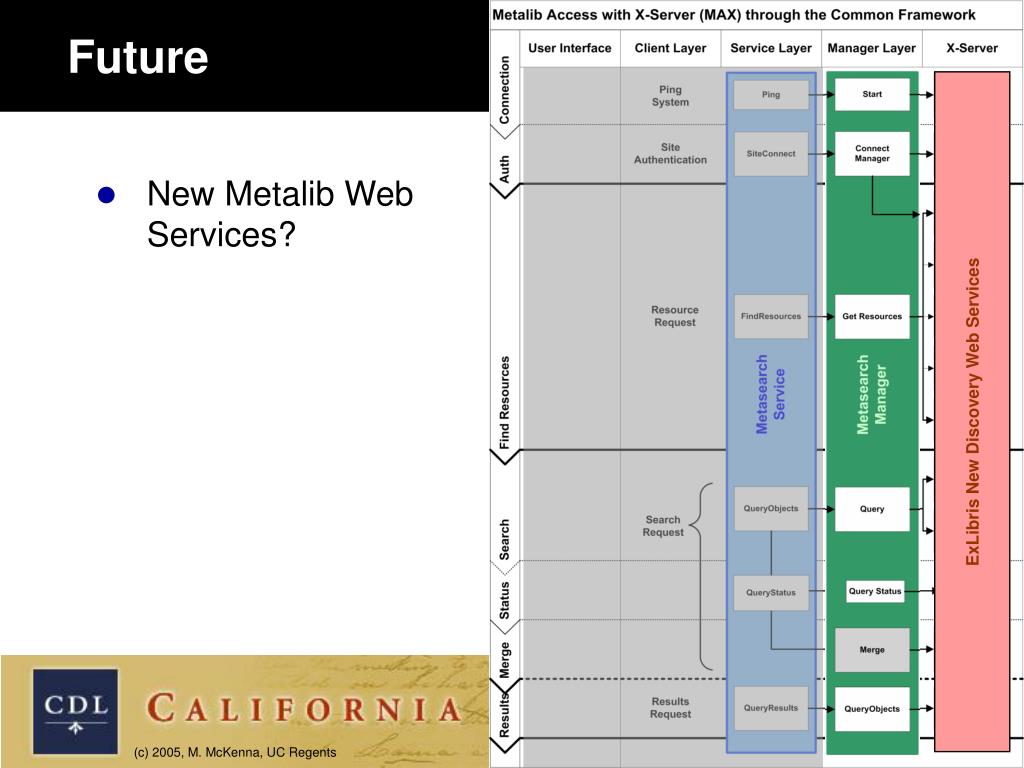

Future

ExLibris New Discovery Web Services

  • New Metalib Web Services?
slide21

Thank you!

michael.mckenna@ucop.edu
