  1. Galvanic Skin Response B.HEMA KUMAR

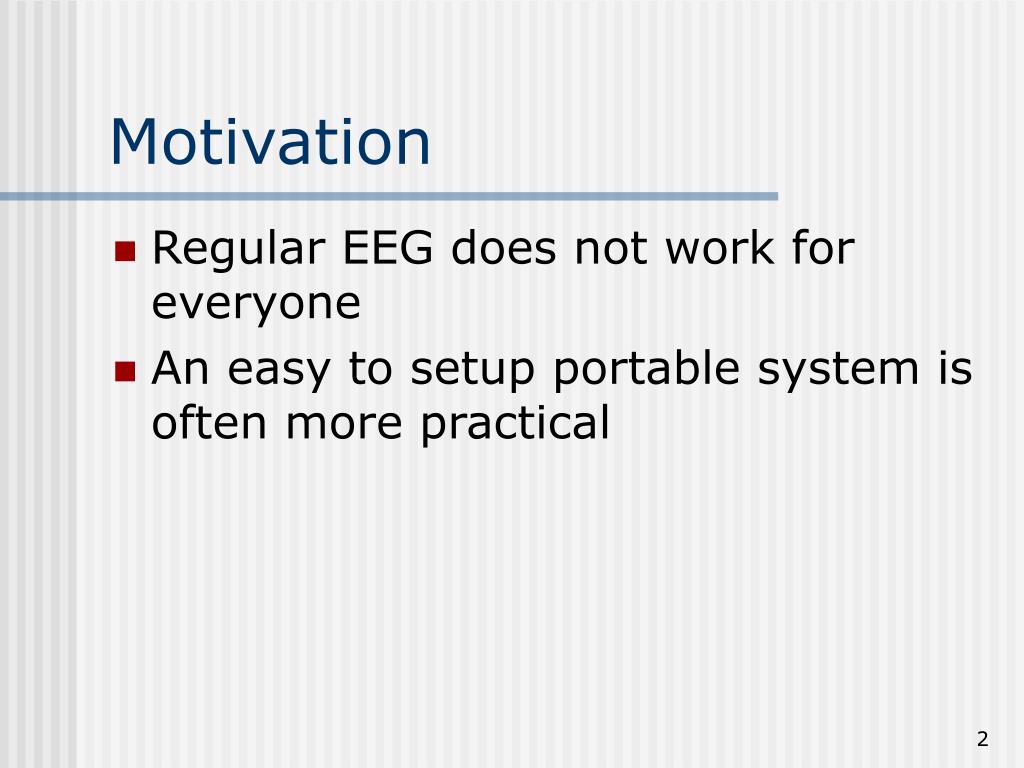

  2. Motivation • Regular EEG does not work for everyone • An easy to setup portable system is often more practical

  3. Possible alternatives • fMRI • GSR • fNIR • …

  4. The Galvanic Skin Response • Known as a lie detector • Costs anywhere from 5-10k • Consists of 2 electrodes usually placed on fingers • Measures electrical conductivity of skin • Sweat = Na+ ions • More sweat, more conductivity

  5. Galvanic Skin Response • The GSR is affected when the sympathetic nervous system is active, in particular when a person is anxious

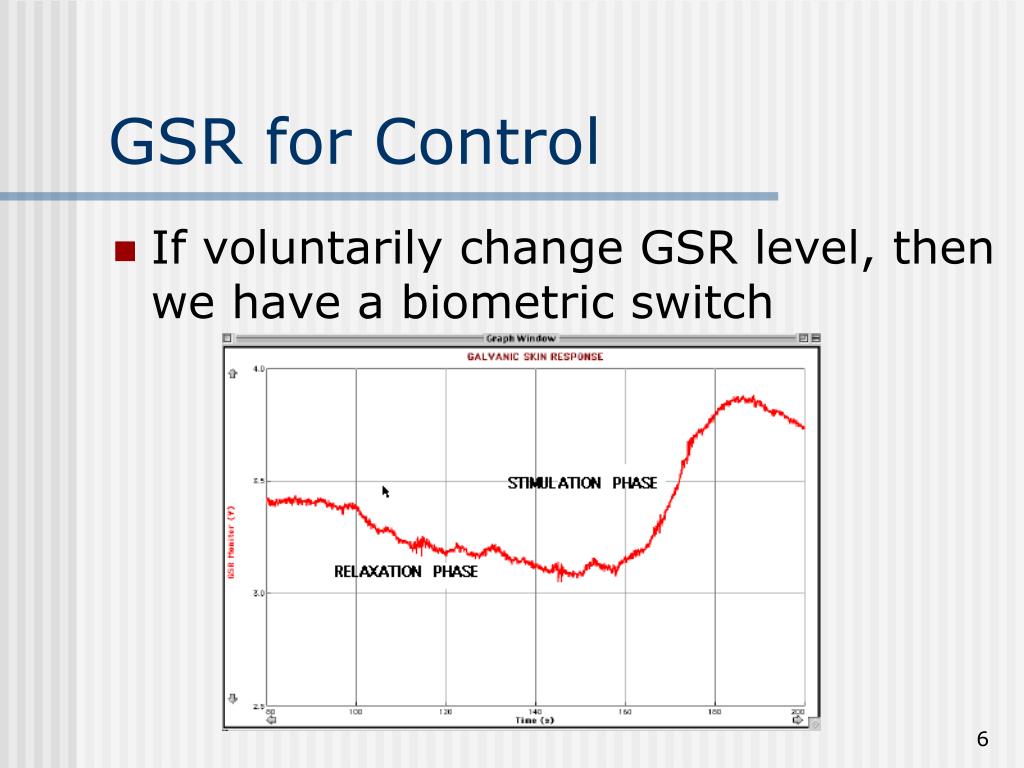

  6. GSR for Control • If voluntarily change GSR level, then we have a biometric switch

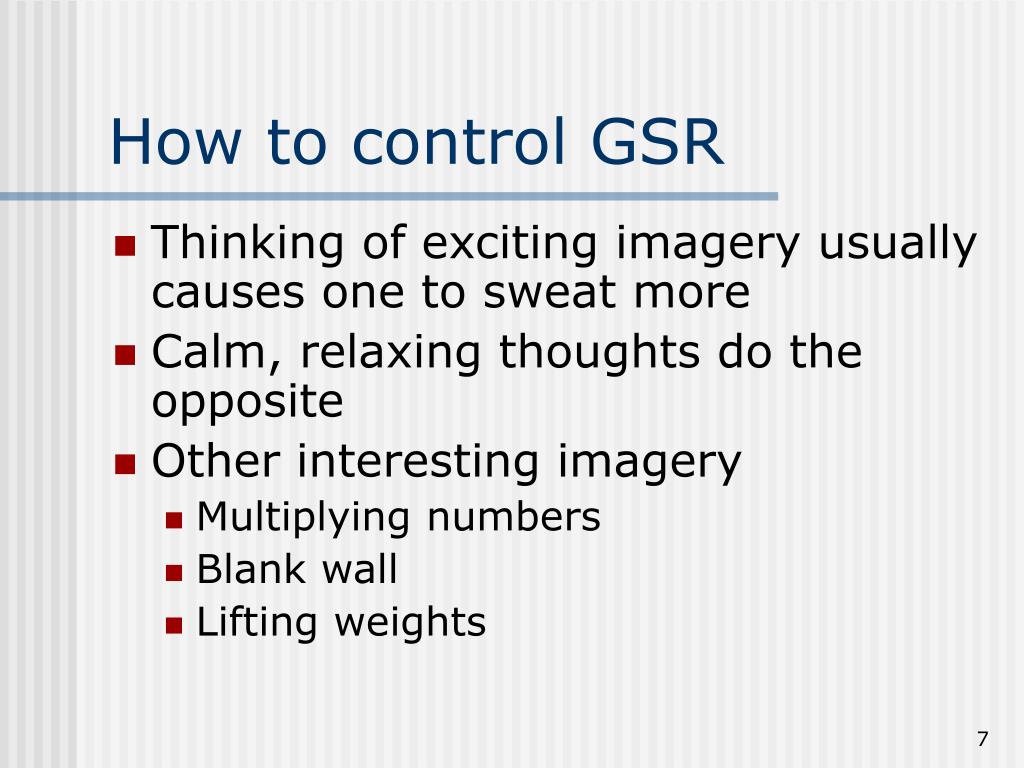

  7. How to control GSR • Thinking of exciting imagery usually causes one to sweat more • Calm, relaxing thoughts do the opposite • Other interesting imagery • Multiplying numbers • Blank wall • Lifting weights

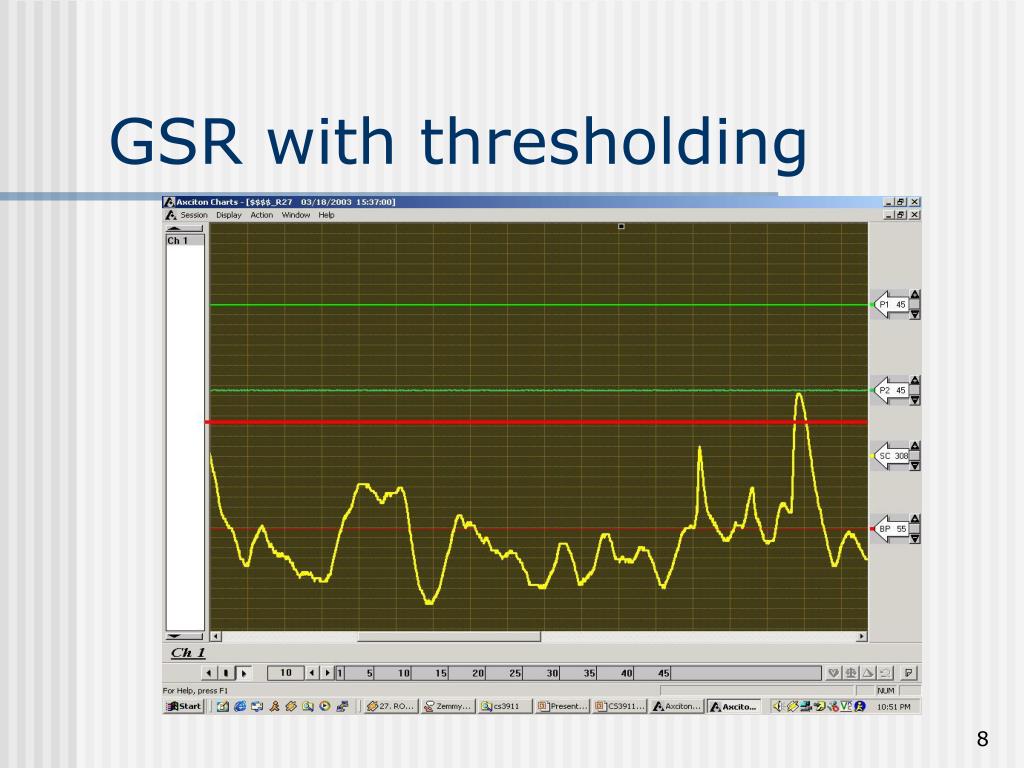

  8. GSR with thresholding

  9. Thresholding issues • Where to set the threshold? • What if baseline level changes during trial? • What will happen if threshold • Too high? • Too Low?

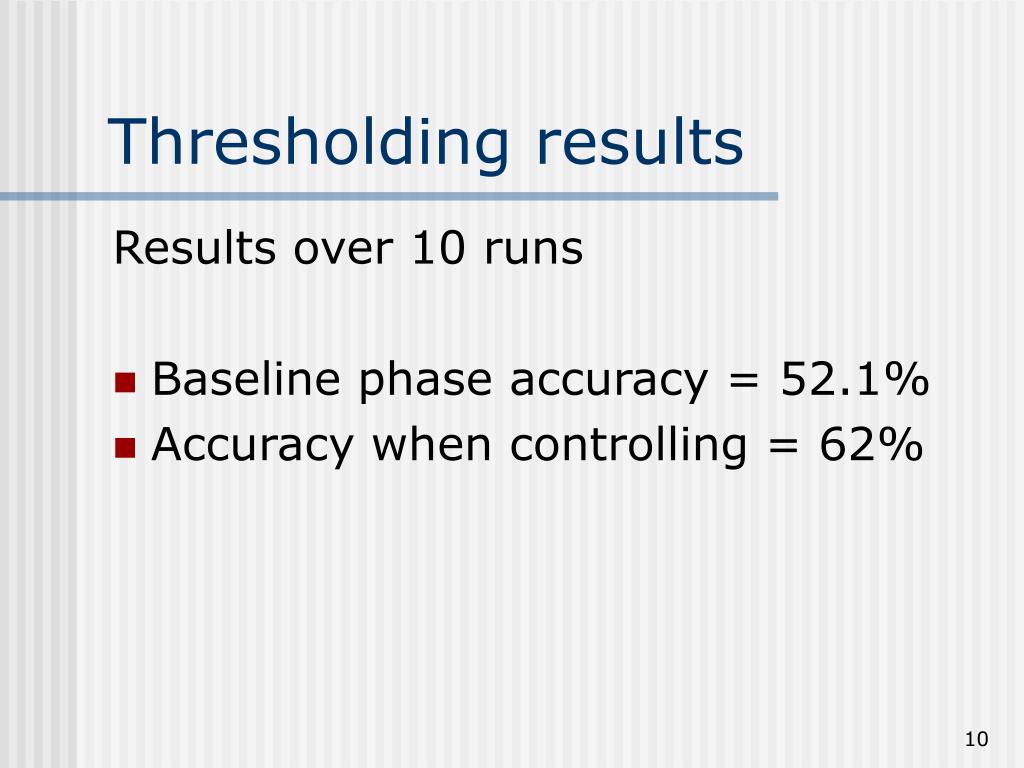

  10. Thresholding results Results over 10 runs • Baseline phase accuracy = 52.1% • Accuracy when controlling = 62%

  11. GSR Artifacts • Ideally we want gsr to look like • But if often looks like

  12. Factors affecting GSR • Temperature • Attention • Fatigue • Predictability • Consecutive yes generation • Training? (not proven yet)

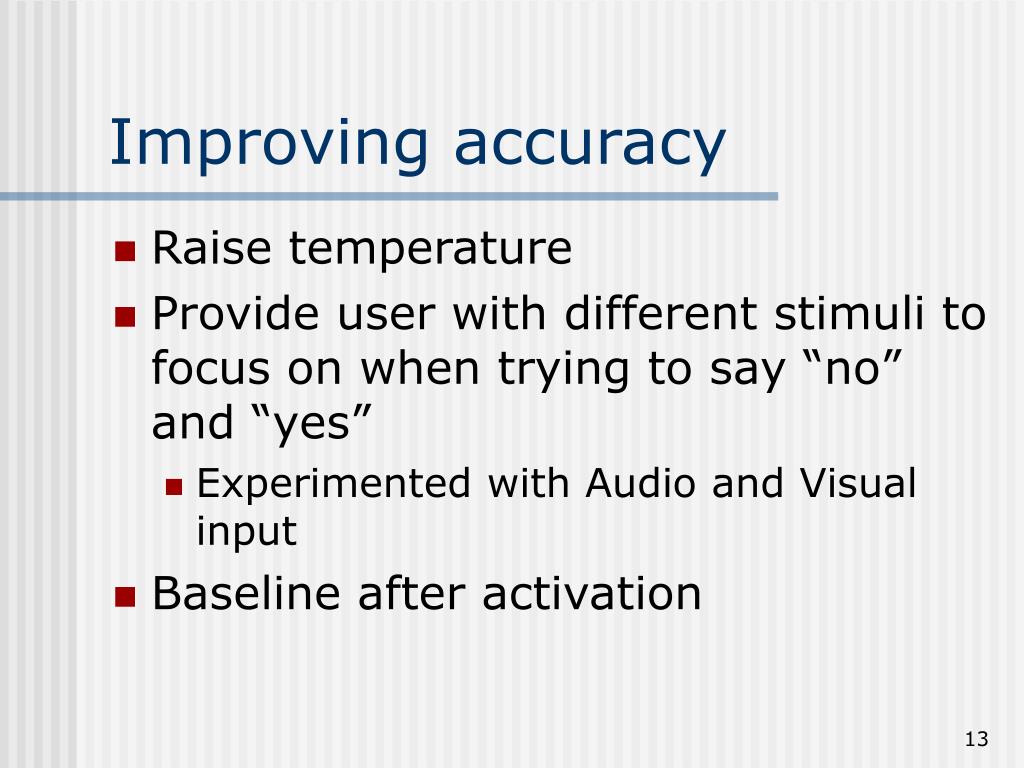

  13. Improving accuracy • Raise temperature • Provide user with different stimuli to focus on when trying to say “no” and “yes” • Experimented with Audio and Visual input • Baseline after activation

  14. Visual Input • Looked at difference between “Judge Judy” and “Golf game” • Golf game = 2.6 peaks with peak strength = 834 • Judge Judy = 1.7 peaks with peak strength = 211 • Why?

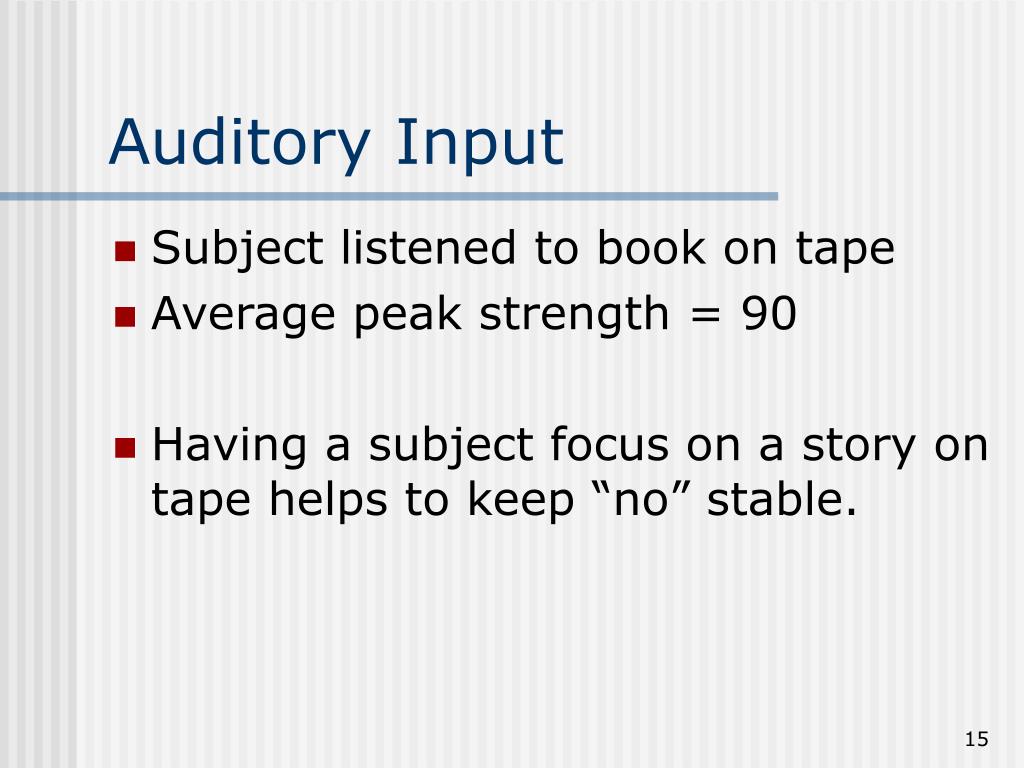

  15. Auditory Input • Subject listened to book on tape • Average peak strength = 90 • Having a subject focus on a story on tape helps to keep “no” stable.

  16. Predictability • If subject can predict next choice, it gives them advance notice on what to do. • Double edged sword • Can improve performance because more time to generate “yes” • Can cause misfires because of anticipation

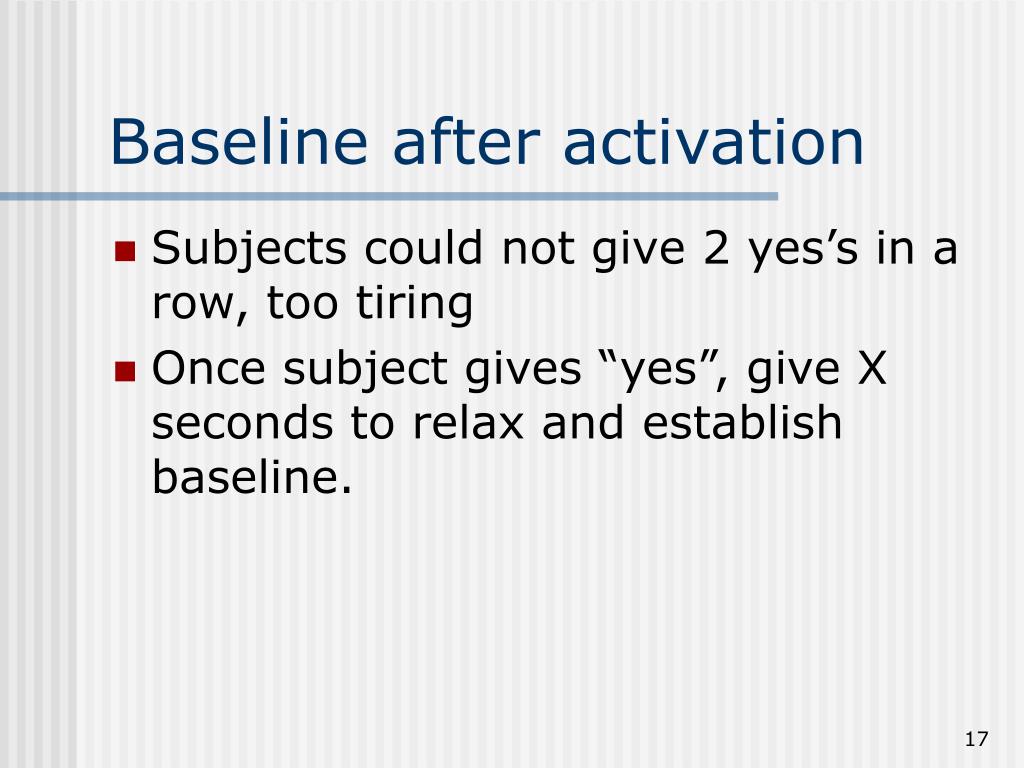

  17. Baseline after activation • Subjects could not give 2 yes’s in a row, too tiring • Once subject gives “yes”, give X seconds to relax and establish baseline.

  18. Algorithms • Simple thresholding is ok, but requires manual intervention often • Need automated algorithm to detect “yes” and “no”

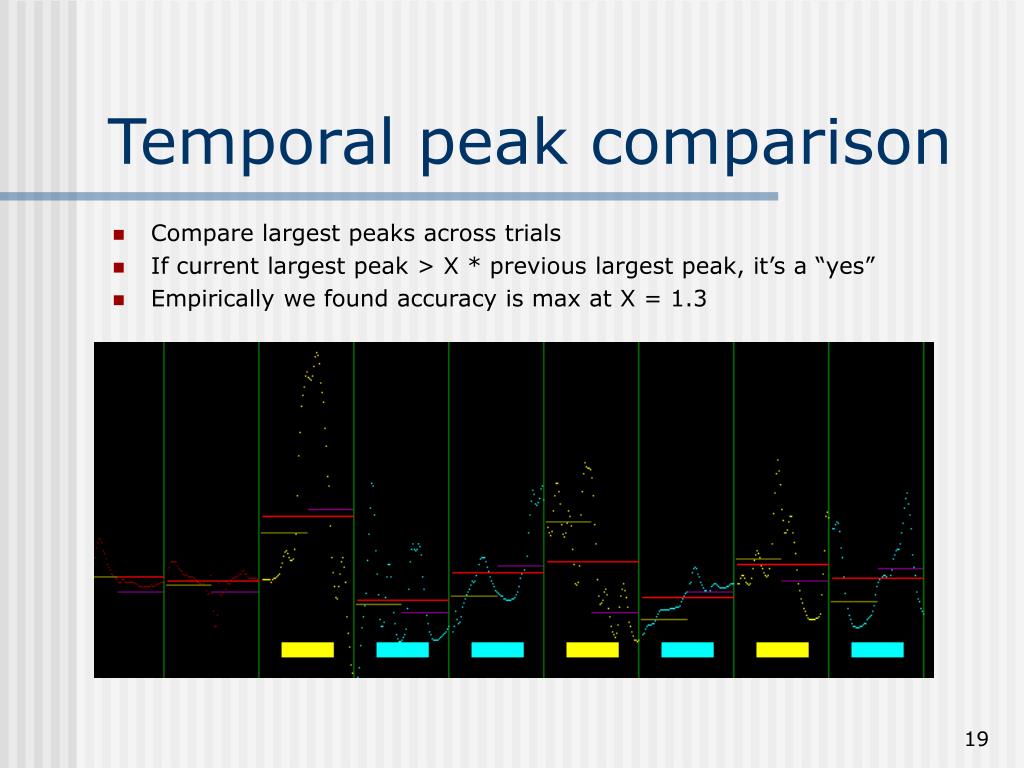

  19. Temporal peak comparison • Compare largest peaks across trials • If current largest peak > X * previous largest peak, it’s a “yes” • Empirically we found accuracy is max at X = 1.3

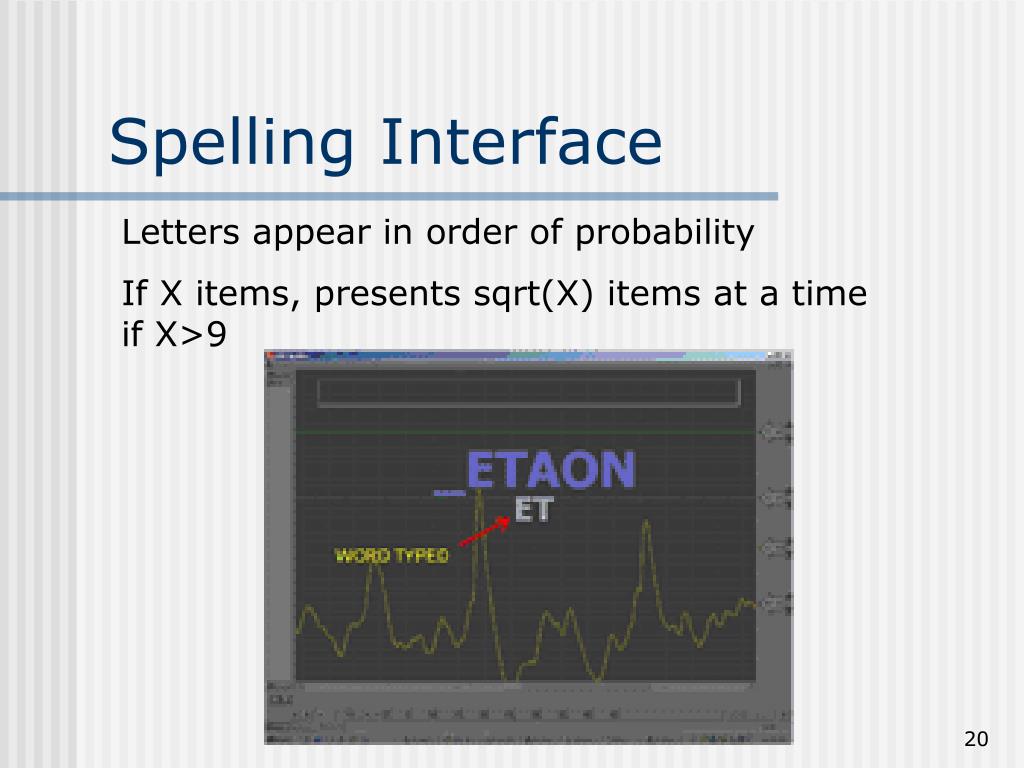

  20. Spelling Interface Letters appear in order of probability If X items, presents sqrt(X) items at a time if X>9

  21. Disadvantages of GSR • VERY slow • Fastest with able bodied subjects was 6 bit/min • Fastest with locked-in subjects was 3 bit/min • Very demanding, within 15-20 min user is tired • Only a “YES” indicates a confirmation, which further lowers information throughput.

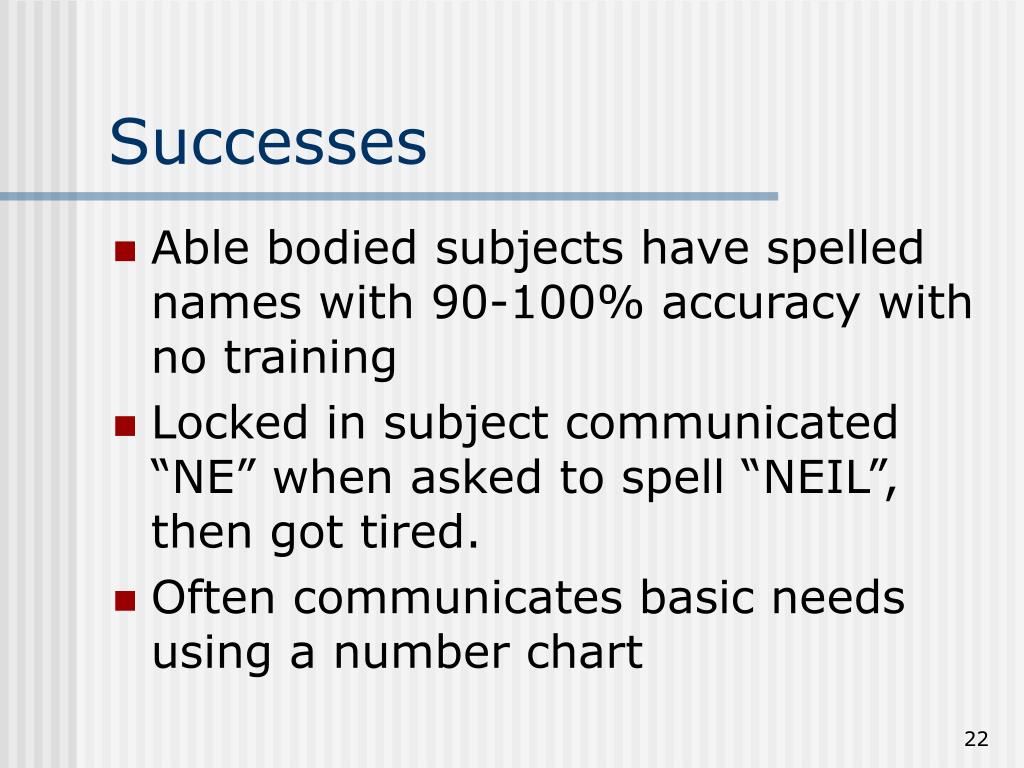

  22. Successes • Able bodied subjects have spelled names with 90-100% accuracy with no training • Locked in subject communicated “NE” when asked to spell “NEIL”, then got tired. • Often communicates basic needs using a number chart
