Wago 750-342 Ethernet I-O System

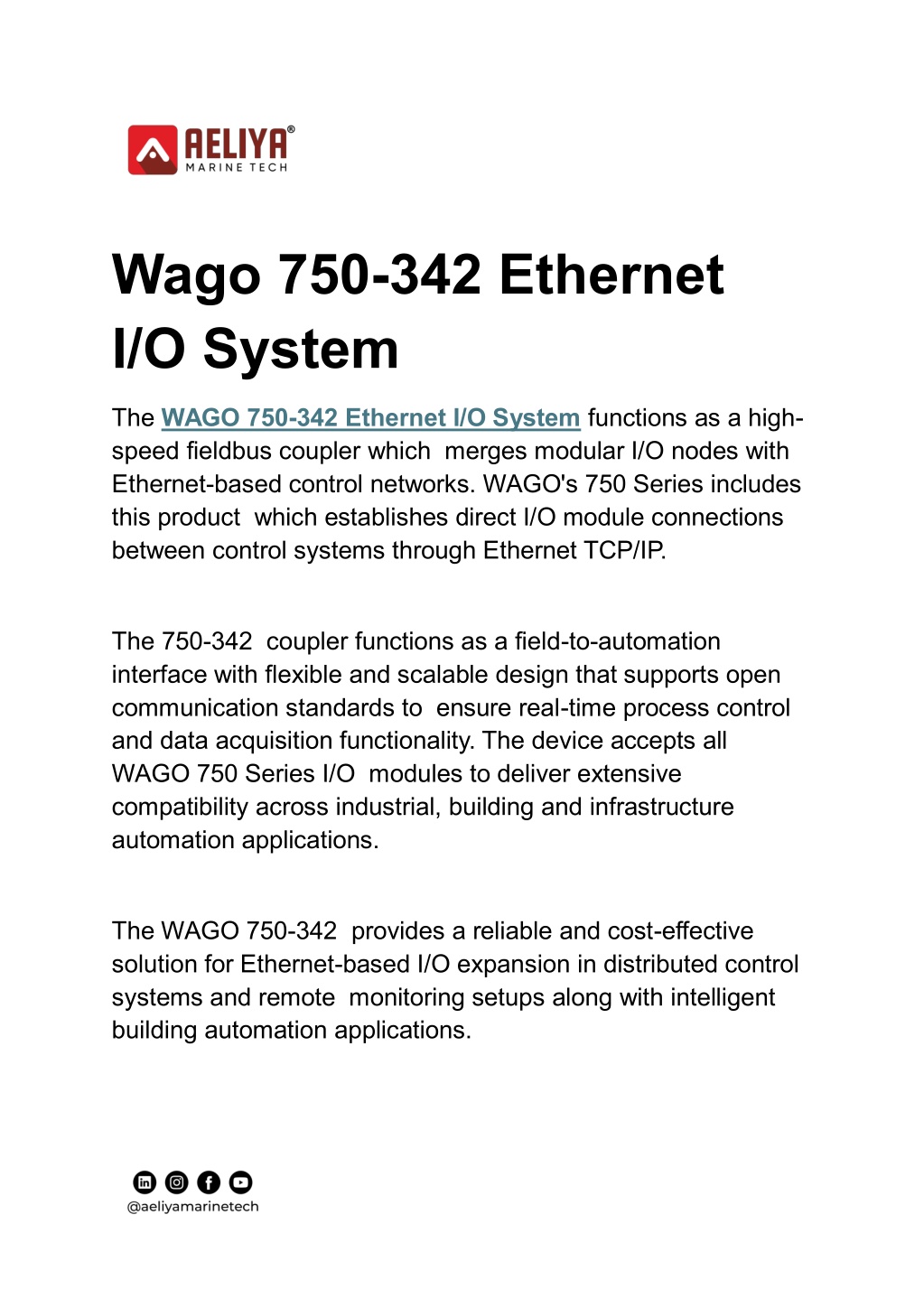

1. Wago 750-342 Ethernet I/O System The WAGO 750-342 Ethernet I/O System functions as a high- speed fieldbus coupler which merges modular I/O nodes with Ethernet-based control networks. WAGO's 750 Series includes this product which establishes direct I/O module connections between control systems through Ethernet TCP/IP. The 750-342 coupler functions as a field-to-automation interface with flexible and scalable design that supports open communication standards to ensure real-time process control and data acquisition functionality. The device accepts all WAGO 750 Series I/O modules to deliver extensive compatibility across industrial, building and infrastructure automation applications. The WAGO 750-342 provides a reliable and cost-effective solution for Ethernet-based I/O expansion in distributed control systems and remote monitoring setups along with intelligent building automation applications.

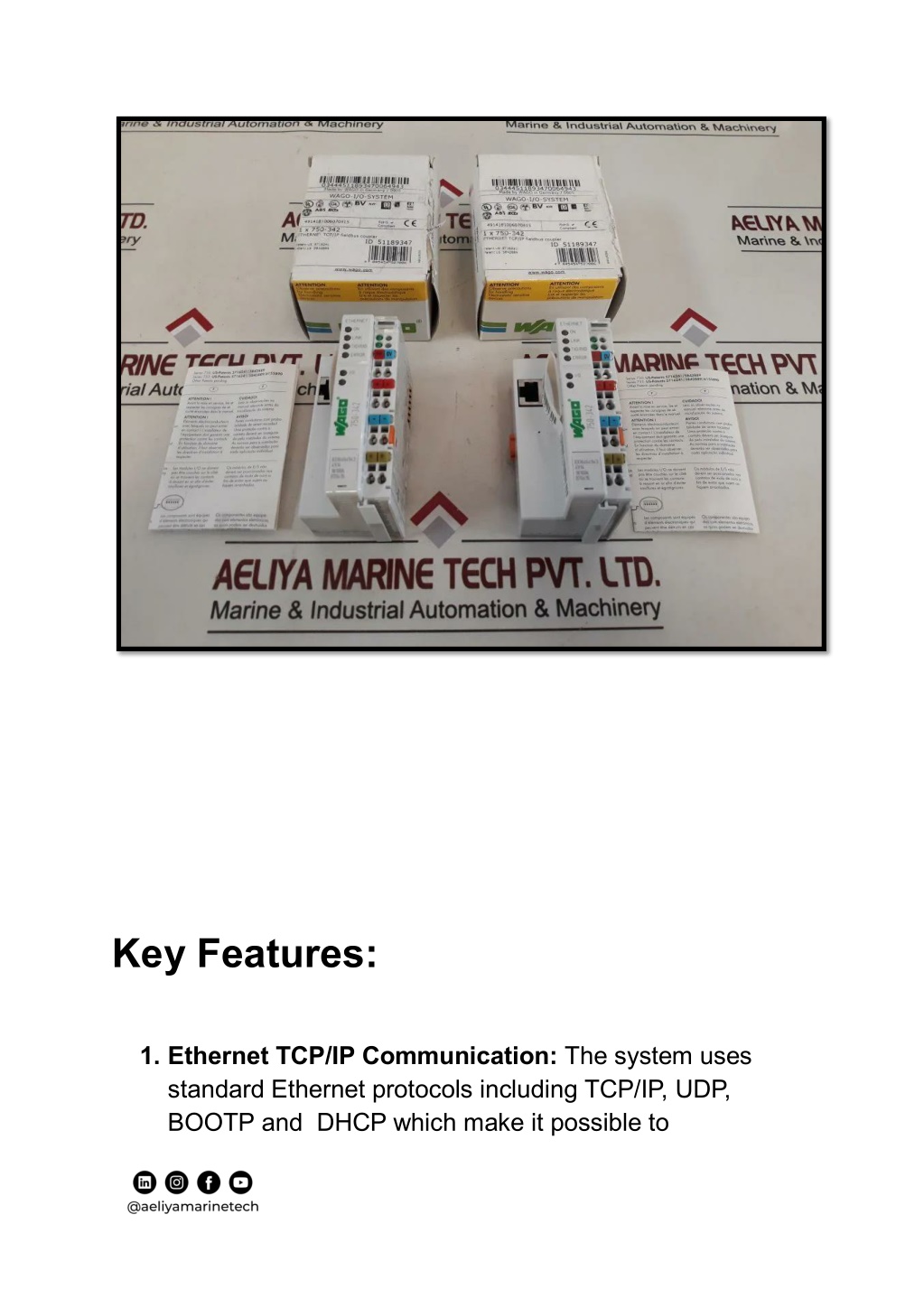

2. Key Features: 1.Ethernet TCP/IP Communication: The system uses standard Ethernet protocols including TCP/IP, UDP, BOOTP and DHCP which make it possible to

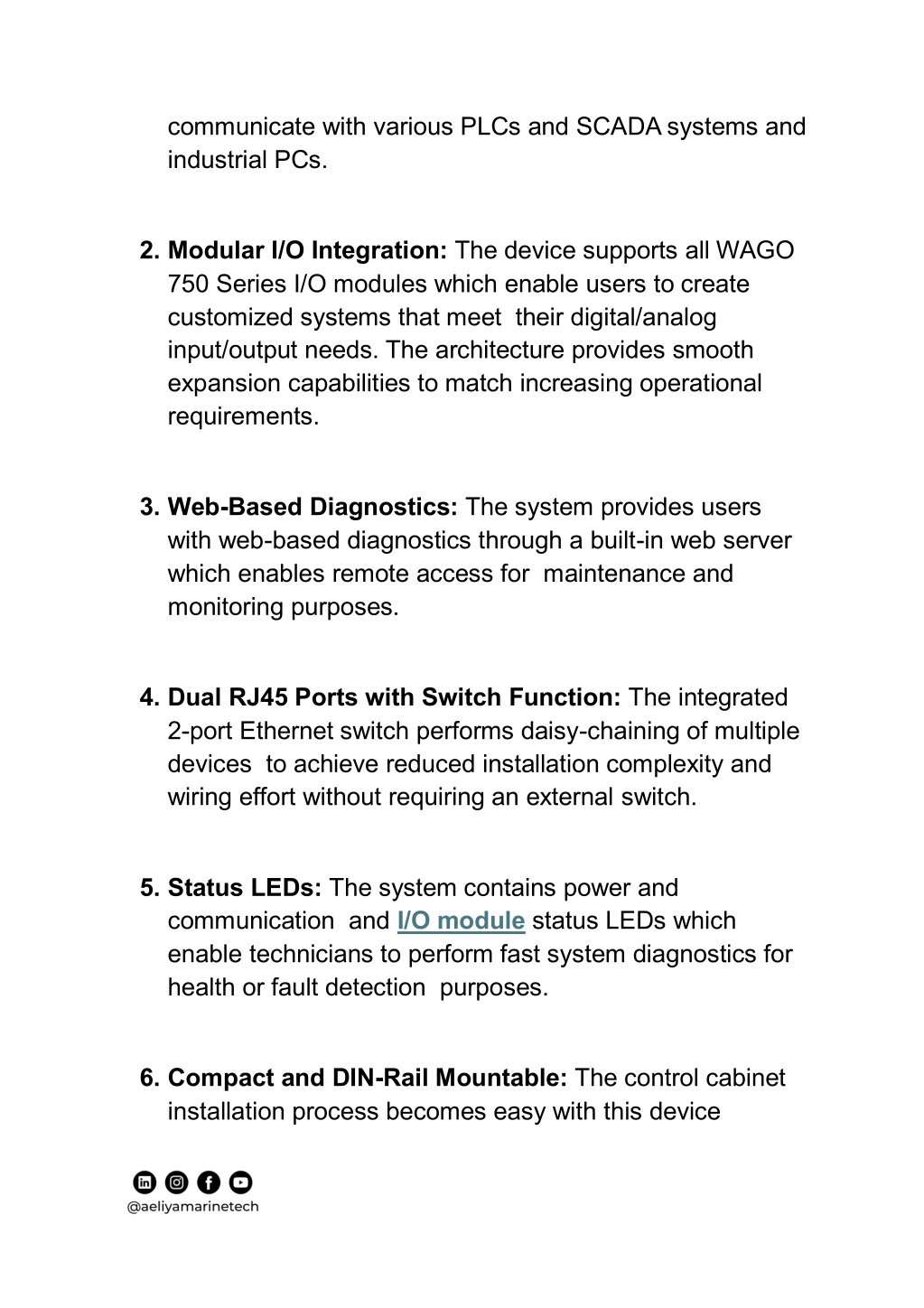

3. communicate with various PLCs and SCADA systems and industrial PCs. 2.Modular I/O Integration: The device supports all WAGO 750 Series I/O modules which enable users to create customized systems that meet their digital/analog input/output needs. The architecture provides smooth expansion capabilities to match increasing operational requirements. 3.Web-Based Diagnostics: The system provides users with web-based diagnostics through a built-in web server which enables remote access for maintenance and monitoring purposes. 4.Dual RJ45 Ports with Switch Function: The integrated 2-port Ethernet switch performs daisy-chaining of multiple devices to achieve reduced installation complexity and wiring effort without requiring an external switch. 5.Status LEDs: The system contains power and communication and I/O module status LEDs which enable technicians to perform fast system diagnostics for health or fault detection purposes. 6.Compact and DIN-Rail Mountable: The control cabinet installation process becomes easy with this device

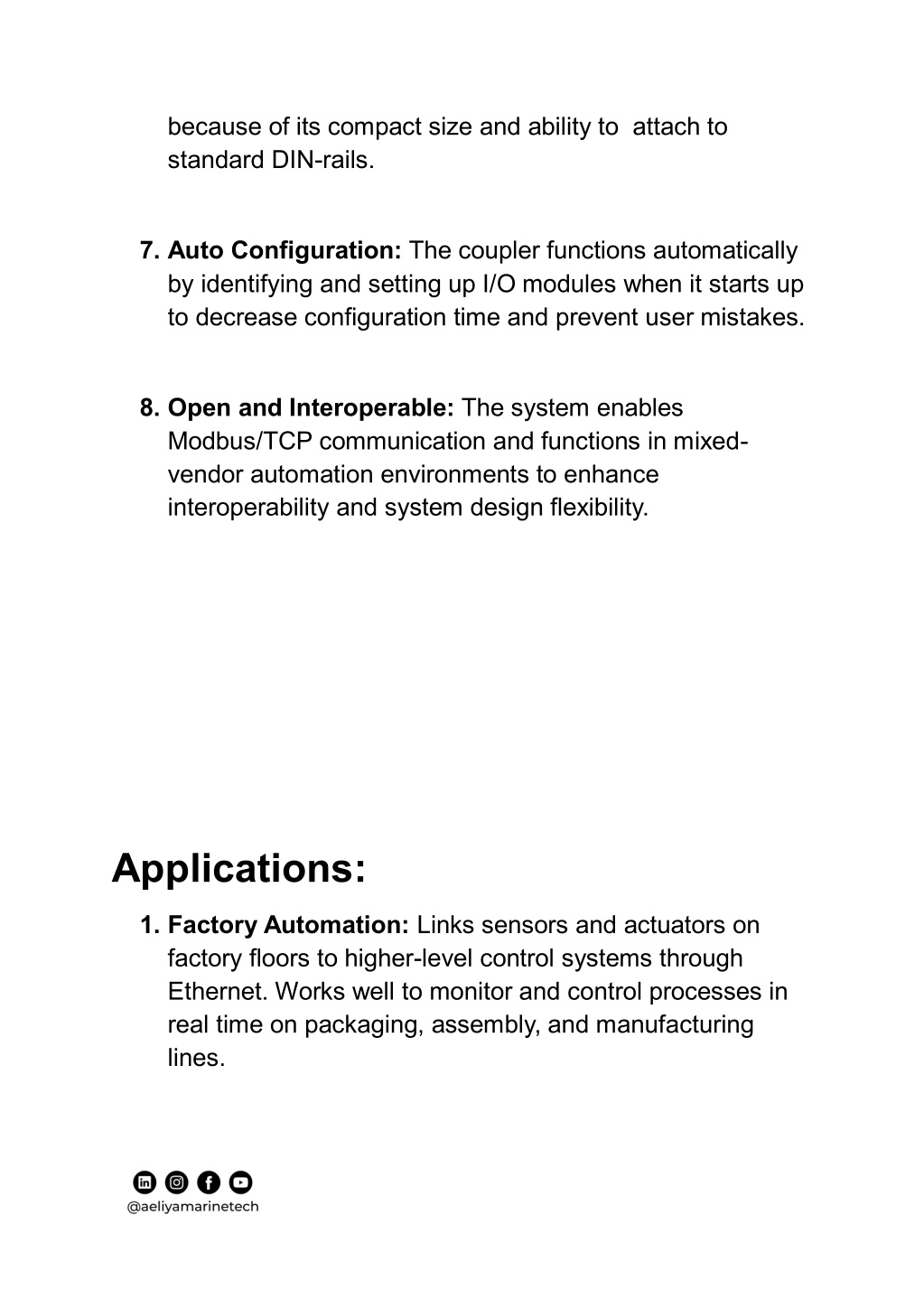

4. because of its compact size and ability to attach to standard DIN-rails. 7.Auto Configuration: The coupler functions automatically by identifying and setting up I/O modules when it starts up to decrease configuration time and prevent user mistakes. 8.Open and Interoperable: The system enables Modbus/TCP communication and functions in mixed- vendor automation environments to enhance interoperability and system design flexibility. Applications: 1.Factory Automation: Links sensors and actuators on factory floors to higher-level control systems through Ethernet. Works well to monitor and control processes in real time on packaging, assembly, and manufacturing lines.

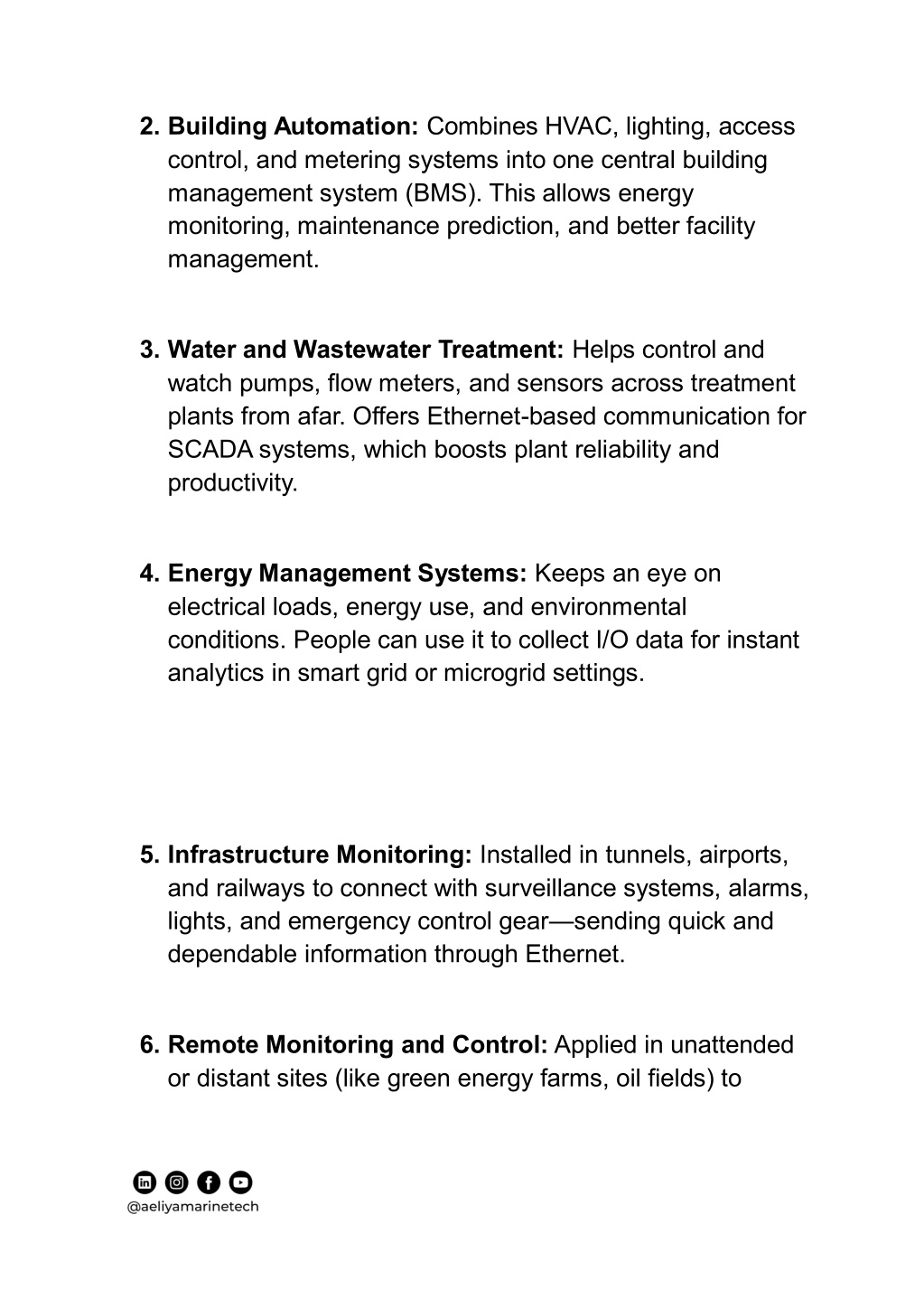

5. 2.Building Automation: Combines HVAC, lighting, access control, and metering systems into one central building management system (BMS). This allows energy monitoring, maintenance prediction, and better facility management. 3.Water and Wastewater Treatment: Helps control and watch pumps, flow meters, and sensors across treatment plants from afar. Offers Ethernet-based communication for SCADA systems, which boosts plant reliability and productivity. 4.Energy Management Systems: Keeps an eye on electrical loads, energy use, and environmental conditions. People can use it to collect I/O data for instant analytics in smart grid or microgrid settings. 5.Infrastructure Monitoring: Installed in tunnels, airports, and railways to connect with surveillance systems, alarms, lights, and emergency control gear—sending quick and dependable information through Ethernet. 6.Remote Monitoring and Control: Applied in unattended or distant sites (like green energy farms, oil fields) to

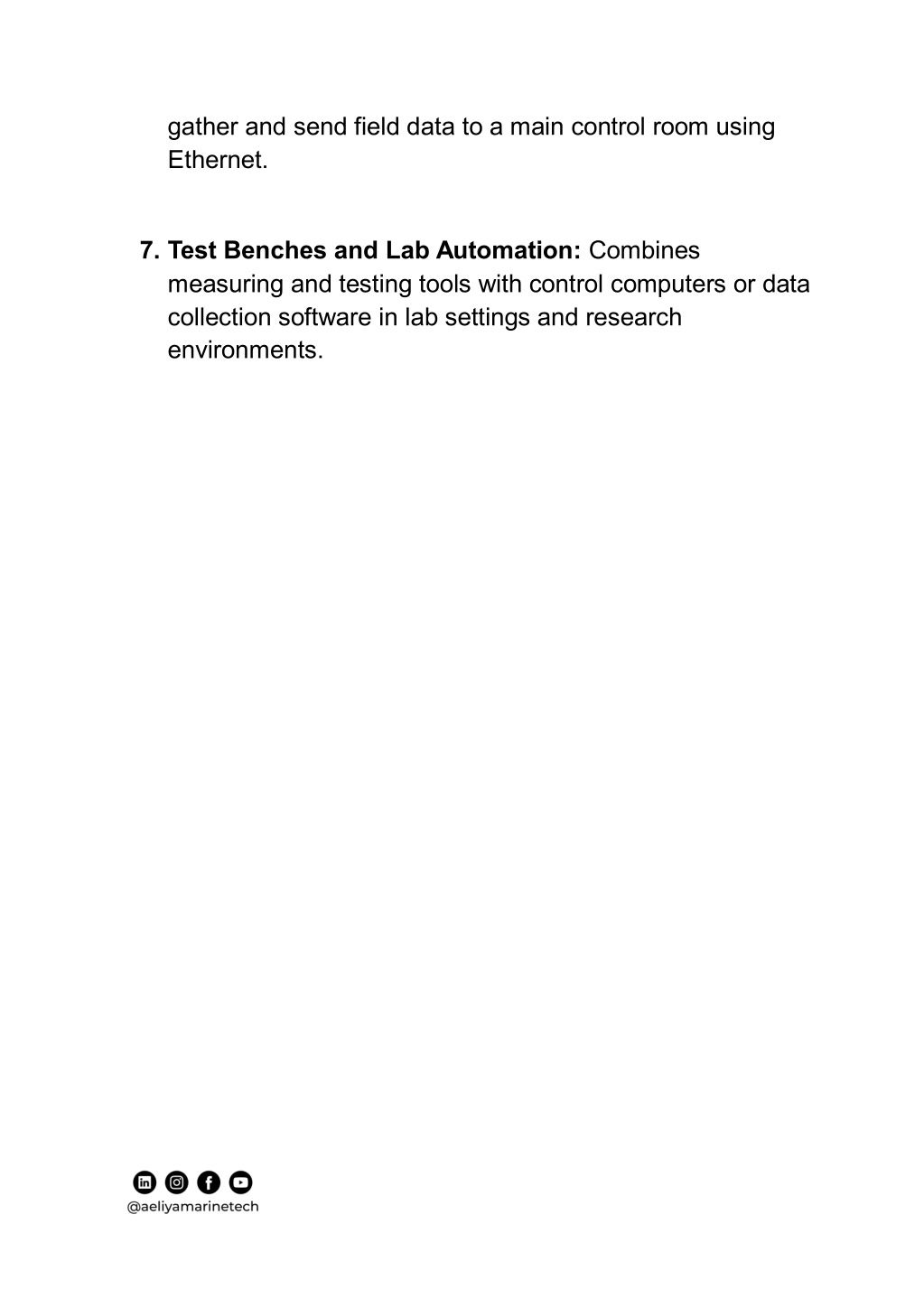

6. gather and send field data to a main control room using Ethernet. 7.Test Benches and Lab Automation: Combines measuring and testing tools with control computers or data collection software in lab settings and research environments.
