National Instruments Ni 9423 8

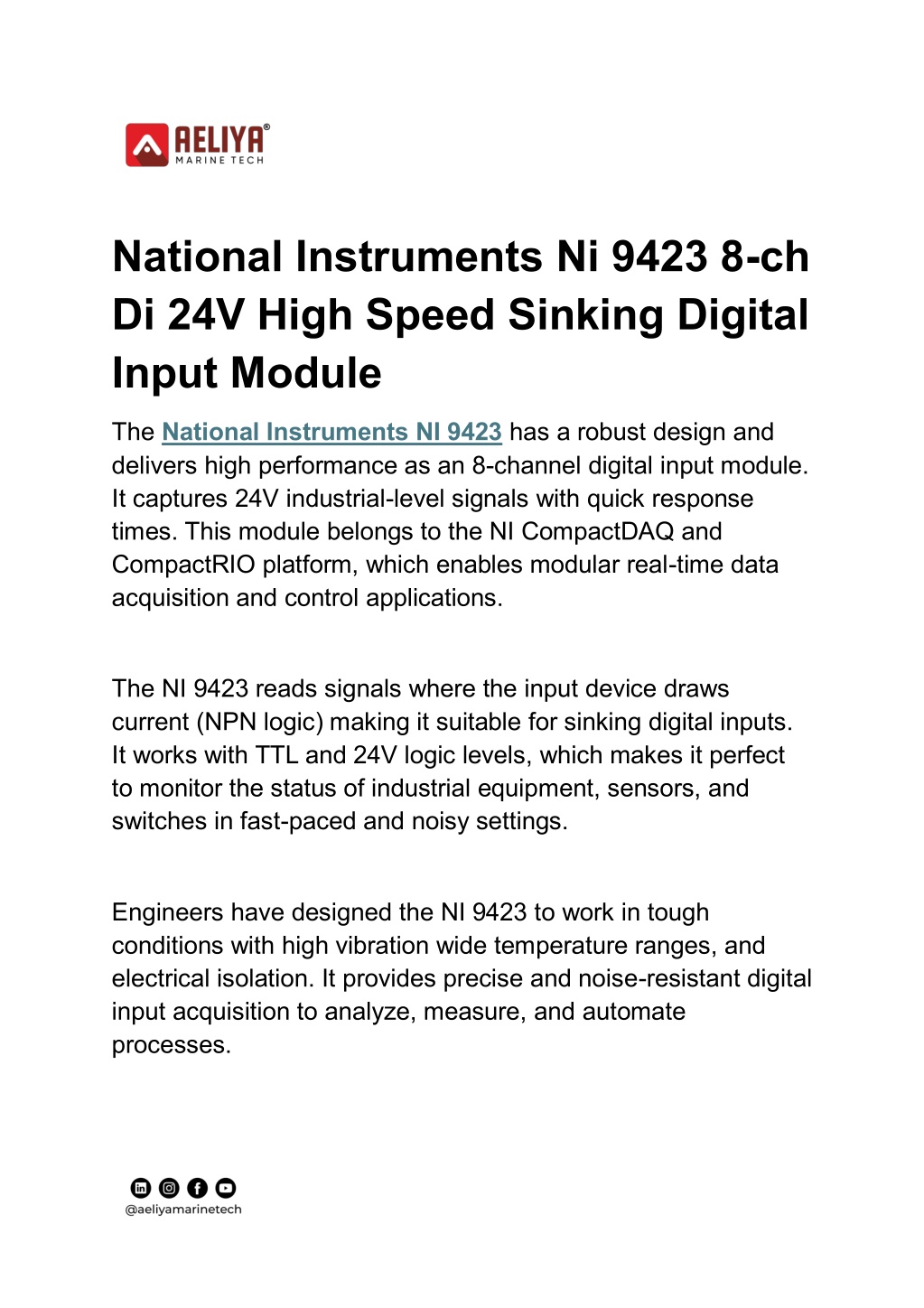

1. National Instruments Ni 9423 8-ch Di 24V High Speed Sinking Digital Input Module The National Instruments NI 9423 has a robust design and delivers high performance as an 8-channel digital input module. It captures 24V industrial-level signals with quick response times. This module belongs to the NI CompactDAQ and CompactRIO platform, which enables modular real-time data acquisition and control applications. The NI 9423 reads signals where the input device draws current (NPN logic) making it suitable for sinking digital inputs. It works with TTL and 24V logic levels, which makes it perfect to monitor the status of industrial equipment, sensors, and switches in fast-paced and noisy settings. Engineers have designed the NI 9423 to work in tough conditions with high vibration wide temperature ranges, and electrical isolation. It provides precise and noise-resistant digital input acquisition to analyze, measure, and automate processes.

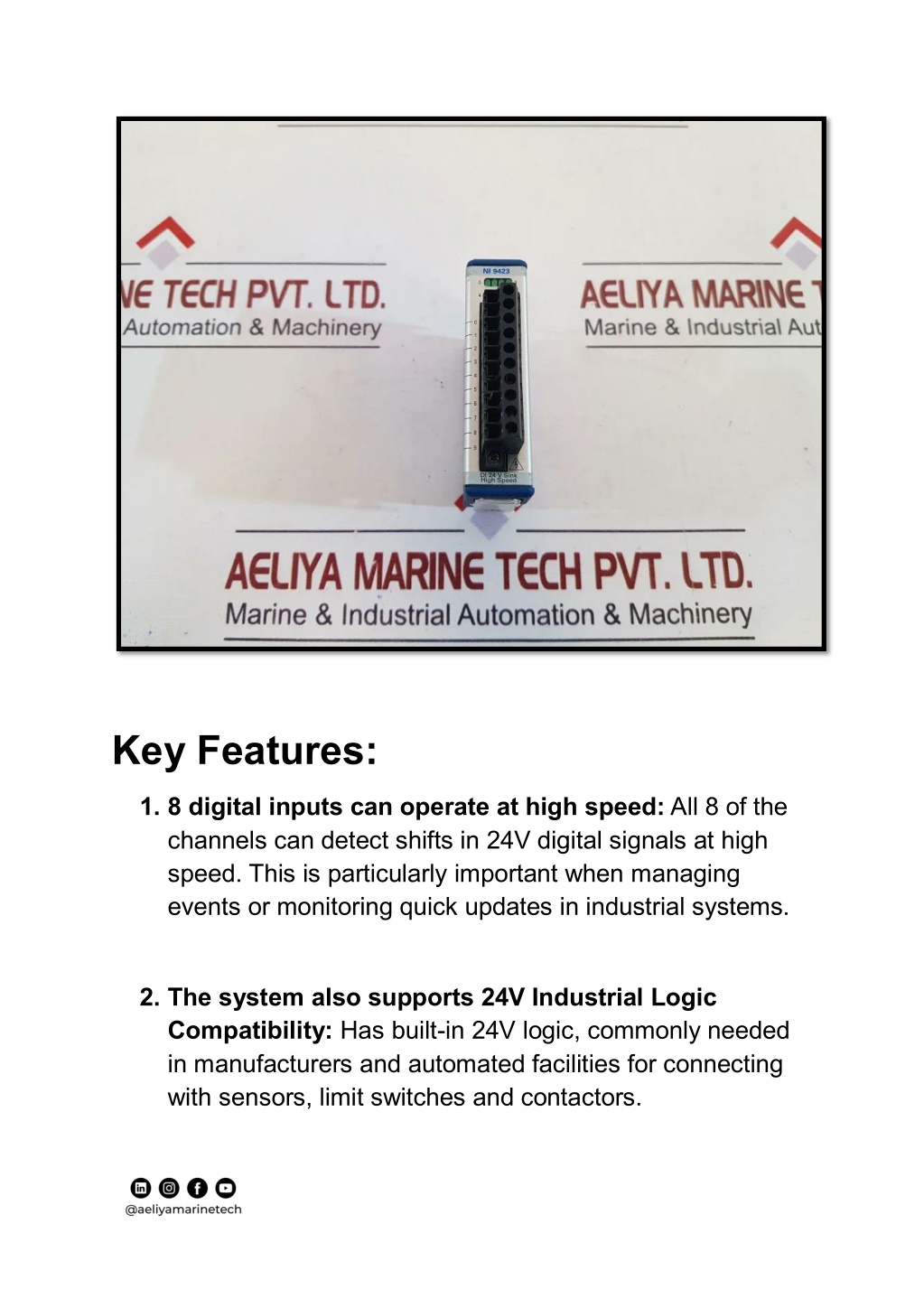

2. Key Features: 1.8 digital inputs can operate at high speed: All 8 of the channels can detect shifts in 24V digital signals at high speed. This is particularly important when managing events or monitoring quick updates in industrial systems. 2.The system also supports 24V Industrial Logic Compatibility: Has built-in 24V logic, commonly needed in manufacturers and automated facilities for connecting with sensors, limit switches and contactors.

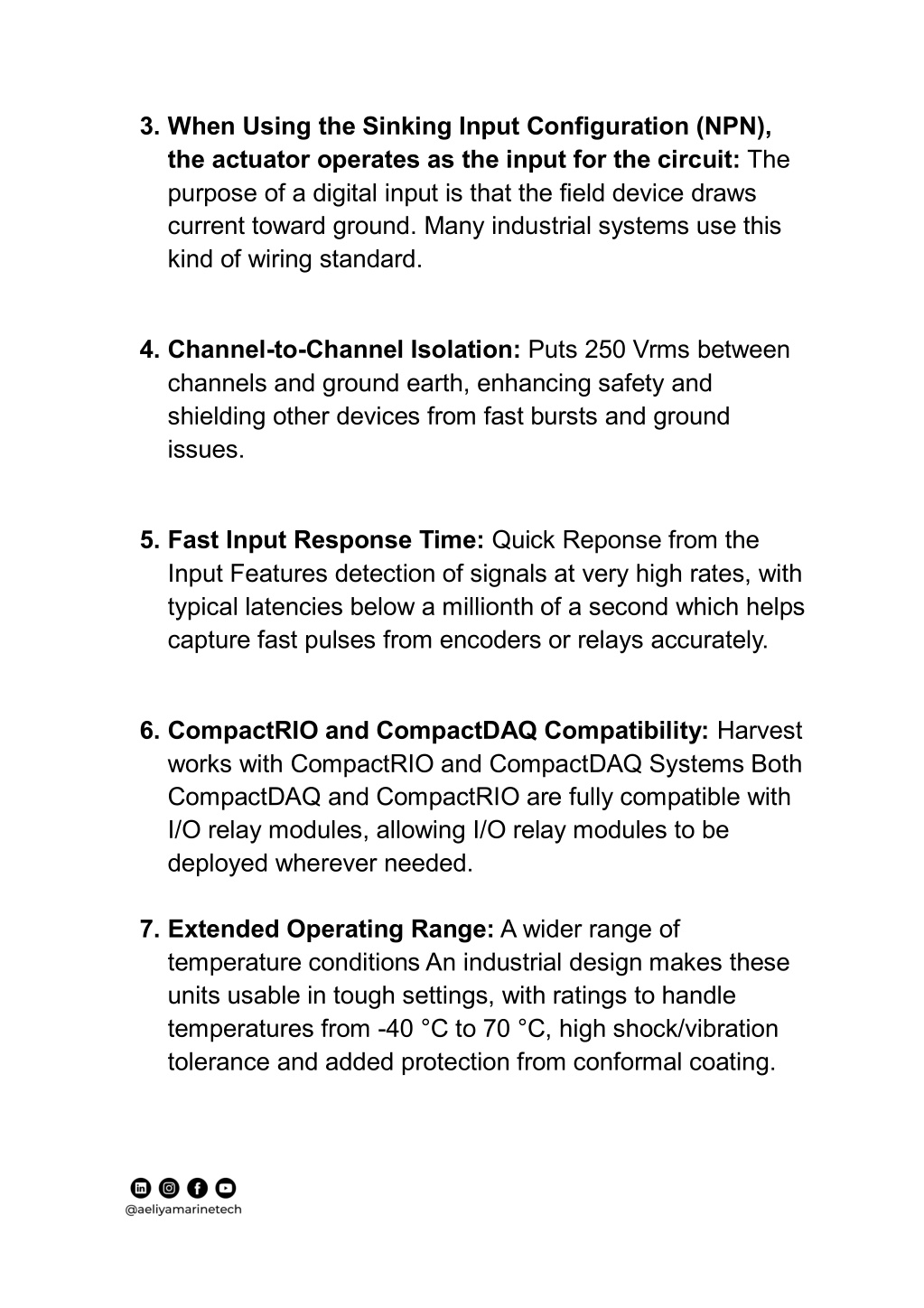

3. 3.When Using the Sinking Input Configuration (NPN), the actuator operates as the input for the circuit: The purpose of a digital input is that the field device draws current toward ground. Many industrial systems use this kind of wiring standard. 4.Channel-to-Channel Isolation: Puts 250 Vrms between channels and ground earth, enhancing safety and shielding other devices from fast bursts and ground issues. 5.Fast Input Response Time: Quick Reponse from the Input Features detection of signals at very high rates, with typical latencies below a millionth of a second which helps capture fast pulses from encoders or relays accurately. 6.CompactRIO and CompactDAQ Compatibility: Harvest works with CompactRIO and CompactDAQ Systems Both CompactDAQ and CompactRIO are fully compatible with I/O relay modules, allowing I/O relay modules to be deployed wherever needed. 7.Extended Operating Range: A wider range of temperature conditions An industrial design makes these units usable in tough settings, with ratings to handle temperatures from -40 °C to 70 °C, high shock/vibration tolerance and added protection from conformal coating.

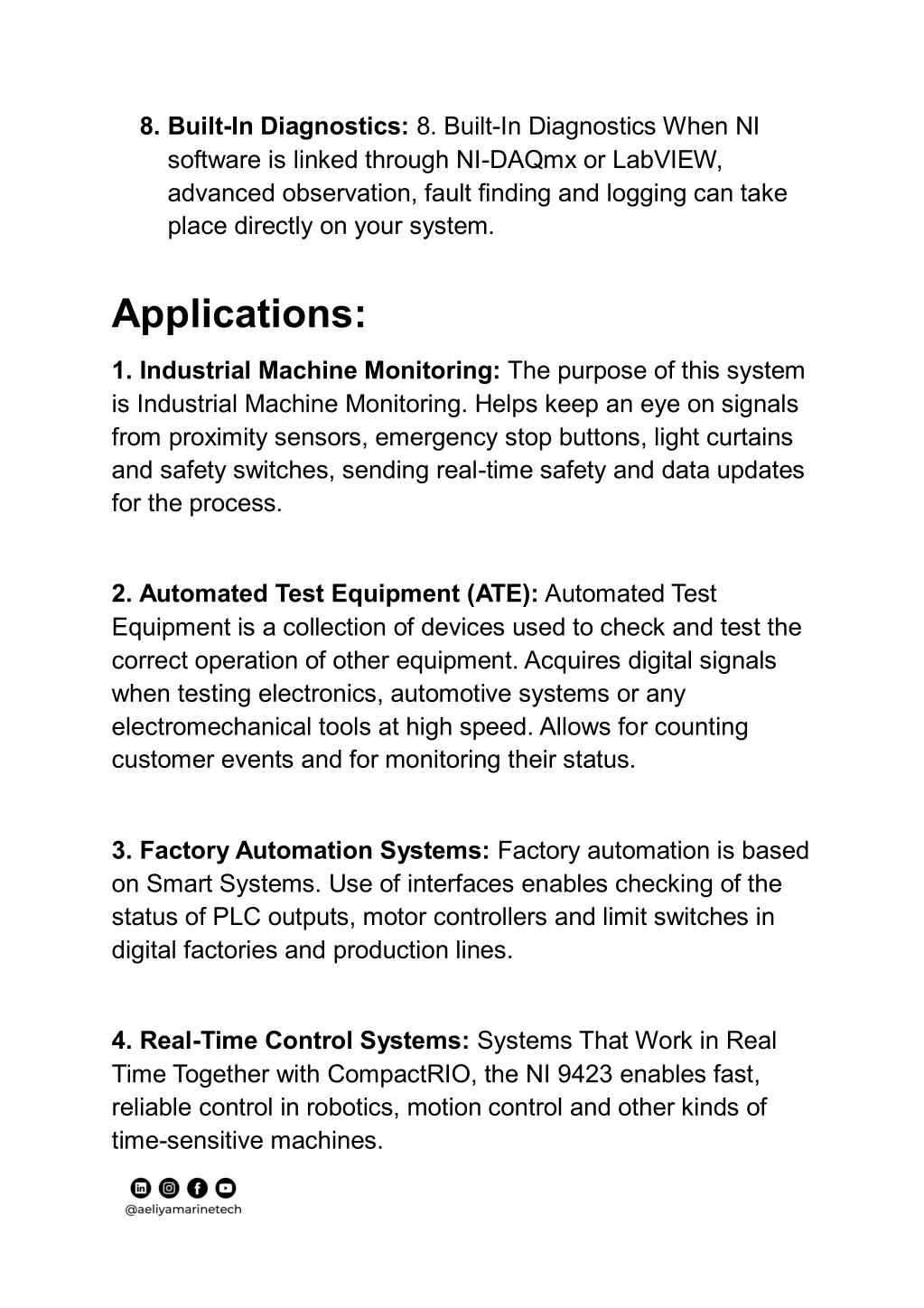

4. 8.Built-In Diagnostics: 8. Built-In Diagnostics When NI software is linked through NI-DAQmx or LabVIEW, advanced observation, fault finding and logging can take place directly on your system. Applications: 1. Industrial Machine Monitoring: The purpose of this system is Industrial Machine Monitoring. Helps keep an eye on signals from proximity sensors, emergency stop buttons, light curtains and safety switches, sending real-time safety and data updates for the process. 2. Automated Test Equipment (ATE): Automated Test Equipment is a collection of devices used to check and test the correct operation of other equipment. Acquires digital signals when testing electronics, automotive systems or any electromechanical tools at high speed. Allows for counting customer events and for monitoring their status. 3. Factory Automation Systems: Factory automation is based on Smart Systems. Use of interfaces enables checking of the status of PLC outputs, motor controllers and limit switches in digital factories and production lines. 4. Real-Time Control Systems: Systems That Work in Real Time Together with CompactRIO, the NI 9423 enables fast, reliable control in robotics, motion control and other kinds of time-sensitive machines.

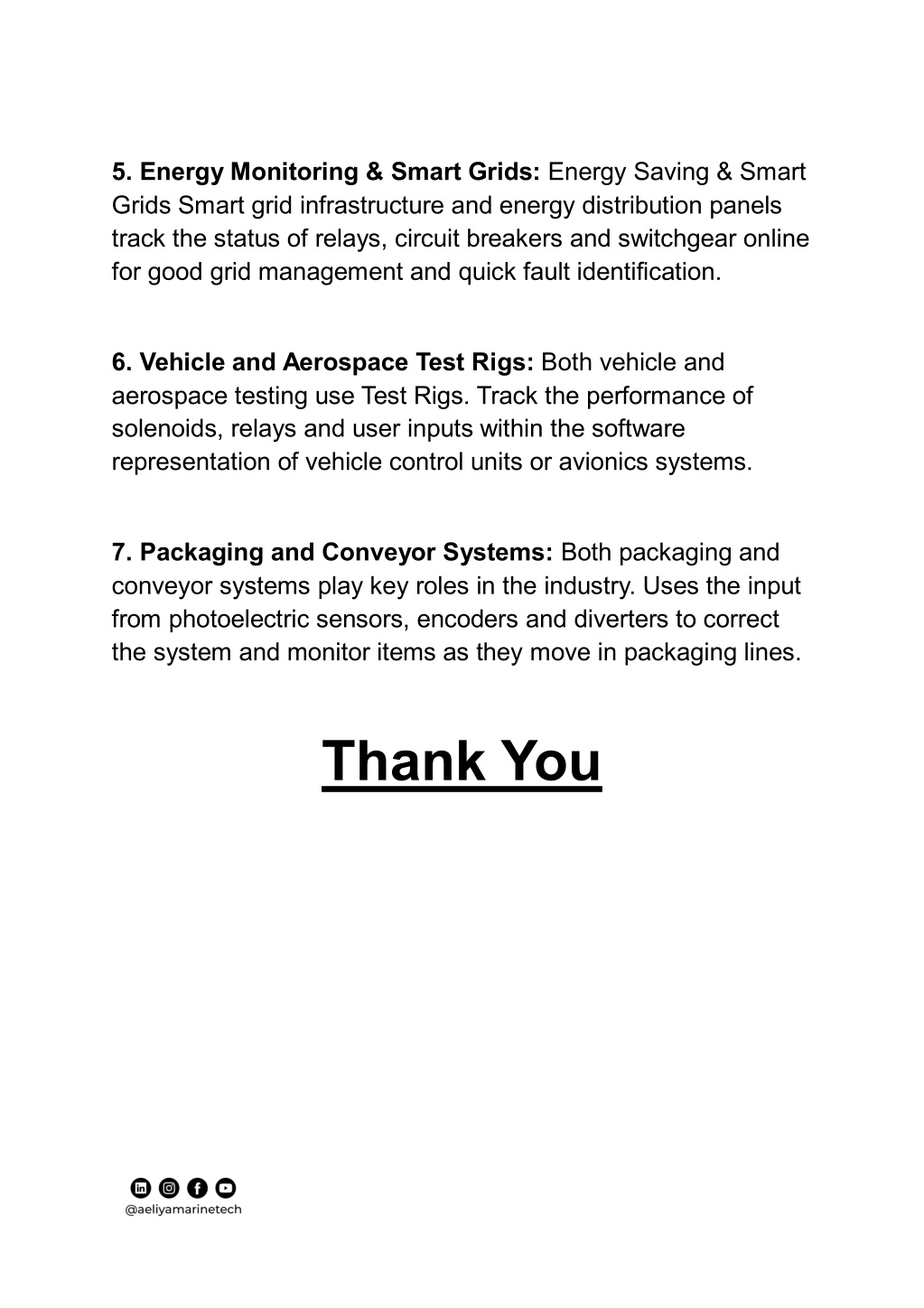

5. 5. Energy Monitoring & Smart Grids: Energy Saving & Smart Grids Smart grid infrastructure and energy distribution panels track the status of relays, circuit breakers and switchgear online for good grid management and quick fault identification. 6. Vehicle and Aerospace Test Rigs: Both vehicle and aerospace testing use Test Rigs. Track the performance of solenoids, relays and user inputs within the software representation of vehicle control units or avionics systems. 7. Packaging and Conveyor Systems: Both packaging and conveyor systems play key roles in the industry. Uses the input from photoelectric sensors, encoders and diverters to correct the system and monitor items as they move in packaging lines. Thank You
