Four Pole Container Test Box

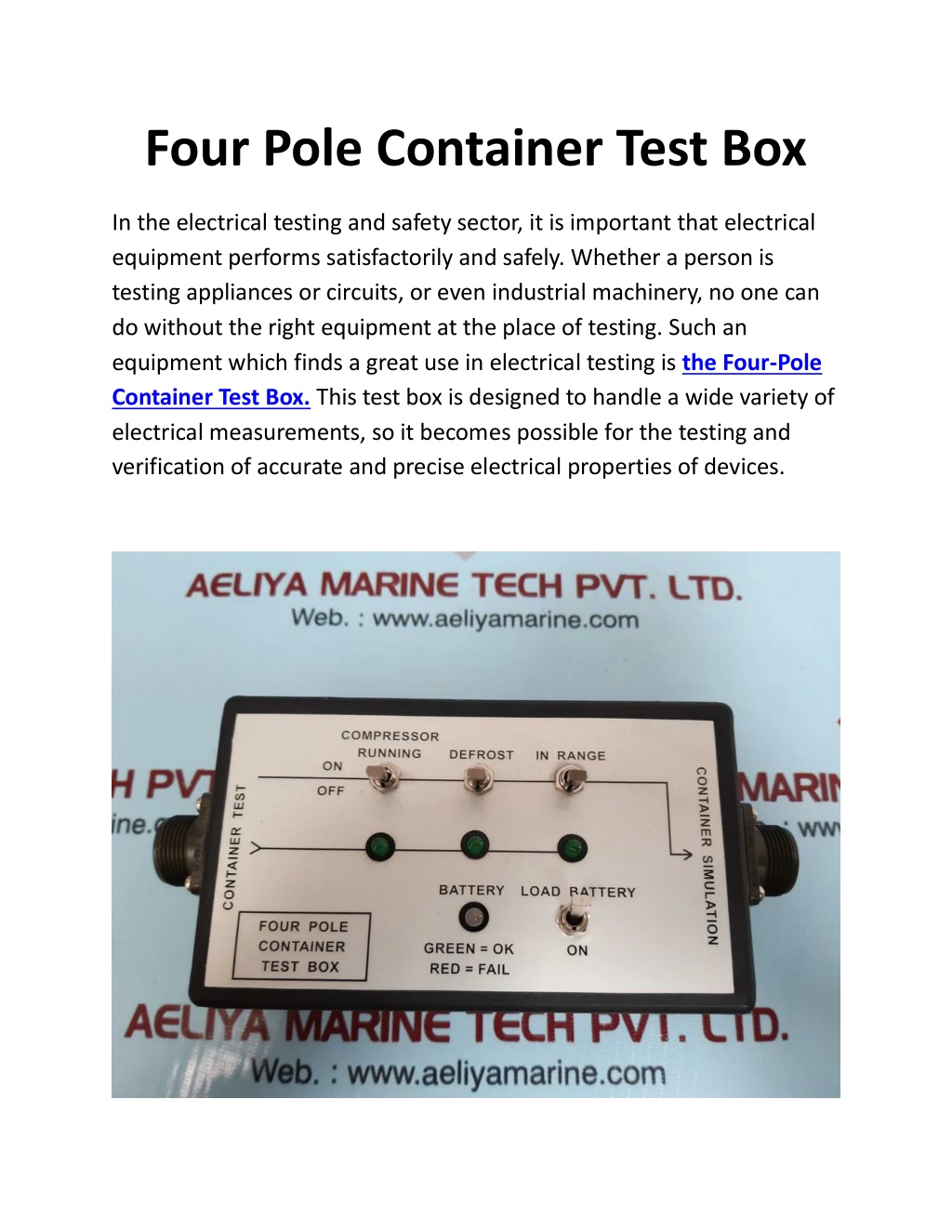

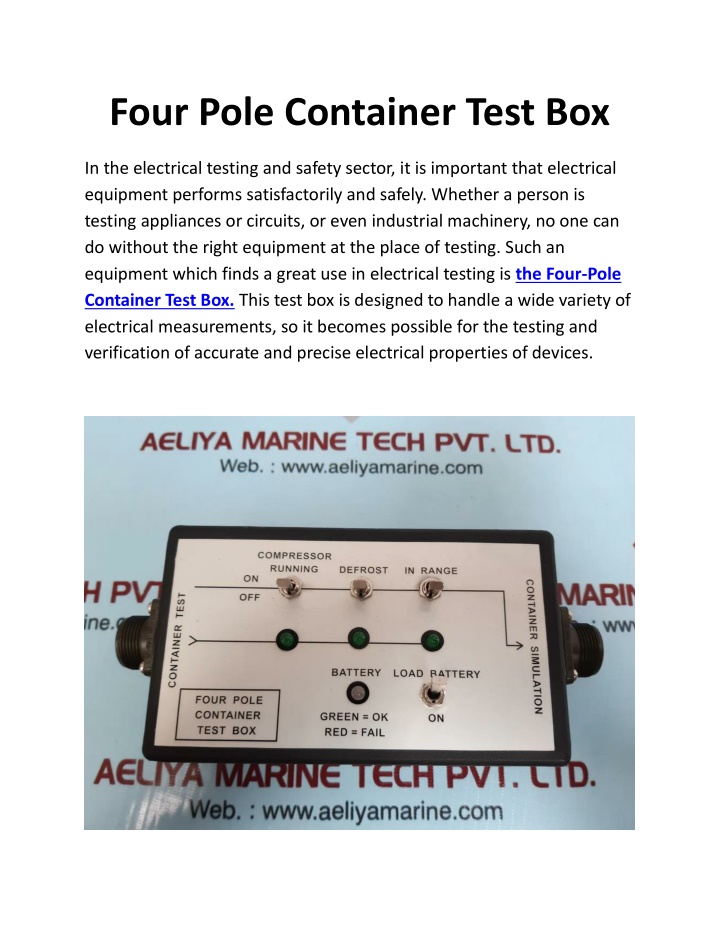

1. Four Pole Container Test Box In the electrical testing and safety sector, it is important that electrical equipment performs satisfactorily and safely. Whether a person is testing appliances or circuits, or even industrial machinery, no one can do without the right equipment at the place of testing. Such an equipment which finds a great use in electrical testing is the Four-Pole Container Test Box. This test box is designed to handle a wide variety of electrical measurements, so it becomes possible for the testing and verification of accurate and precise electrical properties of devices.

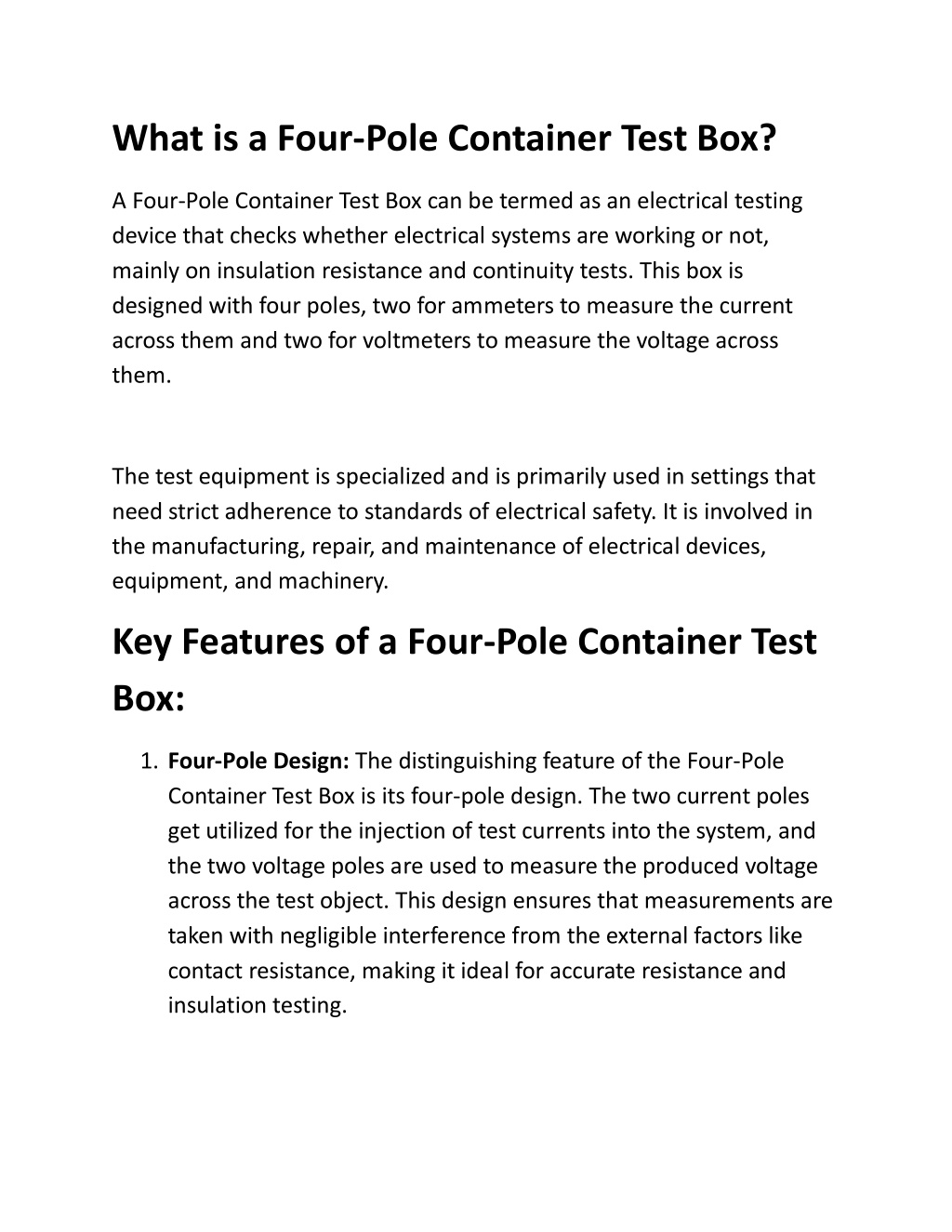

2. What is a Four-Pole Container Test Box? A Four-Pole Container Test Box can be termed as an electrical testing device that checks whether electrical systems are working or not, mainly on insulation resistance and continuity tests. This box is designed with four poles, two for ammeters to measure the current across them and two for voltmeters to measure the voltage across them. The test equipment is specialized and is primarily used in settings that need strict adherence to standards of electrical safety. It is involved in the manufacturing, repair, and maintenance of electrical devices, equipment, and machinery. Key Features of a Four-Pole Container Test Box: 1.Four-Pole Design: The distinguishing feature of the Four-Pole Container Test Box is its four-pole design. The two current poles get utilized for the injection of test currents into the system, and the two voltage poles are used to measure the produced voltage across the test object. This design ensures that measurements are taken with negligible interference from the external factors like contact resistance, making it ideal for accurate resistance and insulation testing.

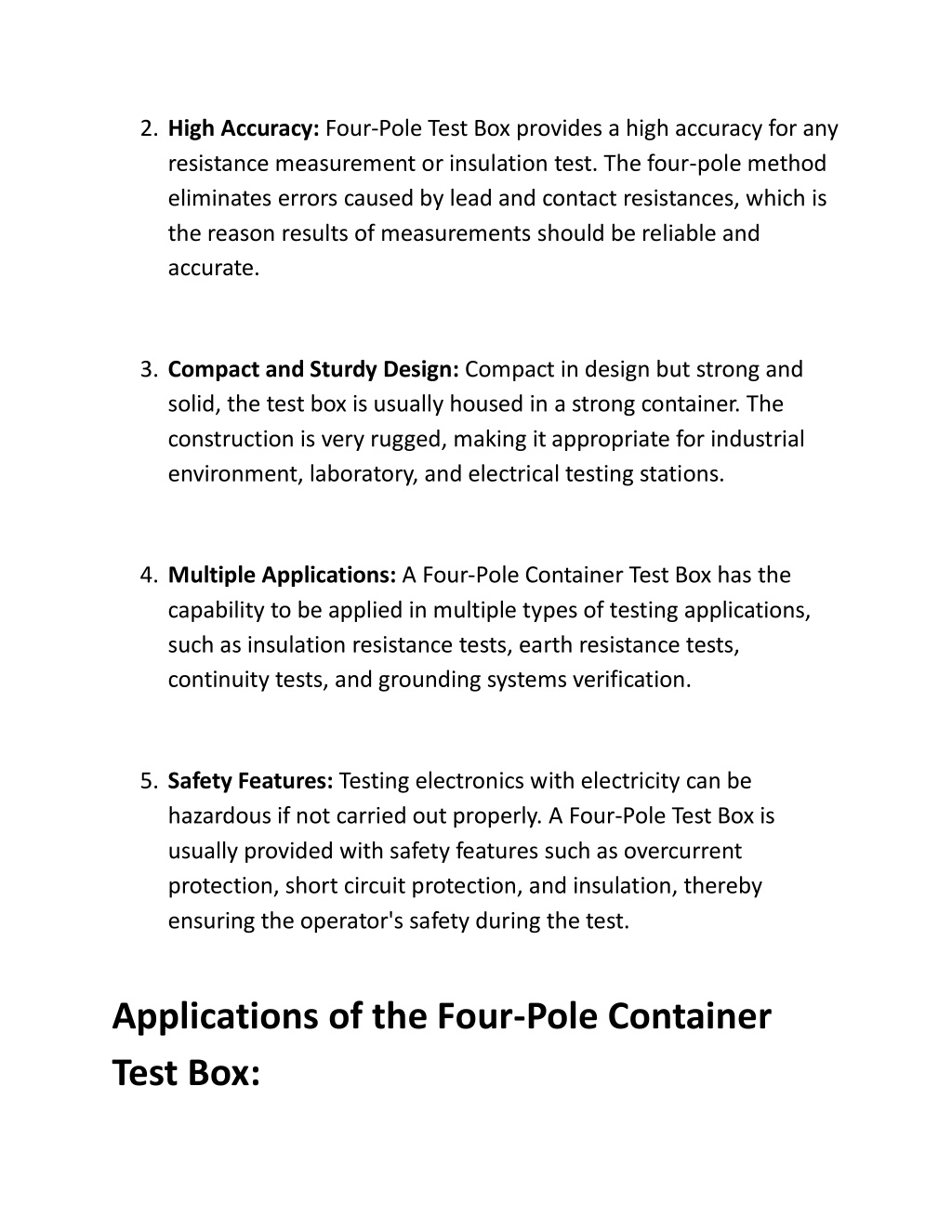

3. 2.High Accuracy: Four-Pole Test Box provides a high accuracy for any resistance measurement or insulation test. The four-pole method eliminates errors caused by lead and contact resistances, which is the reason results of measurements should be reliable and accurate. 3.Compact and Sturdy Design: Compact in design but strong and solid, the test box is usually housed in a strong container. The construction is very rugged, making it appropriate for industrial environment, laboratory, and electrical testing stations. 4.Multiple Applications: A Four-Pole Container Test Box has the capability to be applied in multiple types of testing applications, such as insulation resistance tests, earth resistance tests, continuity tests, and grounding systems verification. 5.Safety Features: Testing electronics with electricity can be hazardous if not carried out properly. A Four-Pole Test Box is usually provided with safety features such as overcurrent protection, short circuit protection, and insulation, thereby ensuring the operator's safety during the test. Applications of the Four-Pole Container Test Box:

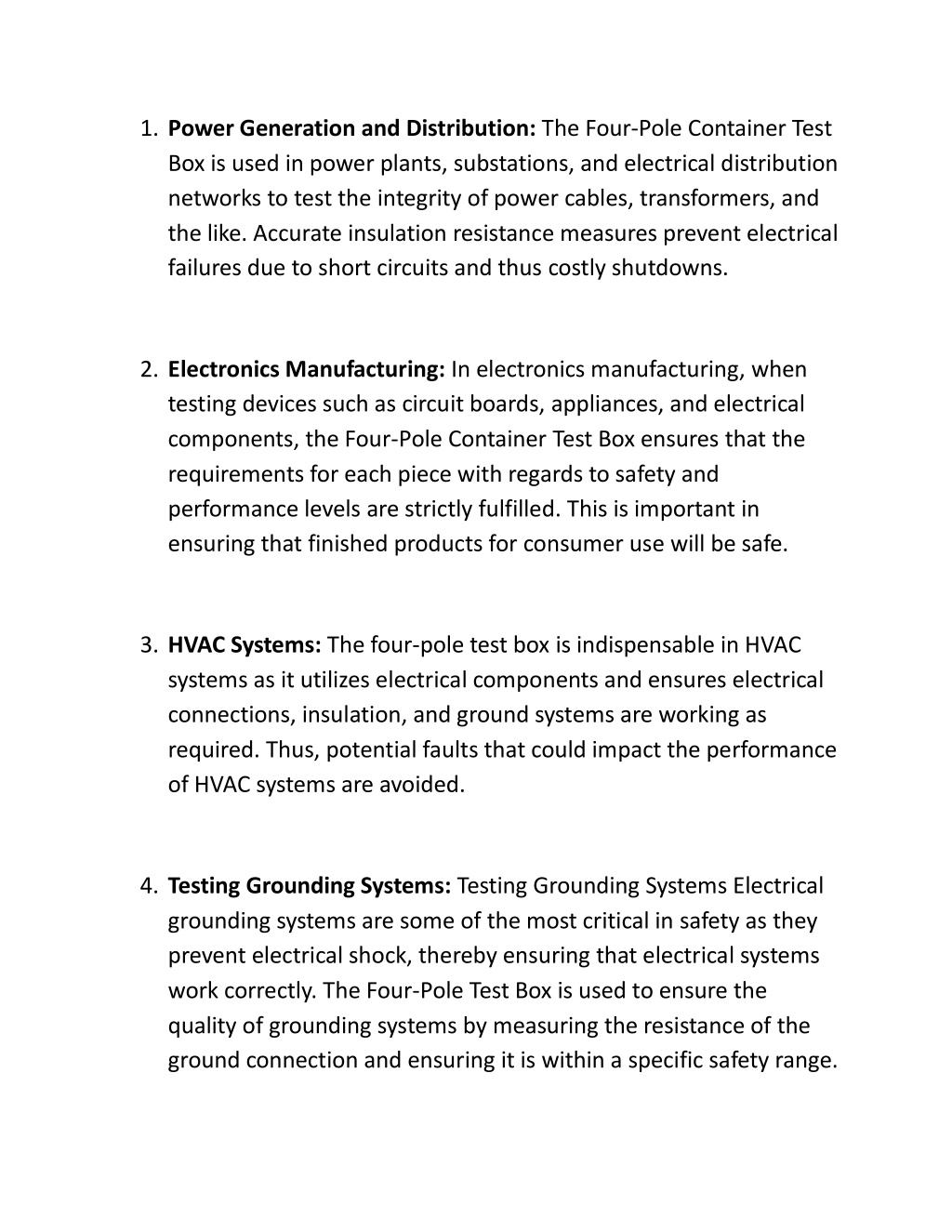

4. 1.Power Generation and Distribution: The Four-Pole Container Test Box is used in power plants, substations, and electrical distribution networks to test the integrity of power cables, transformers, and the like. Accurate insulation resistance measures prevent electrical failures due to short circuits and thus costly shutdowns. 2.Electronics Manufacturing: In electronics manufacturing, when testing devices such as circuit boards, appliances, and electrical components, the Four-Pole Container Test Box ensures that the requirements for each piece with regards to safety and performance levels are strictly fulfilled. This is important in ensuring that finished products for consumer use will be safe. 3.HVAC Systems: The four-pole test box is indispensable in HVAC systems as it utilizes electrical components and ensures electrical connections, insulation, and ground systems are working as required. Thus, potential faults that could impact the performance of HVAC systems are avoided. 4.Testing Grounding Systems: Testing Grounding Systems Electrical grounding systems are some of the most critical in safety as they prevent electrical shock, thereby ensuring that electrical systems work correctly. The Four-Pole Test Box is used to ensure the quality of grounding systems by measuring the resistance of the ground connection and ensuring it is within a specific safety range.

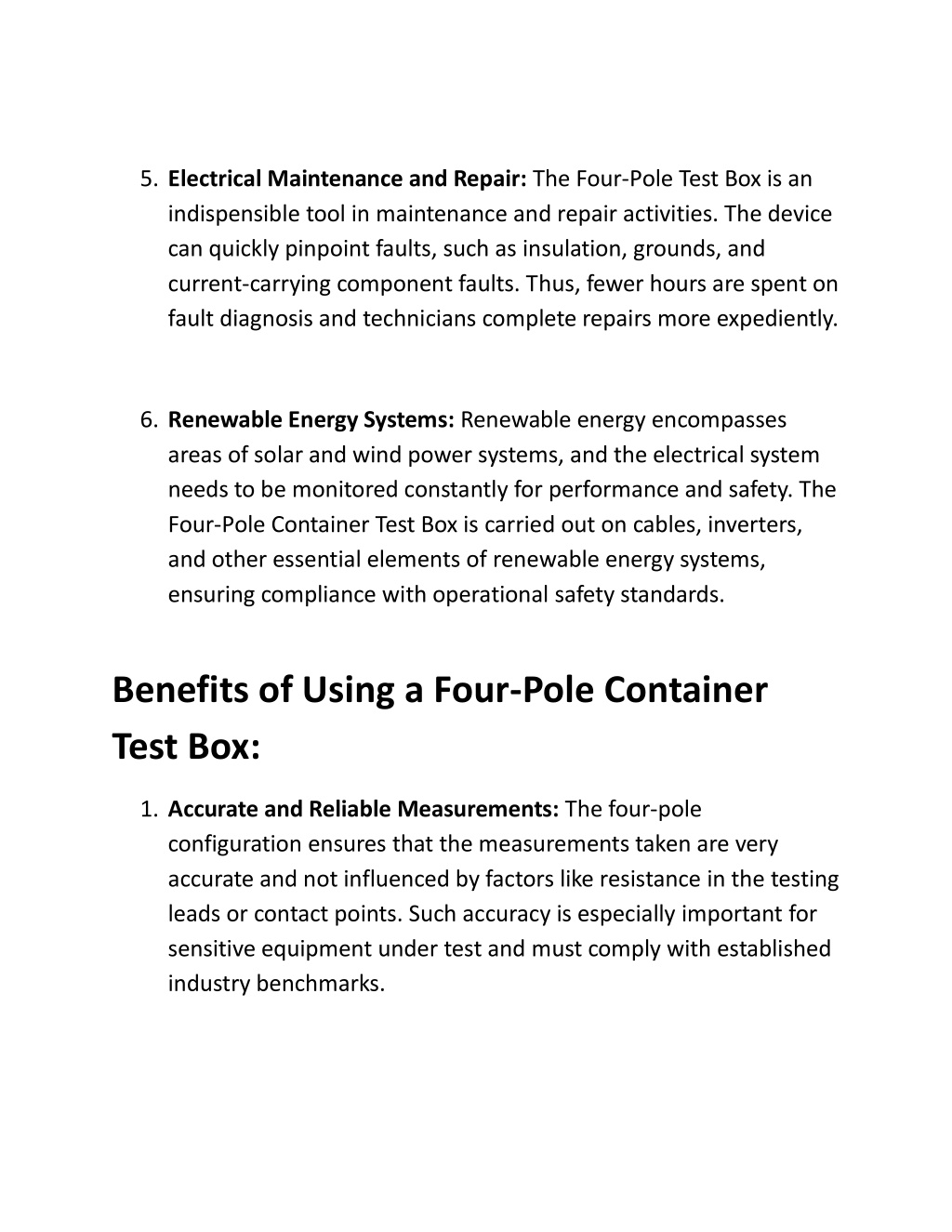

5. 5.Electrical Maintenance and Repair: The Four-Pole Test Box is an indispensible tool in maintenance and repair activities. The device can quickly pinpoint faults, such as insulation, grounds, and current-carrying component faults. Thus, fewer hours are spent on fault diagnosis and technicians complete repairs more expediently. 6.Renewable Energy Systems: Renewable energy encompasses areas of solar and wind power systems, and the electrical system needs to be monitored constantly for performance and safety. The Four-Pole Container Test Box is carried out on cables, inverters, and other essential elements of renewable energy systems, ensuring compliance with operational safety standards. Benefits of Using a Four-Pole Container Test Box: 1.Accurate and Reliable Measurements: The four-pole configuration ensures that the measurements taken are very accurate and not influenced by factors like resistance in the testing leads or contact points. Such accuracy is especially important for sensitive equipment under test and must comply with established industry benchmarks.

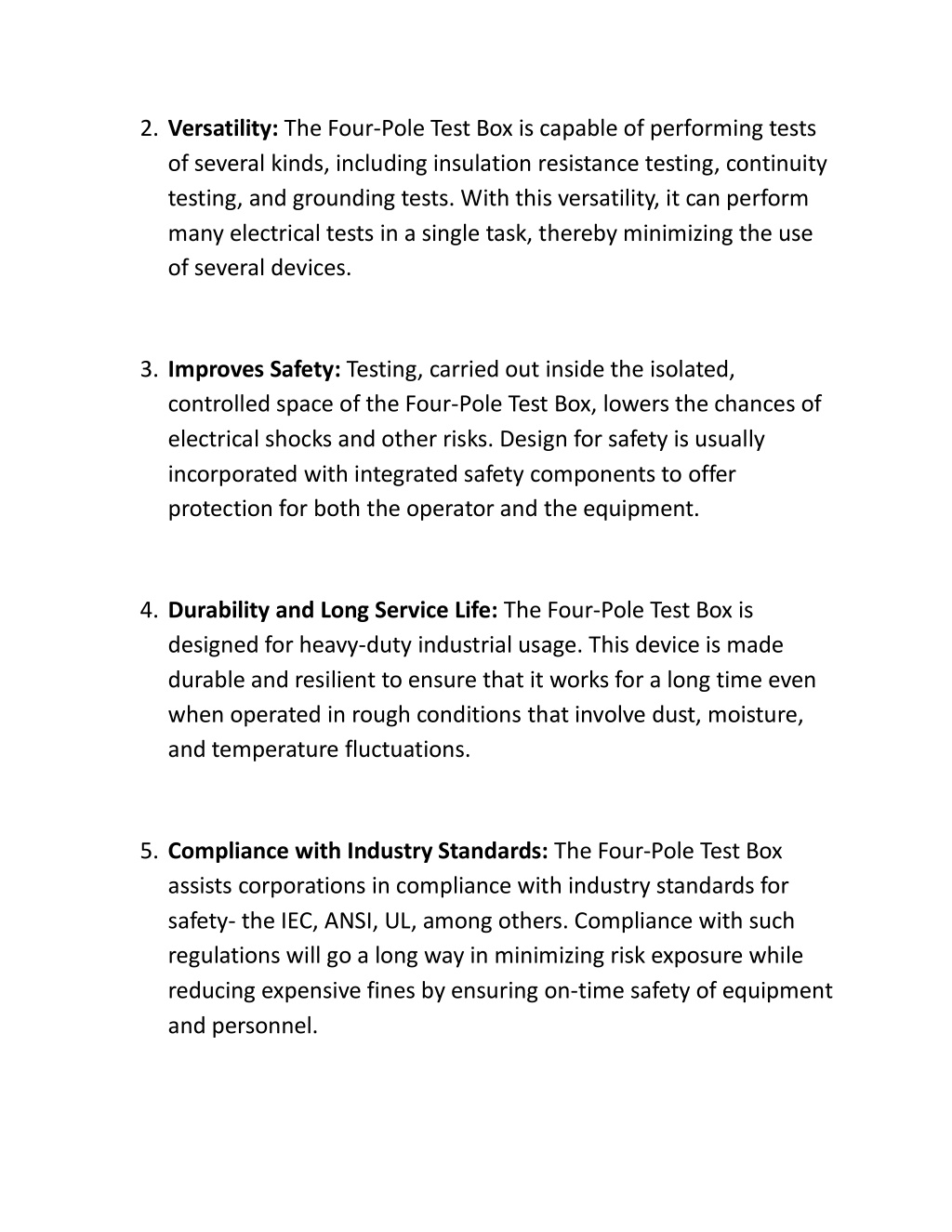

6. 2.Versatility: The Four-Pole Test Box is capable of performing tests of several kinds, including insulation resistance testing, continuity testing, and grounding tests. With this versatility, it can perform many electrical tests in a single task, thereby minimizing the use of several devices. 3.Improves Safety: Testing, carried out inside the isolated, controlled space of the Four-Pole Test Box, lowers the chances of electrical shocks and other risks. Design for safety is usually incorporated with integrated safety components to offer protection for both the operator and the equipment. 4.Durability and Long Service Life: The Four-Pole Test Box is designed for heavy-duty industrial usage. This device is made durable and resilient to ensure that it works for a long time even when operated in rough conditions that involve dust, moisture, and temperature fluctuations. 5.Compliance with Industry Standards: The Four-Pole Test Box assists corporations in compliance with industry standards for safety- the IEC, ANSI, UL, among others. Compliance with such regulations will go a long way in minimizing risk exposure while reducing expensive fines by ensuring on-time safety of equipment and personnel.

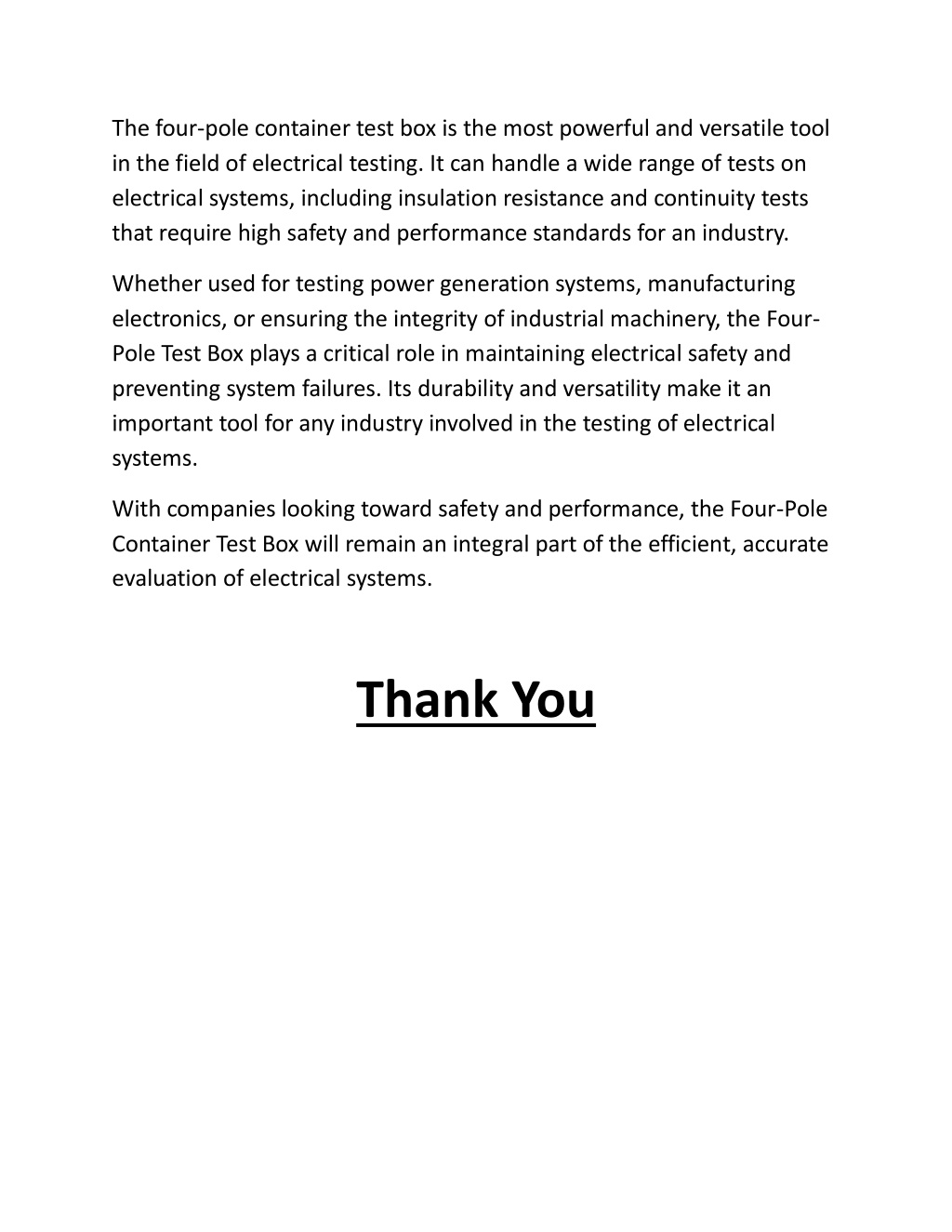

7. The four-pole container test box is the most powerful and versatile tool in the field of electrical testing. It can handle a wide range of tests on electrical systems, including insulation resistance and continuity tests that require high safety and performance standards for an industry. Whether used for testing power generation systems, manufacturing electronics, or ensuring the integrity of industrial machinery, the Four- Pole Test Box plays a critical role in maintaining electrical safety and preventing system failures. Its durability and versatility make it an important tool for any industry involved in the testing of electrical systems. With companies looking toward safety and performance, the Four-Pole Container Test Box will remain an integral part of the efficient, accurate evaluation of electrical systems. Thank You
