  1. NPI Technical Training Version 1.0b 6 December 2006 The ProCurve 3500yl/5400zl/6200yl Switch Software Update NPI Technical Training

  2. Traffic Mirroring Section

  3. Use only one (T or M) for each Dual-Personality Port Use only one (T or M) for each Dual-Personality Port 1 1 2 2 3 3 4 4 5 5 6 6 7 7 Link Link Mode Mode 8 8 9 9 10 10 11 11 12 12 13 13 14 14 Link Link Mode Mode T T 15 15 M M T T 16 16 M M 1 1 hp procurve hp procurve xl xl Gig-T/GBIC Gig-T/GBIC xl module xl module module module 8 8 14 14 J4907A J4907A 10/100/1000-T Ports (1-14, 15T, 16T) - ports are IEEE Auto MDI/MDI-X 10/100/1000-T Ports (1-14, 15T, 16T) - ports are IEEE Auto MDI/MDI-X Dual-Personality Ports: 10/100/1000-T (T) or Mini-GBIC (M) Dual-Personality Ports: 10/100/1000-T (T) or Mini-GBIC (M) 2 3 1 Traffic Mirroring • Allows you to monitor traffic to detect threats or troubleshoot problems • Advantages • Allows you to monitor traffic from the local switch or from multiple remote switches • Eliminates the need for a monitoring port on every switch • Reduces the number of necessary security appliances IDS/IPS* Destination switch forwards mirrored traffic to IDS/IPS. Network 3500yl Switch Selected traffic is mirrored to another switch. Traffic is selected based on port, VLAN, or ACL. 5400zl Switch Stations *Intrusion detection system (IDS)/ Intrusion prevention system (IPS)

  4. Use only one (T or M) for each Dual-Personality Port Use only one (T or M) for each Dual-Personality Port 1 1 2 2 3 3 4 4 5 5 6 6 7 7 Link Link Mode Mode 8 8 9 9 10 10 11 11 12 12 13 13 14 14 Link Link Mode Mode T T 15 15 M M T T 16 16 M M 1 1 hp procurve hp procurve xl xl Gig-T/GBIC Gig-T/GBIC xl module xl module module module 8 8 14 14 J4907A J4907A 10/100/1000-T Ports (1-14, 15T, 16T) - ports are IEEE Auto MDI/MDI-X 10/100/1000-T Ports (1-14, 15T, 16T) - ports are IEEE Auto MDI/MDI-X Dual-Personality Ports: 10/100/1000-T (T) or Mini-GBIC (M) Dual-Personality Ports: 10/100/1000-T (T) or Mini-GBIC (M) Remote Traffic Mirroring • Allows you to monitor traffic to detect threats or troubleshoot problems from across the network and bring information back to the analyzer. IDS/IPS* Network 3500yl Switch 5400zl Switch Stations *Intrusion detection system (IDS)/ Intrusion prevention system (IPS)

  5. Use only one (T or M) for each Dual-Personality Port Use only one (T or M) for each Dual-Personality Port 1 1 2 2 3 3 4 4 5 5 6 6 7 7 Link Link Mode Mode 8 8 9 9 10 10 11 11 12 12 13 13 14 14 Link Link Mode Mode T T 15 15 M M T T 16 16 M M 1 1 hp procurve hp procurve xl xl Gig-T/GBIC Gig-T/GBIC xl module xl module module module 8 8 14 14 J4907A J4907A 10/100/1000-T Ports (1-14, 15T, 16T) - ports are IEEE Auto MDI/MDI-X 10/100/1000-T Ports (1-14, 15T, 16T) - ports are IEEE Auto MDI/MDI-X Dual-Personality Ports: 10/100/1000-T (T) or Mini-GBIC (M) Dual-Personality Ports: 10/100/1000-T (T) or Mini-GBIC (M) Guidelines for Using Traffic Mirroring • Two types of traffic mirroring: • Local mirroring—source and destination are on the same switch • Remote mirroring—source and destination are on different switches • Each switch can be the: • Originator for four mirror sessions, with the destination on either the local switch or another switch • Destination for 32 mirror sessions IPS/IDS The 3500yl Switch can receive up to 28 additional mirror sessions. Network 3500yl Switch Four mirror sessions originate on the local 5400zl Switch. 5400zl Switch

  6. 1 2 Guidelines for Using Traffic MirroringContinued • For local mirroring, configure exit ports: • Configure multiple mirror sessions to use the same exit port • Load balance mirror sessions across multiple exit ports 1 3 5 7 9 11 Core 2 4 6 8 10 12 IDS/IPS

  7. Overview of Configuration Steps • 1. Configure the destination switch for remote traffic mirroring. • 2. Configure the source switch. • Define the session number and the destination for the mirror session on the source switch. • Local traffic mirroring—port on the same switch • Remote traffic mirroring—another 3500yl, 5400zl, or 6200yl Switch • Define the source interface and the direction of traffic • Ports, including mesh ports • Static trunks • Static virtual LANs (VLANs) • Direction of traffic—inbound, outbound, or both directions • Apply an optional Access Control List (ACL) to further select traffic. • Select inbound traffic on the source interface with an extended or standard ACL

  8. Use only one (T or M) for each Dual-Personality Port Use only one (T or M) for each Dual-Personality Port 1 1 2 2 3 3 4 4 5 5 6 6 7 7 Link Link Mode Mode 8 8 9 9 10 10 11 11 12 12 13 13 14 14 Link Link Mode Mode T T 15 15 M M T T 16 16 M M 1 1 hp procurve hp procurve xl xl Gig-T/GBIC Gig-T/GBIC xl module xl module module module 8 8 14 14 J4907A J4907A 10/100/1000-T Ports (1-14, 15T, 16T) - ports are IEEE Auto MDI/MDI-X 10/100/1000-T Ports (1-14, 15T, 16T) - ports are IEEE Auto MDI/MDI-X Dual-Personality Ports: 10/100/1000-T (T) or Mini-GBIC (M) Dual-Personality Ports: 10/100/1000-T (T) or Mini-GBIC (M) Overview of Configuration Steps • For remote traffic mirroring, enable jumbo frames to mirror information fields larger than 1446 bytes (untagged) or (tagged) • On both source and destination switches • Any infrastructure switches in between • The end stations, in this case the IPS/IDS if you know the originating frame was larger than 1522 bytes. IPS/IDS The destination is on the remote 3500yl Switch. ProCurve (config)# vlan <vlan_id> jumbo 3500yl Switch Mirror session originates on the local 5400zl Switch. 5400zl Switch

  9. Configuring the Destination Switch • For remote traffic mirroring, configure the source and destination of the mirror session on the destination switch ProCurve_dst_switch(config)# mirror endpoint ip <src-ip-add> <src-udp-port> <dst-ip-add> port <port#> Options These settings must match the settings you will configure on the source switch.

  10. Configuring the Source SwitchRemote traffic mirroring • Configure the source switch • For remote traffic mirroring, identify the mirror session, the source, and the destination. • Replace <1-4> with the number to identify this mirror session. • Assign an optional name if you want an easier way to identify the session. • Ensure the other settings match those configured on the destination switch. ProCurve_source_switch(config)# mirror <1-4> [name <name>] remote ip <src-ip-add> <src-udp-port> <dst-ip-add>

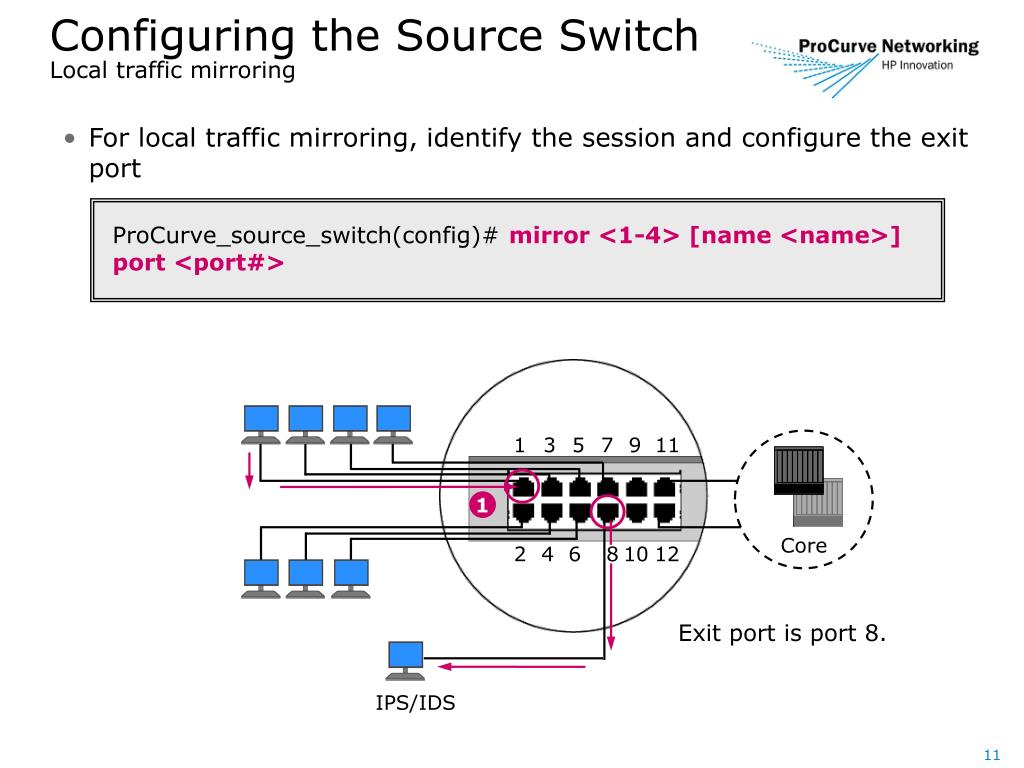

  11. 1 Configuring the Source SwitchLocal traffic mirroring • For local traffic mirroring, identify the session and configure the exit port ProCurve_source_switch(config)# mirror <1-4> [name <name>]port <port#> 1 3 5 7 9 11 Core 2 4 6 8 10 12 Exit port is port 8. IPS/IDS

  12. Configuring the Source SwitchDefine the originating interface • Define the originating interface as a port, trunk, or mesh port ProCurve_source_switch(config)# interface <port/trunk/mesh> monitor all [in | out | both] mirror <1-4> [mirror <1-4> . . .] Options

  13. Configuring the Source SwitchSelect the originating interface • Define the originating interface as a VLAN or VLANs • Replace <vlan-range> with a VLAN or a range or VLANs. ProCurve_source_switch(config)# vlan <vlan-ID> monitor all [in | out | both] mirror <1-4> [mirror <1-4> . . .] VLAN 2 Network 5400zl Switch VLAN 1

  14. Using an ACL to Further Select Traffic Optional • To use an ACL to select traffic arriving on an interface, enter: • Replace <acl_name> with the name of the ACL you have configured. ProCurve_source_switch(config)# interface <port/trunk/mesh>monitor ip access-group <acl_name> in mirror <1-4> [mirror <1-4> . . .] ProCurve_source_switch(config)# vlan <vlan-ID>monitor ip access-group <acl_name> in mirror <1-4> [mirror <1-4> . . .]

  15. Enabling Jumbo Frames • For remote traffic mirroring, enable jumbo frames on the source switch, destination switch, and any intervening infrastructure switches • For example: ProCurve_Source (config)# vlan 8 jumbo ProCurve_Destination (config)# vlan 8 jumbo ProCurve_Infrastructure (config)# vlan 8 jumbo

  16. Traffic Mirroring show Commands • View information about mirror sessions configured on the switch ProCurve# showmonitor [<1-4>] Network Monitoring Sessions Status Type Sources ---------- ------- ----- --------- 1 active port 1 2 active IPv4 3 3 active port 1 4 Inactive Mirror endpoint Type Dest Address Source Address UDP Src UDP Dst Port ----- --------------- ----------------- --------- --------- ----- IPv4 10.8.1.100 10.8.1.1 8453 3279 A17 Port = local mirror session IPv4 = remote mirror session Indicates # of criteria for mirror session

  17. Use only one (T or M) for each Dual-Personality Port Use only one (T or M) for each Dual-Personality Port 1 1 2 2 3 3 4 4 5 5 6 6 7 7 Link Link Mode Mode 8 8 9 9 10 10 11 11 12 12 13 13 14 14 Link Link Mode Mode T T 15 15 M M T T 16 16 M M 1 1 hp procurve hp procurve xl xl Gig-T/GBIC Gig-T/GBIC xl module xl module module module 8 8 14 14 J4907A J4907A 10/100/1000-T Ports (1-14, 15T, 16T) - ports are IEEE Auto MDI/MDI-X 10/100/1000-T Ports (1-14, 15T, 16T) - ports are IEEE Auto MDI/MDI-X Dual-Personality Ports: 10/100/1000-T (T) or Mini-GBIC (M) Dual-Personality Ports: 10/100/1000-T (T) or Mini-GBIC (M) Example Configuration Running configuration: !Source switch! vlan 8 untagged B1-B24 ip address 10.8.1.1 255.255.255.0 jumbo exit mirror 1 remote ip 10.8.1.1 1000 10.8.1.100 interface B1 monitor all both mirror 1 exit interface B2 monitor all both mirror 1 exit Running configuration: !Dst switch! vlan 8 untagged 1-5 ip address 10.8.1.100 255.255.255.0 jumbo exit mirror endpoint ip 10.8.1.1 1000 10.8.1.100 port 22 Originatinginterface IPS/IDS Destination Switch10.8.1.100 Source Switch10.8.1.1
