  1. EnvironmentalData • Remove TestResults/EnvironmentalData • Add Action/EnvironmentalData

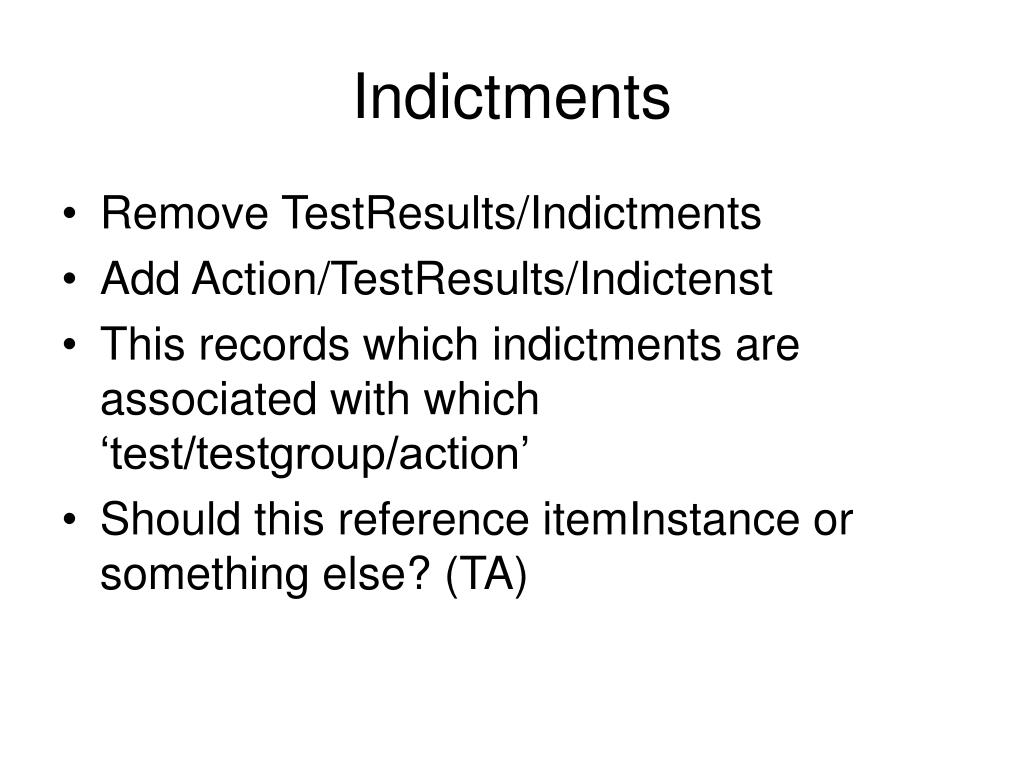

  2. Indictments • Remove TestResults/Indictments • Add Action/TestResults/Indictenst • This records which indictments are associated with which ‘test/testgroup/action’ • Should this reference itemInstance or something else? (TA)

  3. WorkOrders • Change type to be a common WorkOrder Document type

  4. TestResultsCollection • Add a new common schema that supports multiple results

  5. Support the Platform • Can UUT Instance reference Platform. • Use ItemInstance type to extend to get specific UUT instance that should hold Platform

  6. Configuration Data • Configuration data inside the box itself • Look at using data elements

  7. Configuration Information for TestProgramReference

  8. Linking Testresults to TestDescription • Some ID that links to the TestDescription Step ID/test id placed in the action type • testReferenceID

  9. UUT Optional

  10. Empty Test Results Group • Sometimes you want to record the fact that you want to run something and then their was nothing to do

  11. item Instance instances • Test results and repair

  12. Common

  13. Common • #inf only supported by reals OK • Negative array indexs • Comparisons of limits • Need an equivalence operator that for strings would mean case insensitive compare EQ, NE to support “Expected” • CIEQ, CINE (someone to dictate)

  14. Limits • Add some words to Limit to prefer datum types to be the same value • Item xsi:type=“NamedValue”

  15. HardwareCommon(Ions) • Connector pins multiple • Between test results and test descriptions • DescriptionDocument Reference when to use uuid and id • How does one use version and uuid. as namespace are changed • Clarify use of ID with UUID • In test description needed to extend connector can we add this to hardware common

  16. Cable Assemblies • TestAdaoper used for cable assemblies • Connectors Added • Tidy words of mating connector types • Shuffle to types to allow derivation • Depth is length if you are a cable.

  17. Tony AldwardTest Results • New version of test results • UUttype removed • UUt is optional • Multiplisity of restresults 0..n • Added option test reference ID • Change test resuls work order reference (also needed in common) • Environmentatl data seperated from limit version in common • Test results indictments moved to test result • Data element added to … • Changes reference from ID and TR id to be a ID ref • Pretest repairs updated • Site element updated • All the common should have annotations • Test results collection xsd file • Anand to provide an example • Mike test results XML file with new schemas • MAI

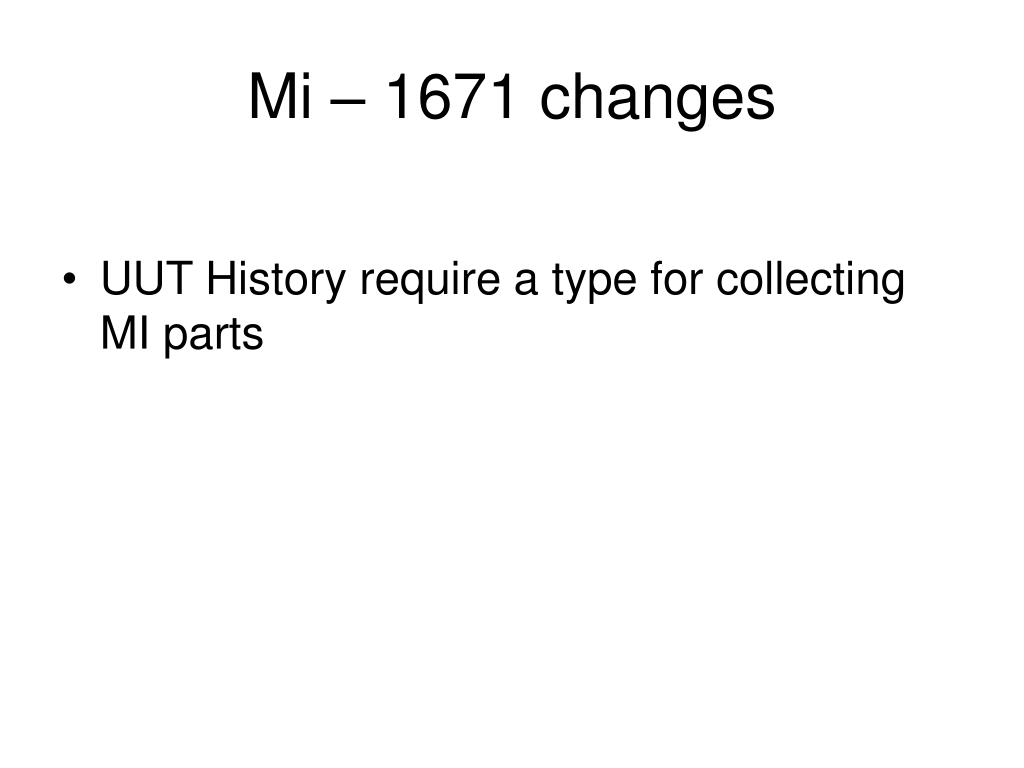

  18. Mi – 1671 changes • UUT History require a type for collecting MI parts

  19. Common, hardwarecommon and te from teresa containing WorksOrder • Anand example of extensability • Dans provided ppc and update words on pin under connectors • Whoses adding pin connector into schema (teresa) • Ron to provide wirelist comments • Ms to fold changes into 1671 results • Examples update (flushes) • Snippets Teresa to flush those • Mike actions • Ron Gabe • Test results • More than one pin in connector (MSkeiber)
