Buy online torque meter in Delhi

Advantech Company gives you best torque meter. The torque meter involve several components, which must be worked on one by one without damage to surrounding parts or the PCB itself. Visit - https://www.advancetech.co.in/products/cedar-japan/torque-meter/cd-10m

Download Presentation

Buy online torque meter in Delhi

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

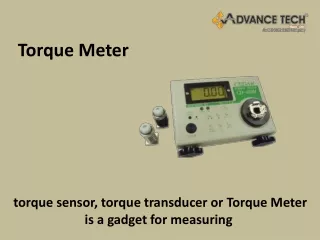

  1. Torque Meter torque sensor, torque transducer or Torque Meter is a gadget for measuring

  2. Torque Meter • A torque sensor, torque transducer or Torque Meter is a gadget for measuring and recording the torque on a revolving system, such as an engine, crankshaft, gearbox, transmission, rotor, a bicycle crank or top torque tester. Static torque is reasonably easy to gauge. Dynamic torque, on the various other hand, is challenging to determine, since it normally needs the transfer of some impact (electrical, hydraulic or magnetic) from the shaft being measured to a static system. • One means to accomplish this is to problem the shaft or a member affixed to the shaft with a collection of permanent magnetic domain names. The magnetic qualities of these domain names will vary according to the applied torque, and therefore can be gauged using non-contact sensors. Such magnetoelastic torque sensors are normally used for in-vehicle applications on racecars, automobiles, aircraft, as well as hovercraft.

  3. Torque Meter An additional way to determine torque is by way of twist angle measurement or phase shift dimension, whereby the angle of twist resulting from applied torque is gauged by using two angular setting sensors and also measuring the stage angle between them. This method is used in the Allison T56 turboprop engine. If the mechanical system involves a right- angle gearbox, after reaction pressure experienced by the input shaft/pinion can be connected to the torque experienced by the outcome shaft( s). The axial input tension need to first be adjusted versus the result torque. The input stress can be quickly measured through strain scale dimension of the input pinion bearing real estate. The output torque is easily determined using a static Torque Meter. that the axial

  4. CONTACT US 709-710, GD-ITL Towers, B-8, Netaji Subhash Place, Pitampura, New Delhi, India Address 9599592691 Phone No Email ajay@advinancetech.co.in https://www.advancetech.co.in/products/ced ar-japan/torque-meter/cd-10m Website
