    1. DSL -2770L • How do I access my modem configuration page • How do I change my Wi-Fi Channel to avoid interference • How do I connect my Android device to my wireless network • How do I connect my Apple iPhone iPad to my wireless network • How do I connect my PC to a wireless network • How do I open ports in my modem • How do I refresh Wi-Fi connection on my computer • How do I secure my Wi-Fi network • How do I setup my modem • How do I update firmware in my modem • My modem ADSL Light is NOT ON • What is my Wireless Password • What to do if I am having problems staying connected to Wi-Fi • Why cant I log into my modem

    2. How to access the Configuration Pages (Web GUI) of my modem router • Please note: Accessing your modem’s configuration page does not require Internet connection as these pages are stored inside your modem. Your computer just needs to be connected to the modem. - Open your Internet browser e.g. Internet Explorer, Firefox, Chrome, Safari, etc. and enter the IP address of your D-Link modem in the address bar: http://192.168.1.1. - When prompted type in the Username and Password then click on the “Log In” button. If you have not changed the password for the modem administration, the factory settings are: Username: admin Password: admin

    3. - You should now be presented with the modem’s configuration pages (Web-based Configuration):

    4. How to change Wireless Channel in your modem/router Step 1. Open your Internet Browser and in the address field type in http://192.168.1.1. Step 2. When prompted type in the Username and Password then click on the “Log In” button. If you have not changed the password for the modem administration, the factory settings are: Username: admin Password: admin

    5. Step 3. After logging in you will be presented with the modem’s configuration pages. Please click on Setup > Wireless Setup > Manual Wireless Connection Setup button:

    6. Step 4. In the first section of the page [WIRELESS NETWORK SETTINGS], please un-check the “Auto Channel Scan” option. Then under “Wireless Channel” click on the drop down menu to select a channel number between 1 to 13.

    7. PLEASE MAKE SURE CLICK ON [Apply Settings] BUTTON AT THE BOTTOM OF THE PAGE TO SAVE THE SETTINGS.

    8. How do I connect my android device to my wireless network • Note: These steps are for Android ver. 4.1 (Jelly Bean) Step 1: On your Android device, select the Settings icon.

    9. Step 2: Under Settings, choose Wi-Fi.

    10. Step 3: Select the Wi-Fi network name you want to connect to:

    11. Step 4: If the Wi-Fi network is password protected, type in your password and select Connect. • You should now be connected to your Wi-Fi network.

    12. How to connect my Apple iPhone/iPad to my wireless network Step 1: Find and select the Settings icon on your iPhone, iPod Touch or iPad. Step 2: Select Wi-Fi from the Settings menu.

    13. Step 3: If your Wi-Fi is currently set to Off, tap it to turn it on.

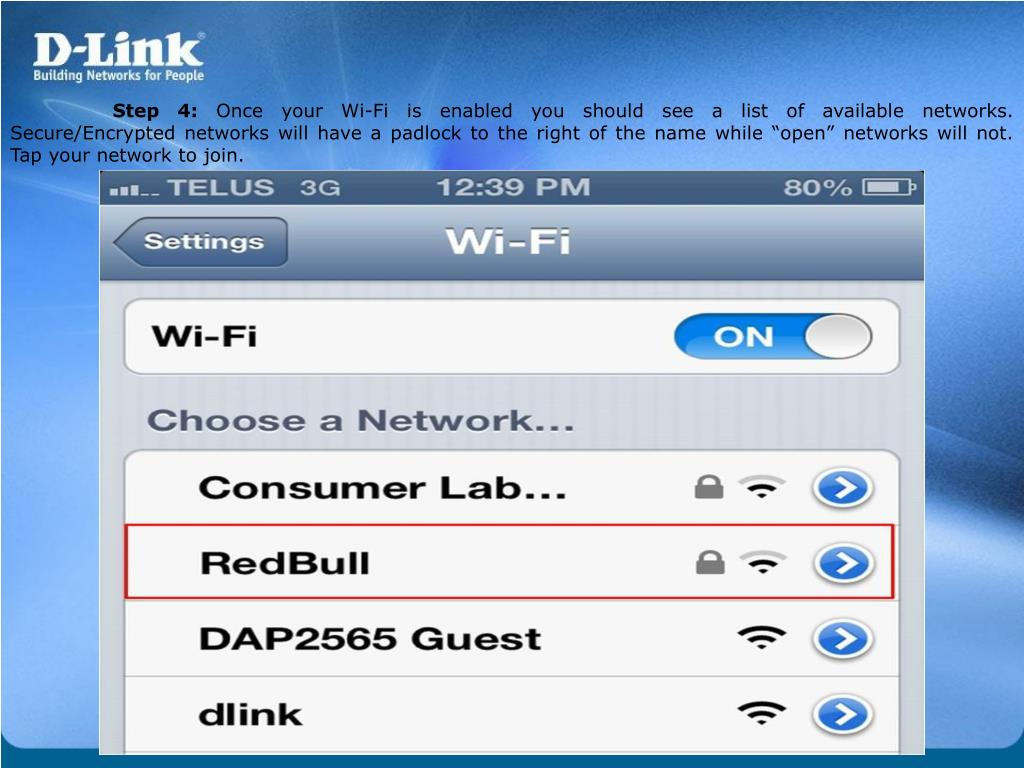

    14. Step 4: Once your Wi-Fi is enabled you should see a list of available networks. Secure/Encrypted networks will have a padlock to the right of the name while “open” networks will not. Tap your network to join.

    15. Step 5: If you choose a network that requires a password, you’ll be prompted to enter it. Type in your password and select Join.

    16. When connected, your Wi-Fi network name will be indicated in blue with a check mark beside it.

    17. How do I connect my computer to a wireless network • How do I connect to a wireless network in Windows XP Step 1: Double Click on the Wireless Connection Icon in the bottom right corner of the screen (by the clock) Step 2: Select the wireless network you want to connect to and click Connect

    18. Step 3: If your wireless network is Secured, you will be prompted to enter the password. Enter the appropriate password and click Connect

    19. How do I connect to a wireless network in Windows Vista Step 1: Click on the Start button (Windows logo) then click Connect Panel. Step 2: Under Network and Internet click View network status and tasks.

    20. Step 3: In the list of Tasks on the left side click Connect to a network.

    21. Step 4: Select the wireless network name you want to connect to and click Connect.

    22. Step 5: If the network is secured with a password you will be prompted to enter the password. Type the network security password and click OK. You will be asked to Save this network and Save this connection automatically. Click Close.

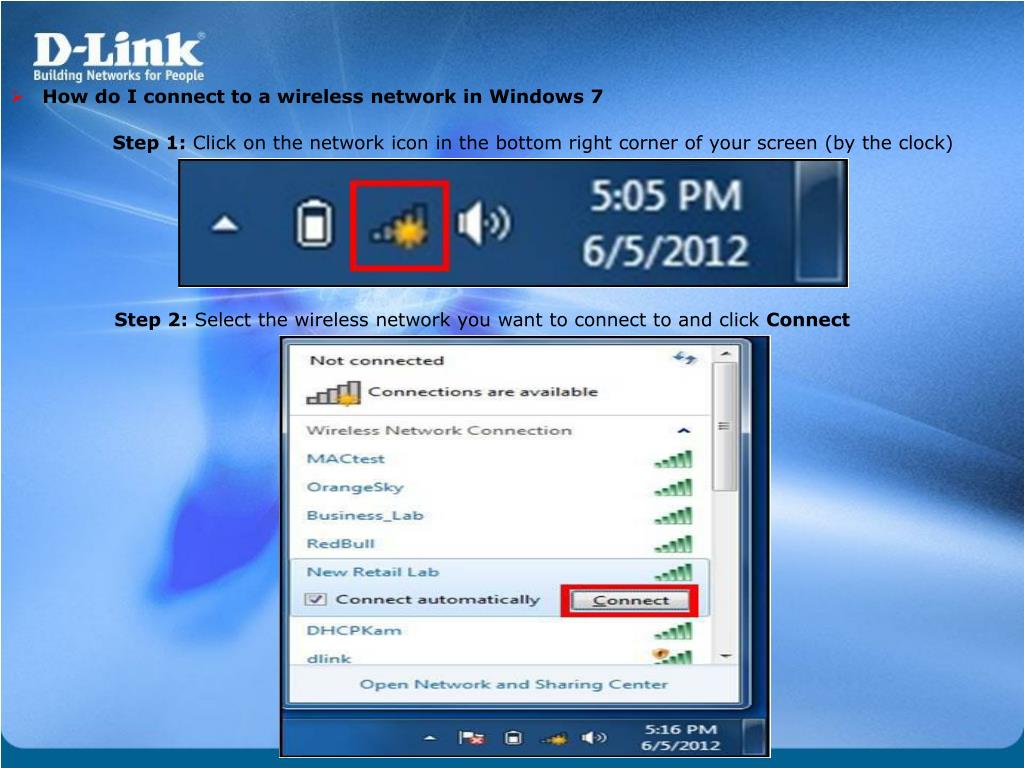

    23. How do I connect to a wireless network in Windows 7 Step 1: Click on the network icon in the bottom right corner of your screen (by the clock) Step 2: Select the wireless network you want to connect to and click Connect

    24. Step 3: If the network is secured with a password, you will be prompted to enter it. Enter the password and click OK. Step 4: Once Connected, you will be prompted to select the Network Type. Select the option that suites your needs.

    25. How do I connect to a wireless network in Windows 8 • There are two ways this can be done depending on whether you are using a touch screen or not using a touch screen: • Option 1 – Using a touch screen • Step 1: From the desktop, move your cursor to the top right corner, this will bring up the CHARMS bar. Click on Settings.

    26. Step 2: Click on the Wireless Connection Icon

    27. Step 3: Select your network and click Connect

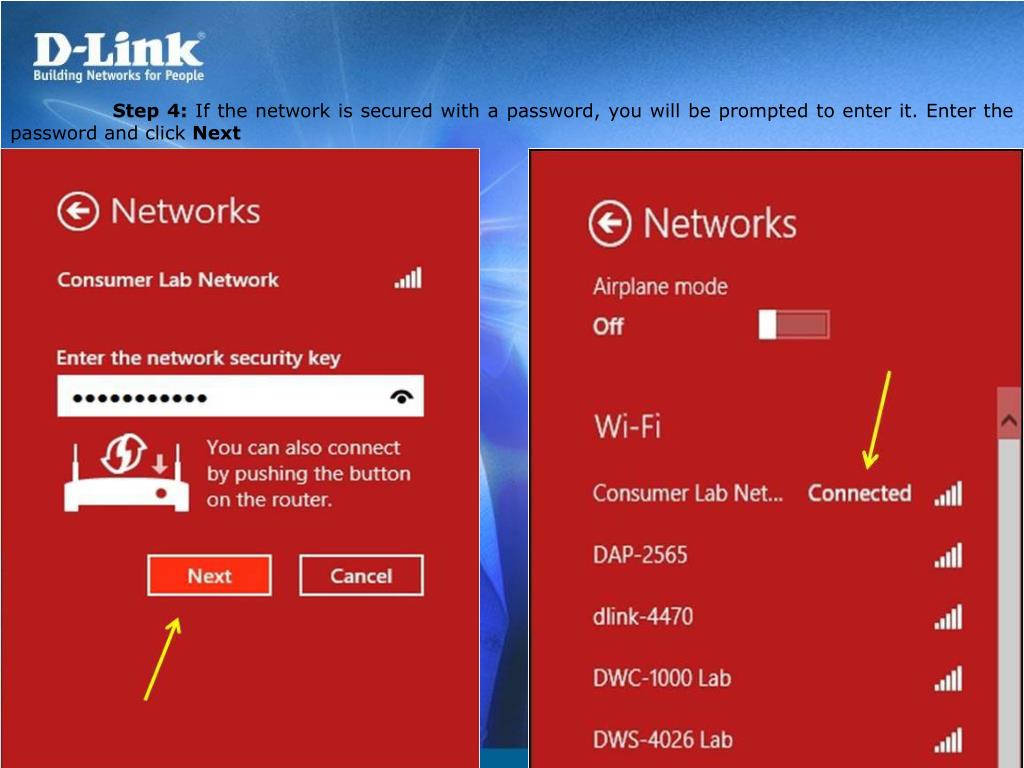

    28. Step 4: If the network is secured with a password, you will be prompted to enter it. Enter the password and click Next.

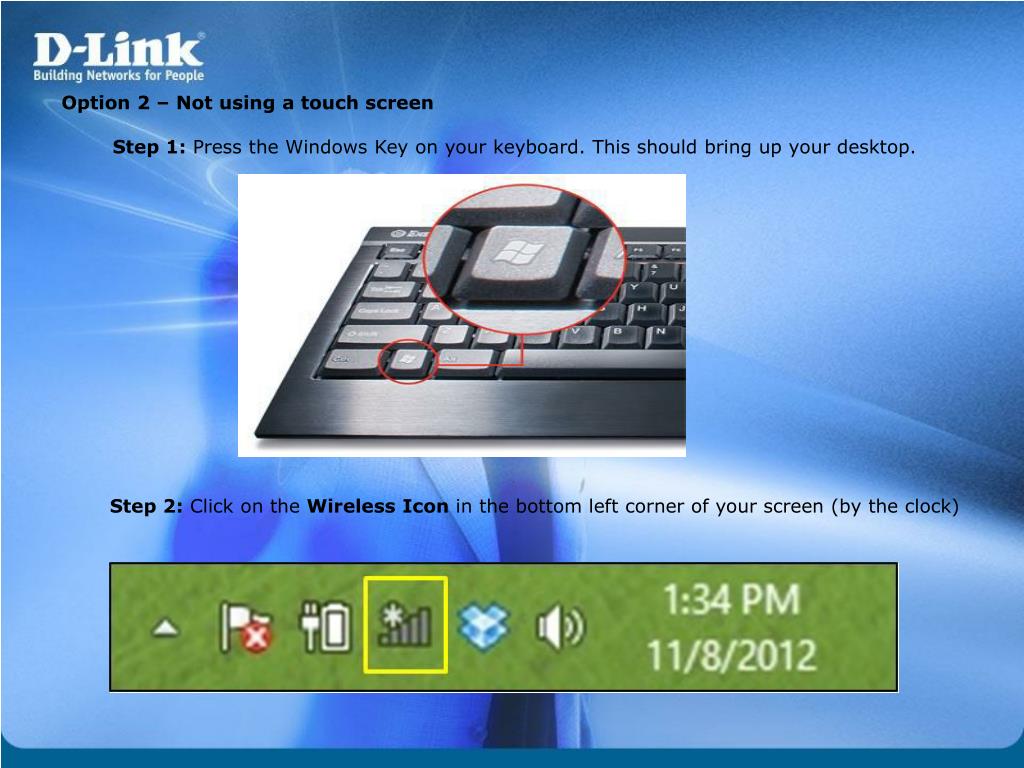

    29. Option 2 – Not using a touch screen • Step 1: Press the Windows Key on your keyboard. This should bring up your desktop. Step 2: Click on the Wireless Icon in the bottom left corner of your screen (by the clock)

    30. Step 3: Select your wireless network and click Connect

    31. Step 4: If the network is secured with a password, you will be prompted to enter it. Enter the password and click Next

    32. How to open ports in your modem router firewall • Please note: It is recommended to set the device you are opening ports for (PC, Xbox, PlayStation, etc.) with a static IP address. Please see your device instructions on how to manually set an IP address. Step 1. When prompted type in the Username and Password and then click on the “Log In” button. If you have not changed the password for the modem administration, the factory settings are: Username: admin Password: admin

    33. Step 2. After logging in you will be presented with the modem’s configuration pages. Click on [ADVANCED] > [Virtual Server]:

    34. Step 3. Fill in the fields for a “Virtual Servers List Entry” (we are opening ports for Remote Desktop service as an example) - Service Ports: enter the port you want to open - Server IP: type in the IP address of the device you are opening ports for (PC, Xbox, PlayStation, etc.) - Server Port: same as Service Port - Protocol: select “BOTH” if not sure - Check the “Enable” box Step 4. After adding all the required rules click on the [Apply Settings] button at the bottom of the page.

    35. How to Refresh/Remove a Wireless Profile on your computer • When you connect to a wireless network, the settings and profile of that specific network is saved on your computer so that you don’t have to re-enter your Wi-Fi password every time you reconnect. Once your computer is in the range of the saved wireless network, it will automatically attempt to connect to that wireless network. • If you have connected to various wireless networks before, your computer may have problems connecting wirelessly, especially when the wireless networks use the same names (SSID). Removing wireless network profiles on your computer may improve your wireless connectivity to your current wireless network. • Please NOTE: Removing Wi-Fi network profiles cannot be undone. Make sure you know the wireless settings of your wireless network (your network name and Wi-Fi password) to be able to reconnect to it.

    36. How to refresh a Wireless Profile in Windows XP Step 1. Click on the Windows XP Start button: Step 2. Click on Settings > Control Panel:

    37. Step 3. Click on Network Connections: Step 4. Right click on your Wireless Network Connection and select Properties:

    38. Step 5. Choose Wireless Networks tab and select existing network in preferred networks, then click Remove. And click on OK. Now connect to the required Wireless Network manually and a fresh automatic profile will be created for this network.

    39. How to refresh a Wireless Profile in Windows 7 Step 1. Click on the Windows 7 Start button: Step 2. Select Control Panel. Step 3. Make sure your View by: is set to “Category”, and then click on Network and Internet:

    40. Step 4. Click on Network and Sharing Center: Step 5. Click on Manage wireless networks.

    41. Step 6. Select the network profile you wish to remove, make sure it is highlighted then click Remove. You can also right click on the network profile and click on Remove network Now connect to the required Wireless Network manually and a fresh automatic profile will be created for this network.

    42. How to refresh a Wireless Profile in Windows 8 Step 1. Left click on the Windows 8 network status icon : The icon is located at the right hand bottom corner of the screen Step 2. Highlight the wireless network that you wish to remove.

    43. Step 3. Right-click the network in the network list and click Forget this network. Now connect to the required Wireless Network manually and a fresh automatic profile will be created for this network.

    44. How to refresh a Wireless Profile in OS X Step 1. Click on the Apple menu and select System Preferences Step 2. In the System Preferences menu, click on Network.
