    1. Astronomy 101The Solar SystemTuesday, Thursday2:30-3:45 pmHasbrouck 20Tom Burbinetomburbine@astro.umass.edu

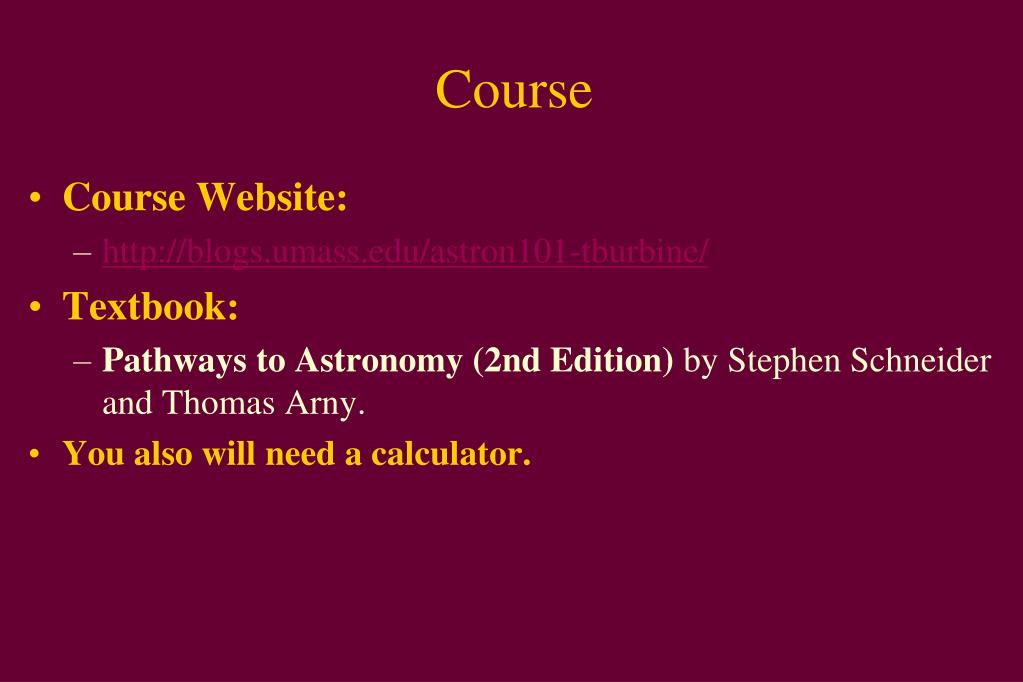

    2. Course • Course Website: • http://blogs.umass.edu/astron101-tburbine/ • Textbook: • Pathways to Astronomy (2nd Edition) by Stephen Schneider and Thomas Arny. • You also will need a calculator.

    3. Office Hours • Mine • Tuesday, Thursday - 1:15-2:15pm • Lederle Graduate Research Tower C 632 • Neil • Tuesday, Thursday - 11 am-noon • Lederle Graduate Research Tower B 619-O

    4. Homework • We will use Spark • https://spark.oit.umass.edu/webct/logonDisplay.dowebct • Homework will be due approximately twice a week

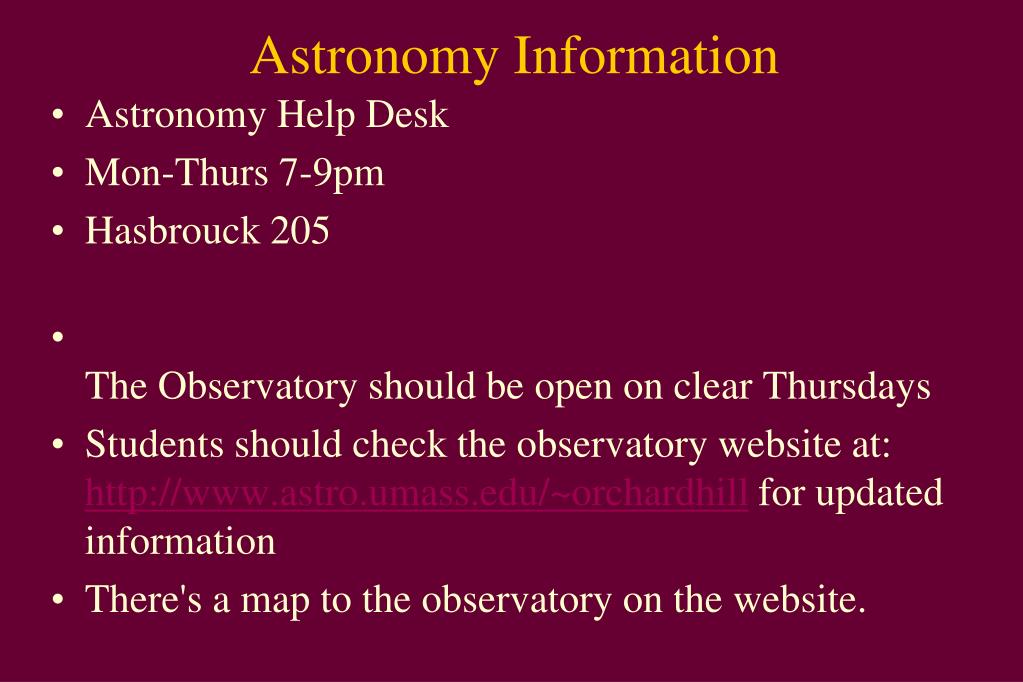

    5. Astronomy Information • Astronomy Help Desk • Mon-Thurs 7-9pm • Hasbrouck 205 • The Observatory should be open on clear Thursdays • Students should check the observatory website at: http://www.astro.umass.edu/~orchardhill for updated information • There's a map to the observatory on the website.

    6. Final • Monday - 12/14 • 4:00 pm • Hasbrouck 20

    7. HW #10 • Due today

    8. HW #11 • Next Tuesday

    9. If you want to find life outside our solar system • You need to find planets • http://exoplanet.eu

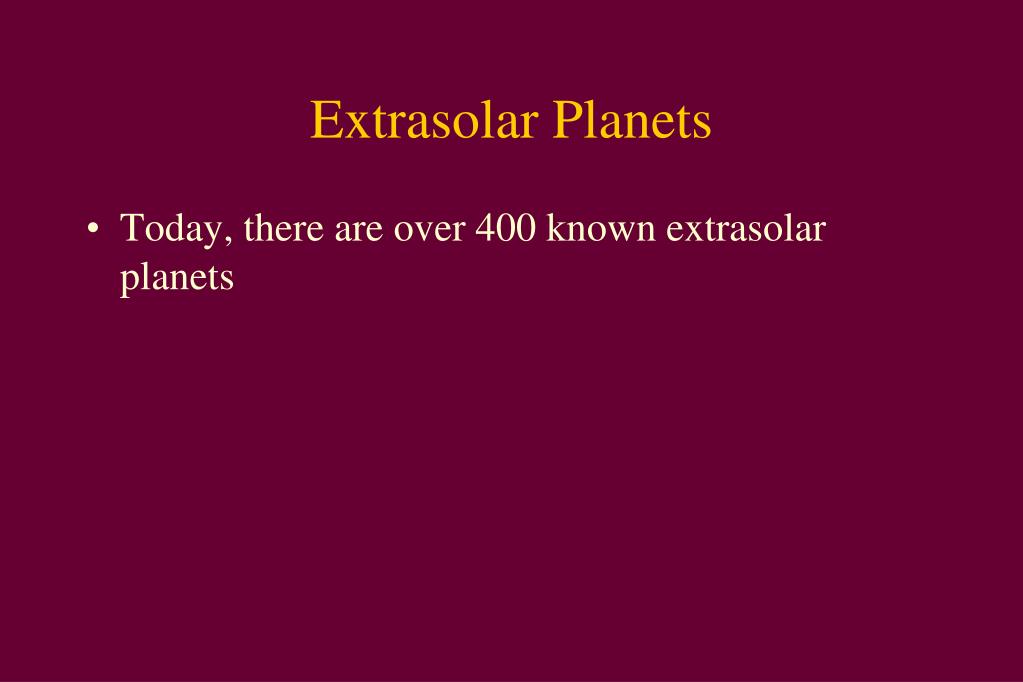

    10. Extrasolar Planets • Today, there are over 400 known extrasolar planets

    11. Star Names • A few hundred have names from ancient times • Betelgeuse, Algol, etc. • Another system: • A star gets name depending on what constellation it is in • With a Greek letter at the beginning • Alpha Andromeda, Beta Andromeda, etc. • Only works for 24 brightest star

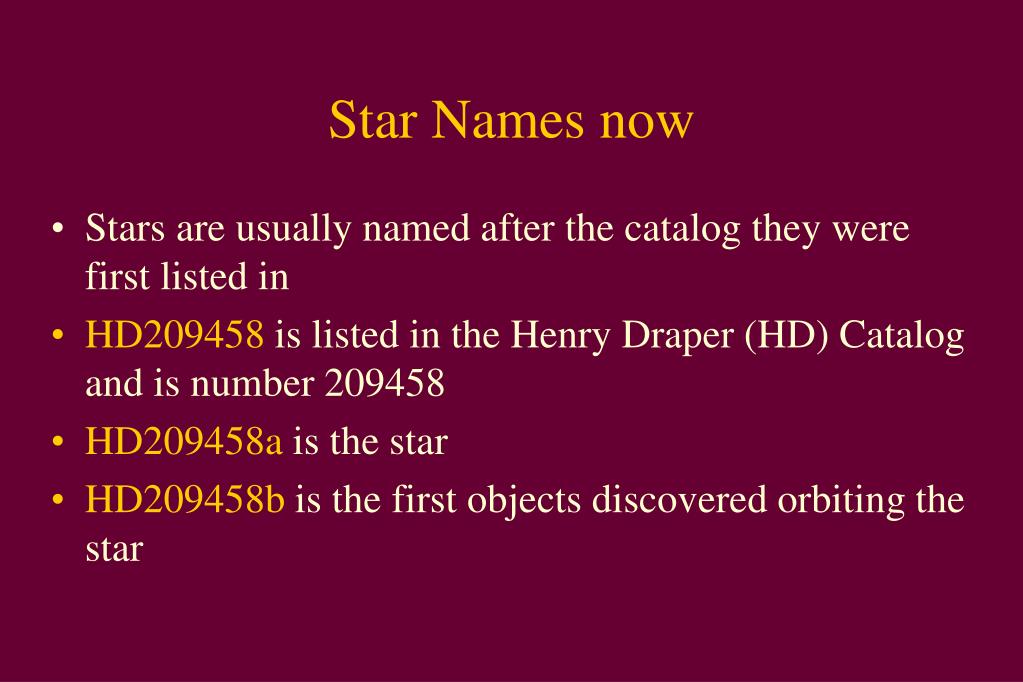

    12. Star Names now • Stars are usually named after the catalog they were first listed in • HD209458 is listed in the Henry Draper (HD) Catalog and is number 209458 • HD209458a is the star • HD209458b is the first objects discovered orbiting the star

    13. Our Solar System has basically two types of planets • Small terrestrial planets – Made of Oxygen, Silicon, etc. • Large gaseous giants – Made primarily of hydrogen and a little helium • Jupiter - 90% Hydrogen, 10% Helium • Saturn – 96% Hydrogen, 3% Helium • Uranus – 83% Hydrogen, 15% Helium • Neptune – 80% Hydrogen, 20% Helium

    14. Things to Remember • The Milky Way has at least 200 billion other stars and maybe as many as 400 billion stars • Jupiter’s mass is 318 times than the mass of the Earth

    15. Question: • How many of these stars have planets?

    16. What is the problem when looking for planets?

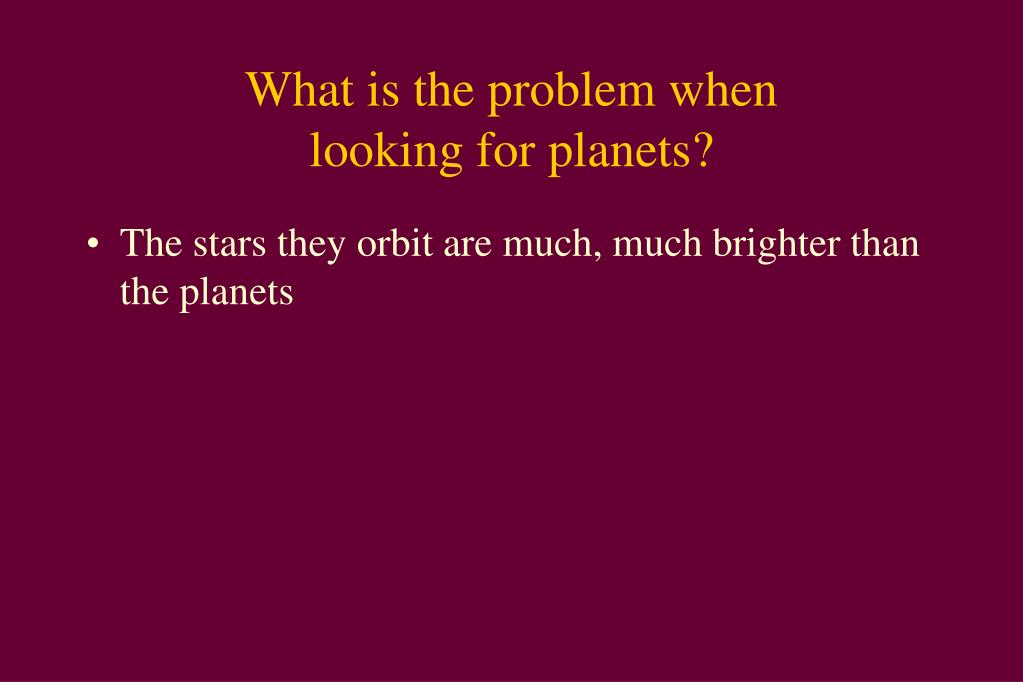

    17. What is the problem when looking for planets? • The stars they orbit are much, much brighter than the planets

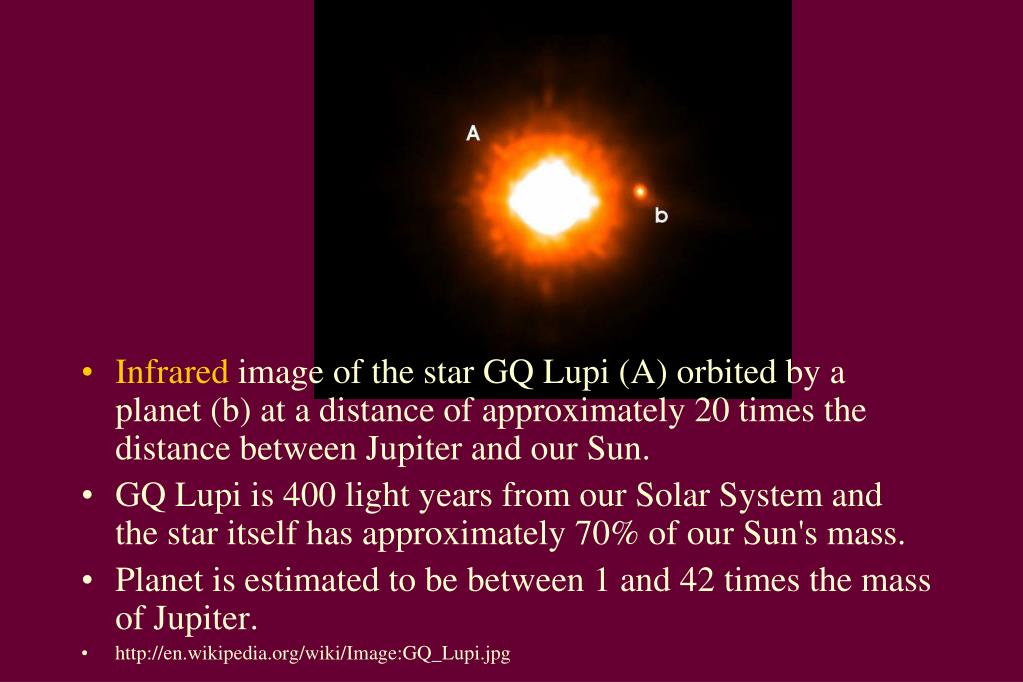

    18. Infrared image of the star GQ Lupi (A) orbited by a planet (b) at a distance of approximately 20 times the distance between Jupiter and our Sun. • GQ Lupi is 400 light years from our Solar System and the star itself has approximately 70% of our Sun's mass. • Planet is estimated to be between 1 and 42 times the mass of Jupiter. • http://en.wikipedia.org/wiki/Image:GQ_Lupi.jpg

    19. So what characteristics of the planets may allow you to “see” the planet

    20. So what characteristics of the planets may allow you to “see” the planet • Planets have mass • Planets have a diameter • Planets orbit the star

    21. http://upload.wikimedia.org/wikipedia/commons/d/de/Extrasolar_Planets_2004-08-31.pnghttp://upload.wikimedia.org/wikipedia/commons/d/de/Extrasolar_Planets_2004-08-31.png

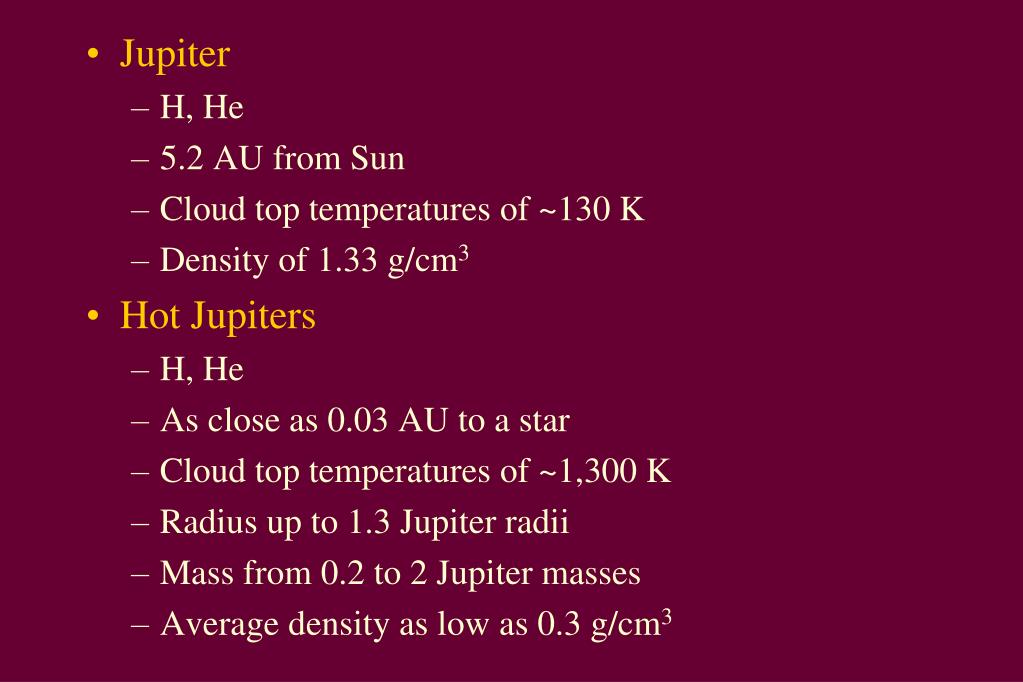

    22. Jupiter • H, He • 5.2 AU from Sun • Cloud top temperatures of ~130 K • Density of 1.33 g/cm3 • Hot Jupiters • H, He • As close as 0.03 AU to a star • Cloud top temperatures of ~1,300 K • Radius up to 1.3 Jupiter radii • Mass from 0.2 to 2 Jupiter masses • Average density as low as 0.3 g/cm3

    23. 10 100 1,000 (lightyears)

    24. Some Possible Ways to detect Planets • Pulsar Timing • Radial Velocity (Doppler Method) • Transit Method • Direct Observation

    25. Pulsars • Rotating Neutron Stars • Have densities of 8×1013 to 2×1015 g/cm³

    26. http://www-learning.berkeley.edu/astrobiology/powerpointhtml/sld035.htmhttp://www-learning.berkeley.edu/astrobiology/powerpointhtml/sld035.htm

    27. http://en.wikipedia.org/wiki/Image:Ssc2006-10c.jpg

    28. Would you want to live on a pulsar planet?

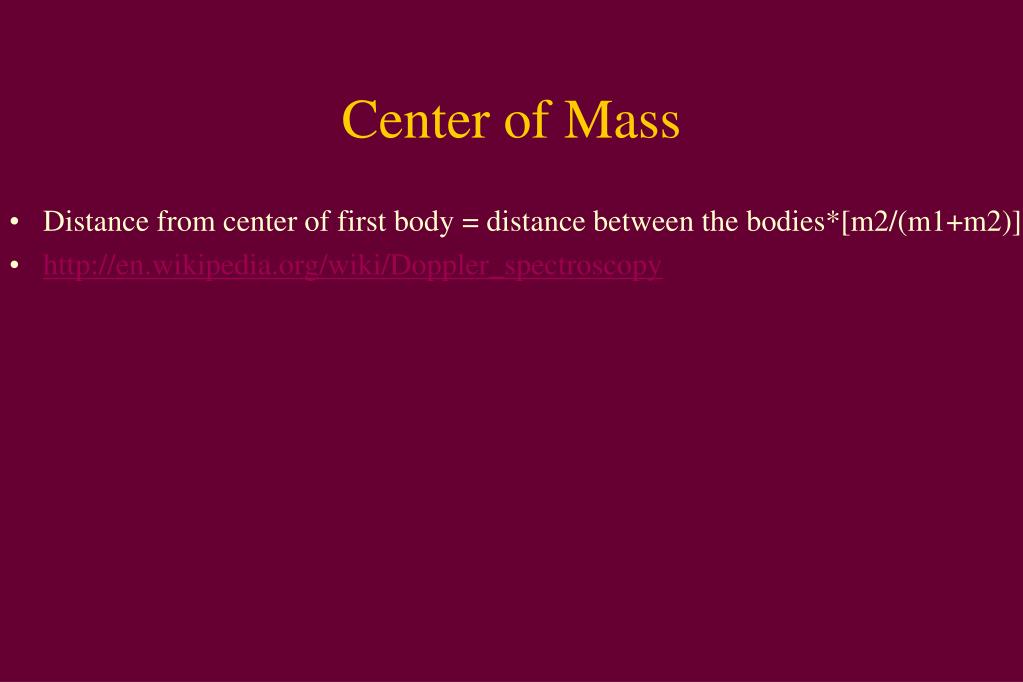

    29. Center of Mass • Distance from center of first body = distance between the bodies*[m2/(m1+m2)] • http://en.wikipedia.org/wiki/Doppler_spectroscopy

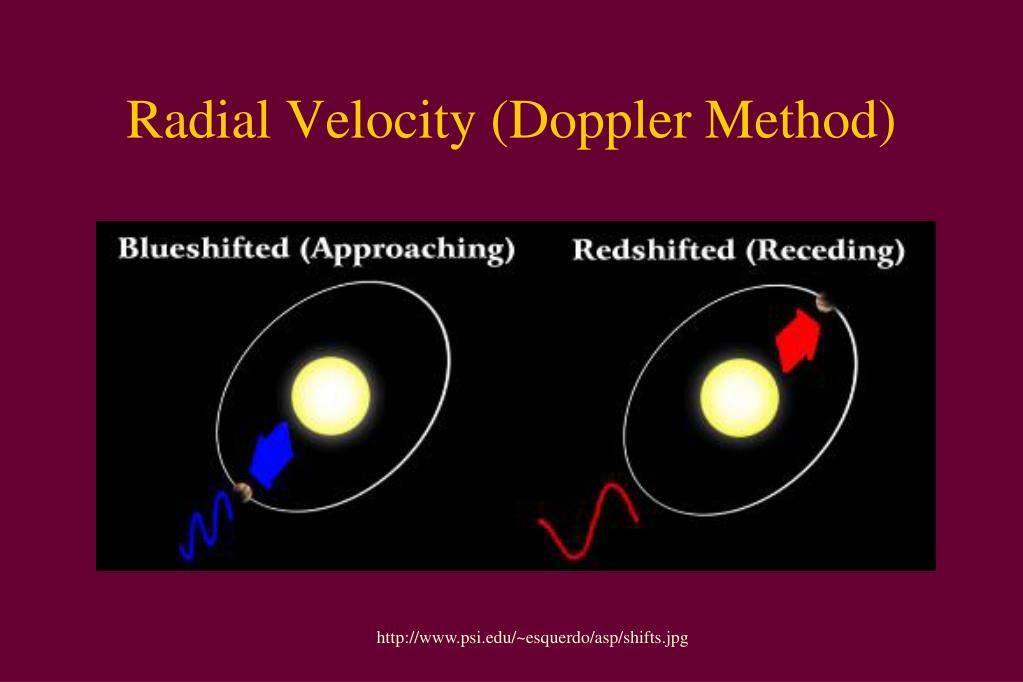

    30. Radial Velocity (Doppler Method) http://www.psi.edu/~esquerdo/asp/shifts.jpg

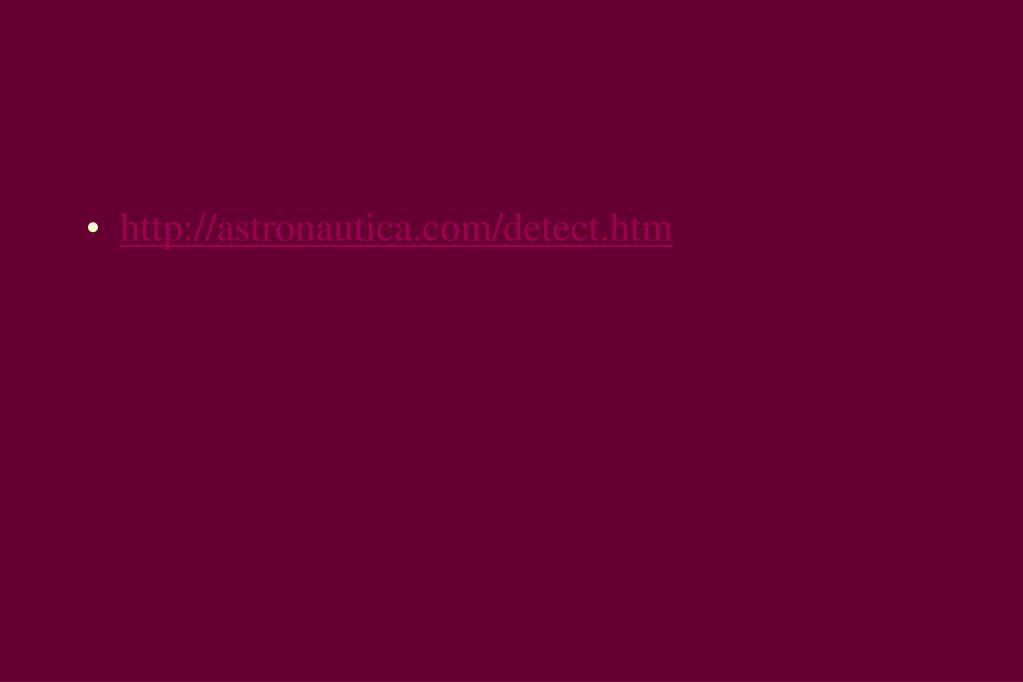

    31. http://astronautica.com/detect.htm

    32. Wavelength http://www.psi.edu/~esquerdo/asp/method.html

    33. www.physics.brandeis.edu/powerpoint/Charbonneau.ppt

    34. Bias • Why will the Doppler method will preferentially discover large planets close to the Star?

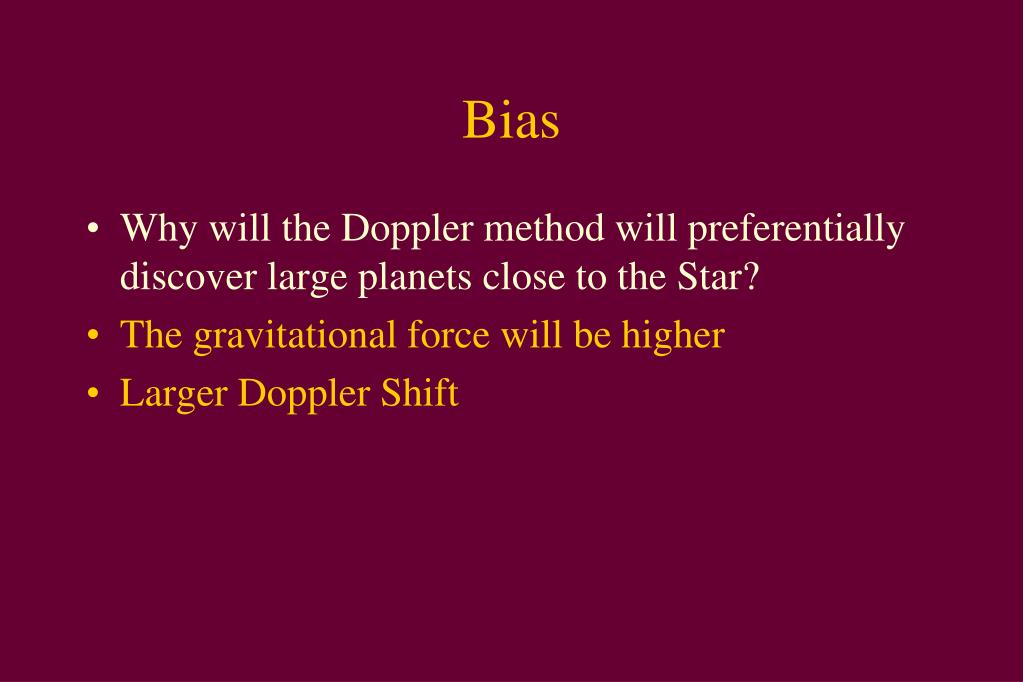

    35. Bias • Why will the Doppler method will preferentially discover large planets close to the Star? • The gravitational force will be higher • Larger Doppler Shift

    36. Transit Method • When one celestial body appears to move across the face of another celestial body

    37. When the planet crosses the star's disk, the visual brightness of the star drops a small amount • The amount the star dims depends on its size and the size of the planet. • For example, in the case of HD 209458, the star dims 1.7%. • http://en.wikipedia.org/wiki/Extrasolar_planets#Transit_method

    38. One major problem • Orbit has to be edge on

    39. Eclipse • Planet passes in back of a star • http://www.news.cornell.edu/stories/March05/Planet-eclipse-Plot.mov • Because the star is so much brighter than a planet, the dip in brightness is smaller during an eclipse than a transit • Usually to maximize the effects of an eclipse, astronomers observe these eclipses at infrared wavelengths

    40. Direct Observation • Infrared Image

    41. http://www.news.cornell.edu/stories/March05/extrasolar.ws.htmlhttp://www.news.cornell.edu/stories/March05/extrasolar.ws.html • http://nai.nasa.gov/library/images/news_articles/319_1.jpg Visible Infrared

    42. http://en.wikipedia.org/wiki/Image:Extrasolar_planet_NASA2.jpghttp://en.wikipedia.org/wiki/Image:Extrasolar_planet_NASA2.jpg

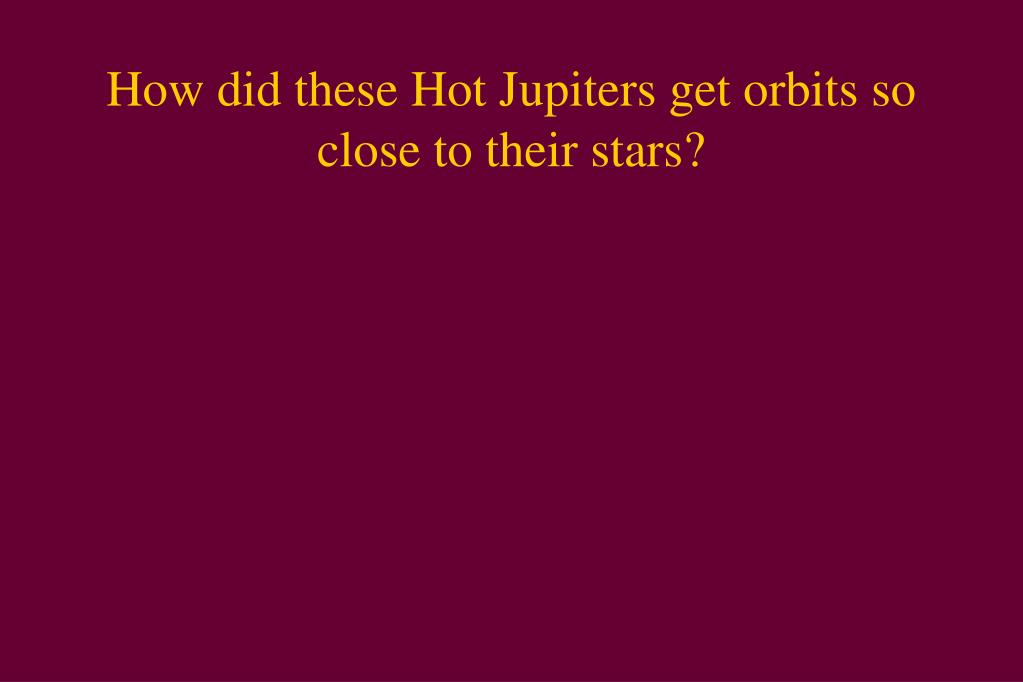

    43. How did these Hot Jupiters get orbits so close to their stars?

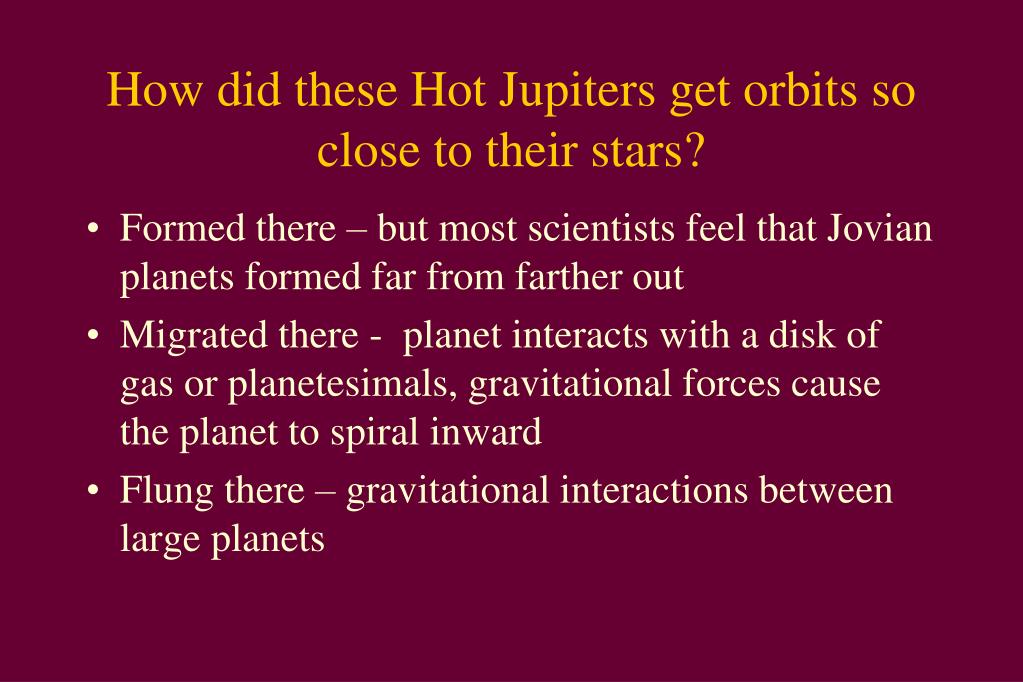

    44. How did these Hot Jupiters get orbits so close to their stars? • Formed there – but most scientists feel that Jovian planets formed far from farther out • Migrated there - planet interacts with a disk of gas or planetesimals, gravitational forces cause the planet to spiral inward • Flung there – gravitational interactions between large planets

    45. Kepler Mission • Kepler Mission is a NASA space telescope designed to discover Earth-like planets orbiting other stars. • Using a space photometer, it will observe the brightness of over 100,000 stars over 3.5 years to detect periodic transits of a star by its planets (the transit method of detecting planets) as it orbits our Sun. • Launched March 6, 2009

    46. Kepler Mission http://en.wikipedia.org/wiki/File:Keplerpacecraft.019e.jpg
