Rolling

Rolling. A rolling wheel is moving forward with kinetic energy. The velocity is measured at the center of mass. K CM = ½ m v 2. A rolling wheel is rotating with kinetic energy. The axis of rotation is at the center of mass. K rot = ½ I w 2. Rotation and Translation. w. v. No Slipping.

adrian-goff
Download Presentation

Rolling

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Rolling

  2. A rolling wheel is moving forward with kinetic energy. The velocity is measured at the center of mass. KCM = ½ mv2 A rolling wheel is rotating with kinetic energy. The axis of rotation is at the center of mass. Krot = ½ Iw2 Rotation and Translation w v

  3. No Slipping • A wheel can slide, but true rolling occurs without slipping. • As it moves through one rotation it moves forward 2pR. w v v = 2pR/T = wR R Dx = 2pR

  4. Point on the Edge • A point on the edge moves with a speed compared to the center, v = wr. • Rolling motion applies the same formula to the center of mass velocity, v = wR. • The total velocity of points varies by position. v =2vCM vCM v =0

  5. Rolling Energy • The energy of a rolling wheel is due to both the translation and rotation. • The velocity is linked to the angular velocity. • The effective energy is the same as a wheel rotating about a point on its edge. • Parallel axis theorem

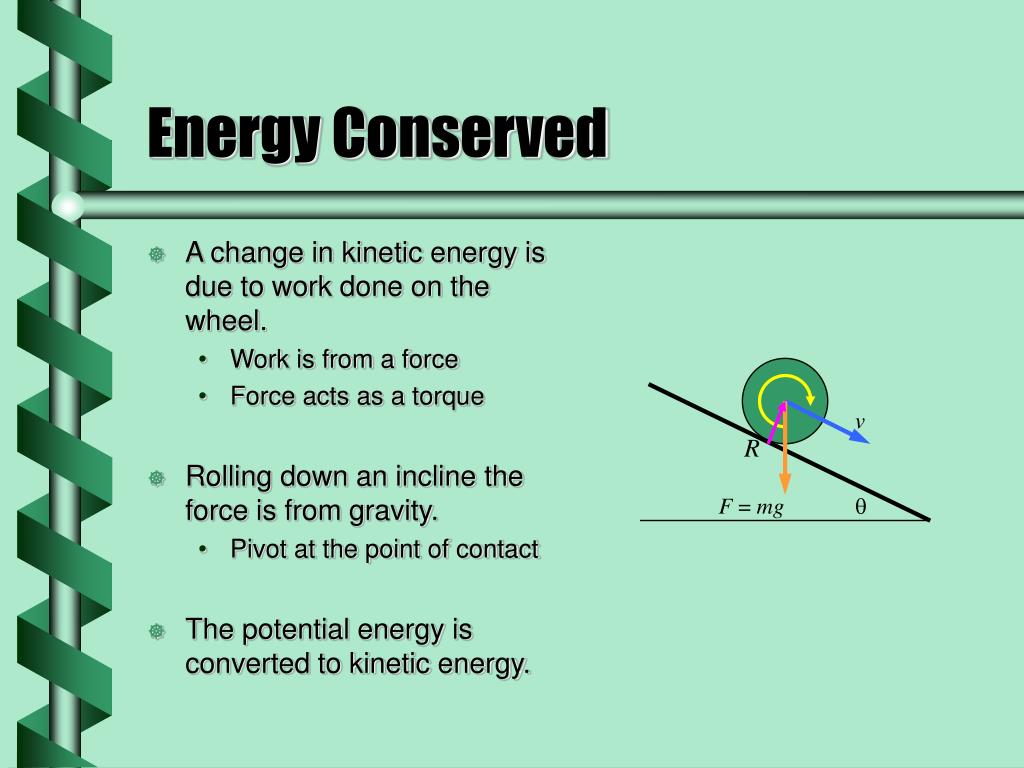

  6. A change in kinetic energy is due to work done on the wheel. Work is from a force Force acts as a torque Rolling down an incline the force is from gravity. Pivot at the point of contact The potential energy is converted to kinetic energy. Energy Conserved v R F = mg q

  7. Rolling Friction • A perfect wheel has no sliding, so there should be no friction. • Real wheels and ground press together. • Points with some velocity • Forward component generates friction v >0 next
