  1. SharePoint Server 2013 Architecture and Identity www.netcomlearning.com

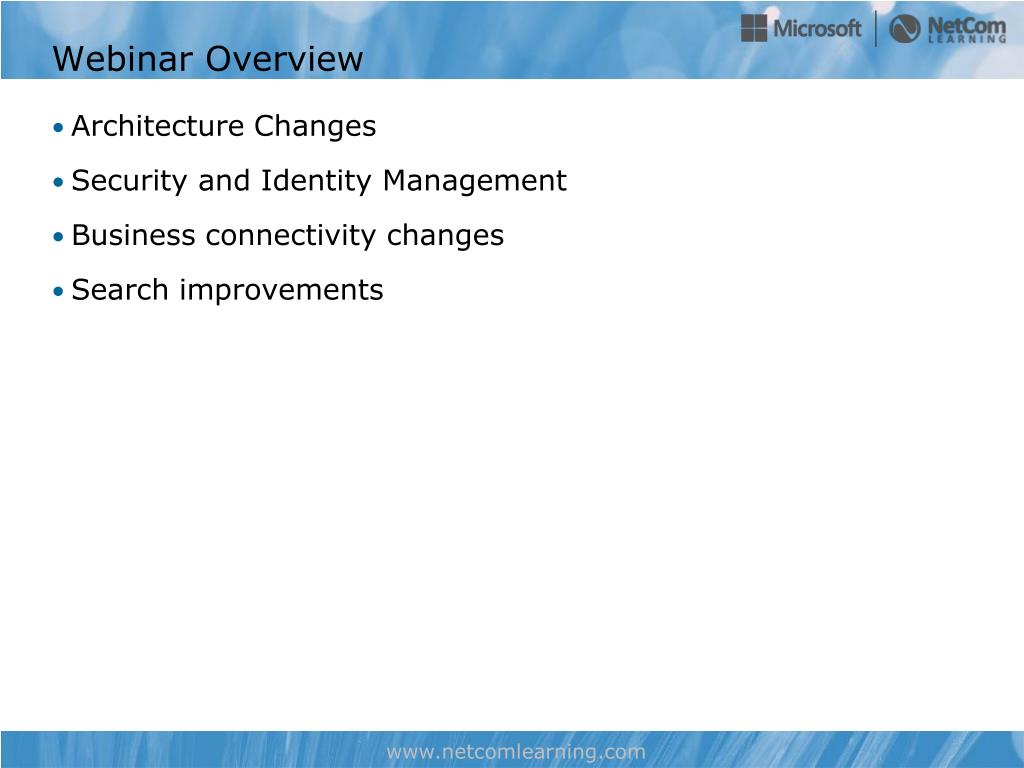

  2. Webinar Overview • Architecture Changes Security and Identity Management • Business connectivity changes • Search improvements www.netcomlearning.com

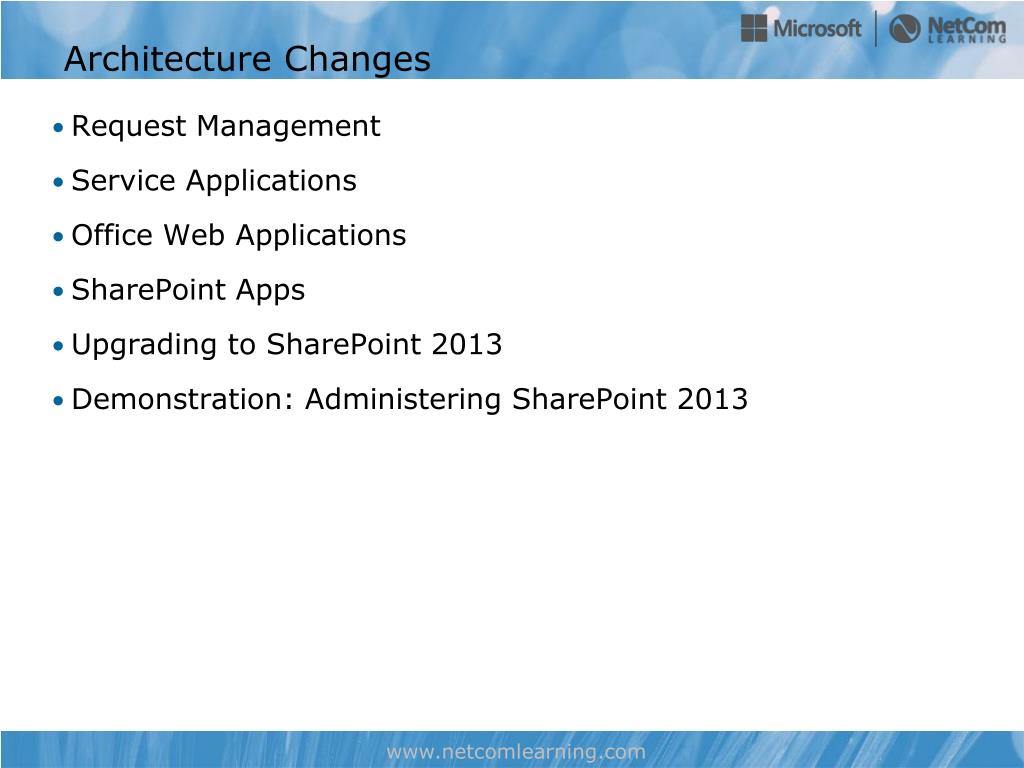

  3. Architecture Changes • Request Management Service Applications Office Web Applications SharePoint Apps Upgrading to SharePoint 2013 Demonstration: Administering SharePoint 2013 www.netcomlearning.com

  4. Request Management • Enables SharePoint to process incoming requests according to configurable rules • Run in integrated mode for most environments • Run in dedicated mode for large environments and multiple farms • Consists of three components: • Request Throtting and Routing • Request Prioritization • Request Load Balancing • Create routing rules and throttling rules to prioritize requests and maintain service levels www.netcomlearning.com

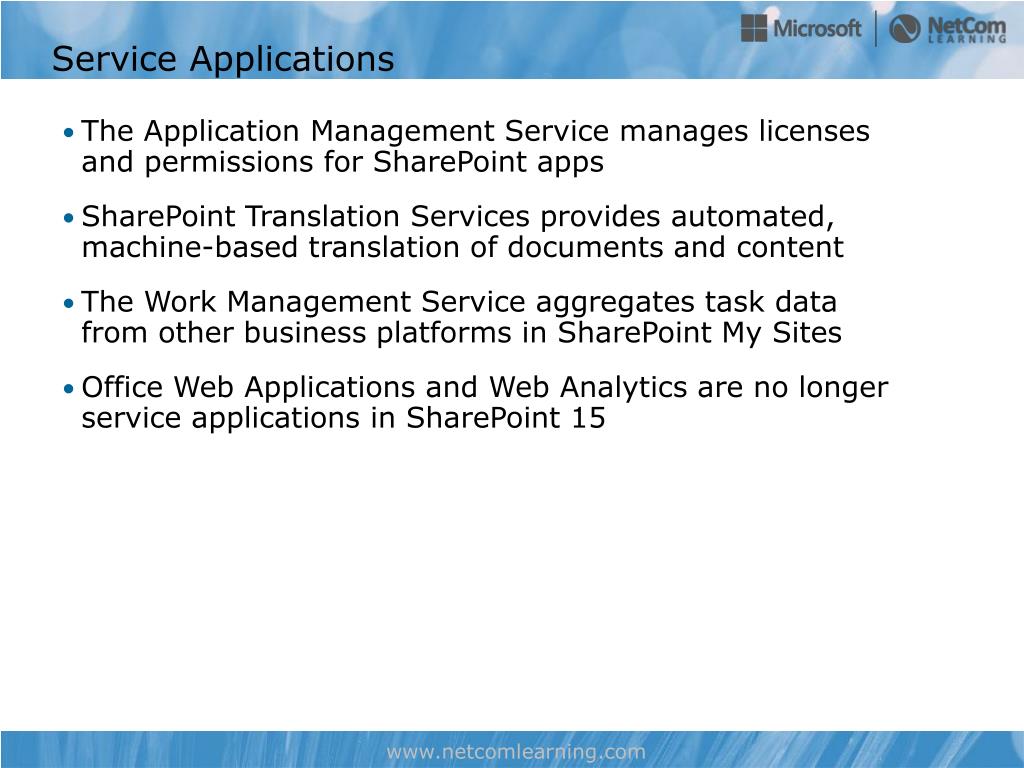

  5. Service Applications • The Application Management Service manages licenses and permissions for SharePoint apps • SharePoint Translation Services provides automated, machine-based translation of documents and content • The Work Management Service aggregates task data from other business platforms in SharePoint My Sites • Office Web Applications and Web Analytics are no longer service applications in SharePoint 15 www.netcomlearning.com

  6. Office Web Applications • Office Web Applications is now a separate server product • You can scale your Office Web Applications and SharePoint deployments independently • One Office Web Applications farm can serve multiple SharePoint farms • Use Windows PowerShell to associate your SharePoint farm with an Office Web Applications farm www.netcomlearning.com

  7. SharePoint Apps • A new way of distributing and exposing functionality through the SharePoint UI • App logic can run in the cloud or in the local environment • Apps can be purchased or downloaded from the Office Marketplace • The Corporate Catalog site collection makes apps available across a SharePoint web application • Apps can only access SharePoint functionality through the CSOM www.netcomlearning.com

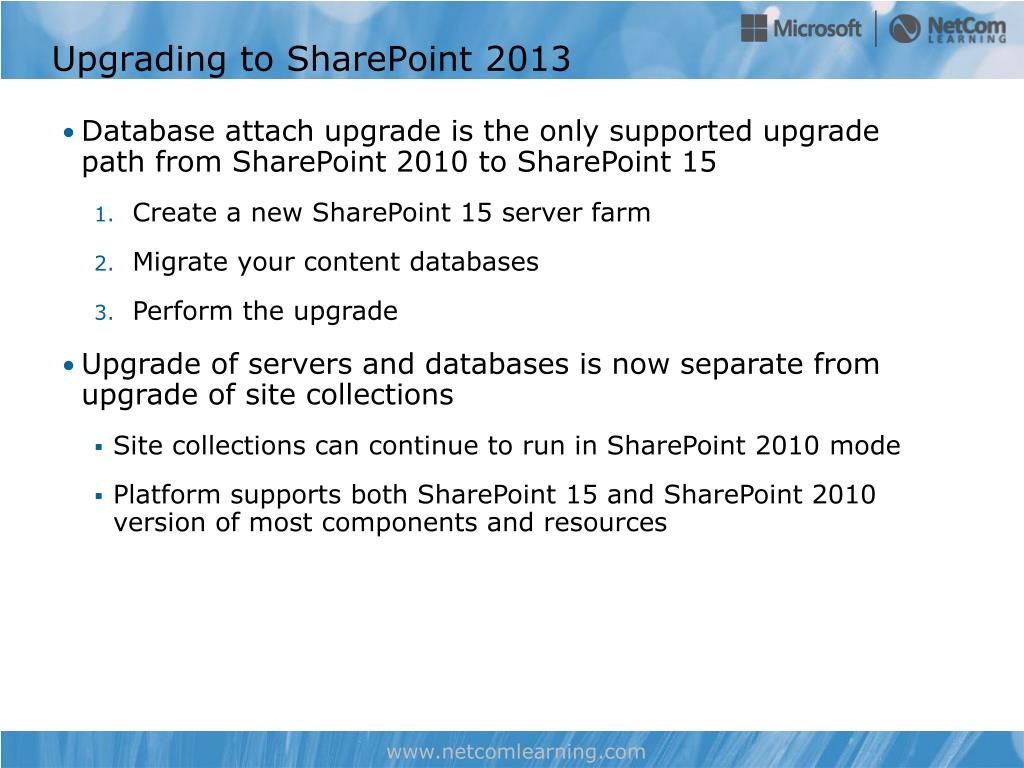

  8. Upgrading to SharePoint 2013 • Database attach upgrade is the only supported upgrade path from SharePoint 2010 to SharePoint 15 • Create a new SharePoint 15 server farm • Migrate your content databases • Perform the upgrade • Upgrade of servers and databases is now separate from upgrade of site collections • Site collections can continue to run in SharePoint 2010 mode • Platform supports both SharePoint 15 and SharePoint 2010 version of most components and resources www.netcomlearning.com

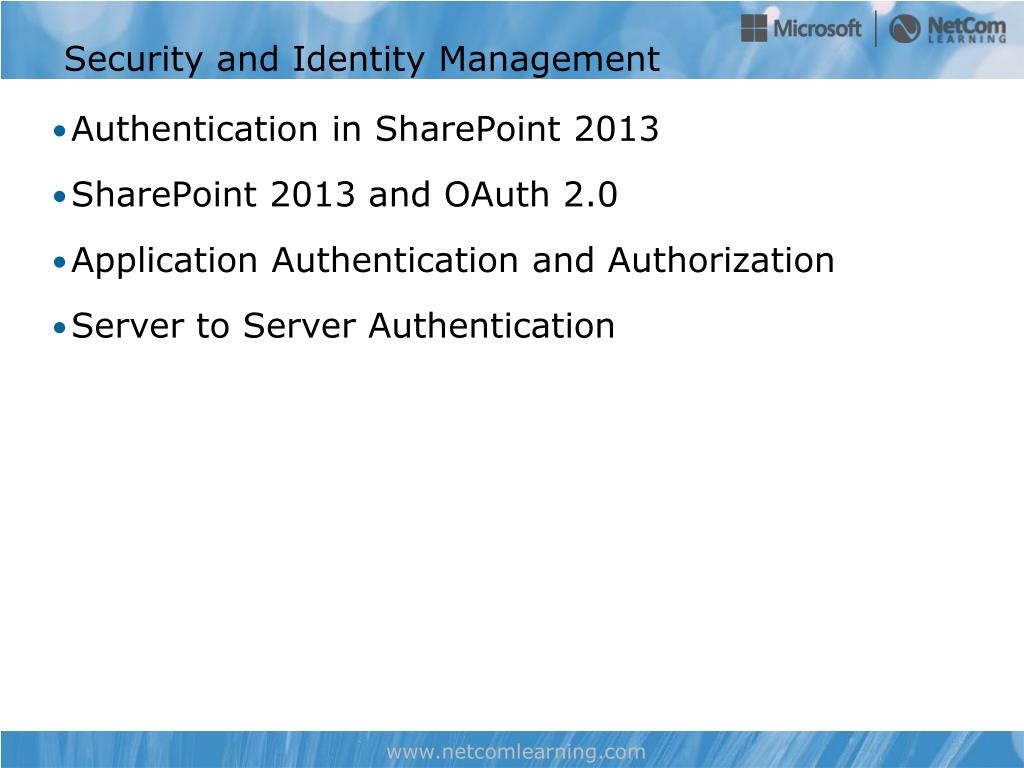

  9. Security and Identity Management • Authentication in SharePoint 2013 SharePoint 2013 and OAuth 2.0 Application Authentication and Authorization Server to Server Authentication www.netcomlearning.com

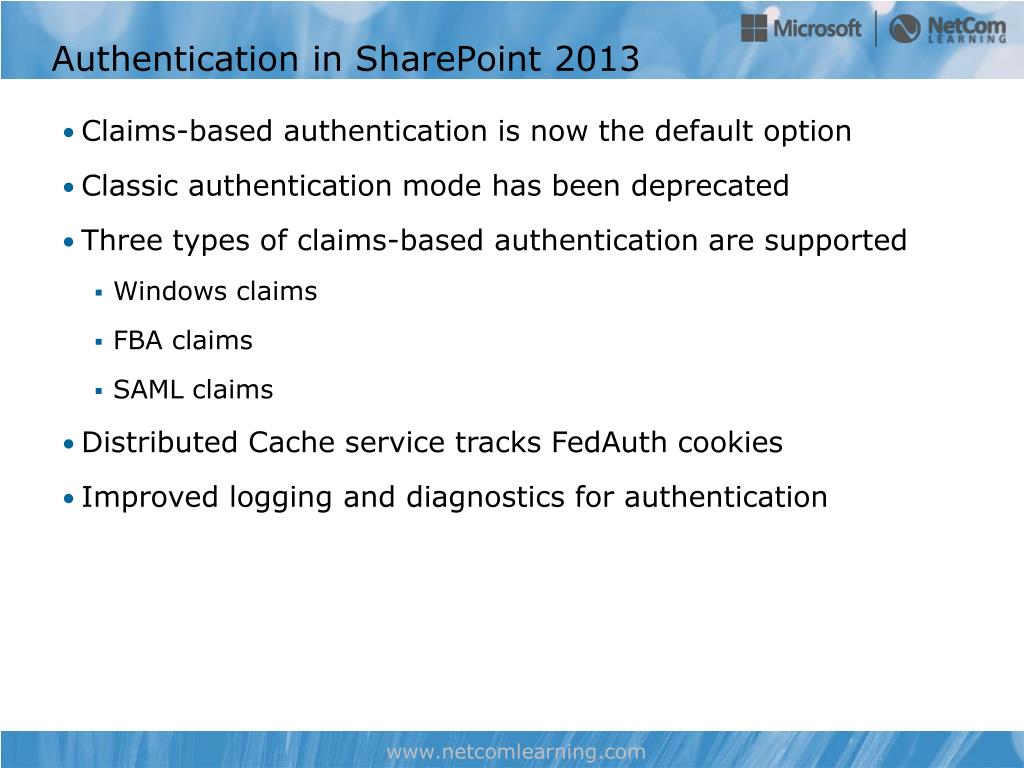

  10. Authentication in SharePoint 2013 • Claims-based authentication is now the default option • Classic authentication mode has been deprecated • Three types of claims-based authentication are supported • Windows claims • FBA claims • SAML claims • Distributed Cache service tracks FedAuth cookies • Improved logging and diagnostics for authentication www.netcomlearning.com

  11. SharePoint 2013 and OAuth 2.0 • OAuth enables users to share specific resources with third parties without sharing their access credentials • Third parties are issued with an access token • An access token grants access to a specific resource for a defined period of time (for example 30 minutes) • SharePoint 15 implements and extends OAuth 2.0 for two scenarios: • Application authentication and authorization • Server to server authentication www.netcomlearning.com

  12. Application Authentication and Authorization User User loads an app in SharePoint App requests an access token from Azure ACS ACS authenticates app and issues token 1 6 SharePoint App 4 5 App presents access token to SharePoint SharePoint returns data to app App presents data to user 2 3 Azure ACS www.netcomlearning.com

  13. Polls www.netcomlearning.com

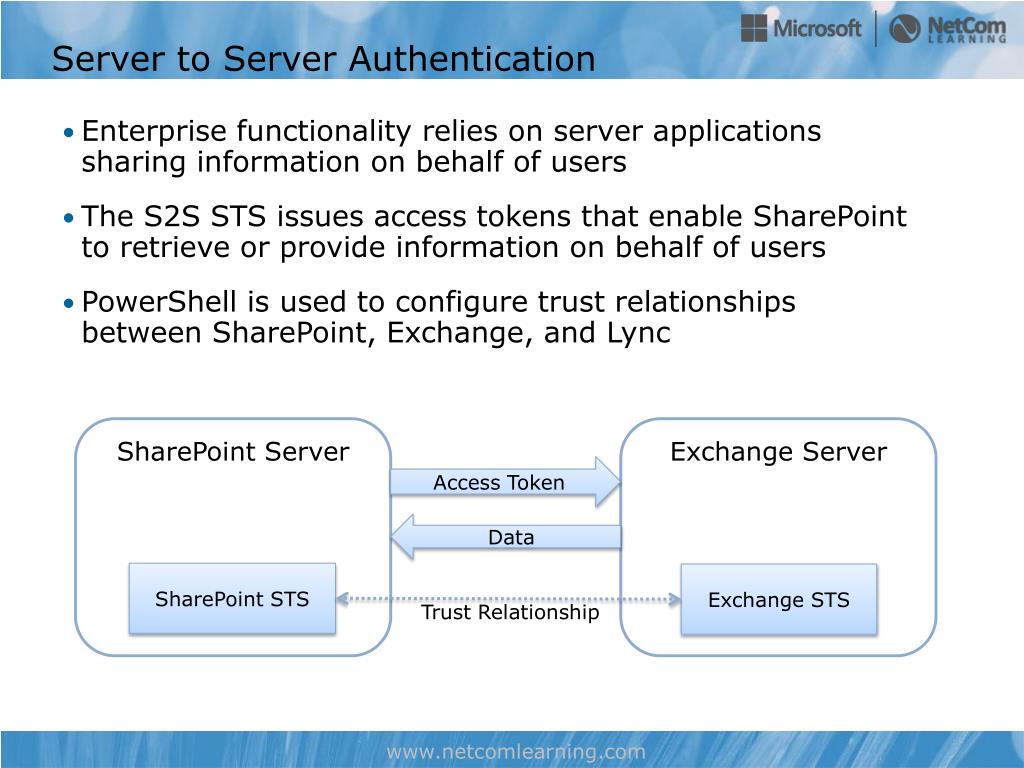

  14. Server to Server Authentication • Enterprise functionality relies on server applications sharing information on behalf of users • The S2S STS issues access tokens that enable SharePoint to retrieve or provide information on behalf of users • PowerShell is used to configure trust relationships between SharePoint, Exchange, and Lync SharePoint Server Exchange Server Access Token Data SharePoint STS Exchange STS Trust Relationship www.netcomlearning.com

  15. What’s New in Business Connectivity Services? • OData Connections External Events External List Enhancements BDC Model Scopes Demonstration: Adding an OData Connection in SharePoint Designer 2013 www.netcomlearning.com

  16. OData Connections • BCS includes native support for OData • Generate BDC models from OData automatically in Visual Studio • Build BDC models from OData interactively in SharePoint Designer • OData provides access to a wide range of third party systems and data sources www.netcomlearning.com

  17. External Events SharePoint SharePoint BDC External System Operations Alerts Notifications OData endpoint www.netcomlearning.com

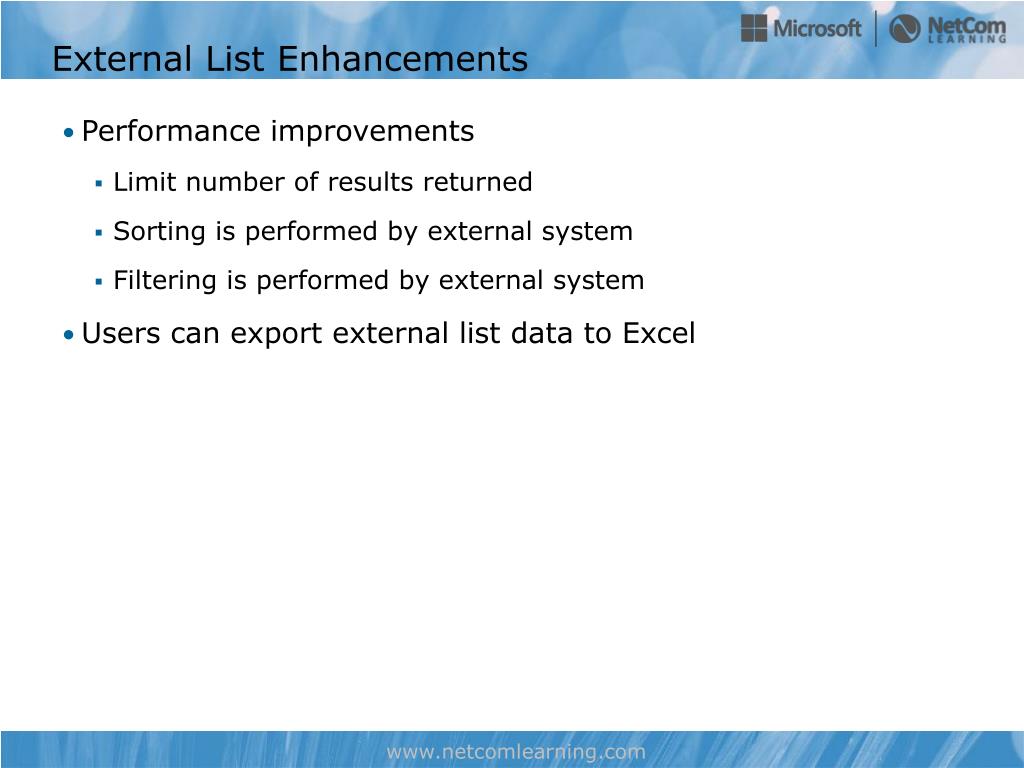

  18. External List Enhancements • Performance improvements • Limit number of results returned • Sorting is performed by external system • Filtering is performed by external system • Users can export external list data to Excel www.netcomlearning.com

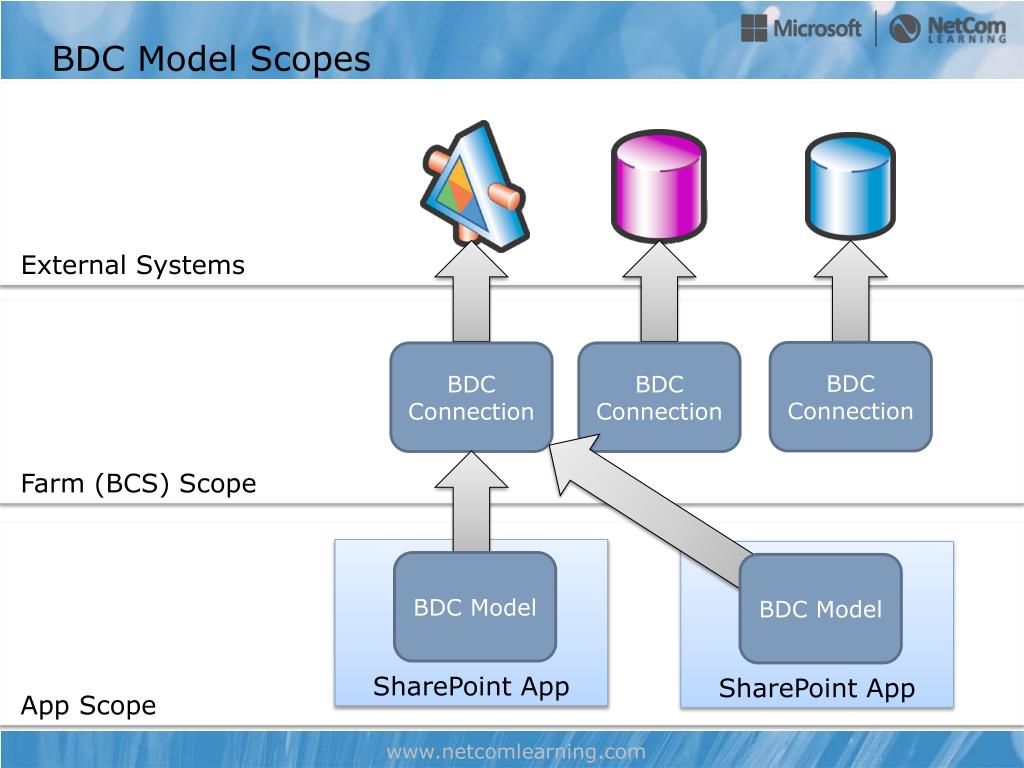

  19. BDC Model Scopes External Systems Farm (BCS) Scope BDC Connection BDC Connection BDC Connection App Scope SharePoint App SharePoint App BDC Model BDC Model www.netcomlearning.com

  20. What’s New in Search? • Search Architecture Search Crawl Relevance Enhancements User Interface Enhancements www.netcomlearning.com

  21. Search Architecture Client Application Content Sources Query Processing Component Crawl Component Content Processing Component Index Component Crawl Database Analytics Processing Component Link Database Event Store Analytics Reporting Database www.netcomlearning.com

  22. Search Crawl • Continuous crawl • Alternative to scheduled incremental crawl • Crawl processes are started automatically as required • Keeps index as fresh as possible • Entity search • Crawler looks for specific words or phrases, or entities, in unstructured content • Could include product names or project codenames • Create and deploy dictionaries containing your entities • Entities are stored as managed properties www.netcomlearning.com

  23. Relevance Enhancements • The search analytics component continually works to improve relevance • Query rules enable you to match search results to user intent • Result sources replace federated locations and search scopes www.netcomlearning.com

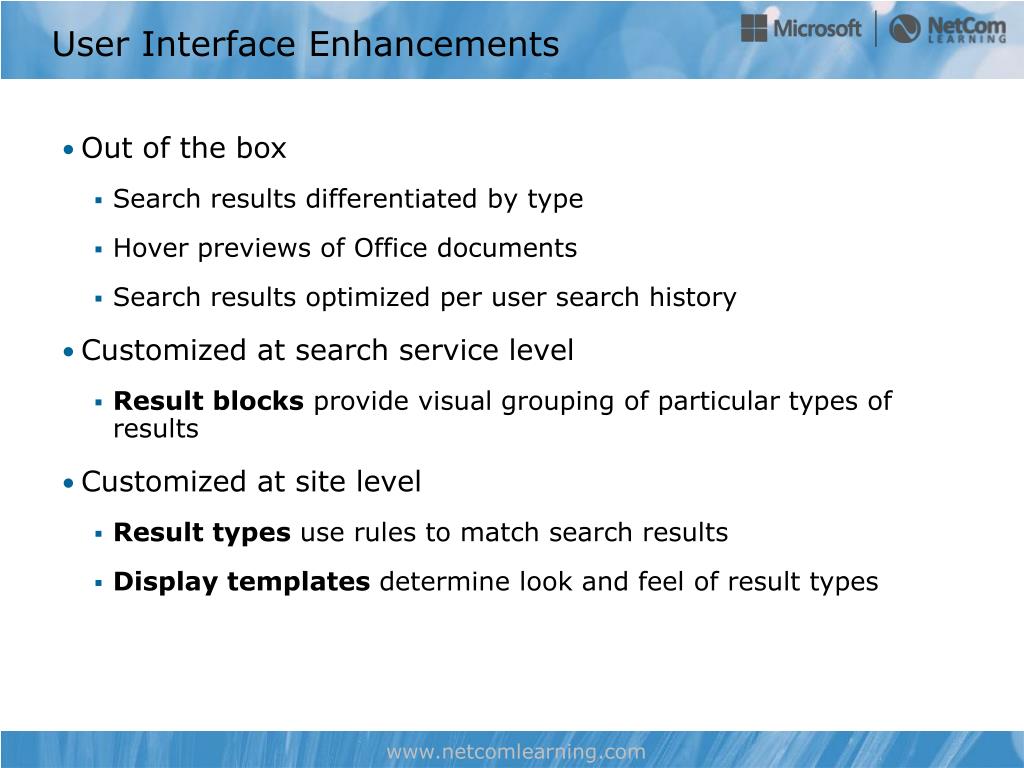

  24. User Interface Enhancements • Out of the box • Search results differentiated by type • Hover previews of Office documents • Search results optimized per user search history • Customized at search service level • Result blocks provide visual grouping of particular types of results • Customized at site level • Result types use rules to match search results • Display templates determine look and feel of result types www.netcomlearning.com

  25. www.netcomlearning.com Upcoming Webinars • Free Webinar: Microsoft SQL Server 2012 | Business Intelligence & Cloud Solutions • Free Webinar: Microsoft Dynamics AX 2012 | Adaptability, Flexibility and Integration with Live Demo • Free Webinar: Lync Server 2013 Part 3 | Integration and Extensibility • Free Webinar: SharePoint Server 2013 Part 2 | Business Intelligence & Content Management • Free Webinar: Transition | Microsoft Office 2003 to Office 2010 • Free Webinar: SharePoint Server 2013 Part 3 | Social Computing & Web Content Management • Free Webinar: Windows 8 Development - HTML5 with Live Demo • Free Webinar: Windows Server 2012 DHCP & Data Duplication • Free Webinar: Windows Server 2012 and Windows 8: Better Together Sign up for free at: www.netcomlearning.com/webinars

  26. www.netcomlearning.com Love of Learning Empowering Future Generations Your class enrollment at NetCom Learning will pay for a child’s education for a year!

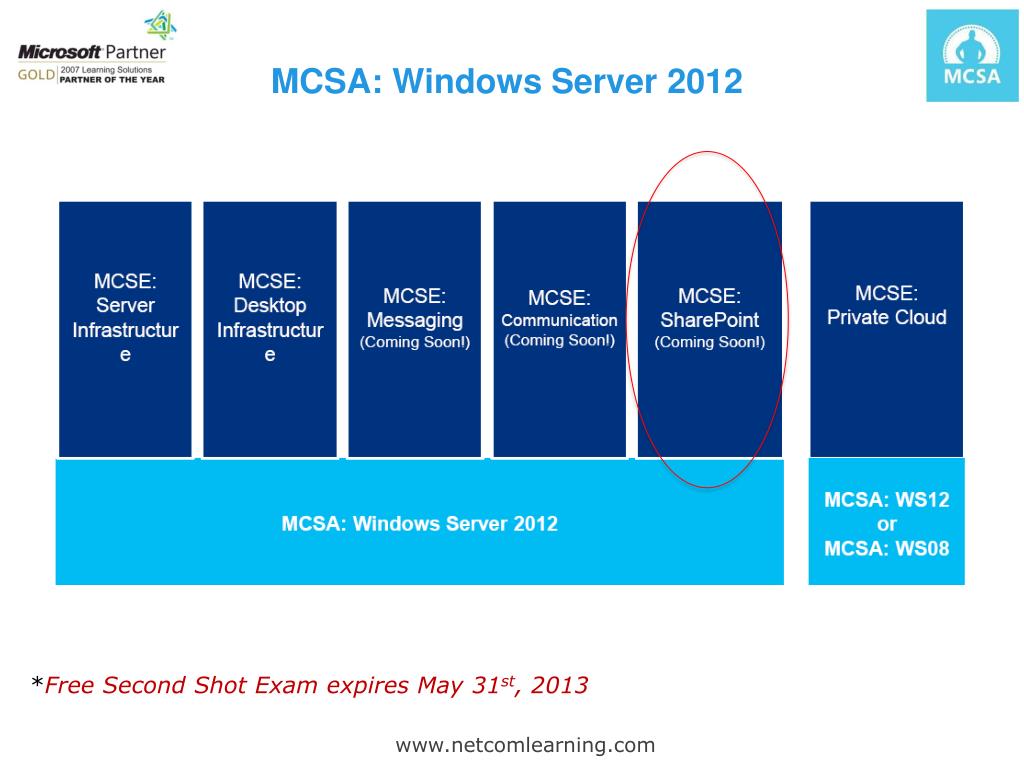

  27. www.netcomlearning.com MCSA: Windows Server 2012 *Free Second Shot Exam expires May 31st, 2013

  28. www.netcomlearning.com MCSE: SharePoint *Free Second Shot Exam expires May 31st, 2013

  29. www.netcomlearning.com MCSE: SharePoint MCSE: SharePoint • 20331: Core Solutions of Microsoft SharePoint Server 2013 • 20332: Advanced Solutions of Microsoft SharePoint Server 2013 Upcoming Classes: • May 20th in New York City & Live Online • June 10th in Las Vegas & Live Online ** Contact us for SharePoint 2010 Course Schedules Locations: Attend in-class or Live Online Instructor-led • New York • Las Vegas (All Inclusive Travel Package) • Arlington VA • Philadelphia, PA *Free Second Shot Exam expires May 31st, 2013

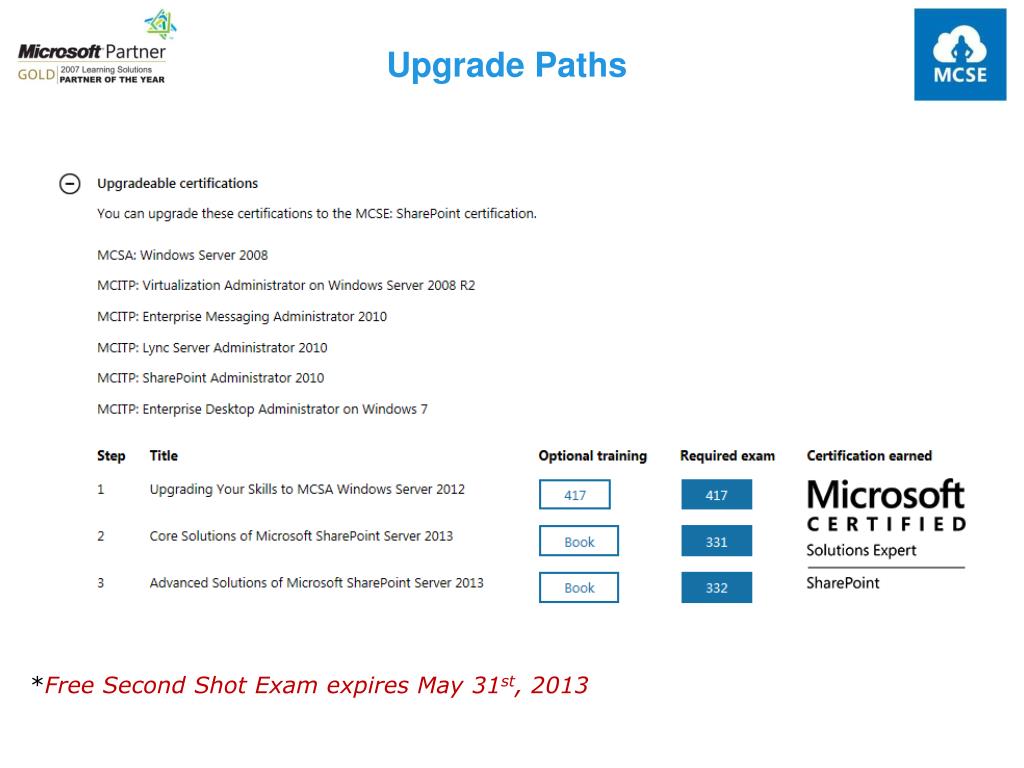

  30. Upgrade Paths *Free Second Shot Exam expires May 31st, 2013

  31. Q & A 1-888-5-NETCOM (563-8266) info@netcomlearning.com www.NetComLearning.com
