Forces & Structures

Forces & Structures . Types of Structures. Shell Structure. Has a solid surface and a hollow interior Ex. Egg shells, egg cartons, domed roofs, helmets, shoeboxes Curved structure are stronger than shell structures with surfaces Strong shells can be made from weak materials (ex. eggshells).

adonai
Download Presentation

Forces & Structures

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

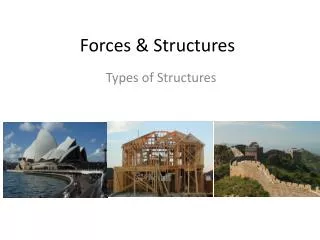

  1. Forces & Structures Types of Structures

  2. Shell Structure • Has a solid surface and a hollow interior • Ex. Egg shells, egg cartons, domed roofs, helmets, shoeboxes • Curved structure are stronger than shell structures with surfaces • Strong shells can be made from weak materials (ex. eggshells)

  3. Shell Structure

  4. Frame Structure • Formed from a combination of parts • None of the components are capable of supporting the load by itself, but when they are fastened together they support and strengthen each other • Ex. Goal posts, skeleton, hydro towers, girders on a bridge • Flexible and are usually better at handling torsion and tension forces • Less material and lighter than solid structures • May require more work to construct

  5. Frame Structure

  6. Solid Structure • Has only one part and contain no hollow spaces • Ex. Walls, dams, concrete pillars • Strength depends on bulk = they resist forces either because they are too massive to move or because the materials can resist compression • Generally the thicker the structure, the stronger it is • Also known as (AKA) mass structures • Main use of solid structures is as supports

  7. Solid Structures
