packet and circuit convergence with openflow

Stanford Clean Slate Program

http://cleanslate.stanford.edu

Packet and Circuit Convergence with OpenFlow

Guru Parulkarparulkar@stanford.eduwith Saurav Das (Stanford), Nick McKeown (Stanford), Preeti Singh (Ciena), Dan Getachew (Ciena), Lyndon Ong (Ciena)

Funded by Cisco, Deutsche Telekom, DoCoMo, Ericsson, Google, LightSpeed, MDV, NEC, NSF, Xilinx

outline

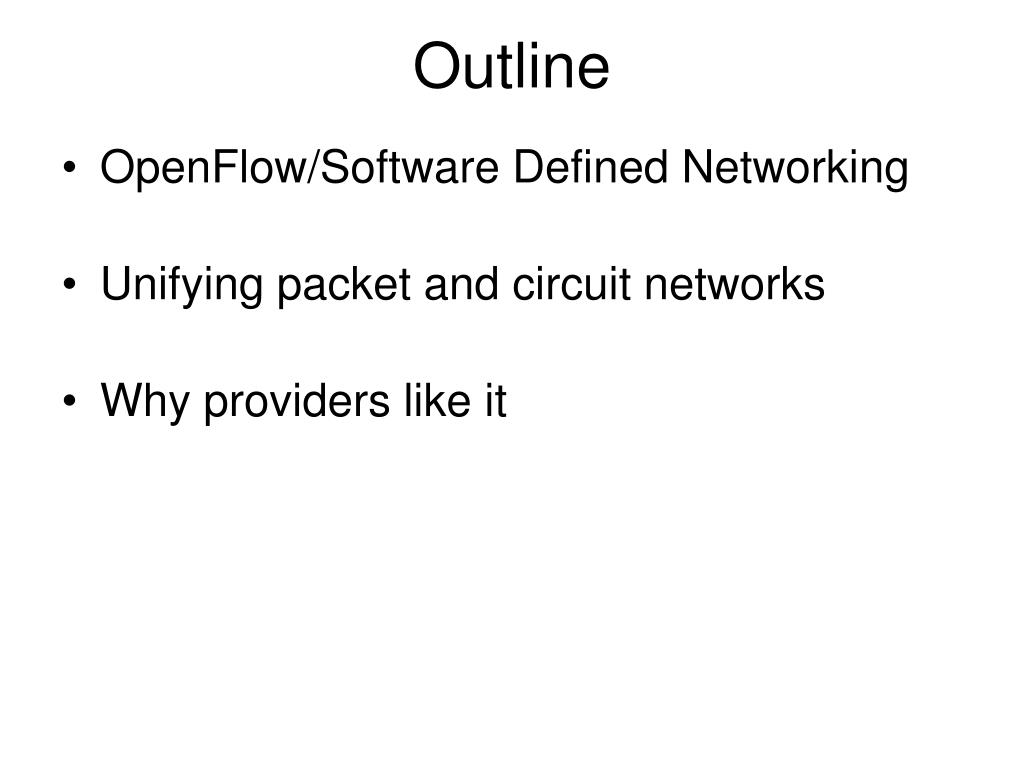

Outline
  • OpenFlow/Software Defined Networking
  • Unifying packet and circuit networks
  • Why providers like it
slide3

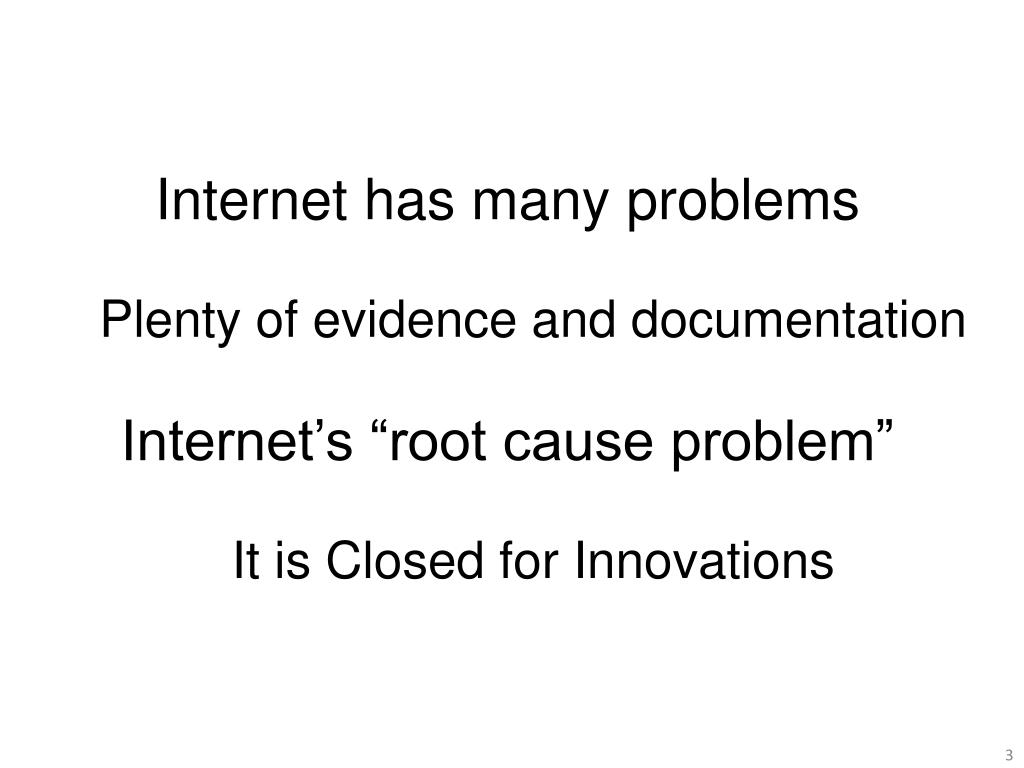

Internet has many problems

Plenty of evidence and documentation

Internet’s “root cause problem”

It is Closed for Innovations

we lost our way

Million of linesof source code

500M gates

10Gbytes RAM

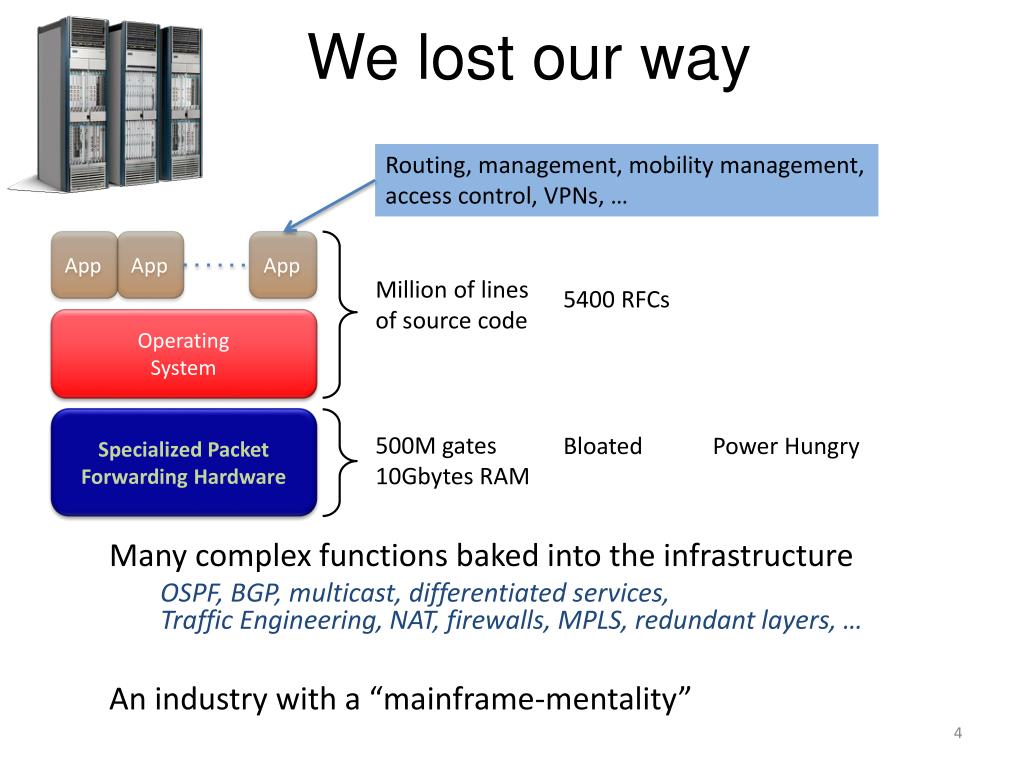

We lost our way

Routing, management, mobility management, access control, VPNs, …

App

App

App

5400 RFCs

Operating

System

Specialized Packet Forwarding Hardware

Bloated

Power Hungry

Many complex functions baked into the infrastructure

      • OSPF, BGP, multicast, differentiated services,Traffic Engineering, NAT, firewalls, MPLS, redundant layers, …
  • An industry with a “mainframe-mentality”
openflow enable innovations within the infrastructure

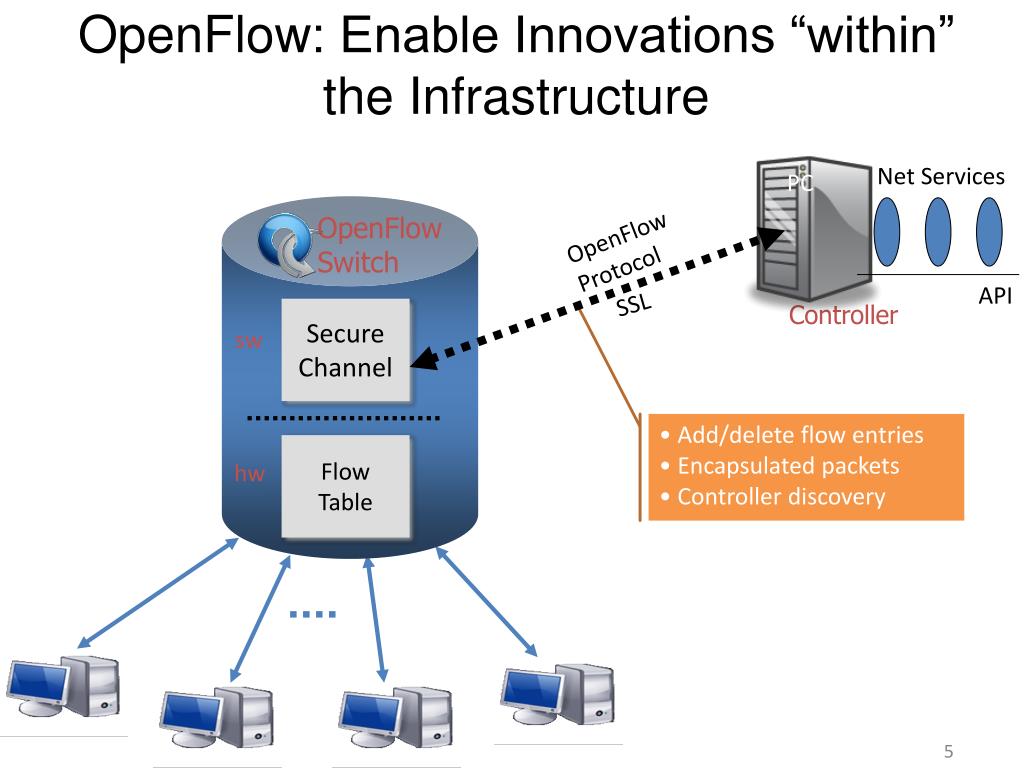

OpenFlow: Enable Innovations “within” the Infrastructure

Net Services

PC

OpenFlow

Switch

OpenFlow

Protocol

API

SSL

Controller

Secure

Channel

sw

  • Add/delete flow entries
  • Encapsulated packets
  • Controller discovery

Flow

Table

hw

slide6

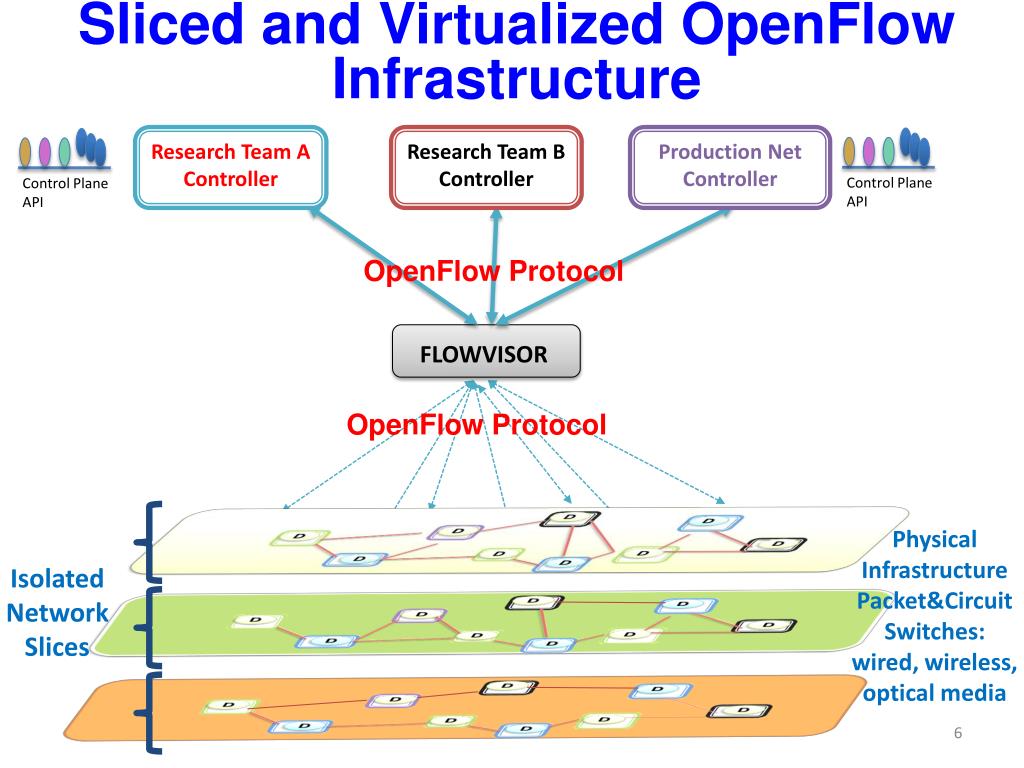

Sliced and Virtualized OpenFlow Infrastructure

C

C

Research Team A Controller

Research Team B Controller

Production Net Controller

OpenFlow Protocol

C

FLOWVISOR

Control Plane API

Control Plane API

OpenFlow Protocol

D

D

D

D

D

D

D

Isolated

Network

Slices

D

D

Physical Infrastructure

Packet&Circuit Switches: wired, wireless, optical media

D

D

D

D

D

D

D

D

D

D

D

D

D

D

D

D

D

D

example network services
Example Network Services
  • Static “VLANs”
  • New routing protocol: unicast, multicast, multipath, load-balancing
  • Network access control
  • Mobile VM management
  • Mobility and handoff management
  • Energy management
  • Packet processor (in controller)
  • IPvX
  • Network measurement and visualization
openflow enabled switches routers aps

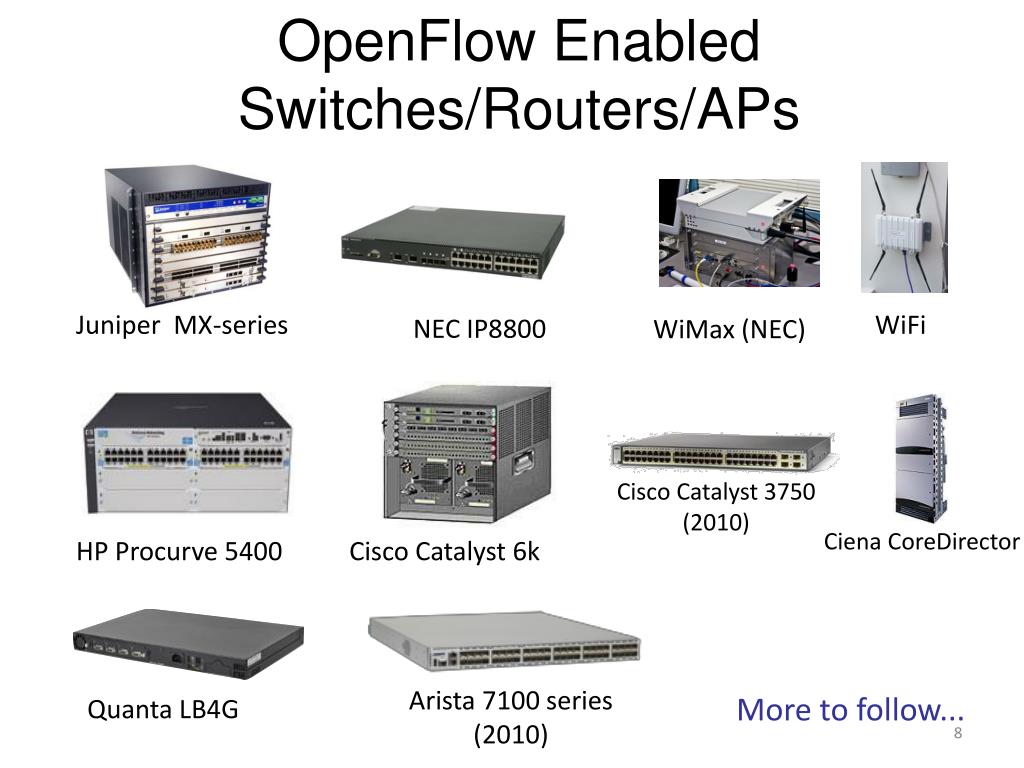

OpenFlow Enabled Switches/Routers/APs

Juniper MX-series

WiFi

NEC IP8800

WiMax (NEC)

Cisco Catalyst 3750 (2010)

Ciena CoreDirector

HP Procurve 5400

Cisco Catalyst 6k

Arista 7100 series (2010)

More to follow...

Quanta LB4G

openflow as geni networking substrate
OpenFlow as GENI Networking Substrate

D

D

D

D

D

D

D

D

D

D

D

D

D

D

D

D

D

D

D

D

D

D

D

D

D

A nationwide network before end of 2010

D

D

european deployment
European Deployment

Pan-European experimental facility

  • L2 Packet
  • Emulation
  • Wireless
  • Content delivery
  • L2 L3Packet
  • Optics
  • Content delivery
  • L2 Packet
  • Wireless
  • Routing
  • L2 Packet
  • Optics
  • Content delivery
  • L2 Packet
  • Shadow networks
openflow a hack to experiment is there a bigger architecture story with business implications

OpenFlow: A Hack to Experiment? Is there a bigger architecture story with business implications?

openflow enable innovations within the infrastructure12
OpenFlow: Enable Innovations “within” the Infrastructure

Net Services

PC

OpenFlow

Switch

OpenFlow

Protocol

API

SSL

Controller

Secure

Channel

sw

  • Add/delete flow entries
  • Encapsulated packets
  • Controller discovery

Flow

Table

hw

architecturally what it means

3. Well-defined open API

Architecturally what It Means

2. At least one good operating system

Extensible, possibly open-source

App

App

App

1. Open interface to hardware

Network Operating System

Simple Packet Forwarding Hardware

Simple Packet Forwarding Hardware

Simple Packet Forwarding Hardware

Simple Packet Forwarding Hardware

Simple Packet Forwarding Hardware

slide15

Motivation

GMPLS

C

C

IP & Transport Networks (Carrier’s view)

C

IP/MPLS

D

IP/MPLS

D

D

D

D

D

D

  • are separate networks managed and operated
  • independently
  • resulting in duplication of functions and
  • resources in multiple layers
  • and significant capex and opex burdens
  • … well known

C

C

D

D

IP/MPLS

C

IP/MPLS

D

C

D

C

D

C

D

slide16

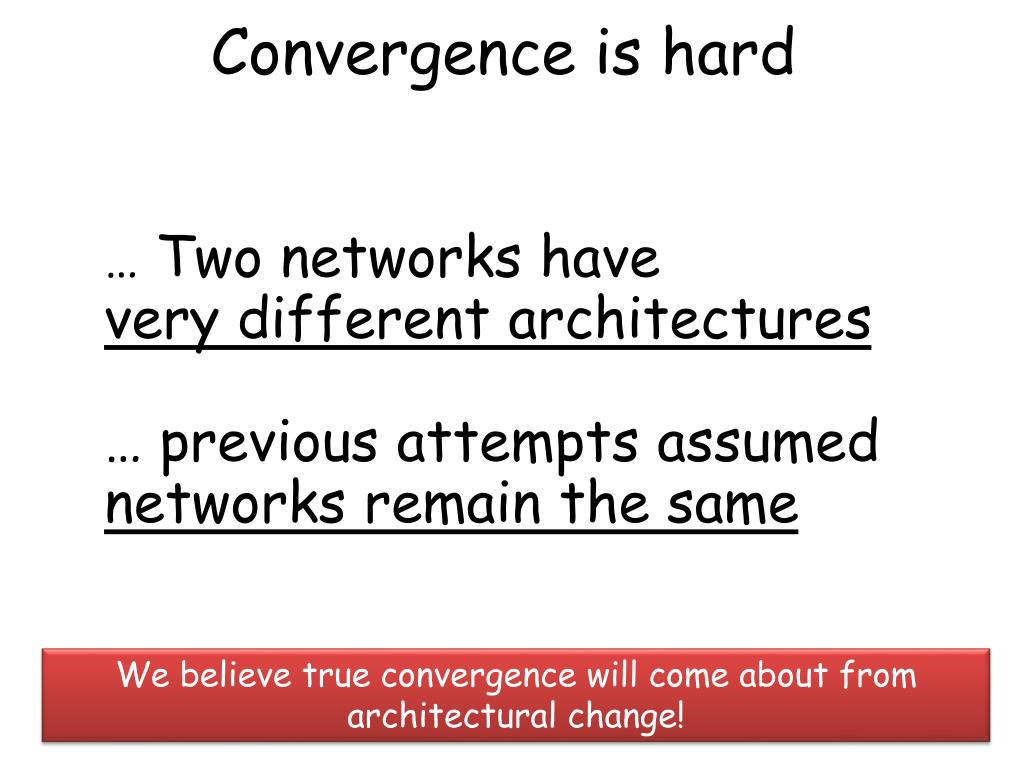

Convergence is hard

  • … Two networks have
  • very different architectures
  • … previous attempts assumed networks remain the same

We believe true convergence will come about from architectural change!

slide17

Software Defined Networking

Research Goal: Packet and Circuit Flows Commonly Controlled & Managed

D

D

D

D

D

D

D

D

D

Simple,

network

of Flow

Switches

Simple,

Unified,

Automated Control

Plane

D

UCP

D

Flow

Network

D

D

… that switch at different granularities: packet, time-slot, lambda & fiber

slide18

Switch

Port

MAC

src

MAC

dst

Eth

type

VLAN

ID

IP

Src

IP

Dst

IP

Prot

TCP

sport

TCP

dport

Out

Port

In

Port

In

Lambda

Out

Lambda

Starting

Time-Slot

Starting

Time-Slot

Action

OpenFlow & Circuit Switches

PacketFlows

Exploit the cross-connect table in circuit switches

Circuit Flows

VCG

Signal

Type

VCG

Signal

Type

The Flow Abstraction presents a unifying abstraction

… blurring distinction between underlying packet and circuit and regarding both as flows in a flow-switched network

slide19

R

R

S

S

A

A

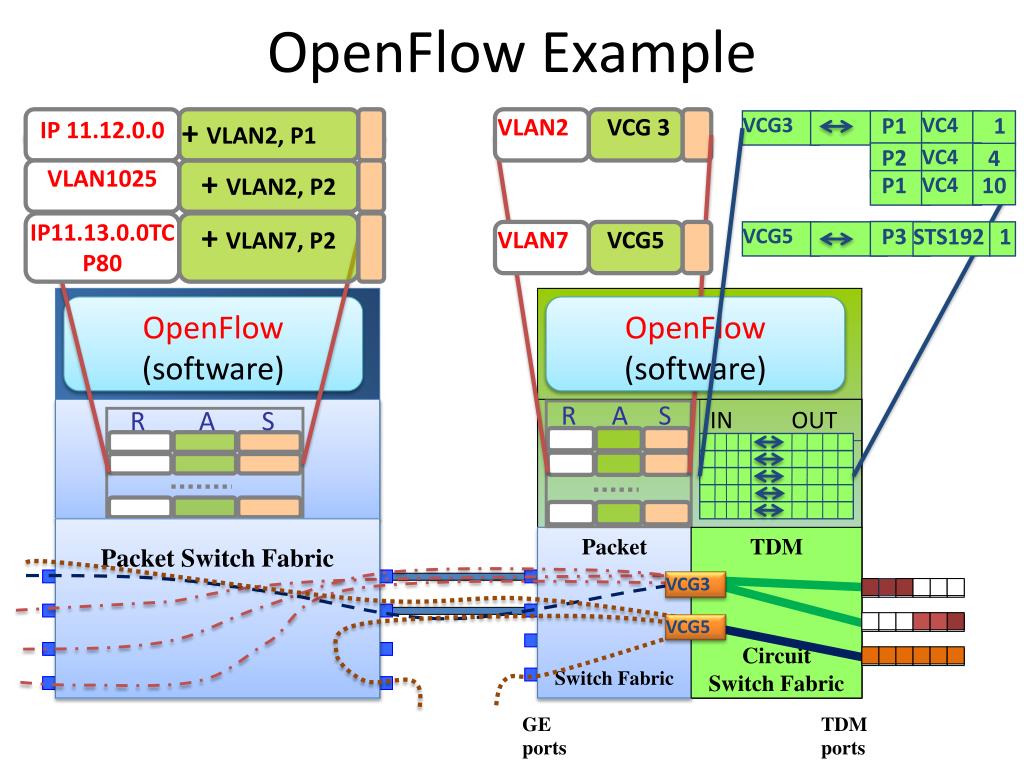

OpenFlow Example

P3

IP 11.12.0.0

+ VLAN2, P1

VLAN2

VCG 3

STS192

1

VCG5

P1

VC4

1

VCG3

P2

VC4

4

IP11.13.0.0TCP80

VLAN1025

+ VLAN7, P2

+ VLAN2, P2

VLAN7

VCG5

P1

VC4

10

OpenFlow

(software)

OpenFlow

(software)

IN OUT

Packet Switch Fabric

Packet

Switch Fabric

TDM

Circuit

Switch Fabric

VCG3

VCG5

GE ports

TDM ports

slide20

Network

Recovery

Converged packets & dynamic circuits opens up new capabilities

Congestion Control

Routing

Traffic

Engineering

QoS

Power

Mgmt

VPNs

Discovery

OpenFlow Protocol

slide21

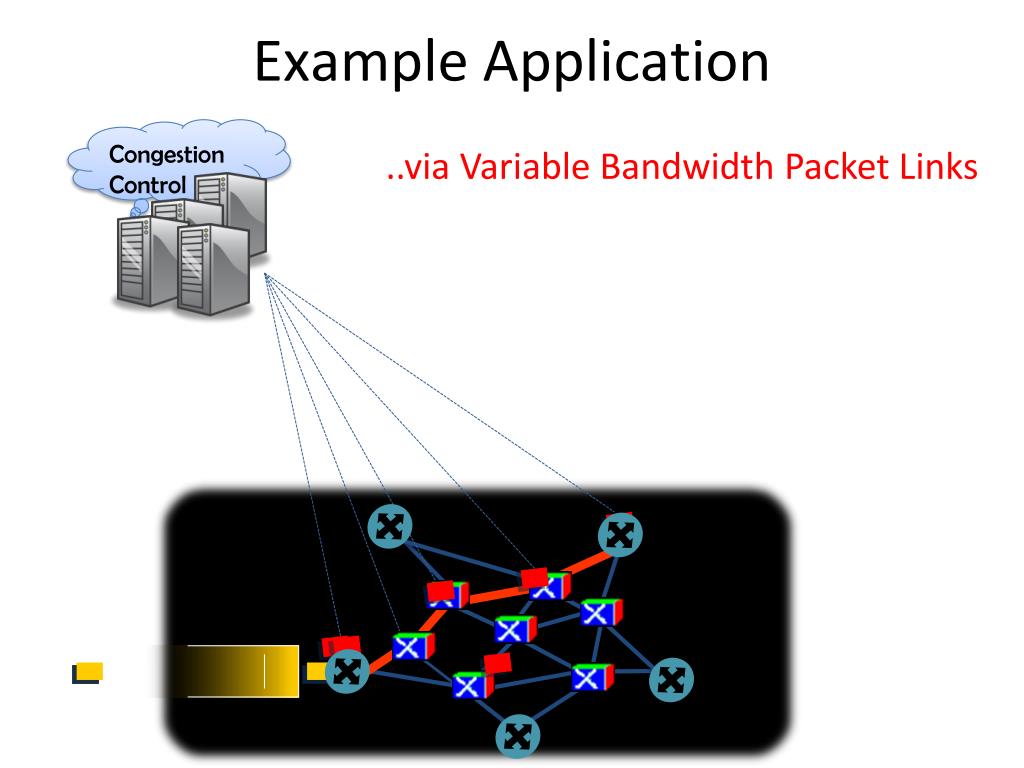

Example Application

Congestion Control

..via Variable Bandwidth Packet Links

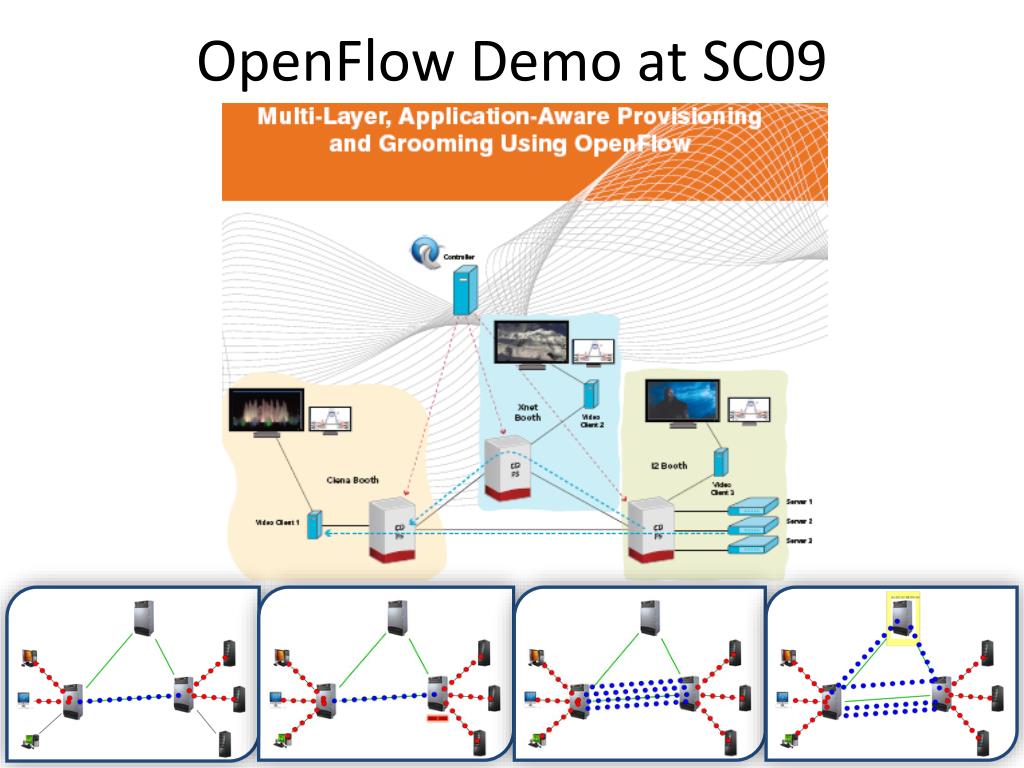

demo video

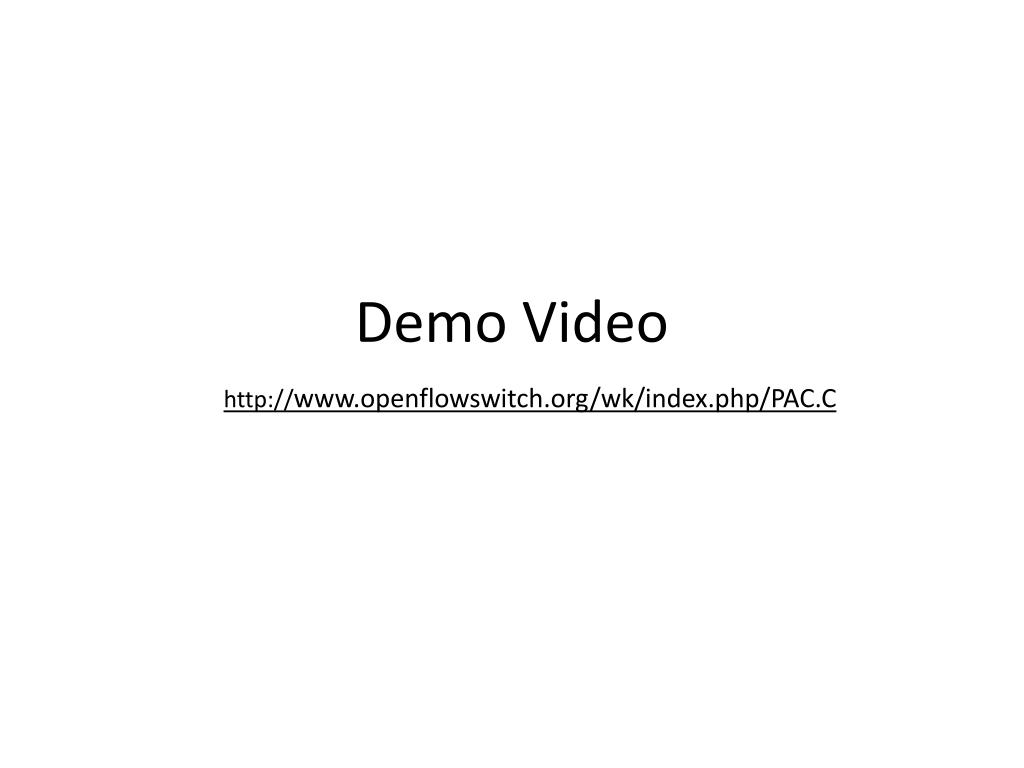

Demo Video

http://www.openflowswitch.org/wk/index.php/PAC.C

new generation providers already buy into it

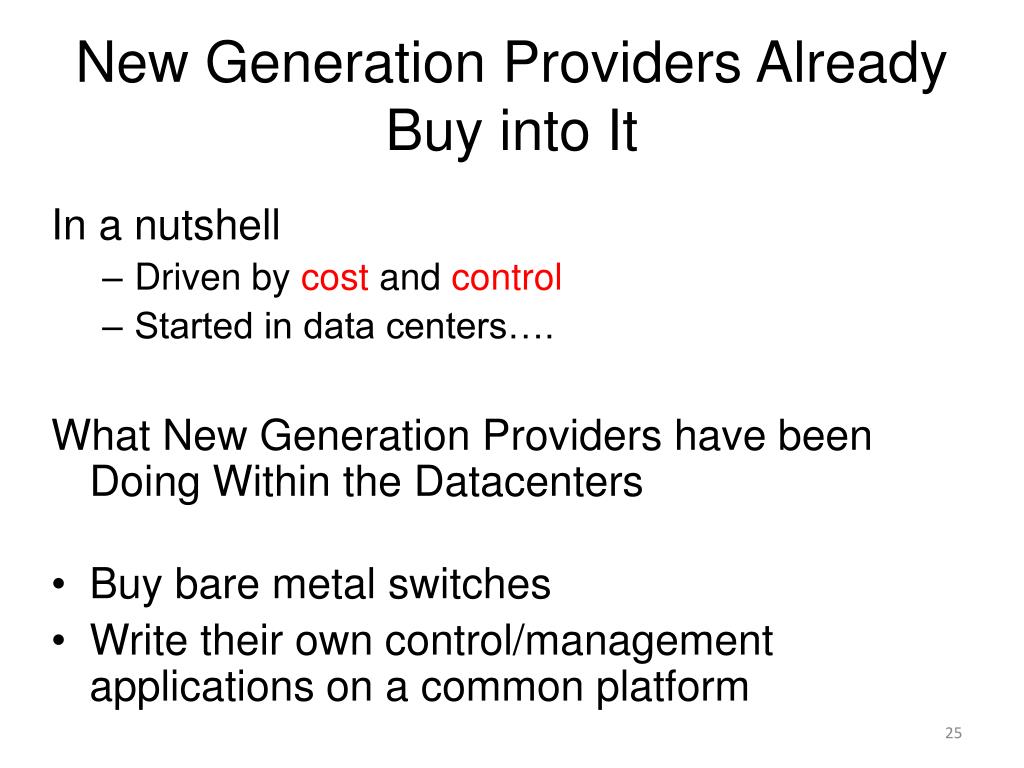

New Generation Providers Already Buy into It

In a nutshell

    • Driven by cost and control
    • Started in data centers….

What New Generation Providers have been Doing Within the Datacenters

  • Buy bare metal switches
  • Write their own control/management applications on a common platform
example new data center
Example: New Data Center

Cost

200,000 servers

Fanout of 20 a 10,000 switches

$5k commercial switch a $50M

$1k custom-built switch a $10M

Savings in 10 data centers = $400M

Control

Optimize for features needed

Customize for services & apps

Quickly improve and innovate

  • The value prop applies to enterprise and service provider networks
going forward
Going Forward
  • They want to apply this approach to other parts of their infrastructure
  • Work together to bring this change at a bigger scale

Another way to look at it …

meeting of minds with providers

3. Well-defined open API

“Meeting of Minds” with Providers

2. At least one good operating system

Extensible, possibly open-source

App

App

App

1. Open interface to hardware

Network Operating System

Simple Packet Forwarding Hardware

Simple Packet Forwarding Hardware

Simple Packet Forwarding Hardware

Simple Packet Forwarding Hardware

Simple Packet Forwarding Hardware

consequences

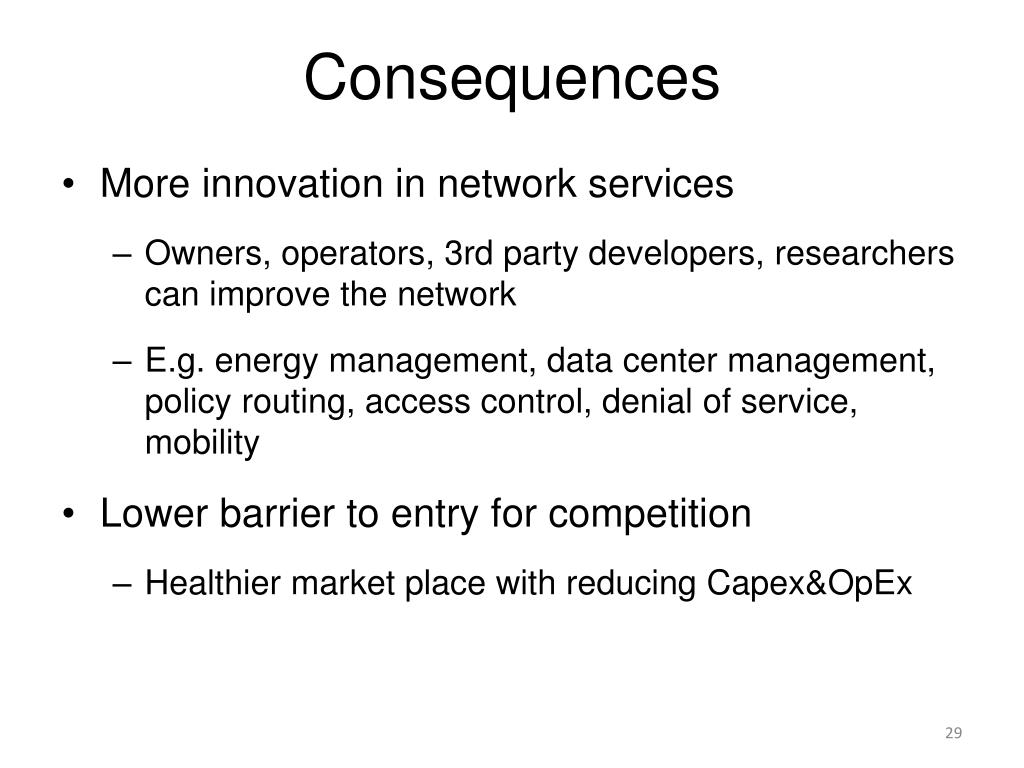

Consequences
  • More innovation in network services
    • Owners, operators, 3rd party developers, researchers can improve the network
    • E.g. energy management, data center management, policy routing, access control, denial of service, mobility
  • Lower barrier to entry for competition
    • Healthier market place with reducing Capex&OpEx
ecosystem coming together role for everyone to contribute
Ecosystem Coming TogetherRole for Everyone to Contribute
  • Researchers and R&E Networks
  • Providers: old and new
    • Google, Amazon, Yahoo!, (Microsoft, Facebook),
    • DT, DoCoMo, BT (Level3, Verizon, …)
  • Box vendors
    • Enterprise and backbone
    • Packet and circuit (electronic and photonics)
    • Incumbents and startups
  • Chip vendors
    • Broadcom, Dune, Marvell, ….

The Value Chain

openflow as networking substrate
OpenFlow As Networking Substrate
  • A platform for innovations
    • Within enterprise, backbone, & data center networks
  • Providers already buy into this vision
    • For their own reasons
  • Opportunities
    • Eco system is coming together
    • Time to engage
