  1. Cisco Nexus 1000V for Hyper-V Appaji Malla Sr. Product Marketing Manager Cloud Networking & Services Group Cisco Systems Inc. Cisco UCS with Intel® Xeon® processors Intel, the Intel logo, Xeon and Xeon Inside are trademarks or registered trademarks of Intel Corporation in the U.S. and/or other countries. All other trademarks are the property of their respective owners.

  2. Legal Disclaimer Many of the products and features described herein remain in varying stages of development and will be offered on a when-and-if-available basis. This roadmap is subject to change at the sole discretion of Cisco, and Cisco will have no liability for delay in the delivery or failure to deliver any of the products or features set forth in this document.

  3. Agenda • Cisco Virtual Networking Vision • Cisco Nexus 1000V (N1KV) Overview • WS2012 & SC2012 SP1 Networking • Cisco N1KV Integration with SC2012 SP1 • Cisco Virtual Security Gateway

  4. Agenda • Cisco Virtual Networking Vision • Cisco Nexus 1000V (N1KV) Overview • WS2012 & SC2012 SP1 Networking • Cisco N1KV Integration with SC2012 SP1 • Cisco Virtual Security Gateway

  5. Customer Issues in virtualized environments Resource Utilization Virtual Services Maturing Hypervisor market Operational Complexity Public Cloud • Security concerns for public cloud • Mobility concerns • VMMobility across DC • Mobility across DCs • Mobility across clouds • Secure virtual environment • Rich network services • Managing networks across physical & virtual environments • Economics • Use-cases requiring different hypervisors Multi-cloud support Consistent Operational Model Multi-hypervisor Support Multi-services support with vPath Overlay Technology Support Diverse Virtualization Requirements for DataCenter Customers

  6. Cisco UCS with Intel® Xeon® processors Physical  Virtual  Cloud Journey PHYSICAL WORKLOAD VIRTUAL WORKLOAD CLOUD WORKLOAD • One app per Server • Static • Manual provisioning • Many apps per Server • Mobile • Dynamic provisioning • Multi-tenant per Server • Elastic • Automated Scaling HYPERVISOR VDC-1 VDC-2 CONSISTENCY: Policy, Features, Security, Scale, Management • Nexus7K/5K/3K/2K • Nexus1000V, VM-FEX • WAAS, ASA, NAM • vWAAS, VSG*, ASA 1000V • UCS** for Bare Metal • UCS** for Virtualized Workloads * Virtual only, ** With Intel® Xeon® processors

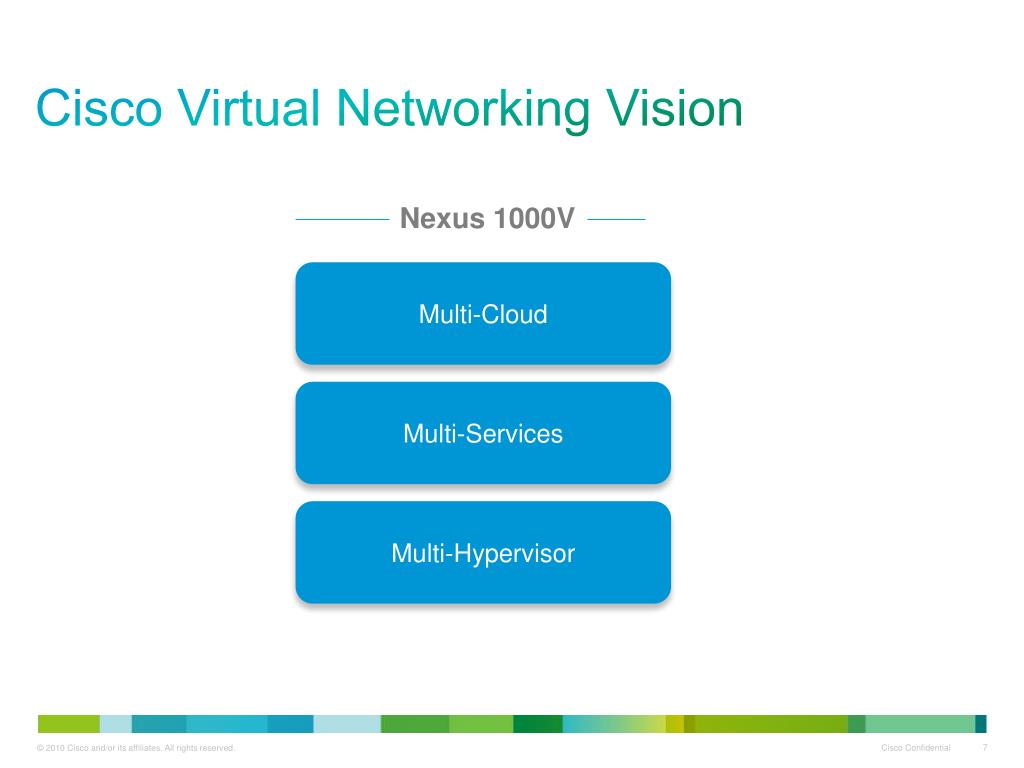

  7. Cisco Virtual Networking Vision Nexus 1000V Multi-Cloud Multi-Services Multi-Hypervisor

  8. Cisco Cloud Networking Services Tenant A Virtualized/Cloud Data Center Cisco Virtual Security Gateway ImpervaSecureSphere WAF ASA 1000V CloudFirewall Cloud Services Router 1000V Citrix NetScalerVPX vWAAS Switches • Edge firewall, VPN • Protocol Inspection • VM-level controls • Zone-based FW • Distributed switch • NX-OS consistency • WAN optimization • Application traffic Zone A Zone B Servers WAN Router Nexus 1000V Physical Infrastructure vPath Multi-Hypervisor (VMware, Microsoft,….) CSR 1000V (Cloud Router) Ecosystem Services • WAN L3 gateway • Routing and VPN • Citrix NetScaler VPX virtual ADC • Imperva Web App. Firewall vWAAS ASA1000V VSG Nexus 1000V

  9. Cisco Delivers Optimum IT Infrastructure For Your Microsoft Windows Server 2012 Environment Networking Manageability Compute • Cisco Unified Computing (UCS) with Intel® Xeon® processor • Cisco Nexus 1000V • Cisco UCS VM-FEX • Cisco UCS Manager • Cisco UCS PowerTool Certified for various Microsoft applications Cisco UCS with Intel® Xeon® processors

  10. Agenda • Cisco Virtual Networking Vision • Cisco Nexus 1000V (N1KV) Overview • WS2012 & SC2012 SP1 Networking • Cisco N1KV Integration with SC2012 SP1 • Cisco Virtual Security Gateway

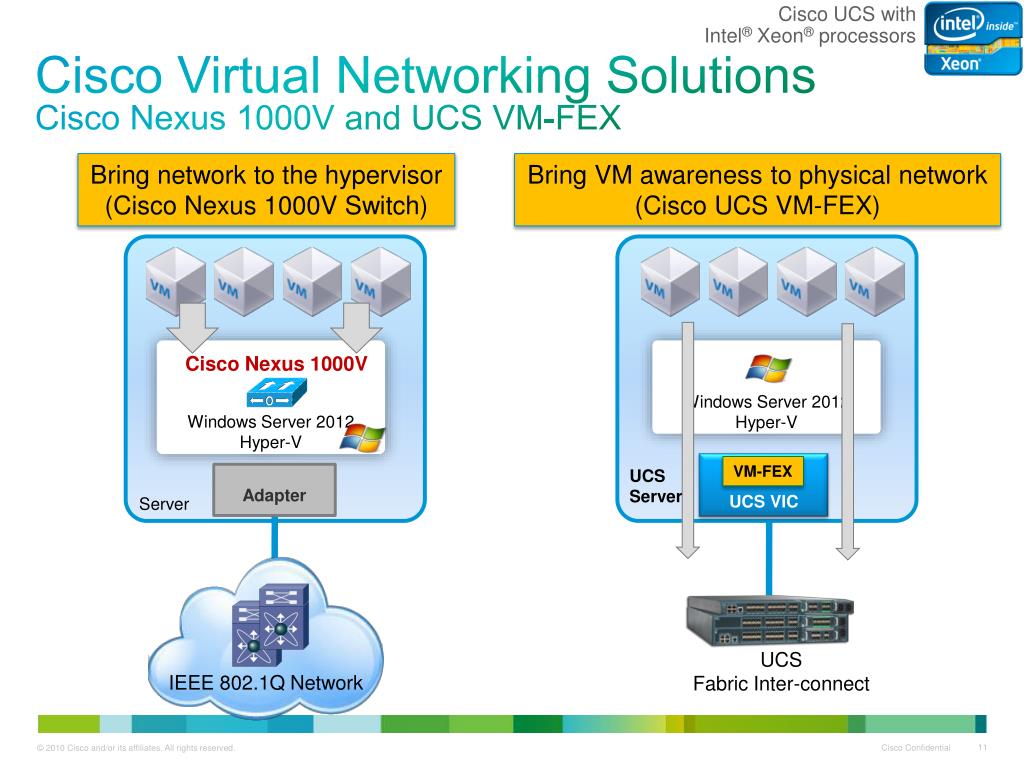

  11. Cisco UCS with Intel® Xeon® processors Cisco Virtual Networking Solutions Cisco Nexus 1000V and UCSVM-FEX Bring network to the hypervisor (Cisco Nexus 1000V Switch) Bring VM awareness to physical network (Cisco UCSVM-FEX) Windows Server 2012 Hyper-V Windows Server 2012 Hyper-V Cisco Nexus 1000V UCS VIC VM-FEX UCS Server Adapter Server UCS Fabric Inter-connect IEEE 802.1Q Network

  12. Cisco Nexus 1000VAward Winning Networking Platform for Hyper-V Forwarding Capture Filtering VNICs Extensible vSwitch Nexus 1000V VSM Nexus 1000V VEM VM VM VM VM PNICs

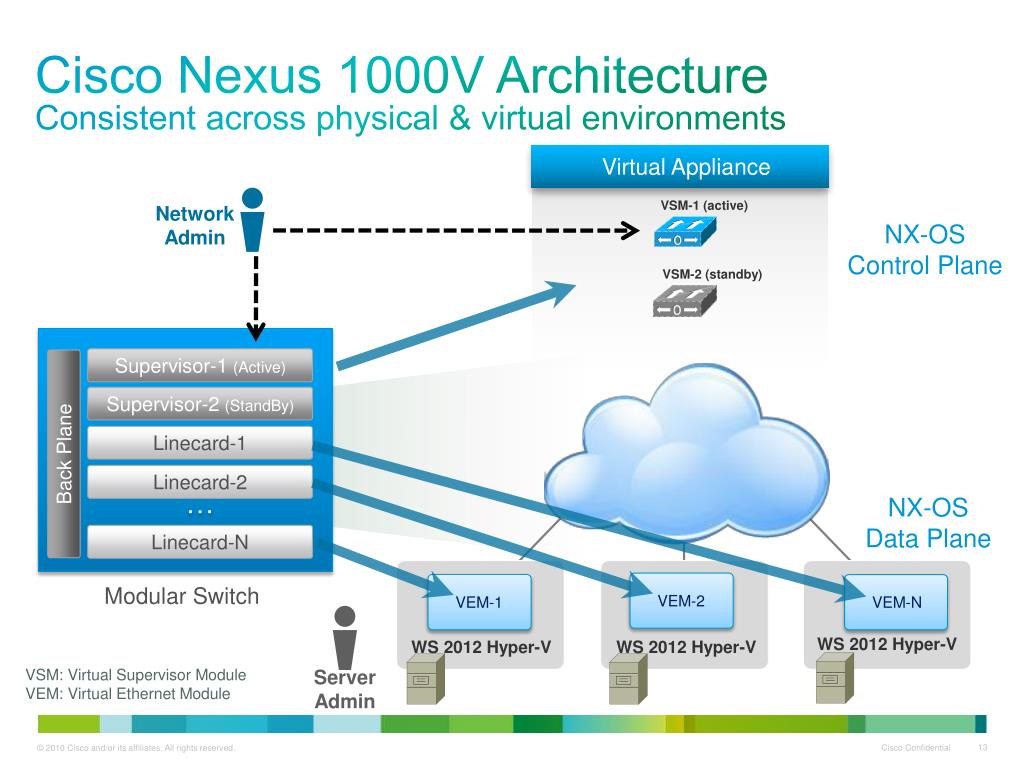

  13. Cisco Nexus 1000V ArchitectureConsistent across physical & virtual environments Virtual Appliance Network Admin VSM-1 (active) NX-OS Control Plane VSM-2 (standby) Supervisor-1 (Active) Supervisor-2 (StandBy) Linecard-1 Back Plane Linecard-2 NX-OS Data Plane … Linecard-N Modular Switch VEM-2 VEM-1 VEM-N WS 2012 Hyper-V WS 2012 Hyper-V WS 2012 Hyper-V Server Admin VSM: Virtual Supervisor Module VEM: Virtual Ethernet Module

  14. Cisco Nexus 1000V Features Switching • L2 Switching, 802.1Q Tagging, Rate Limiting (TX) • IGMP Snooping, QoS Marking (COS & DSCP) • Policy Mobility, Private VLANs w/ local PVLAN Enforcement • Access Control Lists (L2–4 w/ Redirect), Port Security • Dynamic ARP inspection*, IP Source Guard*, DHCPSnooping* Security • Virtual Services Datapath (vPath) support for traffic steering & fast-path off-load [leveraged by Virtual Security Gateway (VSG) and other services] Network Services • Full integration with System Center – VM Manager (SCVMM) • Faster network policy provisioning through port profiles Provisioning • Live Migration Tracking, NetFlowv.9 w/ NDE, CDPv.2 • VM-Level Interface Statistics • SPAN & ERSPAN (policy-based) Visibility • VM Network Provisioning (port-profiles), CiscoWorks, Cisco DCNM • Cisco CLI, Radius, TACACs, Syslog, SNMP (v.1, 2, 3) • Hitless upgrade, SW Installer Management * Only with Advanced Edition

  15. Port Profiles: Faster VM Deployment Cisco Virtual Networking Policy-Based VM Connectivity Mobility of Network and Security Properties Non-Disruptive Operational Model VM VM VM VM Port Profiles Defined Policies WEB Apps HR DB DMZ VM VM VM VM Nexus 1000V VEM Nexus 1000V VEM Hypervisor Hypervisor • VM Connection Policy • Defined in the network • Applied in SCVMM Server Server VMMgmt Station Nexus 1000V VSM

  16. Port Profiles: Policy Mobility Cisco Virtual Networking Policy-Based VM Connectivity Mobility of Network and Security Properties Non-Disruptive Operational Model VM VM VM VM VM VM VM VM VM VM VM VM • VMs Need to Move • VM Migration • Resource Scheduling • SW upgrade/patch • Hardware failure Nexus 1000V VEM Nexus 1000V VEM Hypervisor Hypervisor • VM Networking • Mobility • Live Migration • Ensures VM security • Maintains connection state Server Server VMMgmt Station Nexus 1000V VSM

  17. Cisco Nexus 1000V PricingTiered Licensing – Essential & Advanced Editions ** Only supports network-attributes

  18. VSM VSM vPath vPath vPath vPath VEM-1 VEM-2 VEM-1 VEM-2 Cisco Nexus 1100 SeriesConsistent architecture across hypervisors Nexus 1100 Series VSG NAM VSG VMware ESX VMware ESX Hyper-V Hyper-V Existing Nexus 1010 will support multi-hypervisor environments

  19. Frequently Asked Questions • Does Nexus 1000V work with all versions of Hyper-V? • N1KV requires Windows Server 2012 and System Center Virtual Machine Manager 2012 SP1. • Is Cisco Virtual Security Gateway (VSG) available for Hyper-V? • Yes. VSG comes bundled with the advanced edition of N1KV. • Can the same Nexus 1000V manage both ESX & Hyper-V? • No. Separate N1KV switches should be deployed for different hypervisor environments.

  20. Agenda • Cisco Virtual Networking Vision • Cisco Nexus 1000V (N1KV) Overview • WS2012 & SC2012 SP1 Networking • Cisco N1KV Integration with SC2012 SP1 • Cisco Virtual Security Gateway

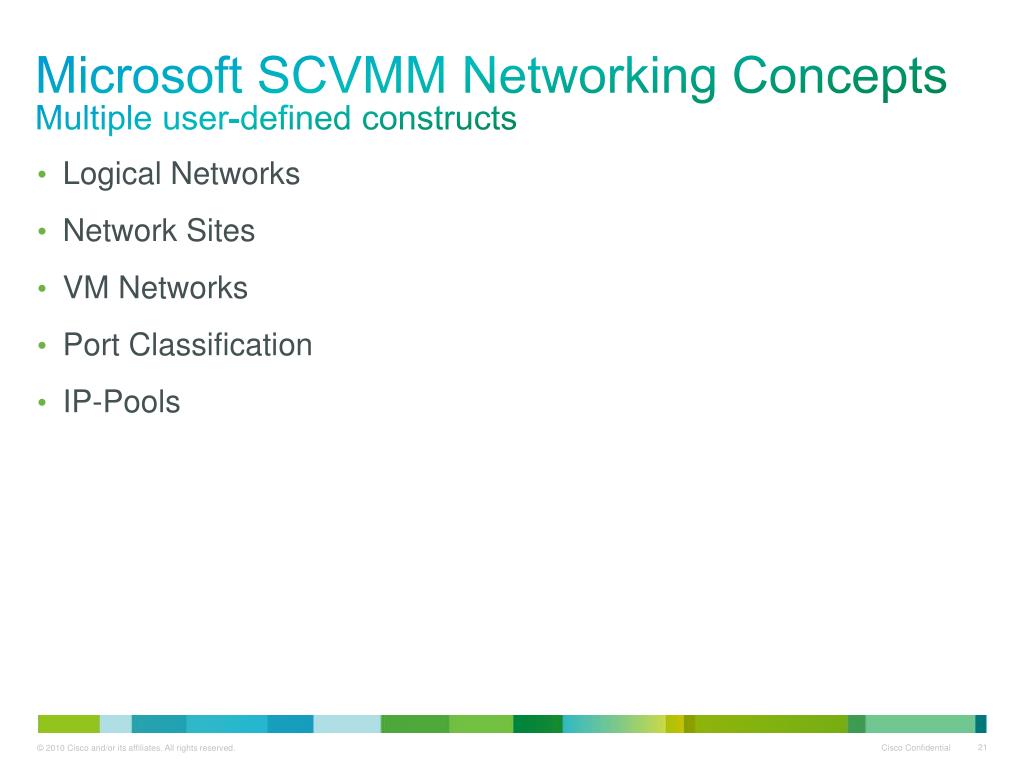

  21. Microsoft SCVMM Networking ConceptsMultiple user-defined constructs • Logical Networks • Network Sites • VM Networks • Port Classification • IP-Pools

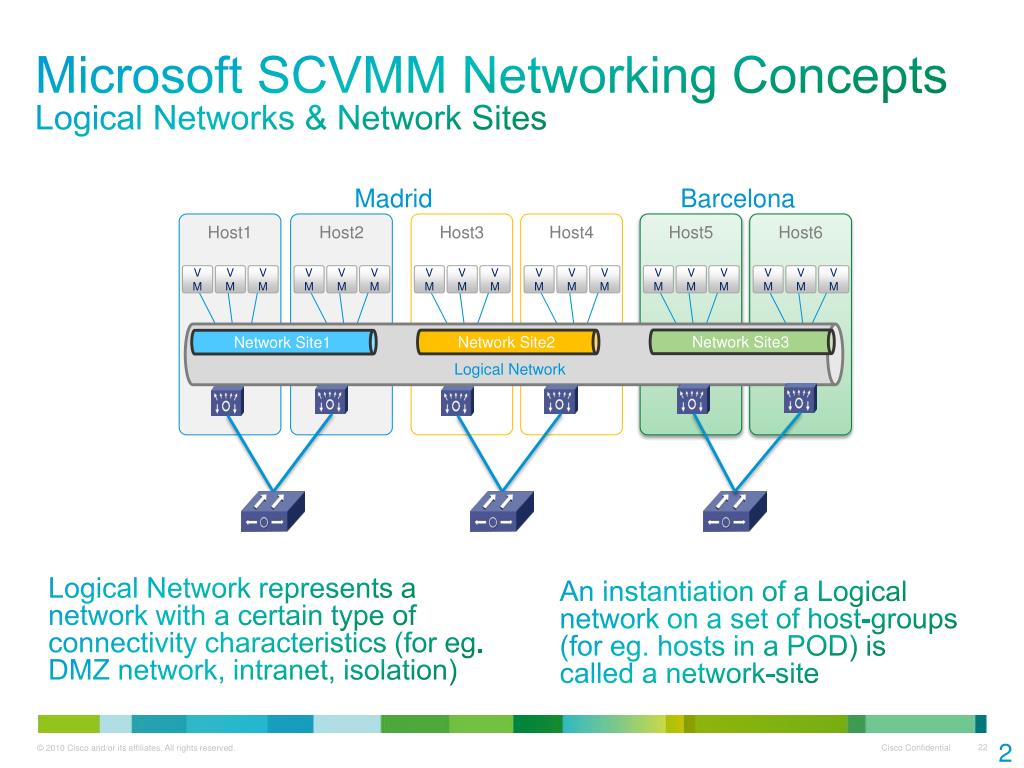

  22. Logical Network represents a network with a certain type of connectivity characteristics (for eg. DMZ network, intranet, isolation) Logical Network Microsoft SCVMM Networking ConceptsLogical Networks & Network Sites Madrid Barcelona Network Site3 Network Site1 Network Site2 Host3 Host6 Host1 Host5 Host2 Host4 VM VM VM VM VM VM VM VM VM VM VM VM VM VM VM VM VM VM An instantiation of a Logical network on a set of host-groups (for eg. hosts in a POD) is called a network-site

  23. Microsoft SCVMM Networking ConceptsVMs are bound to VM Networks VM Networks can be backed by either VLANs or other overlay networks (e.g. NVGRE segments). The first release of the Cisco Nexus 1000V Switch only supports VLAN-backed VM-networks.

  24. Microsoft SCVMM Networking ConceptsPort-Classifications Forwarding Capture Filtering Bundling of profiles from each extension is the port-classification VNICs Extensible vSwitch VM VM VM VM PNICs

  25. Choose network VM Network VM Subnet is tied to the Network (1:1) Choose IP address type Can be dynamic (DHCP) or statically assigned Choose IP pool for static IPs Choose Port Profile Classification Policy (QoS, Security, Monitoring) A Classification refers to a Port Profile Microsoft SCVMM Networking ConceptsAssociating VMVNICs to VM Networks & Port-classifications

  26. Microsoft SCVMM Networking ConceptsPutting everything together Port-profiles Logical Network ‘DMZ’ Intranet Client Servers Guests Clients DMZ_Pod1_Subn1 DMZ_Podz2_Subnet1 VM VM VM VM VM VM VM Network-site ‘DMZ_POD2’ Network-site ‘DMZ_POD1’ DMZ_Pod2_Subnet2 DMZ_Pod1_Subn2 DMZ_Pod1_Subn3 DMZ_Pod2_Subnet3 IP-Pool4 IP-Pool5 IP-Pool6 IP-Pool1 IP-Pool2 IP-Pool3 Guest Access Privileged Client Application Server

  27. Agenda • Cisco Virtual Networking Vision • Cisco Nexus 1000V (N1KV) Overview • WS2012 & SC2012 SP1 Networking • Cisco N1KV Integration with SC2012 SP1 • Cisco Virtual Security Gateway

  28. Cisco Nexus 1000V Terminology

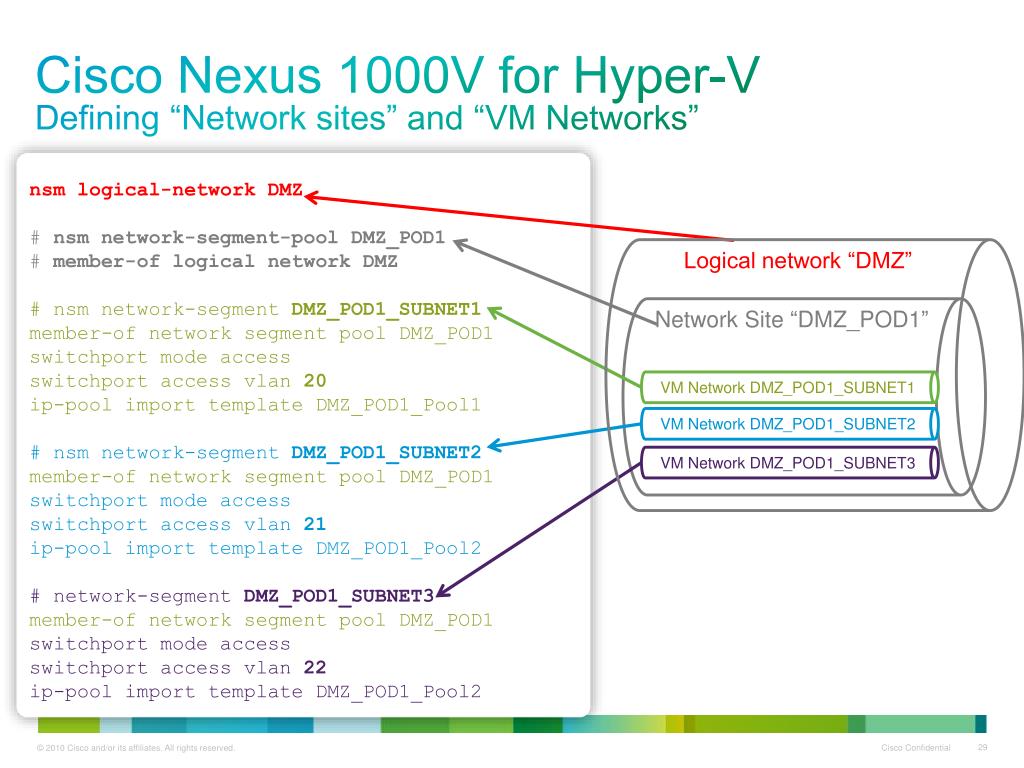

  29. Cisco Nexus 1000V for Hyper-VDefining “Network sites” and “VM Networks” nsm logical-network DMZ # nsm network-segment-poolDMZ_POD1 # member-of logical network DMZ # nsm network-segment DMZ_POD1_SUBNET1 member-of network segment pool DMZ_POD1 switchport mode access switchport access vlan20 ip-pool import template DMZ_POD1_Pool1 # nsm network-segment DMZ_POD1_SUBNET2 member-of network segment pool DMZ_POD1 switchport mode access switchport access vlan21 ip-pool import template DMZ_POD1_Pool2 # network-segment DMZ_POD1_SUBNET3 member-of network segment pool DMZ_POD1 switchport mode access switchport access vlan22 ip-pool import template DMZ_POD1_Pool2 Logical network “DMZ” Network Site “DMZ_POD1” VM Network DMZ_POD1_SUBNET1 VM Network DMZ_POD1_SUBNET2 VM Network DMZ_POD1_SUBNET3

  30. Cisco Nexus 1000V for Hyper-VOperational Model with SCVMM Server Admin Network Admin SCVMM manages the placement and live-migration of the VMs based on the constraints between VM networks and the network sites. 4 VM VM VM VM Adds hosts to N1KV Connects VMs(VNICs) to VM Networks 3 Nexus 1000V VEM WS 2012 Hyper-V 5 2 Networks & policies synced to SCVMM Configuration data and policies sent to N1KV VEM Server Nexus 1000V VSM 1 Create networks and policies (logical networks, network sites, VMnetworks) SCVMM

  31. Cisco Nexus 1000V REST API Support URI: http://<VSM-IP-address>/api/<object-locator> *Objects can be VM networks, Port-profiles, IP-Pools etc. Write/Update Operations are only supported on limited set of objects

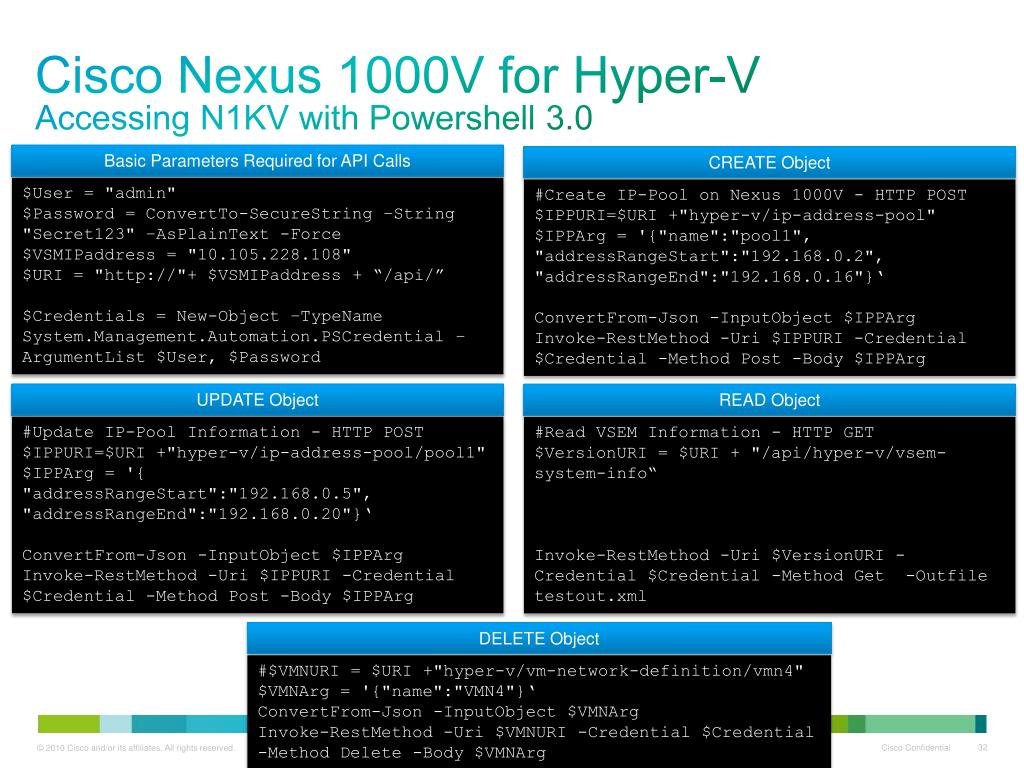

  32. Cisco Nexus 1000V for Hyper-VAccessing N1KV with Powershell 3.0 Basic Parameters Required for API Calls CREATE Object $User = "admin" $Password = ConvertTo-SecureString –String "Secret123" –AsPlainText -Force $VSMIPaddress = "10.105.228.108" $URI = "http://"+ $VSMIPaddress+ “/api/” $Credentials = New-Object –TypeNameSystem.Management.Automation.PSCredential –ArgumentList $User, $Password #Create IP-Pool on Nexus 1000V - HTTP POST $IPPURI=$URI +"hyper-v/ip-address-pool" $IPPArg = '{"name":"pool1", "addressRangeStart":"192.168.0.2", "addressRangeEnd":"192.168.0.16"}‘ ConvertFrom-Json -InputObject $IPPArg Invoke-RestMethod -Uri $IPPURI -Credential $Credential -Method Post -Body $IPPArg UPDATE Object READ Object #Update IP-Pool Information - HTTP POST $IPPURI=$URI +"hyper-v/ip-address-pool/pool1" $IPPArg = '{ "addressRangeStart":"192.168.0.5", "addressRangeEnd":"192.168.0.20"}‘ ConvertFrom-Json -InputObject $IPPArg Invoke-RestMethod -Uri $IPPURI -Credential $Credential -Method Post -Body $IPPArg #Read VSEM Information - HTTP GET $VersionURI = $URI + "/api/hyper-v/vsem-system-info“ Invoke-RestMethod -Uri $VersionURI -Credential $Credential -Method Get -Outfile testout.xml DELETE Object #$VMNURI = $URI +"hyper-v/vm-network-definition/vmn4" $VMNArg = '{"name":"VMN4"}‘ ConvertFrom-Json -InputObject $VMNArg Invoke-RestMethod -Uri $VMNURI -Credential $Credential -Method Delete -Body $VMNArg

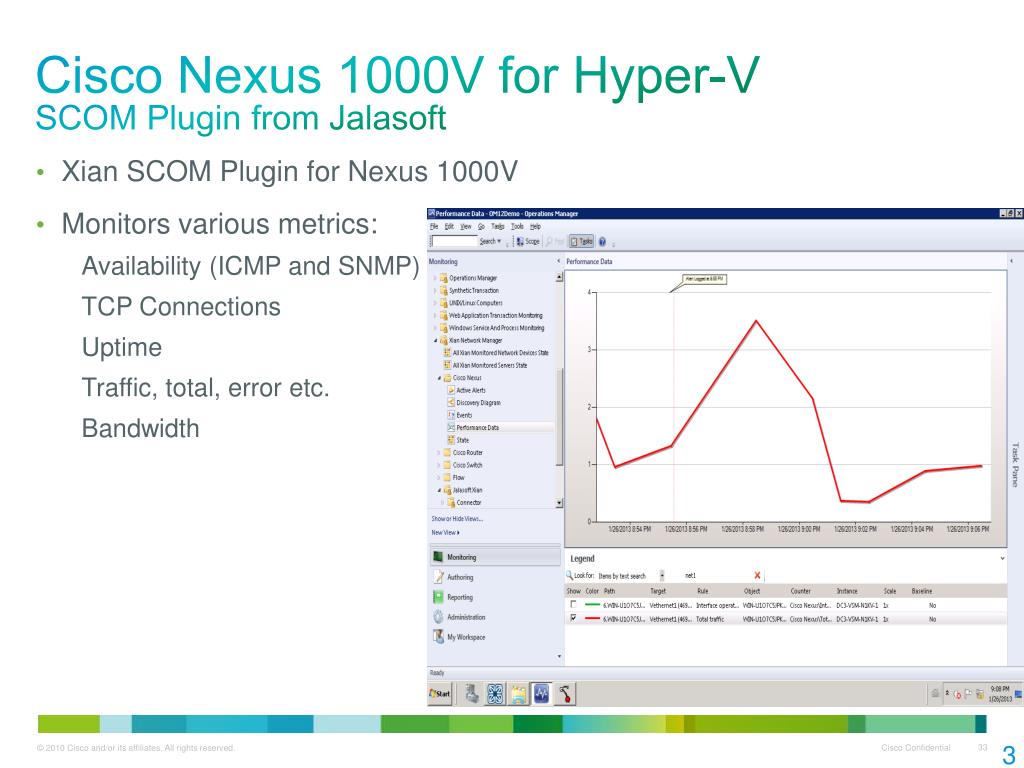

  33. Cisco Nexus 1000V for Hyper-VSCOM Plugin from Jalasoft • Xian SCOM Plugin for Nexus 1000V • Monitors various metrics: • Availability (ICMP and SNMP) • TCP Connections • Uptime • Traffic, total, error etc. • Bandwidth

  34. Agenda • Cisco Virtual Networking Vision • Cisco Nexus 1000V (N1KV) Overview • WS2012 & SC2012 SP1 Networking • Cisco N1KV Integration with SC2012 SP1 • Cisco Virtual Security Gateway

  35. Defense in Depth Security Model VM • Policy applied to VM zones • Dynamic, scale-out operation • VM context based controls VM VM VM Virtual Security VSG • Segment internal network • Policy applied to VLANs • Application protocol inspection • Virtual Contexts Internal Security ASA-SM ASA 55xx • Filter external traffic • Extensive app protocol support • VPN access, Threat mitigation Internet Edge ASA 55xx

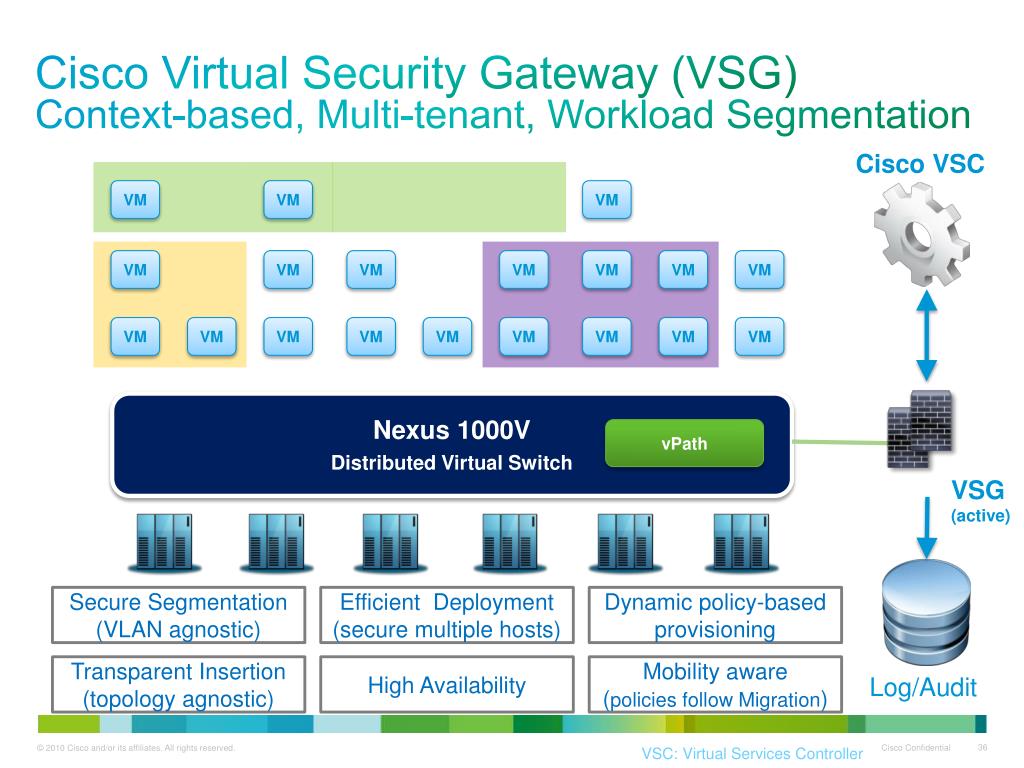

  36. Cisco Virtual Security Gateway (VSG)Context-based, Multi-tenant, Workload Segmentation Cisco VSC VM VM VM VM VM VM VM VM VM VM VM VM VM VM VM VM VM VM VM Nexus 1000V Distributed Virtual Switch vPath VSG (active) Secure Segmentation (VLAN agnostic) Efficient Deployment (secure multiple hosts) Dynamic policy-based provisioning Transparent Insertion (topology agnostic) High Availability Mobility aware (policies follow Migration) Log/Audit VSC: Virtual Services Controller

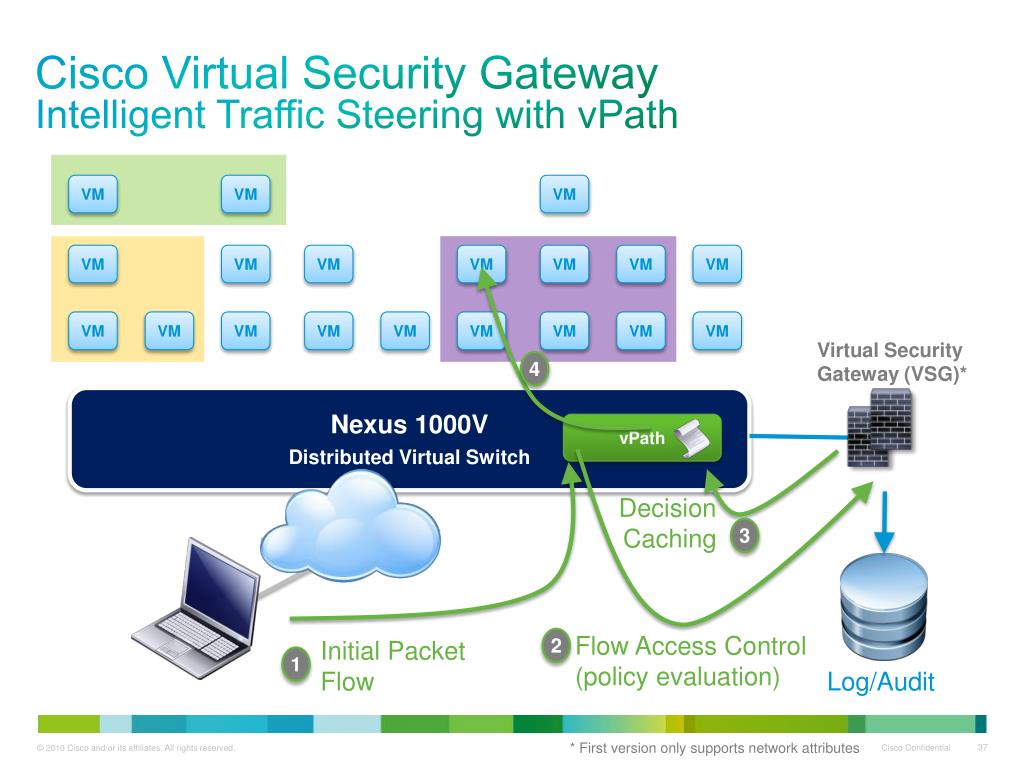

  37. Cisco Virtual Security Gateway Intelligent Traffic Steering with vPath VM VM VM VM VM VM VM VM VM VM VM VM VM VM VM VM VM VM VM Virtual Security Gateway (VSG)* 4 Nexus 1000V Distributed Virtual Switch vPath DecisionCaching 3 Flow Access Control (policy evaluation) 2 Initial Packet Flow 1 Log/Audit * First version only supports network attributes

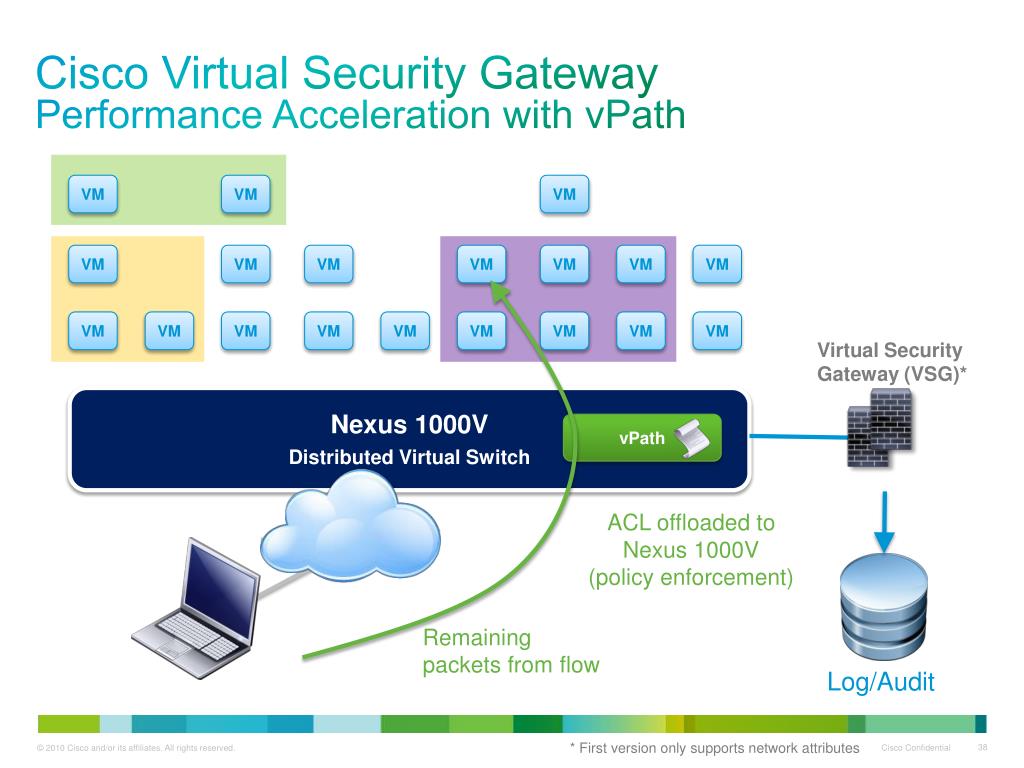

  38. Cisco Virtual Security GatewayPerformance Acceleration with vPath VM VM VM VM VM VM VM VM VM VM VM VM VM VM VM VM VM VM VM Virtual Security Gateway (VSG)* Nexus 1000V Distributed Virtual Switch vPath ACL offloaded to Nexus 1000V (policy enforcement) Remaining packets from flow Log/Audit * First version only supports network attributes

  39. Summary

  40. Cisco Nexus 1000V: Customer Benefits Consistent Network Services • Leverage existing virtual services • Virtual Security Gateway, Virtual WAAS, Virtual ASA, NAM on Nexus 1010 • Services can be hosted on Nexus 1010 Consistent Networking Features • NX-OS feature across multiple hypervisors & across physical • Advanced NX-OS switching features, including security, visibility, QoS, segmentation, port channel, … Consistent Operational Model • NX-OS CLI across multiple hypervisors & across physical • Separation of duties between network & server admins • Dynamic provisioning and VM mobility awareness • Leverage existing monitoring and management tools

  41. Start using Cisco Nexus 1000V today Essential Edition – No licensing or procurement needed Advanced Edition – you can get a free trial for 60 days when you use essential

  42. Additional Resources • Cisco Nexus 1000V for Microsoft Hyper-V: http://www.cisco.com/go/1000v/hyper-v • Cisco Nexus 1000V (N1KV): http://www.cisco.com/go/1000v • Cisco Virtual Security Gateway: http://www.cisco.com/go/vsg • Cisco N1KV Portfolio: http://www.cisco.com/go/1000v • N1KV PowershellCmdlets: http://developer.cisco.com/web/n1k/hyperv • Cisco-Microsoft Partnership: http://www.cisco.com/go/microsoft
