  1. Kanoj Sarcar Sr Staff Engineer Sun Microsystems (presented by Bill Strahm) Solaris IPoIB (ibd) Implementation

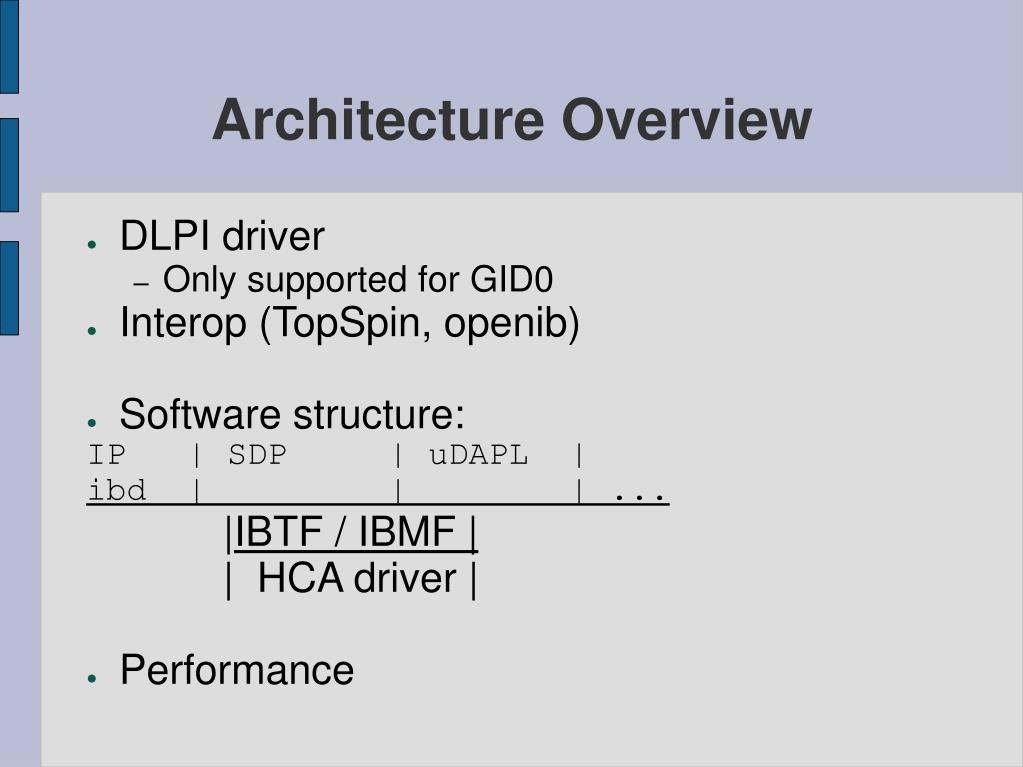

  2. Architecture Overview • DLPI driver • Only supported for GID0 • Interop (TopSpin, openib) • Software structure: IP | SDP | uDAPL | ibd | | | ... |IBTF / IBMF | | HCA driver | • Performance

  3. Tools changes (20 byte MAC) • New SIOC*XARP ioctls and “struct xarpreq” • arp(1M) changes • PPPD proxyarp etc • Undocumented helper function ala ether_ntoa, ether_aton • extern char *_link_ntoa(const unsigned char *, char *, int, int); • extern unsigned char *_link_aton(const char *, int *); • ifconfig(1M), snoop(1M) • RARP • /etc/ethers, NIS assume 6 bytes!

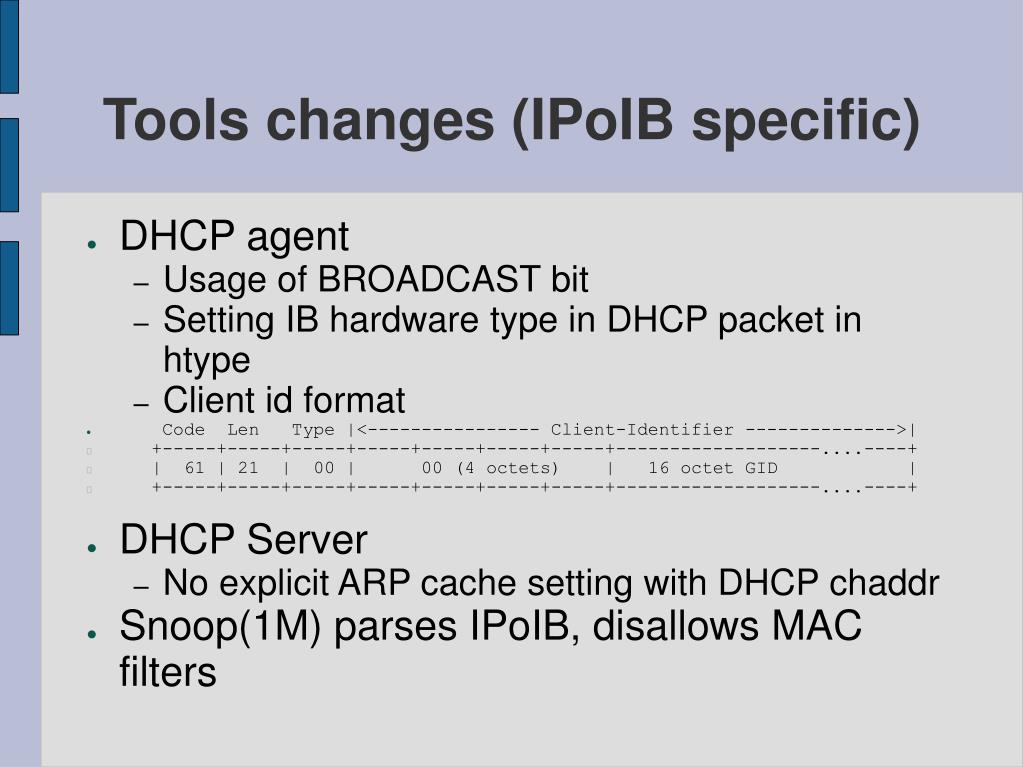

  4. Tools changes (IPoIB specific) • DHCP agent • Usage of BROADCAST bit • Setting IB hardware type in DHCP packet in htype • Client id format • Code Len Type |<---------------- Client-Identifier -------------->| • +-----+-----+-----+-----+-----+-----+-----+-------------------....----+ • | 61 | 21 | 00 | 00 (4 octets) | 16 octet GID | • +-----+-----+-----+-----+-----+-----+-----+-------------------....----+ • DHCP Server • No explicit ARP cache setting with DHCP chaddr • Snoop(1M) parses IPoIB, disallows MAC filters

  5. Tools changes (IPoIB specific)Part II • ifconfig(1M) • hme0: flags=1000843<UP,BROADCAST,RUNNING,MULTICAST,IPv4> mtu 1500 index 2 • inet 10.6.98.56 netmask ff000000 broadcast 10.255.255.255 • ether 0:3:ba:24:4:df • ibd1: flags=1000843<UP,BROADCAST,RUNNING,MULTICAST,IPv4> mtu 2044 index 4 • inet 192.168.100.100 netmask ffffff00 broadcast 192.168.100.255 • ipib 0:0:4:a:0:0:0:0:0:0:12:34:0:2:c9:1:9:76:57:11 • SNMP (net-snmp) • ifSpeed consistent with draft-ietf-ipoib-ibif-mib-07.txt • ifPhysAddress as MAC address (to match ARP) • octet/packet counts only for ipoib network interface

  6. IPoIB oddities • DLPI receiver indicates “src addr unavailable” for unicast packets • If transmitter guarantees GID0 usage, SM assisted reverse lookup possible • RARP unsupported • Non persistant MAC • Server requires client's MAC address for 3rd party lookup

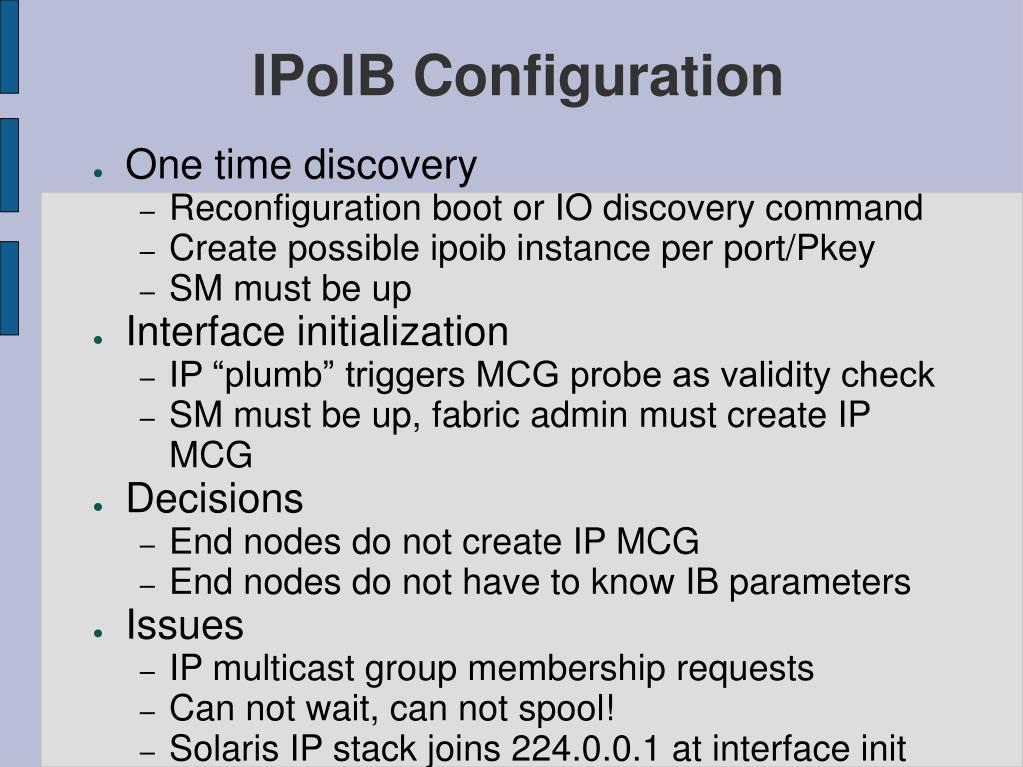

  7. IPoIB Configuration • One time discovery • Reconfiguration boot or IO discovery command • Create possible ipoib instance per port/Pkey • SM must be up • Interface initialization • IP “plumb” triggers MCG probe as validity check • SM must be up, fabric admin must create IP MCG • Decisions • End nodes do not create IP MCG • End nodes do not have to know IB parameters • Issues • IP multicast group membership requests • Can not wait, can not spool! • Solaris IP stack joins 224.0.0.1 at interface init

  8. Interesting Driver Details • QPN/CQ/WQE/PathRecord • Tx path copy vs registration • GID/QPN to Pathrecord (hash/cache) • Disallow (DLPI) change MAC address • Async thread for (blocking) SM communication • IB link up/down handling • ULP notification for IPMP failover • MCG create/delete trap handling • 2 MCG membership lists (full/sendonly, non) • MCG pathrecord and membership implication
