  1. Infineon M167 16-bit Microcontroller • One of a family of microcontrollers (M16x) • Derived from M166 • Same 16-bit CPU core in all family members • Provides software compatability e.g. The Keil C166 C compiler can be used for all devices in the family. • Allows migration of software • The 167CS is a quite advanced microcontroller with many peripherals and functions. • Most microcontrollers only have some of the features of the 167CS, a few could have more.

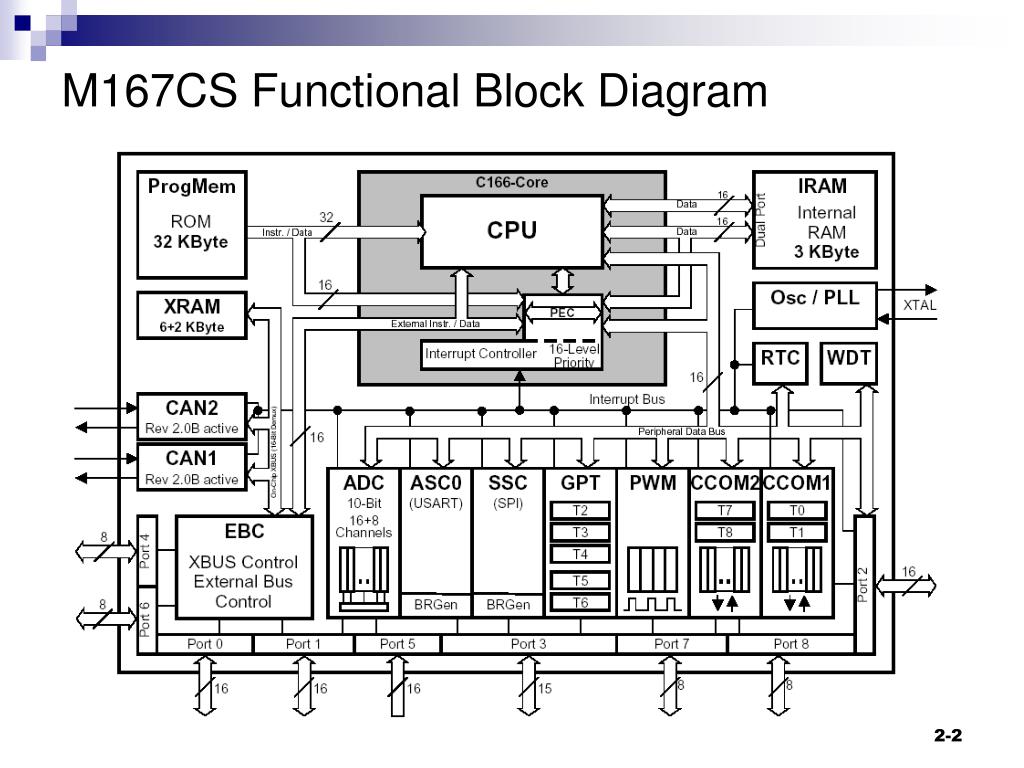

  2. M167CS Functional Block Diagram

  3. M167CS CPU Block Diagram

  4. Infineon M167 Basic Features • High Performance 16-bit CPU with Four-Stage Pipeline • Control Oriented Instruction Set with High Efficiency • Integrated On-Chip Memory • External Bus Interface • 16-Priority-Level Interrupt System • 8-Channel Peripheral Event Controller (PEC) • Intelligent On-Chip Peripheral Subsystems

  5. Infineon M167 Basic Features contd. • 111 I/O lines, bit addressable, organised :- • one 16-bit I/O port (Port 2) • eight 8-bit I/O ports : P0H and P0L making 16-bit Port 0, P1H and P1L making 16-bit Port1, Port 4, Port 6, Port 7and Port 8 • one 15-bit I/O port (Port 3) • one 16-bit input only port (Port 5) • Most port lines have alternate functions • Tri-stated in input mode • Selectable input thresholds (not on all pins) • Push/pull or open drain output mode

  6. Basic Features contd. • High Performance 16-bit CPU with Four-Stage Pipeline • 80/60 ns minimum instruction cycle time, with most instructions executed in 1 cycle • 400/300 ns multiplication (16-bit * 16-bit), 800/600 ns division (32-bit/16-bit) • Multiple high bandwidth internal data buses • Register based design with multiple variable register banks • Single cycle context switching support • 16 MBytes linear address space for code and data (Von Neumann architecture) • System stack cache support with automatic stack overflow/underflow detection[the indicated timings refer to a CPU clock of 25/33 MHz]

  7. Basic Features contd. • Control Oriented Instruction Set with High Efficiency • Bit, byte, and word data types • Flexible and efficient addressing modes for high code density • Enhanced boolean bit manipulation with direct addressability of 6 Kbits for peripheral control and user defined flags • Hardware traps to identify exception conditions during runtime • HLL support for semaphore operations and efficient data access

  8. Integrated On-Chip Memory • 3 KByte internal RAM for variables, register banks, system stack and code. • 8 KByte on-chip high-speed XRAM for variables, user stack and code. • 32 KByte on-chip ROM (not for ROMless versions) for code and fixed data.

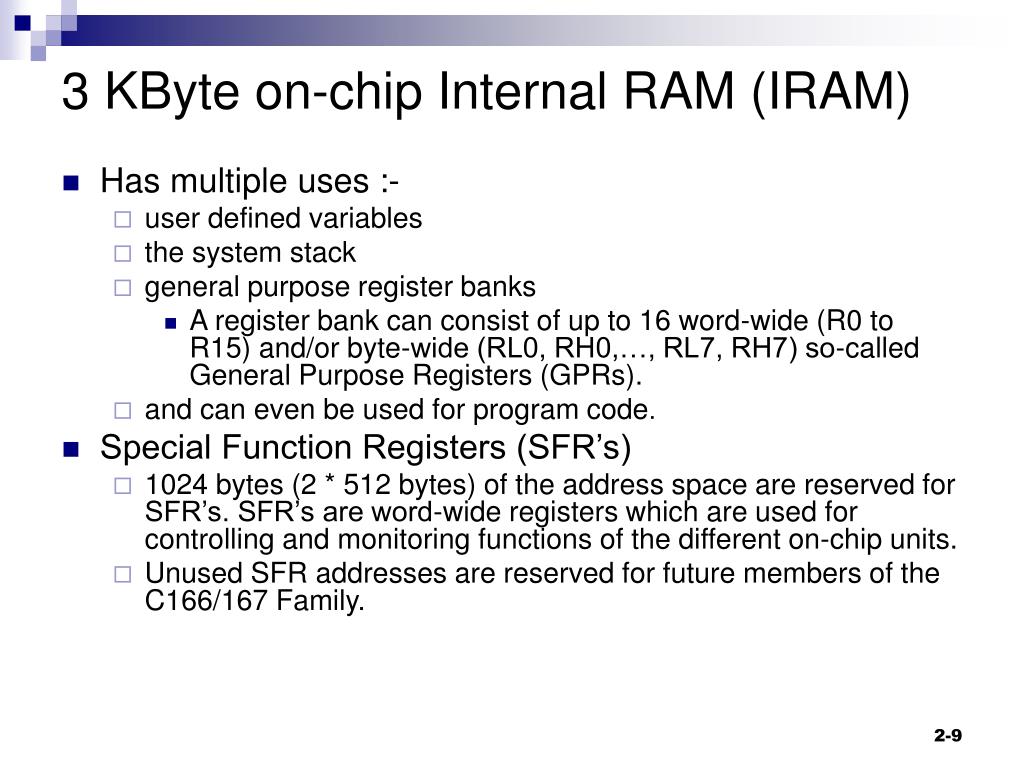

  9. 3 KByte on-chip Internal RAM (IRAM) • Has multiple uses :- • user defined variables • the system stack • general purpose register banks • A register bank can consist of up to 16 word-wide (R0 to R15) and/or byte-wide (RL0, RH0,…, RL7, RH7) so-called General Purpose Registers (GPRs). • and can even be used for program code. • Special Function Registers (SFR’s) • 1024 bytes (2 * 512 bytes) of the address space are reserved for SFR’s. SFR’s are word-wide registers which are used for controlling and monitoring functions of the different on-chip units. • Unused SFR addresses are reserved for future members of the C166/167 Family.

  10. 8 KBytes of on-chip Extension RAM (XRAM) • Organized as two blocks of 2 KByte and 6 KByte. • XRAM provides storage for user data, user stacks, or code. • XRAM is accessed like external memory and therefore cannot be used for the system stack or for register banks and is not bit addressable. • The XRAM permits 16-bit accesses with maximum speed. • In order to meet the needs of designs where more memory is required than is provided on chip, up to 16 MBytes of external RAM and/or ROM can be connected to the microcontroller.

  11. External Bus Interface • Multiplexed or demultiplexed bus configurations • Segmentation capability and chip select signal generation • 8-bit or 16-bit data bus • Bus cycle characteristics selectable for five programmable address areas • Single Chip Mode when no external memory is required, • 16-/18-/20-/24-bit Addresses, 16-bit Data, Demultiplexed • 16-/18-/20-/24-bit Addresses, 16-bit Data, Multiplexed • 16-/18-/20-/24-bit Addresses, 8-bit Data, Multiplexed • 16-/18-/20-/24-bit Addresses, 8-bit Data, Demultiplexed

  12. 16-Priority-Level Interrupt System • 56 interrupt nodes each with separate interrupt vectors • 240/180 ns typical interrupt latency (400/300 ns maximum) in case of internal program execution • Fast external interrupts

  13. 8-Channel Peripheral Event Controller(PEC) • The PEC provides a sort of DMA capability • Interrupt driven single cycle data transfer • Transfer count option (std. CPU interrupt after programmable number of PEC transfers) • Eliminates overhead of saving and restoring system state for interrupt requests

  14. Intelligent On-Chip Peripheral Subsystems • 24-channel 10-bit A/D Converter with programmable conversion time (7.76 us min.) • Two 16-channel Capture/Compare Units with 2 independent time bases. Useful for pulse and waveform generation e.g. Ingition firing sequence for a car engine. • 4-channel Pulse width Modulation(PWM) unit • Two General Purpose Timer Units • GPT1: Consisting of three 16-bit timers/counters, maximum resolution fCPU/8 • GPT2: Consisting of two 16-bit timers/counters, maximum resolution fCPU/4

  15. Intelligent On-Chip Peripheral Subsystems • Asynchronous/Synchronous Serial Channels (USART) with baud rate generator, parity, framing, and overrun error detection • High Speed Synchronous Serial Channel programmable data length and shift direction • Two on-chip CAN Bus Modules(V 2.0B) active • Real Time Clock • Watchdog Timer with programmabletime intervals • Bootstrap Loader for flexible system initialization

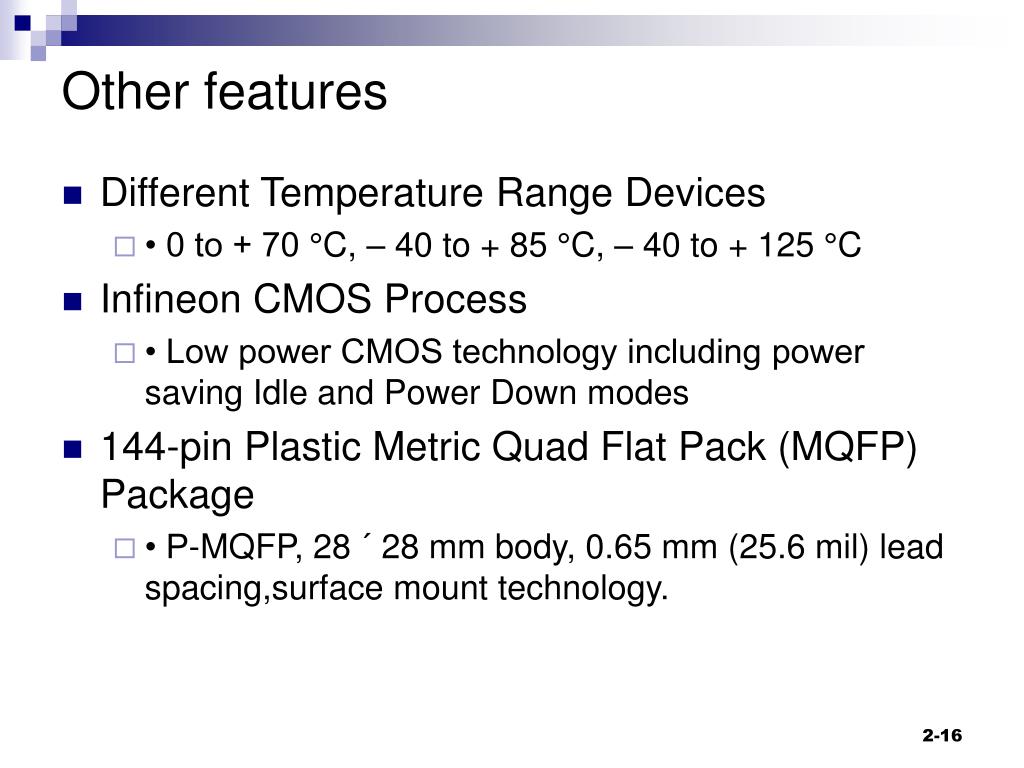

  16. Other features • Different Temperature Range Devices • • 0 to + 70 °C, – 40 to + 85 °C, – 40 to + 125 °C • Infineon CMOS Process • • Low power CMOS technology including power saving Idle and Power Down modes • 144-pin Plastic Metric Quad Flat Pack (MQFP) Package • • P-MQFP, 28 ´ 28 mm body, 0.65 mm (25.6 mil) lead spacing,surface mount technology.

  17. Acronyms • IO Input/Output • OTP One Time Programmable memory • PEC Peripheral Event Controller • PLA Programmable Logic Array • PLL Phase Locked Loop • PWM Pulse Width Modulation • RAM Random Access Memory • RISC Reduced Instruction Set Computing • ROM Read Only Memory • RTC Real Time Clock • SDD Slow Down Divider • SFR Special Function Register • SSC Synchronous Serial Controller • WDT Watch Dog Timer • XBUS Internal representation of the External Bus • XRAM On-chip extension RAM • ADC Analogue to Digital Converter • ALE Address Latch Enable • ALU Arithmetic and Logic Unit • ASC Asynchronous/synchronous Serial Controller • CAN Controller Area Network (License Bosch) • CAPCOM CAPture and COMpare unit • CISC Complex Instruction Set Computing • CMOS Complementary Metal Oxide Silicon • CPU Central Processing Unit • EBC External Bus Controller • ESFR Extended Special Function Register • Flash Non-volatile memory that may be electrically erased • GPR General Purpose Register • GPT General Purpose Timer unit • HLL High Level Language
