pspice simulations

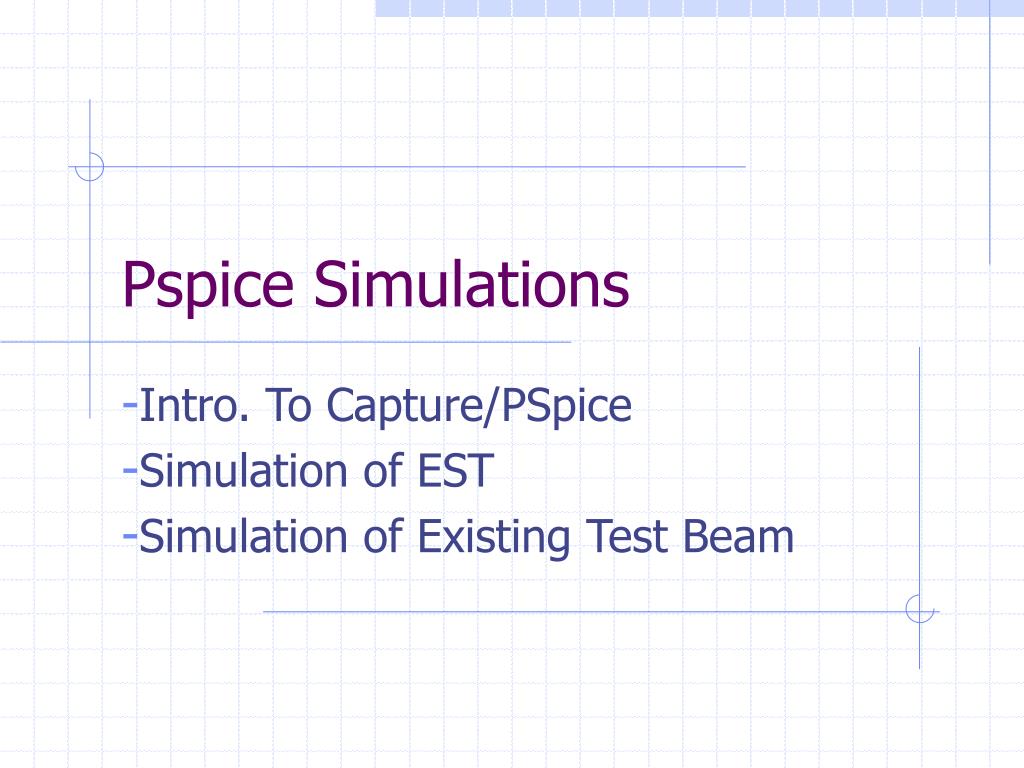

Pspice Simulations

Intro. To Capture/PSpice

Simulation of EST

Simulation of Existing Test Beam

capture and pspice

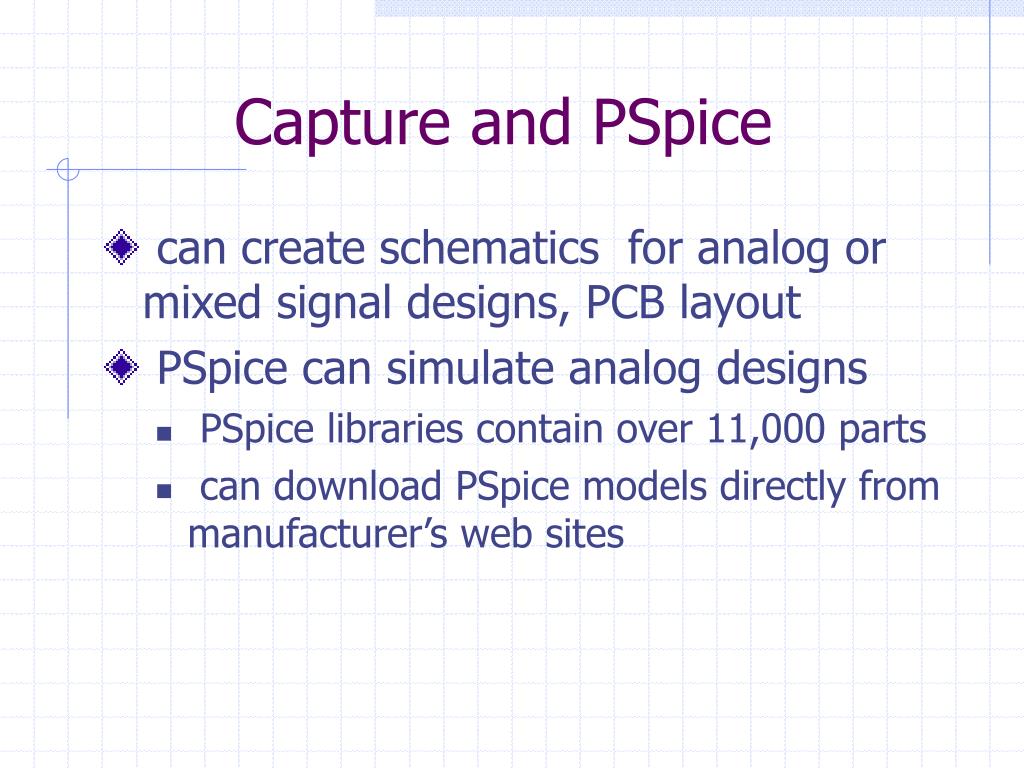

Capture and PSpice
  • can create schematics for analog or mixed signal designs, PCB layout
  • PSpice can simulate analog designs
    • PSpice libraries contain over 11,000 parts
    • can download PSpice models directly from manufacturer’s web sites
pspice simulation output

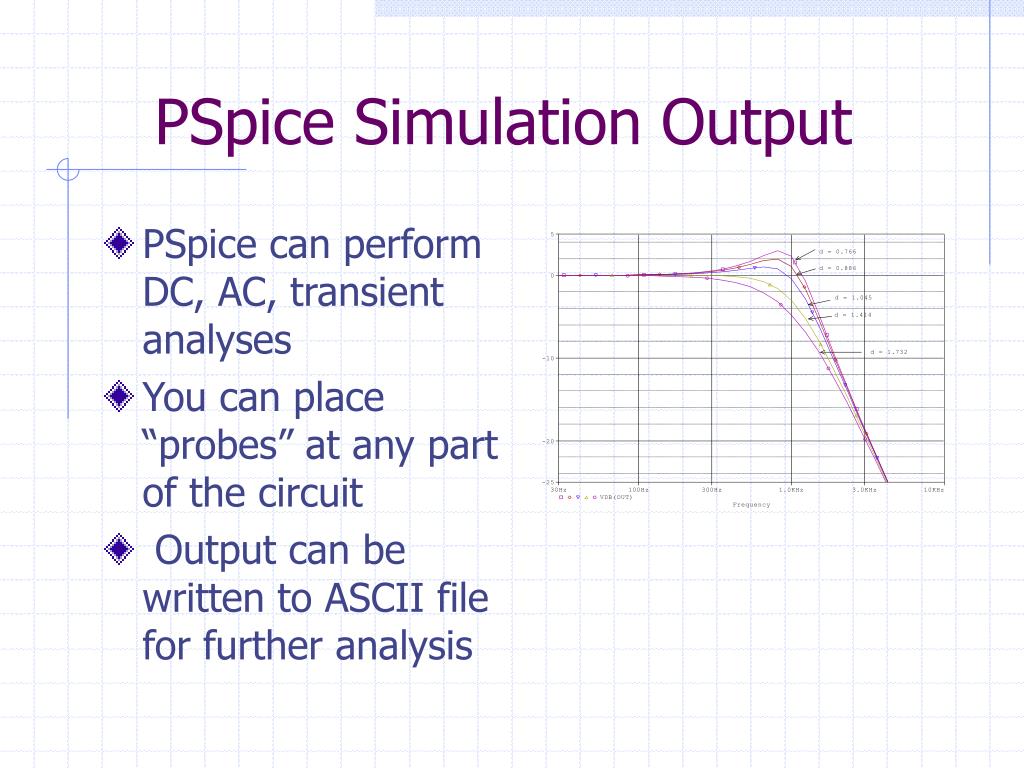

PSpice Simulation Output
  • PSpice can perform DC, AC, transient analyses
  • You can place “probes” at any part of the circuit
  • Output can be written to ASCII file for further analysis
electrostatic transformer est

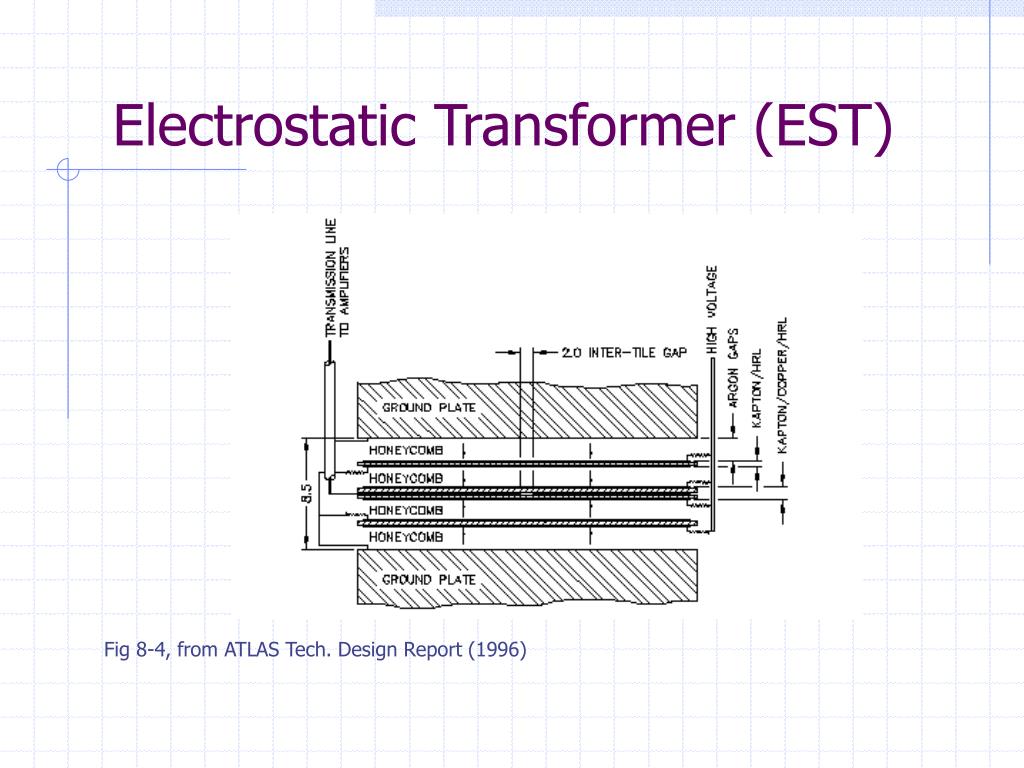

Electrostatic Transformer (EST)

Fig 8-4, from ATLAS Tech. Design Report (1996)

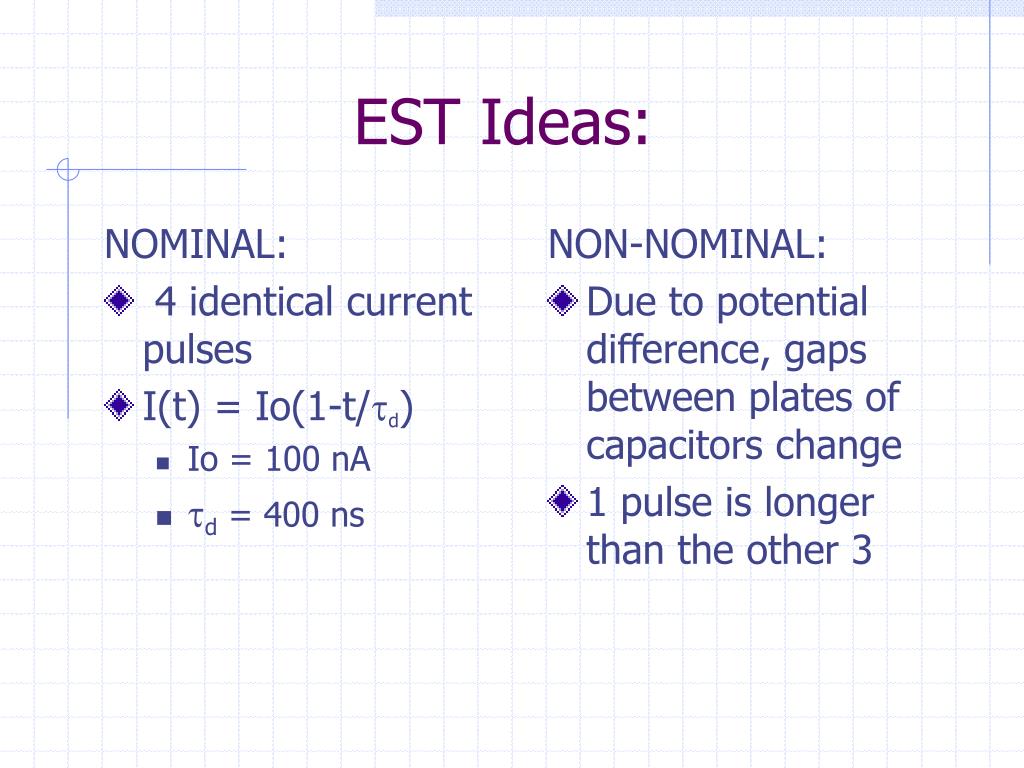

est ideas
NOMINAL:

4 identical current pulses

I(t) = Io(1-t/td)

Io = 100 nA

td = 400 ns

NON-NOMINAL:

Due to potential difference, gaps between plates of capacitors change

1 pulse is longer than the other 3

EST Ideas:
hec electronics chain

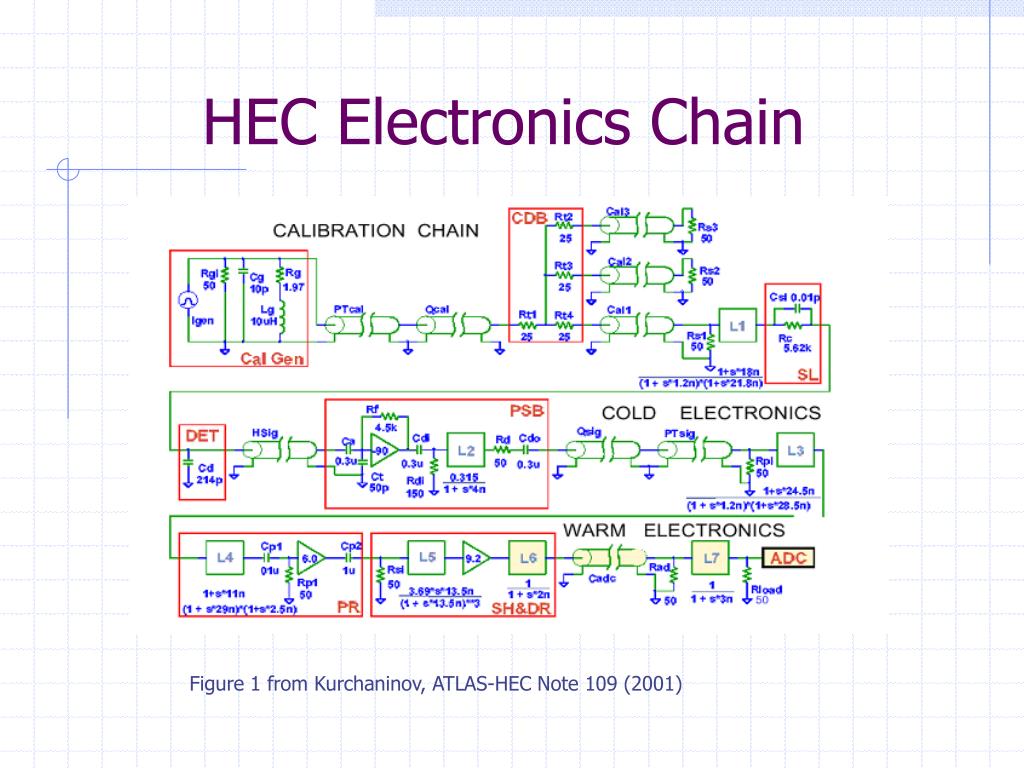

HEC Electronics Chain

Figure 1 from Kurchaninov, ATLAS-HEC Note 109 (2001)

hec electronics chain1

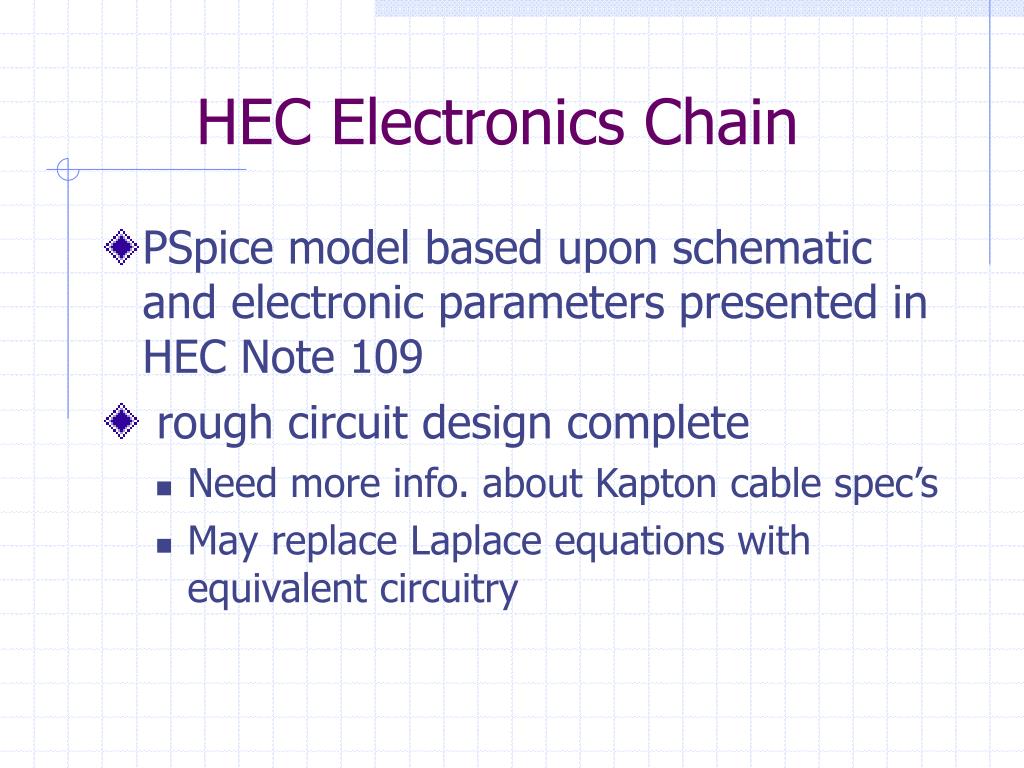

HEC Electronics Chain
  • PSpice model based upon schematic and electronic parameters presented in HEC Note 109
  • rough circuit design complete
    • Need more info. about Kapton cable spec’s
    • May replace Laplace equations with equivalent circuitry
hec electronics chain2

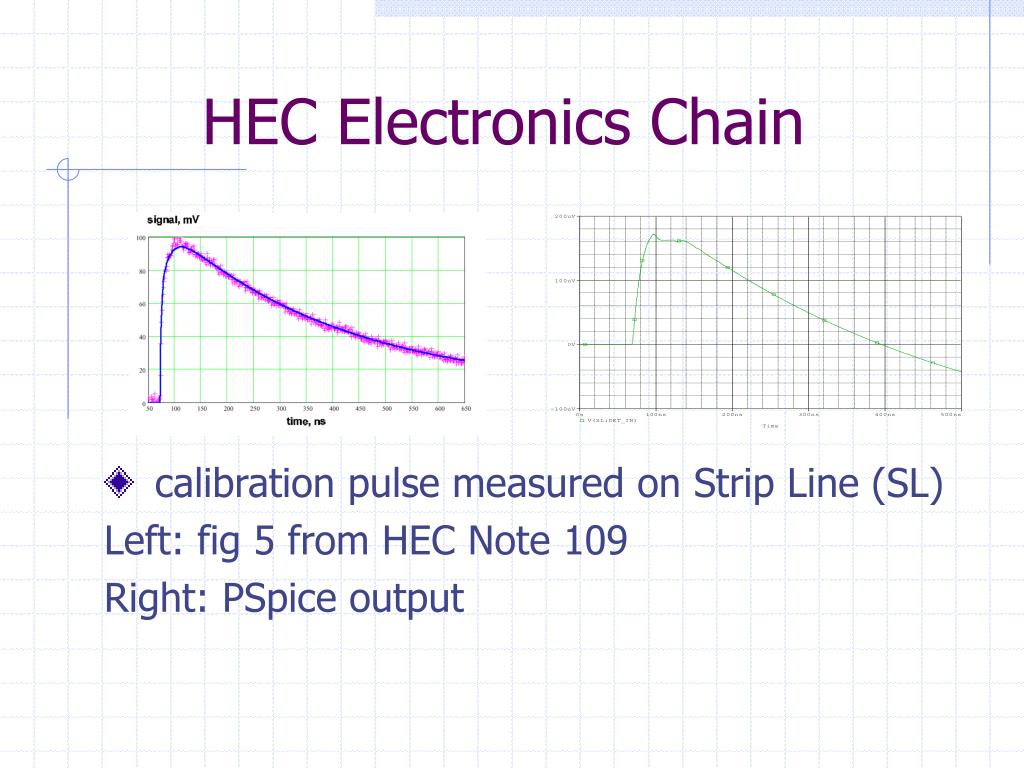

HEC Electronics Chain
  • calibration pulse measured on Strip Line (SL)

Left: fig 5 from HEC Note 109

Right: PSpice output
