history of atom flip book

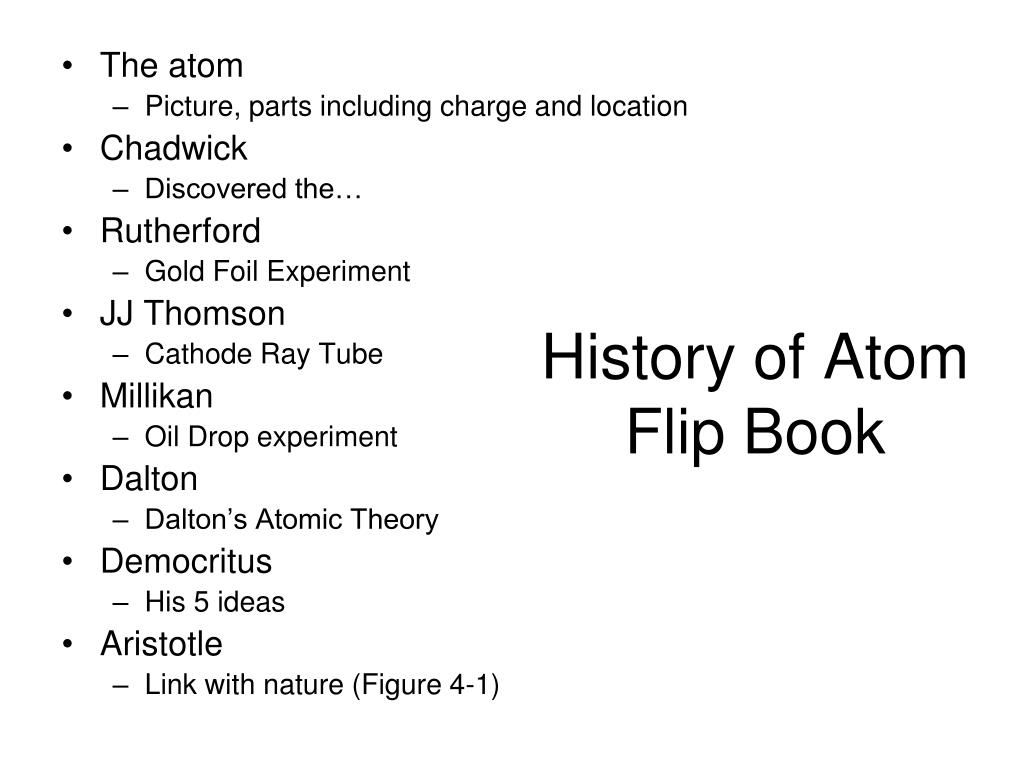

History of Atom Flip Book
  • The atom
    • Picture, parts including charge and location
  • Chadwick
    • Discovered the…
  • Rutherford
    • Gold Foil Experiment
  • JJ Thomson
    • Cathode Ray Tube
  • Millikan
    • Oil Drop experiment
  • Dalton
    • Dalton’s Atomic Theory
  • Democritus
    • His 5 ideas
  • Aristotle
    • Link with nature (Figure 4-1)
history of the atoms

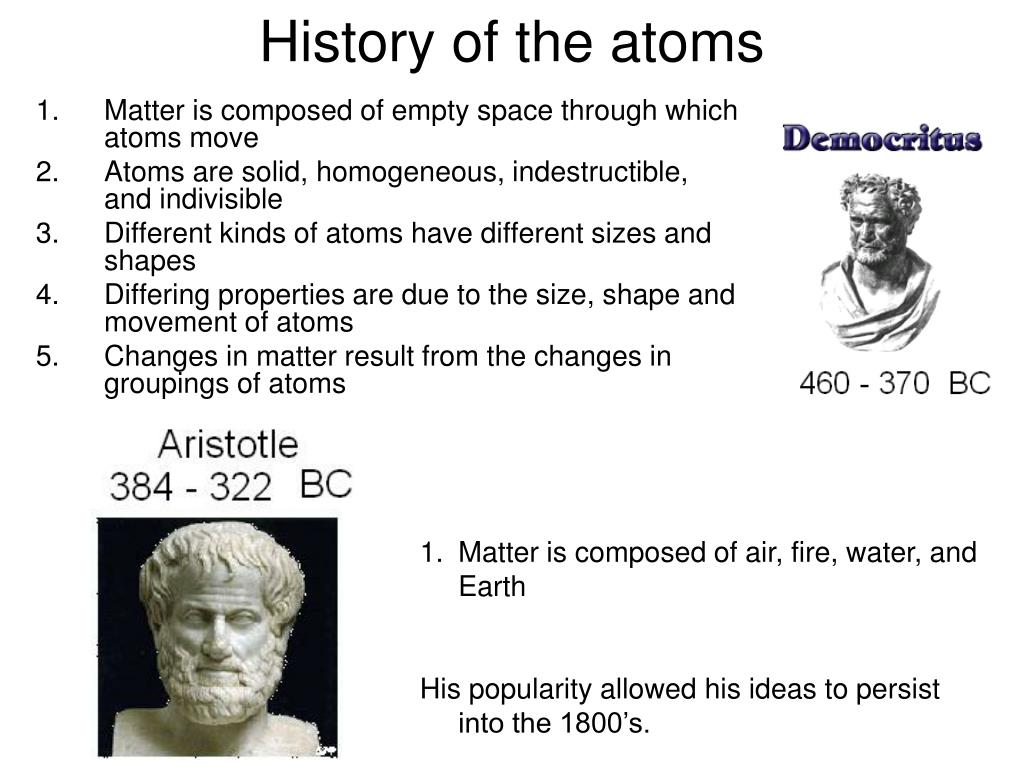

History of the atoms
  • Matter is composed of empty space through which atoms move
  • Atoms are solid, homogeneous, indestructible, and indivisible
  • Different kinds of atoms have different sizes and shapes
  • Differing properties are due to the size, shape and movement of atoms
  • Changes in matter result from the changes in groupings of atoms
  • Matter is composed of air, fire, water, and Earth
  • His popularity allowed his ideas to persist into the 1800’s.
slide3
Dalton’s Atomic theory
  • All matter is composed of extremely small particles called atoms
  • All atoms of a given element are identical
  • Atoms can not be created, divided, or destroyed (Law of Conservation of Mass)
  • Different atoms combine in simple whole number ratios to form compounds (Law of Definite Proportions)
  • In a chemical reaction, atoms are separated, combined, or rearranged

Unlike Democritus, Dalton proved his ideas with science experiments.

subatomic particles
Subatomic Particles
  • JJ Thomson
    • Found charge to mass ratio of electron
    • Proved atoms were divisible into smaller subatomic particles—Big Shock to Science Community
    • Cathode Ray Tube
    • Would later create the Plum Pudding Model
subatomic particles5
Subatomic Particles
  • Millikan
    • Oil drop experiment
    • Found the charge of one electron
    • Electron charge = 1.602x10-19 coulombs
    • Accepted as -1 charge
subatomic particles6
Subatomic Particles
  • Ernest Rutherford
    • Gold Foil Experiment
      • Shoot positive particles at gold foil
subatomic particles7
Subatomic Particles
  • Ernest Rutherford
    • Gold Foil Experiment
      • Found that most positive shots went straight through but some bounced back
      • Atom was largely empty space through which electrons moved
      • Atoms contained tiny dense region called a nucleus that contained most of the mass

An atom the size of two football fields would have a nucleus the size of a nickel

subatomic particles8
Subatomic Particles
  • Chadwick
    • Discovered the neutrons
    • Neutrons act to separate the + protons so that they don’t repel each other
slide9

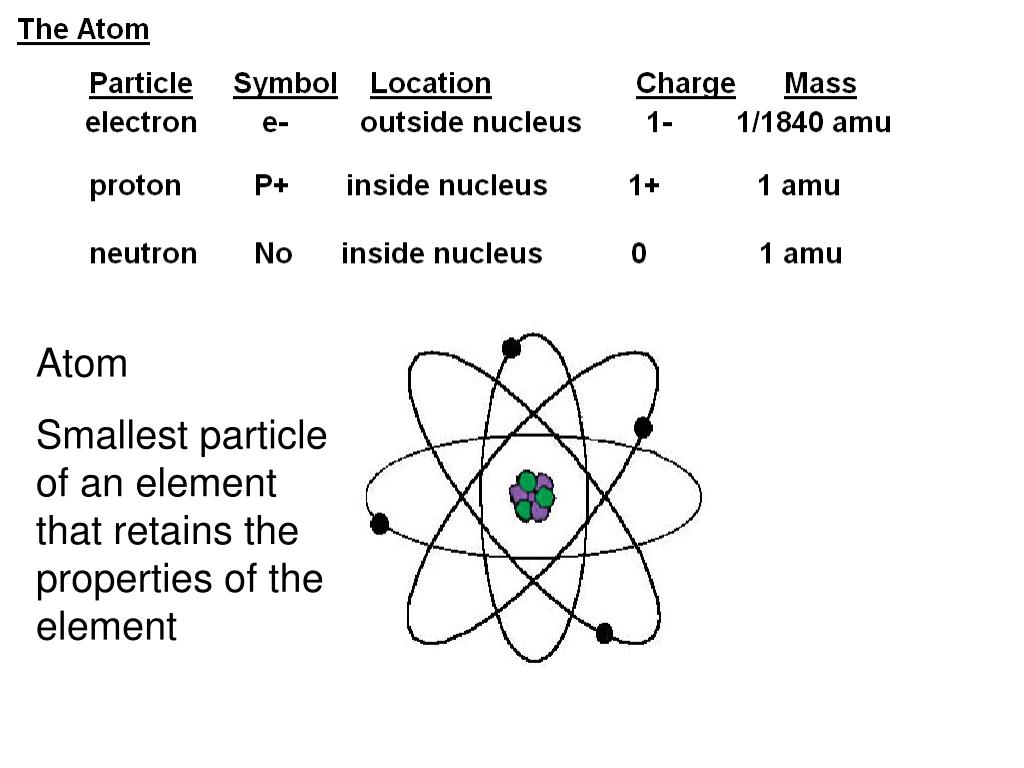

Atom

Smallest particle of an element that retains the properties of the element
