  1. Remote sensing technique in coastal studies Elena Mauri OGS, Istituto Nazionale di Oceanografia e Geofisica Sperimentale, Trieste, Italy Lecture 19

  2. OUTLINE • Electromagnetic spectrum and black body emission • Satellite orbits and sampling • PASSIVE REMOTE SENSING: in the visible bands (Ocean Color), principles, atmospheric contamination, algorithms to retrieve chlorophyll concentration pan-spectral, multi-spectral and hyper-spectral sensors and applications (MODIS, Landsat7) in the thermal infrared bands(Sea Surface Temperature) principles, atmospheric effects, algorithms to retrieve SST applications (AVHRR and MODIS) • ACTIVE REMOTE SENSING: in the microwave bands (Satellite Altimetry and Synthetic Aperture Radar) principles applications (geostrophic surface circulation oil spill detection, etc.)

  3. Remote Sensing is the science and art of obtaining information about an object, area, or phenomenon through the analysis of data acquired by a device that is not in contact with the object, area, or phenomenon under investigation. Satellite Remote Sensing uses electromagnetic radiation to measure near-surface ocean properties

  4. Electromagnetic spectrum Visible (400 nm - 1000 nm, VIS) Infrared (~ 10,000 nm, IR) Microwave (MW) active (3-30 GHz) Links: http://www.biogeorecon.com/remote.htm http://www.eeb.ucla.edu/test/faculty/nezlin/SatellitesAndSensors.htm

  5. Plank’s Law & Blackbody Emission Planck's law describes the spectral radiance of electromagnetic radiation at all wavelength from a black body at temperature T. Black body when is cold no light is reflected or transmitted, the object appears black. When is hot, it will on average emit exactly as much as it absorbs, at every wavelength. As the temperature decreases, the peak of the black-body radiation curve moves to lower intensities and longer wavelengths. Passive remote sensing

  6. Sun emission Earth emission Passive remote sensing

  7. Effects of Atmosphere on the electromagnetic spectrum Links: http://www.gisdevelopment.net/tutorials/tuman008.htm http://www.crisp.nus.edu.sg/~research/tutorial/atmoseff.htm http://earthobservatory.nasa.gov/Library/RemoteSensingAtmosphere/

  8. Satellite orbits Geostationary Near-Polar orbiting Sun-synchronous Links: http://www.rap.ucar.edu/~djohnson/satellite/coverage.html

  9. Satellite orbits Polar-orbiting and geostationary Satellites

  10. Passive and Active Satellite Remote Sensing Passive (VIS, IR, MW) Active (MW) Links: http://www.csc.noaa.gov/products/nchaz/htm/ccap5.htm

  11. Satellite sensors Scanning Pushbroom Instantaneous Field of View (IFOV) Satellite Sampling Links: http://ccrs.nrcan.gc.ca/resource/tutor/fundam/chapter2/08_e.php

  12. Sensor Calibrations and Ground Truth In-situ measurements are needed for ground truthing or validation of remotely sensed data Oceanographic Platform (Ocean color) Surface drifter (SST) Links: http://www.fas.org/irp/imint/docs/rst/Front/tofc.html

  13. Sunlight propagation, refection and absorption by atmosphere and ocean Passive remote sensing: VISIBLE

  14. Passive remote sensing: VISIBLE Remote sensing in the VISIBLE OCEAN COLOR • Ocean color is not the color we normally see, blue/gray due to the reflection of the sky. BUT • Ocean color is the color that would be observed freed from the surface reflection, for instance the color measured beneath the surface of the water.

  15. Passive remote sensing: VISIBLE Remote sensing reflectance (Rrs) Eu (λ) Ed (λ) Is the ratio between the irradiance upwelling just under the surface of the water Eu (λ), to thedownwelling irradiance just penetreting the surface Ed (λ). Rrs=

  16. Passive remote sensing: VISIBLE Remote Sensing Reflectanceand inherent optical properties Rrs(λ)=const bb(λ) bb(λ) + a(λ) Where: a(λ)=aw(λ)+aph(λ)+ad(λ)+acdom(λ) bb(λ)=bbw(λ)+bbp(λ) Absorption is the process by which the enery of a photons is taken up by another entity, for example, by an atom whose valence electrons make transition between two electronic energy levels. The photon is destroyed in the process. Scattering is a general physical process whereby radiation are forced to deviate from a straight trajectory.

  17. Passive remote sensing: VISIBLE Absorption Total absorption spectrum of an idealized, productive (<chl> = 1 mg m-3) oceanic water together with spectra of the individual absorbing components. Relative contribution of absorption by phytoplankton, aph(), and by organic detritus, adet() or ad(), to the total particulate absorption, ap(), from Sargasso Sea waters at 20 m depth

  18. Passive remote sensing: VISIBLE Back-scattering blue green red Clean ocean water (A) has maximum backscatter in short (blue) wavelength and almost zero in yellow and red. Higher is phytoplankton (i.e., chlorophyll and other plant pigments) concentration, more is contribution of green color (B). In coastal zones with high concentration of dead organic and inorganic matter light spectrum has maximum in red (C).

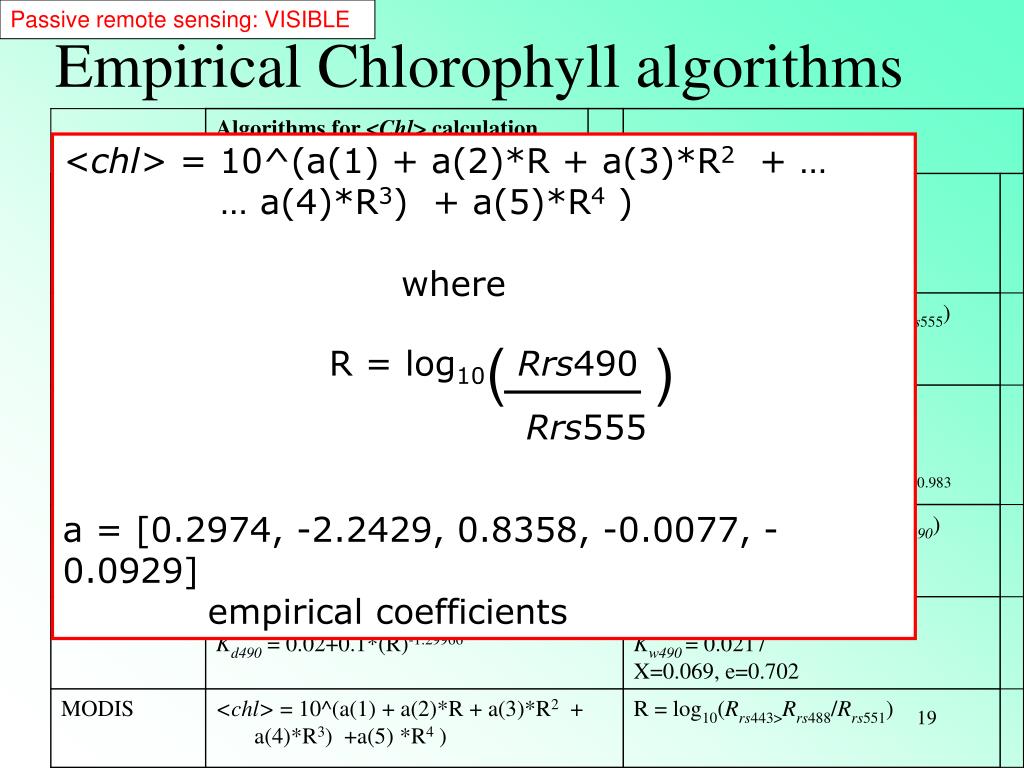

  19. Passive remote sensing: VISIBLE Empirical Chlorophyll algorithms <chl> = 10^(a(1) + a(2)*R + a(3)*R2 + … … a(4)*R3) + a(5)*R4 ) where R = log10Rrs490 Rrs555 a = [0.2974, -2.2429, 0.8358, -0.0077, -0.0929] empirical coefficients ( )

  20. Passive remote sensing: VISIBLE MODIS • Moderate-resolution Imaging Spectroradiometer • is on board of two satellite: Terra (EOS AM) satellite (1999), • AQUA (EOS PM) satellite (2002). • there are 36 spectral bands ranging in wavelength from 0.4 μm to 14.4 µm and at varying spatial resolutions (2 bands at 250 m, 5 bands at 500 m and 29 bands at 1 km). • together the instruments image the entire Earth every 1 to 2 days. • designed to provide measurements in large-scale global dynamics including changes in Earth's cloud cover, radiation budget and processes occurring in the oceans, on land, and in the lower atmosphere.

  21. MODIS spectral bandsand athmospheric effects Passive remote sensing: VISIBLE

  22. Passive remote sensing: VISIBLE

  23. Passive remote sensing: VISIBLE

  24. Passive remote sensing: VISIBLE

  25. Passive remote sensing: VISIBLE

  26. Passive remote sensing: VISIBLE

  27. Passive remote sensing: VISIBLE

  28. Passive remote sensing: VISIBLE

  29. Passive remote sensing: VISIBLE

  30. Passive remote sensing: VISIBLE

  31. Passive remote sensing: VISIBLE

  32. Passive remote sensing: VISIBLE

  33. Passive remote sensing: VISIBLE

  34. Passive remote sensing: VISIBLE Ocean Color Phytoplankton pigment (chlorophyll-a) concentration. The global biosphere!

  35. Passive remote sensing: VISIBLE MODIS chlorophyll concentration around Tanzania

  36. Passive remote sensing: VISIBLE Ocean Color Spatial and seasonal (monsoon) variability of the chlorophyll-a concentration in NW Atlantic and Indian Oceans

  37. Passive remote sensing: VISIBLE Remote sensing in the VISIBLE • Truecolor is a method of representing image (especially in computer processing) in an RGB color space. MODIS res. 250 m • Multispectral is a type of sensor with sensitive to a few specific wavelength and hyperspectral sensitive to many (can reach 200 bands) specific bands • Panchromatic sensor is a type of sensor that is sensitive to all wavelength of visible light. This imagery is of a much higher resolution than the multispetral imagery. For example, the QuickBird satellite produces panchromatic imagery having a pixel equivalent to an area 0.6m x 0.6m, while the multispectral pixels represent an area of 2.4m x 2.4m. QuickBird and IKONOS • Pansharpening is a process of merging high resolution panchromatic and lower resolution multispectral imagery to create a single high resolution color image

  38. The Earth Observing System (EOS) is a program of NASA comprising a series of artificial satellite missions and scientific instruments in Earth orbit designed for long-term global observations of the land surface, biosphere, athmosfere, and oceans of the Earth. The first satellite component of the program was launched in 1997. Passive remote sensing: VISIBLE

  39. Landsat 7 • Landsat 7, launched on April 15, 1999, is the latest satellite of the Landstat program. • Landsat 7's primary goal is to refresh the global archive of satellite photos, providing up-to-date and cloud free images. • Although the Landsat Program is managed by NASA, data from Landsat 7 is collected and distributed by the USGS. • The NASA World Wind project allows 3D images from Landsat 7 and other sources to be freely navigated and viewed from any angle. Landsat 7 data has eight spectral bands with spatial resolutions ranging from 15 to 60 meters. Passive remote sensing: VISIBLE

  40. Passive remote sensing: VISIBLE Landsat 7

  41. Passive remote sensing: VISIBLE Landsat 7

  42. MODIS True color (250 m resolution) Phytoplankton bloom South Atlantic Ocean (off Argentina coast) Coccolotophorids bloom in Bering Sea

  43. True color satellite images of Italian Seas (non-dusty and dusty cases)

  44. IKONOS Passive remote sensing: VISIBLE • is a commercial earth observation satellite and was the first to collect publicly available high-resolution imagery at 1- and 4-meter resolution. It offers multispectral(MS) and panchromatic (PAN) imagery. • Spatial resolution • 0.8 m panchromatic (1-m PAN Panchromatic) • 4-meter multispectral (4-m MS Multispectral) • 1-meter pan-sharpened (1-m PS Pansharpening) • Spectral Resolution: Band1-m PAN4-m MS & 1-m PS1 (Blue)0.45-0.90 µm0.445-0.516 µm2 (Green)*0.506-0.595 µm3 (Red)*0.632-0.698 µm4 (Near IR)*0.757-0.853 µm • Temporal resolution: the revisit rate for IKONOS is 3 to 5 days off-nadir and 144 days for true-nadir

  45. Passive remote sensing: VISIBLE Bahamas

  46. Passive remote sensing: VISIBLE Bora Bora

  47. Passive remote sensing: INFRARED Sea Surface Temperature (SST) NOAA (National Oceanic and Atmospheric Administration)satellites Advanced Very High Resolution Radiometer (AVHRR) data : 5 channels in VIS & IR Cloud masking MCSST algorithm to estimate SST The AVHRR instrument also flies on the METOP series of satellites. The three planned METOP satellites are part of the Eumetsat Polar System (EPS) run by Eumetsat. Link: http://www.eeb.ucla.edu/test/faculty/nezlin/SST.htm

  48. Passive remote sensing: INFRARED Sea Surface Temperature (SST) algorithm Example of an algorthm SST=A*T4+B*(T4-T5)+C*(T4-T5)*(sec(θ)-1)+D A, B, C, D = empirical coefficientsspecific for each satellite

  49. Passive remote sensing: INFRARED Sea surface temperature (SST) - is the temperature of a very thin layer of about 10 micrometres thick or skin of the ocean which leads to the phrase skin temperature (because infared radiation is emitted from this layer). Deviation of the temperature from deep undisturbed water during daylight warming. Notice logarithmic scale. Deviation of the temperature from deep undisturbed water during night. Notice logarithmic scale.

  50. Passive remote sensing: INFRARED
