barrel vtx occupancy still under estimates by product of code debugging

V. L. Rykov

February 13, 2004

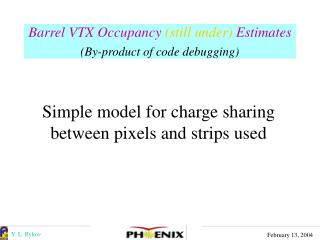

Barrel VTX Occupancy (still under)Estimates(By-product of code debugging)

Simple model for charge sharing between pixels and strips used

simulation model

V. L. Rykov

February 13, 2004

Simulation model
  • Central AuAu@200 GeVNN:HIJING.
  • pp@200 GeV: PYTHIA, MSEL=1, PTJet>10 GeV/c.
  • PISA withthe current VTX geometry in the CVS. Virtually no

other PHENIX detectors besides the VTX in the PHENIX

configuration. Magnetic field is OFF.

  • Analysis chain with the simplifiedgeneration of VTX signals

(Rawhits) from GEANT hits (Ghits): charge sharing is accounted

proportionally to the fraction of a track segment projection

length onto the pixel or strip area. No charge diffusionin the

sensor which will further increase(somewhat?) the occupancy,

particularly for the perpendicular particle crossings.

In the plots:

  • Column, from left to right= Barrel VTX layer
  • Upper row= x-strip or pixel channels
  • Lower row = u-strip channels
summary of these occupancy still under estimates mean fluctuations rms

V. L. Rykov

February 13, 2004

Summary of these occupancy (still under) estimates:mean  fluctuations (RMS)

PYTHIA, pp@200 GeV, PTjet > 10 GeV/c

  • Layer 1:pixels :(0.0030.001)%
  • Layer 2:x-strips:(0.0770.035)%u-strips:(0.0820.036)%
  • Layer 3:x-strips:(0.0470.021)%u-strips:(0.0500.022)%
  • Layer 4:x-strips:(0.0330.019)%u-strips:(0.0340.021)%

HIJING, CentralAuAu@200 GeVNN

  • Layer 1:pixels :(0.530.04)%
  • Layer 2:x-strips:(10.80.78)%u-strips:(11.60.77)%
  • Layer 3:x-strips:(6.630.43)%u-strips:(7.040.40)%
  • Layer 4:x-strips:(4.480.27)%u-strips:(4.740.24)%
