FrSky R9 MM-FC (OMNIBUS F4 Fireworks V2) Flight Controller

The FrSky 900MHz R9 MM-FC (OMNIBUS F4 Fireworks V2) uses the ICM20608 over SPI to produce stable flight performance. Integrated with the R9 MM receiver mounted on-board protection box, and the ICM20608 runs perfectly under 32k Gyro loop. Also onboard are a barometer and AB7456 OSD chip for the Betaflight integrated OSD.

ada002
Download Presentation

FrSky R9 MM-FC (OMNIBUS F4 Fireworks V2) Flight Controller

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

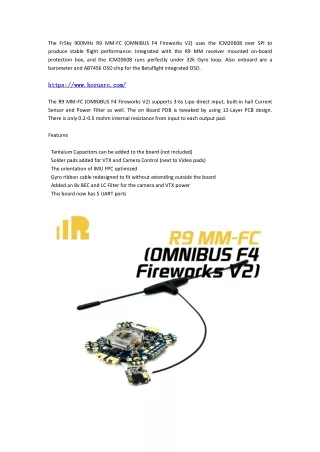

  1. The FrSky 900MHz R9 MM-FC (OMNIBUS F4 Fireworks V2) uses the ICM20608 over SPI to produce stable flight performance. Integrated with the R9 MM receiver mounted on-board protection box, and the ICM20608 runs perfectly under 32k Gyro loop. Also onboard are a barometer and AB7456 OSD chip for the Betaflight integrated OSD. https://www.horusrc.com/ https://www.horusrc.com/ The R9 MM-FC (OMNIBUS F4 Fireworks V2) supports 3-6s Lipo direct input, built-in hall Current Sensor and Power Filter as well. The on Board PDB is tweaked by using 12-Layer PCB design. There is only 0.2-0.5 mohm internal resistance from input to each output pad. Features Tantalum Capacitors can be added to the board (not included) Solder pads added for VTX and Camera Control (next to Video pads) The orientation of IMU FPC optimized Gyro ribbon cable redesigned to fit without extending outside the board Added an 8v BEC and LC Filter for the camera and VTX power This board now has 5 UART ports

  2. Specification STM32 F405 MCU, Runs Betaflight firmware (supported from v3.2) FrSky R9 MM receiver in protection box ICM20608 over SPI Bus in dampening box (optional MPU6000) 30.5×30.5 mm mounting holes Supports Lipo direct plug-in (3-6S) Built-in sensor damper Supports 5V 1A BEC output (Buck) Supports 8V 1A BEC with LC filter output for the camera and VTX (Buck) STM32 controls OSD chip over SPI in DMA mode (Betaflight OSD) Built-in hall Current Sensor Built-in Professional Level PDB More caps to reduce power noise Note: Please upgrade the compatible R9M / R9M Lite module with the latest firmware simultaneously, and rebind the devices after the update.
