FrSky M7 Hall Sensor Gimbal for FrSky Taranis Q X7

Upgrade your Taranis Q X7 with this plug-n-play high resolution M7 Gimbal from FrSky. The highly sensitive Hall sensors will not wear out quickly. It has an extremely smooth feel with the quad ball-bearings and the metal outer construction. Thicker 4mm stick ends give you a solid link to your controls. Fully adjustable tension and easily disable the self centering axis with one screw. This is a must have accessory for achieving those precision flight maneuvers.

ada002
Download Presentation

FrSky M7 Hall Sensor Gimbal for FrSky Taranis Q X7

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

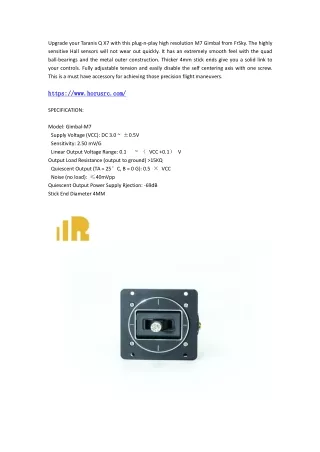

  1. Upgrade your Taranis Q X7 with this plug-n-play high resolution M7 Gimbal from FrSky. The highly sensitive Hall sensors will not wear out quickly. It has an extremely smooth feel with the quad ball-bearings and the metal outer construction. Thicker 4mm stick ends give you a solid link to your controls. Fully adjustable tension and easily disable the self centering axis with one screw. This is a must have accessory for achieving those precision flight maneuvers. https://www.horusrc.com/ https://www.horusrc.com/ SPECIFICATION: Model: Gimbal-M7 Supply Voltage (VCC): DC 3.0 ~ ±0.5V Sensitivity: 2.50 mV/G ~ （ VCC +0.1） V Linear Output Voltage Range: 0.1 Output Load Resistance (output to ground) >15KQ Quiescent Output (TA = 25°C, B = 0 G): 0.5 × VCC Noise (no load): ≤40mVpp Quiescent Output Power Supply Rjection: -69dB Stick End Diameter 4MM

  2. Machanical Specification: X-Axis Adjustable Angle Range: 60°±5° Y-Axis Adjustable Angle Range: 60°±5° Adjustable Height Range: 24.5mm-30.5mm Installation Dimension: 42.9mmx54mm FEATURES: Hall sensor 4 ball-bearings Adjustable tension Can be enable or disable self centering on both axis and ratcheting on the Y axis Special material quality that wears well
