FrSky D4R-II 2.4G 4CH ACCST Telemetry Receiver

This D4R-II is a full featured mini sized 4 channel receiver by FrSky.What makes this receiver different from the D4FR? The D4R-II's data port allows you to connect a sensor hub so you can connect GPS, Variometer, temperature, RPM and all of the other great FrSky sensors. It also has 2 full length detachable antennas. All of this is available in a package just a little larger then the D4FR.

ada002
Download Presentation

FrSky D4R-II 2.4G 4CH ACCST Telemetry Receiver

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

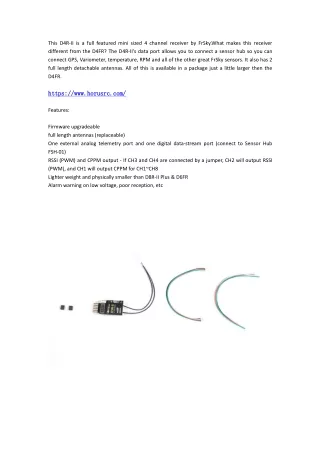

  1. This D4R-II is a full featured mini sized 4 channel receiver by FrSky.What makes this receiver different from the D4FR? The D4R-II's data port allows you to connect a sensor hub so you can connect GPS, Variometer, temperature, RPM and all of the other great FrSky sensors. It also has 2 full length detachable antennas. All of this is available in a package just a little larger then the D4FR. https://www.horusrc.com/ https://www.horusrc.com/ Features: Firmware upgradeable full length antennas (replaceable) One external analog telemetry port and one digital data-stream port (connect to Sensor Hub FSH-01) RSSI (PWM) and CPPM output - If CH3 and CH4 are connected by a jumper, CH2 will output RSSI (PWM), and CH1 will output CPPM for CH1~CH8 Lighter weight and physically smaller than D8R-II Plus & D6FR Alarm warning on low voltage, poor reception, etc

  2. Specifications: Dimension: 40*22.5*6mm Weight: 5.8g / 5g (naked) Operating VoltageRange: 3.5V-10.0V Operating Current: 60mA Operating Range: FullRange Resolution: 3072 (>11bit) Compatibility: FrSky two way telemetry modules: DFT, DJT,DHT, DHT-U What's in the Box: 1 x D4R-II 2 x Short tool 1 x Data wire 1 x Manual
