BETAFPV HX100 100mm FPV Quad built in FrSky RXSR Receiver

HX100 - a revolutionary pocket-size FPV racing drone, is suitable for indoor and outdoor flight. Take it home and explore the big world. Unleash your other side! It's the first generation of carbon fiber kit of Betafpv without the ducting design so although not designed for novice pilots, the HX100 is so much more responsive and quick with not having the ducting around the motors. Other features include 65mm/48mm props, F4 2-4S AIO 12A FC, 1103 8000KV motor, and a Runcam Nano V2 FPV Camera.The built-in FrSky RXSR receiver can make it easily to bind to all FrSky transmitters.Please refer to the manual for more information about the binding process.

ada002
Download Presentation

BETAFPV HX100 100mm FPV Quad built in FrSky RXSR Receiver

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

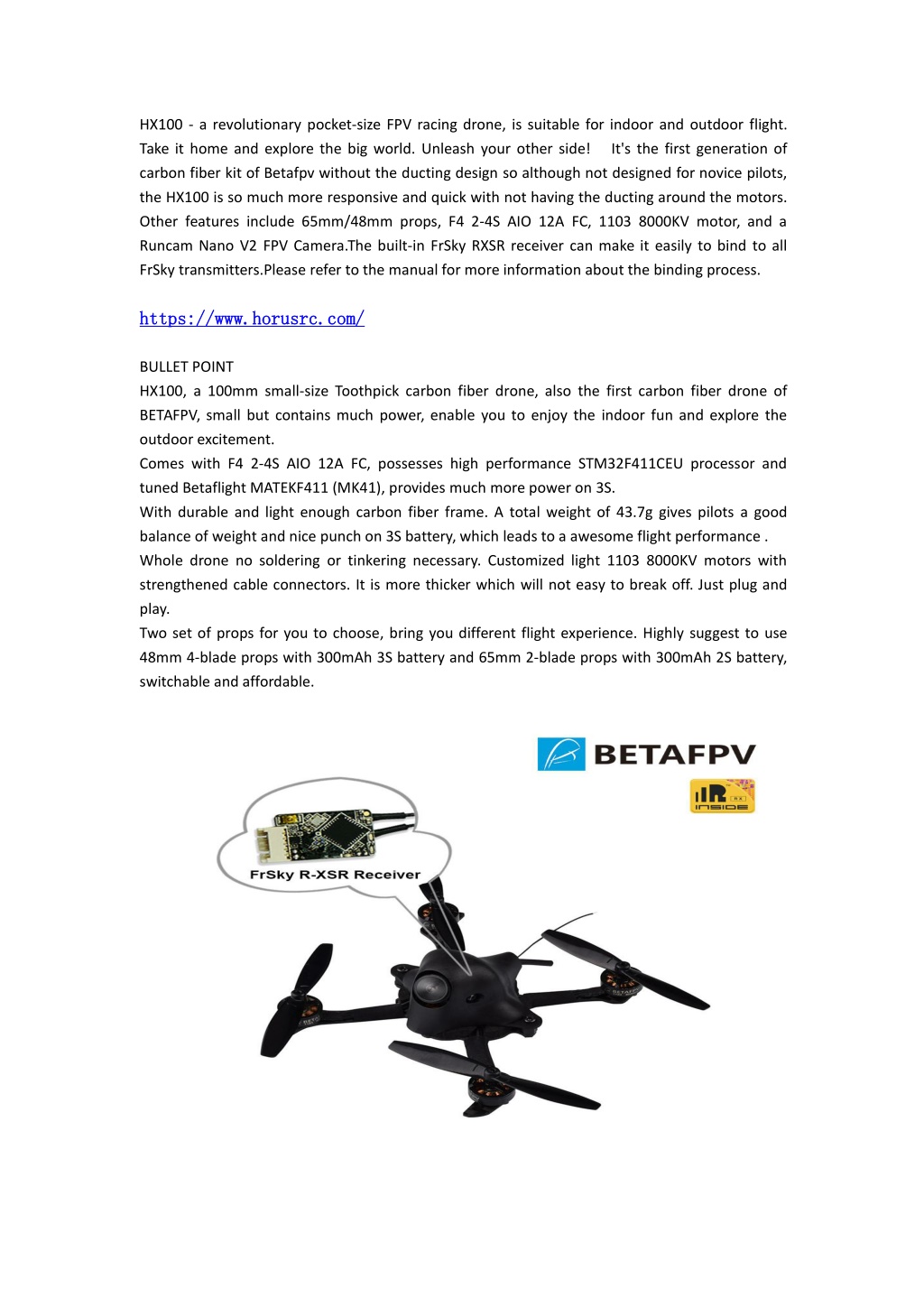

  1. HX100 - a revolutionary pocket-size FPV racing drone, is suitable for indoor and outdoor flight. Take it home and explore the big world. Unleash your other side! carbon fiber kit of Betafpv without the ducting design so although not designed for novice pilots, the HX100 is so much more responsive and quick with not having the ducting around the motors. Other features include 65mm/48mm props, F4 2-4S AIO 12A FC, 1103 8000KV motor, and a Runcam Nano V2 FPV Camera.The built-in FrSky RXSR receiver can make it easily to bind to all FrSky transmitters.Please refer to the manual for more information about the binding process. It's the first generation of https://www.horusrc.com/ https://www.horusrc.com/ BULLET POINT HX100, a 100mm small-size Toothpick carbon fiber drone, also the first carbon fiber drone of BETAFPV, small but contains much power, enable you to enjoy the indoor fun and explore the outdoor excitement. Comes with F4 2-4S AIO 12A FC, possesses high performance STM32F411CEU processor and tuned Betaflight MATEKF411 (MK41), provides much more power on 3S. With durable and light enough carbon fiber frame. A total weight of 43.7g gives pilots a good balance of weight and nice punch on 3S battery, which leads to a awesome flight performance . Whole drone no soldering or tinkering necessary. Customized light 1103 8000KV motors with strengthened cable connectors. It is more thicker which will not easy to break off. Just plug and play. Two set of props for you to choose, bring you different flight experience. Highly suggest to use 48mm 4-blade props with 300mAh 3S battery and 65mm 2-blade props with 300mAh 2S battery, switchable and affordable.

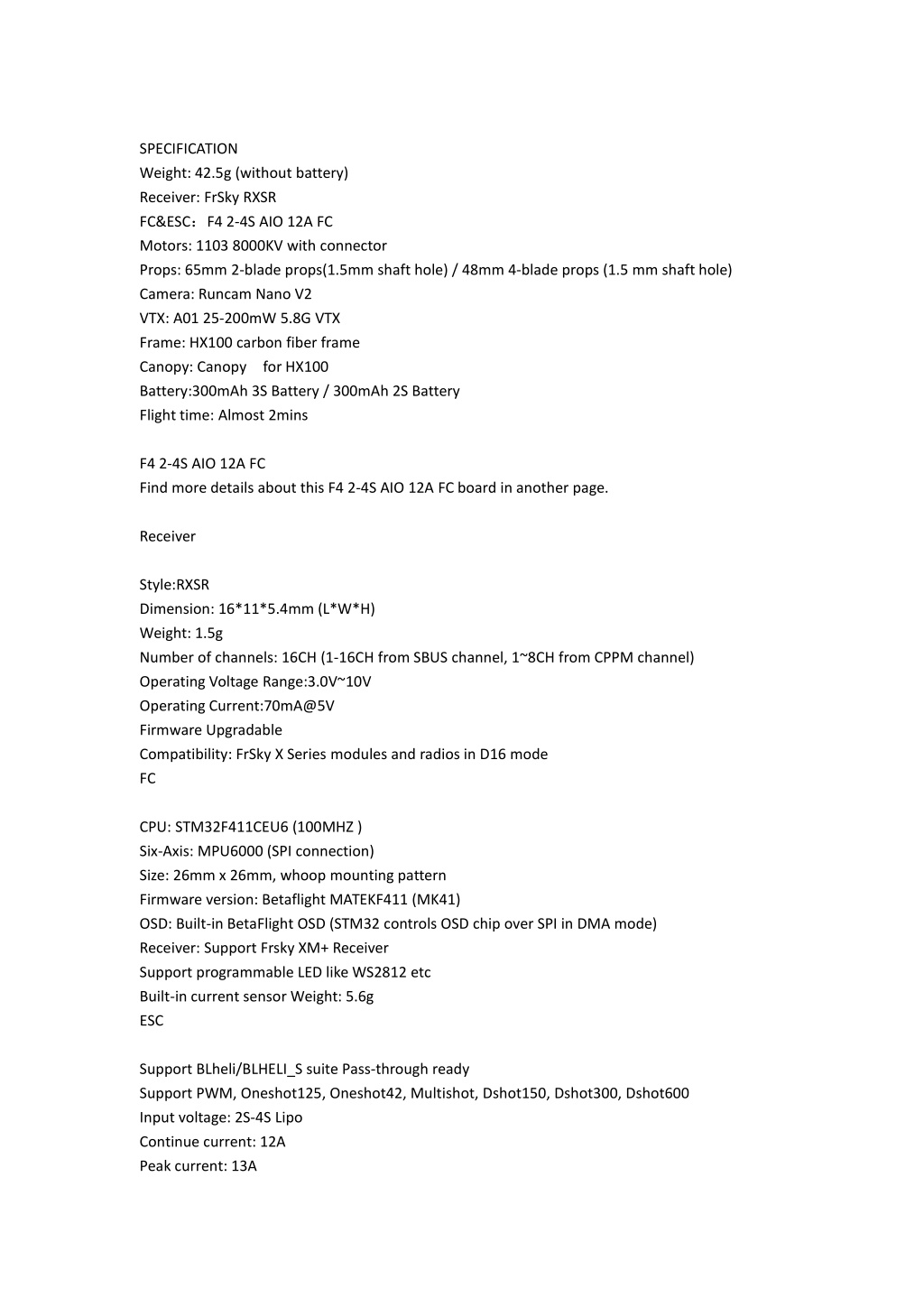

  2. SPECIFICATION Weight: 42.5g (without battery) Receiver: FrSky RXSR FC&ESC：F4 2-4S AIO 12A FC Motors: 1103 8000KV with connector Props: 65mm 2-blade props(1.5mm shaft hole) / 48mm 4-blade props (1.5 mm shaft hole) Camera: Runcam Nano V2 VTX: A01 25-200mW 5.8G VTX Frame: HX100 carbon fiber frame Canopy: Canopy for HX100 Battery:300mAh 3S Battery / 300mAh 2S Battery Flight time: Almost 2mins F4 2-4S AIO 12A FC Find more details about this F4 2-4S AIO 12A FC board in another page. Receiver Style:RXSR Dimension: 16*11*5.4mm (L*W*H) Weight: 1.5g Number of channels: 16CH (1-16CH from SBUS channel, 1~8CH from CPPM channel) Operating Voltage Range:3.0V~10V Operating Current:70mA@5V Firmware Upgradable Compatibility: FrSky X Series modules and radios in D16 mode FC CPU: STM32F411CEU6 (100MHZ ) Six-Axis: MPU6000 (SPI connection) Size: 26mm x 26mm, whoop mounting pattern Firmware version: Betaflight MATEKF411 (MK41) OSD: Built-in BetaFlight OSD (STM32 controls OSD chip over SPI in DMA mode) Receiver: Support Frsky XM+ Receiver Support programmable LED like WS2812 etc Built-in current sensor Weight: 5.6g ESC Support BLheli/BLHELI_S suite Pass-through ready Support PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600 Input voltage: 2S-4S Lipo Continue current: 12A Peak current: 13A

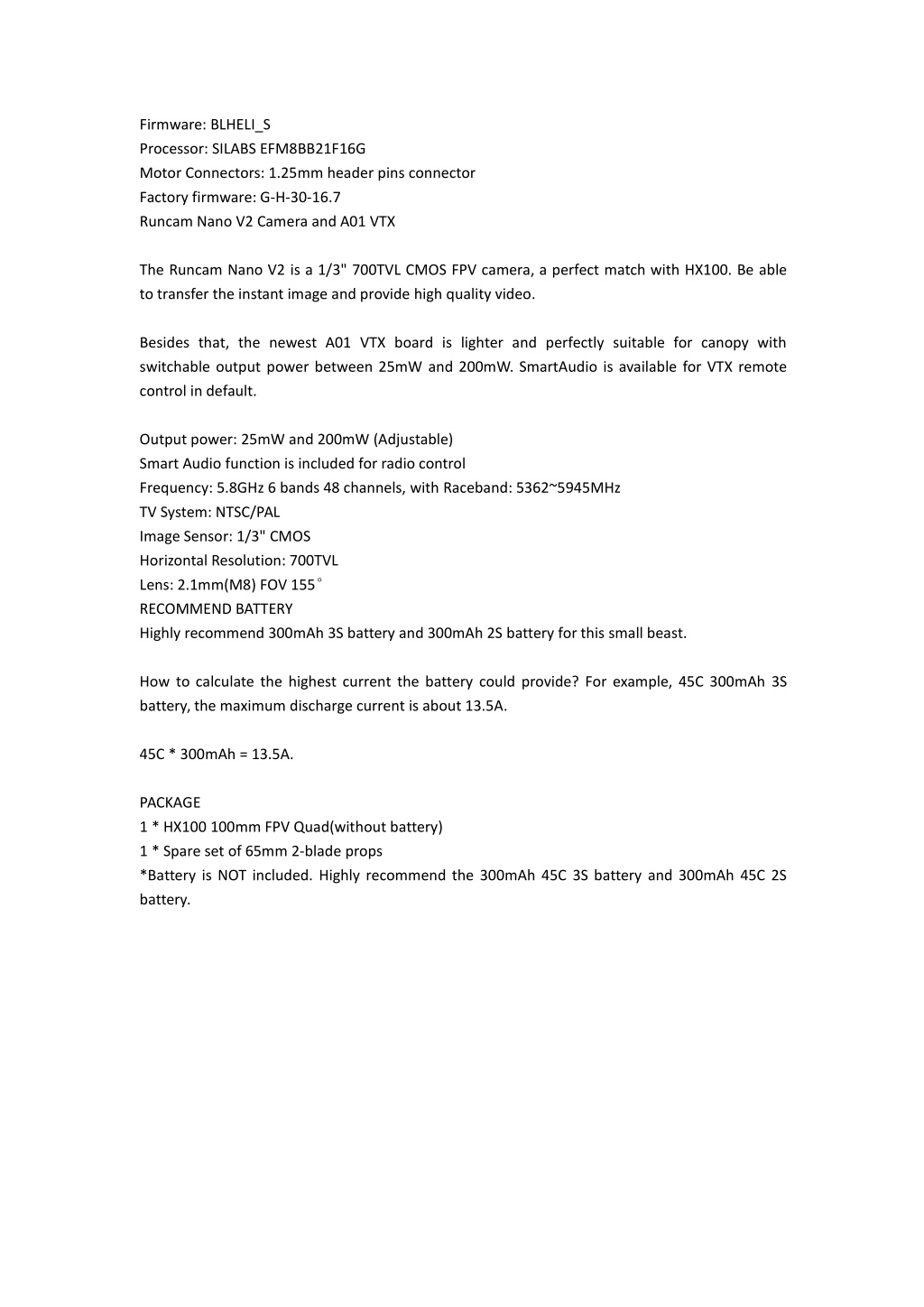

  3. Firmware: BLHELI_S Processor: SILABS EFM8BB21F16G Motor Connectors: 1.25mm header pins connector Factory firmware: G-H-30-16.7 Runcam Nano V2 Camera and A01 VTX The Runcam Nano V2 is a 1/3" 700TVL CMOS FPV camera, a perfect match with HX100. Be able to transfer the instant image and provide high quality video. Besides that, the newest A01 VTX board is lighter and perfectly suitable for canopy with switchable output power between 25mW and 200mW. SmartAudio is available for VTX remote control in default. Output power: 25mW and 200mW (Adjustable) Smart Audio function is included for radio control Frequency: 5.8GHz 6 bands 48 channels, with Raceband: 5362~5945MHz TV System: NTSC/PAL Image Sensor: 1/3" CMOS Horizontal Resolution: 700TVL Lens: 2.1mm(M8) FOV 155° RECOMMEND BATTERY Highly recommend 300mAh 3S battery and 300mAh 2S battery for this small beast. How to calculate the highest current the battery could provide? For example, 45C 300mAh 3S battery, the maximum discharge current is about 13.5A. 45C * 300mAh = 13.5A. PACKAGE 1 * HX100 100mm FPV Quad(without battery) 1 * Spare set of 65mm 2-blade props *Battery is NOT included. Highly recommend the 300mAh 45C 3S battery and 300mAh 45C 2S battery.
