work report

Work Report

Speaker : You Lin

Advisor : Chen Gang

slide4

The development of biological mechanics

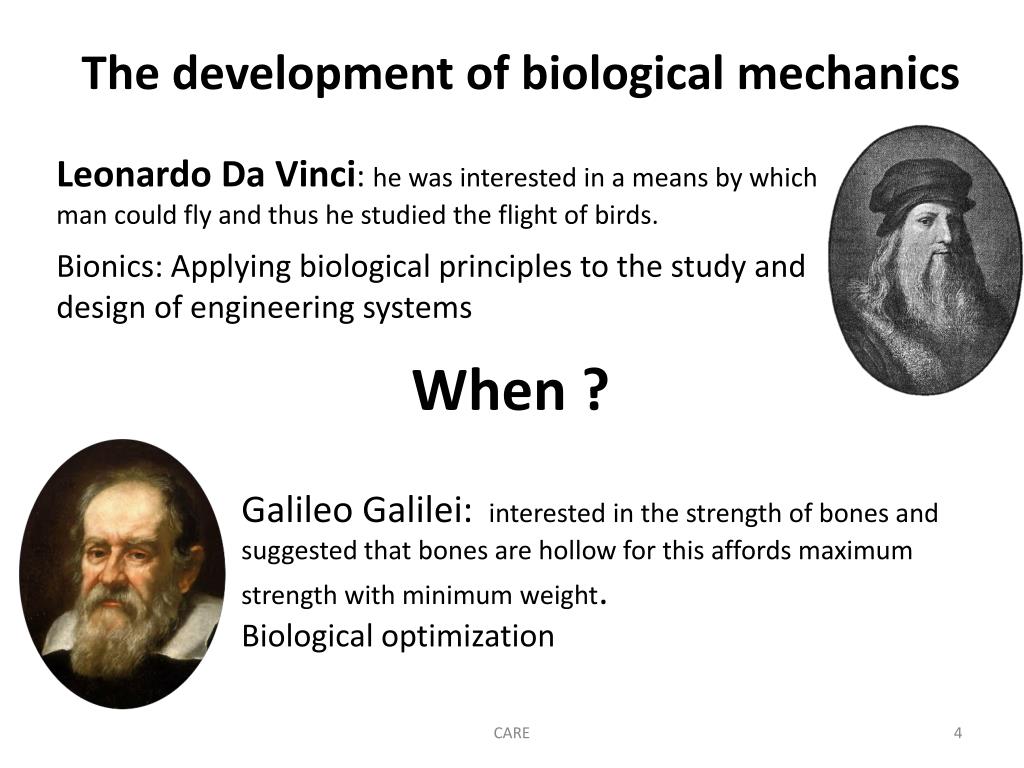

Leonardo Da Vinci: he was interested in a means by which mancould fly and thus he studied the flight of birds.

Bionics: Applying biological principles to the study and design of engineering systems

When ?

Galileo Galilei: interested in the strength of bones and suggested that bones are hollow for this affords maximum strength with minimum weight.

Biological optimization

CARE

slide5

The development of biological mechanics

When ?

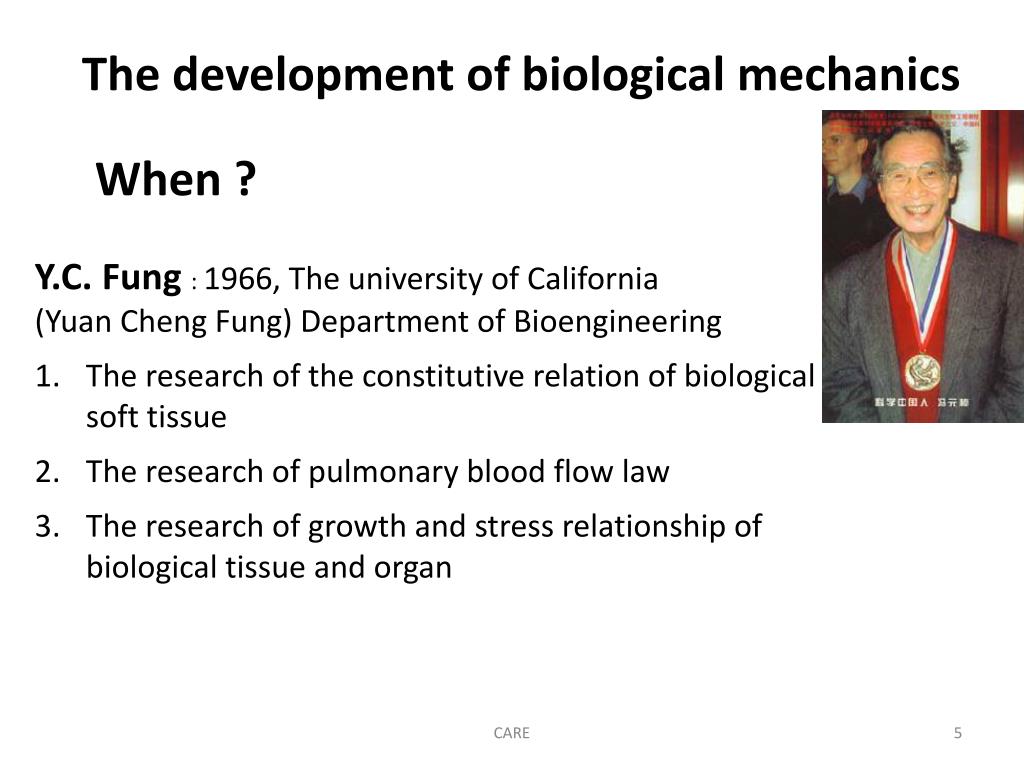

  • Y.C. Fung : 1966, The university of California
  • (Yuan Cheng Fung) Department of Bioengineering
  • The research of the constitutive relation of biological soft tissue
  • The research of pulmonary blood flow law
  • The research of growth and stress relationship of biological tissue and organ

CARE

slide6

The development of biological mechanics

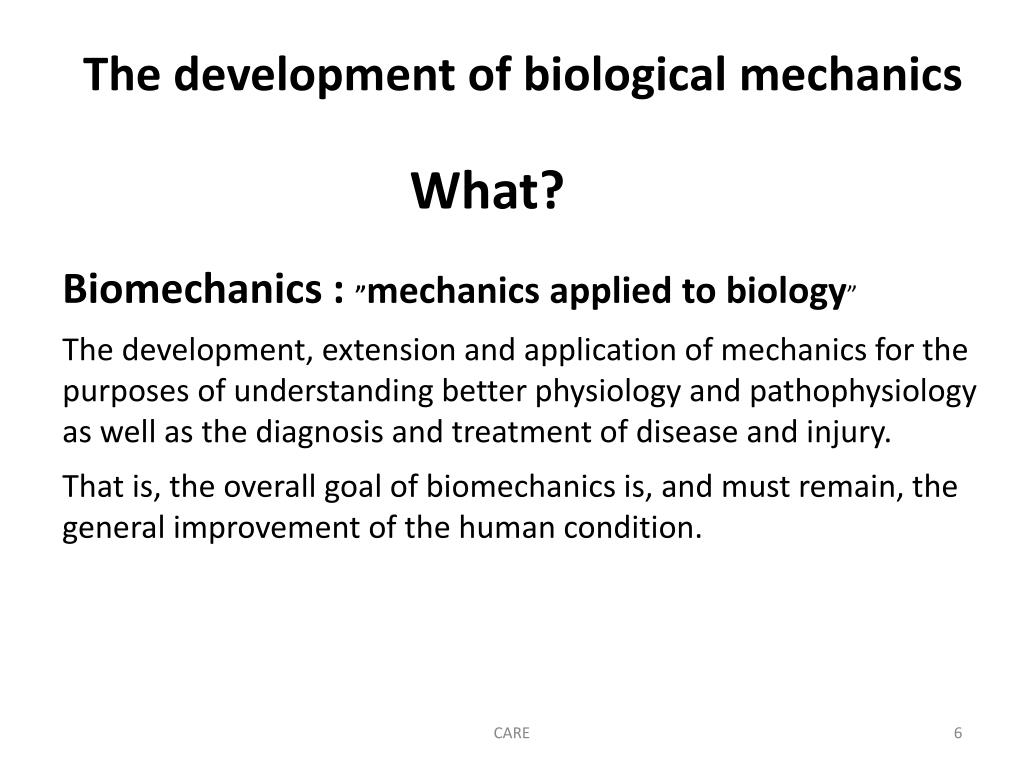

What?

Biomechanics : ”mechanics applied to biology”

The development, extension and application of mechanics for the purposes of understanding better physiology and pathophysiology as well as the diagnosis and treatment of disease and injury.

That is, the overall goal of biomechanics is, and must remain, the general improvement of the human condition.

CARE

slide7

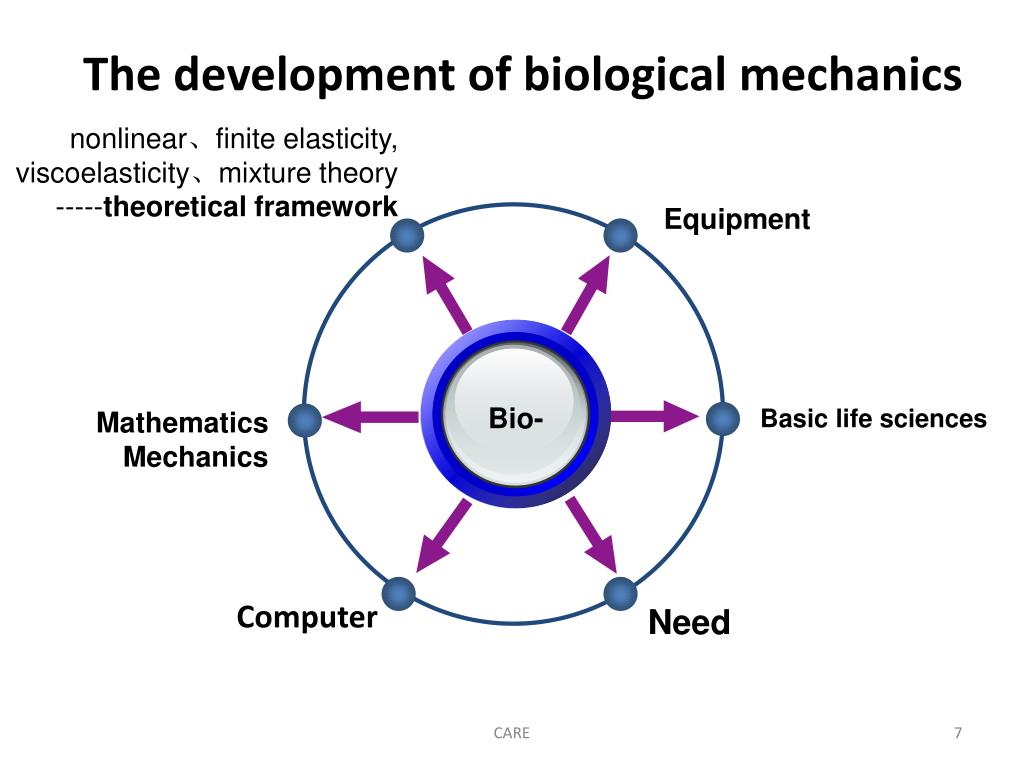

Bio-

  • The development of biological mechanics

nonlinear、­finite elasticity,

viscoelasticity、mixture theory

-----theoretical framework

Equipment

Basic life sciences

Mathematics

Mechanics

Computer

Need

CARE

slide8

The development of biological mechanics

Journal:

the Journal of Biomechanics(1968)

the ASME Journal of Biomechanical Engineering(1977)

Computer Methods in Biomechanics and Biomedical Engineering(1998)

Biomechanics and Modeling in Mechanobiology(2002)

the Annals of Biomedical Engineering

the IEEE Transactions for Biomedical Engineering

CARE

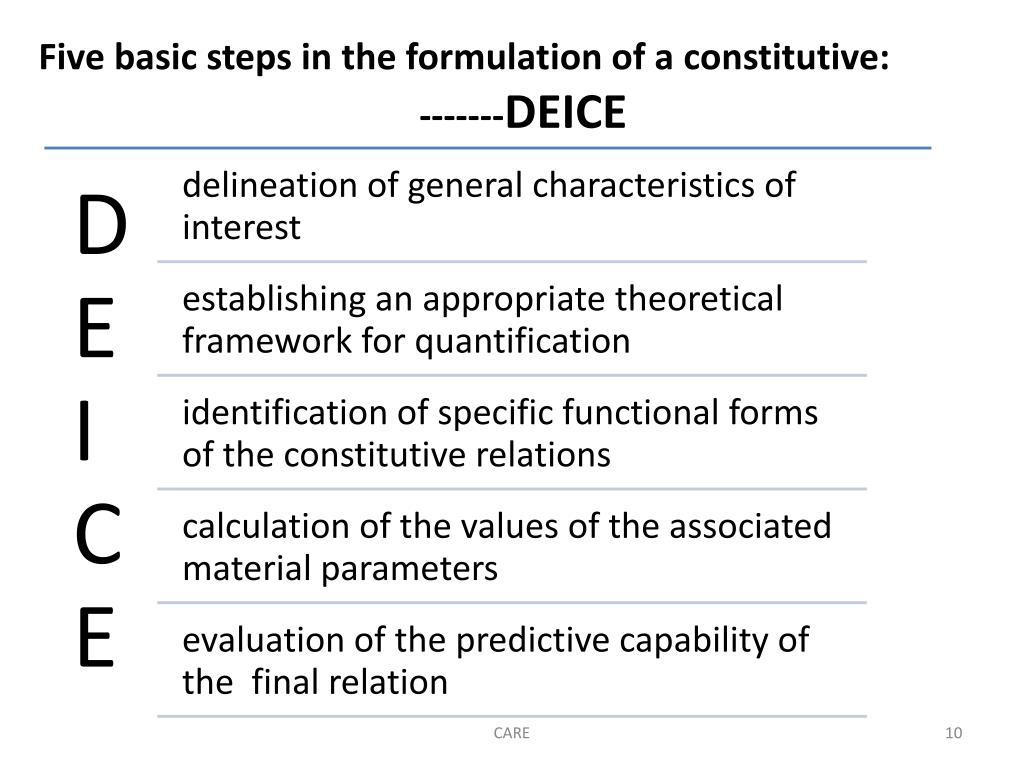

slide11

Application

How will humans respond to the altered loads associated with space travel?

CARE

slide12

Application

Biomechanics aims to explain the mechanics of life and living.

From molecules to organisms, everything must obey the laws of mechanics.

  • from the design of a vehicle with improved crashworthiness, to the design of a wheelchair;
  • (Optimizationdesign, humanization design)
  • from the design of a left ventricular assist device to aid a failing heart, to the design of an intraocular implant to improve vision;
  • (Supplementary)

CARE

slide13

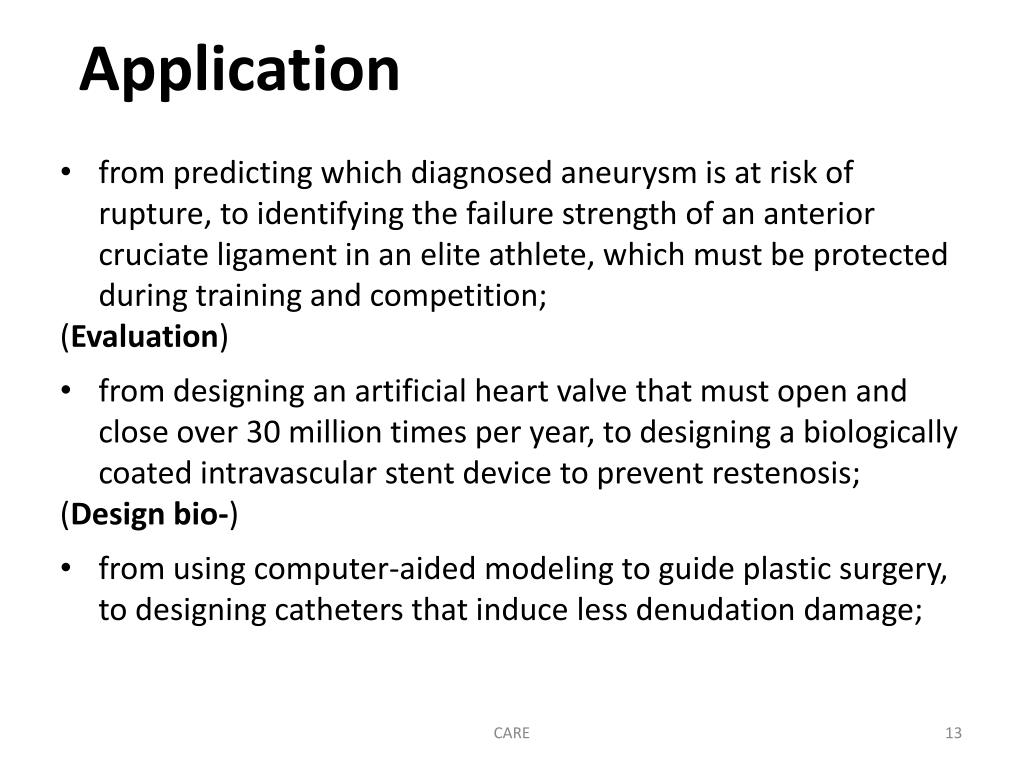

Application

  • from predicting which diagnosed aneurysm is at risk of rupture, to identifying thefailure strength of an anterior cruciate ligament in an elite athlete, which must be protected during training and competition;
  • (Evaluation)
  • from designing an artificial heart valve that must open and close over 30 million times per year, to designing a biologically coated intravascular stent device to prevent restenosis;
  • (Design bio-)
  • from using computer-aided modeling to guide plastic surgery, to designing catheters that induce less denudation damage;

CARE

slide14

Application

  • from designing a mechanical ventilator to support patients in respiratory distress, to specifying rehabilitation schedules that promote tissue healing;
  • (Systematization)
  • from quantifying brain properties that enable robotic-assisted surgery, to designing improved procedures in surgical specialties;
  • (automation)
  • from the engineering of tissue for surgical replacement, to the development of an improved interpretation of ultrasound images and hundreds of applications in between.
  • (assistant technology/ substitute)

CARE

slide15

Tendon

R.F. Ker. 1981 , The plantaris tendon of sheep : design of clamp and extensometer ,modulus, dissipates, frequencies, temperature

R.F. Ker, N.J. Dimery, R.M. Alexander. 1986, wallaby : clamp, The photographic method,modulus, bending tests

X.T. Wang, M.R. Ruister, R. Alexander, R.F. Ker. 1991, mammalian tail tendons : Temperature

R.F. Ker. 1999, Soft Collagenous Load-Dearing Tissues: design, tendon, cartilage, heel pad, stress-strain, micromechanics

T.A.L. Wren, S.A. Yerby, G.S. Beaupré, D.R. Carter. 2000, calcaneus : Dual-Energy X-Ray absorptiometry measurements, the Assessment of Osteopenia and Fracture Risk

T.A.L. Wren, S.A. Yerby, G.S. Beaupré, D.R. Carter. 2001, human achilles tendon: 1%、10%/s strain rate, modulus, failure stress/strain

T.A.L. Wren, S.A. Yerby, G.S. Beaupré, D.R. Carter. 2003, human achillestendon: creep, cycle load, failure

CARE

slide16

Tendon

Fig. 1. Principle of the measurements

CARE

slide17

Tendon

an extension rod

the screw

duralinner tube

Pins

a PTFE coat

The core

the steel outer tube

Fig. 2. The extensometer

LVDT

the wires

CARE

slide18

Tendon

1986

1981

Fig. 3. The two types of clamp used in the investigation

CARE

slide19

Tendon

1991

Fig. 4. The heating cylinder, which was filled with liquid paraffin to prevent the tendon drying and to improve heat transport.The cylinder is placed over the lower clamp and screwed to the actuator.

CARE

slide20

Tendon

2003

2001

Fig. 5. Experimental setup

CARE

slide21

Tendon

Fig. 6. Typical stress - strain relation

CARE

slide22

Tendon

The Cox’s theory

Fig.7. Stress distribution in fibre and matrix for discontinuous fibre reinforcement

CARE

slide23

Tendon

CARE

slide24

Appendix

[1] G.A. Holzapfel . Biomechanics of Soft Tissue. Computational Biomechanics[J], 7(2000):1~12

[2] J.D. Humphre. Review Paper: Continuum Biomechanics of Soft Biological Tissues. Proceedings of the Royal Society of society[J]. A(2003):1~46

[3] T.A.L. Wren, S.A. Yerby, G.S. Beaupré, D.R. Carter. Interpretation of Calcaneus Dual-Energy X-Ray Absorptiometry Measurements in the Assessment of Osteopenia and Fracture Risk. Journal of Bone and Material Research[J]. 15(2000):1573~1578

[4] T.A.L. Wren, S.A. Yerby, G.S. Beaupré, D.R. Carter. Mechanical Properties of the Human Achilles Tendon. Clinical Biomechanics[J], 16(2001):245~251

[5] T.A.L. Wren, S.A. Yerby, G.S. Beaupré, D.R. Carter. Effects of Creep and Cyclic Loading on the Mechanical Properties and Failure of Human Achilles Tendons. Annals of Biomedical Engineering[J], 31(2003):710~717

[6] R.F. Ker. Dynamic Tensile Properties of The Plantaris Tendon of Sheep(Ovisaries). The Journal of Experimental Biology[J], 93(1981):283~302

[7] R.F. Ker, N.J. Dimery, R.M. Alexander. The Role of Tendon Elasticity in Hopping in a Wallaby (MacropusRufogriseus). Journal of Zoology[J], 208(1986):417~428

[8] X.T. Wang, M.R. Ruister, R. Alexander, R.F. Ker. The Effect of Temperature on the Tensile Stiffness of Mammalian Tail Tendons. Journal of Zoology[J], 223(1991):491~497

[9] R.F. Ker. The Design of Soft Collagenous Load-Dearing Tissues. The Journal of Experimental Biology[J], 202(1999):537~548

CARE
