Presentation Transcript
top front side

Top, Front, Side

Drawing a 2 Dimension View

Top, Front, Side

from a 3 Dimensional Figure

slide4

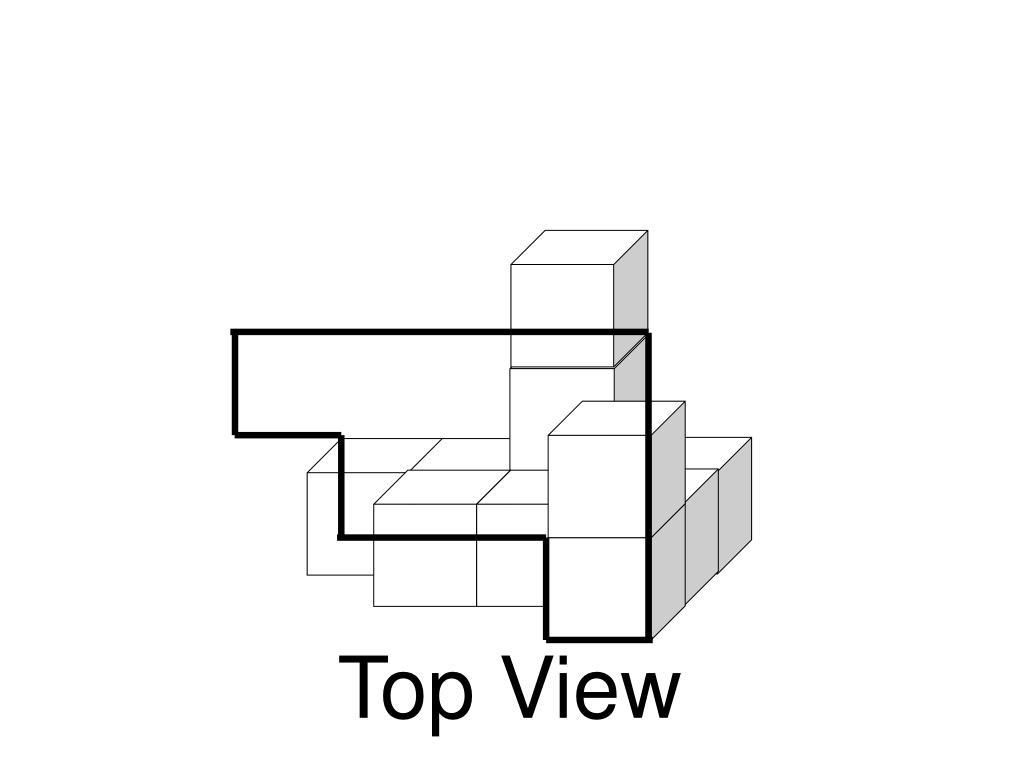

Another way to think about it…

If you were directly above in a helicopter, how would it “look”?

slide12

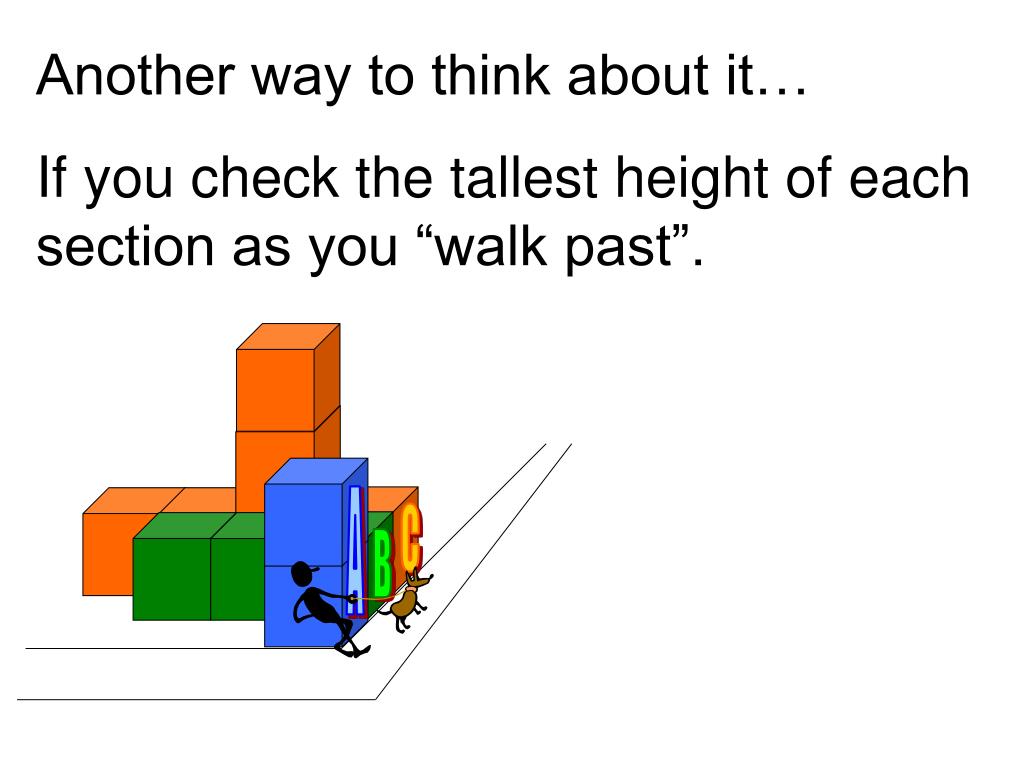

Another way to think about it…

If you check the tallest height of each section as you “walk past”.

A

C

B

slide13

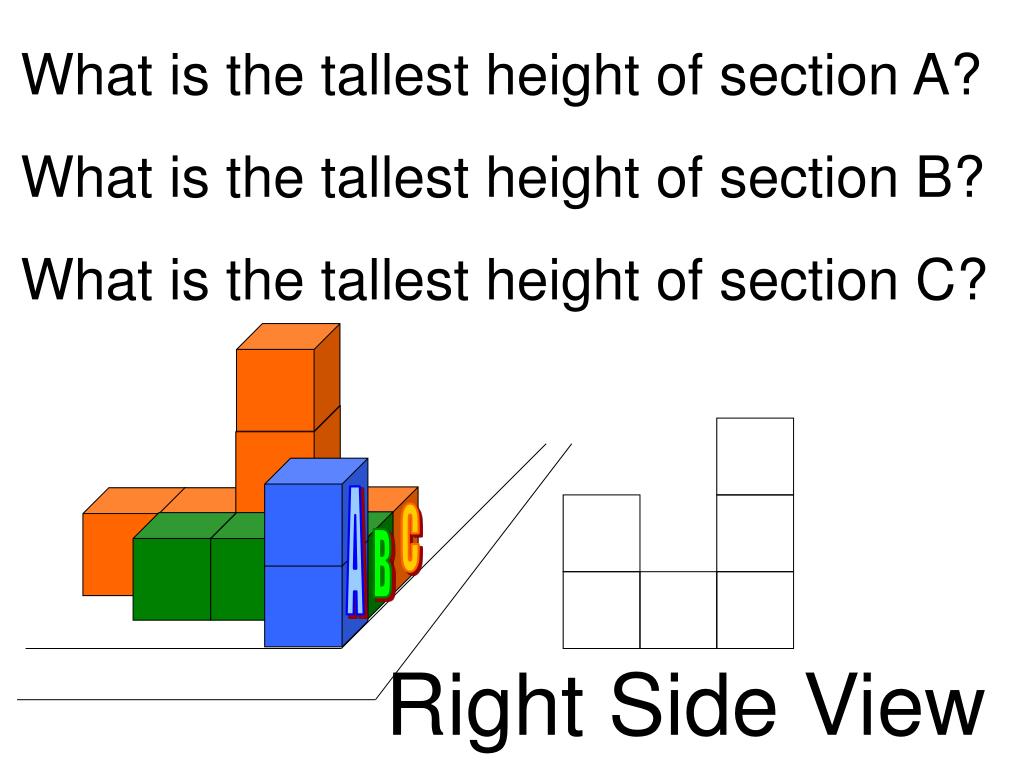

What is the tallest height of section A?

What is the tallest height of section B?

What is the tallest height of section C?

A

C

B

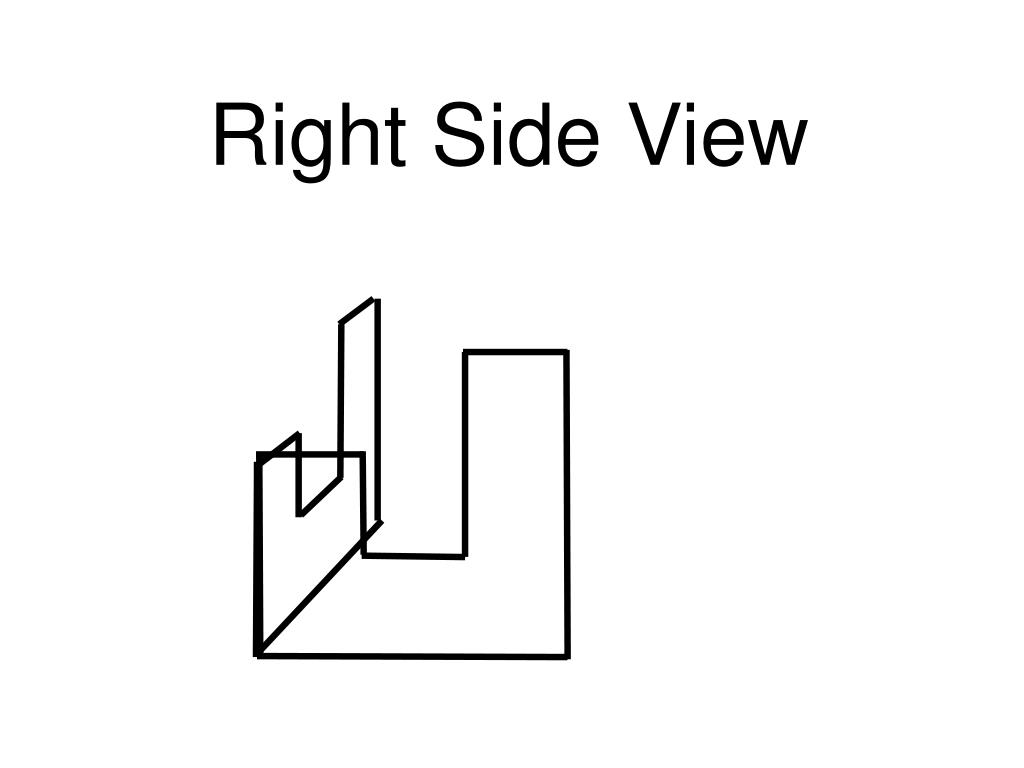

Right Side View

slide19

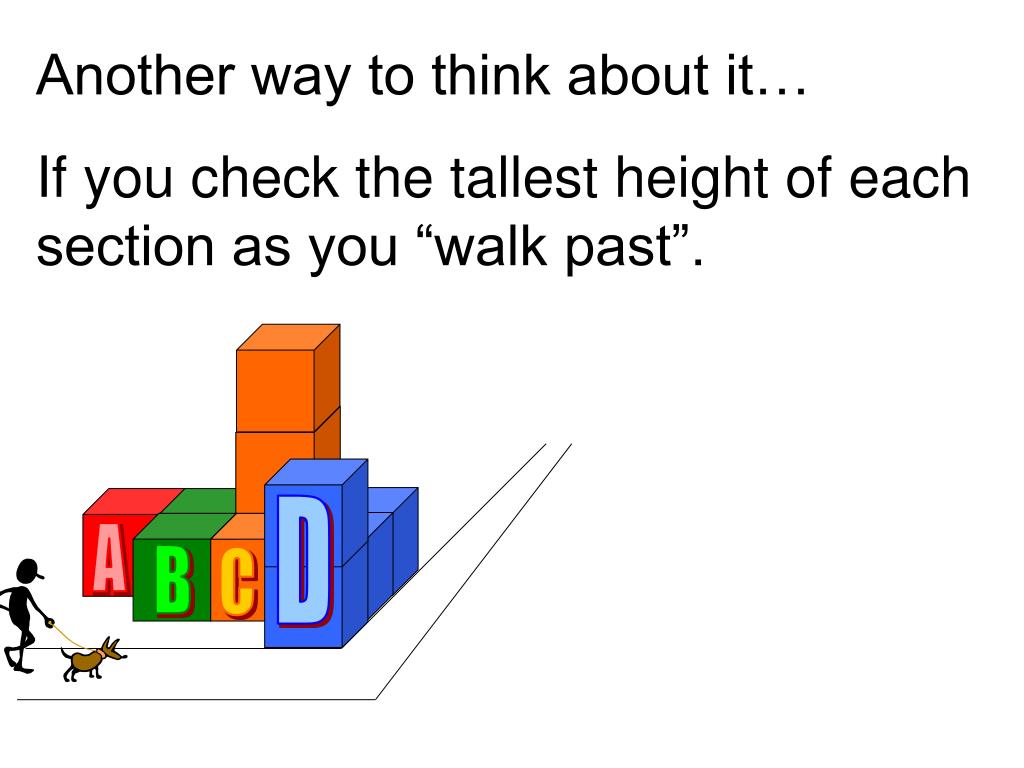

Another way to think about it…

If you check the tallest height of each section as you “walk past”.

D

A

B

C

slide20

What is the tallest height of section A?

What is the tallest height of section B?

What is the tallest height of section C?

What is the tallest height of section D?

D

A

B

C

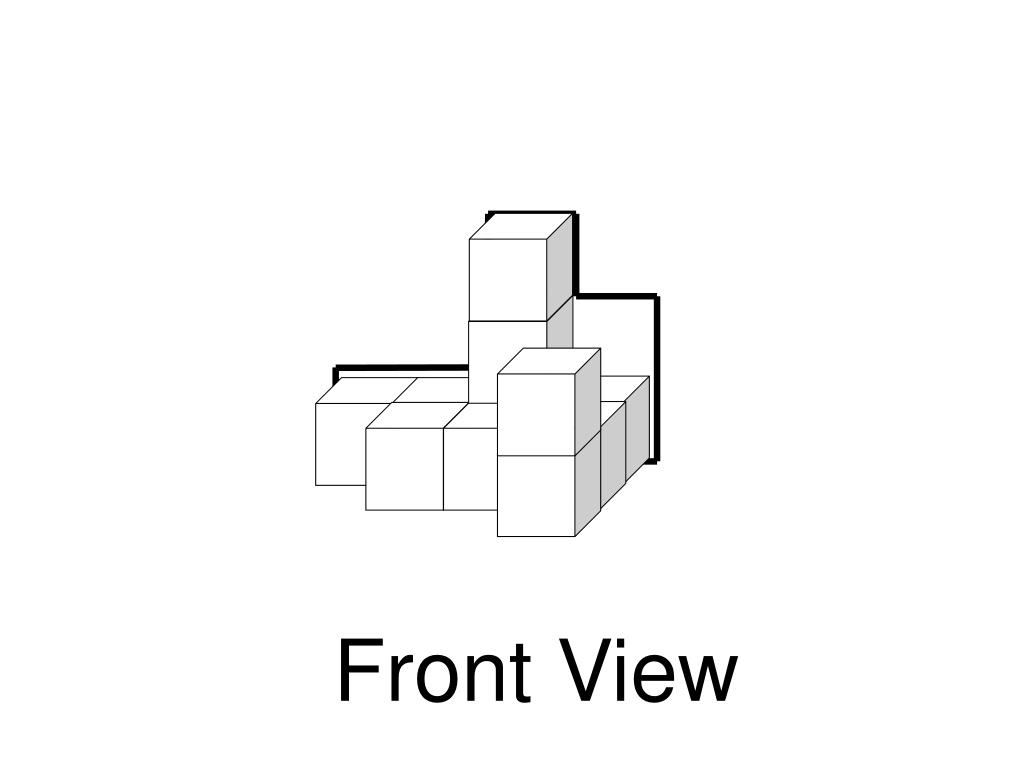

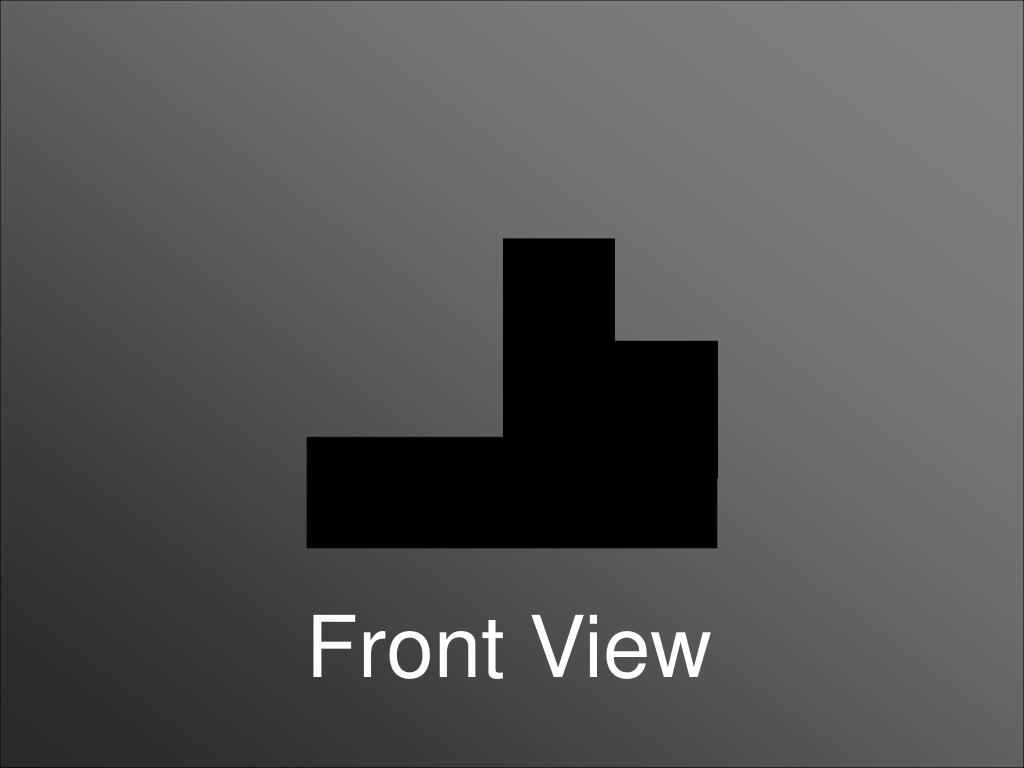

Front View

slide24

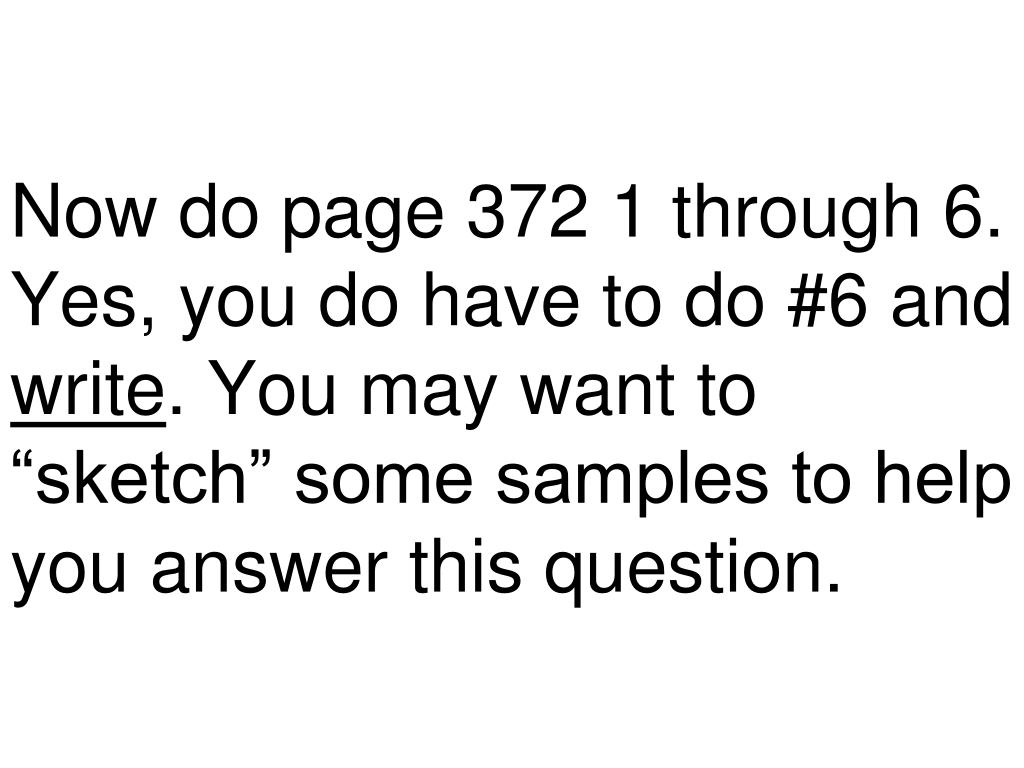

Now do page 372 1 through 6.Yes, you do have to do #6 and write. You may want to “sketch” some samples to help you answer this question.
