Essential Tips for AC Installation

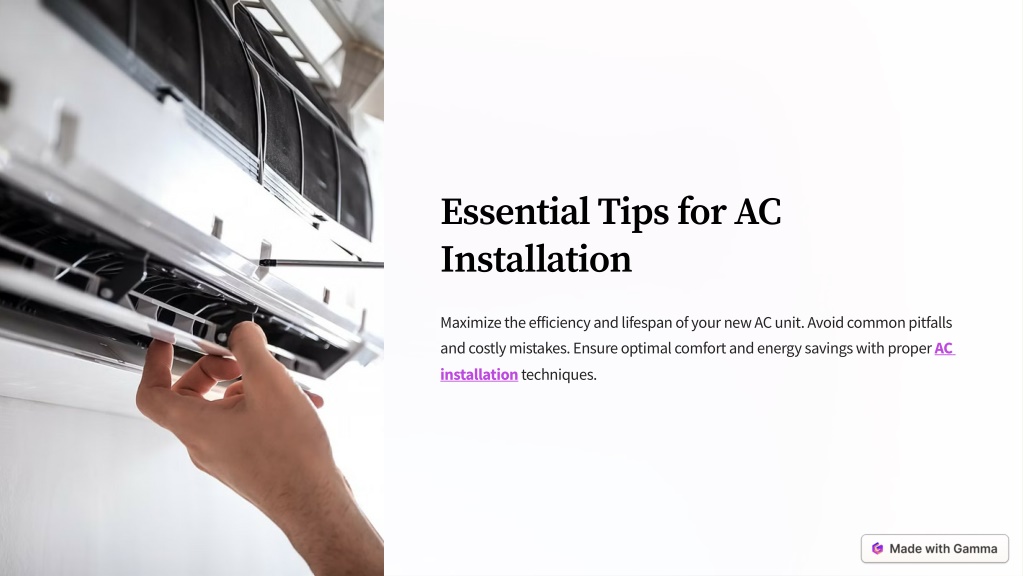

1. Essential Tips for AC Installation Maximize the efficiency and lifespan of your new AC unit. Avoid common pitfalls and costly mistakes. Ensure optimal comfort and energy savings with proper AC installation techniques.

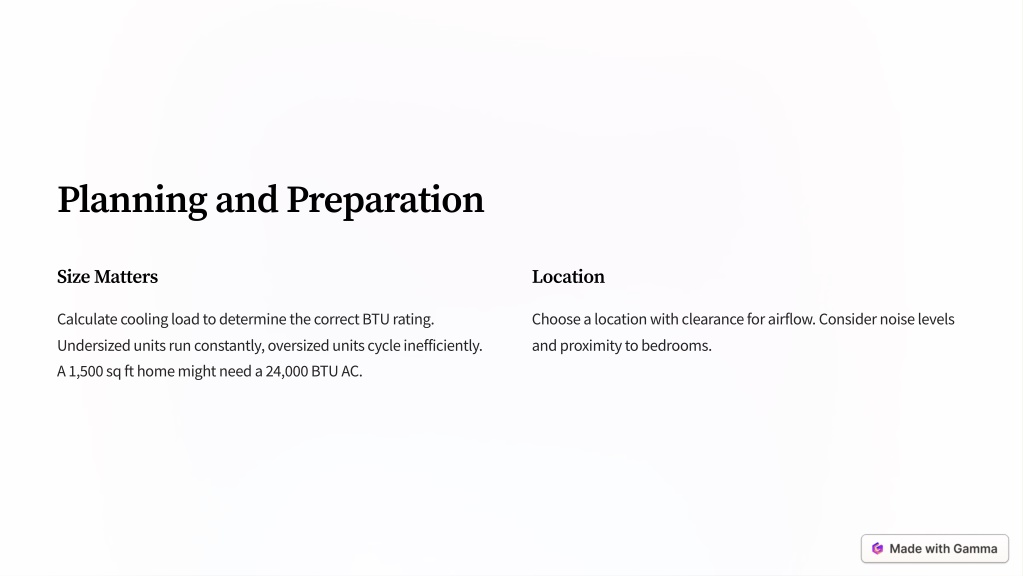

2. Planning and Preparation Size Matters Location Calculate cooling load to determine the correct BTU rating. Undersized units run constantly, oversized units cycle inefficiently. A 1,500 sq ft home might need a 24,000 BTU AC. Choose a location with clearance for airflow. Consider noise levels and proximity to bedrooms.

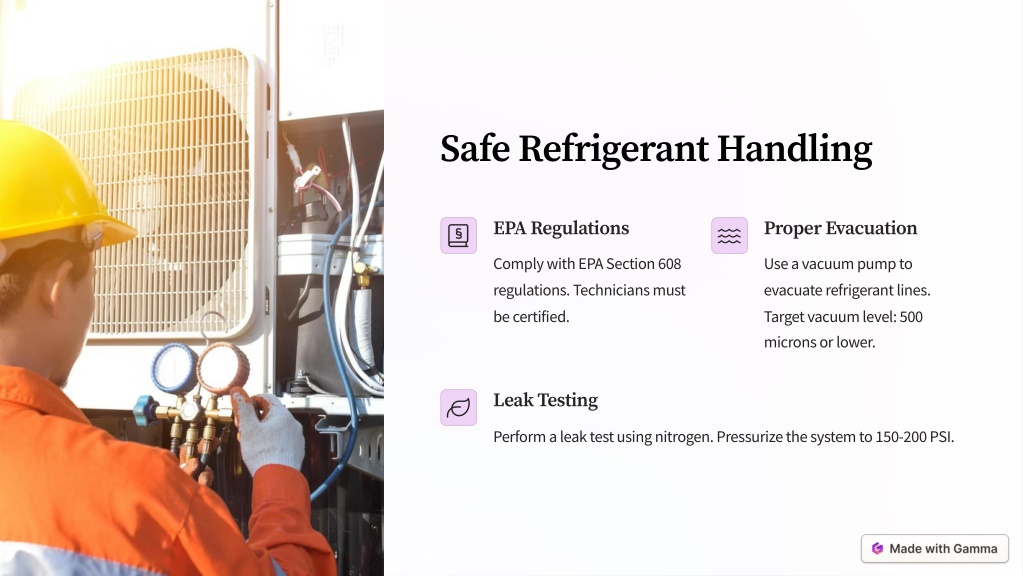

3. Safe Refrigerant Handling EPA Regulations Proper Evacuation Comply with EPA Section 608 regulations. Technicians must be certified. Use a vacuum pump to evacuate refrigerant lines. Target vacuum level: 500 microns or lower. Leak Testing Perform a leak test using nitrogen. Pressurize the system to 150-200 PSI.

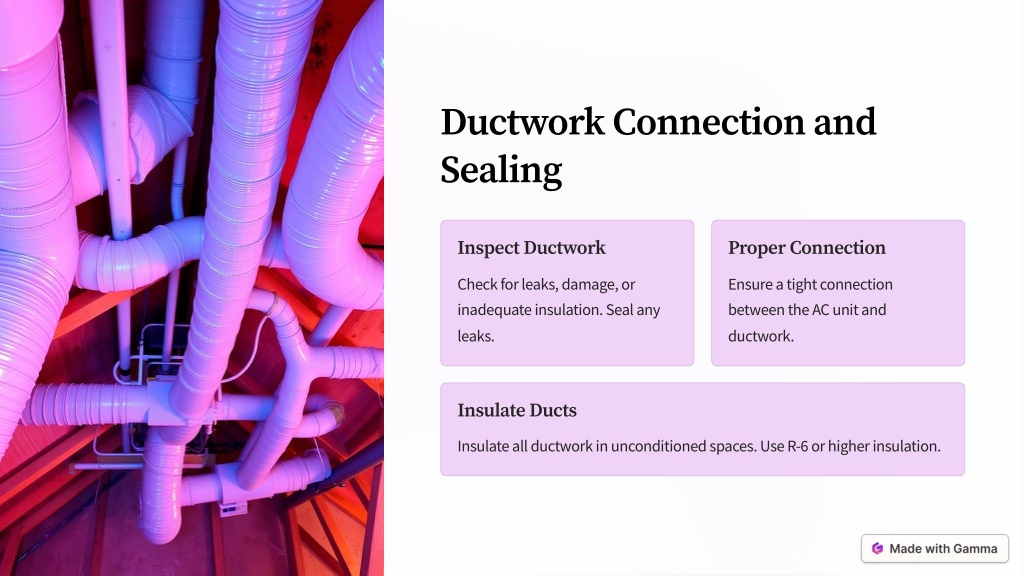

4. Ductwork Connection and Sealing Inspect Ductwork Proper Connection Check for leaks, damage, or inadequate insulation. Seal any leaks. Ensure a tight connection between the AC unit and ductwork. Insulate Ducts Insulate all ductwork in unconditioned spaces. Use R-6 or higher insulation.

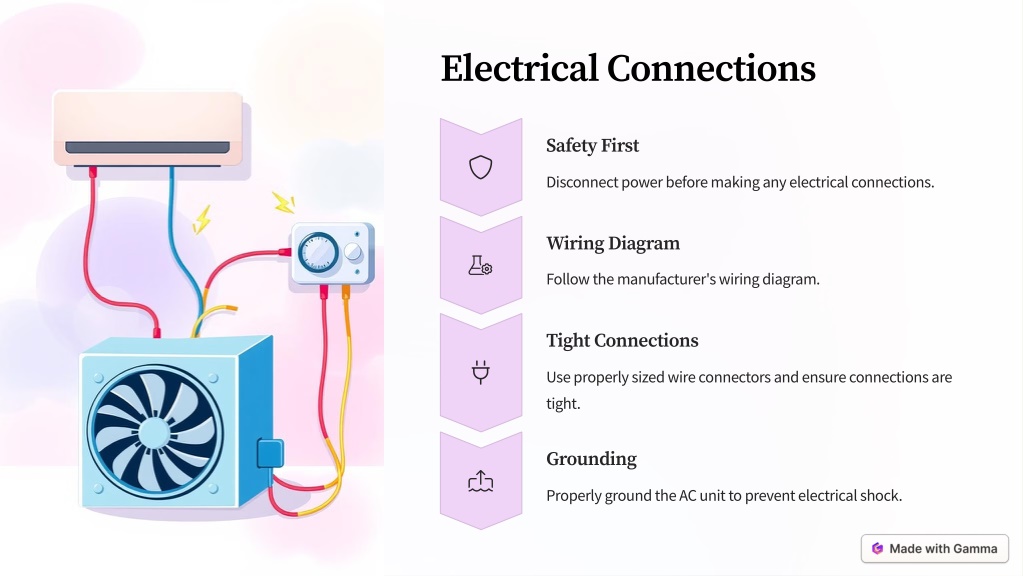

5. Electrical Connections Safety First Disconnect power before making any electrical connections. Wiring Diagram Follow the manufacturer's wiring diagram. Tight Connections Use properly sized wire connectors and ensure connections are tight. Grounding Properly ground the AC unit to prevent electrical shock.

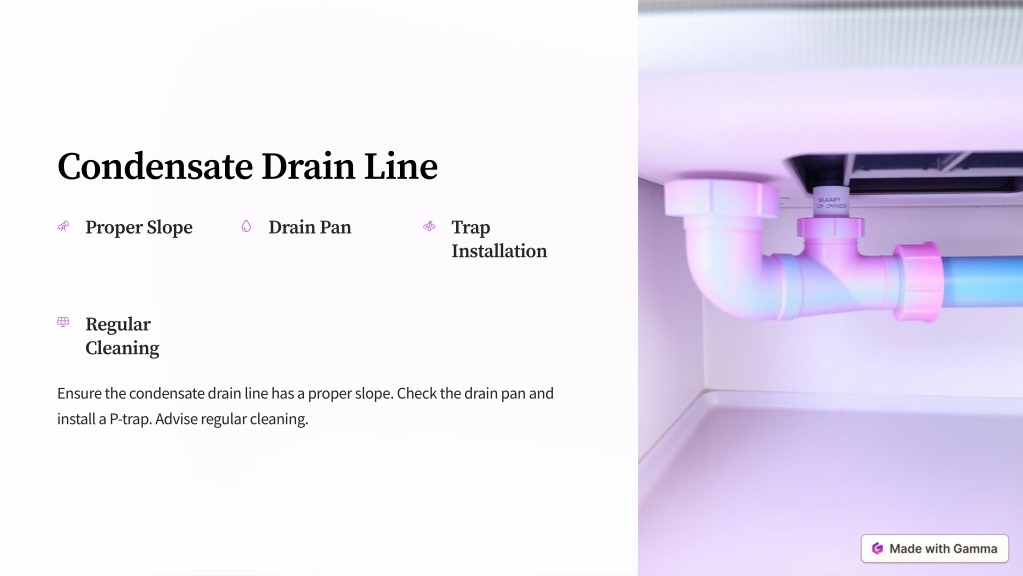

6. Condensate Drain Line Proper Slope Drain Pan Trap Installation Regular Cleaning Ensure the condensate drain line has a proper slope. Check the drain pan and install a P-trap. Advise regular cleaning.

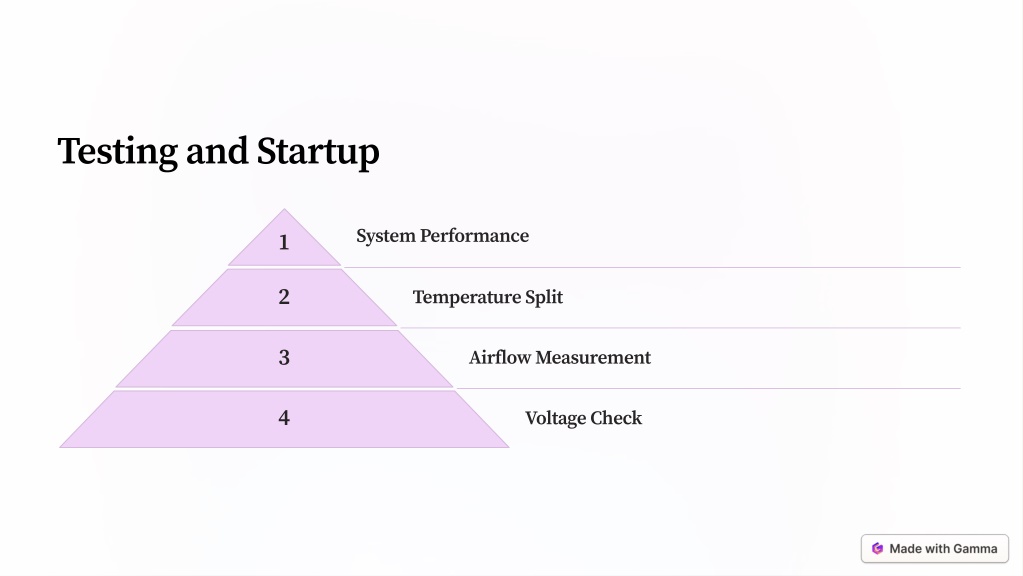

7. Testing and Startup System Performance 1 2 Temperature Split 3 Airflow Measurement 4 Voltage Check

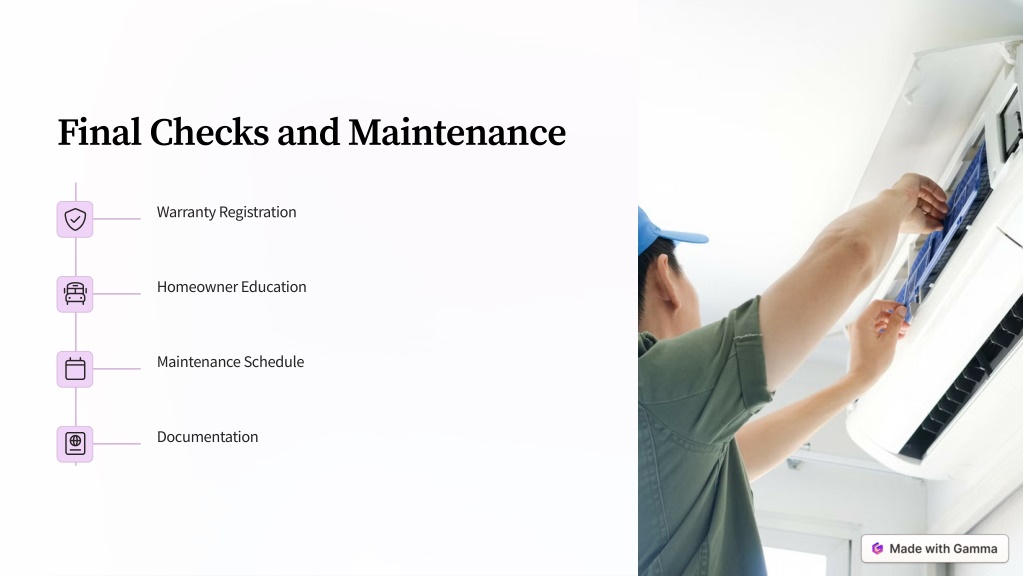

8. Final Checks and Maintenance Warranty Registration Homeowner Education Maintenance Schedule Documentation
