Acme Cable Seals

The Acme CS1 Cable Seals is available in various cable lengths and diameters to suit all requirements. <br>The cable seals lock body is manufactured from die-cast aluminum and non pre-formed galvanized steel<br><br>https://acmeseals.com/cable-seal-cs1/

acme7
Download Presentation

Acme Cable Seals

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

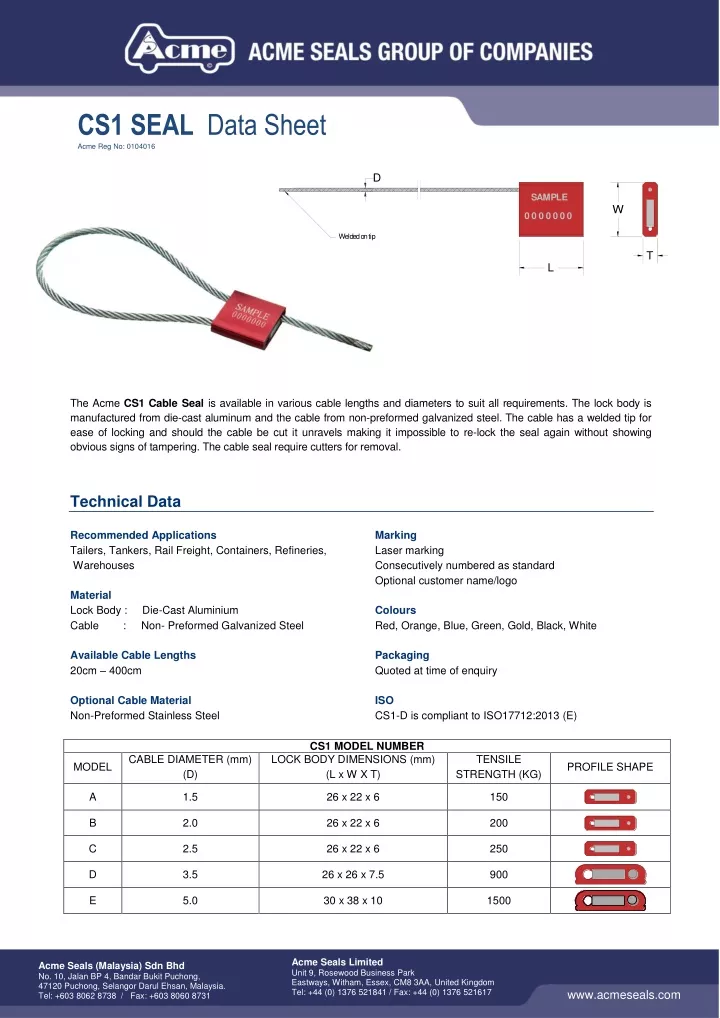

  1. CS1 SEAL Data Sheet Acme Reg No: 0104016 D SAMPLE W 0 0 0 0 0 0 0 Welded on tip T L The Acme CS1Cable Seal is available in various cable lengths and diameters to suit all requirements. The lock body is manufactured from die-cast aluminum and the cable from non-preformed galvanized steel. The cable has a welded tip for ease of locking and should the cable be cut it unravels making it impossible to re-lock the seal again without showing obvious signs of tampering. The cable seal require cutters for removal. Technical Data Recommended Applications Tailers, Tankers, Rail Freight, Containers, Refineries, Warehouses Material Lock Body : Die-Cast Aluminium Cable : Non- Preformed Galvanized Steel Available Cable Lengths 20cm – 400cm Optional Cable Material Non-Preformed Stainless Steel Marking Laser marking Consecutively numbered as standard Optional customer name/logo Colours Red, Orange, Blue, Green, Gold, Black, White Packaging Quoted at time of enquiry ISO CS1-D is compliant to ISO17712:2013 (E) CS1 MODEL NUMBER LOCK BODY DIMENSIONS (mm) (L x W X T) CABLE DIAMETER (mm) (D) TENSILE STRENGTH (KG) MODEL PROFILE SHAPE A 1.5 26 x 22 x 6 150 B 2.0 26 x 22 x 6 200 C 2.5 26 x 22 x 6 250 D 3.5 26 x 26 x 7.5 900 E 5.0 30 x 38 x 10 1500 Acme Seals Limited Unit 9, Rosewood Business Park Eastways, Witham, Essex, CM8 3AA, United Kingdom Tel: +44 (0) 1376 521841 / Fax: +44 (0) 1376 521617 Acme Seals (Malaysia) Sdn Bhd No. 10, Jalan BP 4, Bandar Bukit Puchong, 47120 Puchong, Selangor Darul Ehsan, Malaysia. Tel: +603 8062 8738 / Fax: +603 8060 8731 www.acmeseals.com
