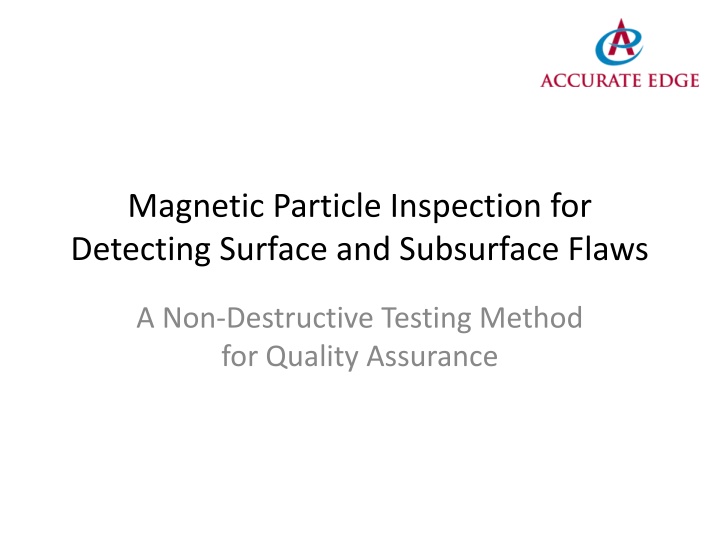

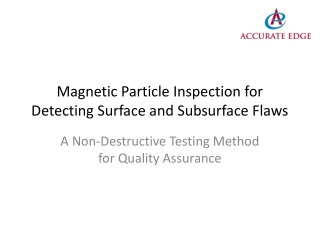

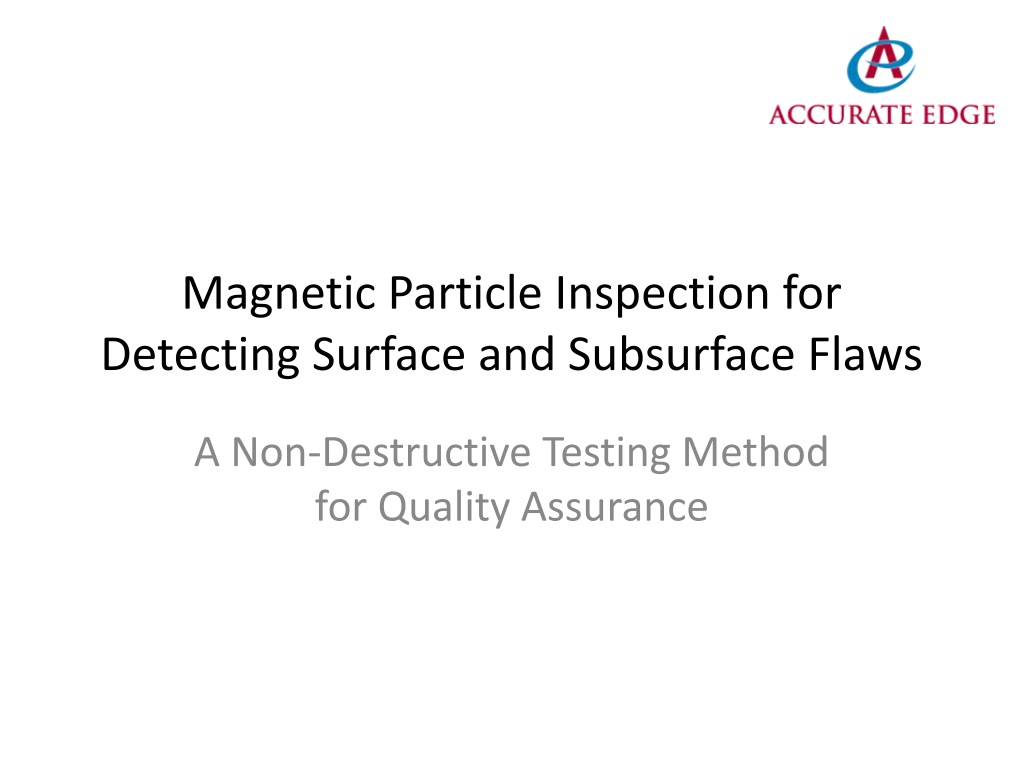

  1. Magnetic Particle Inspection for Detecting Surface and Subsurface Flaws A Non-Destructive Testing Method for Quality Assurance

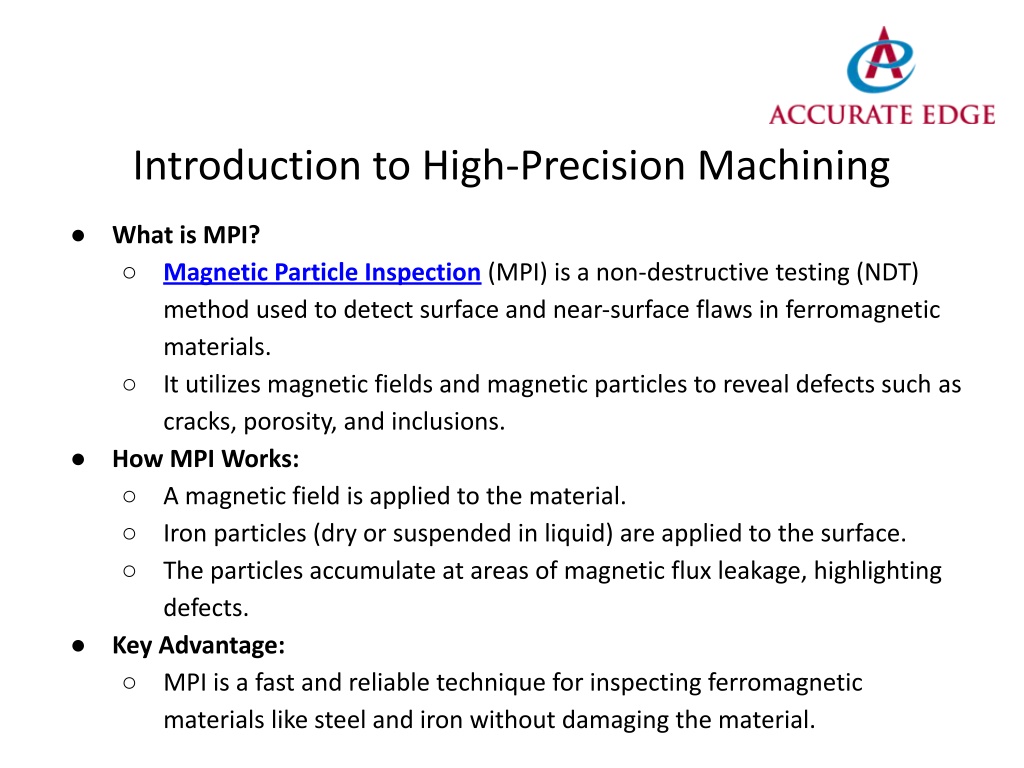

  2. Introduction to High-Precision Machining ● What is MPI? ○ Magnetic Particle Inspection (MPI) is a non-destructive testing (NDT) method used to detect surface and near-surface flaws in ferromagnetic materials. ○ It utilizes magnetic fields and magnetic particles to reveal defects such as cracks, porosity, and inclusions. How MPI Works: ○ A magnetic field is applied to the material. ○ Iron particles (dry or suspended in liquid) are applied to the surface. ○ The particles accumulate at areas of magnetic flux leakage, highlighting defects. Key Advantage: ○ MPI is a fast and reliable technique for inspecting ferromagnetic materials like steel and iron without damaging the material. ● ●

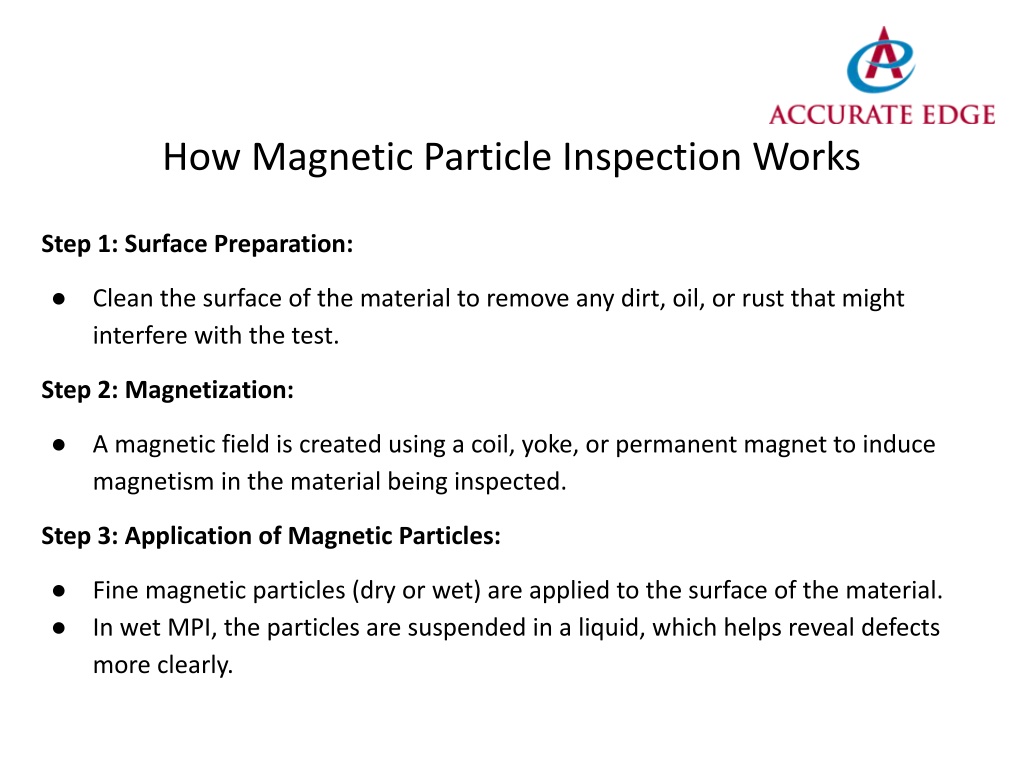

  3. How Magnetic Particle Inspection Works Step 1: Surface Preparation: ● Clean the surface of the material to remove any dirt, oil, or rust that might interfere with the test. Step 2: Magnetization: ● A magnetic field is created using a coil, yoke, or permanent magnet to induce magnetism in the material being inspected. Step 3: Application of Magnetic Particles: ● ● Fine magnetic particles (dry or wet) are applied to the surface of the material. In wet MPI, the particles are suspended in a liquid, which helps reveal defects more clearly.

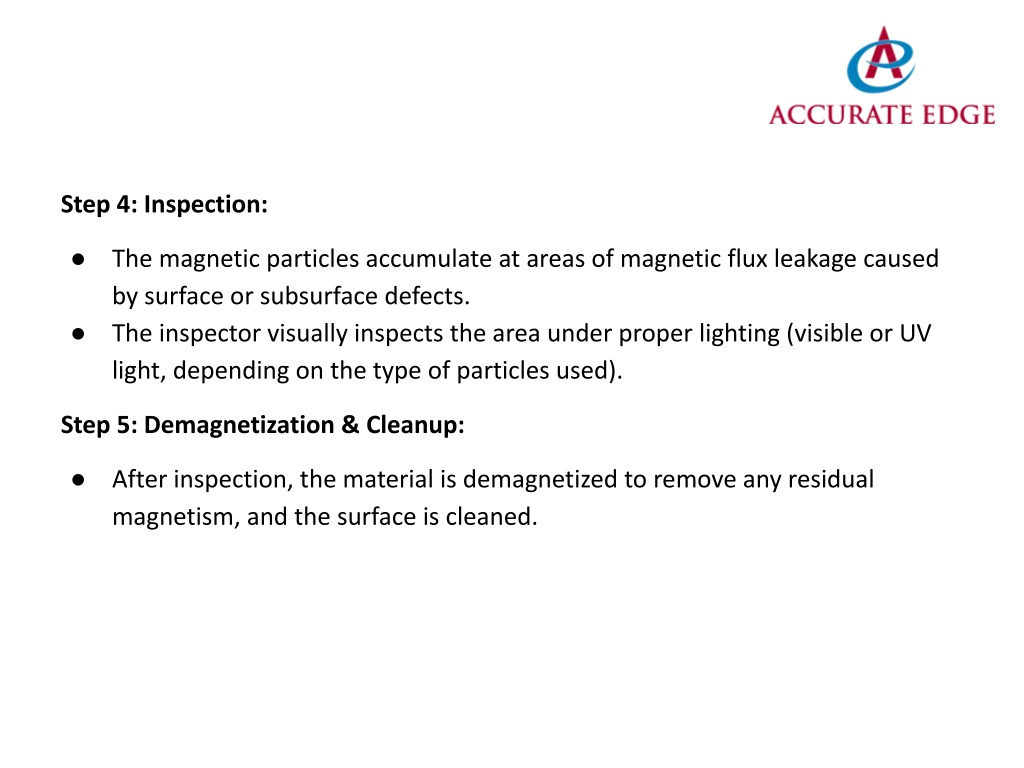

  4. Step 4: Inspection: ● The magnetic particles accumulate at areas of magnetic flux leakage caused by surface or subsurface defects. The inspector visually inspects the area under proper lighting (visible or UV light, depending on the type of particles used). ● Step 5: Demagnetization & Cleanup: ● After inspection, the material is demagnetized to remove any residual magnetism, and the surface is cleaned.

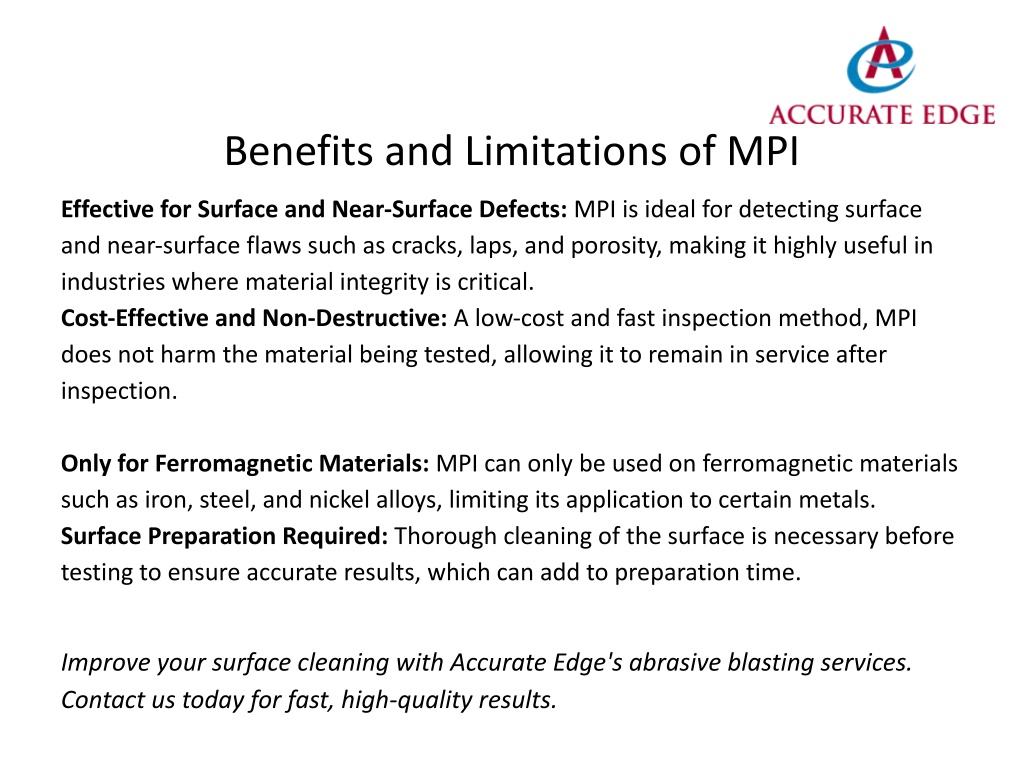

  5. Benefits and Limitations of MPI Effective for Surface and Near-Surface Defects: MPI is ideal for detecting surface and near-surface flaws such as cracks, laps, and porosity, making it highly useful in industries where material integrity is critical. Cost-Effective and Non-Destructive: A low-cost and fast inspection method, MPI does not harm the material being tested, allowing it to remain in service after inspection. Only for Ferromagnetic Materials: MPI can only be used on ferromagnetic materials such as iron, steel, and nickel alloys, limiting its application to certain metals. Surface Preparation Required: Thorough cleaning of the surface is necessary before testing to ensure accurate results, which can add to preparation time. Improve your surface cleaning with Accurate Edge's abrasive blasting services. Contact us today for fast, high-quality results.
