Gyaku(Inverse) Data Base New idea of Emulsion track link to SFT trigger in PEANUT Y.Nonoyama Nagoya Univ.

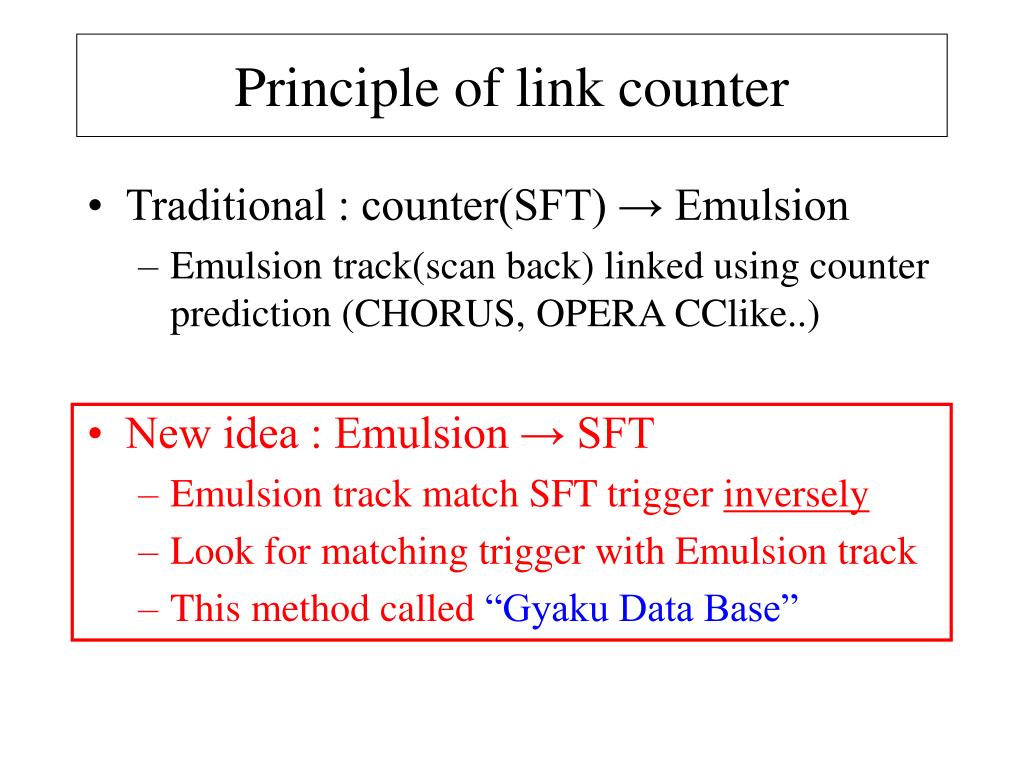

Principle of link counter • Traditional : counter(SFT) → Emulsion • Emulsion track(scan back) linked using counter prediction (CHORUS, OPERA CClike..) • New idea : Emulsion → SFT • Emulsion track match SFT trigger inversely • Look for matching trigger with Emulsion track • This method called “Gyaku Data Base”
Purpose • Counter bias(track reconstructed efficiency..) can be free. • Emulsion track can have time stamp. • Non bias neutrino physics. • Neutrino flux • ne component beam study (NuMI, J-PARC..)

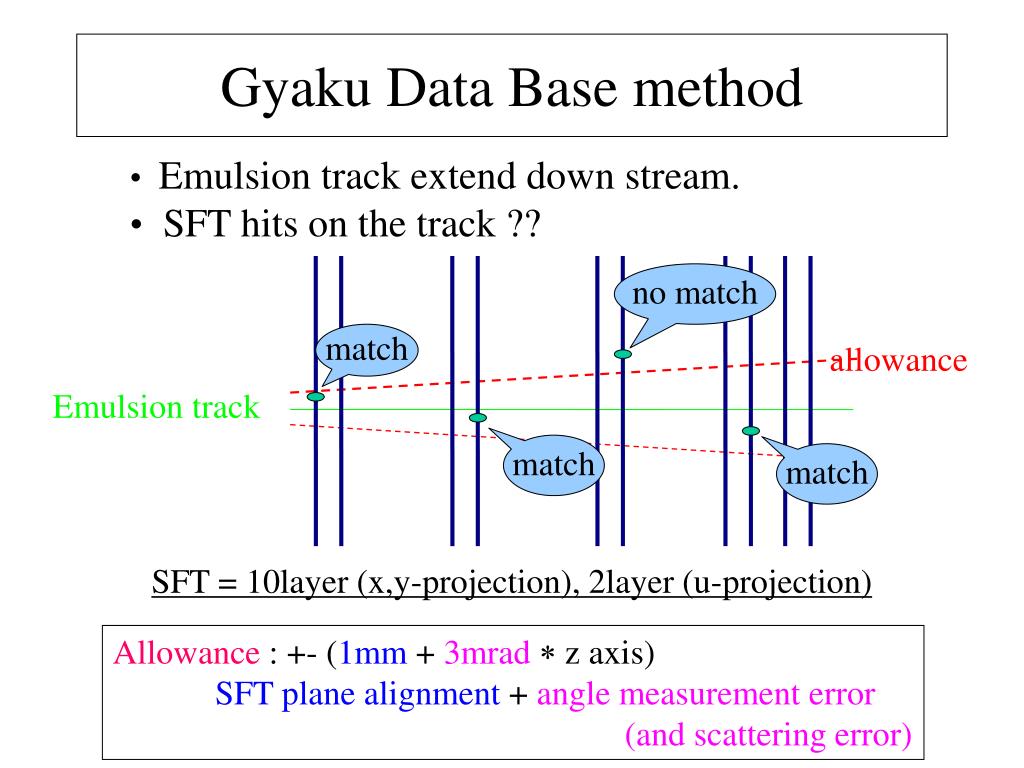

Gyaku Data Base method • Emulsion track extend down stream. • SFT hits on the track ?? no match match allowance Emulsion track match match SFT = 10layer (x,y-projection), 2layer (u-projection) Allowance : +- (1mm + 3mrad * z axis) SFT plane alignment + angle measurement error (and scattering error)

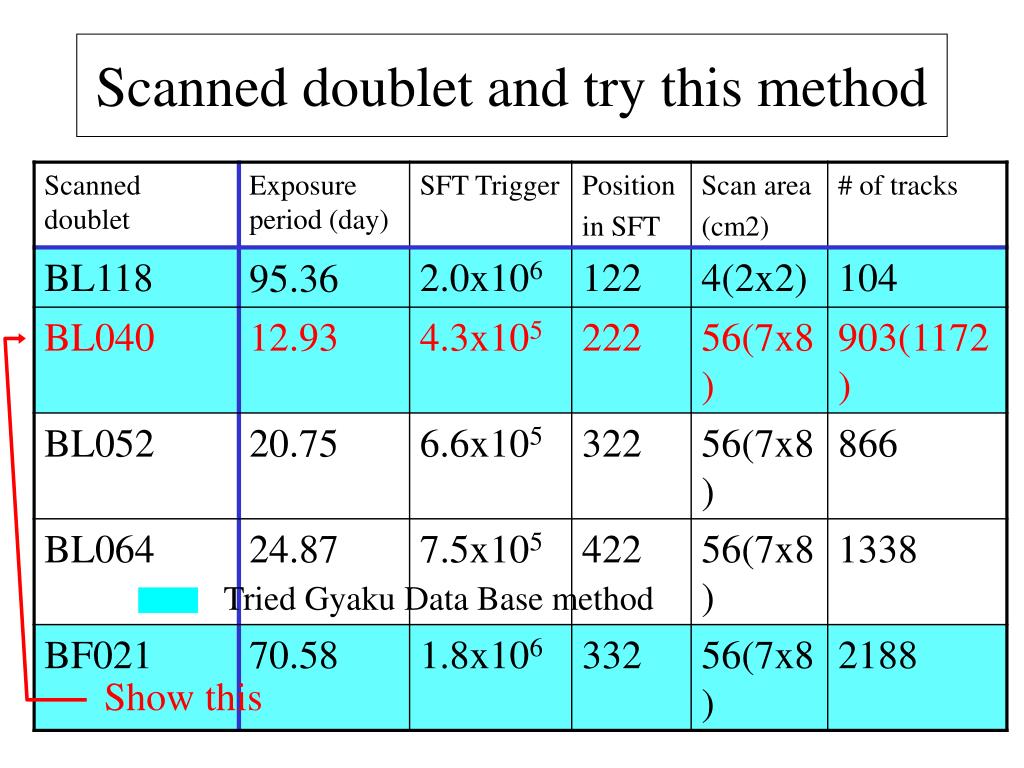

Scanned doublet and try this method Tried Gyaku Data Base method Show this
BL040 903( 269 out of 1172 tracks are different alignment ) Estimation of track origin (scanned area = 56cm2 ) Rock muon : 1*56*4.3x105/4.0x104= 560 n interaction : 3-4*56/125*4.3x105/4.0x104= 15-20 Cosmic ray(for alignment) : 0 (BA+de-pack) : 1hour*56*0.2(|q|<0.4) = 650 MINOS observed value Rock muon event late : 1/cm2/day(4.0x104trigger) n interaction event late : 3-4/brick/day(4.0x104trigger)
Position of BL040 (222) u-projection x-projection y-projection
Demonstration - 1 • Show Gyaku Data Base • 903 track matched with 4.4x105 trigger • Selection 1 • x match layer >=2 & y match layer >= 2 • MEMO • Content of SFT trigger • NULL(no hits) 80% • Rock muon 10% • n interaction 0.1%

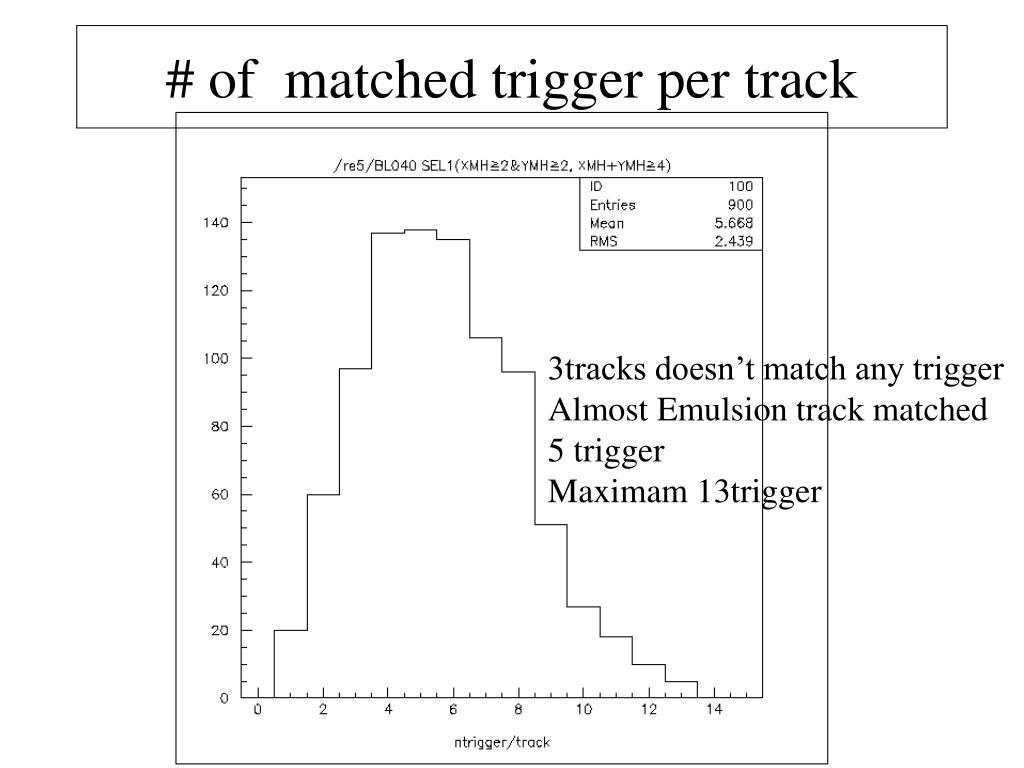

# of matched trigger per track 3tracks doesn’t match any trigger Almost Emulsion track matched 5 trigger Maximam 13trigger

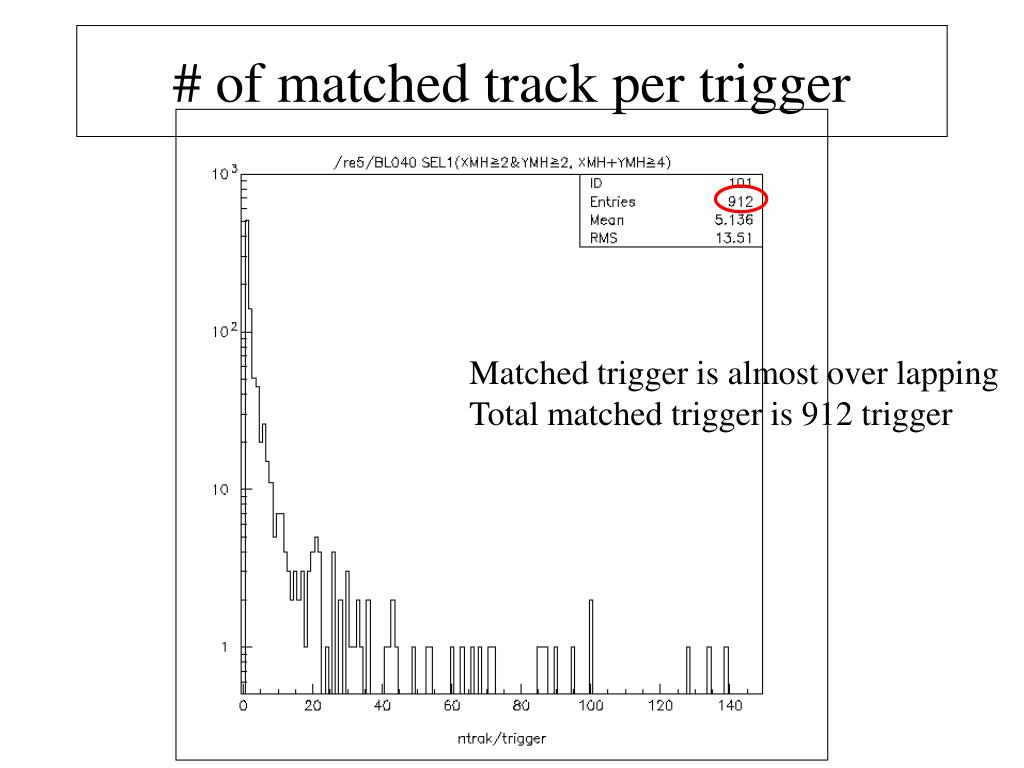

# of matched track per trigger Matched trigger is almost over lapping Total matched trigger is 912 trigger
Demonstration - 2 • I selected by eye-check • Rock muon event • Neutrino interaction event

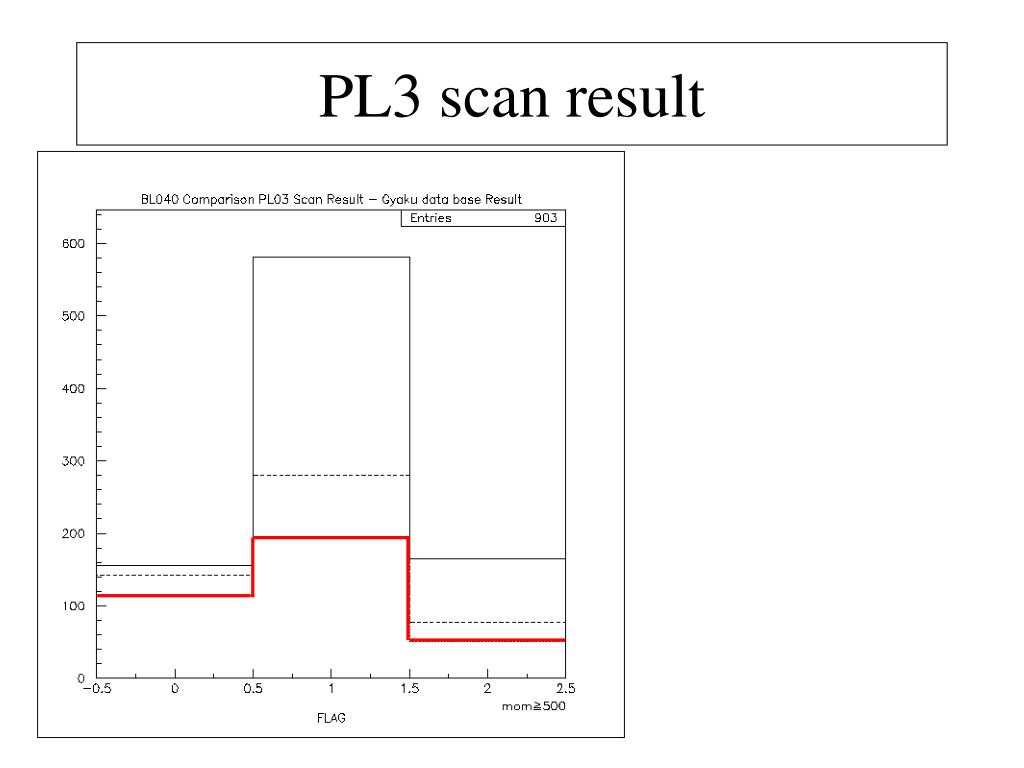

Result • Rock muon event : 156 • Neutrino interaction event : 165(30trigger) • No match any trigger : 582 • Cosmic ray, low energy electron, scattering track..
Summary • Now, I polish this method. • Program, selection parameter.. • Gyaku Data Base method will work. • So non-bias neutrino physics is possible. • And we have 2 future plan to use this method.
Future plan • PEANUT RUN2 • NuMI beam study. • ne contaminate • Change target mass consider beam energy. • We plan to start early next year. • J-PARC • It’s same purpose of PEANUT RUN2 • Set emulsion on T2K near detector (280m) located.
MINOS 実測値 Rock-Muon : 1 / cm^2 / day Neutrino-Int : 3~4 / ECC / day *1宇宙線込み *2 903+269(cosmic) *3鉄ブリック(鉛x0.7) *4宇宙線(BAM+解体) 10/cm^2 PEANUT 検出器 Rock-Muon : 1 / cm^2 / day * A Neutrino-Int : 3~4 / ECC / day * B
